Product Description

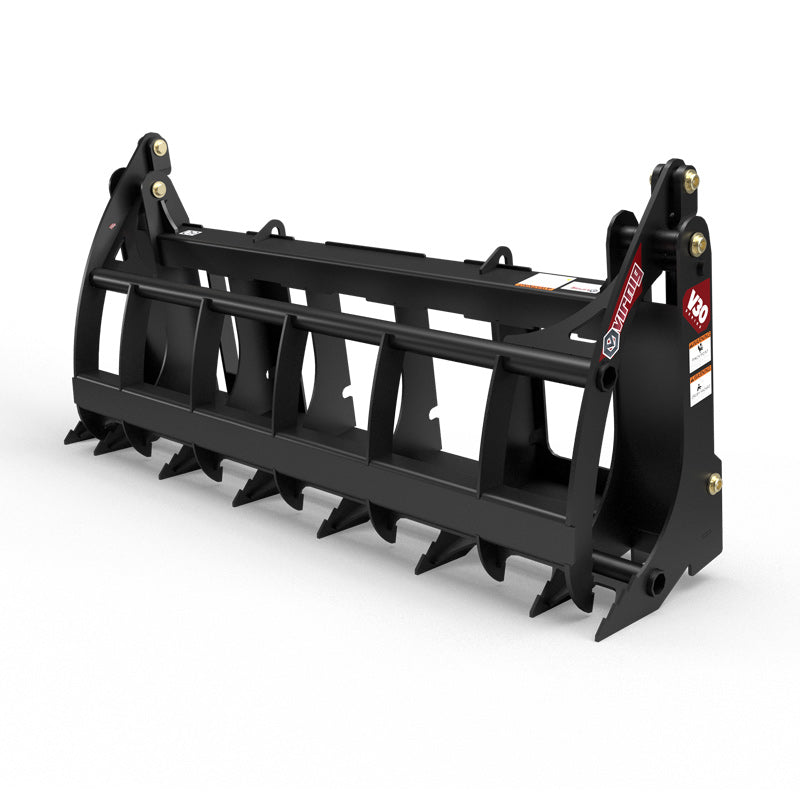

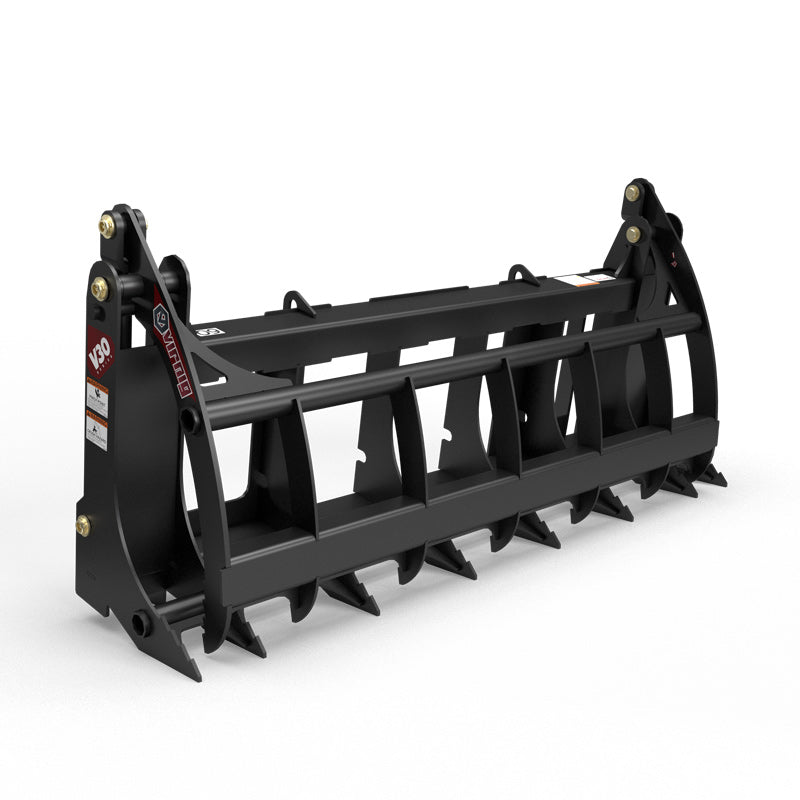

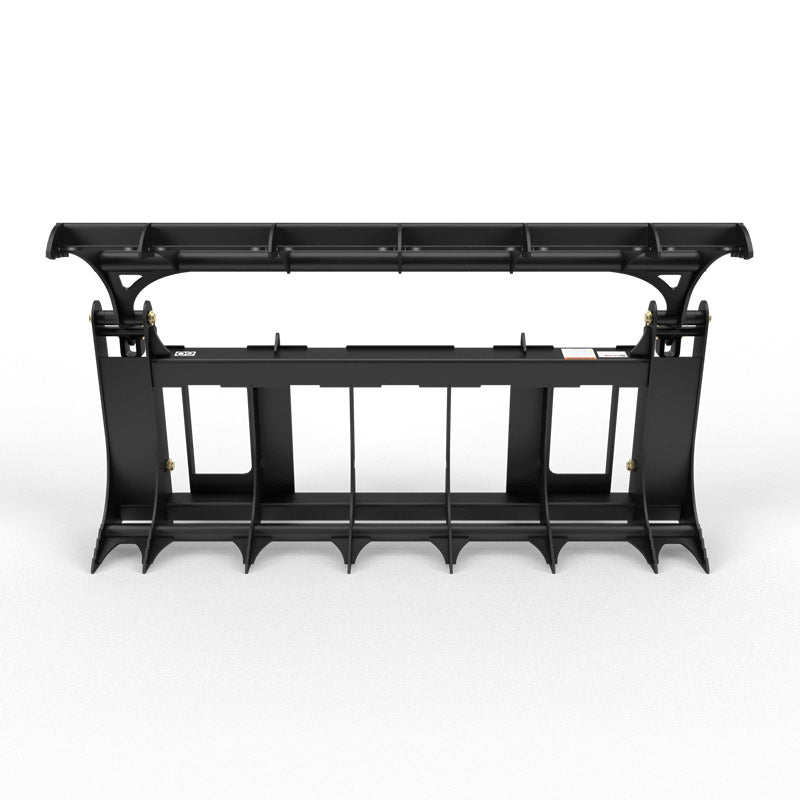

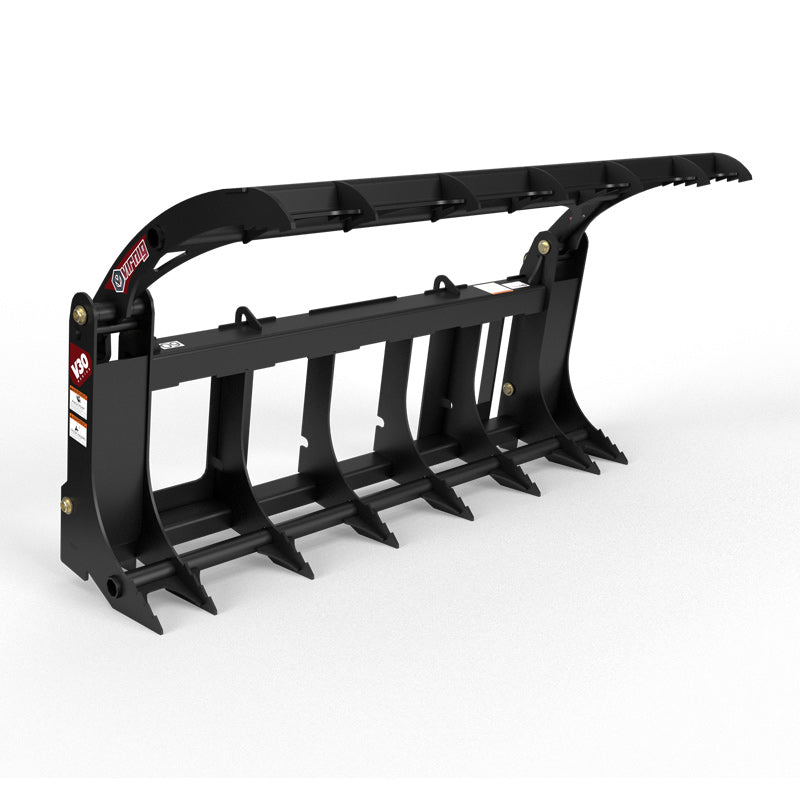

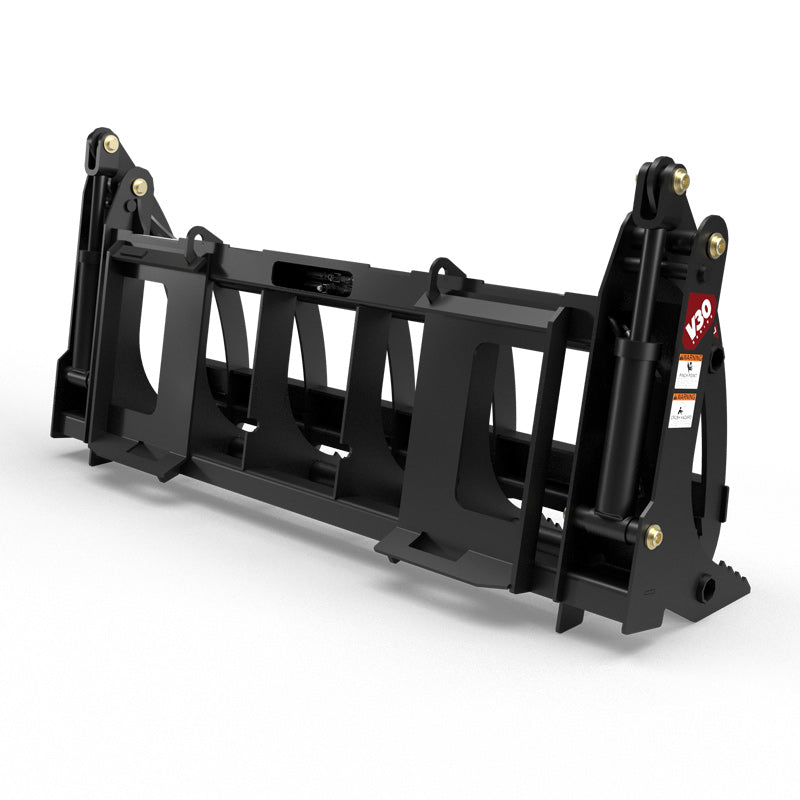

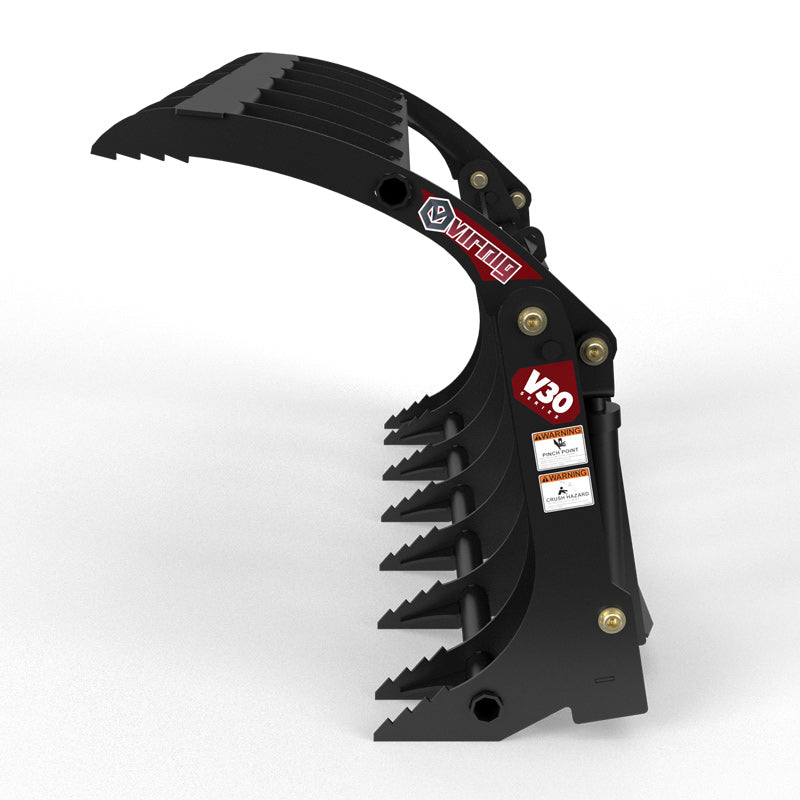

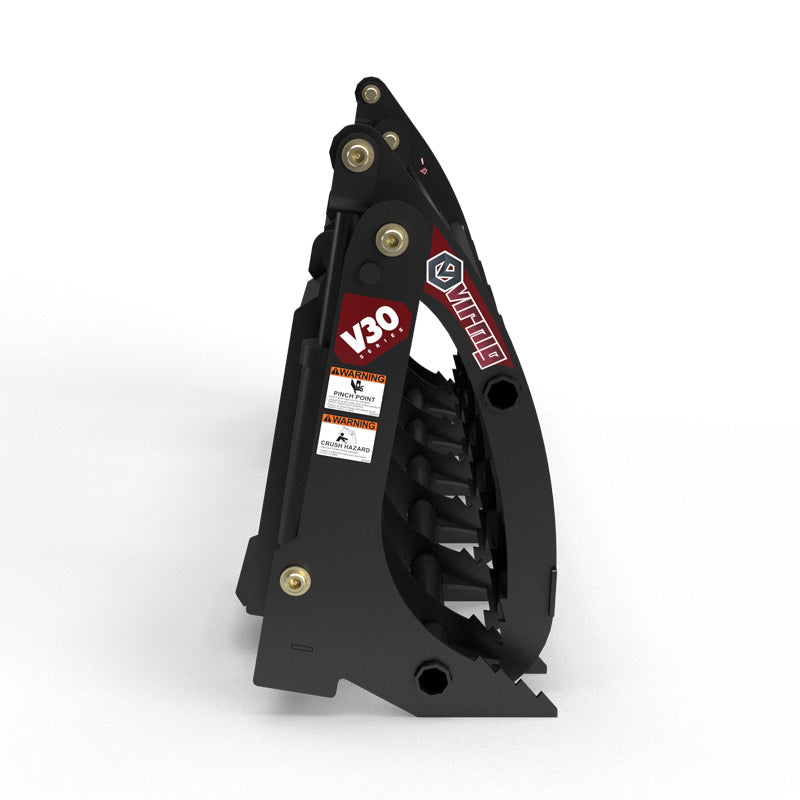

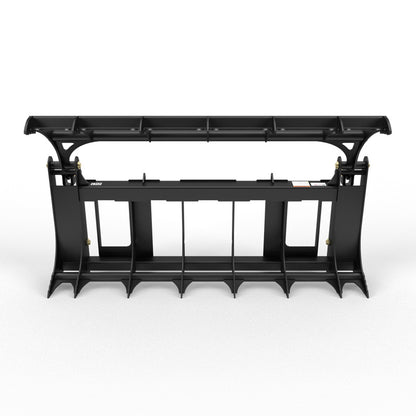

Virnig V30 Compact Tractor Root Rake Grapple | Models URG54-CT, URG60-CT, URG66-CT | Widths 56.5" To 67.5" | Horsepower 25 To 40 HP | For Compact Tractors
DESCRIPTION

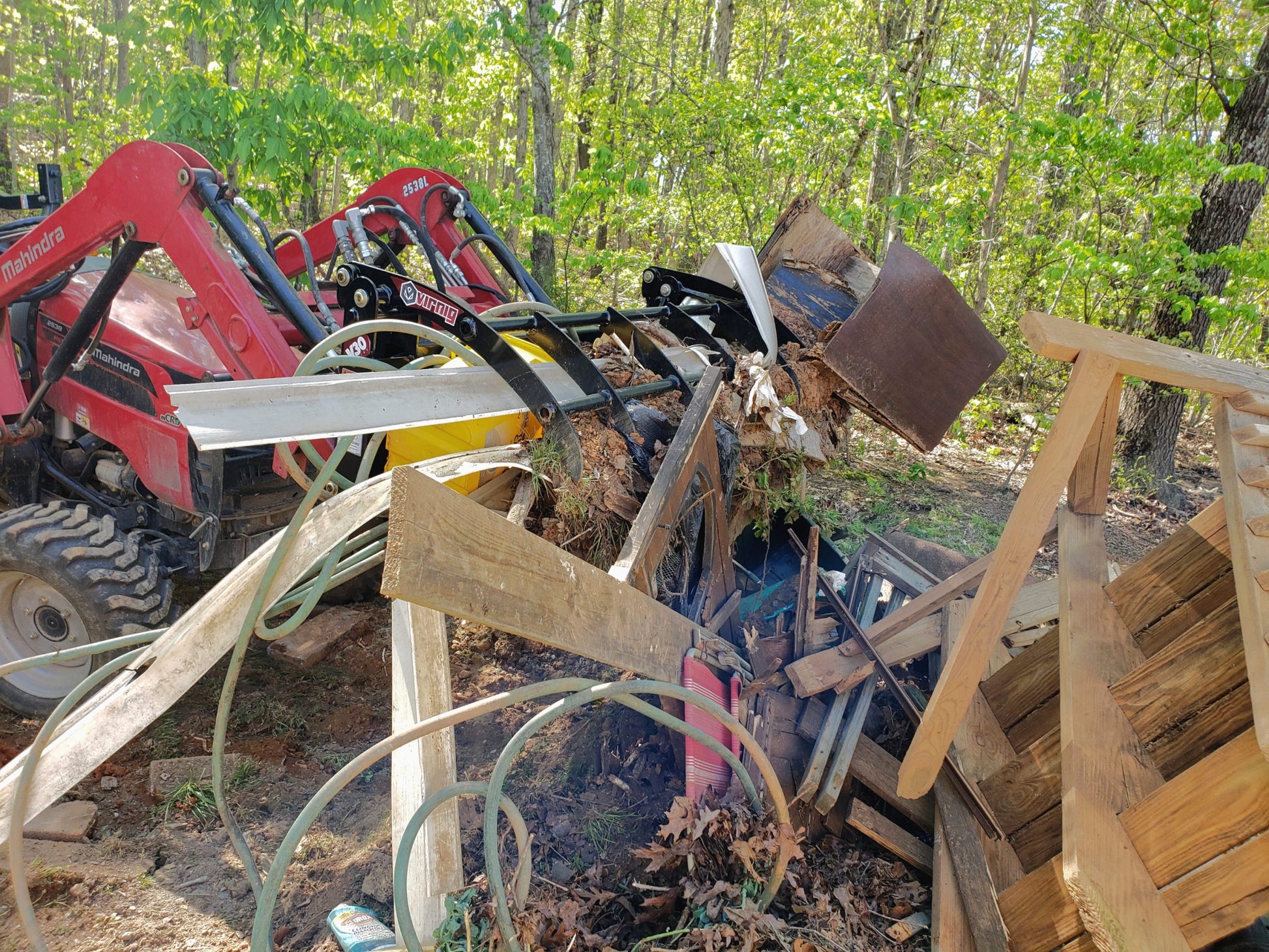

Take your compact tractor’s versatility to the next level with the Virnig V30 Compact Tractor Root Rake Grapple engineered for unmatched durability and performance. Perfect for farmers, landscapers, and property owners who need a reliable attachment to dig, rake, pile, and load brush, this grapple is light enough for compact tractors yet tough enough to handle rigorous tasks.
Every tine is crafted from a single piece of AR400 steel, ensuring maximum rigidity and resistance to bending or breaking. The URG60 and URG66 models are gusseted for extra strength, while NITROSTEEL® cylinder rods and Teflon® coated bushings on all pivots deliver smooth, long-lasting operation. Whether clearing land, managing debris, or maintaining trails, this grapple combines efficiency, durability, and precision in one powerful attachment.
Designed for compact tractors between 25 and 40 horsepower, the V30 Grapple allows you to work smarter, not harder. Its universal skid steer mount ensures compatibility and easy attachment, letting you focus on getting the job done rather than struggling with installation.
Key Features
- Heavy-Duty AR400 Steel Tines Each tine is a single piece of steel for maximum strength and durability.
- Gusseted Design on Larger Models Extra reinforcement on URG60-CT and URG66-CT tines for tough, heavy-duty tasks.
- Smooth Hydraulic Operation NITROSTEEL® cylinder rods and Teflon® coated bushings minimize wear and friction.
- Compact Tractor Compatible Designed for 25–40 HP tractors, perfect for small-scale farming and landscaping.

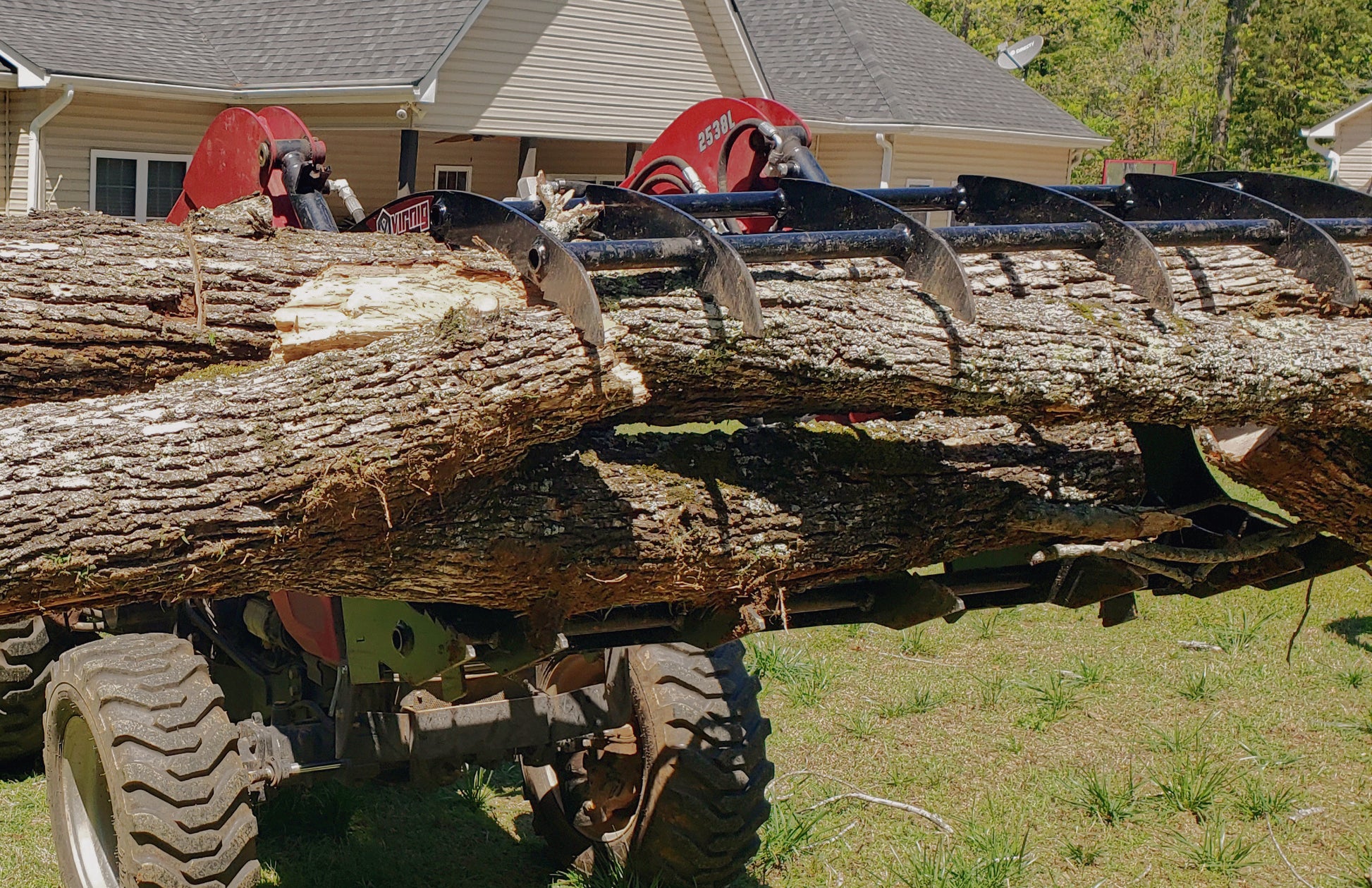

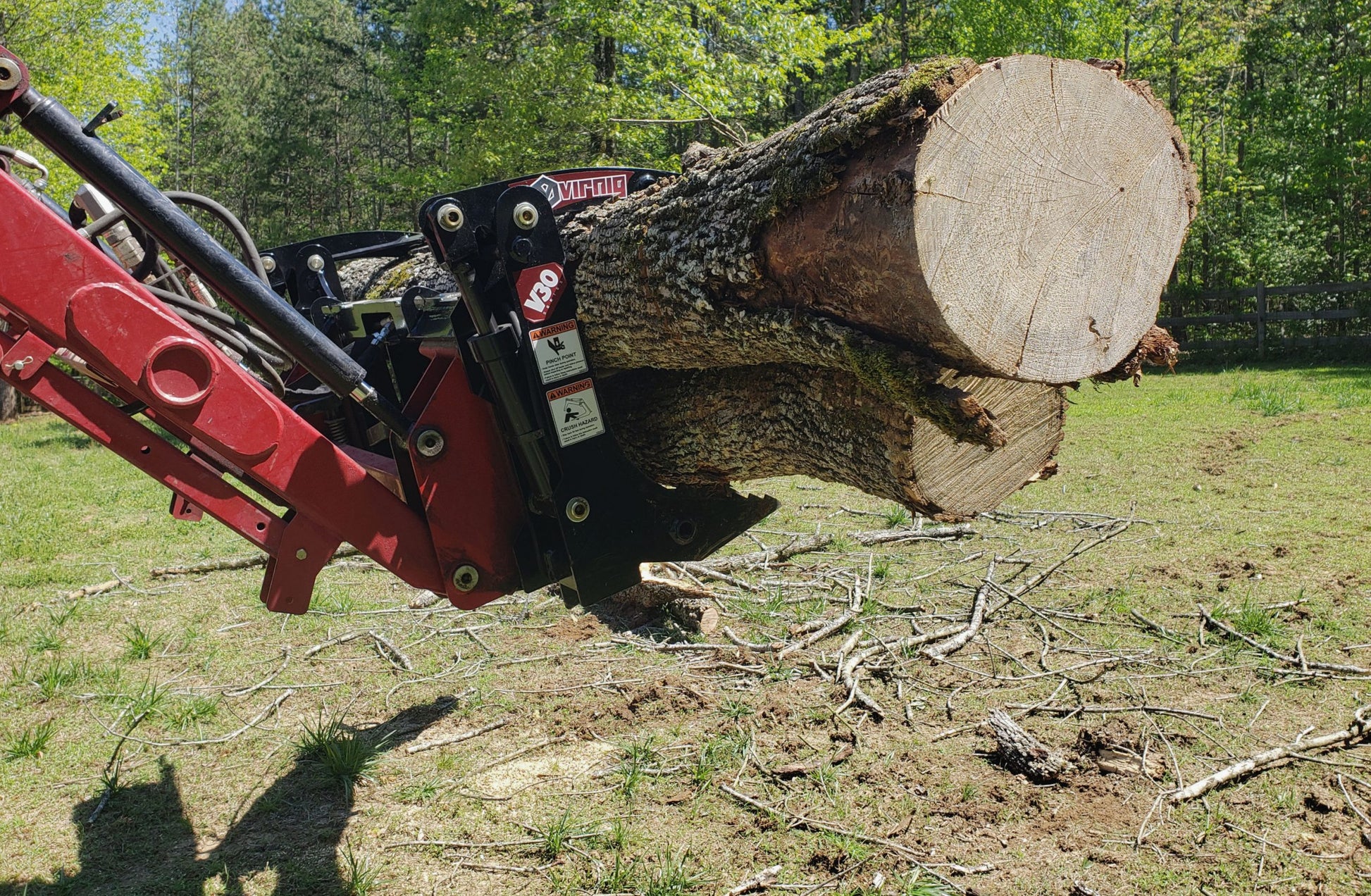

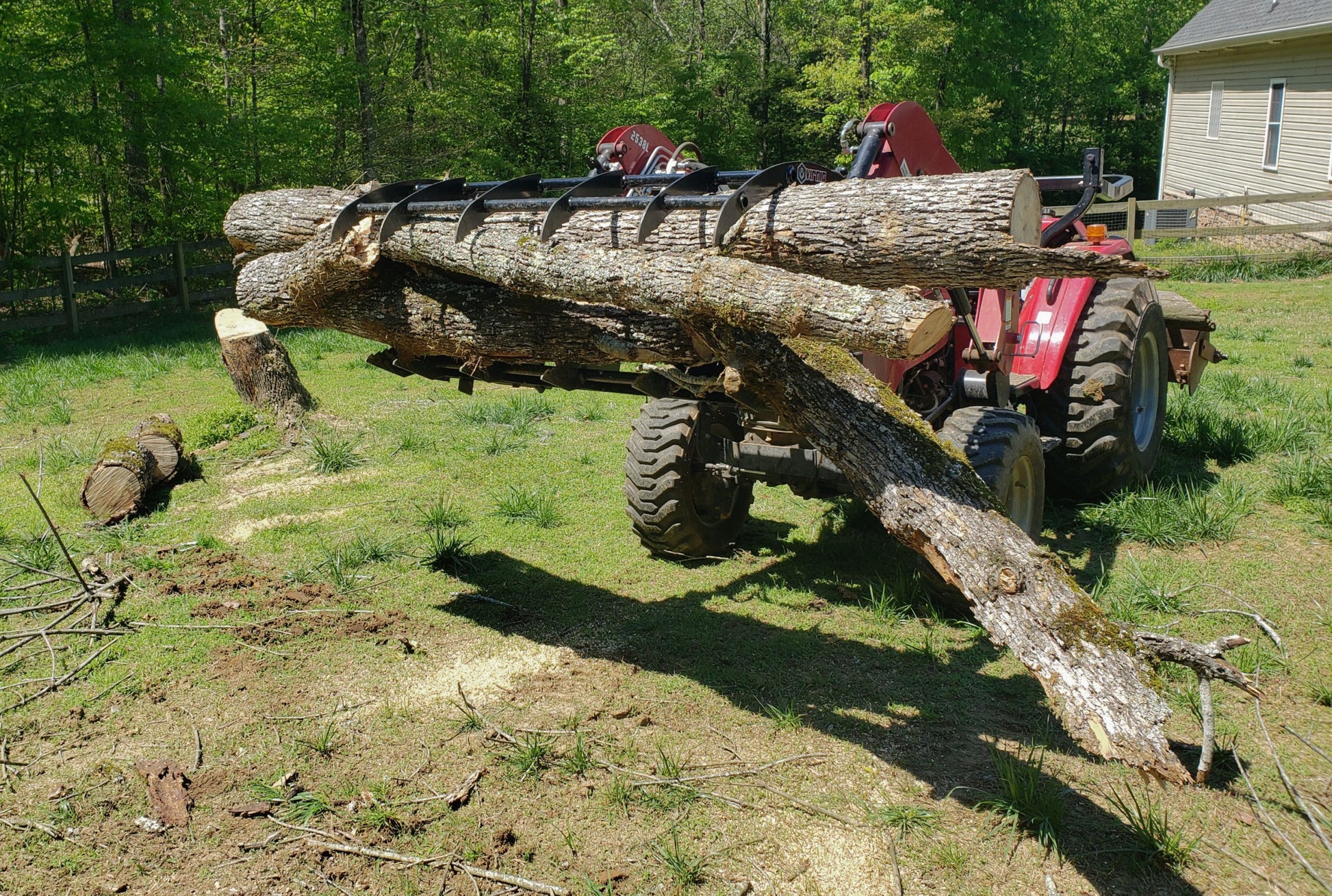

- Versatile Functionality Easily dig, rake, pile, and load brush, rocks, and debris with one attachment.

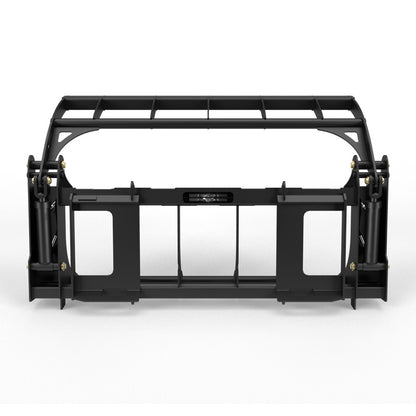

- Universal Skid Steer Mount Quick and simple installation across compatible compact tractors.
- Optimized Grapple Jaw Opening Wide 35.5" jaw opening handles large piles efficiently.
- Adjustable Tine Spacing Precisely engineered spacing between tines and grapple jaws for better control of materials.
- Lightweight Yet Durable Weighs 255–320 lbs depending on model, minimizing strain on compact tractors.
- Compact Dimensions for Maneuverability Ideal for working in tight spaces, trails, and small farms.
- Enhanced Load Management Designed to work with loaders under 1,500 lbs for safe operation.
- Maintenance-Friendly Design Teflon-coated bushings reduce lubrication needs and extend service life.
- Rust & Wear Resistant AR400 plate steel provides long-lasting strength in tough outdoor conditions.
- Precision Engineering Cylinder bore and stroke (2.0"/6.0") ensure smooth and reliable grapple movement.

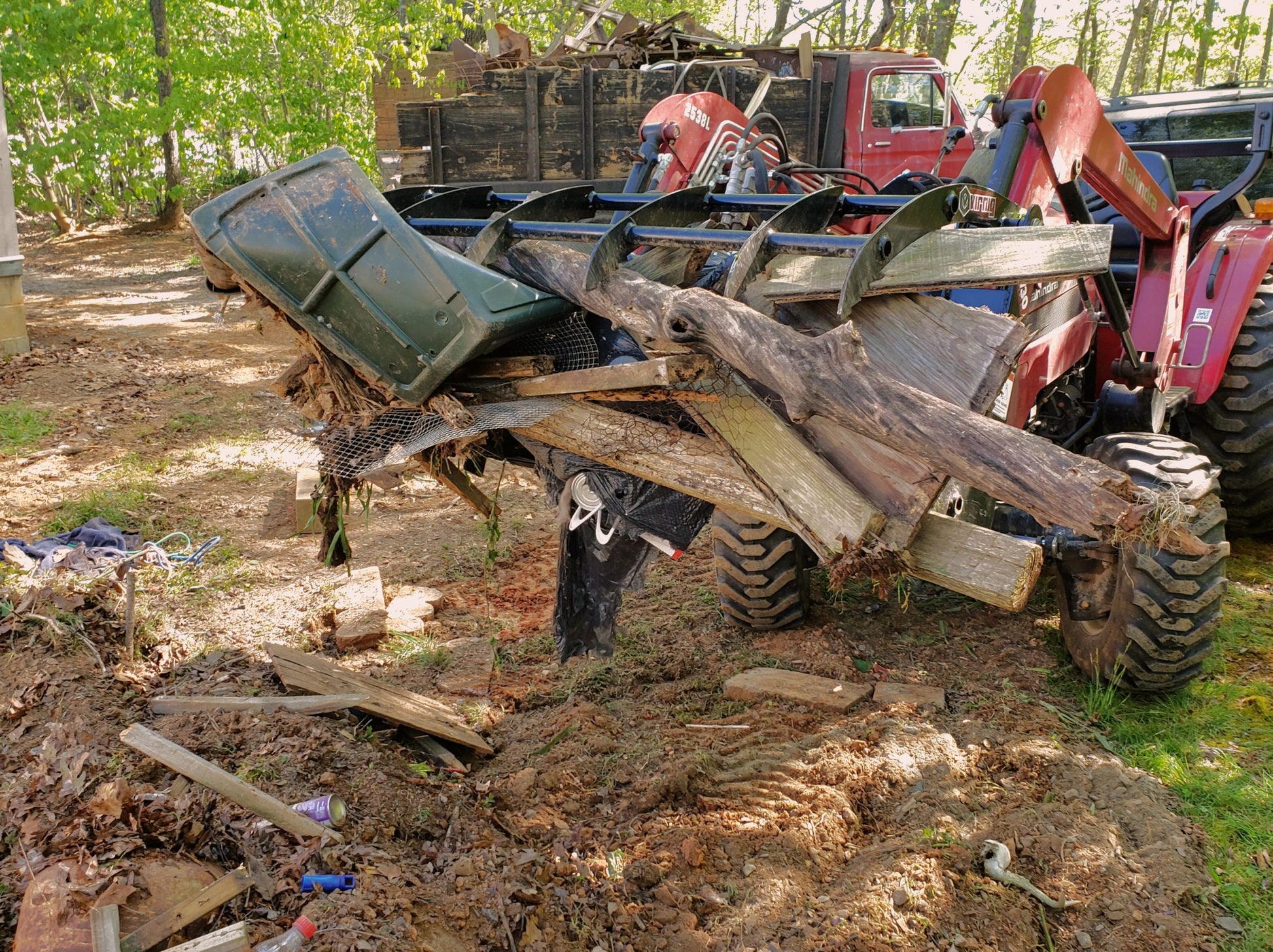

- Perfect for Brush & Debris Clearing Achieve faster land clearing and efficient property management.
Detailed Specifications
| Model | URG54-CT |
|---|---|
| Overall Width (in) | 56.5 |
| Overall Height / Bucket (in) | 27.9 / 24.9 |
| Overall Depth (in) | 16.6 |
| Number of Bottom Tines | 7 |
| Space Between Tines / Bottom (in) | 4.8 / 10.5 |
| Space Between Tines / Grapple Jaws (in) | 7.8 / 11.2 |
| Tine Thickness (in) | 0.25* |
| Cylinder Bore / Stroke (in) | 2.0 / 6.0 |
| Cylinder Pins / Hinge Pins Diameter (in) | 1.0 |
| Grapple Jaw Opening (in) | 35.5 |
| Approximate Weight (lbs) | 255 |
| Recommended Loader Capacity (lbs) | <1,500 |
| Tractor Horsepower (HP) | 25–40 |
| Material | AR400 Steel Plate |
| Model | URG60-CT |
|---|---|
| Overall Width (in) | 61.5 |
| Overall Height / Bucket (in) | 27.9 / 24.9 |
| Overall Depth (in) | 16.6 |
| Number of Bottom Tines | 8 |
| Space Between Tines / Bottom (in) | 4.8 / 9.8 |
| Space Between Tines / Grapple Jaws (in) | 7.3 / 9.8 |
| Tine Thickness (in) | 0.25* |
| Cylinder Bore / Stroke (in) | 2.0 / 6.0 |
| Cylinder Pins / Hinge Pins Diameter (in) | 1.0 |
| Grapple Jaw Opening (in) | 35.5 |
| Approximate Weight (lbs) | 300 |
| Recommended Loader Capacity (lbs) | <1,500 |
| Tractor Horsepower (HP) | 25–40 |
| Material | AR400 Steel Plate |
| Model | URG66-CT |
|---|---|
| Overall Width (in) | 67.5 |
| Overall Height / Bucket (in) | 27.9 / 24.9 |
| Overall Depth (in) | 16.6 |
| Number of Bottom Tines | 9 |
| Space Between Tines / Bottom (in) | 4.8 / 9.1 |
| Space Between Tines / Grapple Jaws (in) | 7.0 / 9.2 |
| Tine Thickness (in) | 0.25* |
| Cylinder Bore / Stroke (in) | 2.0 / 6.0 |
| Cylinder Pins / Hinge Pins Diameter (in) | 1.0 |
| Grapple Jaw Opening (in) | 35.5 |
| Approximate Weight (lbs) | 320 |
| Recommended Loader Capacity (lbs) | <1,500 |
| Tractor Horsepower (HP) | 25–40 |
| Material | AR400 Steel Plate |
