Virnig V30 Compact Tractor Skeleton Grapple | Models SGV48-CT To SGV72-CT | Widths 48" To 74" | Horsepower 25 To 50 HP | For Compact Tractors
DESCRIPTION

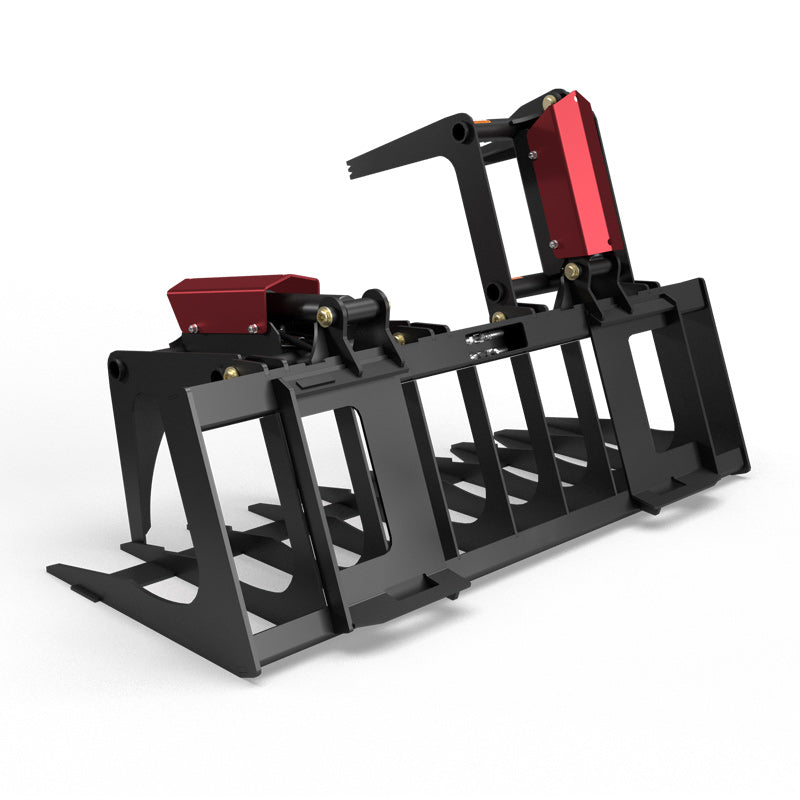

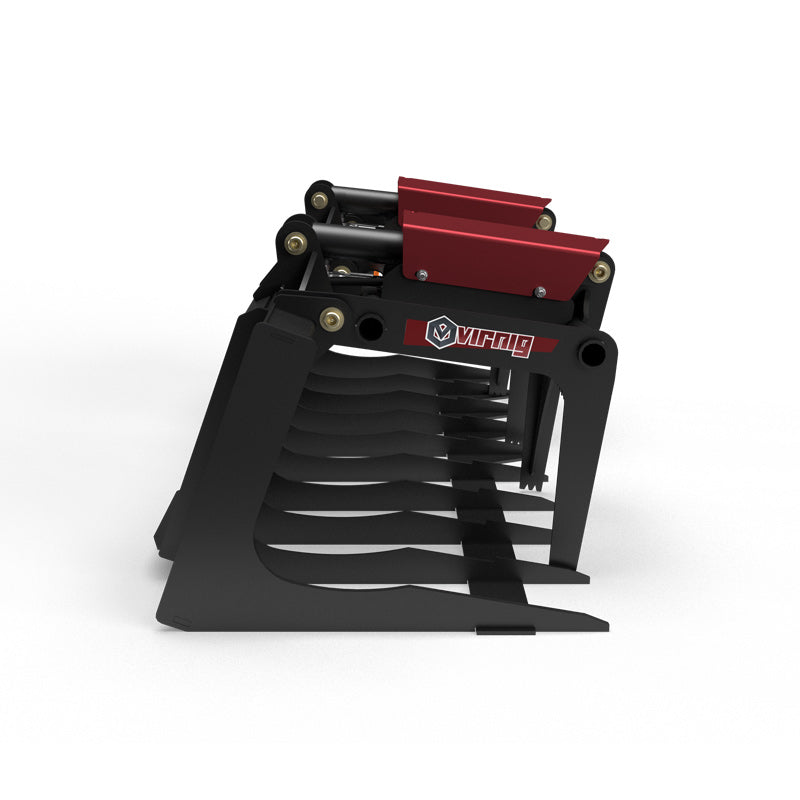

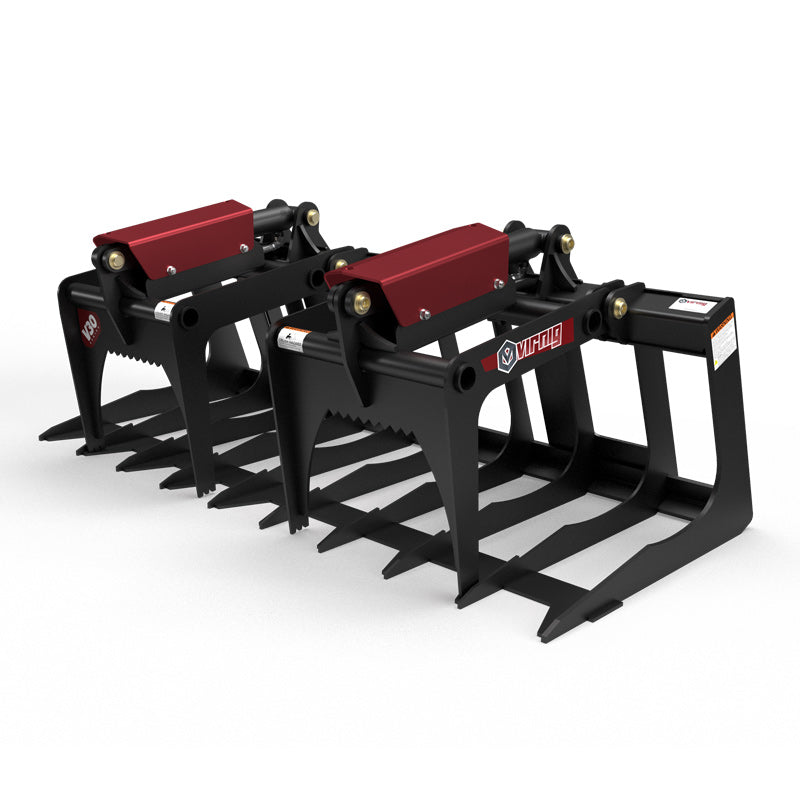

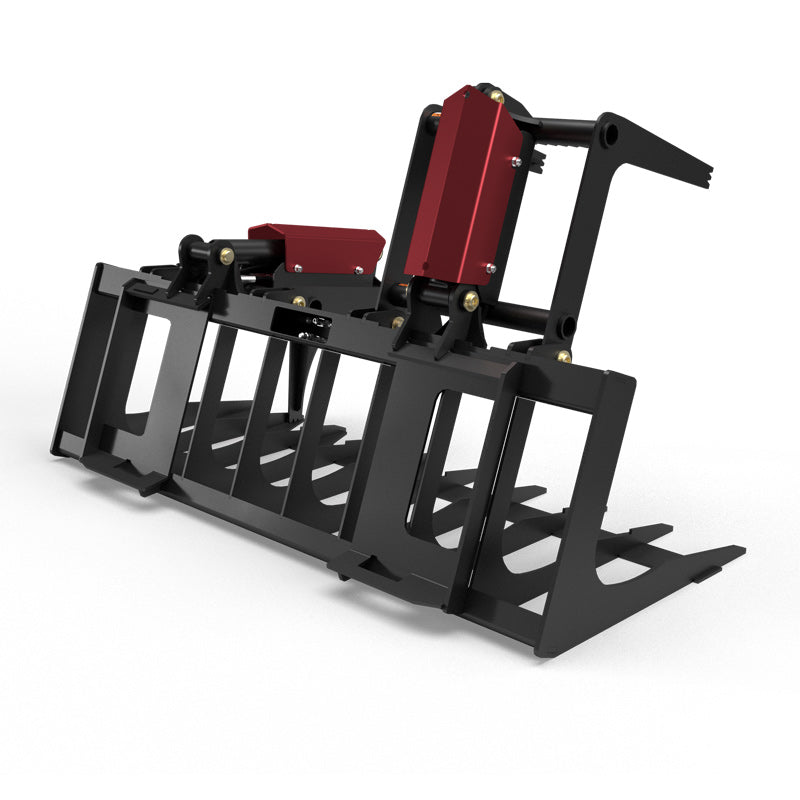

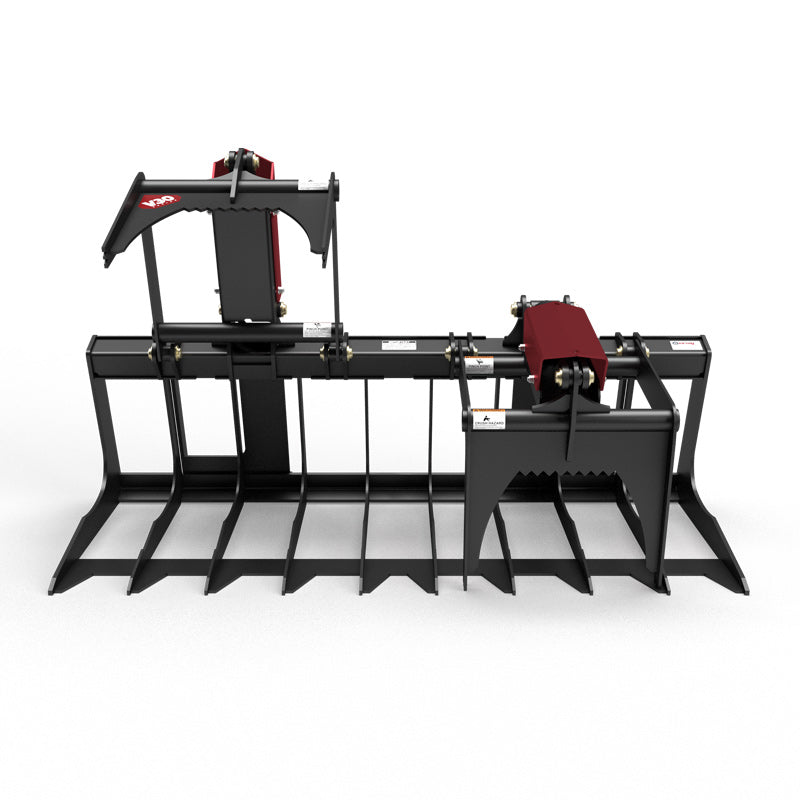

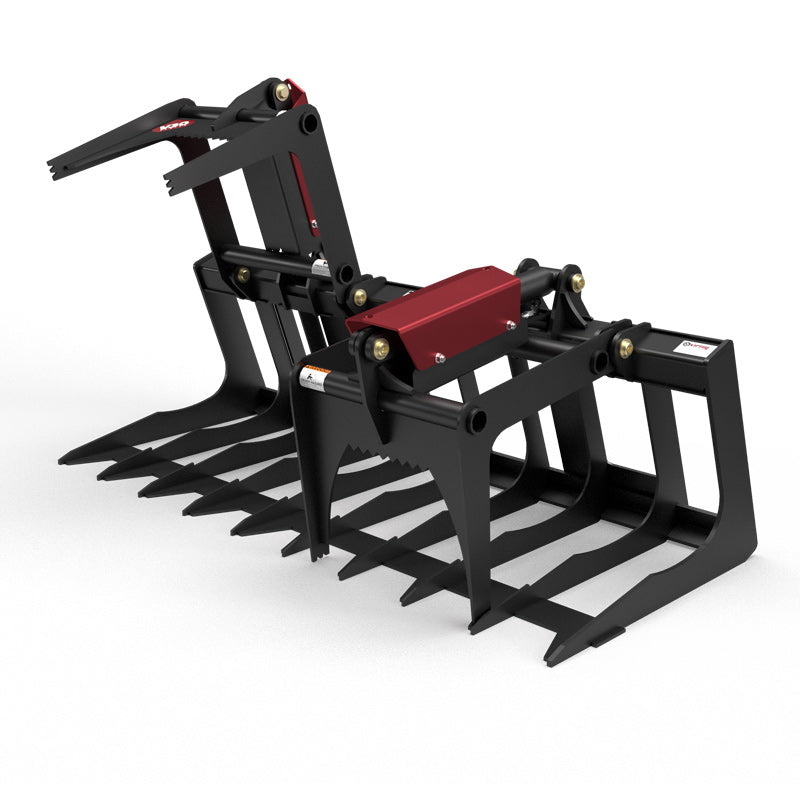

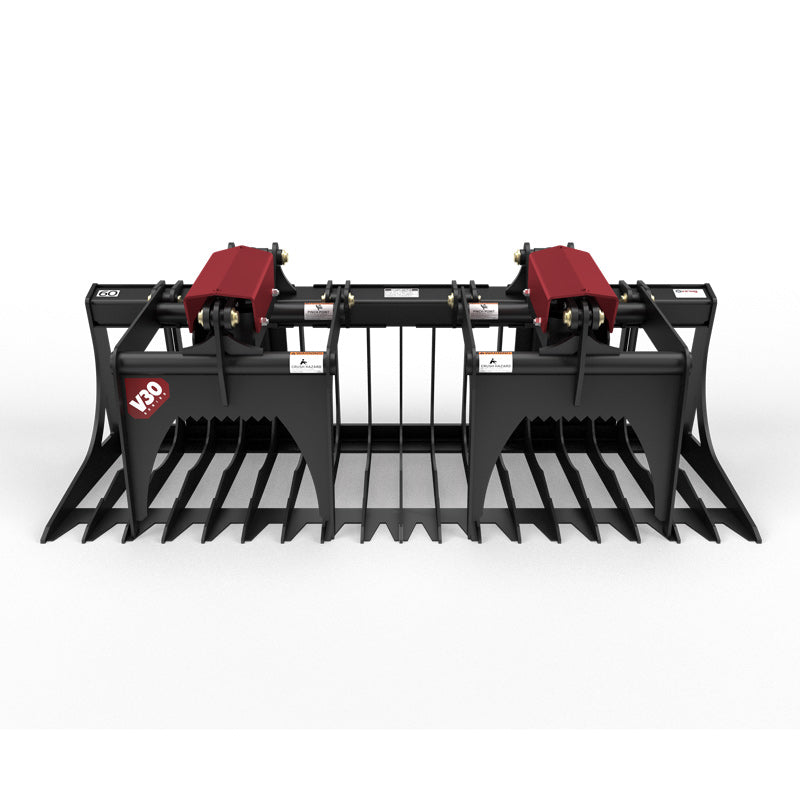

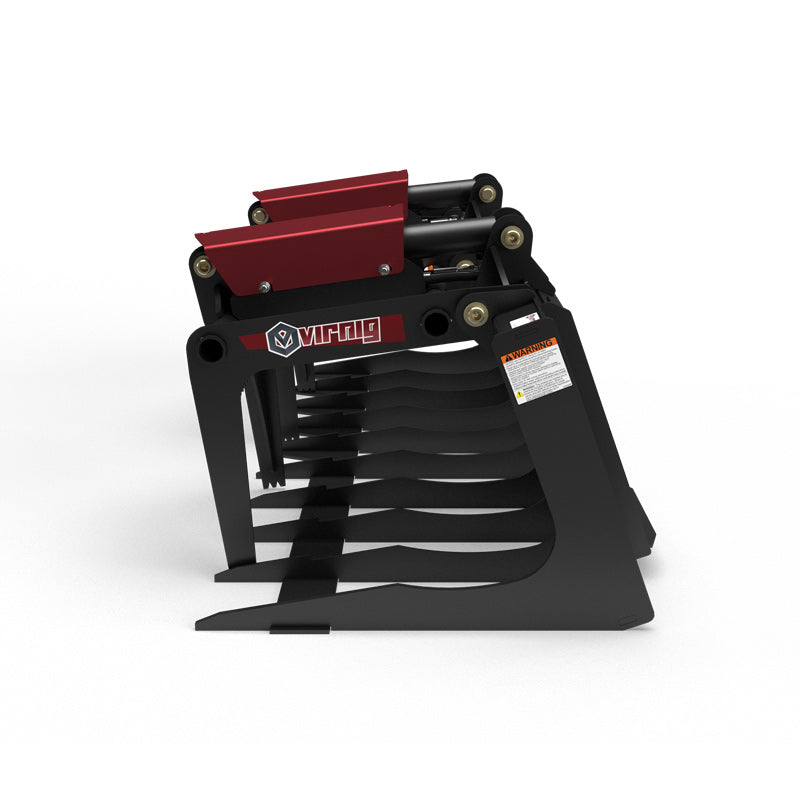

Maximize your compact tractor’s versatility with the Virnig V30 Compact Tractor Skeleton Grapple, the ultimate tool for handling brush, logs, and debris with unmatched precision and durability. Designed for compact tractors with 25 to 50 horsepower, this grapple delivers exceptional performance in tight spaces, making it ideal for landscapers, farmers, and property maintenance professionals.
Every tine is crafted from a single piece of high-strength steel, providing maximum rigidity for heavy-duty hauling. The open-bottom design allows dirt and small debris to fall through, so you only move the material you want. NITROSTEEL® cylinder rods combined with Teflon®-coated bushings ensure smooth operation and long-lasting reliability, while optional cylinder guards offer added protection in rough conditions.
Whether you’re clearing land, moving logs, or loading brush, the V30 Skeleton Grapple transforms your compact tractor into a powerhouse attachment, combining strength, efficiency, and precision in every lift. Its universal skid steer mount guarantees simple installation across most compatible tractors.
Key Features
- High-Strength Tines: Each tine is made from one solid piece of steel for maximum rigidity and durability.
- Universal Mounting: Compatible with most compact tractors, ensuring fast and secure attachment.
- Open-Bottom Design: Allows dirt and debris to fall through, reducing unnecessary weight and cleanup.
- NITROSTEEL® Cylinders: Premium-grade rods provide long-lasting, corrosion-resistant performance.
- Teflon®-Coated Bushings: Ensure smooth hinge operation under heavy loads.
- Optional Cylinder Guards: Extra protection in rugged conditions, extending the lifespan of your grapple.
- Multiple Widths: Available in 48", 54", 61", 67", and 74" for small to large tractors.
- Heavy-Duty Construction: Grade 50 steel with 50,000 PSI minimum yield strength for tough applications.
- Precision Grapple Jaw: 28.7" jaw opening ensures secure grabbing and lifting.
- Lightweight Yet Strong: Weighs only 290–350 lbs, minimizing tractor load stress.
- Perfect for Brush & Logs: Ideal for landscapers, farmers, and property maintenance.
- Recommended for 25–50 HP Tractors: Optimized for compact tractor power ranges.
- Smooth Cylinder Operation: 2" bore with 6" stroke cylinders provide controlled movement.
- Efficient Loader Capacity: Designed for tractors under 1,500 lbs of loader capacity.
- Easy Maintenance: Simple design with accessible pins and bushings reduces downtime.
Detailed Specifications
| Specification | SGV48-CT | SGV54-CT |
|---|---|---|
| Overall Width (in) | 47.9 | 54.3 |
| Height: Overall / Bucket (in) | 22.9 / 19.0 | 22.9 / 19.0 |
| Depth: Overall / Inside (in) | 29.0 / 23.5 | 29.0 / 23.5 |
| Number of Tines | 8 | 9 |
| Space Between Tines (in) | 6.4 | 6.4 |
| Tine Thickness (in) | 0.25 | 0.25 |
| Side Plate Thickness (in) | 0.375 | 0.375 |
| Cylinder Bore / Stroke (in) | 2.0 / 6.0 | 2.0 / 6.0 |
| Cylinder / Hinge Pins Diameter (in) | 1.0 | 1.0 |
| Grapple Jaw Opening (in) | 28.7 | 28.7 |
| Approx. Weight (lbs) | 290 | 305 |
| Recommended Loader Capacity (lbs) | <1500 | <1500 |
| Compatible Tractor HP | 25–50 | 25–50 |
| Specification | SGV60-CT | SGV66-CT |
|---|---|---|
| Overall Width (in) | 60.9 | 67.5 |
| Height: Overall / Bucket (in) | 22.9 / 19.0 | 22.9 / 19.0 |
| Depth: Overall / Inside (in) | 29.0 / 23.5 | 29.0 / 23.5 |
| Number of Tines | 10 | 11 |
| Space Between Tines (in) | 6.4 | 6.4 |
| Tine Thickness (in) | 0.25 | 0.25 |
| Side Plate Thickness (in) | 0.375 | 0.375 |
| Cylinder Bore / Stroke (in) | 2.0 / 6.0 | 2.0 / 6.0 |
| Cylinder / Hinge Pins Diameter (in) | 1.0 | 1.0 |
| Grapple Jaw Opening (in) | 28.7 | 28.7 |
| Approx. Weight (lbs) | 320 | 335 |
| Recommended Loader Capacity (lbs) | <1500 | <1500 |
| Compatible Tractor HP | 25–50 | 25–50 |
| Specification | SGV72-CT |
|---|---|
| Overall Width (in) | 74.1 |
| Height: Overall / Bucket (in) | 22.9 / 19.0 |
| Depth: Overall / Inside (in) | 29.0 / 23.5 |
| Number of Tines | 12 |
| Space Between Tines (in) | 6.4 |
| Tine Thickness (in) | 0.25 |
| Side Plate Thickness (in) | 0.375 |
| Cylinder Bore / Stroke (in) | 2.0 / 6.0 |
| Cylinder / Hinge Pins Diameter (in) | 1.0 |
| Grapple Jaw Opening (in) | 28.7 |
| Approx. Weight (lbs) | 350 |
| Recommended Loader Capacity (lbs) | <1500 |
| Compatible Tractor HP | 25–50 |
