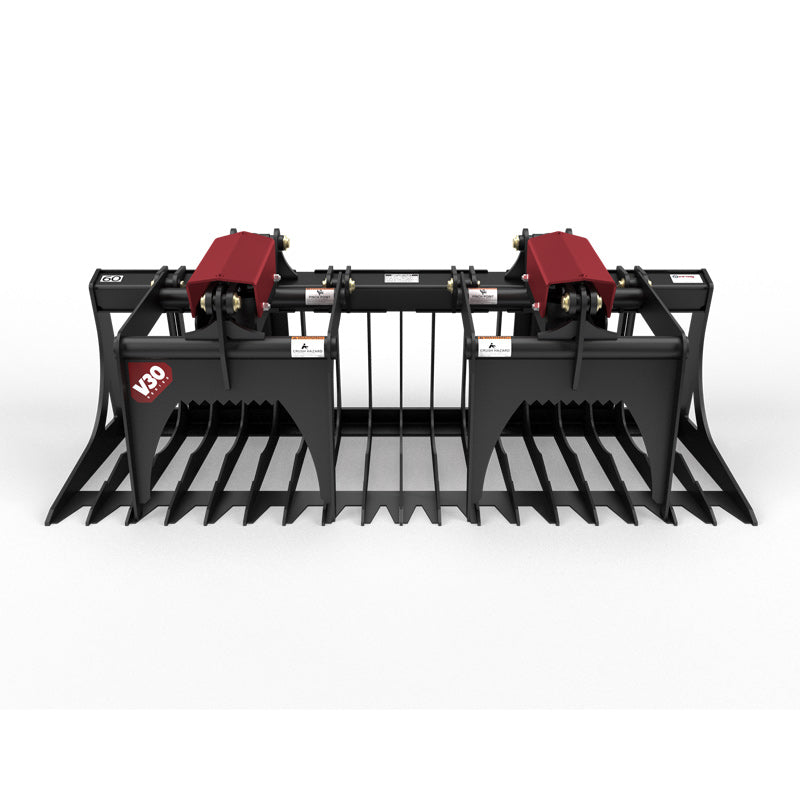

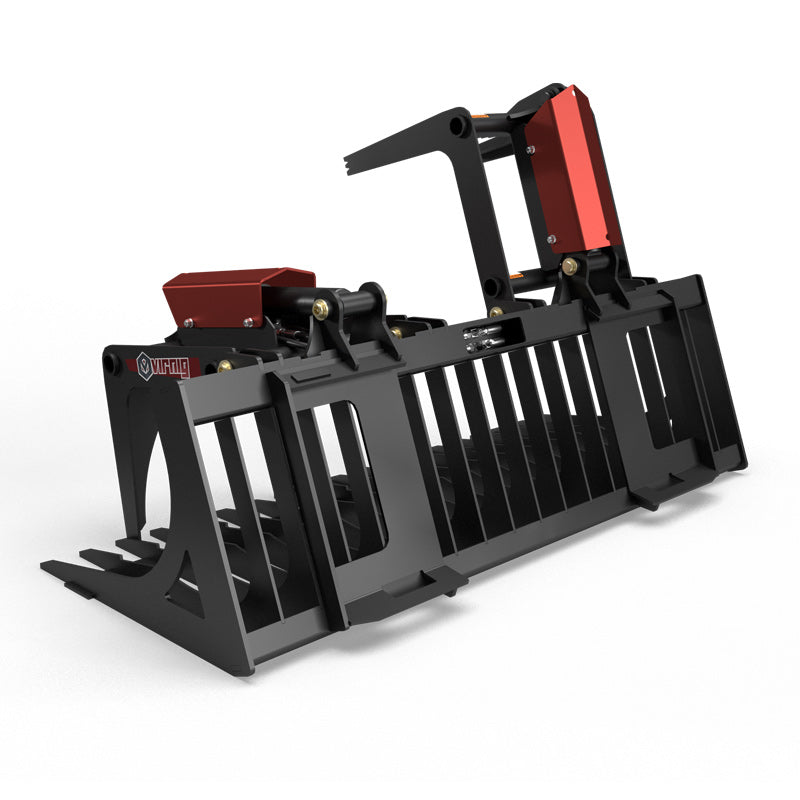

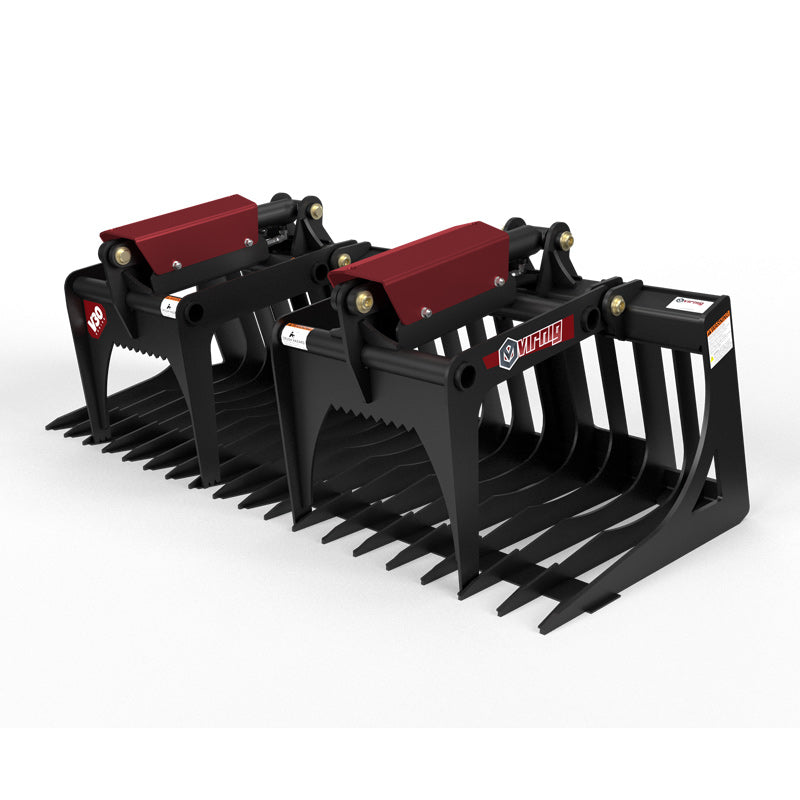

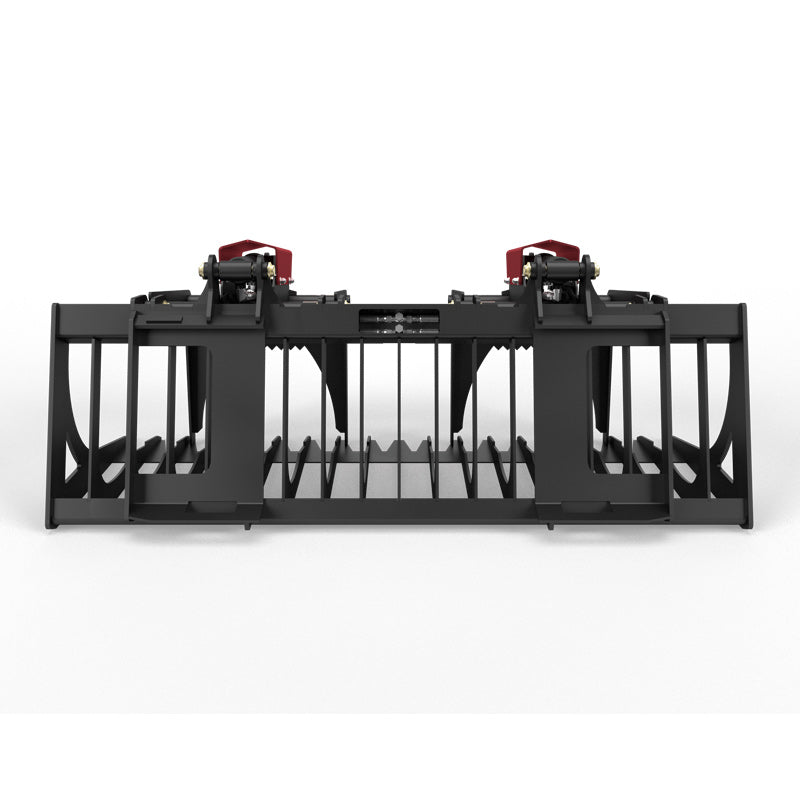

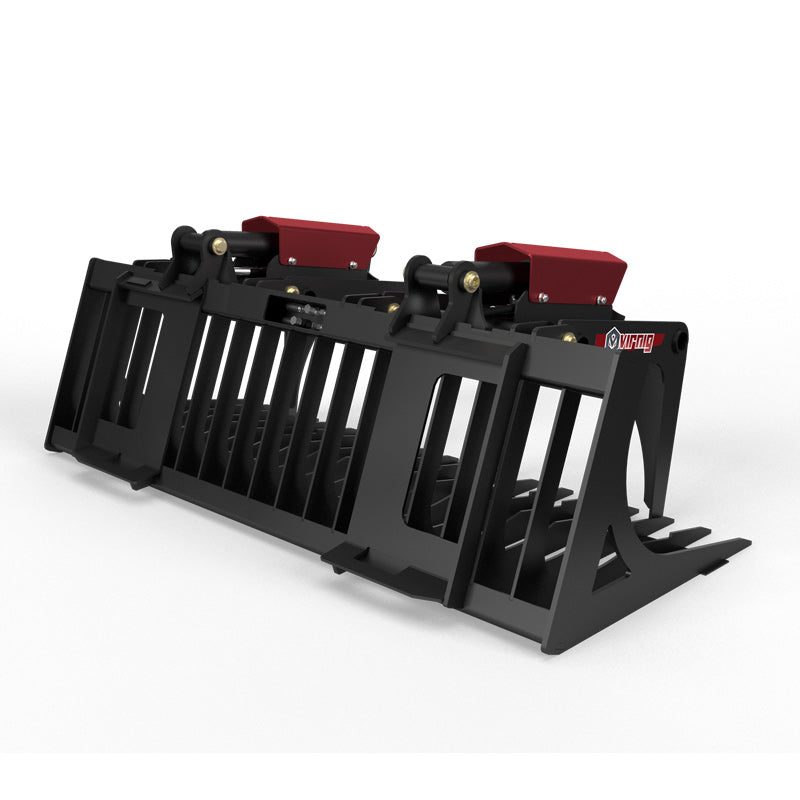

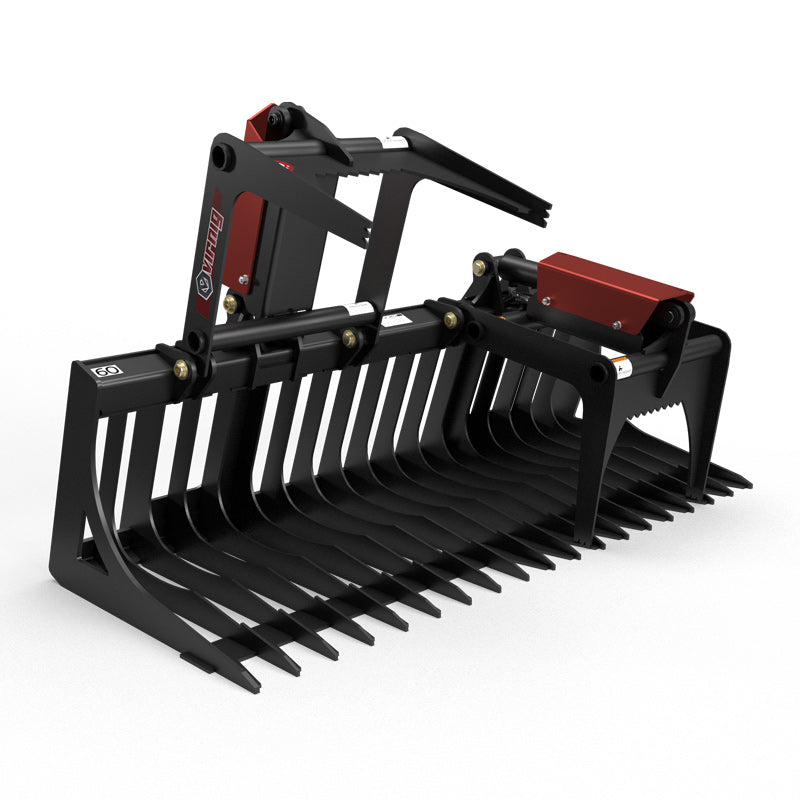

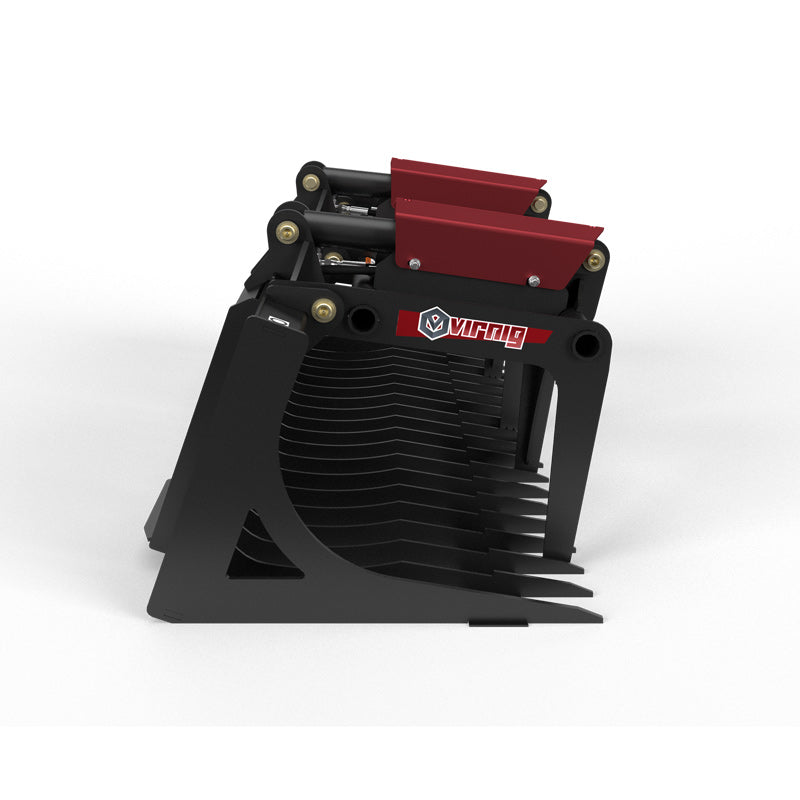

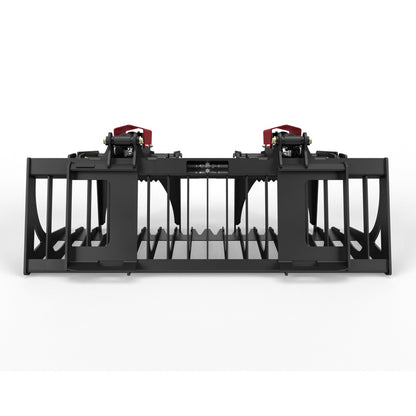

Virnig V30 Compact Tractor Skeleton Rock Grapple | Models SRGV48-CT To SRGV72-CT | Widths 48" To 72" | horsepower 20 To 50 HP | For Compact Tractors
Virnig V30 Compact Tractor Skeleton Rock Grapple | Models SRGV48-CT To SRGV72-CT | Widths 48" To 72" | horsepower 20 To 50 HP | For Compact Tractors
Regular price
$2,980.00
Regular price
Sale price
$2,980.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

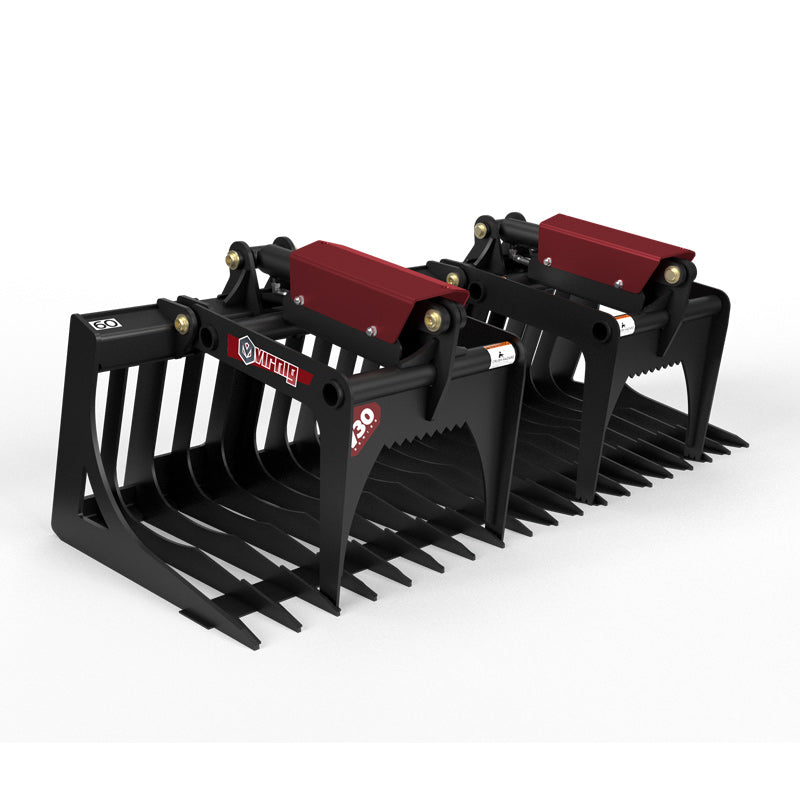

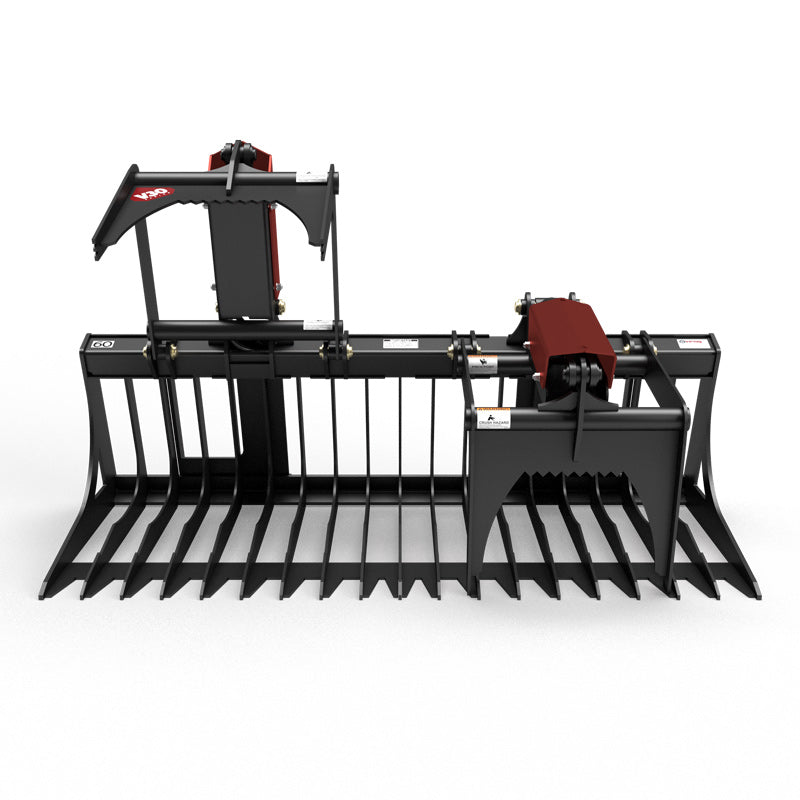

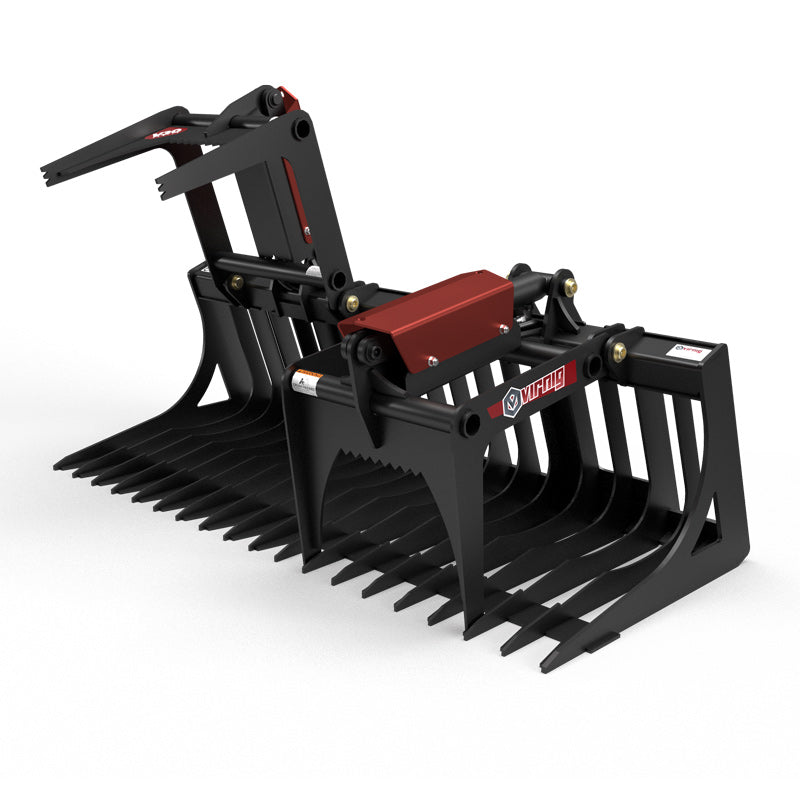

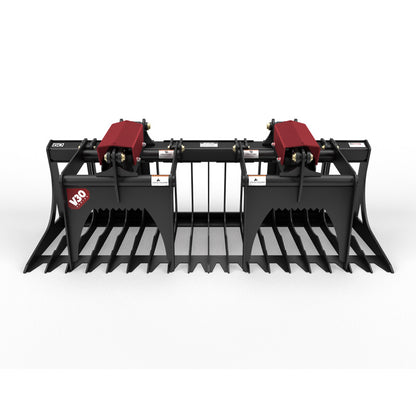

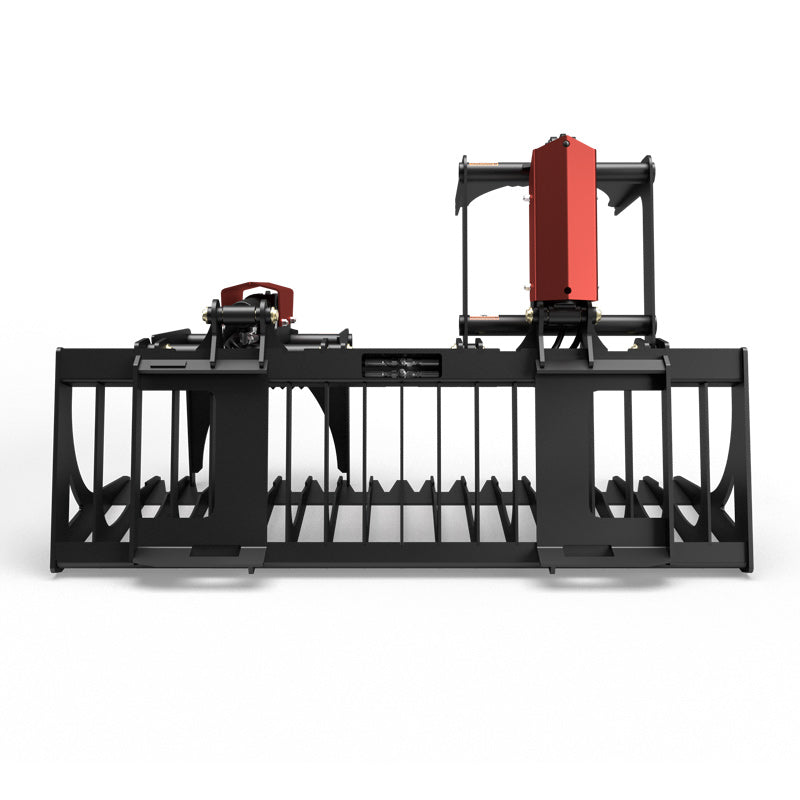

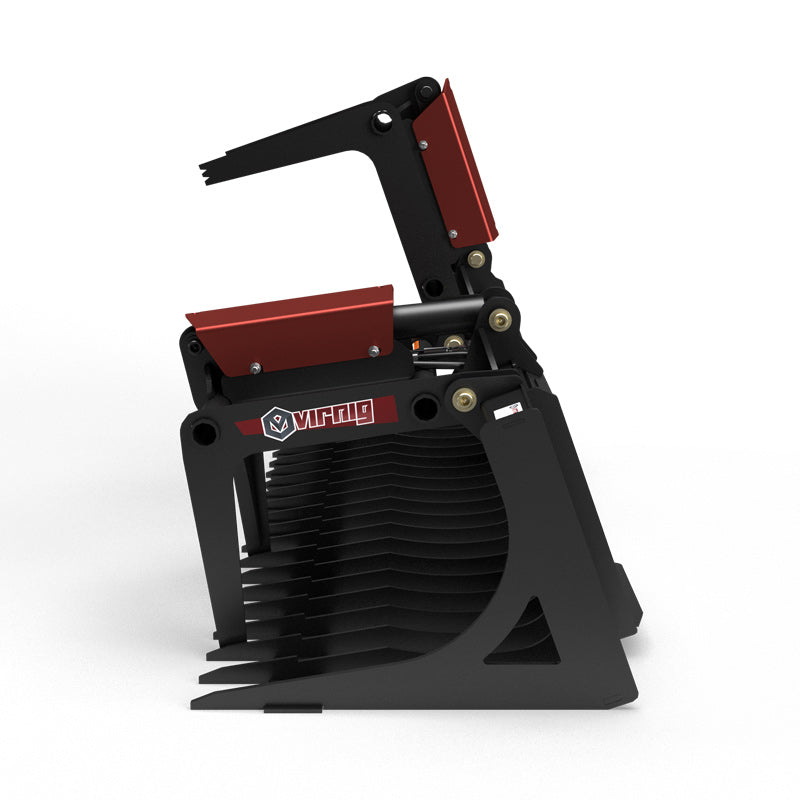

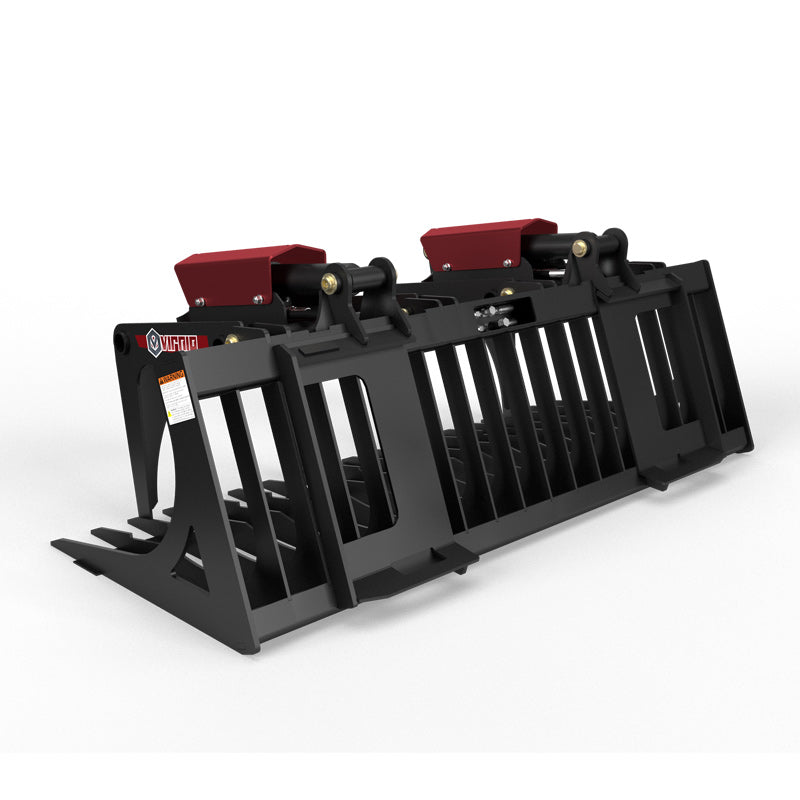

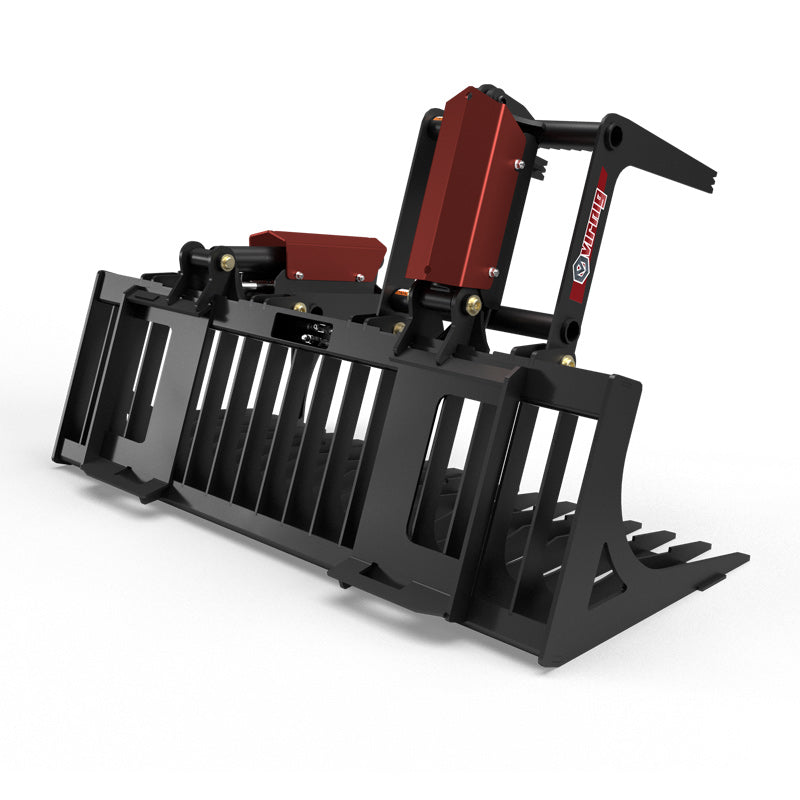

Virnig V30 Compact Tractor Skeleton Rock Grapple | Models SRGV48-CT To SRGV72-CT | Widths 48" To 72" | horsepower 20 To 50 HP | For Compact Tractors
DESCRIPTION

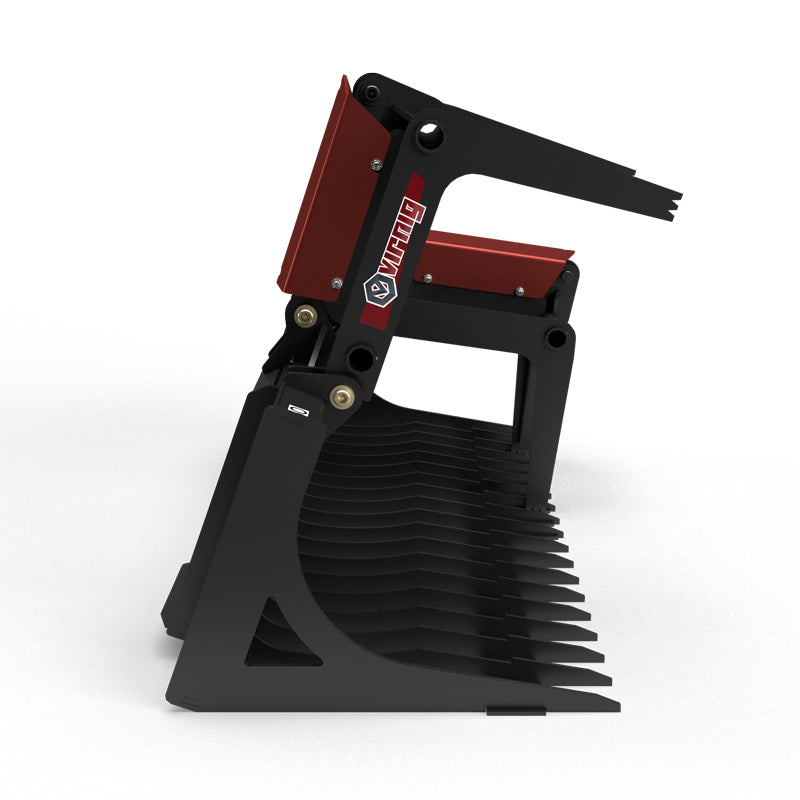

Take the hassle out of clearing rocks, debris, and uneven loads with the V30 Compact Tractor Skeleton Rock Grapple. Engineered for compact tractors, this heavy-duty attachment is designed for farmers, landscapers, hobbyists, and landowners who need a reliable, high-performance grapple that handles tough jobs with ease.
Whether you’re picking rocks from a field, hauling logs, cleaning up firewood, or moving debris from uneven terrain, the V30 Skeleton Rock Grapple gives you precision, strength, and efficiency. Its open skeletal design lets dirt fall through while securely holding rocks and large objects, making cleanup faster and less labor-intensive.
Built with one-piece 1/4″ Grade 50 steel tines, fully gusseted for extra strength, and featuring NitroSteel® cylinder rods with Teflon® coated bushings, this grapple is engineered to last. Curved side plates, a rock dam, and notched tine tips ensure every load is securely held until you release it. Compatible with most compact tractors rated between 20–50 HP, the V30 is your go-to solution for tackling tough outdoor projects.
Key Features
- Heavy-Duty One-Piece Tines Each tine is made from 1/4″ Grade 50 steel for maximum rigidity and long-lasting performance.
- Universal Compact Tractor Mount Fits most compact tractors in the 20–50 HP range.
- Curved Side Plates Allows wide material handling without spillage.
- Rock Dam & Notched Tines Hold rocks securely for safer, more controlled lifting.
- Fully Gusseted Tines Added strength to handle tough loads without bending.
- NitroSteel® Cylinder Rods Durable rods prevent bending or breaking under heavy use.
- Teflon® Coated Bushings Smooth hinge operation reduces wear and tear.
- Open Skeletal Design Allows dirt and smaller debris to fall through while retaining rocks and logs.
- Versatile Load Handling Perfect for rocks, firewood, fence posts, debris, and uneven loads.
- Multiple Width Options Available in 48", 54", 60", 66", and 72" for any tractor size.
- Compact Yet Robust Lightweight design (345–425 lbs) makes it easy to maneuver without sacrificing strength.
- Protective Cylinder Guards Optional guards keep cylinders safe from damage during operation.
- Efficient Grapple Jaw 28.7" jaw opening ensures quick material pick-up.
- Recommended Loader Capacity Ideal for tractors lifting less than 1,500 lbs.
- Rugged Construction 50,000 PSI minimum yield strength steel ensures long-term durability in harsh conditions.
Detailed Specifications
| Feature | SRGV48-CT | SRGV54-CT |
|---|---|---|
| Overall Width (in) | 47.9 | 54.3 |
| Overall Height (in) | 22.9 | 22.9 |
| Bucket Height (in) | 19.0 | 19.0 |
| Overall Depth (in) | 29.0 | 29.0 |
| Inside Depth (in) | 23.5 | 23.5 |
| Number of Tines | 15 | 17 |
| Space Between Tines (in) | 3.1 | 3.1 |
| Tine Thickness (in) | 0.25 | 0.25 |
| Side Plate Thickness (in) | 0.375 | 0.375 |
| Grapple Jaw Opening (in) | 28.7 | 28.7 |
| Cylinder Bore / Stroke (in) | 2.0 / 6.0 | 2.0 / 6.0 |
| Cylinder / Hinge Pins Diameter (in) | 1.0 | 1.0 |
| Approx. Weight (lbs) | 345 | 365 |
| Recommended Loader Capacity (lbs) | <1500 | <1500 |
| Compatible Tractor HP | 20–50 | 20–50 |
| Feature | SRGV60-CT | SRGV66-CT |
|---|---|---|
| Overall Width (in) | 60.9 | 67.5 |
| Overall Height (in) | 22.9 | 22.9 |
| Bucket Height (in) | 19.0 | 19.0 |
| Overall Depth (in) | 29.0 | 29.0 |
| Inside Depth (in) | 23.5 | 23.5 |
| Number of Tines | 19 | 21 |
| Space Between Tines (in) | 3.1 | 3.1 |
| Tine Thickness (in) | 0.25 | 0.25 |
| Side Plate Thickness (in) | 0.375 | 0.375 |
| Grapple Jaw Opening (in) | 28.7 | 28.7 |
| Cylinder Bore / Stroke (in) | 2.0 / 6.0 | 2.0 / 6.0 |
| Cylinder / Hinge Pins Diameter (in) | 1.0 | 1.0 |
| Approx. Weight (lbs) | 385 | 405 |
| Recommended Loader Capacity (lbs) | <1500 | <1500 |
| Compatible Tractor HP | 20–50 | 20–50 |
| Feature | SRGV72-CT |
|---|---|
| Overall Width (in) | 74.1 |
| Overall Height (in) | 22.9 |
| Bucket Height (in) | 19.0 |
| Overall Depth (in) | 29.0 |
| Inside Depth (in) | 23.5 |
| Number of Tines | 23 |
| Space Between Tines (in) | 3.1 |
| Tine Thickness (in) | 0.25 |
| Side Plate Thickness (in) | 0.375 |
| Grapple Jaw Opening (in) | 28.7 |
| Cylinder Bore / Stroke (in) | 2.0 / 6.0 |
| Cylinder / Hinge Pins Diameter (in) | 1.0 |
| Approx. Weight (lbs) | 425 |
| Recommended Loader Capacity (lbs) | <1500 |
| Compatible Tractor HP | 20–50 |
