Product Description

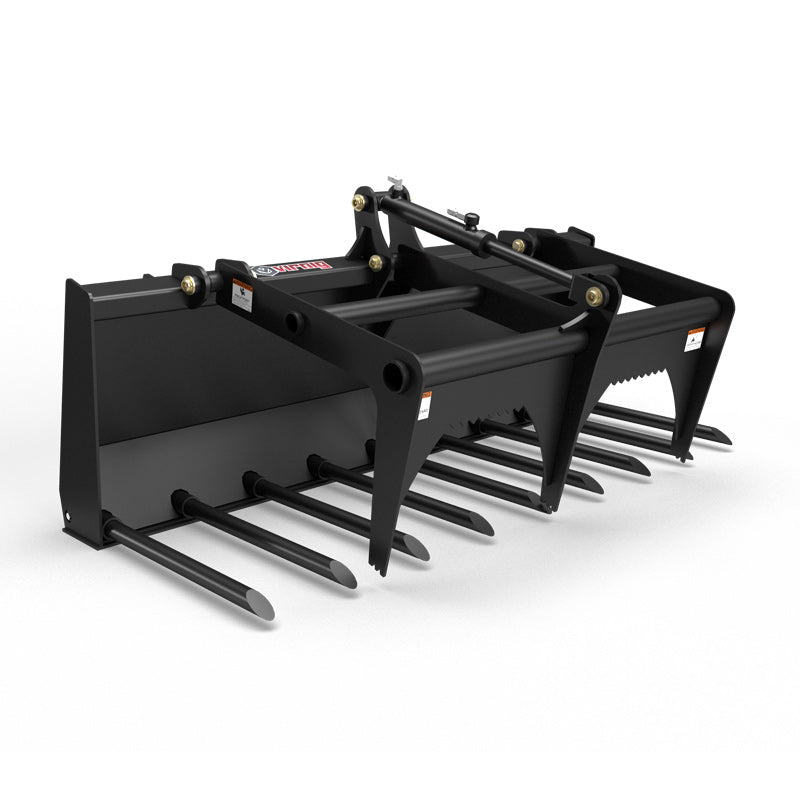

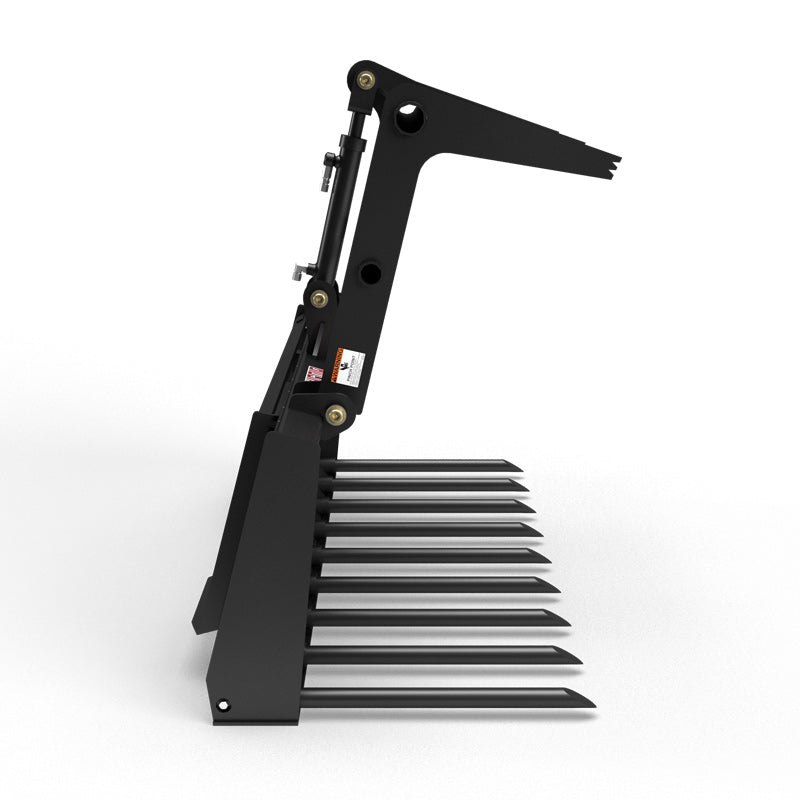

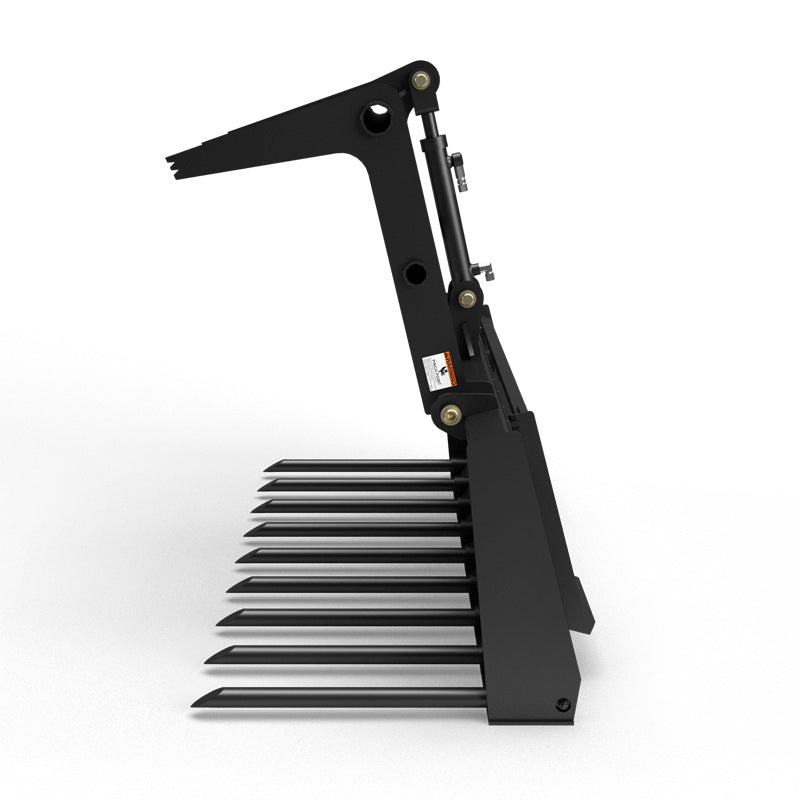

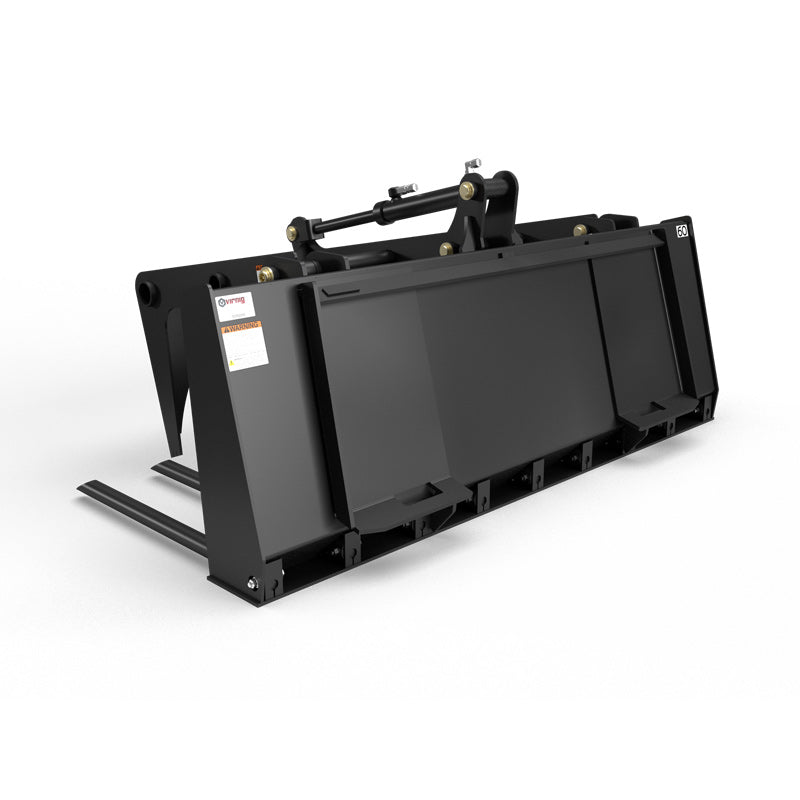

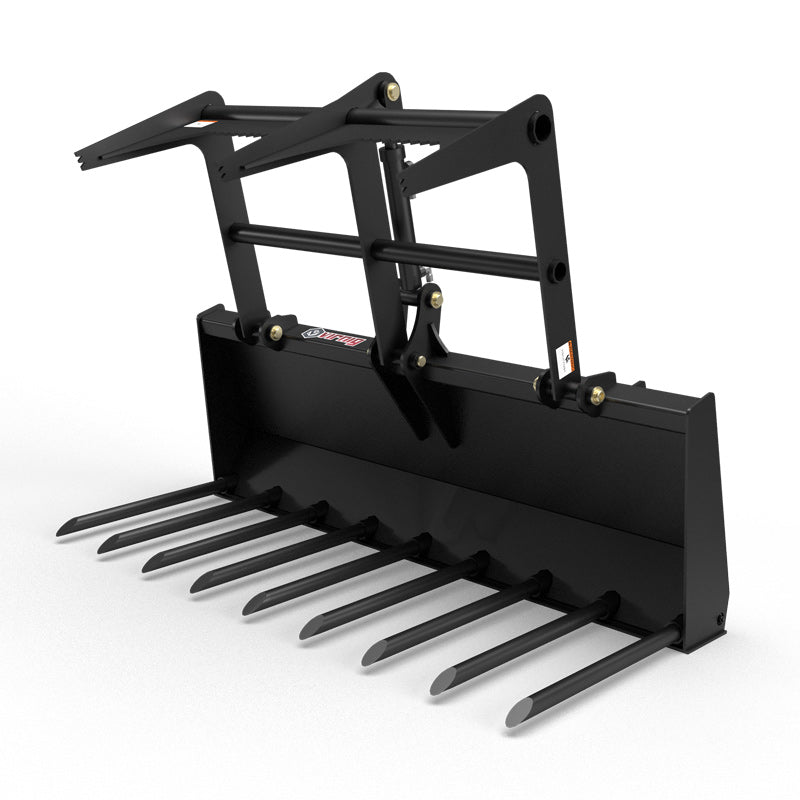

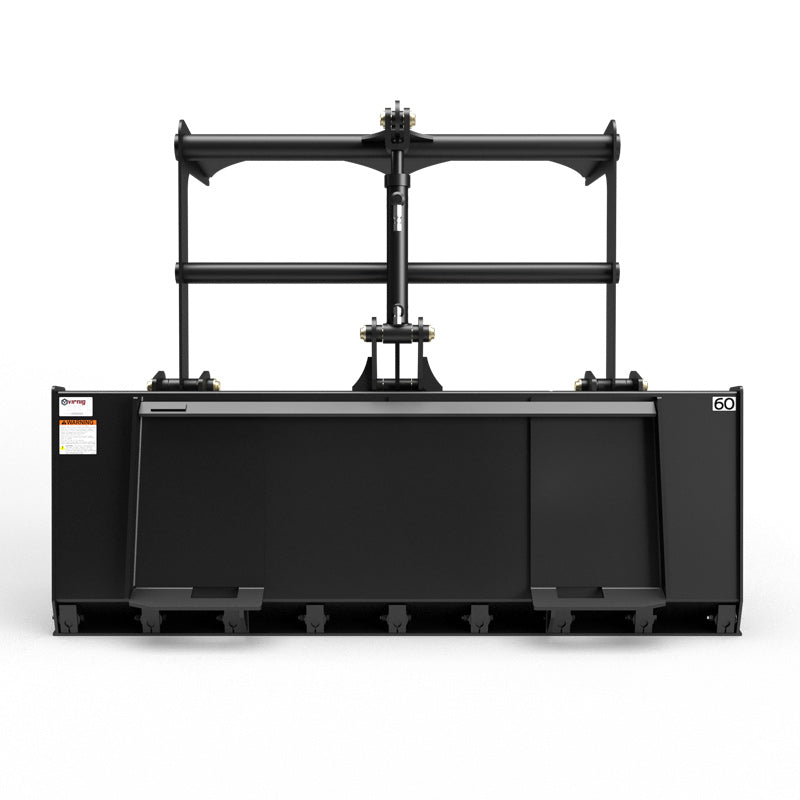

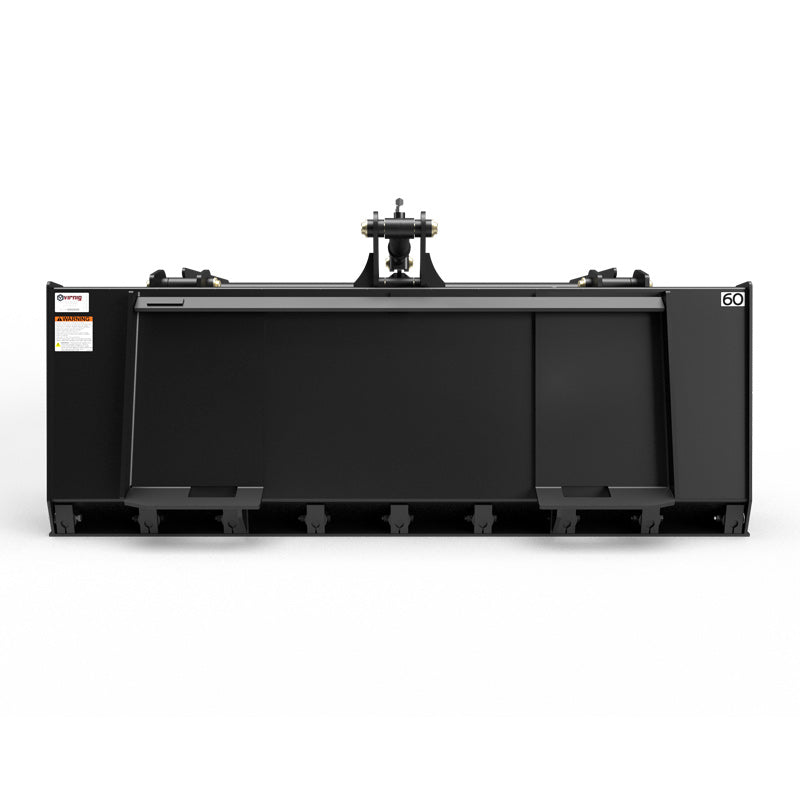

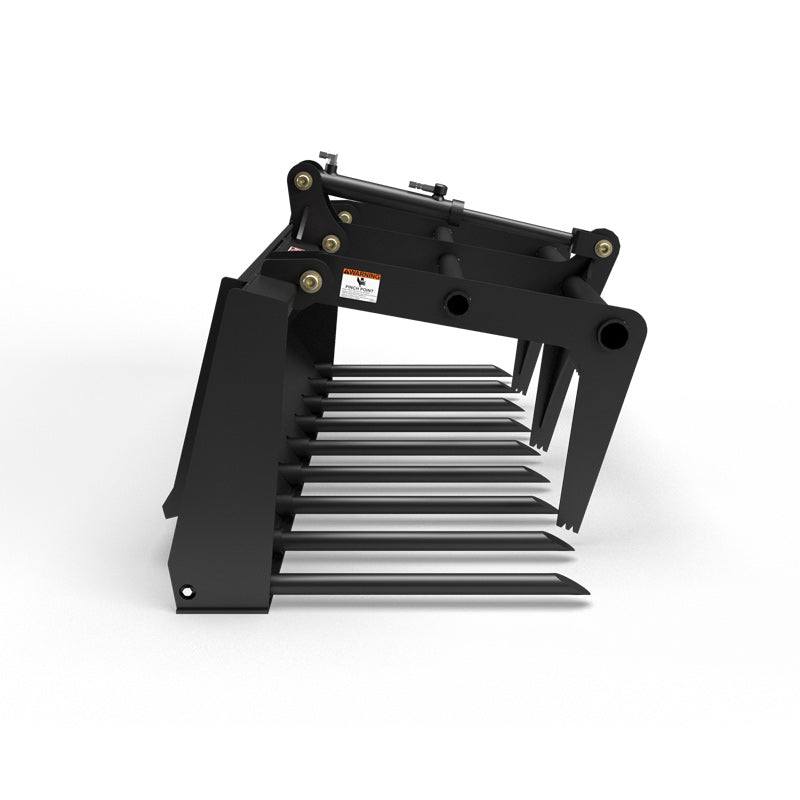

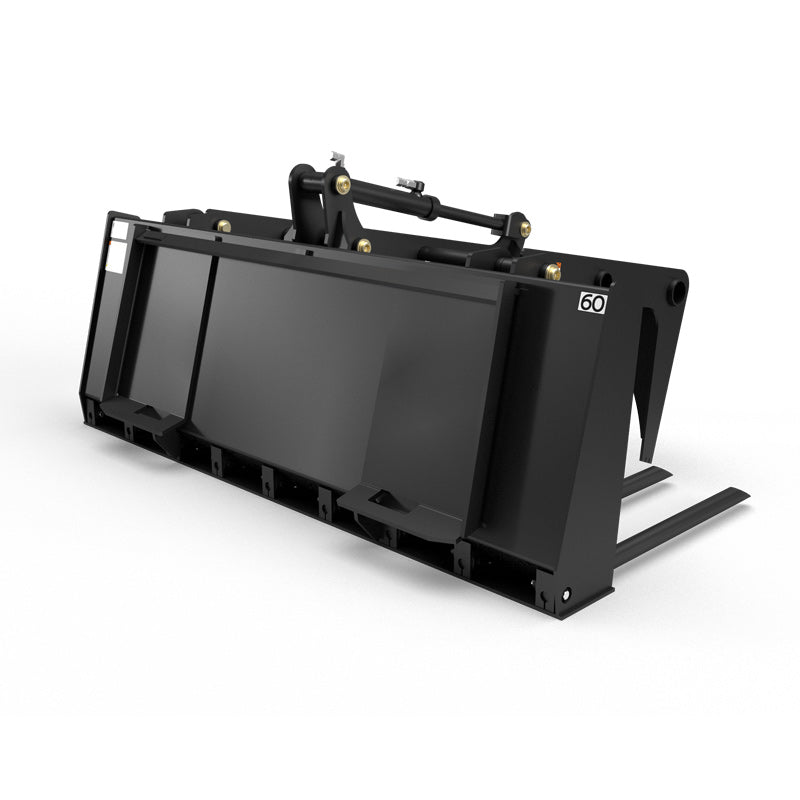

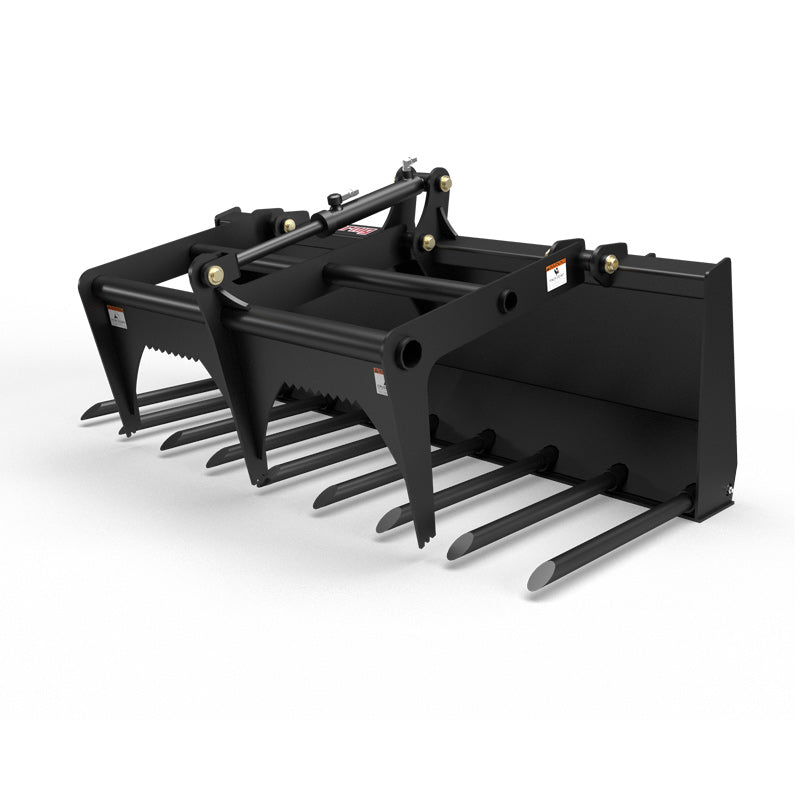

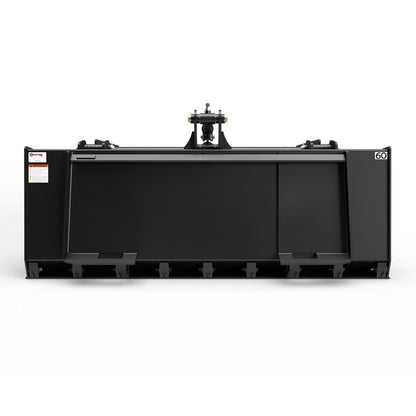

Virnig V30 Compact Tractor Utility Fork Grapple | Models UGV48-CT To UGV72-CT | Widths 49" To 72.5" | Horsepower 20 To 50 HP | For Compact Tractors
DESCRIPTION

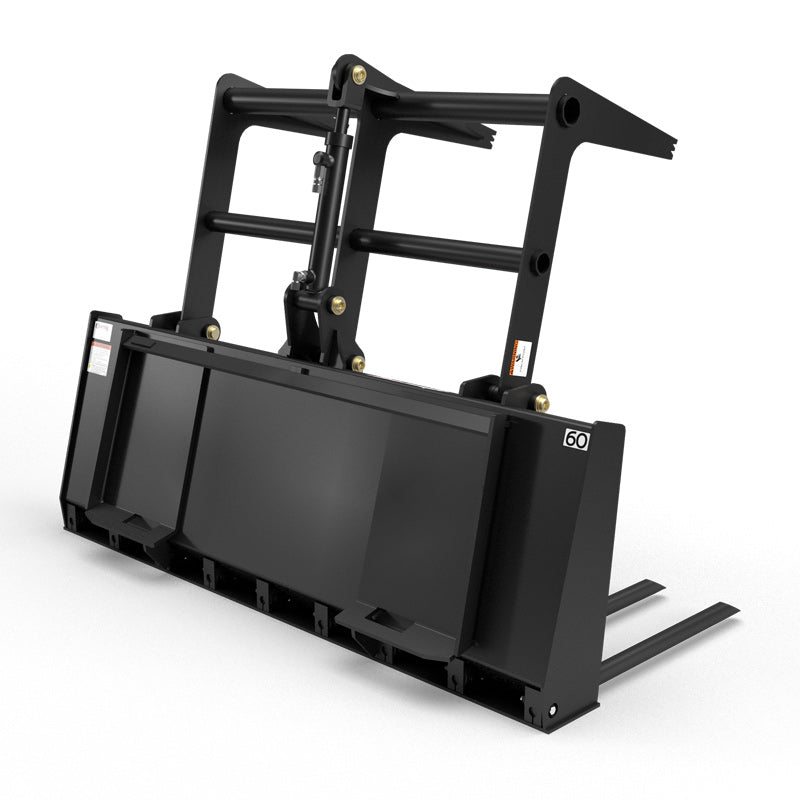

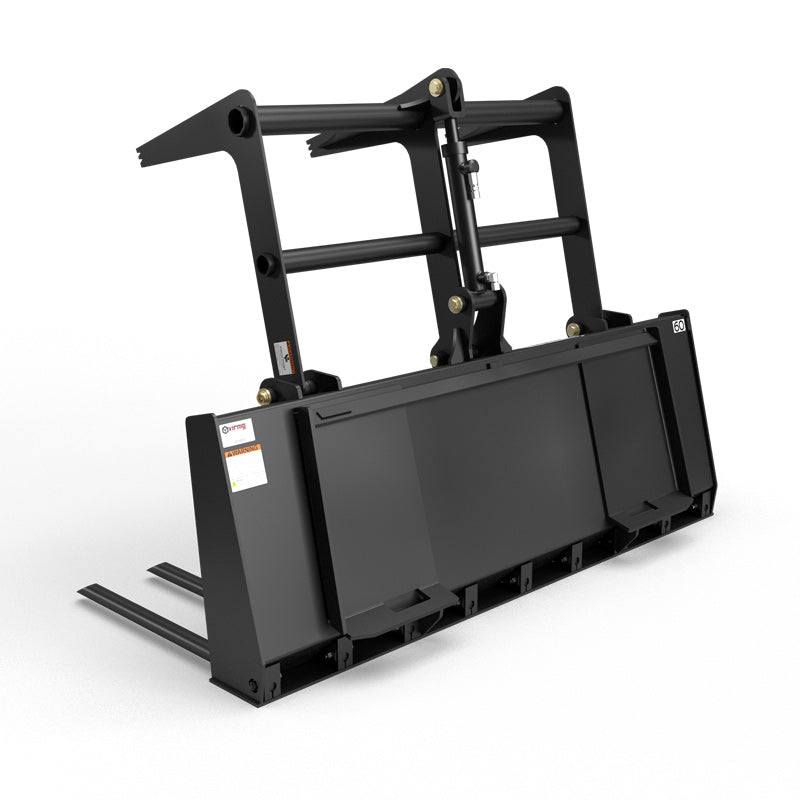

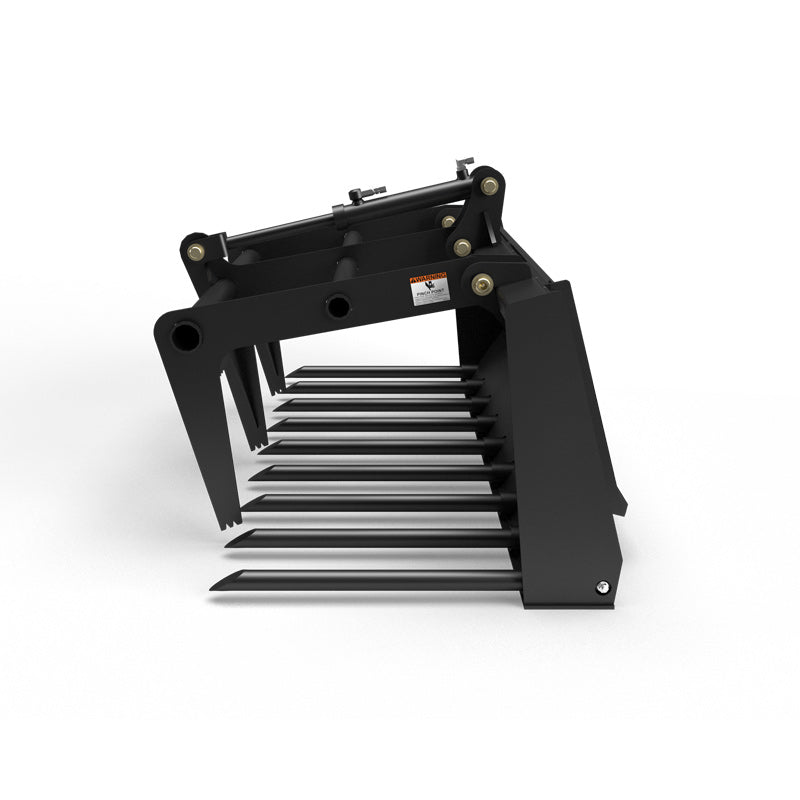

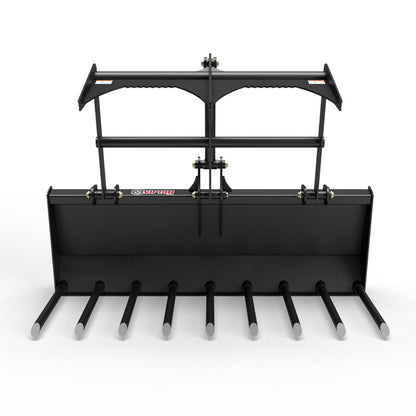

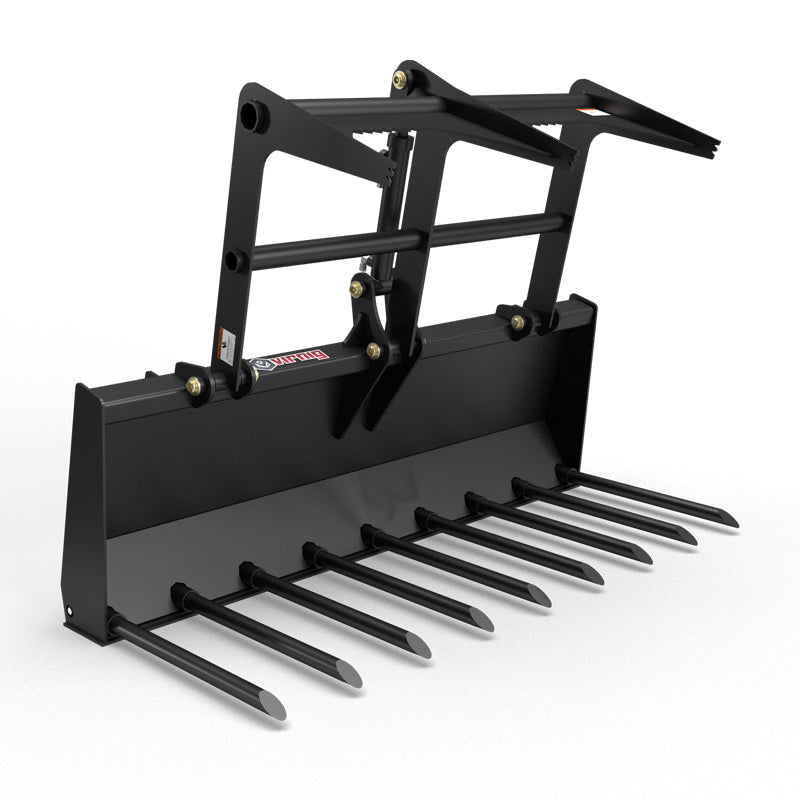

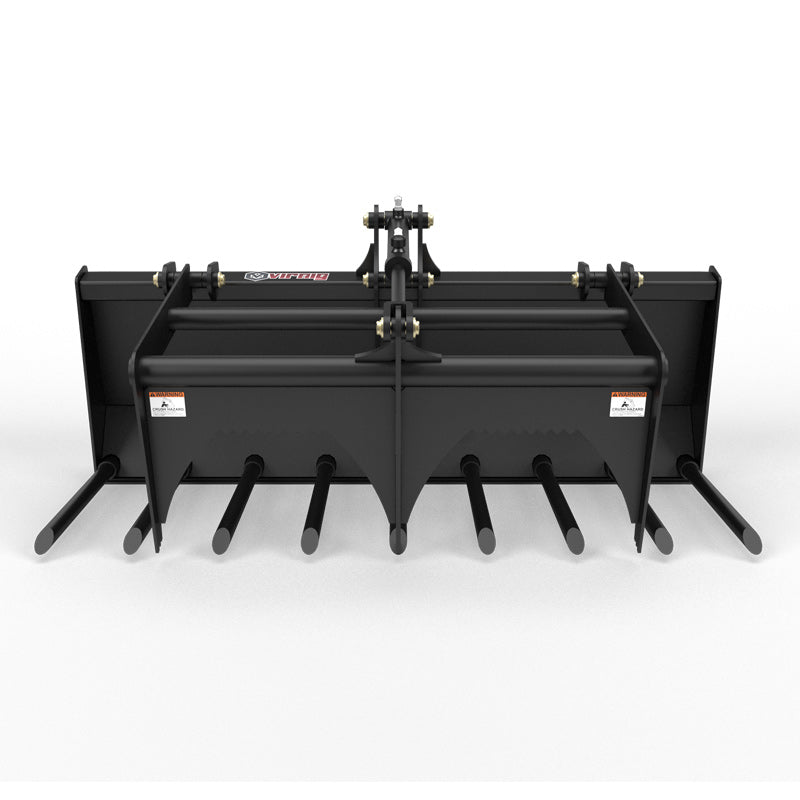

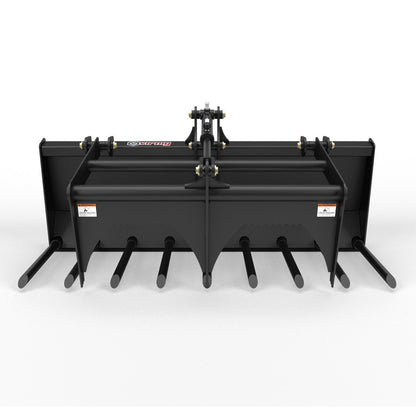

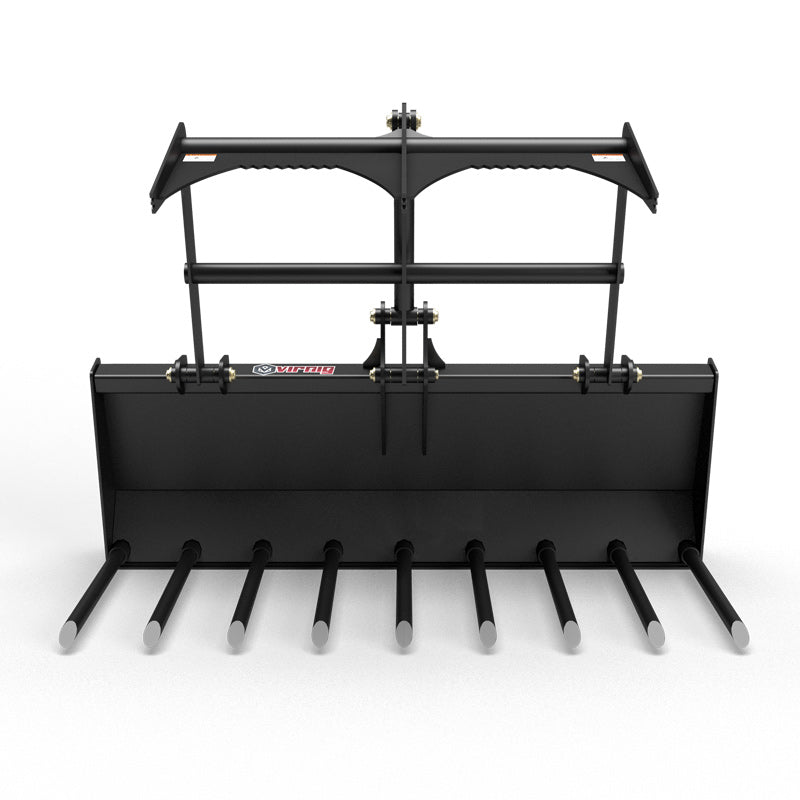

Upgrade your compact tractor with the Virnig V30 Compact Tractor Utility Fork Grapple, a rugged, versatile attachment engineered for efficiency, precision, and durability. Designed for small to mid-sized tractors, this low-profile grapple ensures excellent visibility while handling logs, brush, rocks, and other debris with ease.
Built with high-strength replaceable tines and NitroSteel® cylinder rods paired with Teflon® coated bushings, this grapple delivers smooth, reliable performance even under the toughest conditions. The universal skid steer mount makes installation effortless, while the tapered tine spacing and reinforced jaw design maximize grip and control. Whether you’re a landscaper, property manager, or small-scale farmer, the V30 Grapple transforms your tractor into a multifunction powerhouse.
Compatible with tractors ranging from 20 to 50 HP, this attachment balances strength and precision, giving you the confidence to tackle projects quickly and safely.
Key Features
- Compact Design for Maximum Visibility: Low-profile frame ensures clear sightlines for safe, precise operation.
- High-Strength Replaceable Tines: Easily swap out tines to maintain peak performance and extend lifespan.
- NitroSteel® Cylinder Rods: Engineered for maximum durability and corrosion resistance.
- Teflon® Coated Bushings: Smooth hinge action reduces wear and maintenance.
- Universal Skid Steer Mount: Quick, versatile attachment to most compact tractors.
- Optimized Tine Spacing: 5.4" – 6.0" spacing ensures efficient gripping of materials of varying sizes.
- Heavy-Duty Jaw Opening: 37.5" jaw opens wide enough for logs, brush, and debris.
- Reinforced Frame Construction: High-strength steel for long-lasting performance under heavy loads.
- Smooth Hydraulic Operation: Cylinder bore/stroke of 1.25" x 8" provides consistent lifting power.
- Lightweight yet Durable: Weighing 480–600 lbs depending on model for easy maneuverability without compromising strength.
- Multiple Width Options: Available in 49", 54.5", 60.5", 66.5", and 72.5" to match your tractor and workload.
- Loader-Friendly Capacity: Designed for loaders under 1,500 lbs for compact tractors.
- Perfect for Land Clearing & Farming: Handles brush, logs, rocks, and debris with ease.
- Easy Maintenance: Replaceable parts and robust construction minimize downtime.
- Increased Tractor Versatility: Turns your compact tractor into a multi-purpose utility machine.
Detailed Specifications
| Specification | UGV48-CT | UGV54-CT |
|---|---|---|
| Overall Width (in) | 49.0 | 54.5 |
| Height Overall / Bucket (in) | 28.2 / 20.5 | 28.2 / 20.5 |
| Overall Depth (in) | 36.3 | 36.3 |
| Number of Tines | 7 | 8 |
| Space Between Tines (in) | 6.0 | 5.9 |
| Tine Diameter (in) | 1.5 | 1.5 |
| Grapple Jaw Opening (in) | 37.5 | 37.5 |
| Cylinder Bore / Stroke (in) | 1.25 / 8.0 | 1.25 / 8.0 |
| Cylinder / Hinge Pin Diameter (in) | 1.0 / 1.0 | 1.0 / 1.0 |
| Approx. Weight (lbs) | 480 | 510 |
| Recommended Loader Capacity (lbs) | <1,500 | <1,500 |
| HP Required | 20–50 | 20–50 |
| Specification | UGV60-CT | UGV66-CT |
|---|---|---|
| Overall Width (in) | 60.5 | 66.5 |
| Height Overall / Bucket (in) | 28.2 / 20.5 | 28.2 / 20.5 |
| Overall Depth (in) | 36.3 | 36.3 |
| Number of Tines | 9 | 10 |
| Space Between Tines (in) | 5.7 | 5.6 |
| Tine Diameter (in) | 1.5 | 1.5 |
| Grapple Jaw Opening (in) | 37.5 | 37.5 |
| Cylinder Bore / Stroke (in) | 1.25 / 8.0 | 1.25 / 8.0 |
| Cylinder / Hinge Pin Diameter (in) | 1.0 / 1.0 | 1.0 / 1.0 |
| Approx. Weight (lbs) | 540 | 570 |
| Recommended Loader Capacity (lbs) | <1,500 | <1,500 |
| HP Required | 20–50 | 20–50 |
| Specification | UGV72-CT |
|---|---|
| Overall Width (in) | 72.5 |
| Height Overall / Bucket (in) | 28.2 / 20.5 |
| Overall Depth (in) | 36.3 |
| Number of Tines | 11 |
| Space Between Tines (in) | 5.4 |
| Tine Diameter (in) | 1.5 |
| Grapple Jaw Opening (in) | 37.5 |
| Cylinder Bore / Stroke (in) | 1.25 / 8.0 |
| Cylinder / Hinge Pin Diameter (in) | 1.0 / 1.0 |
| Approx. Weight (lbs) | 600 |
| Recommended Loader Capacity (lbs) | <1,500 |
| HP Required | 20–50 |
