Product Description
Virnig V40 Skeleton Rock Bucket | Models BSRV66, BSRV72 & BSRV84 | Widths 66" To 84" | Hydraulic Flow 15 To 25 GPM | For Skid Steers
DESCRIPTION

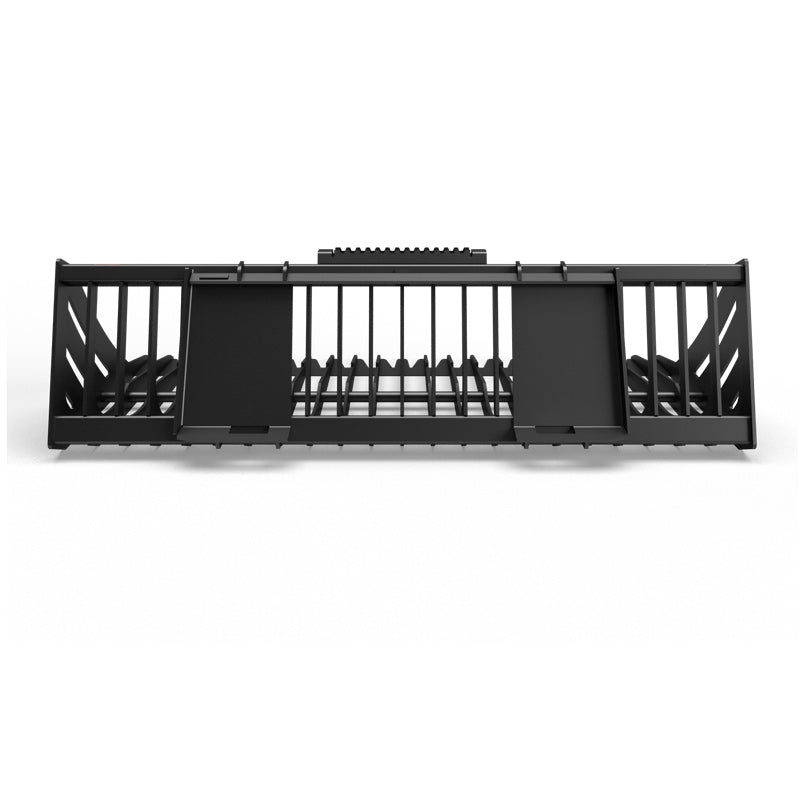

The Virnig V40 Skeleton Rock Bucket is the original and most trusted solution for rock and debris removal with skid steers and compact track loaders. Designed for efficiency, visibility, and long-term durability, this heavy-duty attachment lets operators easily pick up rocks, roots, and debris while allowing dirt to fall through leaving your worksite clean and level.

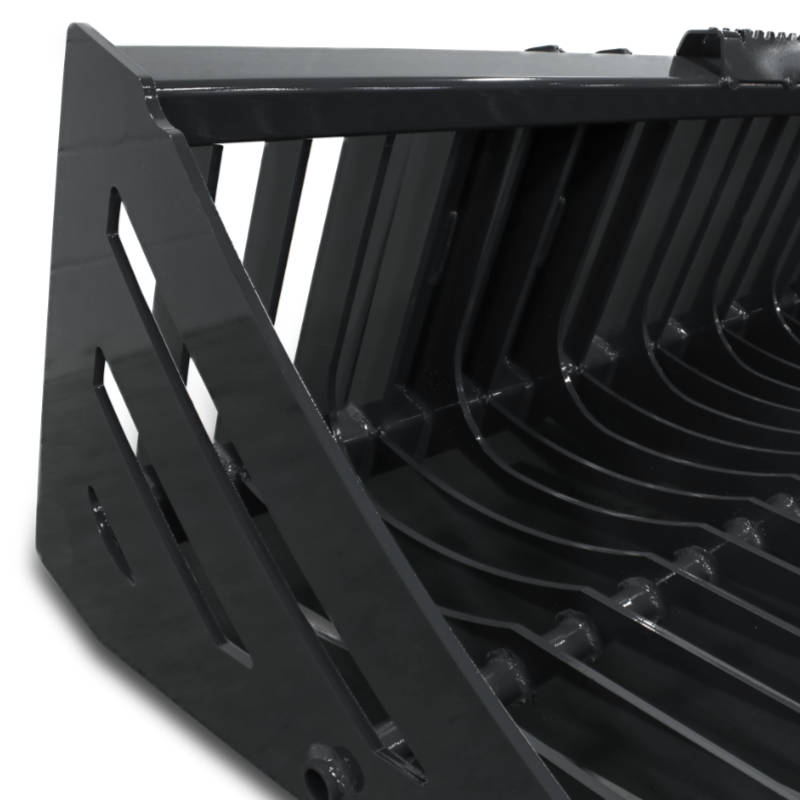

Built from 3/8-inch Grade 50 high-strength steel, every other tine is crafted from a single piece of steel, running from the tip to the top brace for unmatched rigidity. A raised rock dam keeps rocks secure during operation, while fully gusseted tine tips deliver superior penetration and resistance to bending under load.
Available in 66", 72", and 84" widths, the V40 Skeleton Rock Bucket is optimized for smaller skid steers and track loaders with rated operating capacities under 2400 pounds. It’s perfect for landscaping, site cleanup, and agricultural applications where precise material separation and durability are essential.
Whether you’re clearing rocks from a pasture, cleaning up demolition debris, or grooming a construction site, the Virnig V40 Skeleton Rock Bucket is engineered to perform built tough, built right, and built to last.
Key Features
- Original Virnig Design The pioneering skeleton rock bucket that set the industry benchmark for strength and performance.
- One-Piece Steel Tines Every other tine is laser-cut from a single piece of steel, providing exceptional rigidity and torsional strength.
- High-Strength Grade 50 Material Built from 50,000 PSI yield strength plate for superior durability and impact resistance.
- Optimized Tine Spacing (2.9") Allows dirt to sift through easily while holding rocks, roots, and debris securely.
- Rock Dam & Notched Tine Tips Keeps rocks in place while digging, preventing rollback and material loss.
- Fully Gusseted Tine Tips Reinforced at the most critical stress points to prevent bending and extend lifespan.

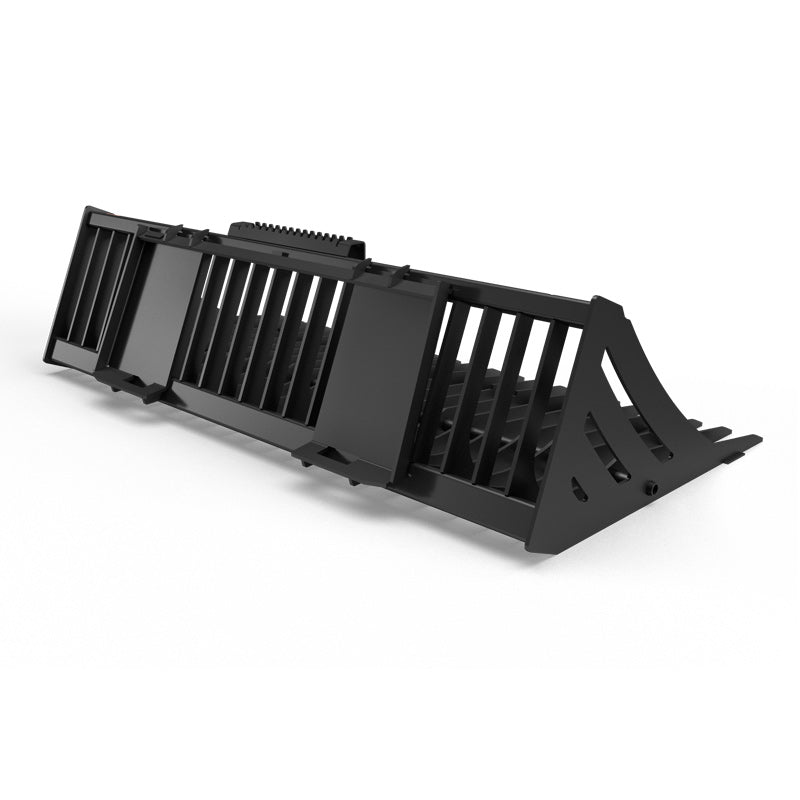

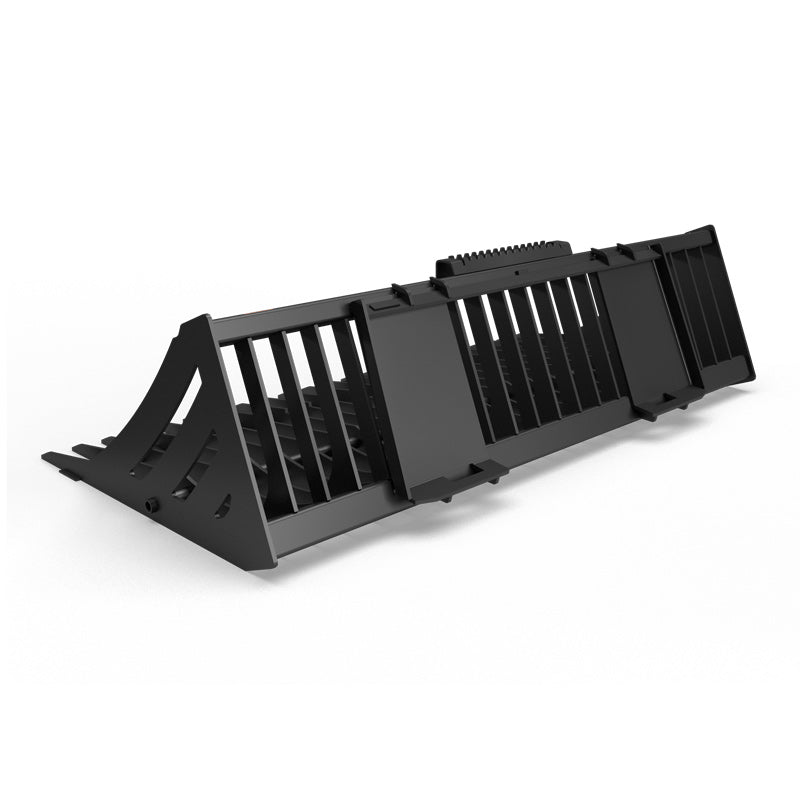

- Open Back & Bottom Design Provides excellent visibility and allows debris and soil to fall through naturally.
- Efficient Sorting Capability Quickly separates dirt from rock, reducing cleanup time and improving productivity.
- Lightweight, Rigid Frame Strong enough for tough jobs, yet easy to handle on smaller machines.
- Hydraulic Flow 15 To 25 GPM Compatible Works seamlessly with standard hydraulic systems; no high-flow required.
- Compact Loader Friendly Perfect for skid steers and compact track loaders with less than 2400 lb ROC (approx. 35–50 HP).
- Multi-Use Versatility Ideal for landscaping, agricultural, construction, and property maintenance tasks.
- Precision-Dug Results Gusseted tine tips dig effectively while maintaining a clean soil finish.
- Made in the USA Proudly engineered and built for professional performance and long-term reliability.
- Low Maintenance Design Fewer moving parts and high-grade materials mean less downtime and more uptime.
Detailed Specifications
| Model | BSRV66 |
|---|---|
| Overall Width (in) | 67.6 |
| Inside Width (in) | 65.3 |
| Overall Height (in) | 20.5 |
| Overall Depth (in) | 39.9 |
| Inside Depth (in) | 34.9 |
| Number of Tines (with Sides) | 21 |
| Tine Spacing (in) | 2.9 |
| Tine Thickness (in) | 0.375" (3/8") |
| Material Type | Grade 50 Steel (50,000 PSI yield strength) |
| Approximate Weight (lbs) | 520 |
| Recommended Loader Capacity (ROC) | < 2400 lbs |
| Recommended Hydraulic Flow | 15 To 25 GPM |
| Compatible Equipment | Skid Steers & Compact Track Loaders |
| Model | BSRV72 |
|---|---|
| Overall Width (in) | 74.3 |
| Inside Width (in) | 72.6 |
| Overall Height (in) | 20.5 |
| Overall Depth (in) | 39.9 |
| Inside Depth (in) | 34.9 |
| Number of Tines (with Sides) | 23 |
| Tine Spacing (in) | 2.9 |
| Tine Thickness (in) | 0.375" (3/8") |
| Material Type | Grade 50 Steel |
| Approximate Weight (lbs) | 560 |
| Recommended Loader Capacity (ROC) | < 2400 lbs |
| Recommended Hydraulic Flow | 15 To 25 GPM |
| Compatible Equipment | Skid Steers & Compact Track Loaders |
| Model | BSRV84 |
|---|---|
| Overall Width (in) | 87.5 |
| Inside Width (in) | 85.5 |
| Overall Height (in) | 20.5 |
| Overall Depth (in) | 39.9 |
| Inside Depth (in) | 34.9 |
| Number of Tines (with Sides) | 27 |
| Tine Spacing (in) | 2.9 |
| Tine Thickness (in) | 0.375" (3/8") |
| Material Type | Grade 50 Steel |
| Approximate Weight (lbs) | 640 |
| Recommended Loader Capacity (ROC) | < 2400 lbs |
| Recommended Hydraulic Flow | 15 To 25 GPM |
| Compatible Equipment | Skid Steers & Compact Track Loaders |
