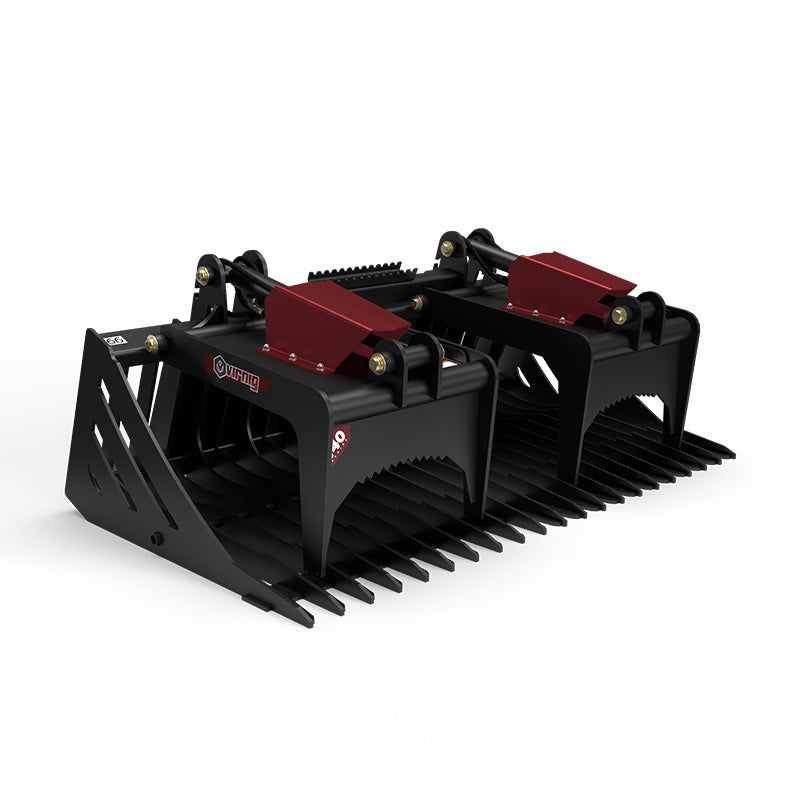

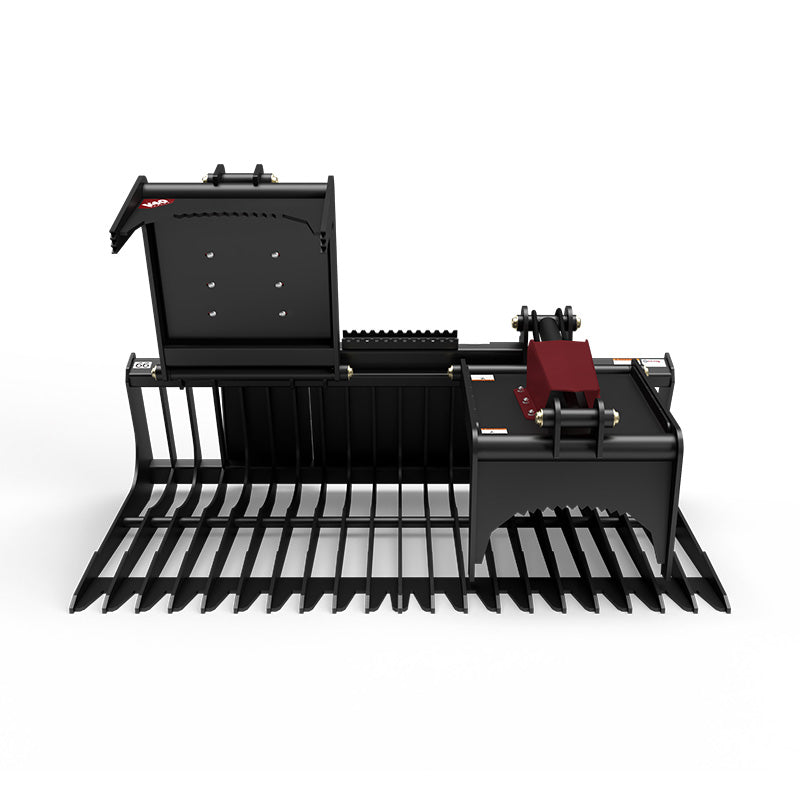

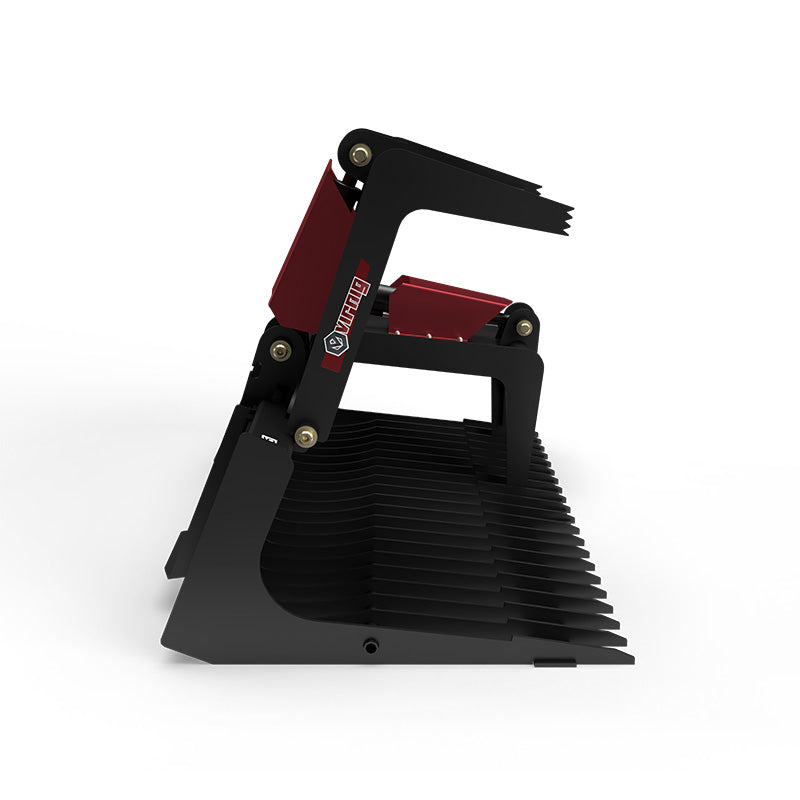

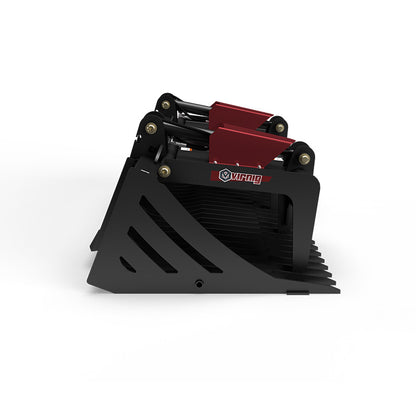

Virnig V40 Skeleton Rock Grapple | Models BSRGV66, BSRGV72 & BSRGV84 | Widths 66" To 84" | Hydraulic Flow 15 To 25 GPM | For Skid Steers
Virnig V40 Skeleton Rock Grapple | Models BSRGV66, BSRGV72 & BSRGV84 | Widths 66" To 84" | Hydraulic Flow 15 To 25 GPM | For Skid Steers
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Virnig V40 Skeleton Rock Grapple | Models BSRGV66, BSRGV72 & BSRGV84 | Widths 66" To 84" | Hydraulic Flow 15 To 25 GPM | For Skid Steers
DESCRIPTION

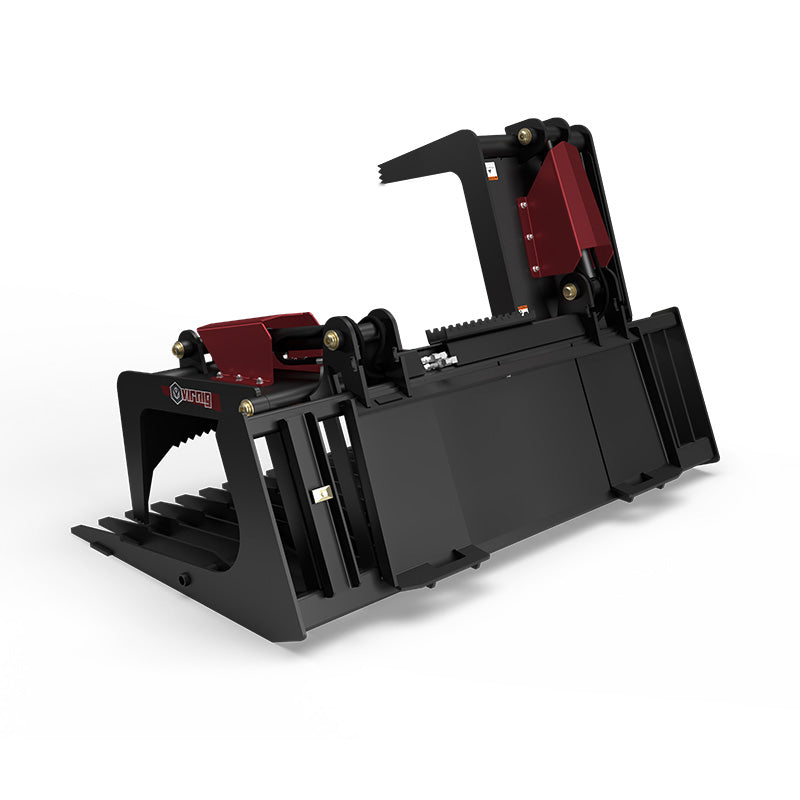

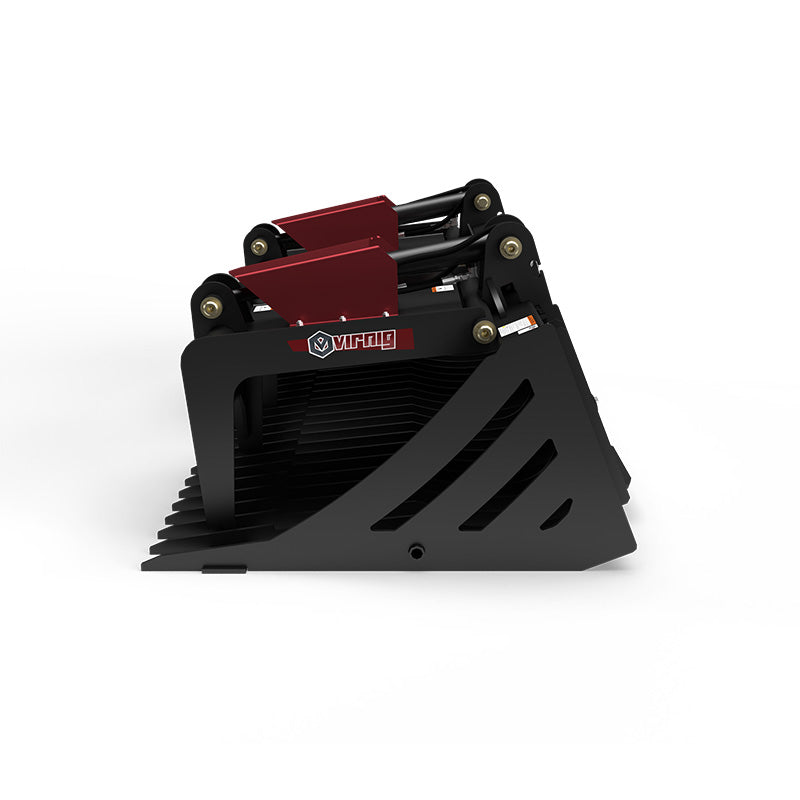

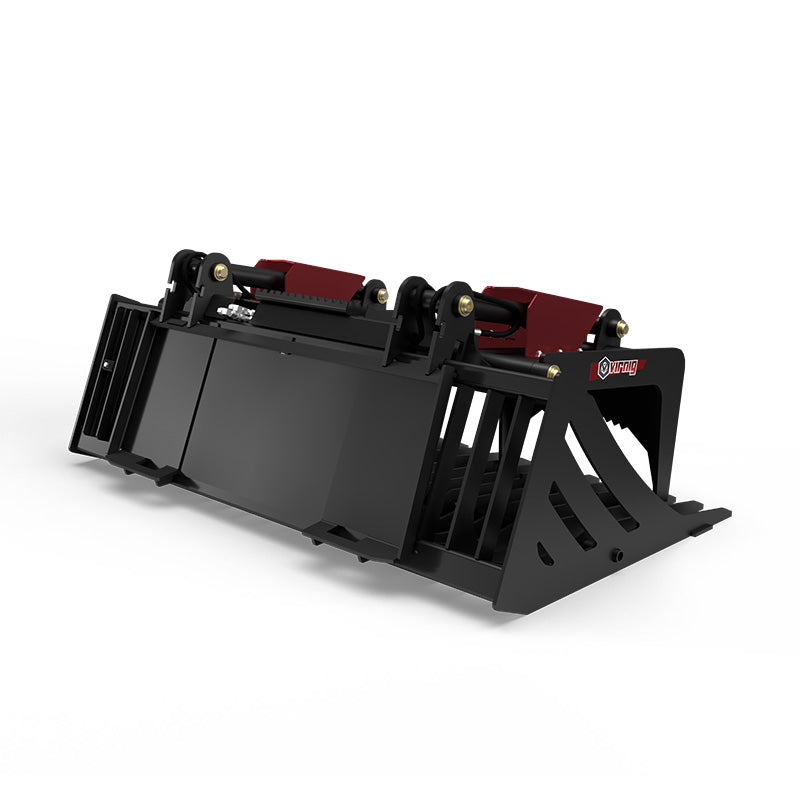

The Virnig V40 Skeleton Rock Grapple is purpose-built for contractors, landscapers, farmers, and land-management professionals who need to pick, sort, and haul rocks while leaving unwanted dirt behind. Designed for smaller to mid-size skid steers and track loaders, this grapple delivers powerful grabbing force, exceptional durability, and impressive clean-out efficiency.

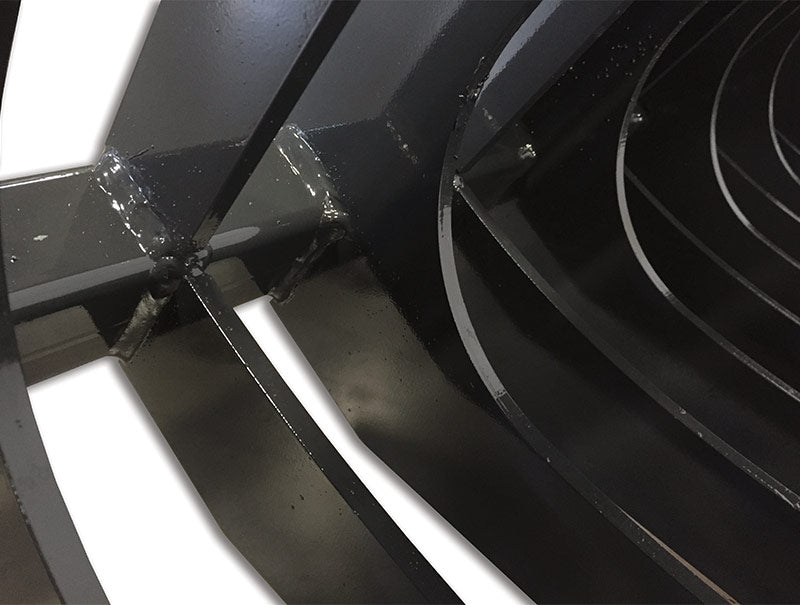

Every other tine is formed from a single piece of high-strength Grade 50 steel, ensuring unmatched rigidity during heavy digging and prying. The tight 2.9" tine spacing efficiently captures rocks and debris while filtering soil for faster cleanup and reduced material waste. A built-in rock dam, paired with engineered notches near the tine tips, stabilizes rocks and prevents material rollback ideal for uneven terrain or steep approaches.
Premium NitroSteel® cylinder rods and Teflon®-coated bushings offer long-lasting protection against corrosion, dirt, and wear, giving operators a smoother, more predictable grip in demanding jobsite conditions.
Available in 66", 72", and 84" widths, the V40 Skeleton Rock Grapple is the perfect match for skid steers with a loader capacity under 2,400 lbs and typically requires 16–25 GPM hydraulic flow, depending on the machine. (Most skid steers under 2,400 lbs operating capacity fall in the 45–70 HP engine range ideal for this attachment.)
Whether you're clearing fields, landscaping, pulling rock piles, or sorting demolition debris, the V40 BSRGV provides the strength, speed, and reliability needed to work smarter not harder.
Note: The V40 BSRGV has a known fit-up clearance issue with John Deere® 330G, 331G, 332G, and 333G models.
Key Features
- Designed for smaller skid steers with under 2,400 lb operating capacity—perfect for compact loaders
- Ideal for rock picking, land clearing, and debris removal on farms, construction sites, and landscapes
- Every other tine is a single-piece steel formation, maximizing durability and prying power
- Grade 50 plate steel (50,000 PSI minimum yield) offers superior strength without added weight
- 2.9" tine spacing filters dirt while capturing rocks, roots, and heavy materials
- Rock dam and notched tine tips secure irregular rocks and prevent rollback
- Wide 35.2" jaw opening handles bulky debris, logs, and oversized rocks
- NitroSteel® cylinder rods resist corrosion and extend service life
- Teflon®-coated bushings ensure smoother movement and reduced maintenance
- Optional open-side configuration allows hauling brush and logs wider than the grapple
- Fully welded side plates (standard model) improve load stability and keep rock piles contained
- High-visibility grapple design provides clear sight lines for precise rock picking
- Engineered cross-members reinforce tine rigidity under heavy prying loads
- Quick-attach skid steer compatibility makes switching attachments fast and effortless
- Built for hydraulic systems delivering 15–25 GPM, matching most compact and mid-frame skid steers
Detailed Specifications
| Model | BSRGV66 |
|---|---|
| Overall Width (in.) | 67.6 |
| Height – Overall/Bucket (in.) | 26.5 / 20.0 |
| Overall Depth (in.) | 39.9 |
| Number of Tines (with sides) | 21 |
| Tine Spacing (in.) | 2.9 |
| Tine Thickness (in.) | 0.375" (Grade 50 steel) |
| Cylinder Bore/Stroke (in.) | 2.0 / 8.375 |
| Cylinder & Hinge Pin Diameter (in.) | 1.25 / 1.25 |
| Grapple Jaw Opening (in.) | 35.2 |
| Approx. Weight (lbs) | 925 |
| Recommended Loader Capacity (lbs) | < 2,400 |
| Hydraulic Flow (GPM) | 15–25 GPM* |
| Typical Engine Horsepower | 45–70 HP skid steers |
| Compatibility Notes | Known clearance issue with JD 330G–333G |
| Model | BSRGV72 |
|---|---|
| Overall Width (in.) | 74.3 |
| Height – Overall/Bucket (in.) | 26.5 / 20.0 |
| Overall Depth (in.) | 39.9 |
| Number of Tines (with sides) | 23 |
| Tine Spacing (in.) | 2.9 |
| Tine Thickness (in.) | 0.375" (Grade 50 steel) |
| Cylinder Bore/Stroke (in.) | 2.0 / 8.375 |
| Cylinder & Hinge Pin Diameter (in.) | 1.25 / 1.25 |
| Grapple Jaw Opening (in.) | 35.2 |
| Approx. Weight (lbs) | 960 |
| Recommended Loader Capacity (lbs) | < 2,400 |
| Hydraulic Flow (GPM) | 15–25 GPM* |
| Typical Engine Horsepower | 45–70 HP skid steers |
| Compatibility Notes | Known clearance issue with JD 330G–333G |
| Model | BSRGV84 |
|---|---|
| Overall Width (in.) | 87.5 |
| Height – Overall/Bucket (in.) | 26.5 / 20.0 |
| Overall Depth (in.) | 39.9 |
| Number of Tines (with sides) | 27 |
| Tine Spacing (in.) | 2.9 |
| Tine Thickness (in.) | 0.375" (Grade 50 steel) |
| Cylinder Bore/Stroke (in.) | 2.0 / 8.375 |
| Cylinder & Hinge Pin Diameter (in.) | 1.25 / 1.25 |
| Grapple Jaw Opening (in.) | 35.2 |
| Approx. Weight (lbs) | 1040 |
| Recommended Loader Capacity (lbs) | < 2,400 |
| Hydraulic Flow (GPM) | 15–25 GPM* |
| Typical Engine Horsepower | 45–70 HP skid steers |
| Compatibility Notes | Known clearance issue with JD 330G–333G |
