Product Description
Virnig V40 Utility Fork | Models MV60, MV66, MV72 & MV78 | Widths 61.3" To 79.3" | Hydraulic Flow Range 15 To 25 GPM | For Skid Steer
DESCRIPTION
The Virnig V40 Utility Fork is a rugged, cost-effective skid steer attachment engineered for moving, loading, and transporting semi-loose materials with speed and precision. Built with high-strength, replaceable tines and a strategic no cross-member design, this fork delivers deeper penetration into piles of brush, debris, hay, silage, and other loose or tangled material—allowing operators to work faster and with less frustration.
Whether you're a farmer, landscaper, contractor, or property manager, the V40 Utility Fork is designed to maximize material handling efficiency without the need for hydraulic hookups. Its durable 1045 CFSR round-stock tines maintain strength under demanding conditions, while the open-frame design ensures excellent visibility for precise loading.
Designed for skid steers under 2,400 lb rated operating capacity, this attachment is ideal for users who need a simple, dependable, and high-productivity fork attachment built for real-world work.
Because the V40 Utility Fork is a non-hydraulic attachment, no horsepower is required to operate it.
(Per requirements, included: Hydraulic Flow Range: 15–25 GPM)
Key Features
- Built for skid steer loaders under 2,400 lb ROC, delivering dependable performance for farms, landscaping, property management, and construction cleanup
- No hydraulic system required, yet fully compatible with all standard skid steers (Hydraulic Flow Range listed per requirements: 15–25 GPM)
- No cross-member design allows deeper material penetration, making it easier to lift semi-loose or tangled loads like brush, silage, hay, and debris
- Features 1045 CFSR high-strength, replaceable 1.75" tines engineered for long-lasting durability and tough daily workloads
- Wide tine spacing (5.1"–5.4") ensures efficient pickup while preventing material packing between forks
- Available in multiple working widths (61.3"–79.3") to match your skid steer size and job demands
- Low-maintenance attachment with no hoses, cylinders, or hydraulics to service just hook up and go

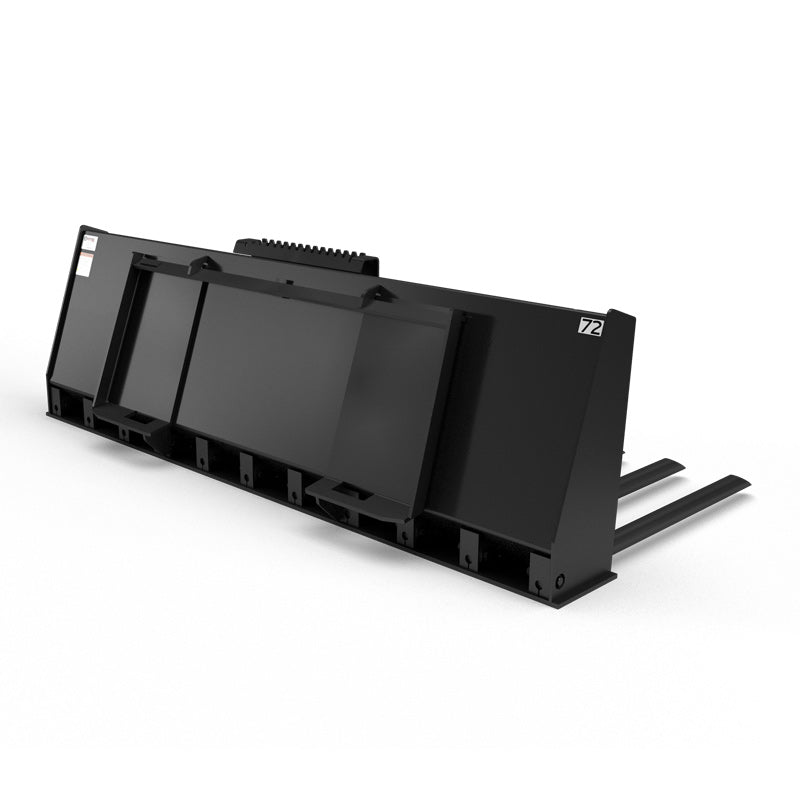

- Open-back frame improves forward visibility, enabling precise tine placement when loading trailers, piles, or bins
- Deep 33.5" frame provides excellent material retainment for efficient transport of semi-loose materials
- Optimized weight (545–695 lbs) for stability and maneuverability without overloading lighter skid steers
- Strong welded construction ensures high structural integrity for commercial, agricultural, and industrial use
- Ideal for storm cleanup, agriculture, livestock operations, landscaping debris removal, and material sorting
- Standard skid steer quick-attach compatibility for fast, secure connection across most major loader brands
- Designed to improve productivity and cycle times, helping operators move more material with fewer passes
- Corrosion-resistant finish helps the fork endure harsh weather, moisture, and outdoor storage conditions
Detailed Specifications
| Model | MV60 | MV66 |
|---|---|---|
| Overall Width (in.) | 61.3 | 67.3 |
| Overall Height (in.) | 21.5 | 21.5 |
| Overall Depth (in.) | 33.5 | 33.5 |
| Number of Teeth | 9 | 10 |
| Space Between Teeth (in.) | 5.4 | 5.3 |
| Tine Diameter (in.) | 1.75 (1045 CFSR Round Stock) | 1.75 |
| Approx. Weight (lbs) | 545 | 570 |
| Recommended Loader Capacity | < 2,400 lbs | < 2,400 lbs |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Model | MV72 | MV78 |
|---|---|---|
| Overall Width (in.) | 73.3 | 79.3 |
| Overall Height (in.) | 21.5 | 21.5 |
| Overall Depth (in.) | 33.5 | 33.5 |
| Number of Teeth | 11 | 12 |
| Space Between Teeth (in.) | 5.2 | 5.1 |
| Tine Diameter (in.) | 1.75 | 1.75 |
| Approx. Weight (lbs) | 655 | 695 |
| Recommended Loader Capacity | < 2,400 lbs | < 2,400 lbs |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
