Product Description

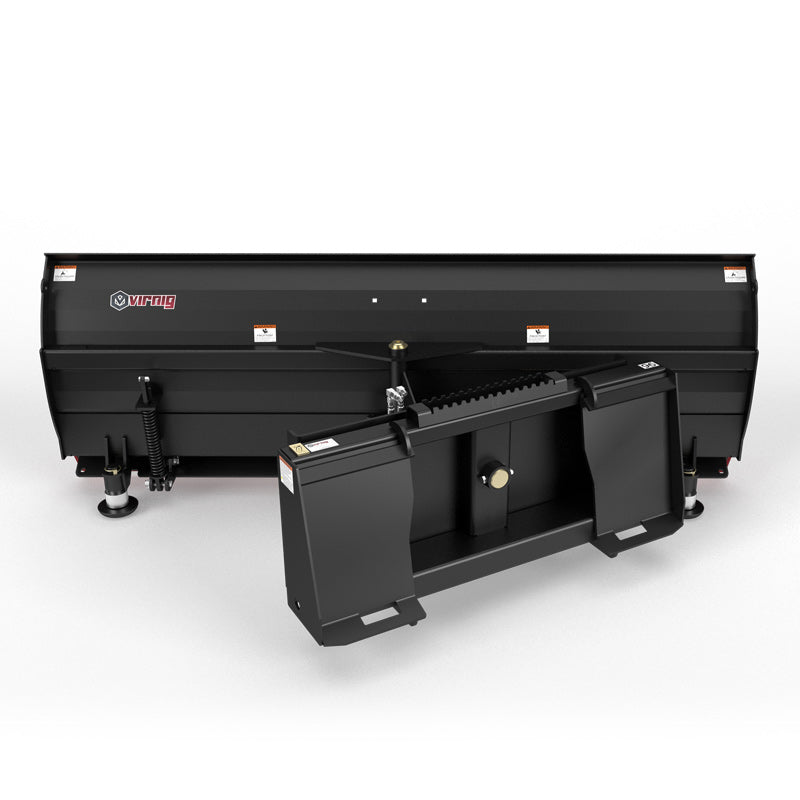

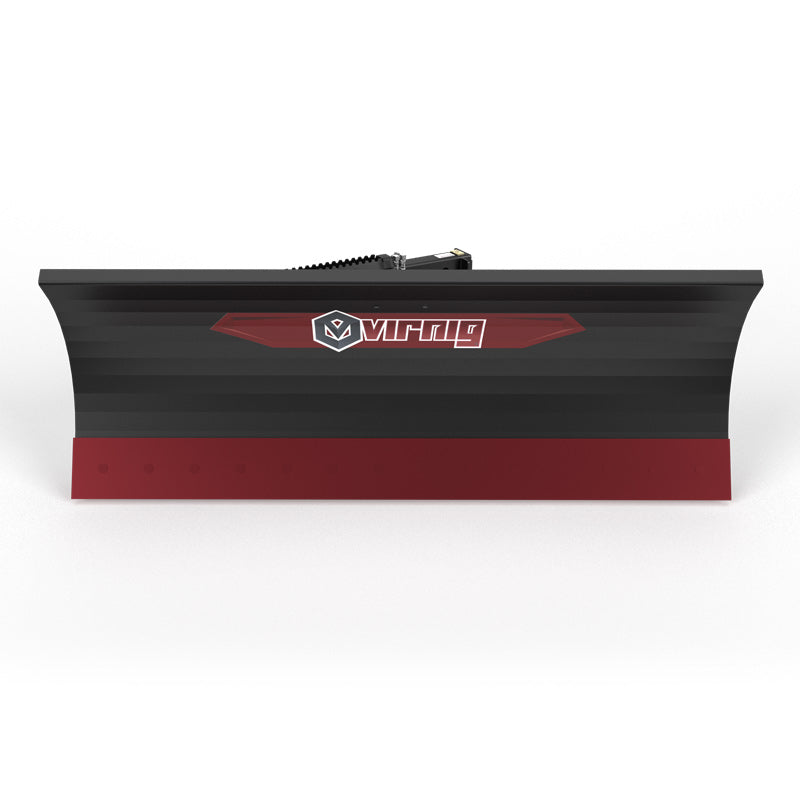

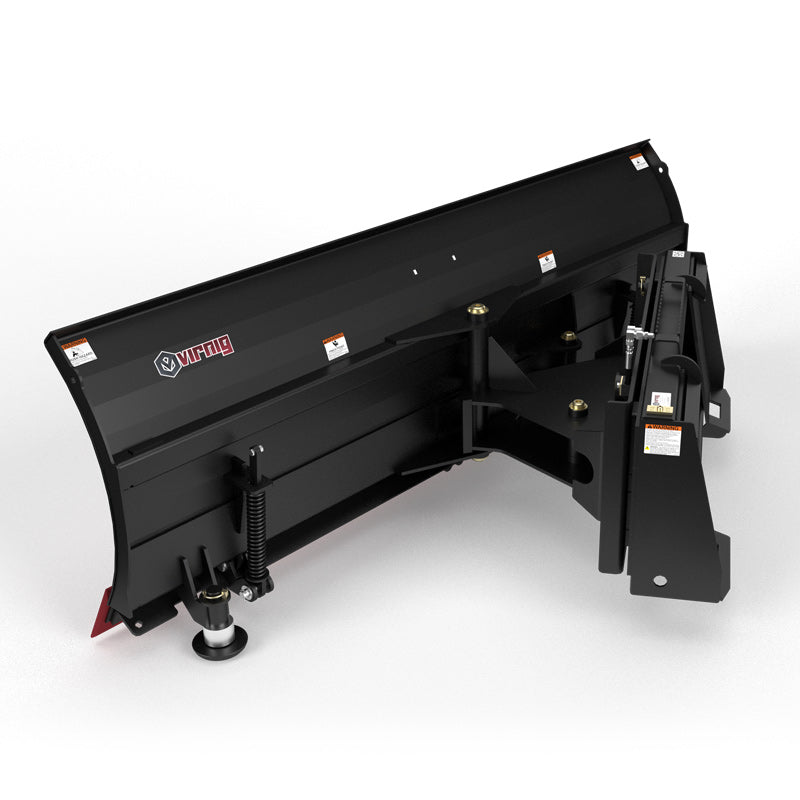

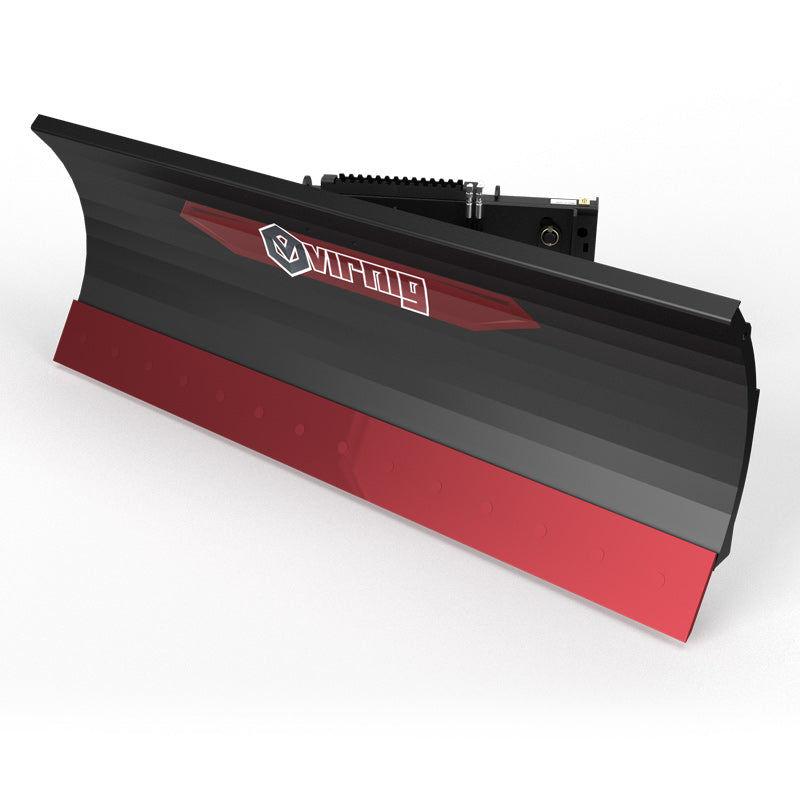

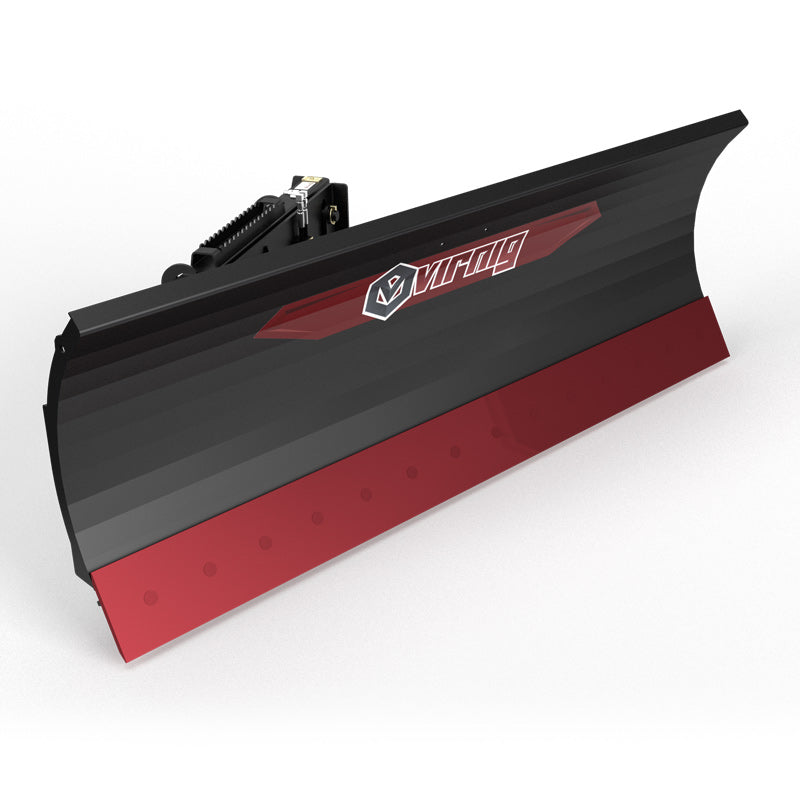

Virnig V50 Angle Snow Blade | Models SBS60-LD, SBS72-LD, SBS84-LD & SBS96-LD | Widths 62" To 98" | Hydraulic Flow Range 15 To 25 GPM | For Skid Steers
DESCRIPTION
The Virnig V50 Angle Snow Blade is engineered for operators who need professional snow-clearing performance in a lighter, more maneuverable package. Designed specifically for skid steers with less than 1,800 lb rated operating capacity, this blade delivers the strength and control Virnig is known for without the weight of heavy commercial units.
Whether clearing long driveways, parking lots, sidewalks, or private properties, the V50 Angle Snow Blade provides smooth, responsive angling with its one-cylinder hydraulic angle system, allowing you to adjust the blade 30° left or right directly from the cab. The 4° side-to-side oscillation helps the blade automatically follow uneven surfaces, ensuring clean passes and reducing operator fatigue.

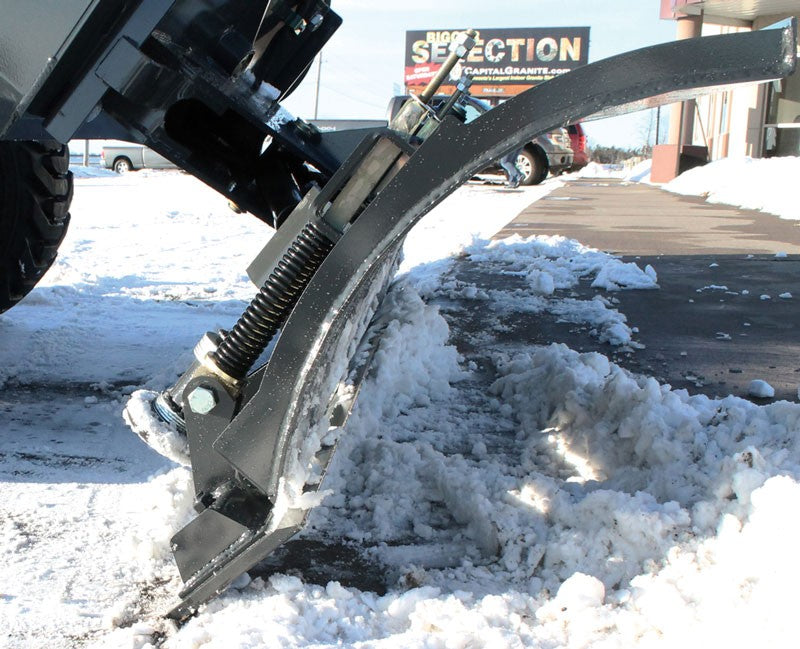

A built-in trip edge protects your machine from unexpected impacts with frozen debris or raised pavement, while the durable 5/8" x 8" reversible bolt-on steel cutting edge offers an impressive 5 1/2" of total wear, keeping maintenance simple and affordable.
The V50 Angle Snow Blade is the ideal solution for property managers, municipalities, landscaping companies, and homeowners who want a reliable, high-performance skid steer snow plow that’s built for real-world winter work.
Key Features
- Compatible with standard-flow skid steers requiring 15–25 GPM for reliable hydraulic angling.
- Available blade widths from 62" to 98" to match light-duty and mid-size skid steer loaders.
- 30° hydraulic angle left or right allows precise snow control from inside the cab.

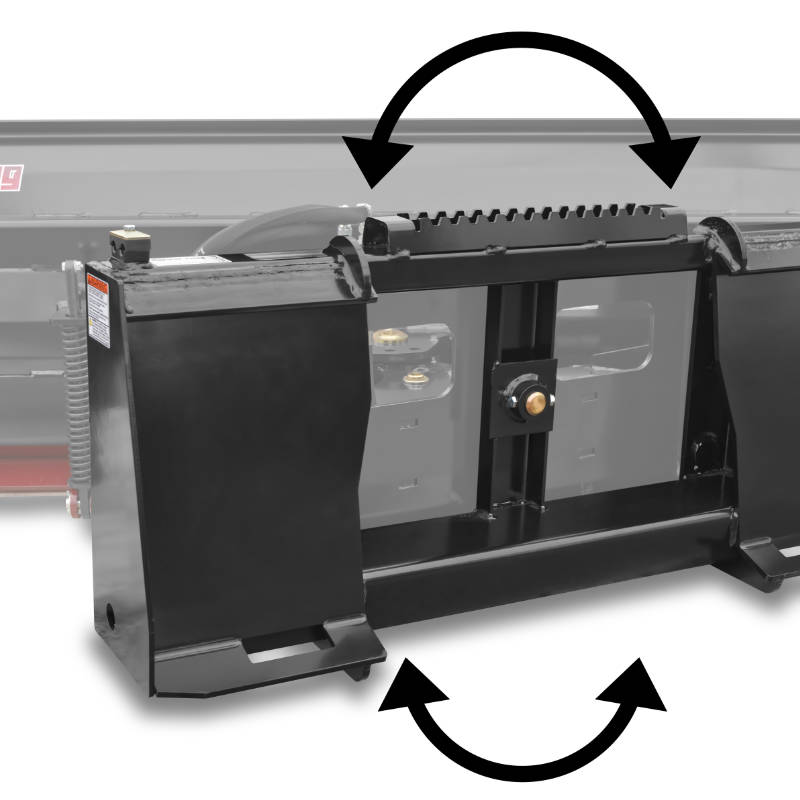

- 4° side-to-side oscillation helps the blade follow uneven surfaces for cleaner passes.
- 31" overall height and 37.1" depth provide strong snow-rolling performance with compact maneuverability.
- Weighs 815–975 lb depending on model, ideal for skid steers under 1,800 lb ROC.
- One-cylinder angle system reduces weight while maintaining smooth hydraulic control.
- 5/8" x 8" reversible bolt-on cutting edge offers 5.5" of total wear for extended service life.
- Heavy-duty 0.19" moldboard construction increases durability in winter conditions.
- Trip-edge design protects the machine and operator from hidden obstacles and impacts.
- Curved moldboard efficiently rolls snow to reduce drag and improve pushing performance.
- Large 2.0" bore with 8.375" stroke cylinder ensures dependable angling power.
- Reinforced hinge and cylinder pin diameters (1.25" / 1.563") improve long-term structural strength.
- Designed for winter maintenance on driveways, parking lots, and commercial properties.
- Works with any skid steer using standard quick-attach mounts, making installation fast and universal.
Detailed Specifications
| Model | SBS60-LD | SBS72-LD |
|---|---|---|
| Overall Width (Straight) | 62.0" | 74.0" |
| Width at Full Angle | 54.0" | 64.0" |
| Overall Height | 31.0" | 31.0" |
| Overall Depth (Straight) | 37.1" | 37.1" |
| Blade Angle Range | ±30° | ±30° |
| Blade Oscillation | ±4° | ±4° |
| Moldboard Thickness | 0.19" | 0.19" |
| Cutting Edge | 5/8" x 8" bolt-on | 5/8" x 8" bolt-on |
| Cylinder (Bore/Stroke) | 2.0" / 8.375" | 2.0" / 8.375" |
| Pin Diameters (Cylinder/Hinge) | 1.25" / 1.563" | 1.25" / 1.563" |
| Approx. Weight | 815 lb* | 870 lb* |
| Recommended Loader Capacity | < 1,800 lb | < 1,800 lb |
| Required Hydraulic Flow | 15–25 GPM | 15–25 GPM |
| Model | SBS84-LD | SBS96-LD |
|---|---|---|
| Overall Width (Straight) | 86.0" | 98.0" |
| Width at Full Angle | 74.0" | 84.0" |
| Overall Height | 31.0" | 31.0" |
| Overall Depth (Straight) | 37.1" | 37.1" |
| Blade Angle Range | ±30° | ±30° |
| Blade Oscillation | ±4° | ±4° |
| Moldboard Thickness | 0.19" | 0.19" |
| Cutting Edge | 5/8" x 8" bolt-on | 5/8" x 8" bolt-on |
| Cylinder (Bore/Stroke) | 2.0" / 8.375" | 2.0" / 8.375" |
| Pin Diameters (Cylinder/Hinge) | 1.25" / 1.563" | 1.25" / 1.563" |
| Approx. Weight | 920 lb* | 975 lb* |
| Recommended Loader Capacity | < 1,800 lb | < 1,800 lb |
| Required Hydraulic Flow | 15–25 GPM | 15–25 GPM |
Manuals & Documents
Specification Sheet
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
