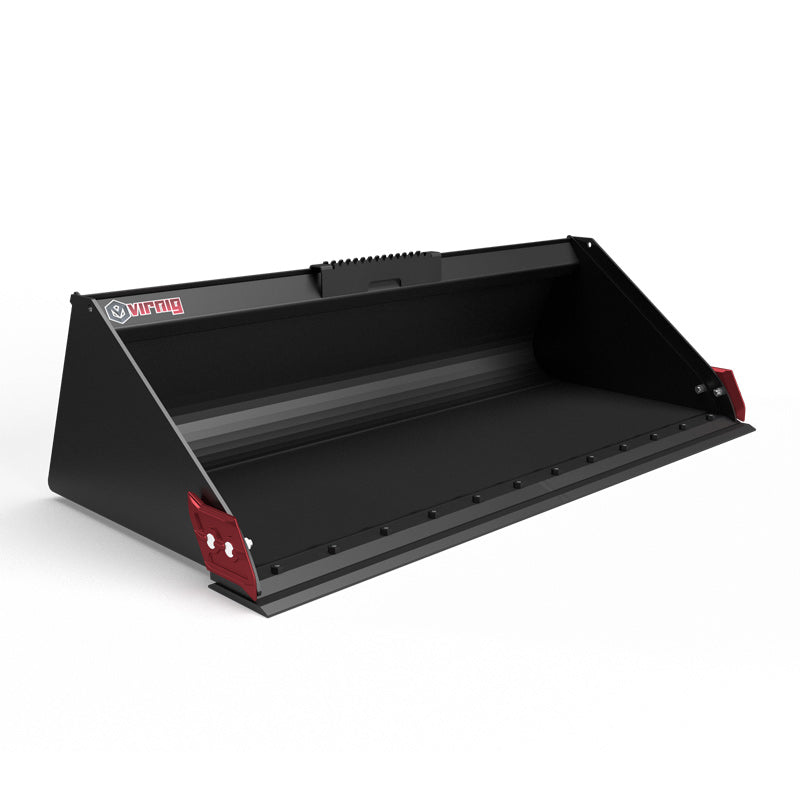

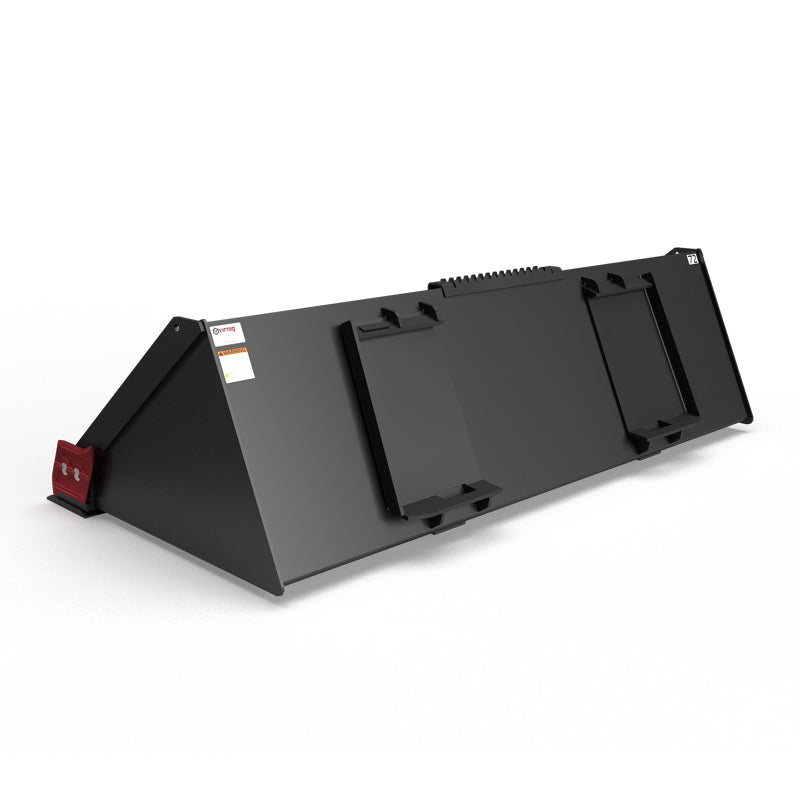

Virnig V50 Low Profile Dirt Bucket | Models DHV60 To DHV84 | Widths 60" To 84" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
Virnig V50 Low Profile Dirt Bucket | Models DHV60 To DHV84 | Widths 60" To 84" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
Regular price
$1,705.00
Regular price
Sale price
$1,705.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Virnig V50 Low Profile Dirt Bucket | Models DHV60 To DHV84 | Widths 60" To 84" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

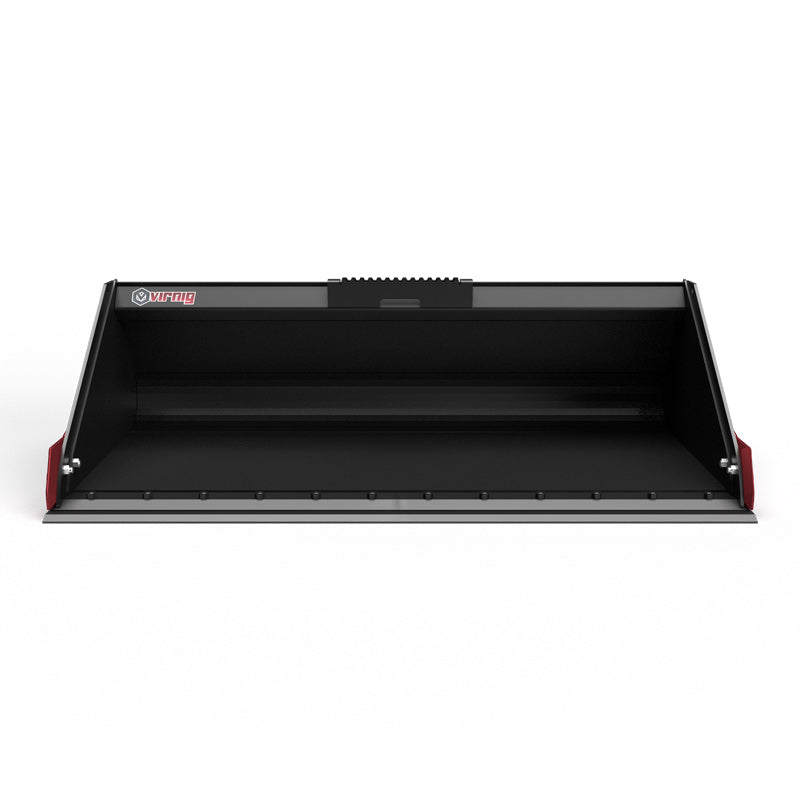

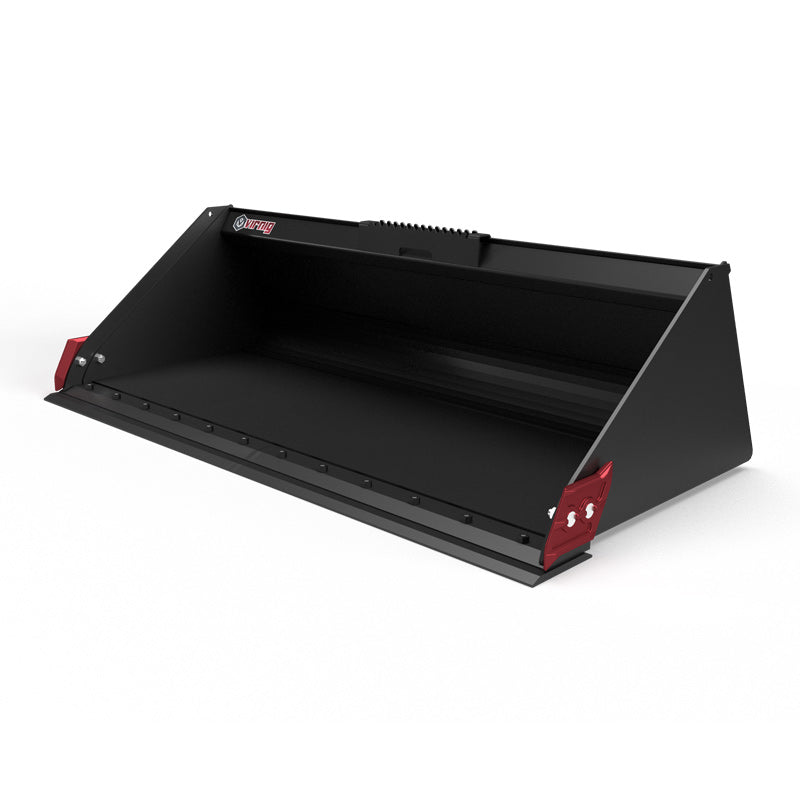

The Virnig V50 Low Profile Dirt Bucket is engineered for serious contractors, landscapers, and operators who demand durability, visibility, and precision from their skid steer attachments. Built for machines with 15–25 GPM hydraulic flow and loader capacities over 2,400 lbs, this bucket is a heavy-duty workhorse designed to move, grade, and clean out materials efficiently on every jobsite.
Its low-profile design provides excellent cutting-edge visibility from the cab, helping you achieve cleaner cuts and smoother grades with less guesswork. The curved inside shell and grading bend make back-dragging and material release easy, while 1/2" wear bars and a 3/4" x 6" weld-on edge extend the bucket’s working life in tough conditions.
Whether you’re leveling driveways, loading fill, or maintaining jobsite cleanup, the Virnig V50 Dirt Bucket delivers reliable, balanced performance that makes your skid steer more productive every hour it runs.
Key Features
- Low Profile Design Enhanced cutting-edge visibility from the cab for precise grading and loading.
- Curved Interior Shell Promotes smoother material flow and easier cleanout.
- Grading Bend Ideal for reverse grading and back-dragging applications.
- 3/4" x 6" Weld-On Cutting Edge Built to endure abrasive surfaces and heavy use.

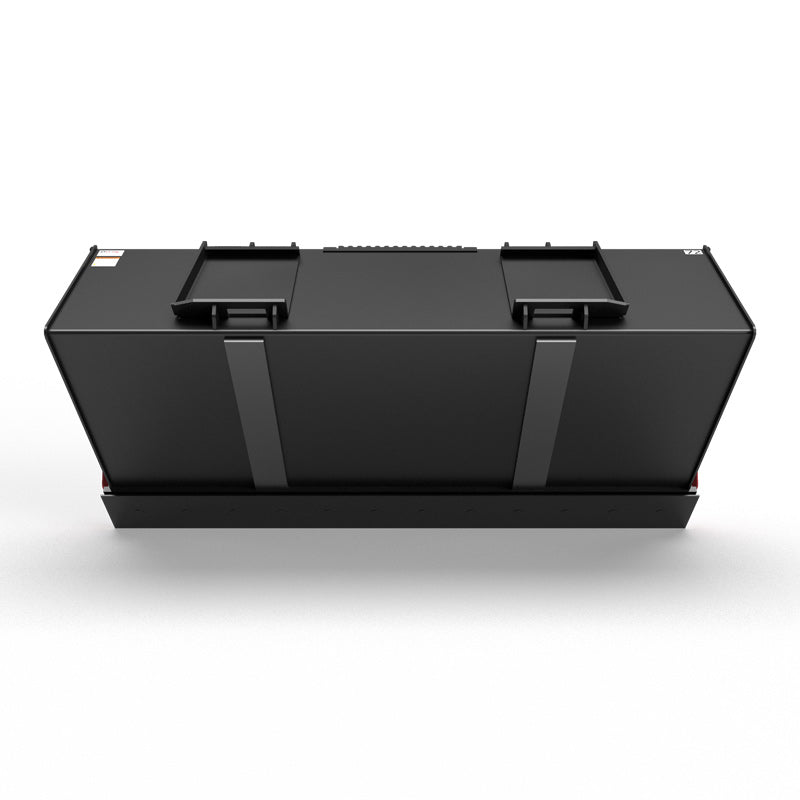

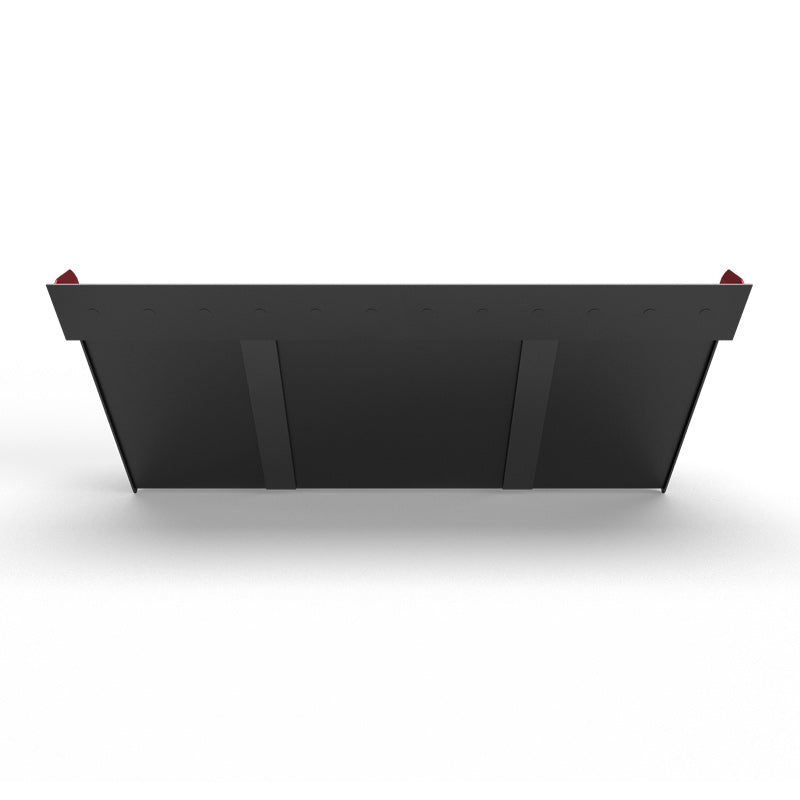

- 1/2" x 4" Wear Bars Reinforces the bucket bottom for long-term structural strength.

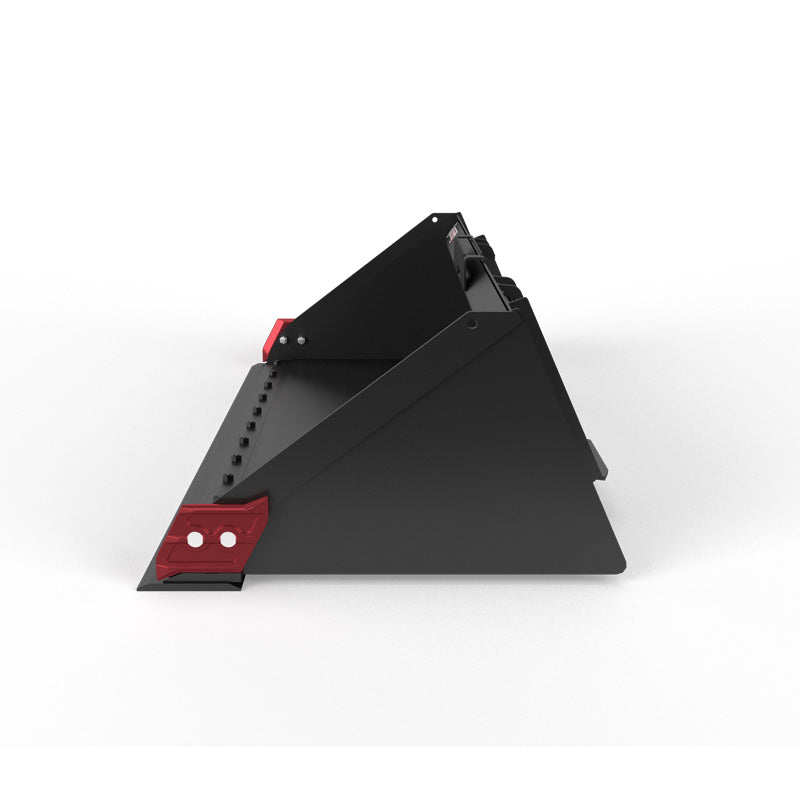

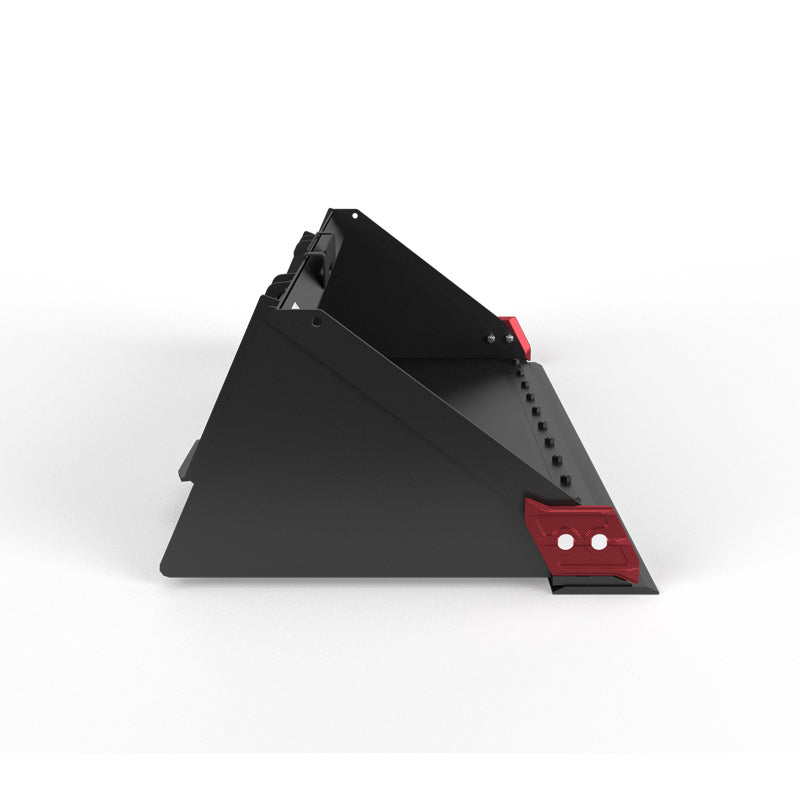

- Heavy-Duty Side Plates (1/4") Provides stability and reduces sidewall deflection.
- Optional Bolt-On or Serrated Edges Extend cutting-edge life or enhance digging performance.
- Replaceable Teeth Option Available for breaking up compacted soil and digging applications.
- Optimal Bucket Back Angle (66°) Keeps material secure while reducing spillage.

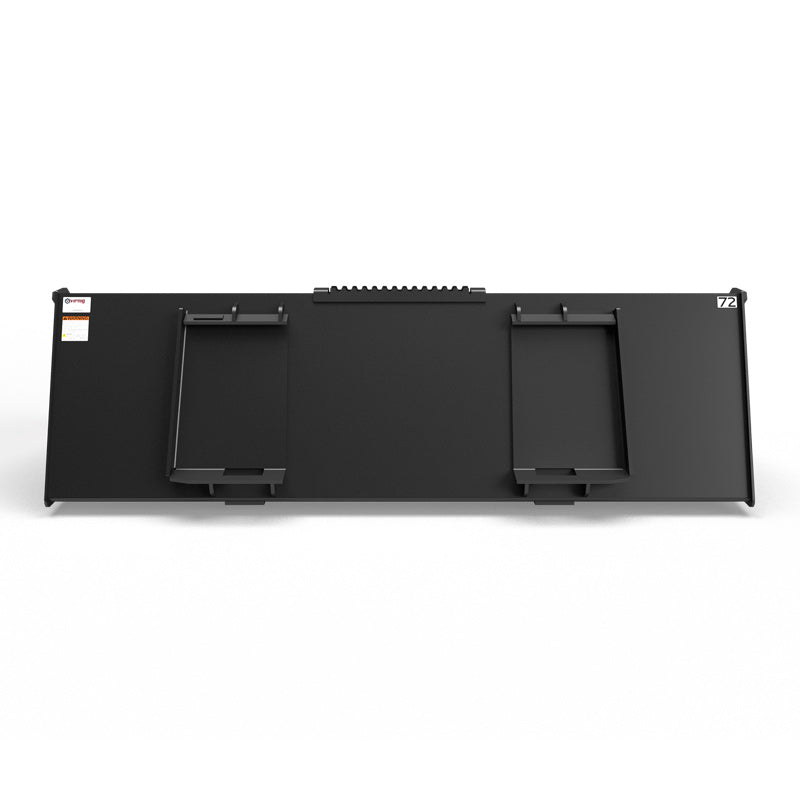

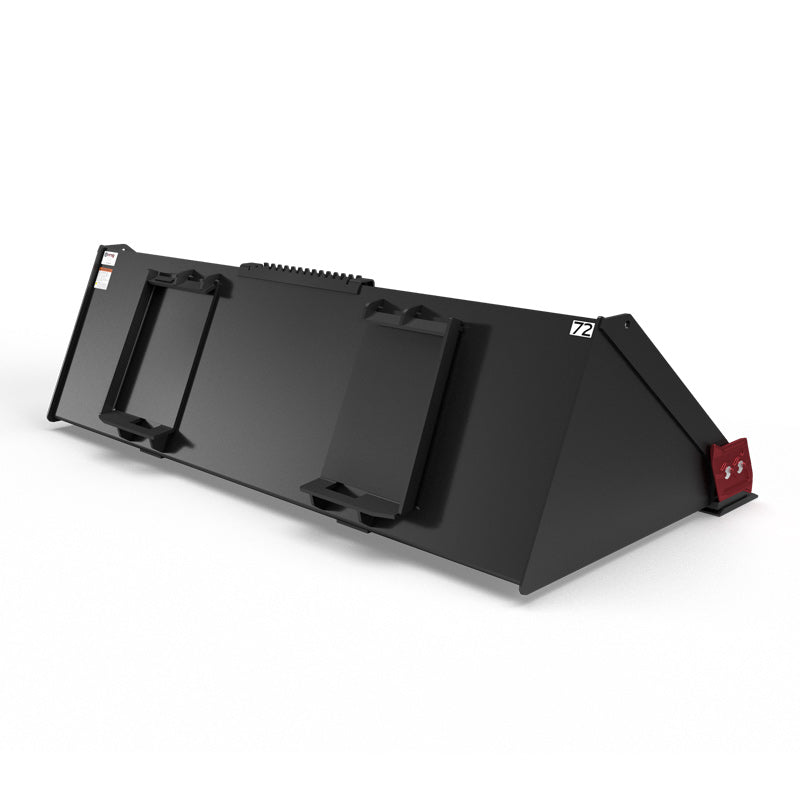

- Precision Fit for Skid Steer Mounts Compatible with most universal quick-attach systems.
- Enhanced Gusseting on Bucket Back Improves rigidity and resists bending under load.
- Balanced Weight Distribution Provides stable operation and reduces strain on the loader arms.
- Extended Bottom Depth (37") Offers greater capacity without compromising visibility.
- High-Capacity Options (Up to 20.4 cu ft Heaped) Efficiently handles large volumes of material.
- Proudly Made in the USA by Virnig Manufacturing Precision-engineered for professional operators.
Detailed Specifications
| Specification | DHV60EX-GB | DHV66EX-GB |
|---|---|---|
| Overall Width (in.) | 61.5 | 67.5 |
| Inside Width (in.) | 59.3 | 65.3 |
| Overall Depth (in.) | 37.0 | 37.0 |
| Inside Depth (in.) | 32.5 | 32.5 |
| Overall Height (in.) | 20.5 | 20.5 |
| Struck Capacity (cu ft) | 11.9 | 13.1 |
| Heaped Capacity (cu ft) | 14.3 | 15.7 |
| Shell Thickness (in.) | 0.19 | 0.19 |
| Side Plate Thickness (in.) | 0.25 | 0.25 |
| Wear Bars (½" x 4") | 2 | 2 |
| Bucket Back Angle (°) | 66 | 66 |
| Approx. Weight (lbs) | 475 | 505 |
| Recommended Loader Capacity (lbs) | > 2,400 | > 2,400 |
| Hydraulic Flow (GPM) | 15–25 | 15–25 |
| Compatible Machine | Skid Steer Loaders | Skid Steer Loaders |
| Recommended Horsepower | 45–80 HP | 45–80 HP |
| Specification | DHV72EX-GB | DHV78EX-GB |
|---|---|---|
| Overall Width (in.) | 73.5 | 79.5 |
| Inside Width (in.) | 71.3 | 77.3 |
| Overall Depth (in.) | 37.0 | 37.0 |
| Inside Depth (in.) | 32.5 | 32.5 |
| Overall Height (in.) | 20.5 | 20.5 |
| Struck Capacity (cu ft) | 14.4 | 15.7 |
| Heaped Capacity (cu ft) | 17.3 | 18.8 |
| Shell Thickness (in.) | 0.19 | 0.19 |
| Side Plate Thickness (in.) | 0.25 | 0.25 |
| Wear Bars (½" x 4") | 2 | 3 |
| Bucket Back Angle (°) | 66 | 66 |
| Approx. Weight (lbs) | 535 | 585 |
| Recommended Loader Capacity (lbs) | > 2,400 | > 2,400 |
| Hydraulic Flow (GPM) | 15–25 | 15–25 |
| Compatible Machine | Skid Steer Loaders | Skid Steer Loaders |
| Recommended Horsepower | 45–80 HP | 45–80 HP |
| Specification | DHV84EX-GB |
|---|---|
| Overall Width (in.) | 85.5 |
| Inside Width (in.) | 83.3 |
| Overall Depth (in.) | 37.0 |
| Inside Depth (in.) | 32.5 |
| Overall Height (in.) | 20.5 |
| Struck Capacity (cu ft) | 17.0 |
| Heaped Capacity (cu ft) | 20.4 |
| Shell Thickness (in.) | 0.19 |
| Side Plate Thickness (in.) | 0.25 |
| Wear Bars (½" x 4") | 3 |
| Bucket Back Angle (°) | 66 |
| Approx. Weight (lbs) | 615 |
| Recommended Loader Capacity (lbs) | > 2,400 |
| Hydraulic Flow (GPM) | 15–25 |
| Compatible Machine | Skid Steer Loaders |
| Recommended Horsepower | 45–80 HP |
