Product Description

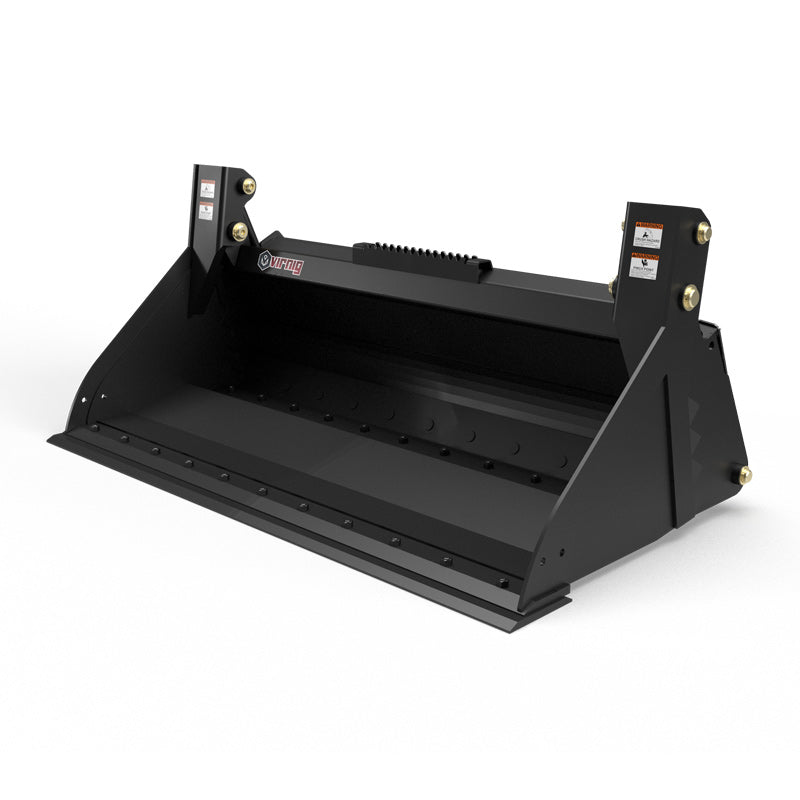

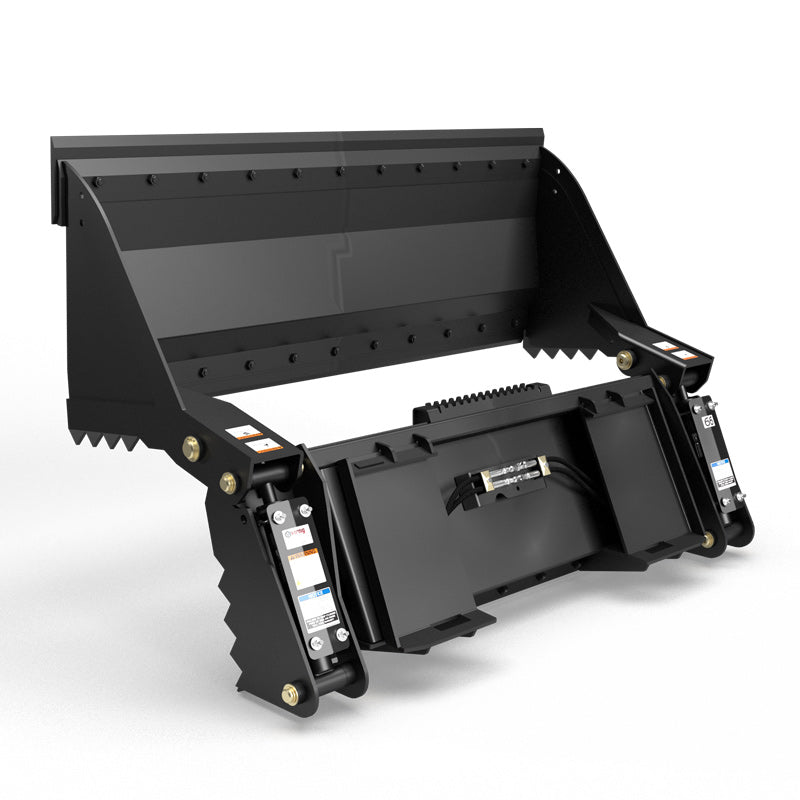

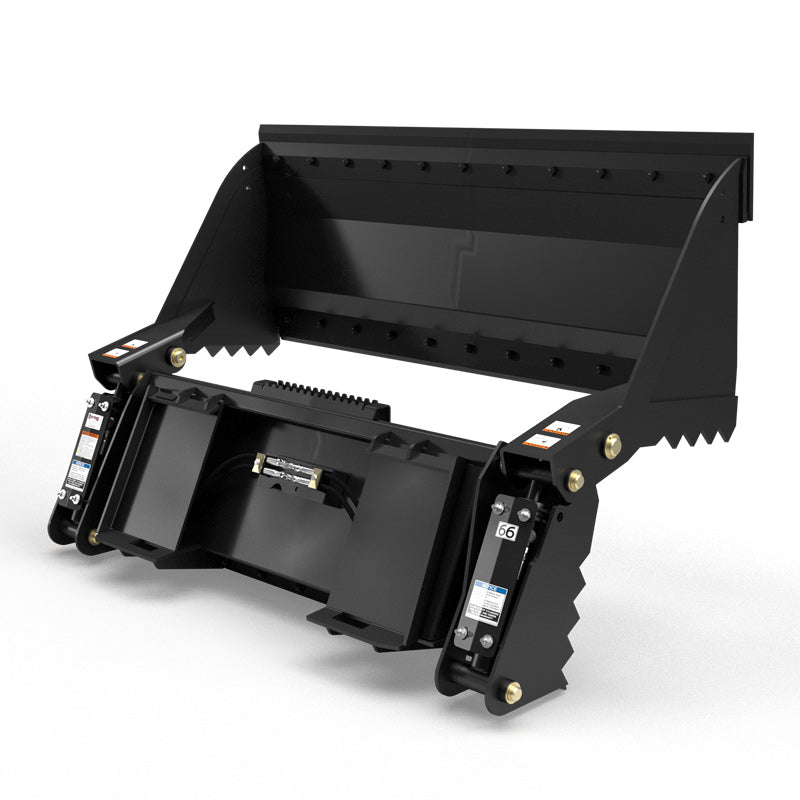

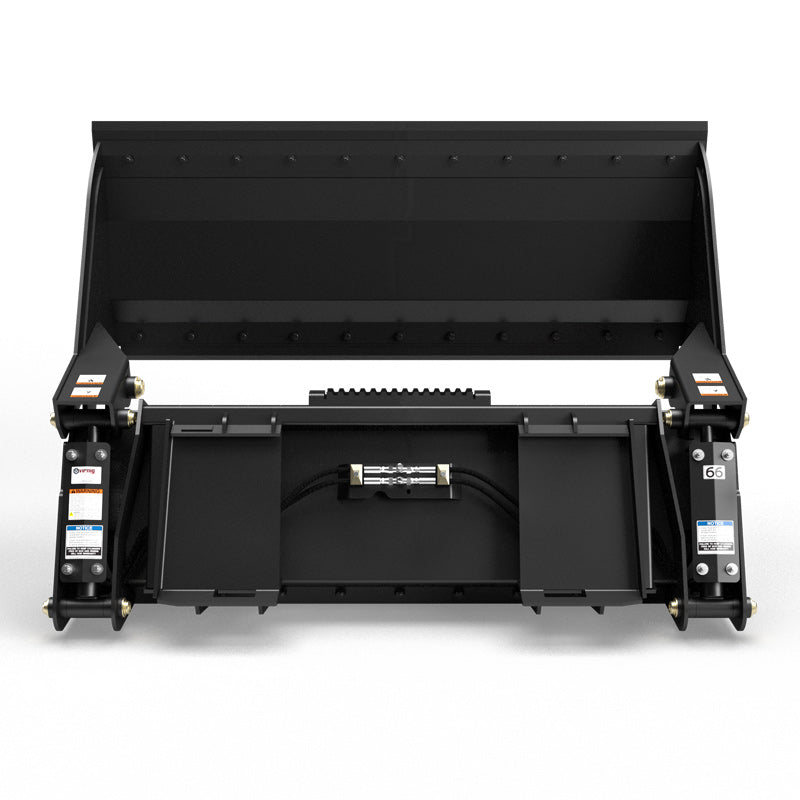

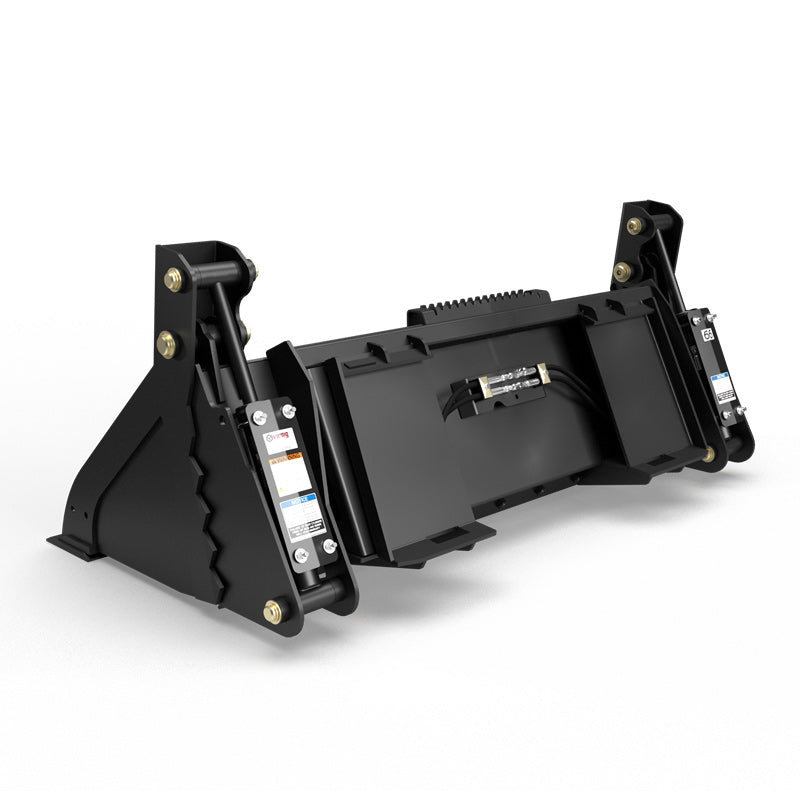

Virnig V50 Multi-Purpose Bucket (4-in-1) | Models MPV60, MPV66 & MPV72 | Widths 60" to 72" | Hydraulic Flow 15 To 25 GPM | For Skid Steers
DESCRIPTION
The Virnig V50 Multi-Purpose Bucket (4-in-1) is a powerhouse attachment designed for skid steer operators who demand versatility, strength, and precision on the job site. Built to perform four essential tasks dozing, clamming, leveling, and bottom dumping this bucket transforms your machine into a multi-functional tool that tackles a wide range of earthmoving and material handling challenges.

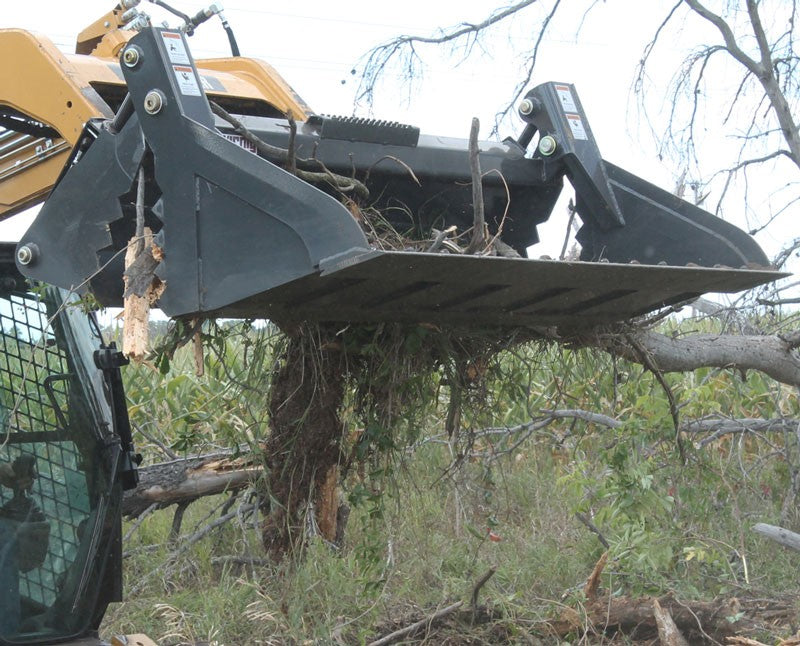

Perfect for contractors, landscapers, construction crews, and property managers, the V50 Multi-Purpose Bucket delivers unmatched performance in grading, site prep, and debris management. Heavy-duty NitroSteel® cylinder rods, Teflon®-coated bushings, and reversible bolt-on cutting edges ensure long-lasting durability, while protected hydraulic cylinders safeguard against jobsite wear and tear.
If you’re looking for a professional-grade 4-in-1 bucket that works as hard as you do, the Virnig V50 sets the industry standard for power, precision, and reliability.
Key Features

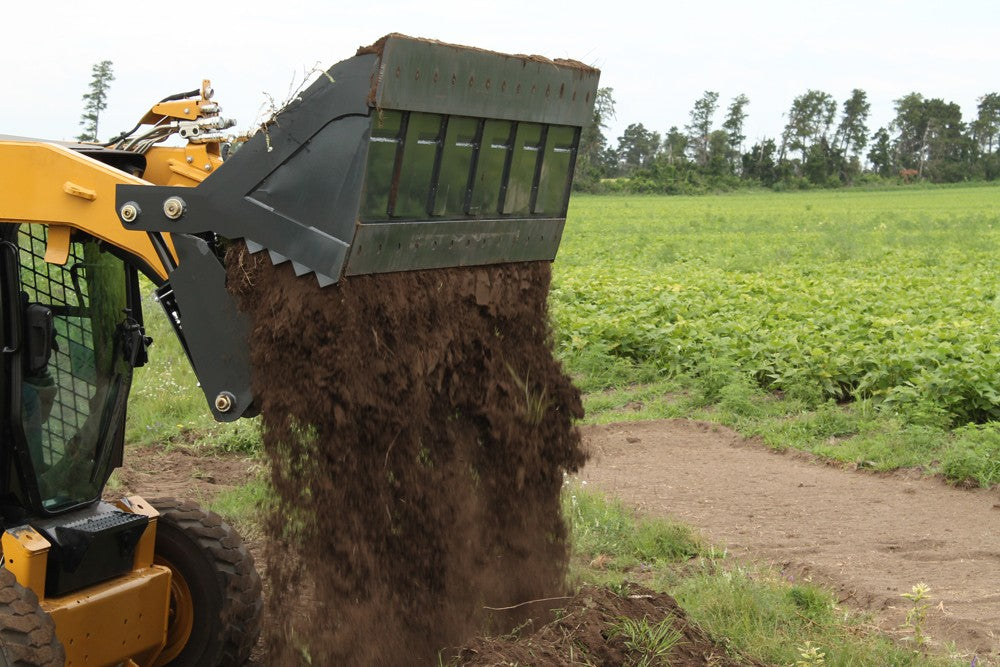

- 4-in-1 Functionality Switch instantly between dozing, clamming, leveling, and dumping for maximum versatility on any terrain.
- Heavy-Duty Construction Built with ¼" shell and ⅜" hinge structure steel for unmatched strength and impact resistance.

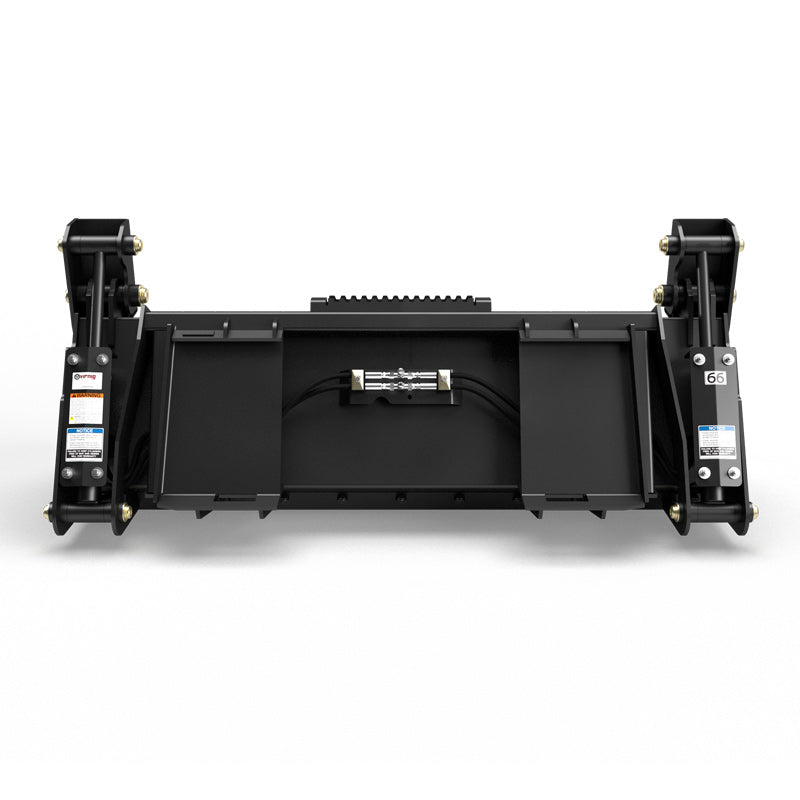

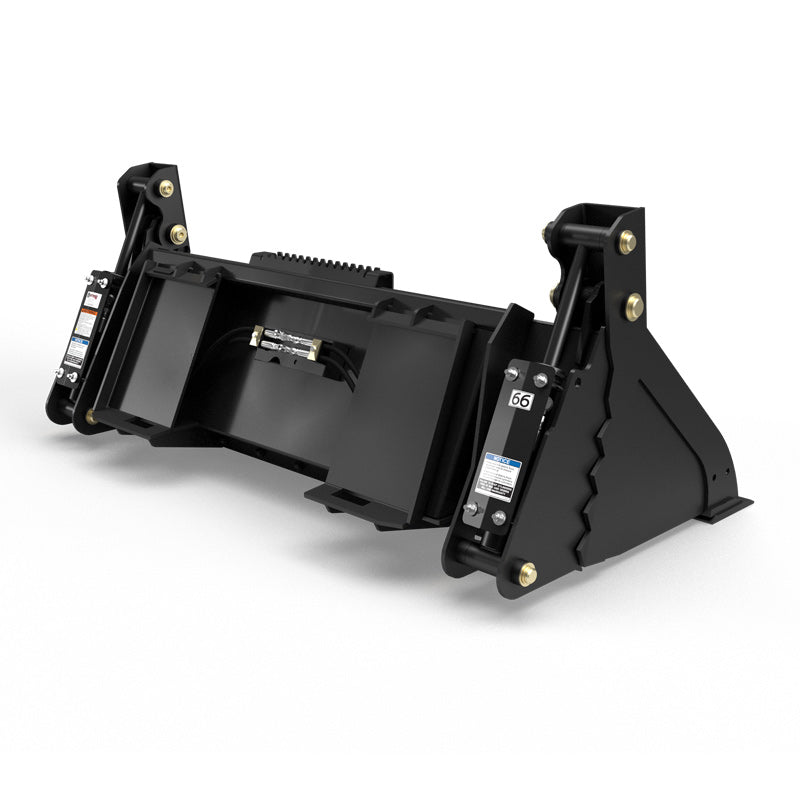

- Protected Hydraulic Cylinders Standard cylinder guards shield vital components from debris and impact damage.
- NitroSteel® Cylinder Rods Prevent corrosion and extend lifespan, ideal for harsh outdoor conditions.
- Teflon®-Coated Bushings Deliver smoother, more efficient pivot movement and reduced maintenance needs.
- Reversible Bolt-On Cutting Edge ⅝" x 6" edge can be flipped for extended use, cutting costs and downtime.

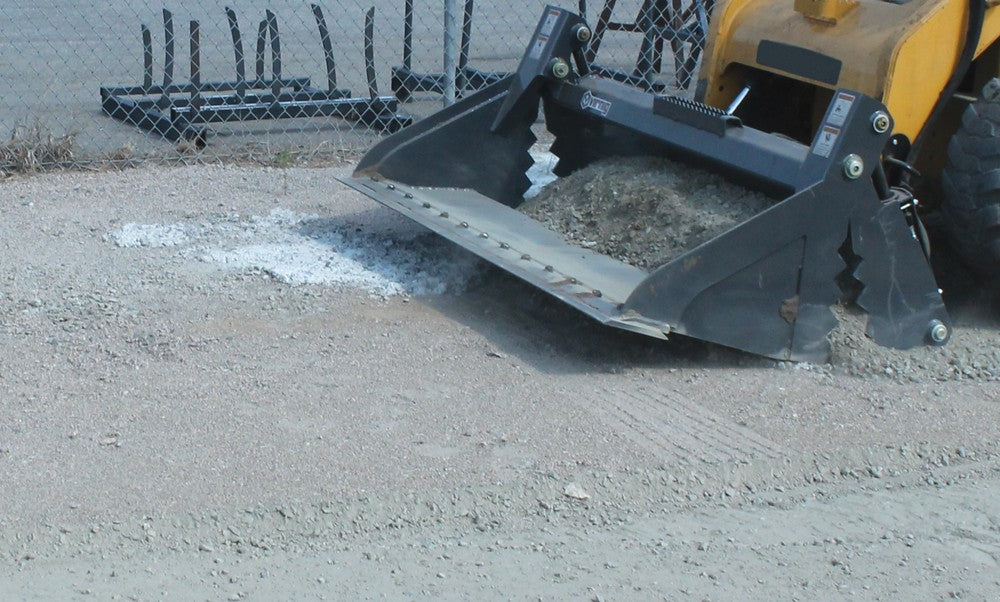

- Precision Grading & Leveling Ideal for contractors who demand clean, accurate finishes on site prep or grading work.

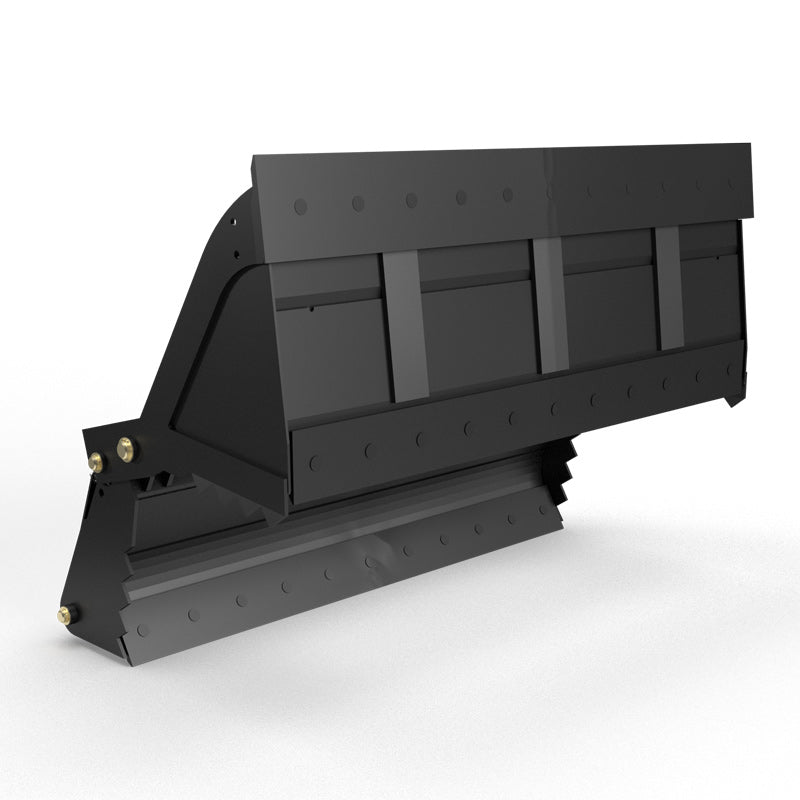

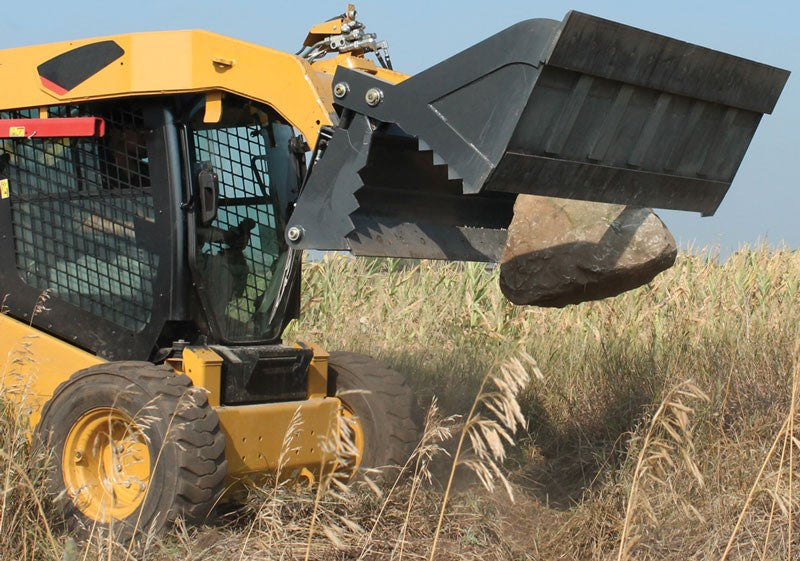

- Excellent Clam Capacity 33" clam opening makes material handling, backfilling, and dumping fast and efficient.
- Multiple Width Options Choose from 60", 66", or 72" models to match your skid steer size and application.
- Optimized for Mid-Flow Hydraulics Designed for skid steers with 15–25 GPM hydraulic flow systems.
- Structural Wear Bars Three ½" x 4" wear bars under the bucket add strength and extend service life.
- Compatible with Optional Edges & Teeth Add serrated, bolt-on, or toothbar options for even more digging power.
- Ideal for Loaders Under 2,400 lbs Capacity Engineered for compact and mid-size skid steers, ensuring proper fit and balance.
- Smooth, Controlled Operation Hydraulic design ensures steady, precise clamping and release motions.
- Proudly Made in the USA Precision-built by Virnig Manufacturing for superior performance and dependability.
Detailed Specifications
| Model | MPV60 |
|---|---|
| Overall Width (in.) | 61.5 |
| Inside Width (in.) | 59.5 |
| Height (Overall / Bucket / Open) | 29.8 / 21.3 / 46.0 |
| Depth (Overall / Inside) | 37.0 / 28.6 |
| Dozer Width (in.) | 59.9 |
| Clam Opening (in.) | 33.0 |
| Shell / Hinge Structure Thickness (in.) | 0.25 / 0.375 |
| Structural Wear Bars (½" x 4") | 3 |
| Cylinder Bore / Stroke (in.) | 2.5 / 8.375 |
| Cylinder Pin / Hinge Pin Diameter (in.) | 1.25 / 1.563 |
| Approximate Weight (lbs) | 840 |
| Recommended Loader Capacity | < 2,400 lbs |
| Hydraulic Flow Requirement | 15–25 GPM |
| Model | MPV66 |
|---|---|
| Overall Width (in.) | 67.5 |
| Inside Width (in.) | 65.5 |
| Height (Overall / Bucket / Open) | 29.8 / 21.3 / 46.0 |
| Depth (Overall / Inside) | 37.0 / 28.6 |
| Dozer Width (in.) | 65.9 |
| Clam Opening (in.) | 33.0 |
| Shell / Hinge Structure Thickness (in.) | 0.25 / 0.375 |
| Structural Wear Bars (½" x 4") | 3 |
| Cylinder Bore / Stroke (in.) | 2.5 / 8.375 |
| Cylinder Pin / Hinge Pin Diameter (in.) | 1.25 / 1.563 |
| Approximate Weight (lbs) | 915 |
| Recommended Loader Capacity | < 2,400 lbs |
| Hydraulic Flow Requirement | 15–25 GPM |
| Model | MPV72 |
|---|---|
| Overall Width (in.) | 73.5 |
| Inside Width (in.) | 71.5 |
| Height (Overall / Bucket / Open) | 29.8 / 21.3 / 46.0 |
| Depth (Overall / Inside) | 37.0 / 28.6 |
| Dozer Width (in.) | 71.9 |
| Clam Opening (in.) | 33.0 |
| Shell / Hinge Structure Thickness (in.) | 0.25 / 0.375 |
| Structural Wear Bars (½" x 4") | 3 |
| Cylinder Bore / Stroke (in.) | 2.5 / 8.375 |
| Cylinder Pin / Hinge Pin Diameter (in.) | 1.25 / 1.563 |
| Approximate Weight (lbs) | 960 |
| Recommended Loader Capacity | < 2,400 lbs |
| Hydraulic Flow Requirement | 15–25 GPM |
