Product Description
Virnig V50 Scrap Grapple | Models SBG60, SBG66, SBG72 & SBG78 | Widths 61.5" To 79.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

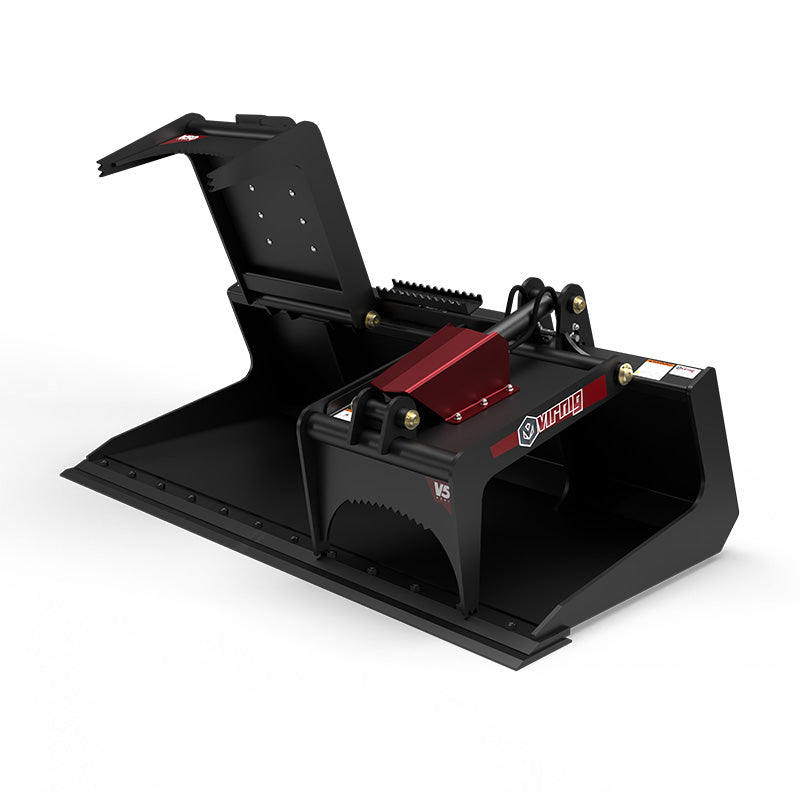

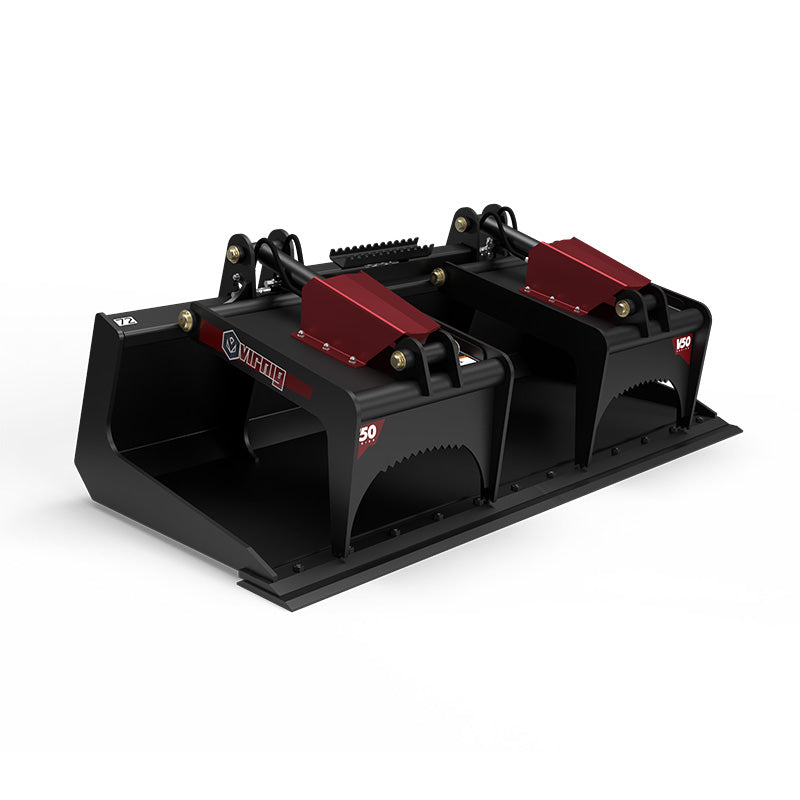

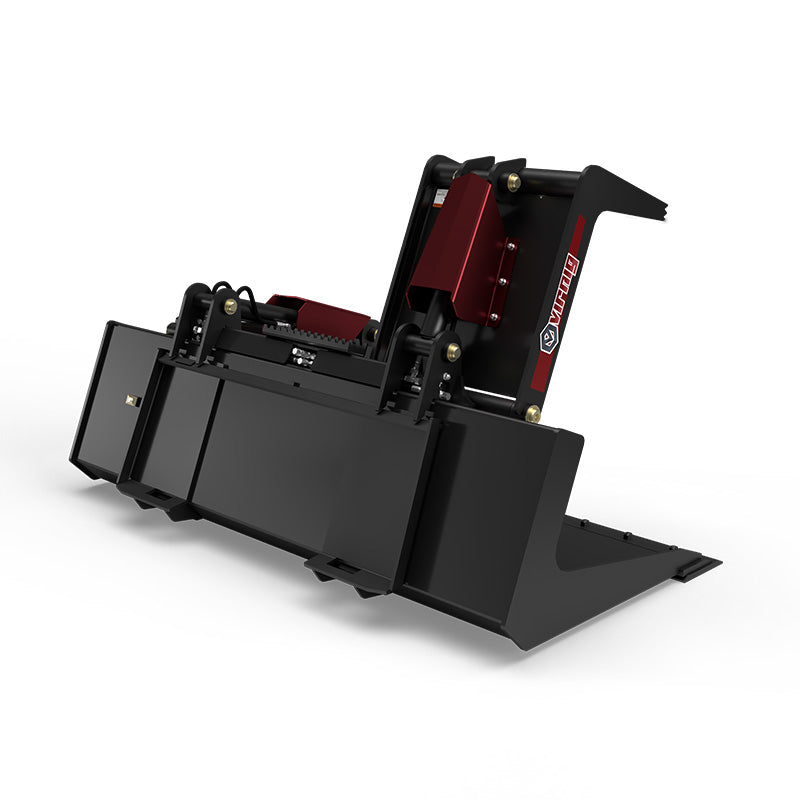

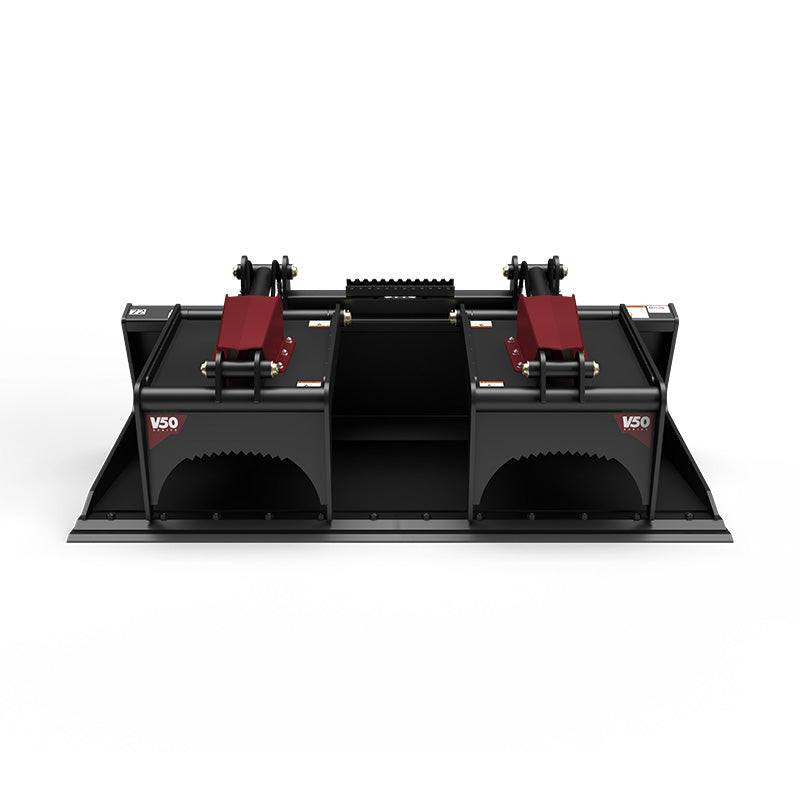

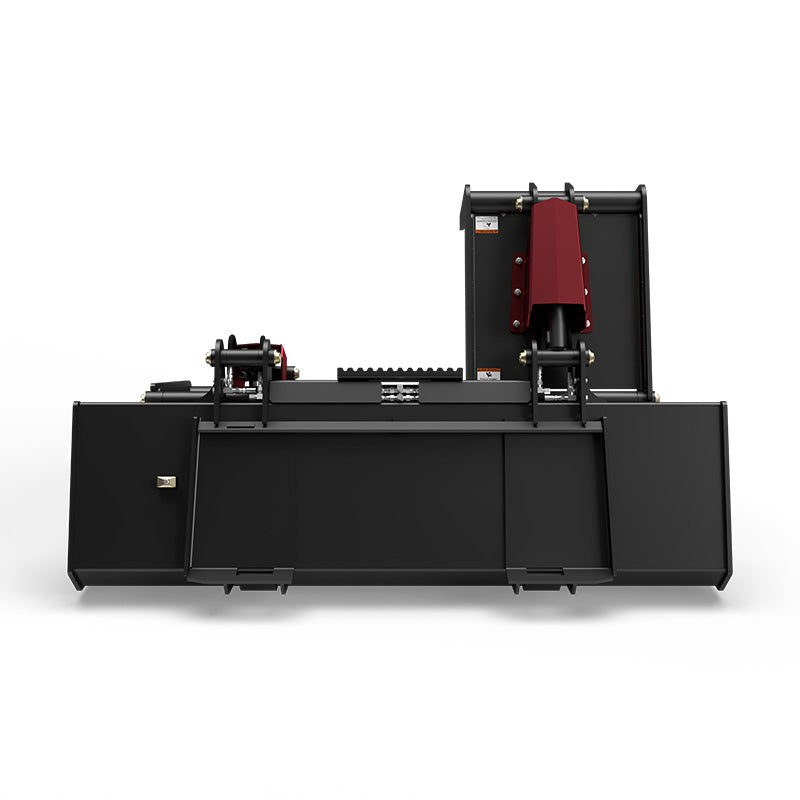

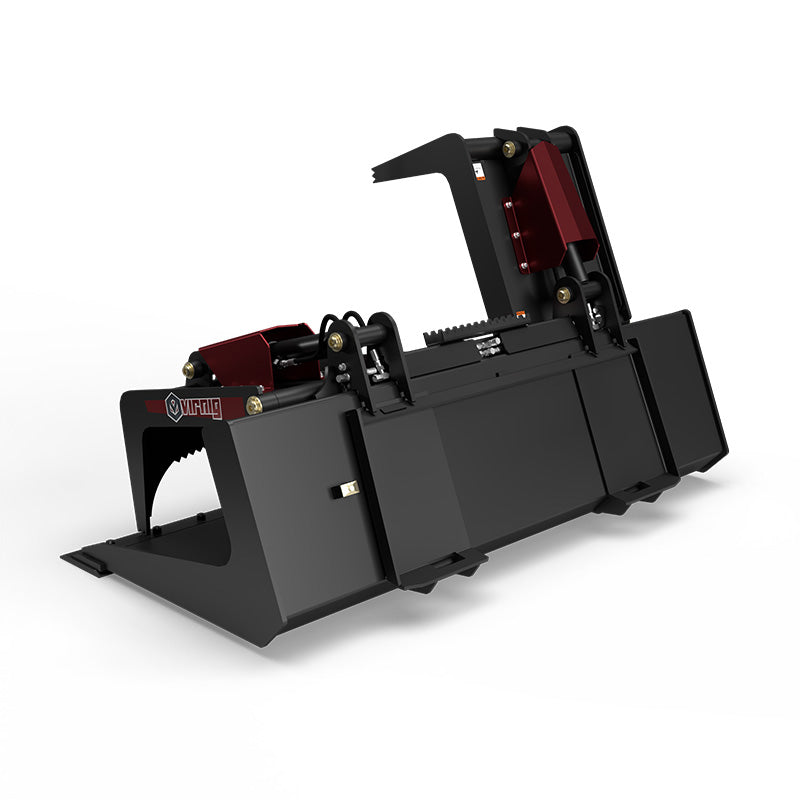

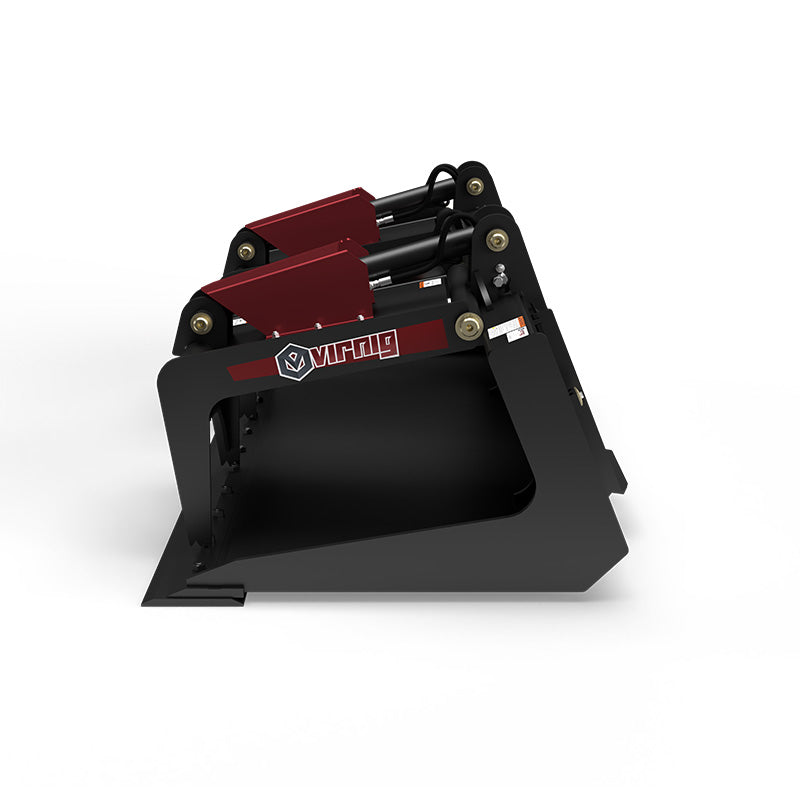

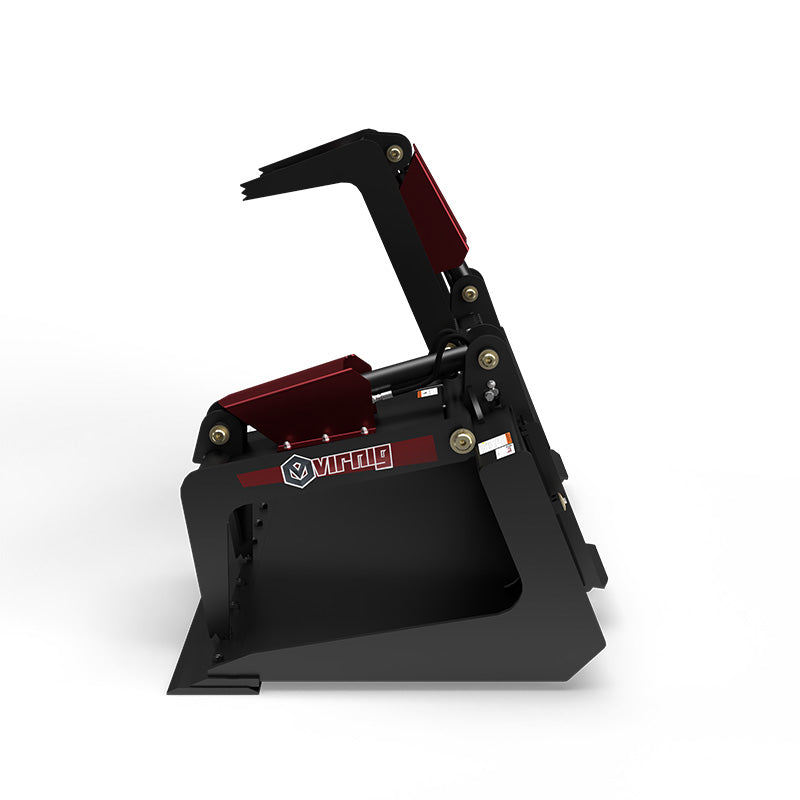

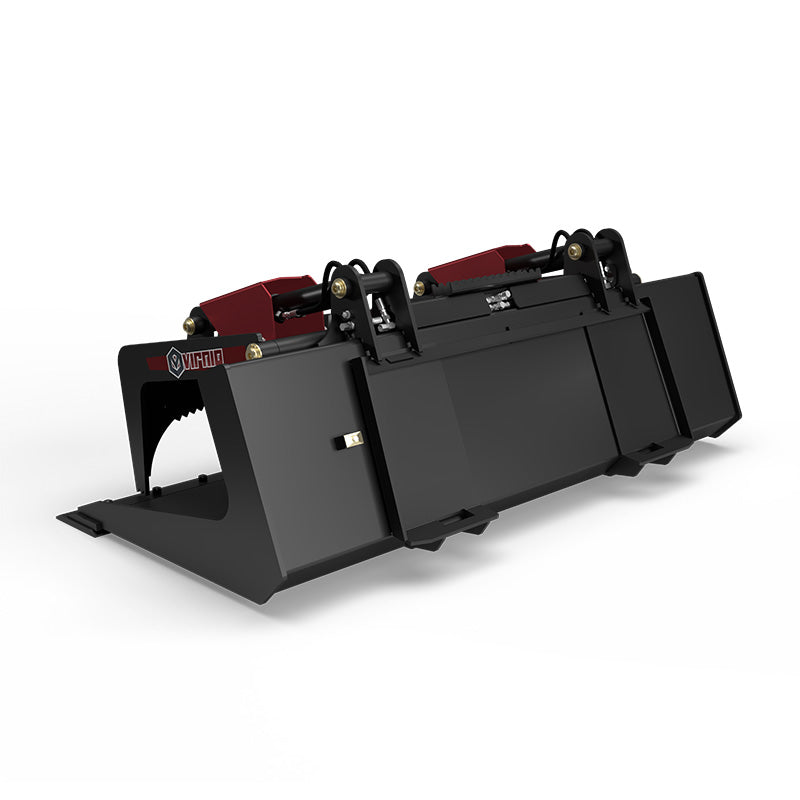

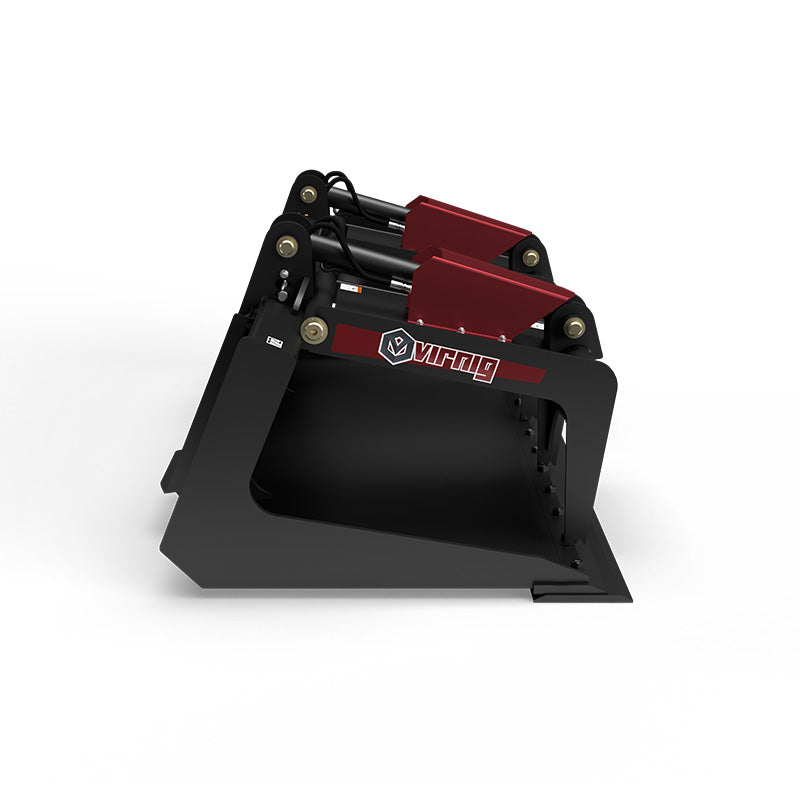

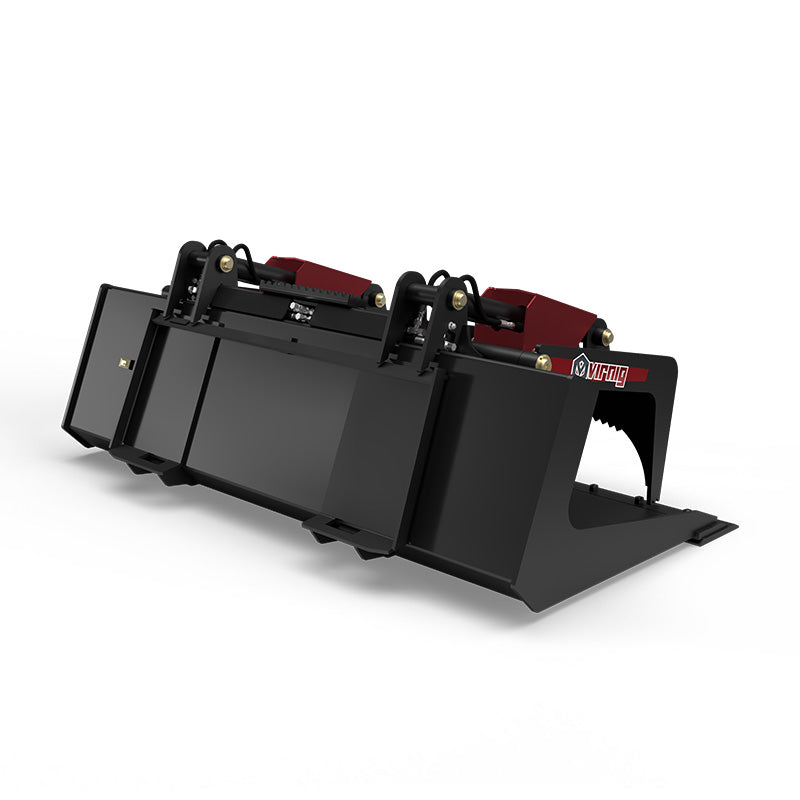

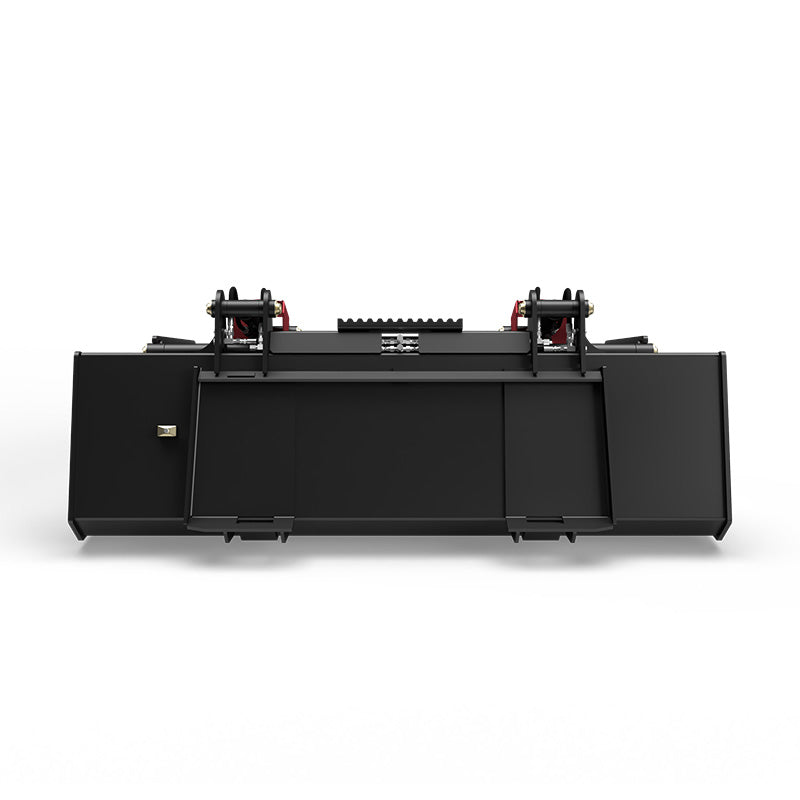

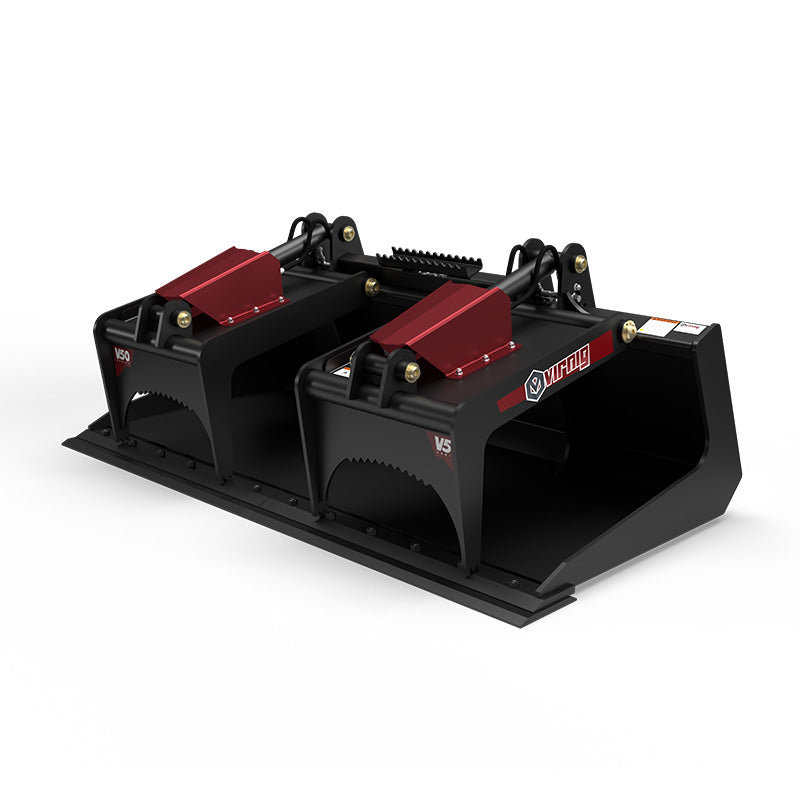

Tackle heavy-duty cleanup and debris handling with the Virnig V50 Scrap Grapple, the ultimate attachment for your skid steer. Designed for scooping, hauling, and managing loose or bulky materials, this grapple combines rugged durability with precision handling, making it an essential tool for construction, landscaping, and industrial projects.
Built with Grade 50 steel and reinforced with vertical braces, the V50 Scrap Grapple ensures long-lasting performance even in the toughest conditions. Its NitroSteel® cylinder rods and Teflon®-coated bushings on all pivot points reduce wear, increase reliability, and deliver smooth, consistent operation. With a range of widths from 61.5" to 79.5", it fits most skid steer models with a recommended loader capacity under 2,400 lbs.
Whether you’re clearing scrap metal, moving brush, or managing demolition debris, the V50 Scrap Grapple makes your skid steer more versatile, productive, and efficient. Lightweight yet robust, it’s engineered to maximize uptime and minimize maintenance.
Key Features
- Heavy-Duty Scrap Handling: Solid bottom bucket and serrated edges allow easy pickup of bulky and irregular debris.
- Durable Construction: Made from high-strength Grade 50 steel with 1/2" vertical braces for added reinforcement.
- Smooth Hydraulic Operation: Equipped with NitroSteel® cylinder rods and Teflon®-coated bushings for long-lasting performance.
- Universal Skid Steer Compatibility: Fits most skid steer loaders with under 2,400 lbs capacity.

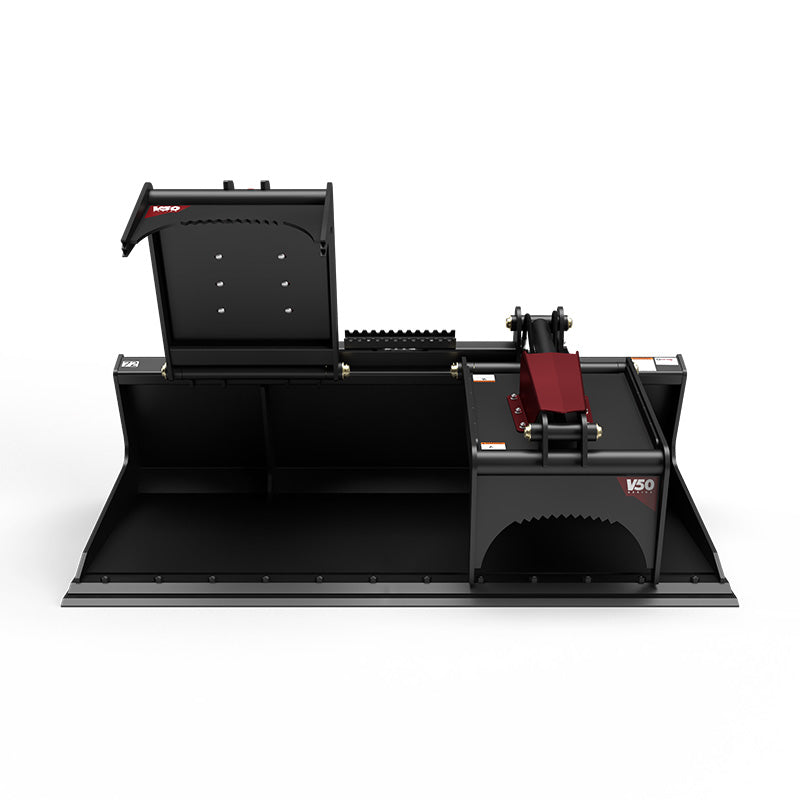

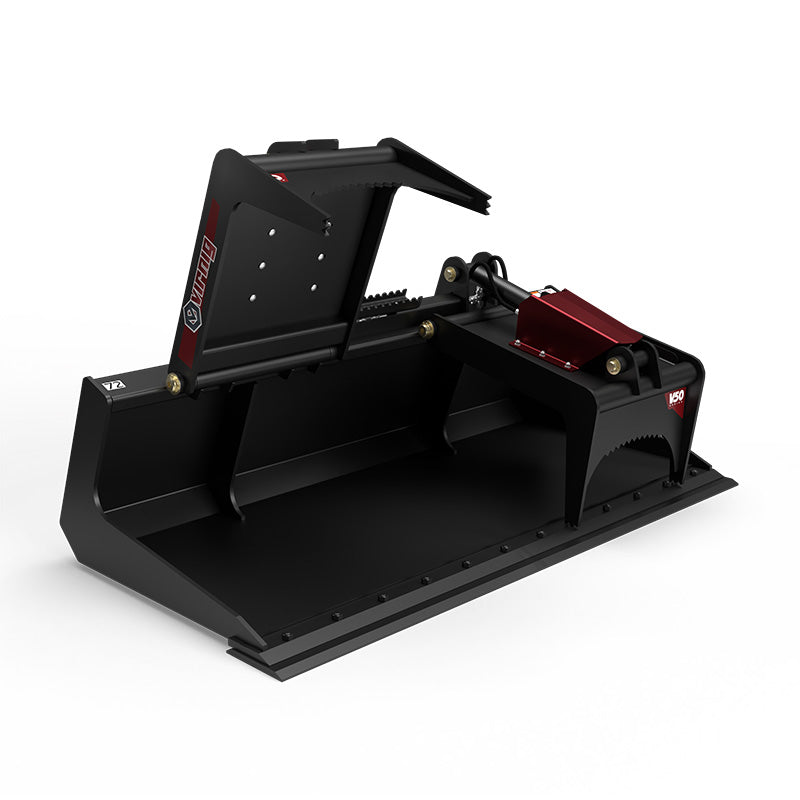

- Optimized Jaw Opening: 36.9" grapple jaw ensures efficient scooping of debris.
- Reinforced Wear Bars: 1/2" x 4" structural wear bars extend bucket life and resist abrasion.
- Hydraulic Flow Range Compatible with machines delivering 15–25 GPM.

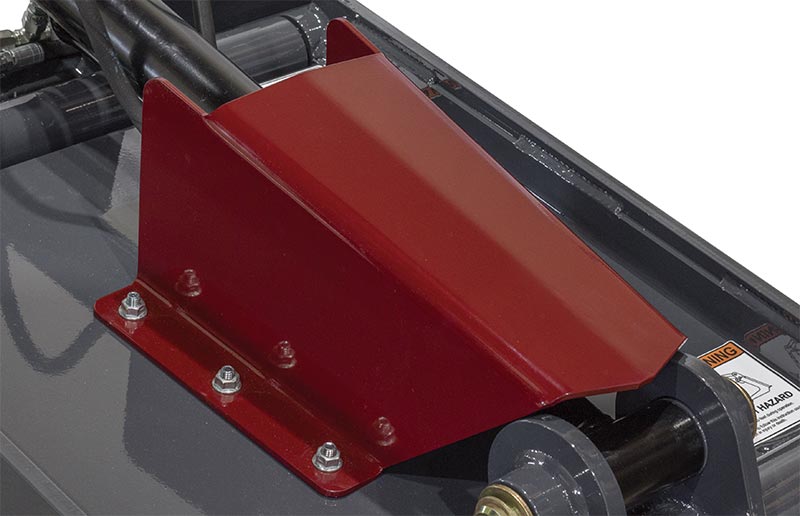

- Cylinder Guards Standard: Protects cylinders from damage in heavy-duty applications.
- Multiple Width Options: Available in 61.5", 67.5", 73.5", and 79.5" to match your loader size.
- Robust Pivot Pins: 1.563" hinge pins provide reliable jaw movement under load.
- Effortless Material Handling: Scoop, haul, and transport debris with minimal effort.
- Lightweight Yet Strong: Weighs 895–1,015 lbs, balancing durability with loader compatibility.
- Precision Welding: 3/4" x 6" weld-on edge for added strength in high-stress areas.
- Versatile Applications: Ideal for scrap yards, landscaping, construction sites, and farms.
- Low Maintenance Design: Quality materials and engineering reduce wear and tear.
- Enhanced Productivity: Allows your skid steer to handle tough tasks faster and safer.
Detailed Specifications
| Feature | SBG60 | SBG66 |
|---|---|---|
| Overall Width (inches) | 61.5 | 67.5 |
| Height (Overall / Bucket, inches) | 27.3 / 20.8 | 27.3 / 20.8 |
| Overall Depth (inches) | 35.5 | 35.5 |
| Structural Wear Bars (1/2" x 4") | 2 | 2 |
| Cylinder Bore / Stroke (inches) | 2.0 / 8.375 | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins Diameter (inches) | 1.25 / 1.563 | 1.25 / 1.563 |
| Grapple Jaw Opening (inches) | 36.9 | 36.9 |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Approx. Weight (lbs) | 895 | 930 |
| Recommended Loader Capacity (lbs) | < 2,400 | < 2,400 |
| Feature | SBG72 | SBG78 |
|---|---|---|
| Overall Width (inches) | 73.5 | 79.5 |
| Height (Overall / Bucket, inches) | 27.3 / 20.8 | 27.3 / 20.8 |
| Overall Depth (inches) | 35.5 | 35.5 |
| Structural Wear Bars (1/2" x 4") | 2 | 3 |
| Cylinder Bore / Stroke (inches) | 2.0 / 8.375 | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins Diameter (inches) | 1.25 / 1.563 | 1.25 / 1.563 |
| Grapple Jaw Opening (inches) | 36.9 | 36.9 |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Approx. Weight (lbs) | 965 | 1,015 |
| Recommended Loader Capacity (lbs) | < 2,400 | < 2,400 |
