Product Description

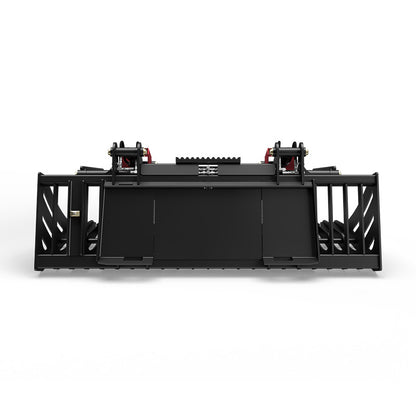

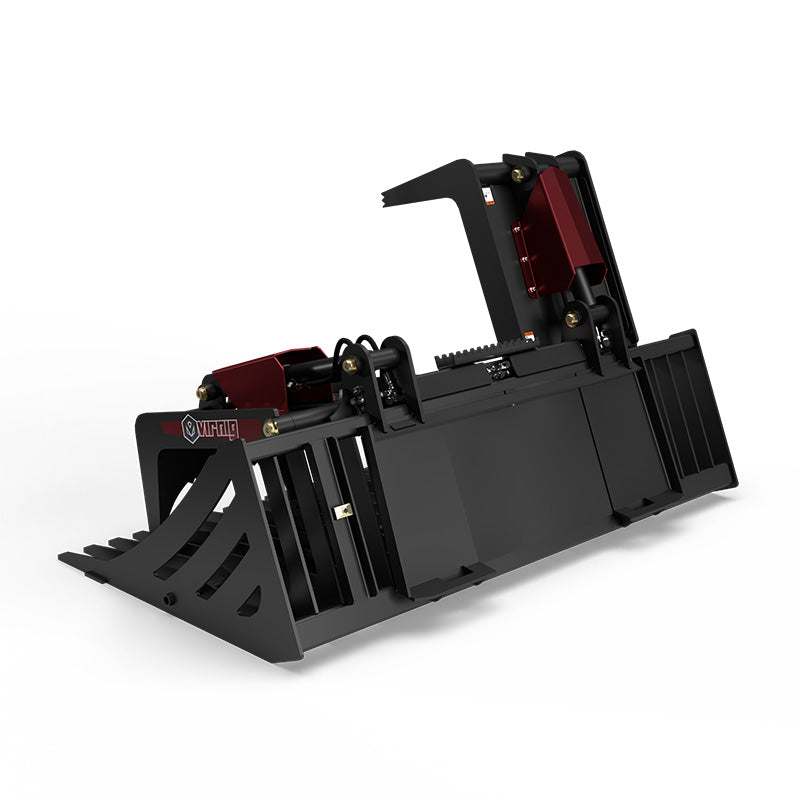

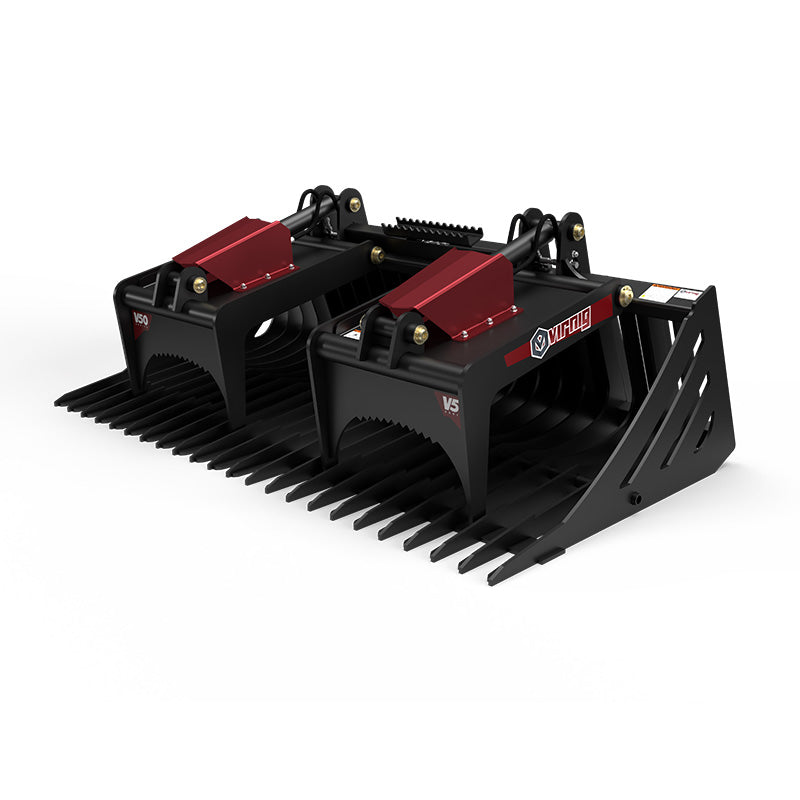

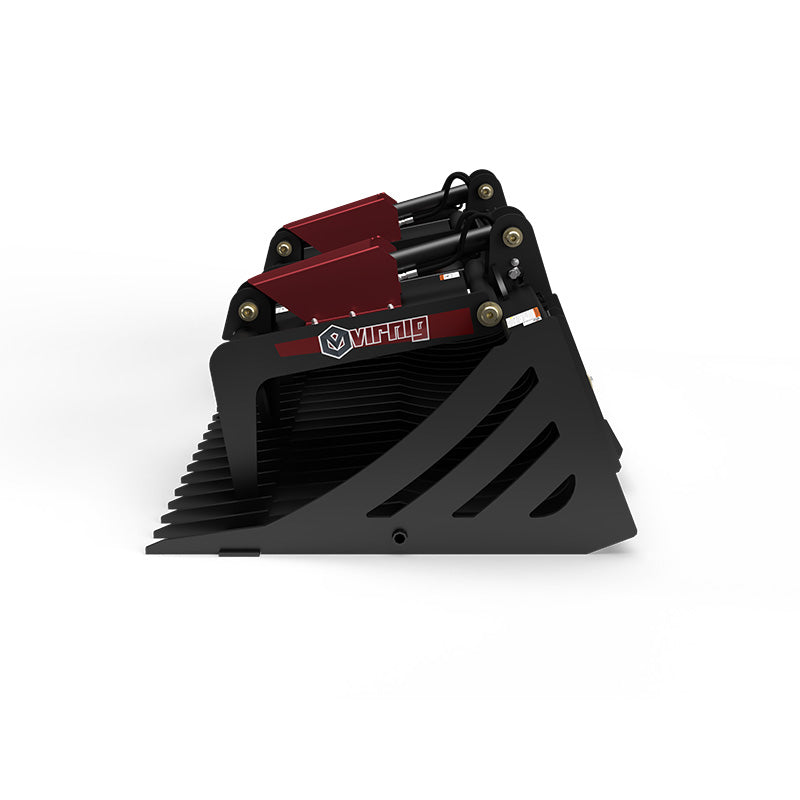

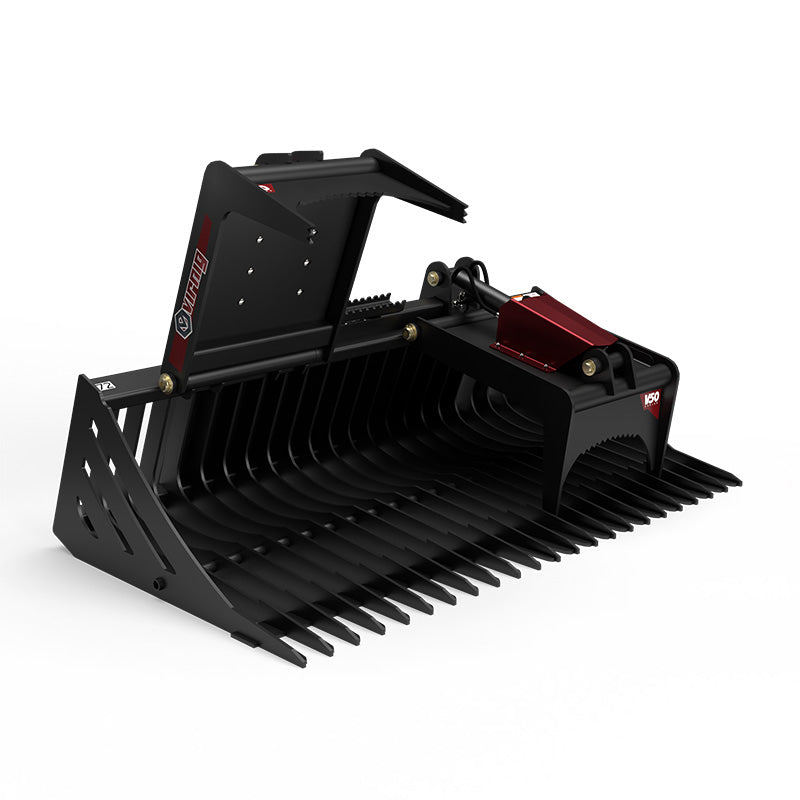

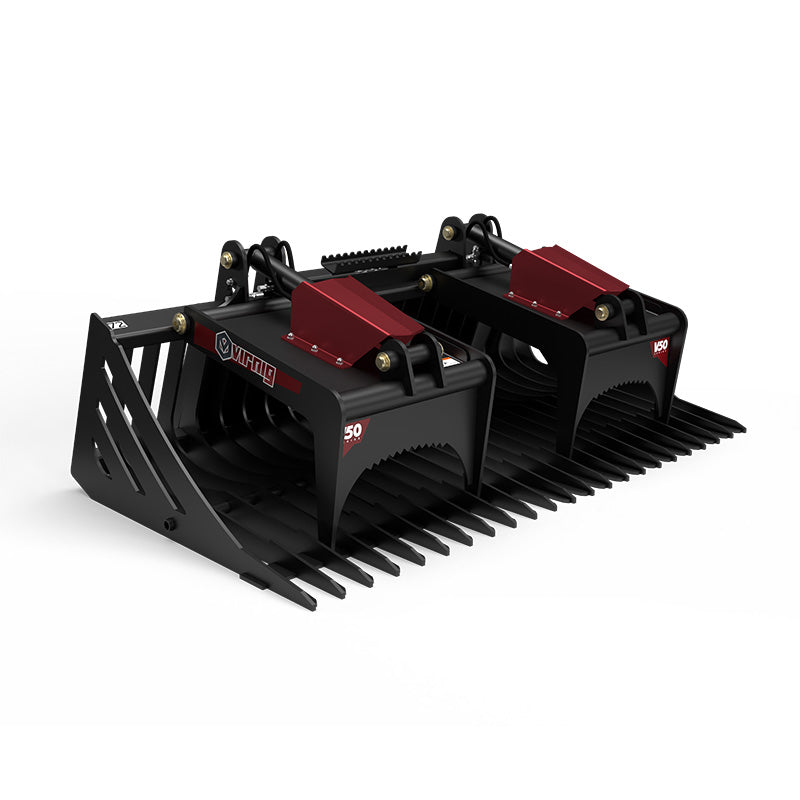

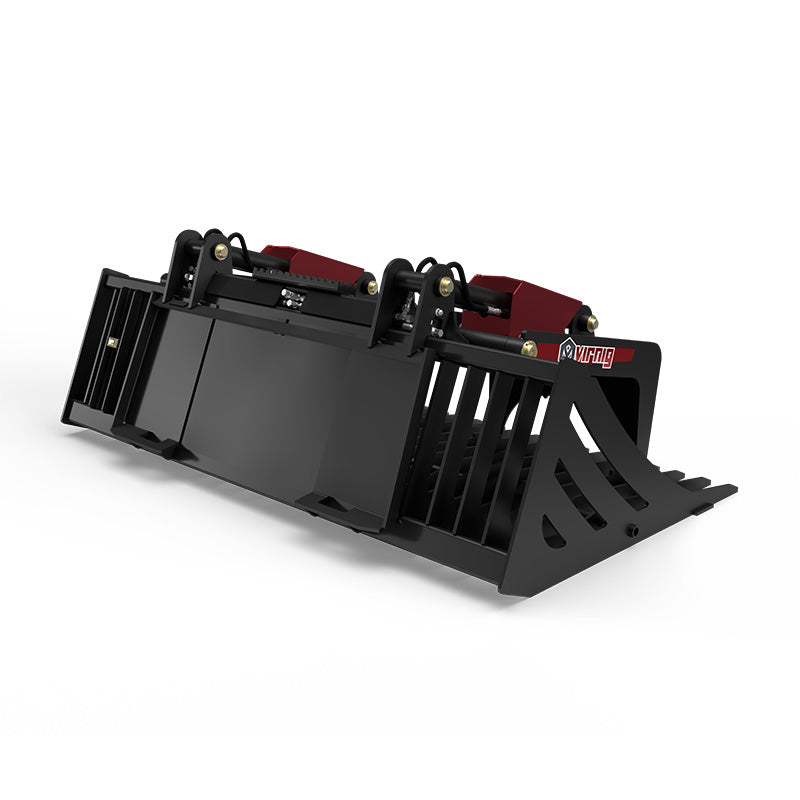

Virnig V50 Skeleton Rock Grapple | Models SRGV60, SRGV66, SRGV72, SRGV78 & SRGV84 | Widths 61" To 87.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steers
DESCRIPTION

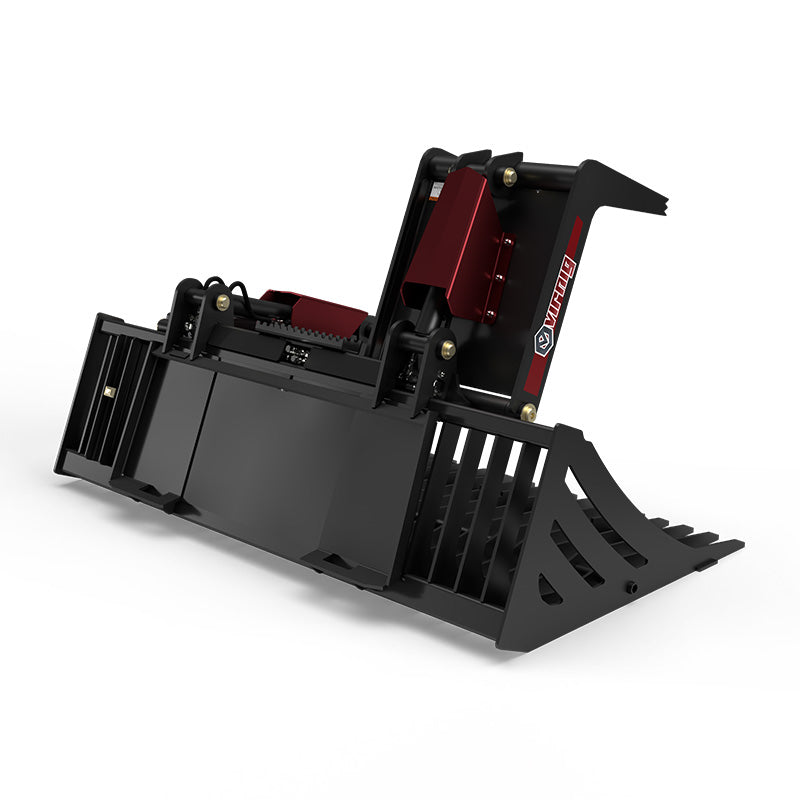

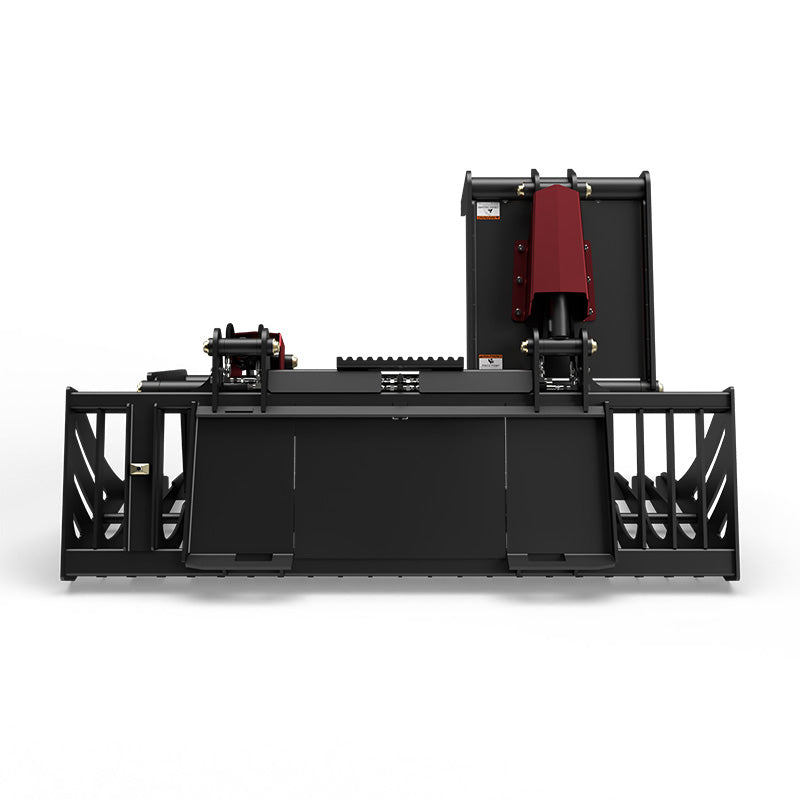

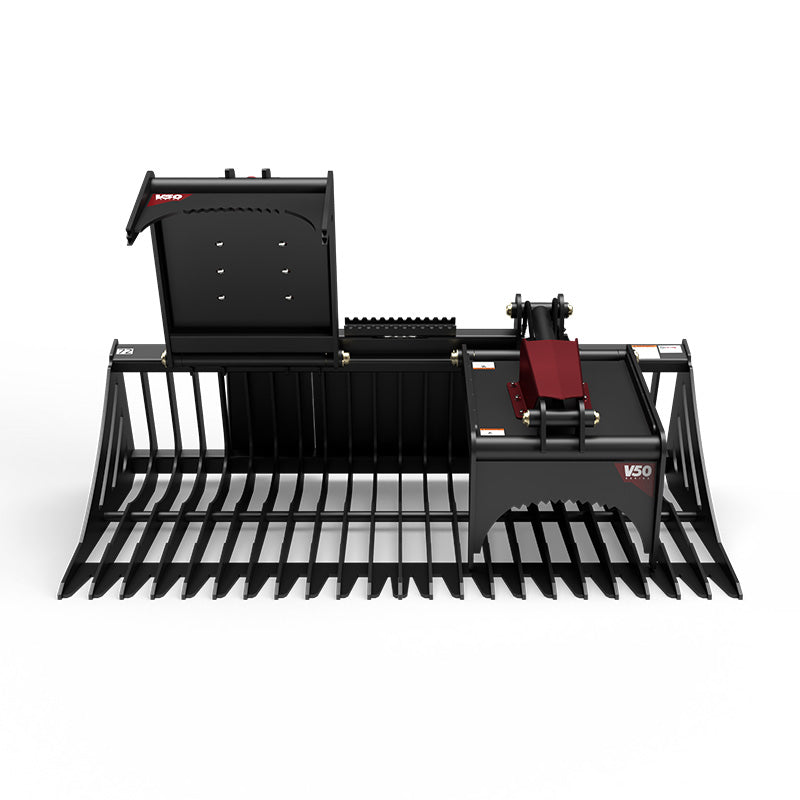

The Virnig V50 Skeleton Rock Grapple is a premium, heavy-duty skid steer attachment engineered for fast, efficient rock picking, land clearing, and debris handling. Designed with every tine cut from a single piece of high-strength steel, this grapple delivers unmatched rigidity and durability in the toughest ground conditions.

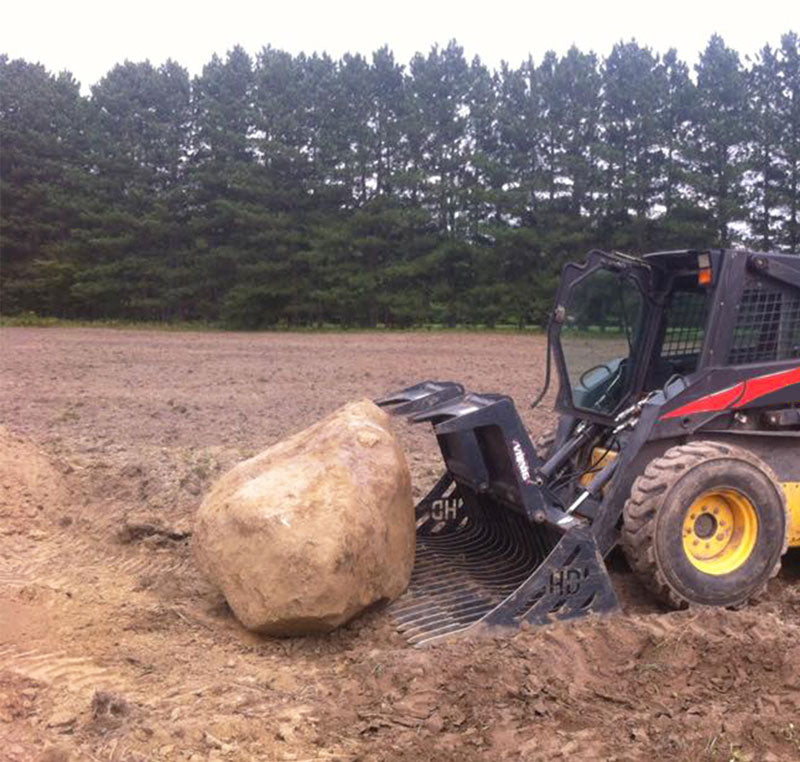

Whether you’re removing rocks from a field, cleaning up after construction, sorting demolition debris, or handling uneven, irregular loads, the V50 Skeleton Rock Grapple gives operators the control, strength, and precision they need. Its smooth rock-ready tines, integrated rock dam, and notched tine tips ensure rocks stay securely in place—reducing spill-out and increasing productivity with every scoop.
Built for professional contractors, landscapers, farmers, and land managers, this attachment is compatible with all major skid steer brands and is ideal for machines with a Rated Operating Capacity (ROC) greater than 1500 lbs. Industrial-grade NitroSteel® cylinder rods, Teflon®-coated bushings, and standard cylinder guards further reinforce its reliability for long-term, hard-use applications.
If you need a rugged, precision-engineered tool to sift, sort, grapple, and transport rock and debris, the Virnig V50 Skeleton Rock Grapple is the industry-leading choice.
Key Features
- Heavy-Duty Skeleton Rock Grapple designed for rock removal, land clearing, and debris sorting
- One-piece Grade 80 steel tines for maximum rigidity and long-term durability
- Rock dam and notched tine tips keep rocks securely contained during transport
- Smooth skeleton tines ideal for sifting dirt while retaining rocks and debris
- Strong dual-cylinder grapple design ensures powerful clamping and control of uneven loads
- Hydraulic Flow Range Compatible with machines delivering 15–25 GPM.
- 36.1" grapple jaw opening for handling large rocks, logs, brush, and construction debris
- NitroSteel® cylinder rods resist corrosion and wear in harsh environments
- Teflon®-coated bushings offer low maintenance and long service life

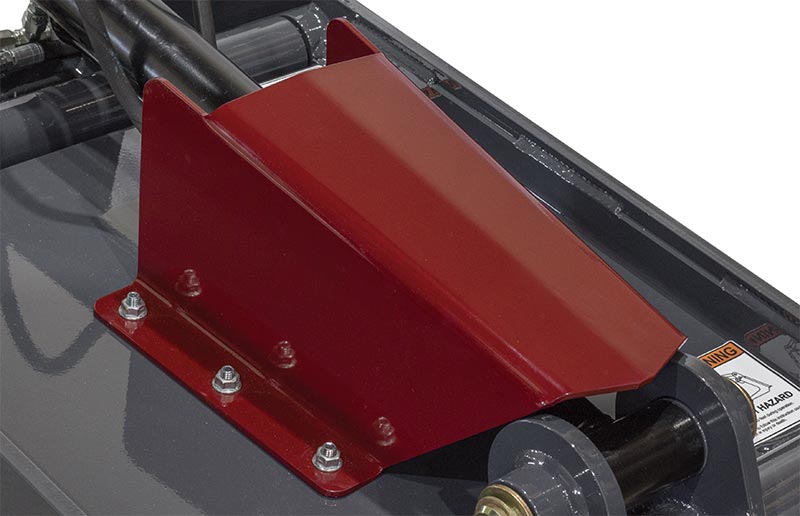

- Standard cylinder protection guards shield hydraulic components from impacts
- 2.9" tine spacing provides excellent rock-sifting efficiency
- Fully welded cross members add torsional strength for extreme operations
- Open-side option available for easy handling of brush, logs, and oversize material
- Compatible with all major skid steer quick-attach systems
- Ideal for contractors, farmers, and property managers needing a high-capacity grapple
- Widths from 61" to 87.5" to match compact, mid-size, and full-size skid steers
Detailed Specifications
| Specification | SRGV60 | SRGV66 |
|---|---|---|
| Overall Width (in.) | 61.0 | 67.6 |
| Height (Overall / Bucket) (in.) | 27.8 / 21.5 | 27.8 / 21.5 |
| Overall Depth (in.) | 42.9 | 42.9 |
| Tines (with sides) | 19 | 21 |
| Tine Spacing (in.) | 2.9 | 2.9 |
| Tine Thickness (in.) | 0.375 (Grade 80) | 0.375 (Grade 80) |
| Cylinder Bore / Stroke (in.) | 2.0 / 8.375 | 2.0 / 8.375 |
| Cylinder Pin / Hinge Pin Diameter (in.) | 1.25 / 1.563 | 1.25 / 1.563 |
| Grapple Jaw Opening (in.) | 36.1 | 36.1 |
| Approx. Weight (lbs) | 940 | 990 |
| Recommended Loader ROC | >1500 lbs | >1500 lbs |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Machine Type | Skid Steer | Skid Steer |
| Specification | SRGV72 | SRGV78 |
|---|---|---|
| Overall Width (in.) | 74.3 | 80.9 |
| Height (Overall / Bucket) (in.) | 27.8 / 21.5 | 27.8 / 21.5 |
| Overall Depth (in.) | 42.9 | 42.9 |
| Tines (with sides) | 23 | 25 |
| Tine Spacing (in.) | 2.9 | 2.9 |
| Tine Thickness (in.) | 0.375 (Grade 80) | 0.375 (Grade 80) |
| Cylinder Bore / Stroke (in.) | 2.0 / 8.375 | 2.0 / 8.375 |
| Cylinder Pin / Hinge Pin Diameter (in.) | 1.25 / 1.563 | 1.25 / 1.563 |
| Grapple Jaw Opening (in.) | 36.1 | 36.1 |
| Approx. Weight (lbs) | 1035 | 1080 |
| Recommended Loader ROC | >1500 lbs | >1500 lbs |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Machine Type | Skid Steer | Skid Steer |
