Product Description

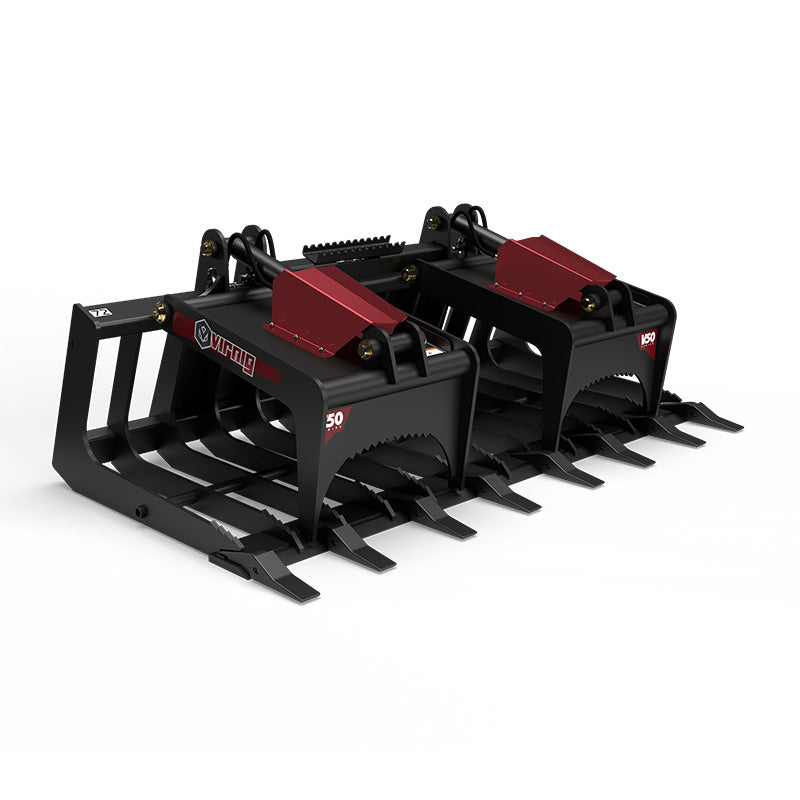

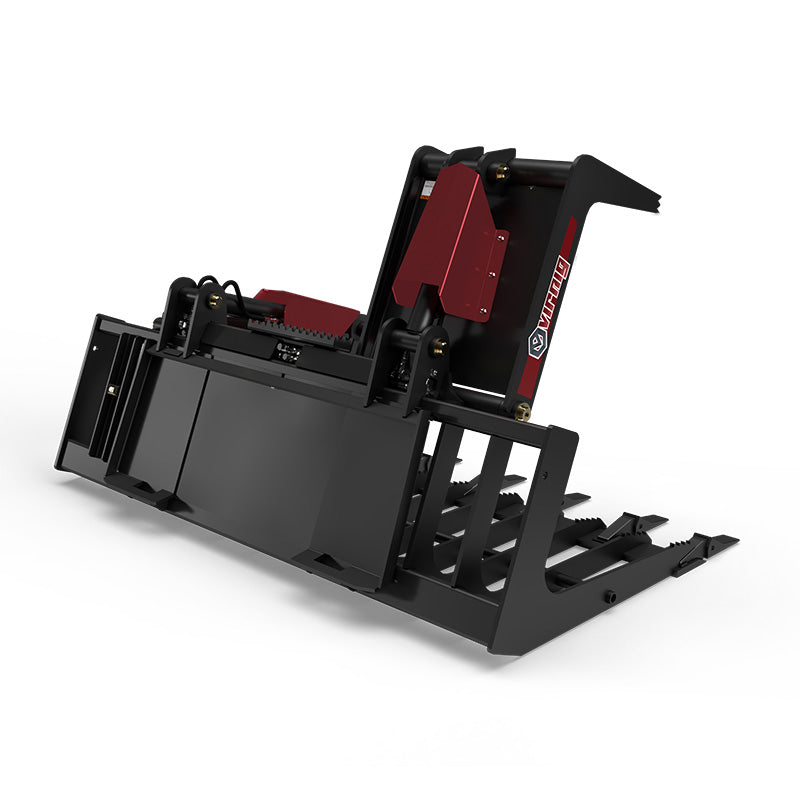

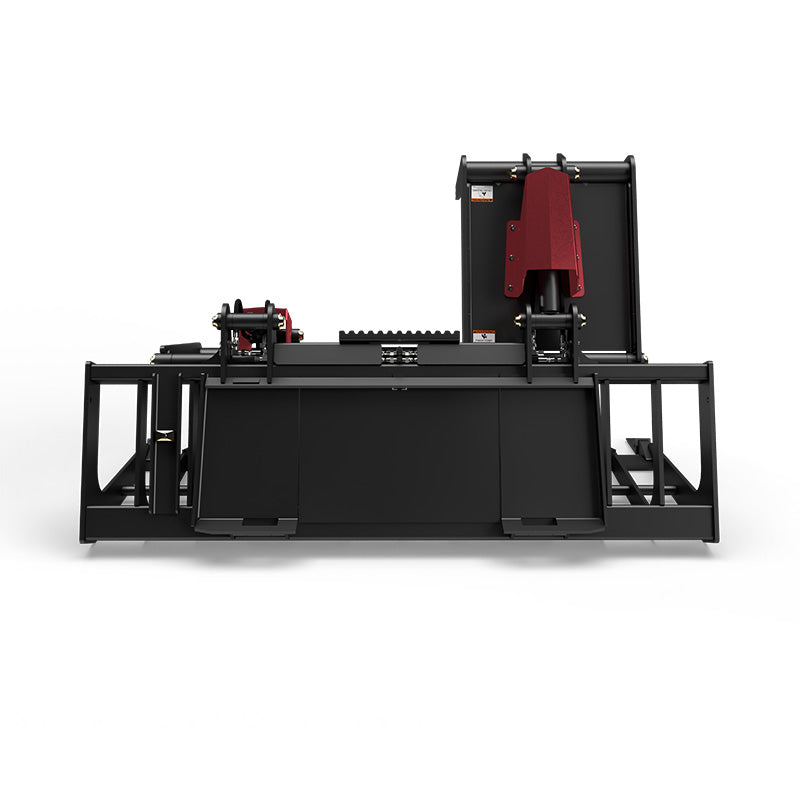

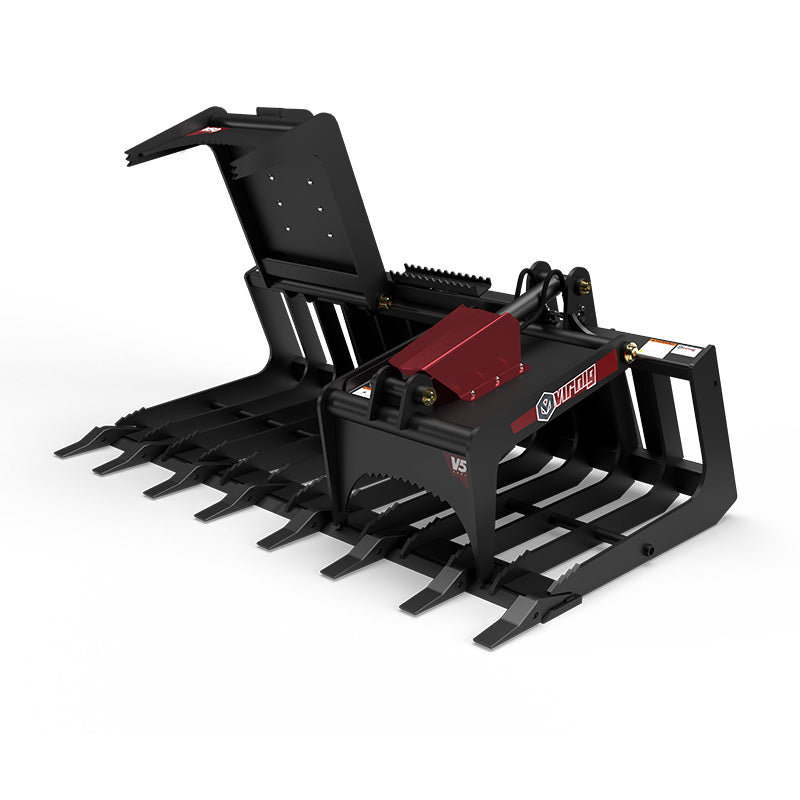

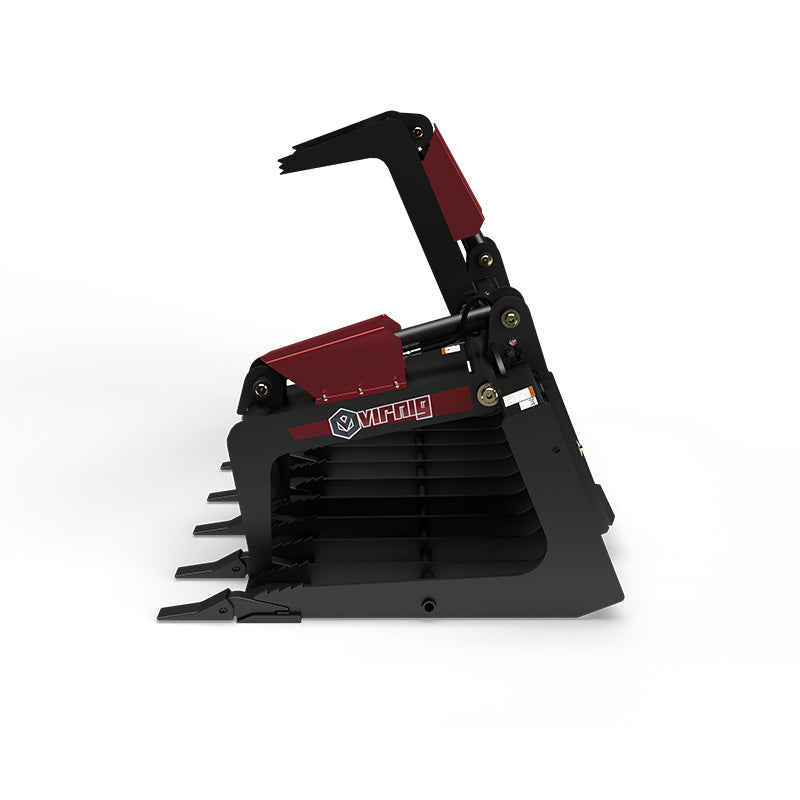

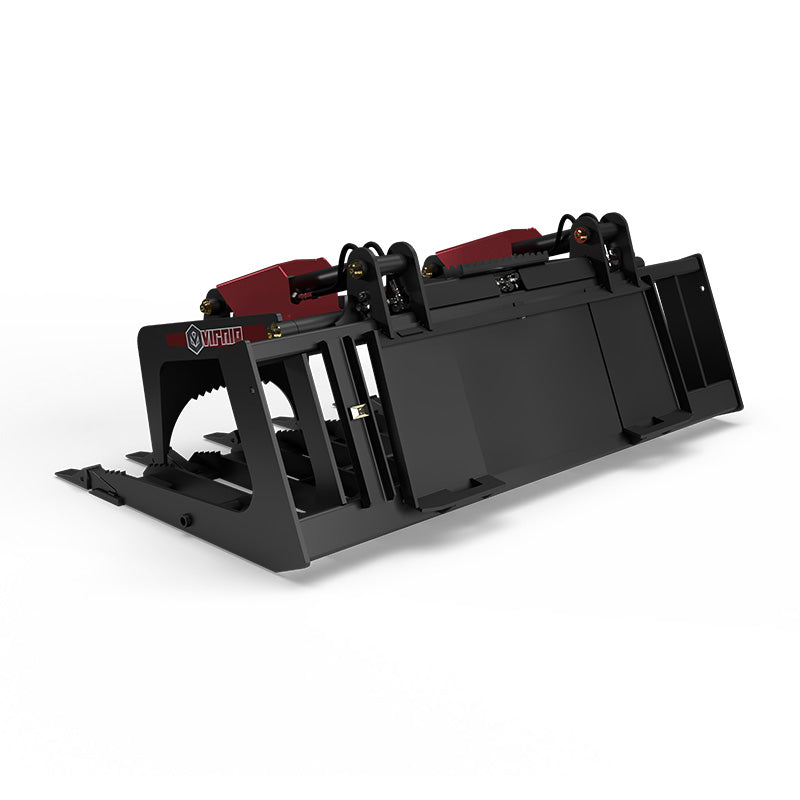

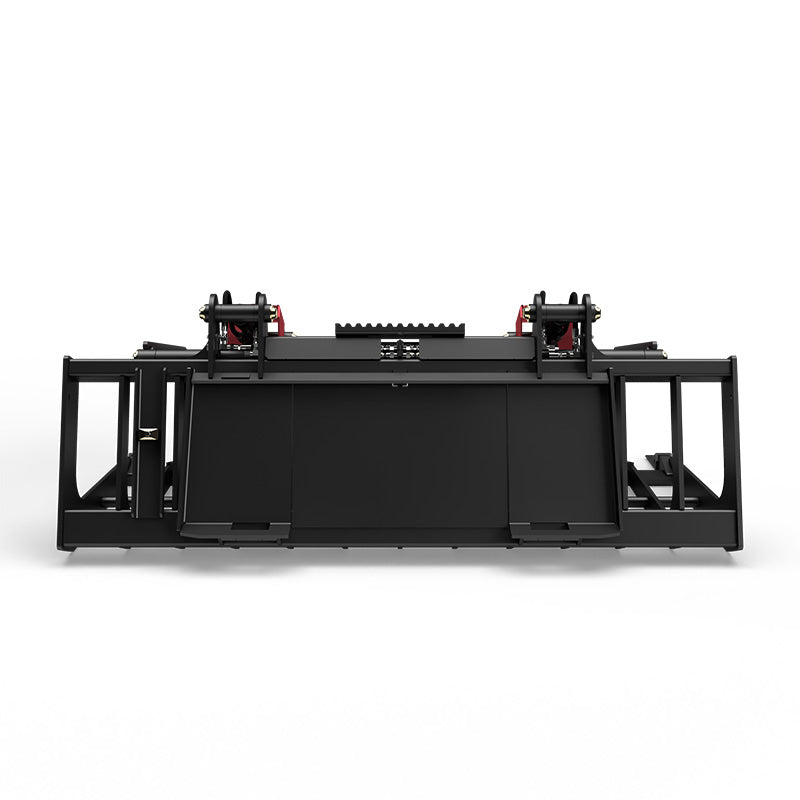

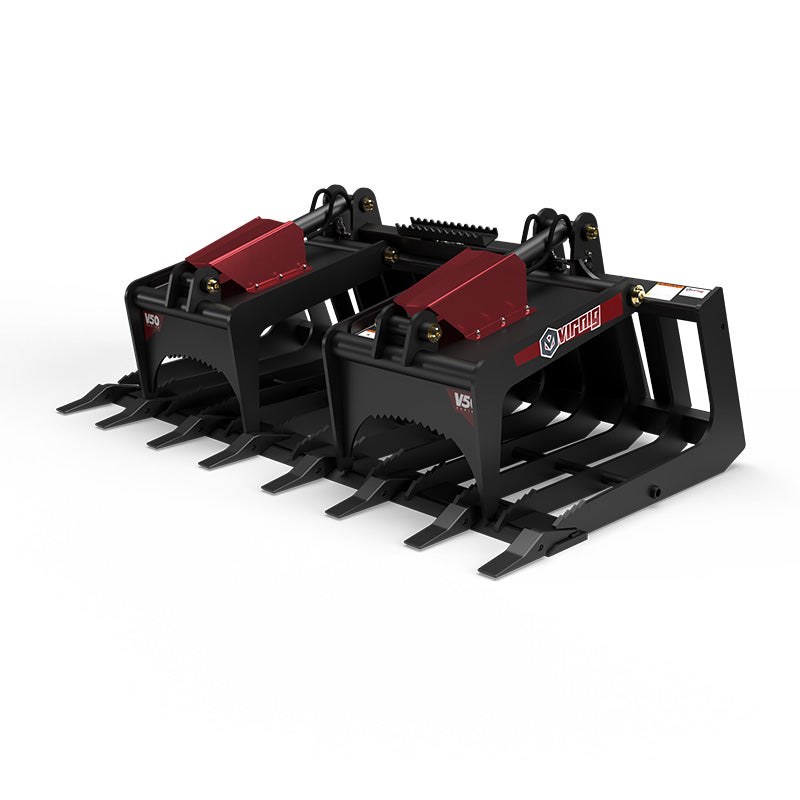

Virnig V50 Skeleton Tooth Grapple | Models TSGV72, TSGV78, TSGV84 & TSGV90 | Widths 73.5" To 91.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

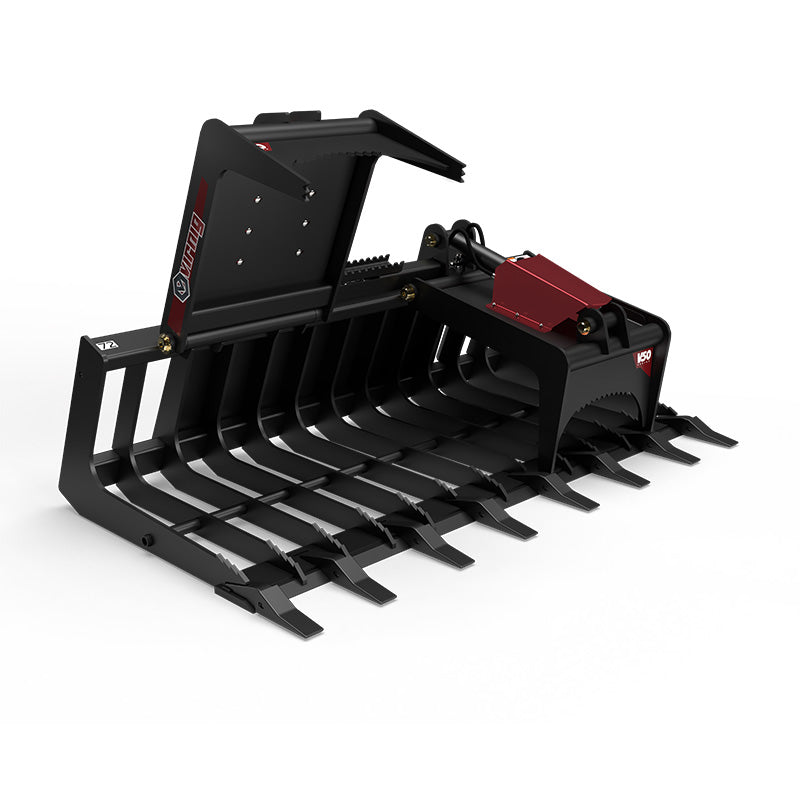

Take your skid steer’s digging, grabbing, and hauling power to the next level with the Virnig V50 Skeleton Tooth Grapple. Designed for professionals and weekend warriors alike, this heavy-duty attachment blends precision engineering with rugged durability, making it ideal for landscaping, construction, forestry, and demolition projects.
Unlike standard grapples, the V50 Skeleton Tooth Grapple features strategically placed steel teeth for aggressive digging, rock and root removal, and maximum material retention. Its skeleton design ensures excellent visibility and debris flow, while every tine is crafted from a single piece of high-strength steel for unbeatable rigidity and wear life.
Equipped with NitroSteel® cylinder rods and Teflon®-coated pivot bushings, this grapple offers smooth, dependable operation under even the toughest conditions. Standard cylinder guards further protect your investment, ensuring long-lasting performance and reducing downtime.
Whether you’re clearing brush, handling logs, or moving heavy debris, the V50 Skeleton Tooth Grapple gives you the strength, precision, and control to get the job done efficiently and safely.
Key Features

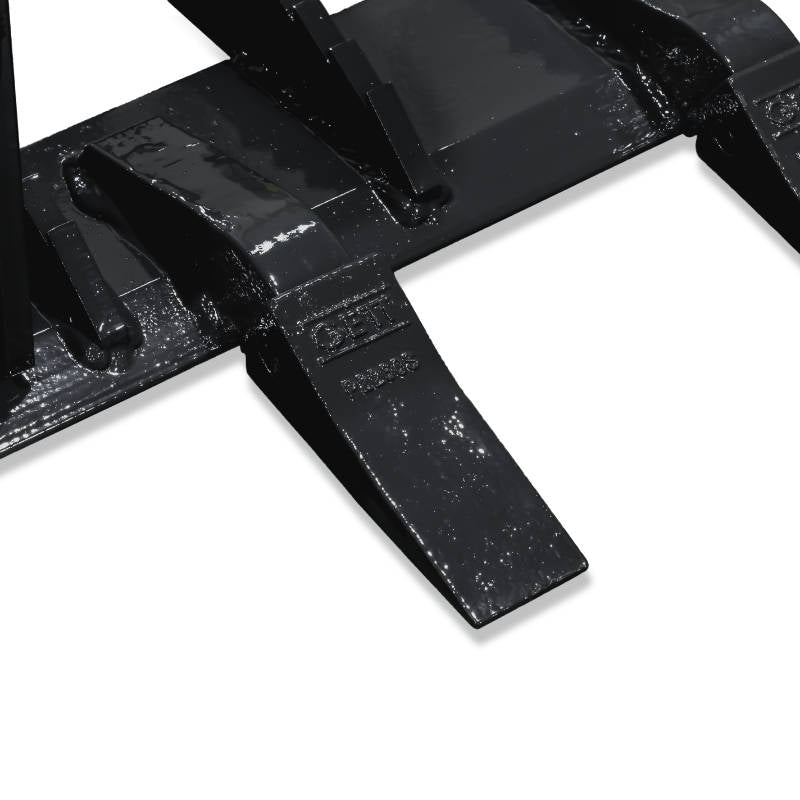

- Aggressive Teeth Design Cuts into soil, rocks, and roots for maximum digging efficiency.
- High-Strength Tines Each tine made from a single piece of steel for ultimate rigidity.
- Skeleton Grapple Advantage Open design for better visibility, material flow, and debris management.
- NitroSteel® Cylinder Rods Heavy-duty rods built to resist bending and wear.
- Teflon® Coated Bushings Smooth operation at all pivot points for reduced maintenance.
- Cylinder Guards Included Protects hydraulic cylinders from damage during heavy use.
- Multiple Width Options Available from 73.5" to 91.5" to fit your skid steer perfectly.

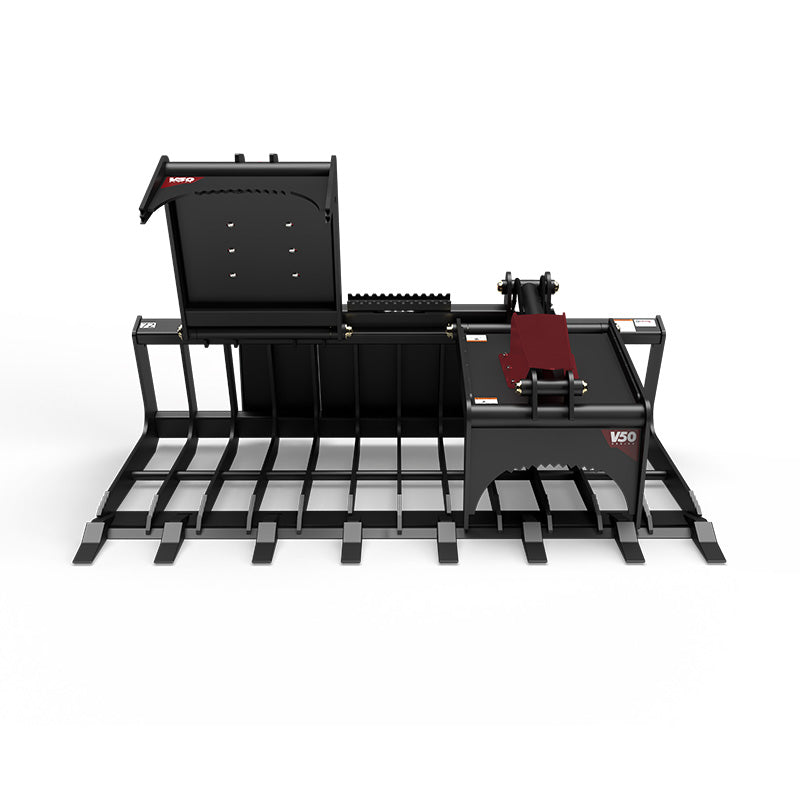

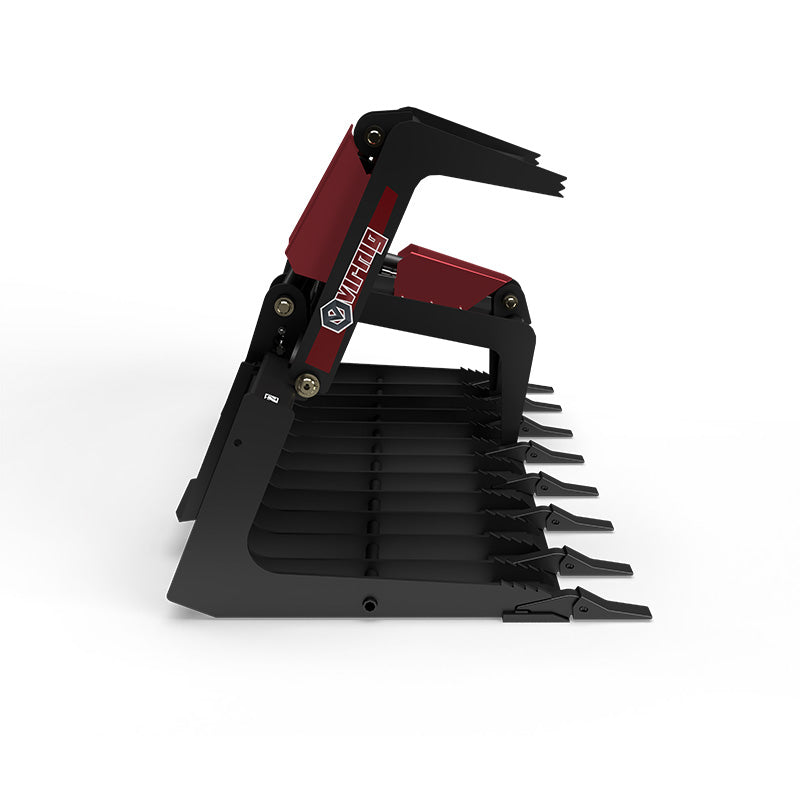

- Grapple Jaw Opening 40.9" jaw clearance for handling large materials easily.
- Heavy-Duty Pins & Bushings 1.25" cylinder pins and 1.563" hinge pins for maximum strength.
- Optimal Tooth Spacing 6.3"–9.3" spacing ensures efficient material capture without slippage.
- Grade 80 Plate Material 0.5" thick steel with 80,000 PSI minimum yield strength.
- Loader Compatibility Recommended for skid steers with loader capacity greater than 1,500 lbs.
- Smooth Hydraulic Operation Works with 15–25 GPM hydraulic flow for consistent performance.
- Rugged & Lightweight Design Weighs 1,005–1,145 lbs depending on model, easy to mount.
- Versatile Application Ideal for landscaping, construction, forestry, and demolition tasks.
Detailed Specifications
| Specification | TSGV72 | TSGV78 |
|---|---|---|
| Overall Width (in) | 73.5 | 79.5 |
| Height Overall / Bucket (in) | 27.5 / 21.3 | 27.5 / 21.3 |
| Overall Depth (in) | 43.3 | 43.3 |
| Number of Teeth | 8 | 9 |
| Space Between Teeth (in) | 6.8–8.8 | 6.3–8.8 |
| Space Between Tines (in) | 5.5 | 5.5 |
| Tine Thickness (in) | 0.5* | 0.5* |
| Cylinder Bore / Stroke (in) | 2.0 / 8.375 | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins (in) | 1.25 / 1.563 | 1.25 / 1.563 |
| Grapple Jaw Opening (in) | 40.9 | 40.9 |
| Approx. Weight (lbs) | 1005 | 1055 |
| Recommended Loader Capacity (lbs) | >1,500 | >1,500 |
| Material | Grade 80 Steel (80,000 PSI) | Grade 80 Steel (80,000 PSI) |
| Hydraulic Flow (GPM) | 15–25 | 15–25 |
| Specification | TSGV84 | TSGV90 |
|---|---|---|
| Overall Width (in) | 85.5 | 91.5 |
| Height Overall / Bucket (in) | 27.5 / 21.3 | 27.5 / 21.3 |
| Overall Depth (in) | 43.3 | 43.3 |
| Number of Teeth | 9 | 10 |
| Space Between Teeth (in) | 6.8–9.3 | 6.8–8.8 |
| Space Between Tines (in) | 5.5 | 5.5 |
| Tine Thickness (in) | 0.5* | 0.5* |
| Cylinder Bore / Stroke (in) | 2.0 / 8.375 | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins (in) | 1.25 / 1.563 | 1.25 / 1.563 |
| Grapple Jaw Opening (in) | 40.9 | 40.9 |
| Approx. Weight (lbs) | 1095 | 1145 |
| Recommended Loader Capacity (lbs) | >1,500 | >1,500 |
| Material | Grade 80 Steel (80,000 PSI) | Grade 80 Steel (80,000 PSI) |
| Hydraulic Flow (GPM) | 15–25 | 15–25 |
