Product Description

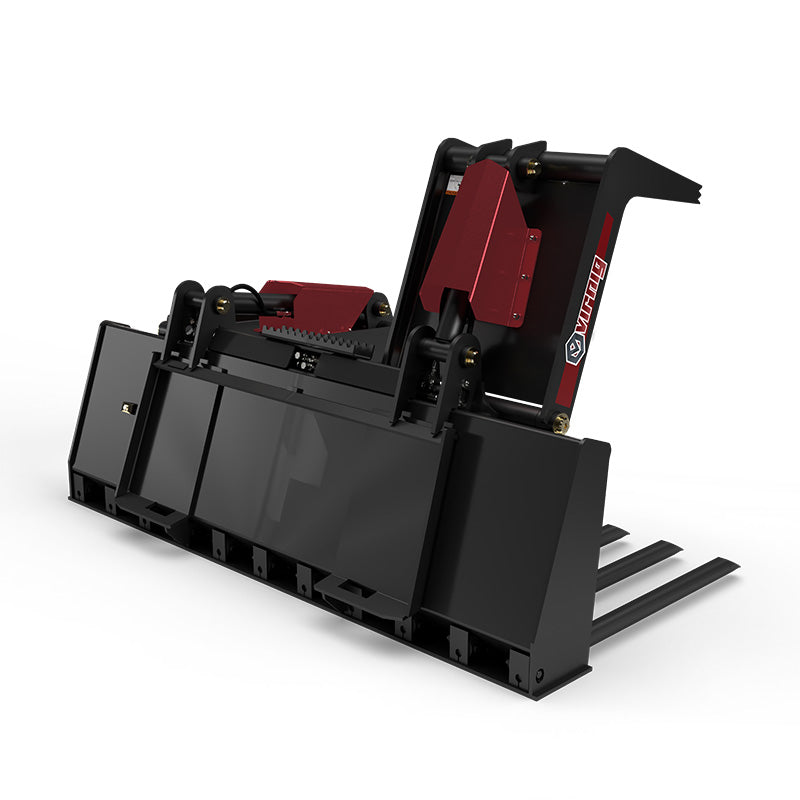

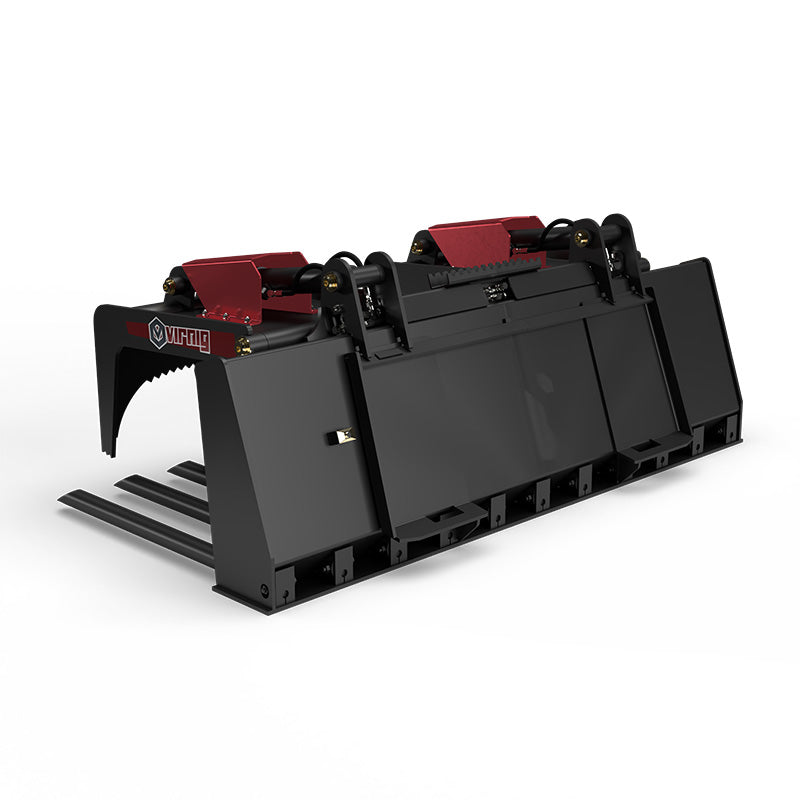

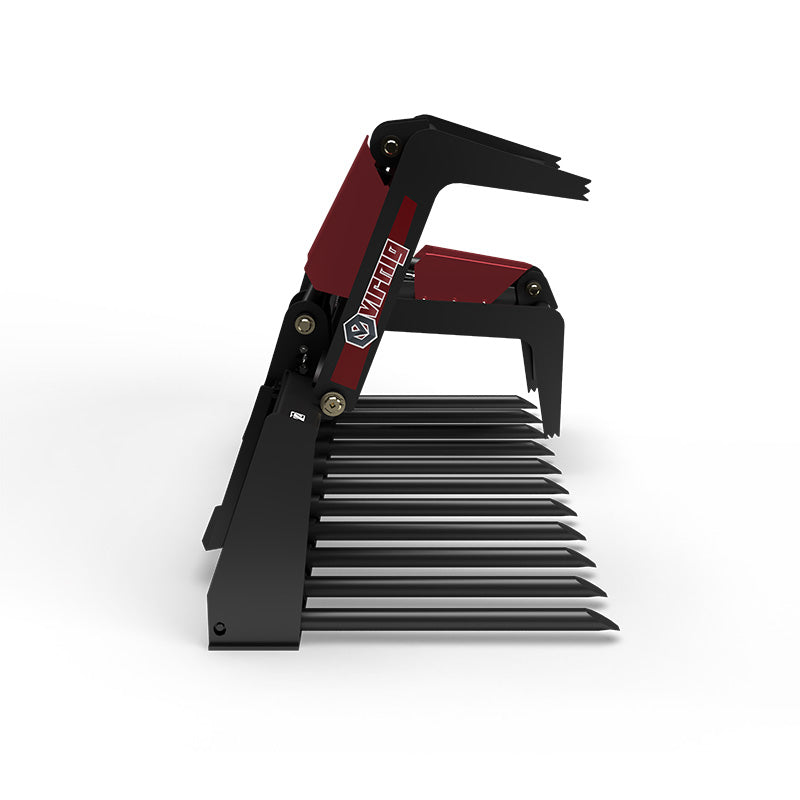

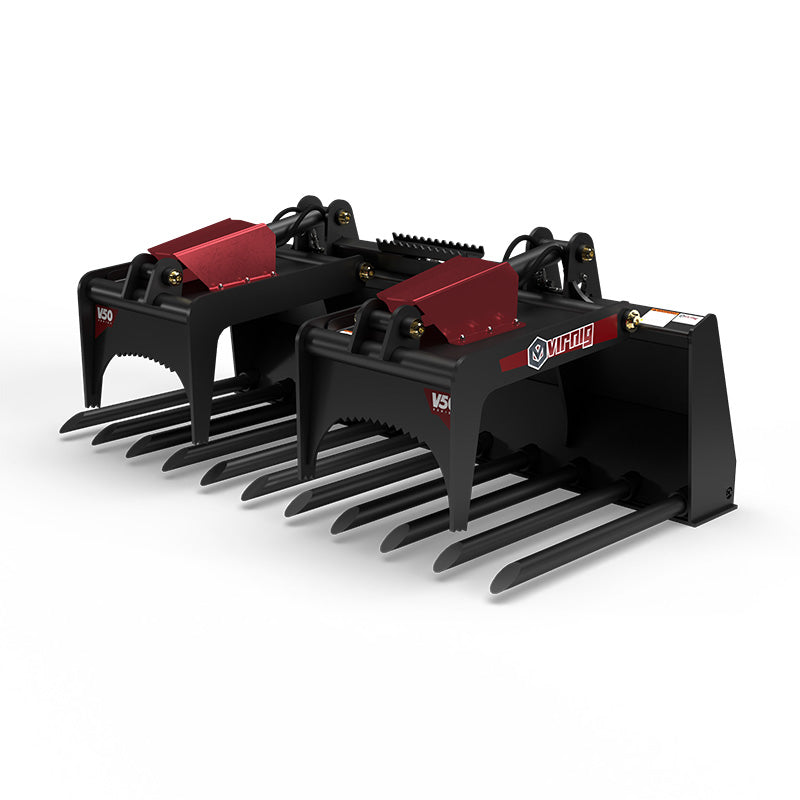

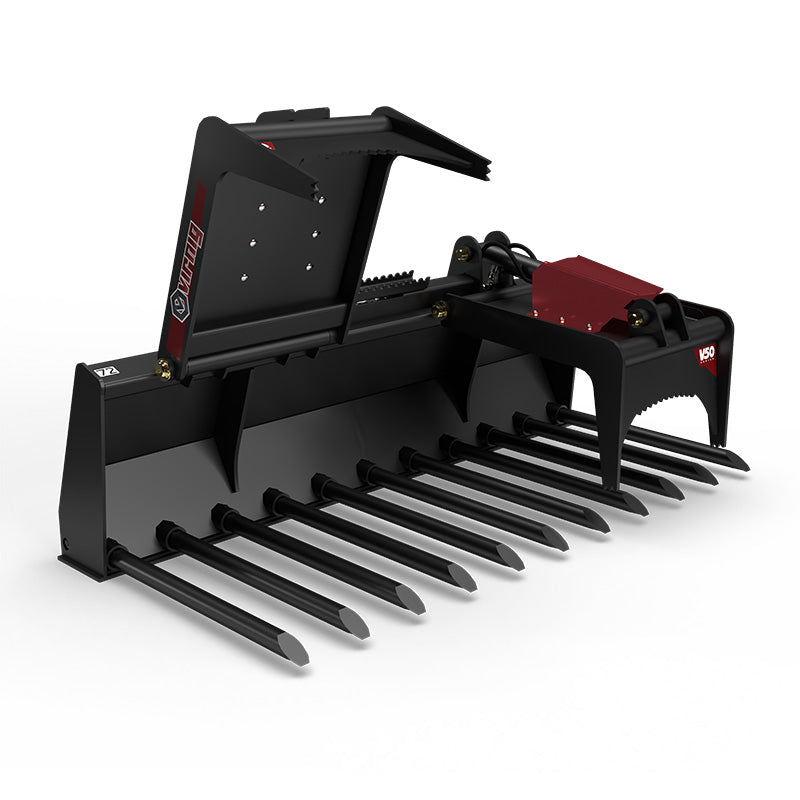

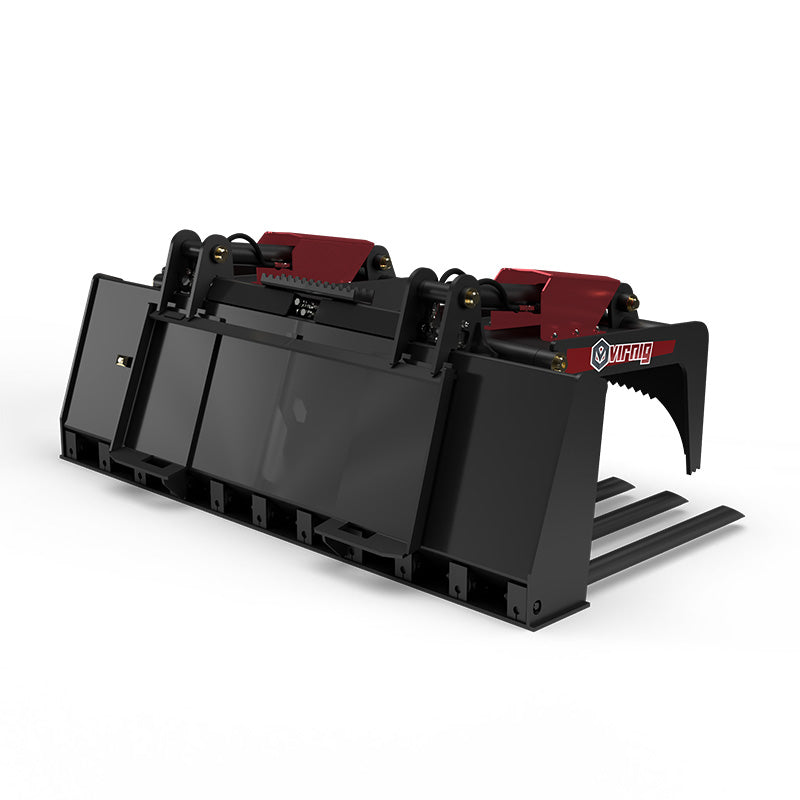

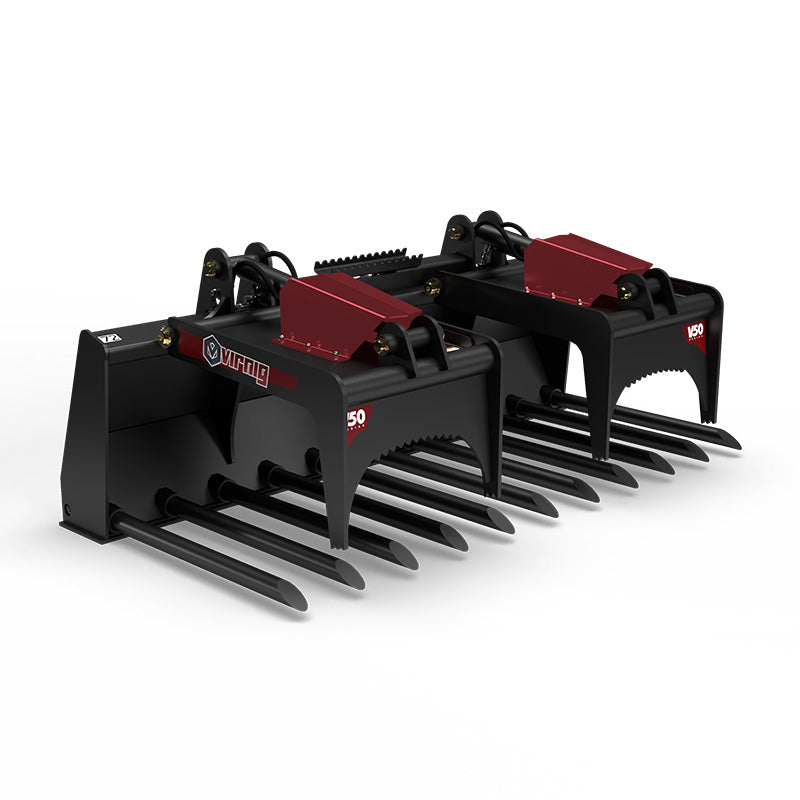

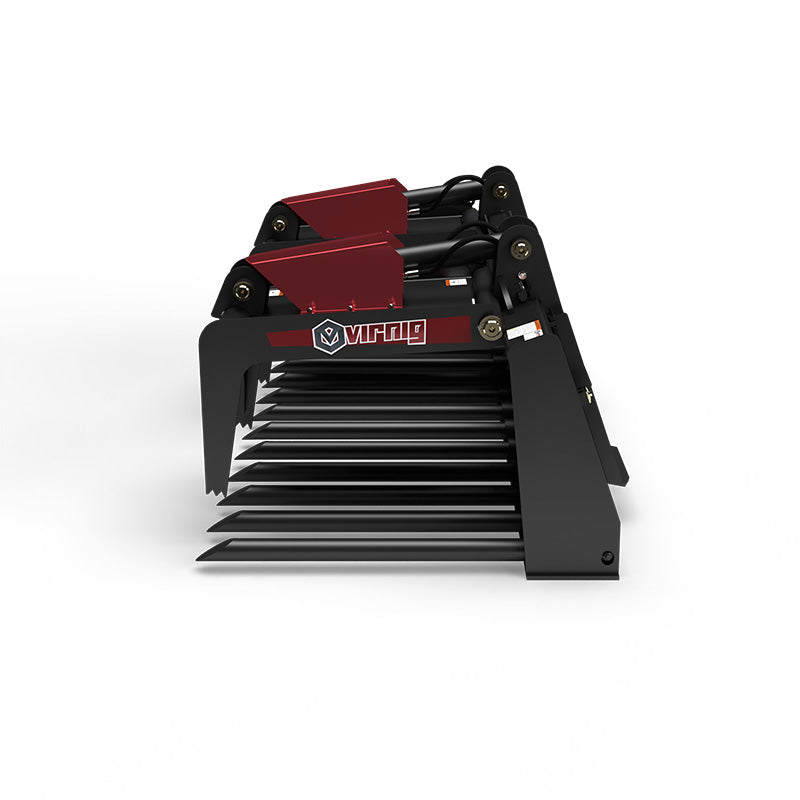

Virnig V50 Tine Fork Grapple | Models TBG260, TBG266, TBG272 & TBG278 | Widths 61" To 79" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

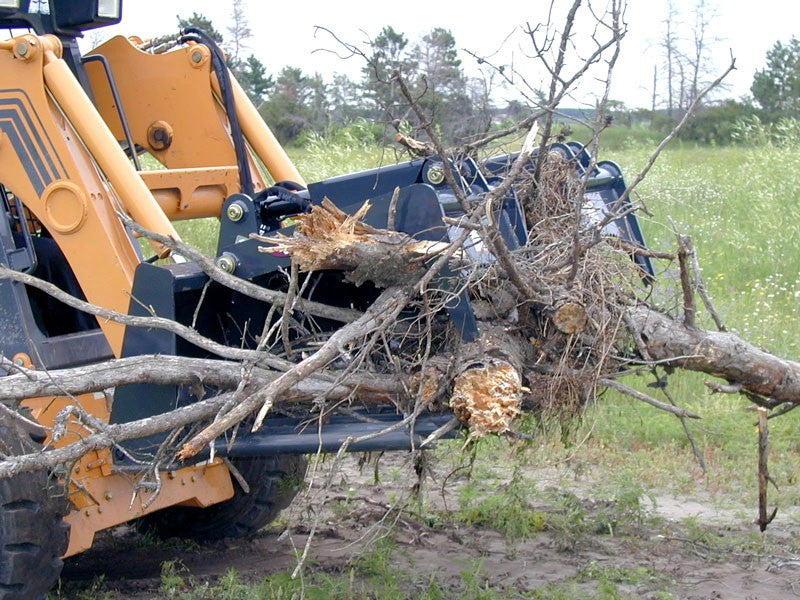

Take control of tough cleanup jobs with the Virnig V50 Tine Fork Grapple a heavy-duty skid steer attachment engineered for serious performance in agriculture, landscaping, and land-clearing work. Designed to move brush, manure, logs, and debris with precision and power, this grapple delivers unmatched durability and reliability.
Each tine is built from 1045 CFSR round stock rated at 100,000 PSI minimum yield strength, ensuring long-lasting resistance against bending or breakage. The no cross-member design allows for deeper penetration into piles of material, while replaceable tines extend the life of your investment.
The Virnig V50’s dual independent grapples open a full 38.2 inches, securing uneven loads with balanced clamping force. NitroSteel® cylinder rods and Teflon®-coated bushings protect critical moving parts for smoother operation and longer service life even in harsh working environments.
Whether you’re cleaning up after storms, handling silage, or clearing brush, the V50 Tine Fork Grapple provides the rugged strength, control, and efficiency today’s professionals demand.
Key Features
- Heavy-Duty Construction: Built from high-strength 1045 CFSR steel rated at 100,000 PSI for superior durability and bending resistance.
- Optimized for Skid Steers: Compatible with all major skid steer brands with hydraulic flow from 15–25 GPM.
- No Cross-Member Design: Improves tine penetration for faster material loading and better handling of tangled debris.
- Dual Independent Grapples: Secure uneven or irregular loads with balanced pressure and stability.
- Replaceable Tines: Easy to maintain and extend the attachment’s lifespan for long-term performance.

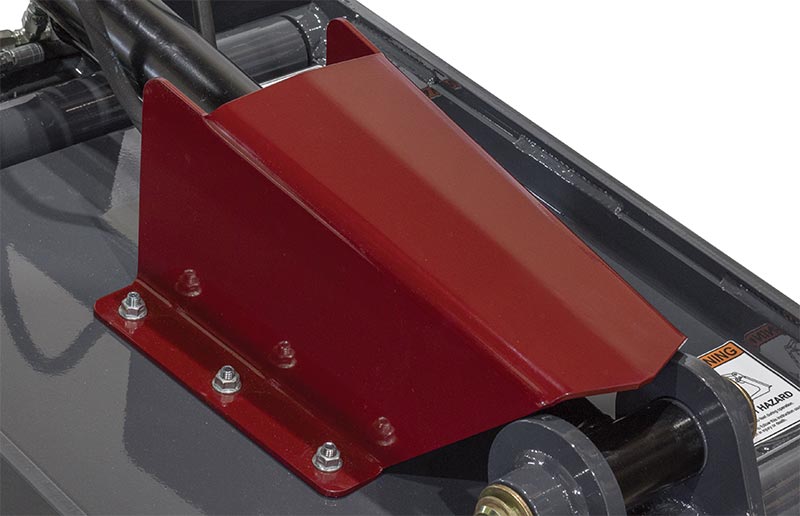

- Protective Cylinder Guards: Standard on all models to prevent damage from branches and debris.
- NitroSteel® Cylinder Rods: Corrosion-resistant, precision-polished rods for smooth, long-lasting operation.
- Teflon®-Coated Bushings: Reduce friction and wear on all pivot points.
- Wide Model Range: Choose from four widths 61", 67", 73", and 79" to match your machine and material handling needs.
- Ideal for Agriculture & Land Management: Excels at moving brush, manure, roots, rocks, and construction debris.
- Aggressive Jaw Opening: 38.2" maximum opening for handling large or bulky materials with ease.
- High Strength Bracing: ½" vertical braces inside the bucket for added rigidity and structural integrity.
- Precision Fit for Skid Steers: Fits most universal skid steer quick attach systems.
- Professional-Grade Performance: Designed for skid steers under 2,400 lbs rated operating capacity.
- Engineered in the USA: Built with pride for professional contractors, farmers, and land managers.
Detailed Specifications
| Specification | TBG260 | TBG266 |
|---|---|---|
| Overall Width (in.) | 61.3 | 67.3 |
| Height – Overall / Bucket (in.) | 28.5 / 21.8 | 28.5 / 21.8 |
| Overall Depth (in.) | 37.0 | 37.0 |
| Number of Tines | 9 | 10 |
| Space Between Tines (in.) | 5.1 | 5.0 |
| Tine Diameter (in.) | 2.0 | 2.0 |
| Material | 1045 CFSR Round Stock (100,000 PSI Yield Strength) | 1045 CFSR Round Stock (100,000 PSI Yield Strength) |
| Grapple Jaw Opening (in.) | 38.2 | 38.2 |
| Cylinder Bore / Stroke (in.) | 2.0 / 8.375 | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins (in.) | 1.25 / 1.563 | 1.25 / 1.563 |
| Approximate Weight (lbs) | 1040 | 1110 |
| Recommended Loader Capacity (lbs) | Less than 2,400 | Less than 2,400 |
| Hydraulic Flow (GPM) | 15–25 | 15–25 |
| Replaceable Tines | Yes | Yes |
| Number of Grapple Jaws | 2 | 2 |
| Cylinder Guards | Standard | Standard |
| Compatibility | Universal Skid Steer Quick Attach | Universal Skid Steer Quick Attach |
| Ideal Use | Brush, manure, logs, debris | Brush, manure, logs, debris |
| Specification | TBG272 | TBG278 |
|---|---|---|
| Overall Width (in.) | 73.3 | 79.3 |
| Height – Overall / Bucket (in.) | 28.5 / 21.8 | 28.5 / 21.8 |
| Overall Depth (in.) | 37.0 | 37.0 |
| Number of Tines | 11 | 12 |
| Space Between Tines (in.) | 4.9 | 4.8 |
| Tine Diameter (in.) | 2.0 | 2.0 |
| Material | 1045 CFSR Round Stock (100,000 PSI Yield Strength) | 1045 CFSR Round Stock (100,000 PSI Yield Strength) |
| Grapple Jaw Opening (in.) | 38.2 | 38.2 |
| Cylinder Bore / Stroke (in.) | 2.0 / 8.375 | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins (in.) | 1.25 / 1.563 | 1.25 / 1.563 |
| Approximate Weight (lbs) | 1180 | 1250 |
| Recommended Loader Capacity (lbs) | Less than 2,400 | Less than 2,400 |
| Hydraulic Flow (GPM) | 15–25 | 15–25 |
| Replaceable Tines | Yes | Yes |
| Number of Grapple Jaws | 2 | 2 |
| Cylinder Guards | Standard | Standard |
| Compatibility | Universal Skid Steer Quick Attach | Universal Skid Steer Quick Attach |
| Ideal Use | Brush, manure, roots, debris | Brush, manure, roots, debris |
