Virnig V50 Utility Bucket | Models UHV60 To UHV84 | Widths 61.5" To 85.8" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

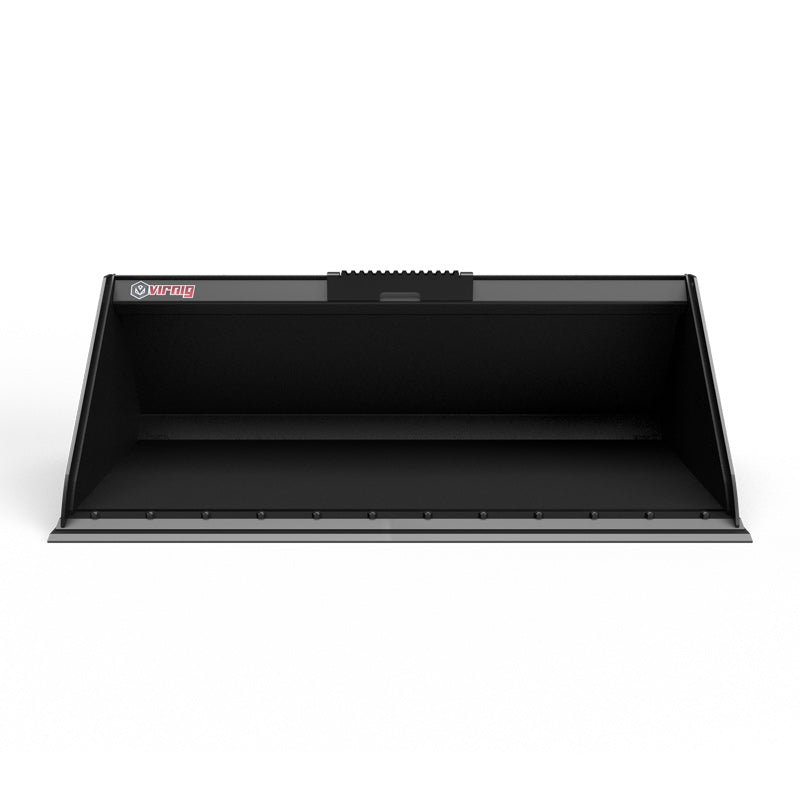

The Virnig V50 Utility Bucket is a heavy-duty, general-purpose skid steer attachment built for performance, precision, and durability. Designed to handle dense and bulk materials from soil and gravel to mulch, snow, and debris this bucket delivers exceptional versatility for everyday jobsite and property maintenance tasks.
Crafted in the USA, the V50 Utility Bucket combines premium-grade steel, precision welds, and reinforced wear bars for long-lasting strength. Whether you’re grading driveways, hauling materials, or performing landscape prep, this bucket delivers reliable results and smooth operation with every load.
With widths ranging from 60" to 84", the V50 fits most standard-flow skid steers under 2,400 lb rated operating capacity, offering the perfect balance between strength, control, and capacity. Its 66° bucket back angle ensures superior load retention, while the optional bolt-on or serrated edges extend cutting life and improve performance on tough ground.
If you need a rugged, all-purpose bucket that’s ready for work day after day the Virnig V50 Utility Bucket is your professional-grade solution.
Key Features
- Heavy-Duty Construction Built from high-strength steel for maximum durability and long service life.
- General-Purpose Design Ideal for digging, loading, backfilling, grading, and transporting dense or loose materials.

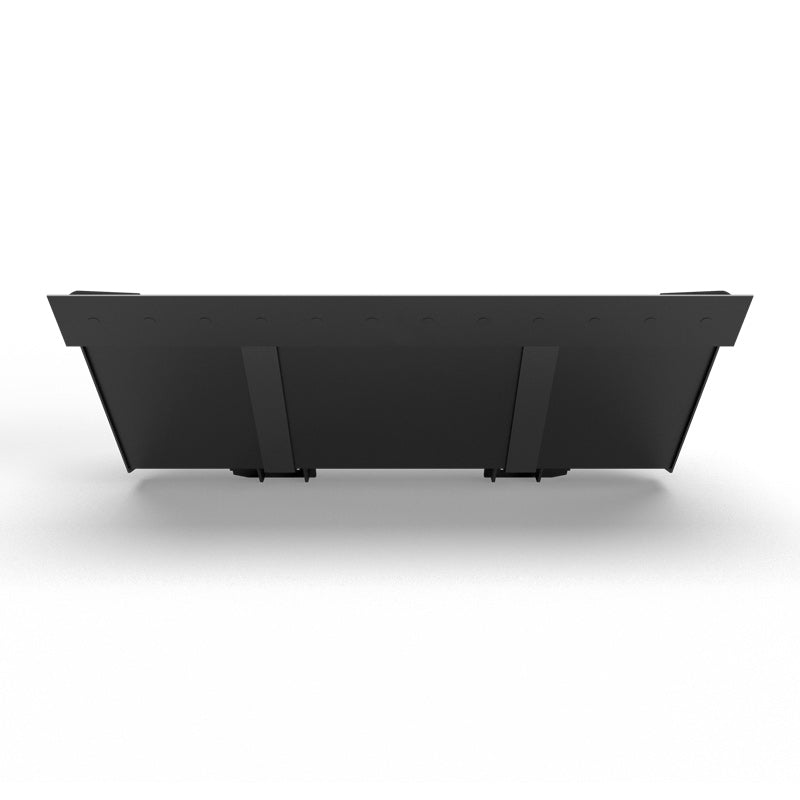

- Reinforced ½″ x 4″ Wear Bars Protects the bucket bottom from abrasion and extends overall life.
- Hydraulic Flow Range Compatible with machines delivering 15–25 GPM.
- 3/4″ x 6″ Weld-On Cutting Edge Provides a strong, smooth edge for efficient loading and digging.
- Optimized 66° Bucket Back Angle Ensures excellent material retention and smooth dump performance.
- Multiple Width Options (60"–84") Choose the perfect fit for your skid steer and application.

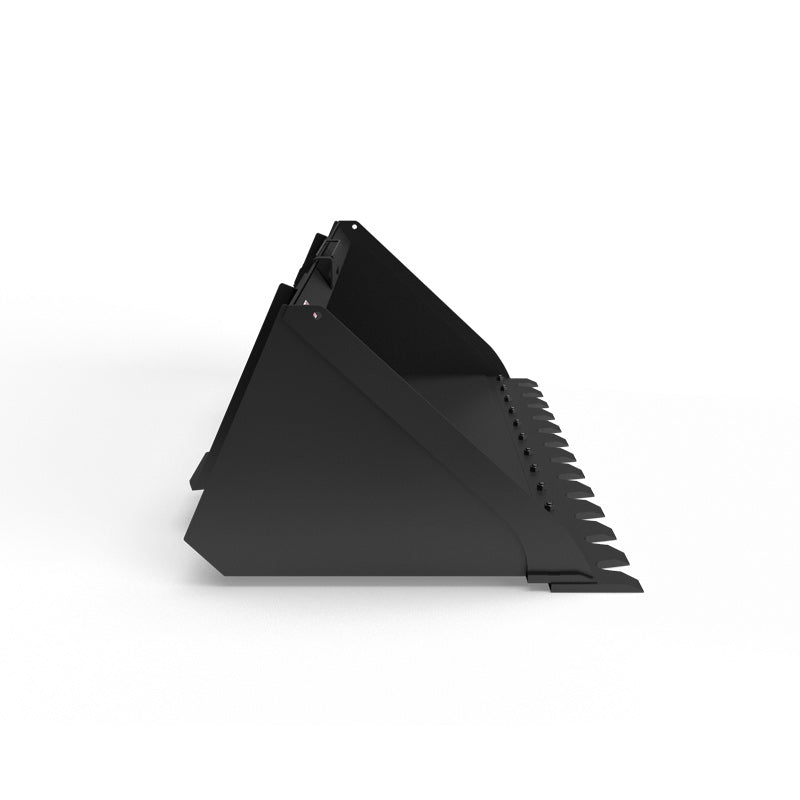

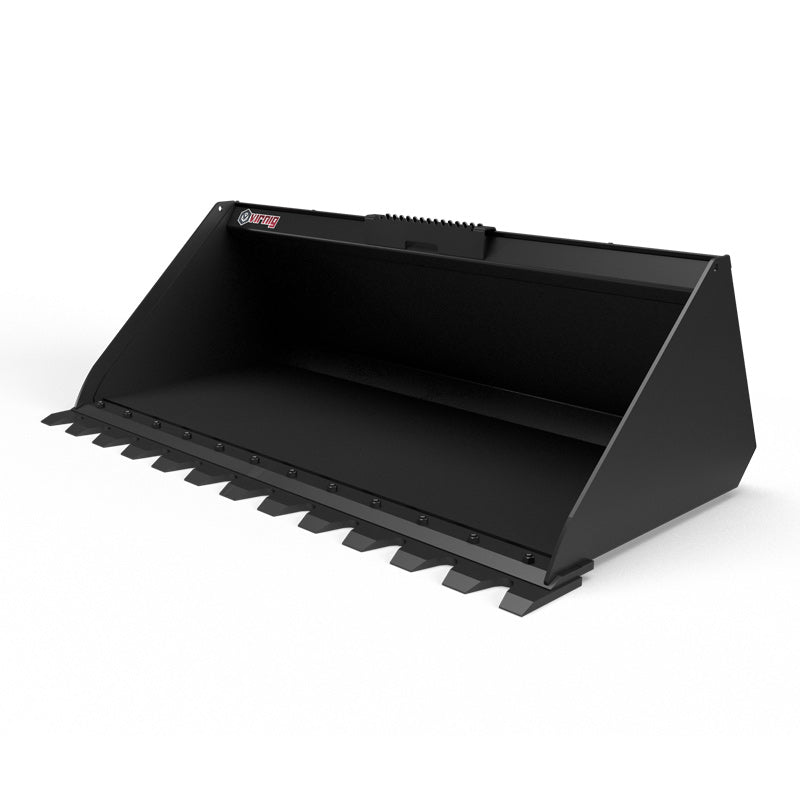

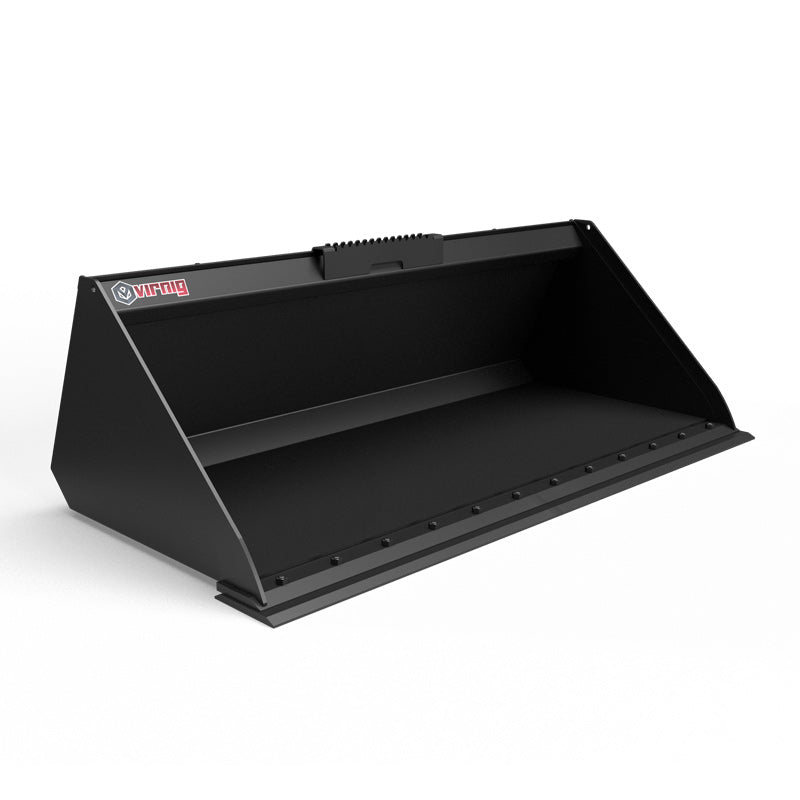

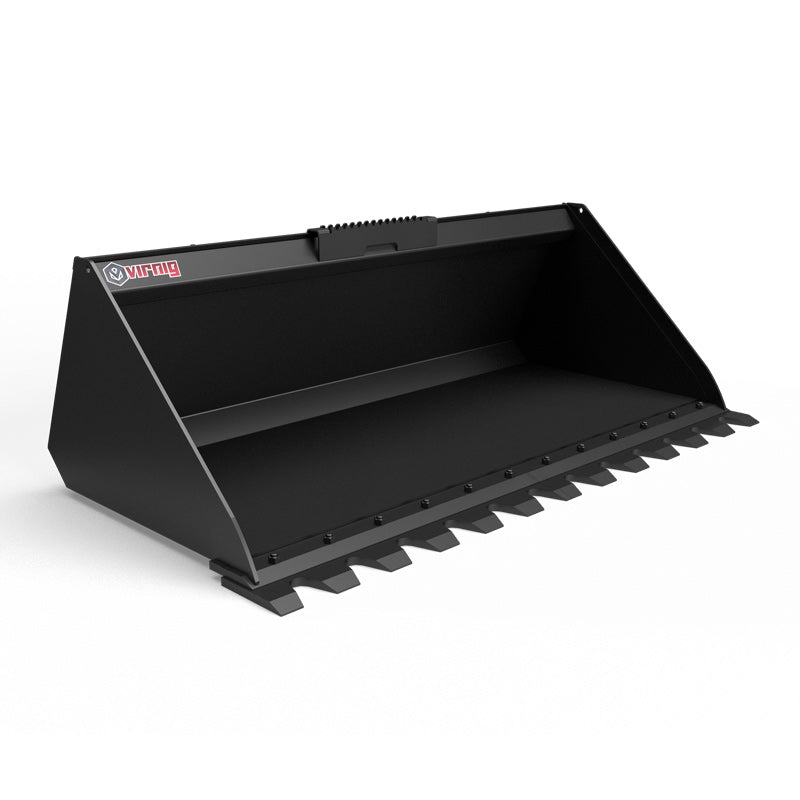

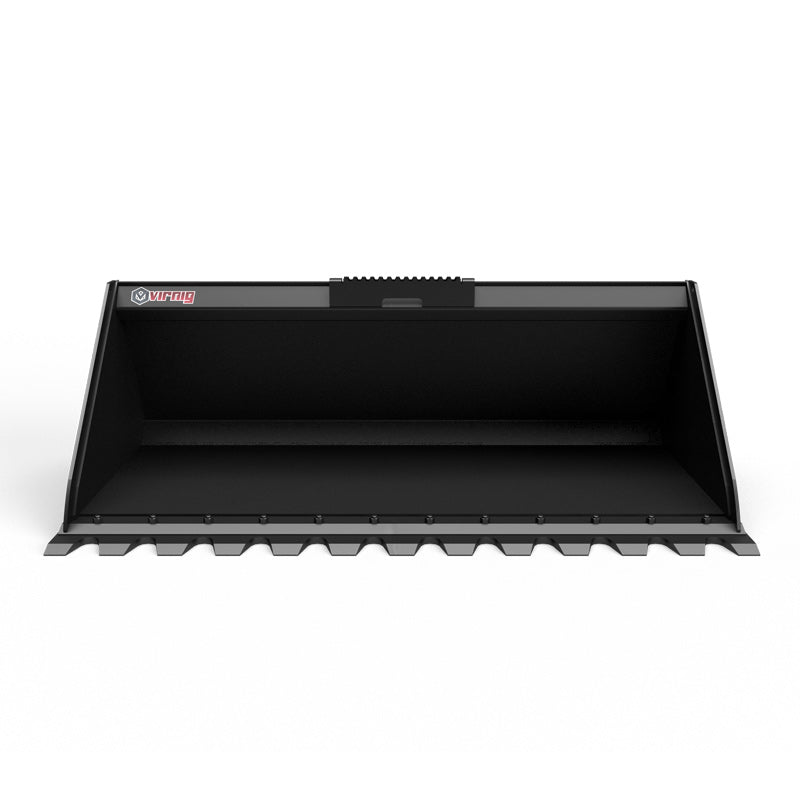

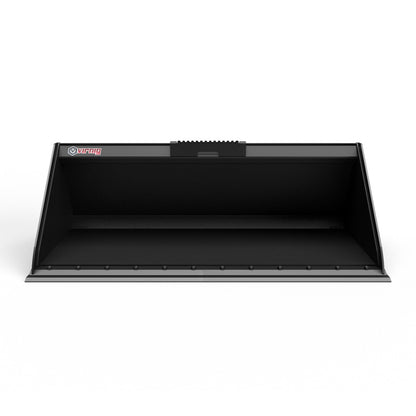

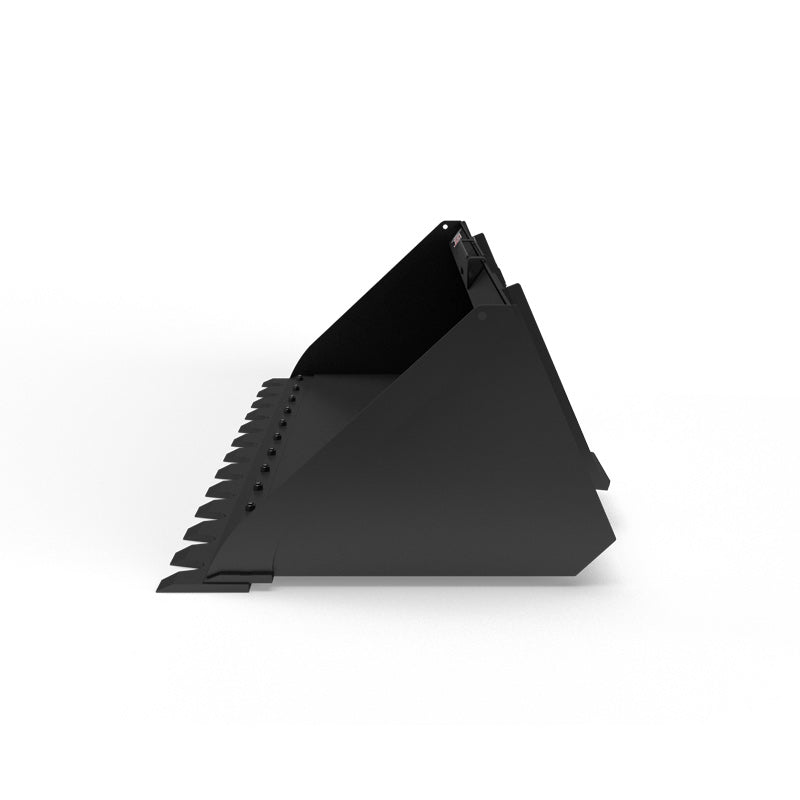

- Optional Bolt-On or Serrated Edges Extend edge life or improve penetration in compacted material.
- Standard Flow Compatibility Works efficiently with most skid steers under 2,400 lb rated operating capacity.
- Tapered Side Plates Enhance loading visibility and reduce spillage when working with bulky material.
- Deep, High-Capacity Design Carries more per load for faster job completion and improved productivity.

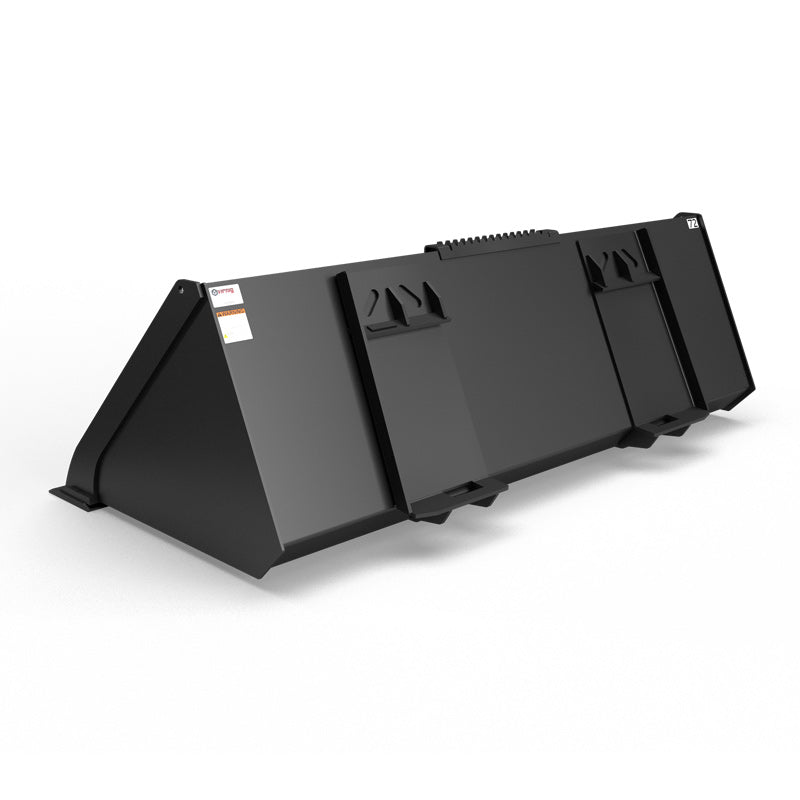

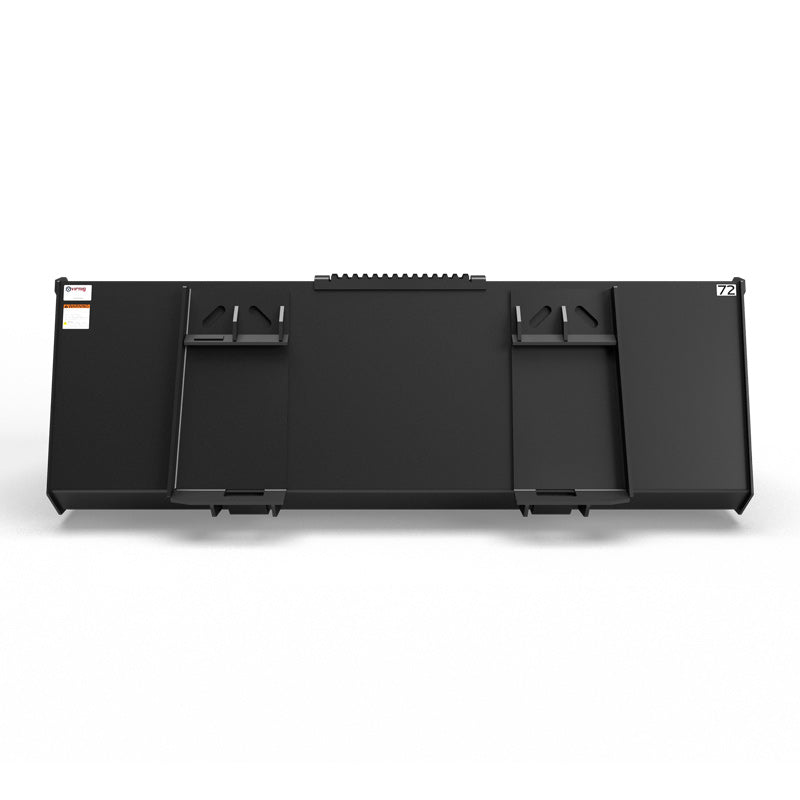

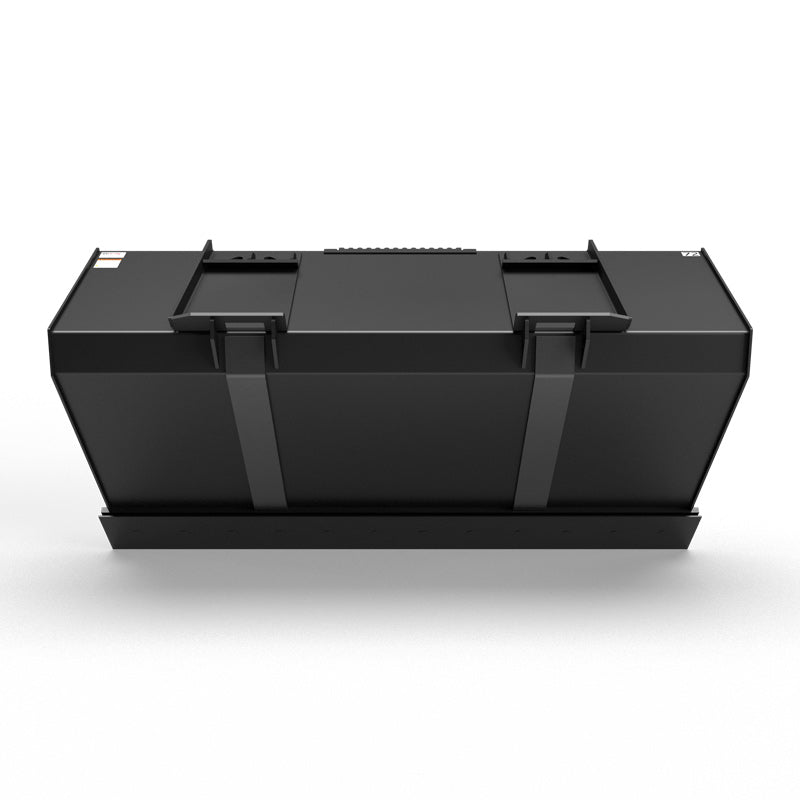

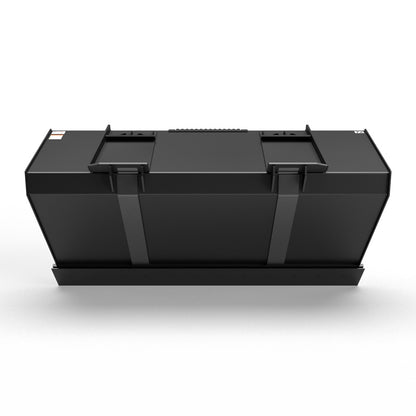

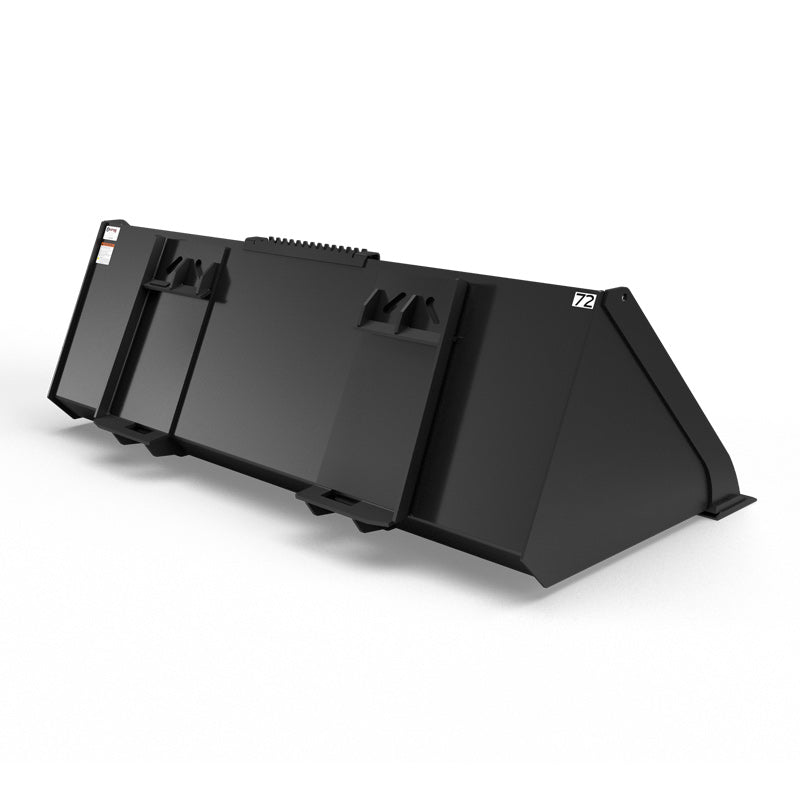

- Easy Attachment Quick attach mount system for hassle-free connection to all major skid steer brands.
- Engineered for Balance Distributes weight evenly to prevent tipping or excessive strain on the loader arms.
- Low-Maintenance Design Simplified structure means fewer wear points and lower long-term costs.
- Precision Welds & Reinforcements Guarantees rigidity and reliability in demanding applications.
- Made in the USA Built with pride using high-quality materials and expert craftsmanship.
Detailed Specifications
| Specification | V50 Utility Bucket (UHV60) | V50 Utility Bucket (UHV66) |
|---|---|---|
| Overall Width | 61.5" | 67.5" |
| Inside Width | 59.3" | 65.3" |
| Overall Height | 24.0" | 24.0" |
| Overall Depth | 38.1" | 38.1" |
| Inside Depth | 34.9" | 34.9" |
| Struck Capacity | 14.4 cu ft | 16.0 cu ft |
| Heaped Capacity | 17.3 cu ft | 19.2 cu ft |
| Shell Thickness | 0.19" | 0.19" |
| Side Plate Thickness | 0.25" | 0.25" |
| Structural Wear Bars (½" x 4") | 2 | 2 |
| Bucket Back Angle | 66° | 66° |
| Approximate Weight | 470 lb | 500 lb |
| Recommended Loader Capacity | < 2,400 lb | < 2,400 lb |
| Recommended Machine Power | 45–75 HP | 45–75 HP |
| Hydraulic Flow Range | 15–25 GPM. | 15–25 GPM. |
| Compatibility | Standard-flow skid steers | Standard-flow skid steers |
| Specification | V50 Utility Bucket (UHV72) | V50 Utility Bucket (UHV78) |
|---|---|---|
| Overall Width | 73.5" | 79.5" |
| Inside Width | 71.3" | 77.3" |
| Overall Height | 24.0" | 24.0" |
| Overall Depth | 38.1" | 38.1" |
| Inside Depth | 34.9" | 34.9" |
| Struck Capacity | 17.6 cu ft | 19.2 cu ft |
| Heaped Capacity | 21.1 cu ft | 23.0 cu ft |
| Shell Thickness | 0.25" | 0.25" |
| Side Plate Thickness | 0.25" | 0.25" |
| Structural Wear Bars (½" x 4") | 2 | 3 |
| Bucket Back Angle | 66° | 66° |
| Approximate Weight | 595 lb | 650 lb |
| Recommended Loader Capacity | < 2,400 lb | < 2,400 lb |
| Recommended Machine Power | 45–75 HP | 45–75 HP |
| Hydraulic Flow Range | 15–25 GPM. | 15–25 GPM. |
| Compatibility | Standard-flow skid steers | Standard-flow skid steers |
| Specification | V50 Utility Bucket (UHV84) |
|---|---|
| Overall Width | 85.8" |
| Inside Width | 83.3" |
| Overall Height | 24.0" |
| Overall Depth | 38.1" |
| Inside Depth | 34.9" |
| Struck Capacity | 20.8 cu ft |
| Heaped Capacity | 24.9 cu ft |
| Shell Thickness | 0.25" |
| Side Plate Thickness | 0.25" |
| Structural Wear Bars (½" x 4") | 3 |
| Bucket Back Angle | 66° |
| Approximate Weight | 680 lb |
| Recommended Loader Capacity | < 2,400 lb |
| Recommended Machine Power | 45–75 HP |
| Hydraulic Flow Range | 15–25 GPM |
| Compatibility | Standard-flow skid steers |
