Product Description
Virnig V60 Angle Snow Blade | Models SBS72, SBS84, SBS96, SBS108 & SBS120 | Widths 74" To 120" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

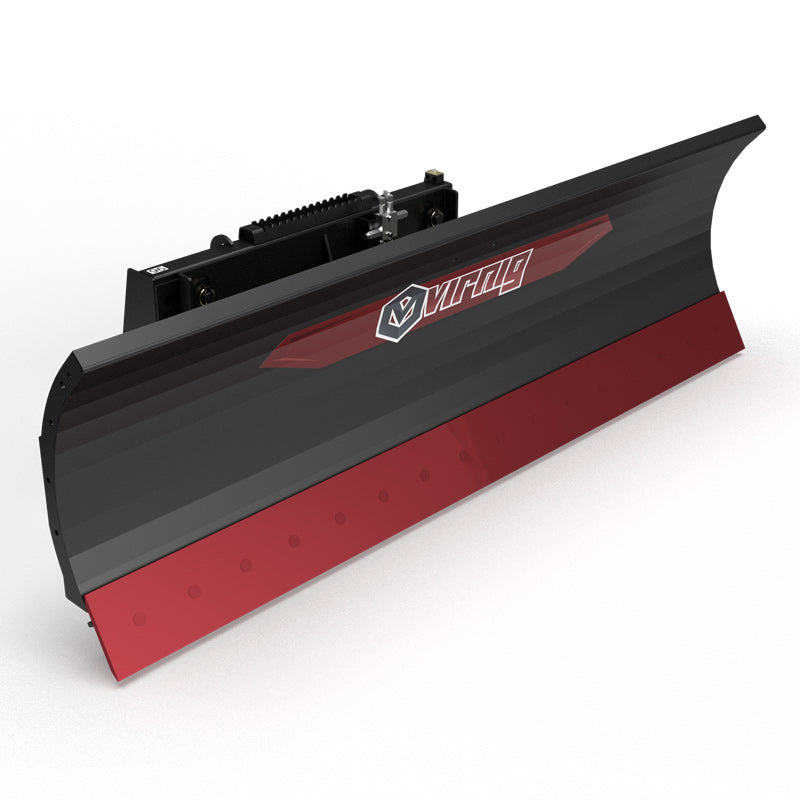

The Virnig V60 Angle Snow Blade is a premium, heavy-duty skid steer snow removal attachment engineered for professionals who demand precision, durability, and all-season reliability. Whether you’re clearing parking lots, roadways, commercial properties, farm drives, or municipal routes, this blade is built to deliver clean, controlled passes every time.

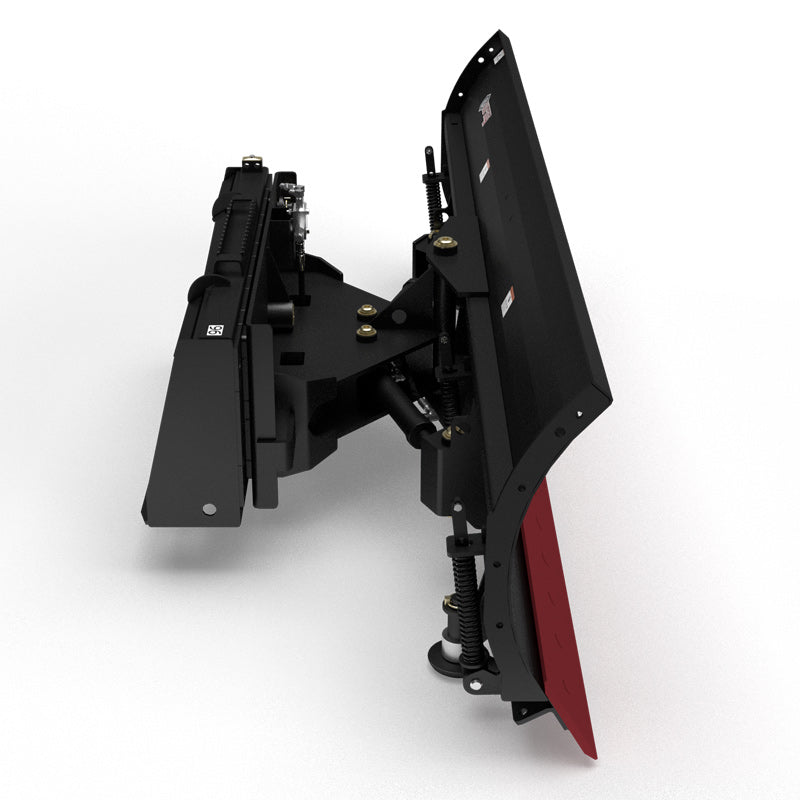

Designed around Virnig’s rugged V60 frame, the Angle Snow Blade uses two powerful hydraulic cylinders to smoothly angle the blade 30° left or right directly from the cab, giving operators full control when navigating tight spaces or heavy winter storms. Its 4° side-to-side oscillation helps the blade follow uneven terrain, ensuring cleaner scrapes and reducing the risk of damaging surfaces.
A trip edge system shields both operator and machine from hidden obstacles by allowing the cutting edge to flex under impact protecting your investment in harsh winter conditions. The heavy 5/8" x 8" reversible steel bolt-on edge provides long wear life and quick replacement, maximizing uptime during demanding snow seasons.
Whether you’re running a compact or mid-frame skid steer, the 15–25 GPM hydraulic flow range makes the V60 Angle Snow Blade compatible with a wide range of machines rated at 1,500+ lb operating capacity. This is the workhorse attachment trusted by snow contractors nationwide to deliver consistent performance in the toughest environments.
Key Features
- Heavy-Duty V60 Construction engineered for commercial snow removal and long-term durability

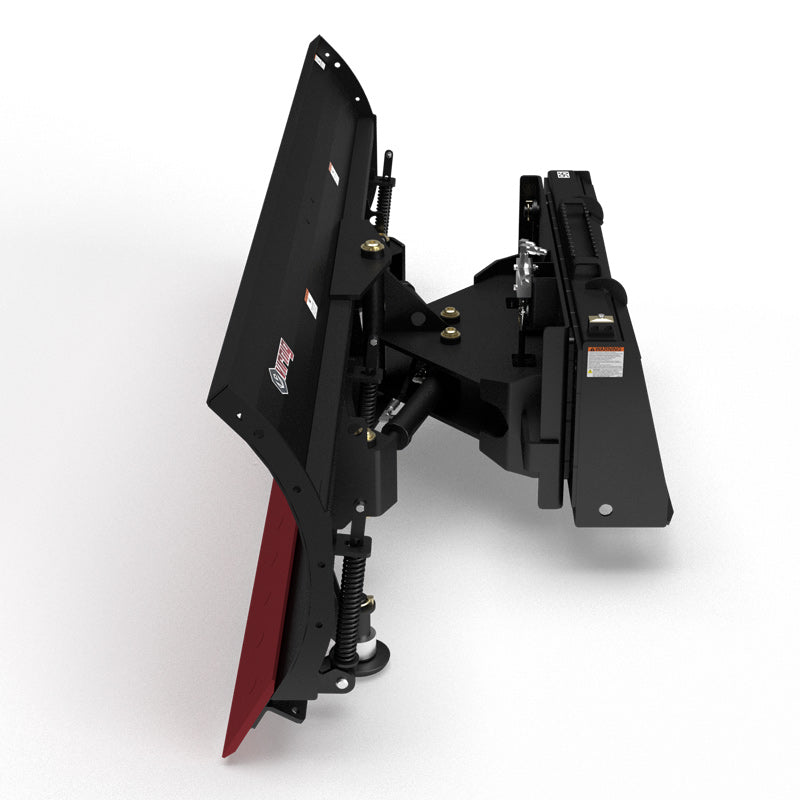

- Hydraulic angle control allows 30° left/right adjustment from inside the skid steer cab

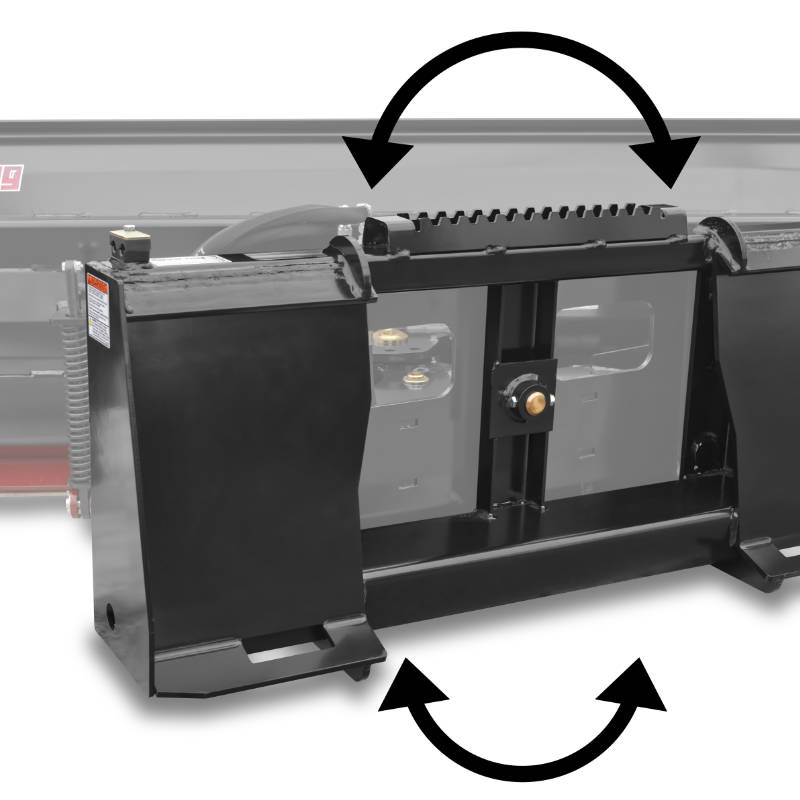

- 4° oscillating blade design follows uneven surfaces for cleaner passes and improved contact

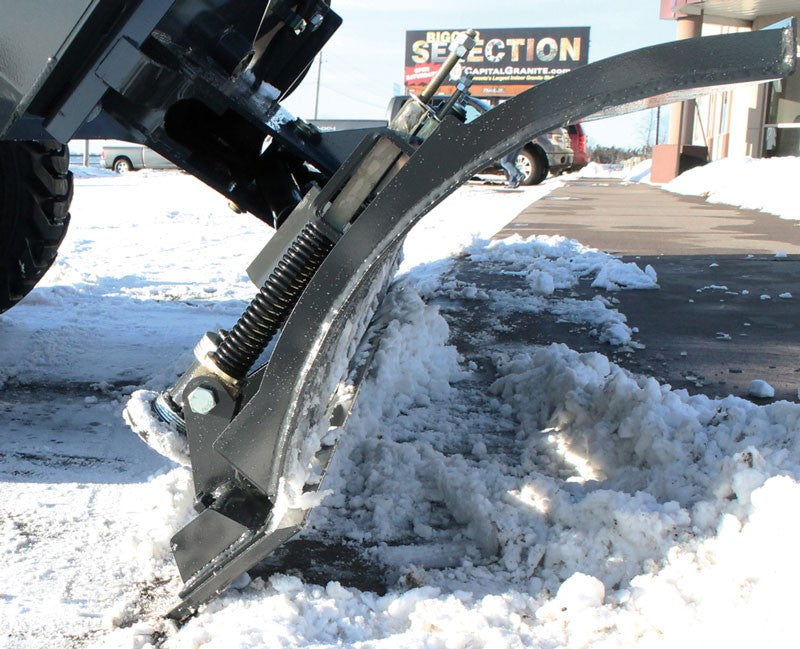

- Trip edge protection system absorbs impact from hidden obstacles, enhancing operator safety
- 5/8" x 8" reversible steel cutting edge provides up to 5.5" of wear for extended blade life
- Dual hydraulic cylinders deliver smooth, powerful angling force in deep or packed snow
- Hydraulic crossover relief valve protects the blade by automatically releasing pressure on impact
- Multiple widths available (74"–120") to fit a wide range of skid steer loader sizes
- Ideal for commercial snow removal, municipalities, farms, contractors, and property managers

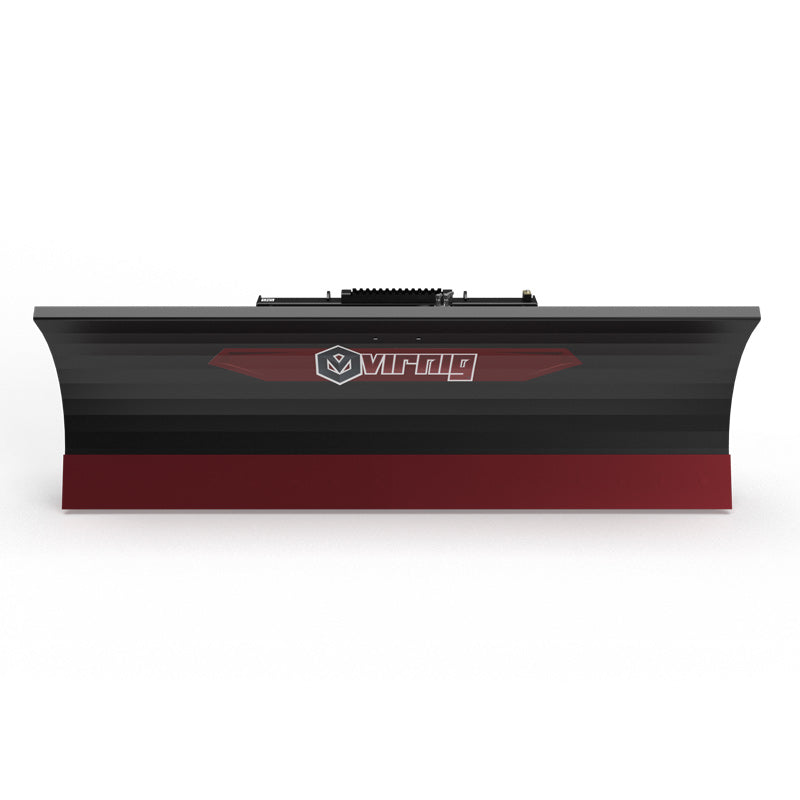

- High-visibility moldboard design helps operators maintain blade awareness in snowy conditions

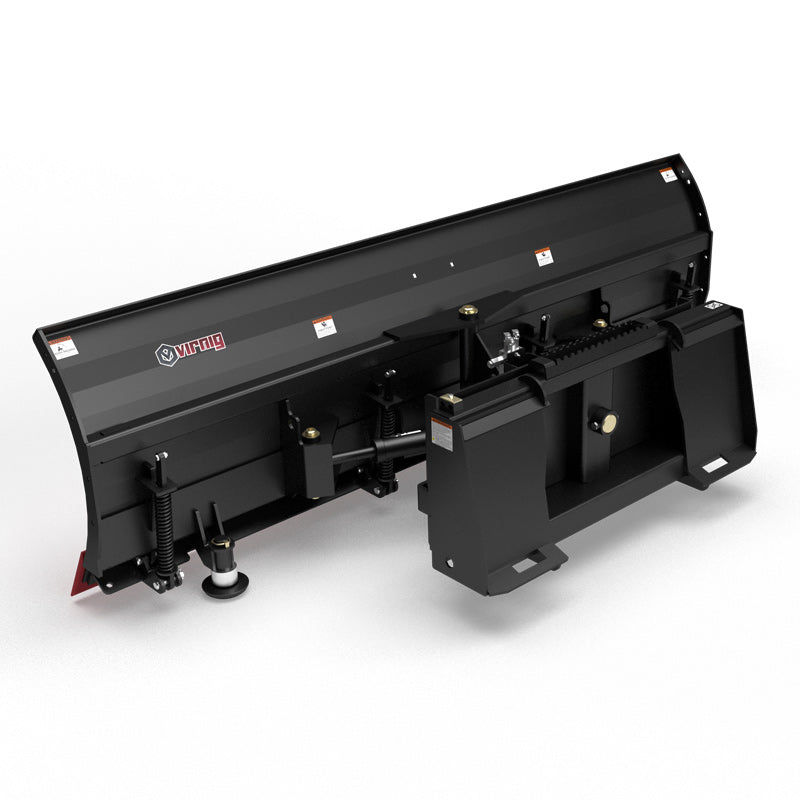

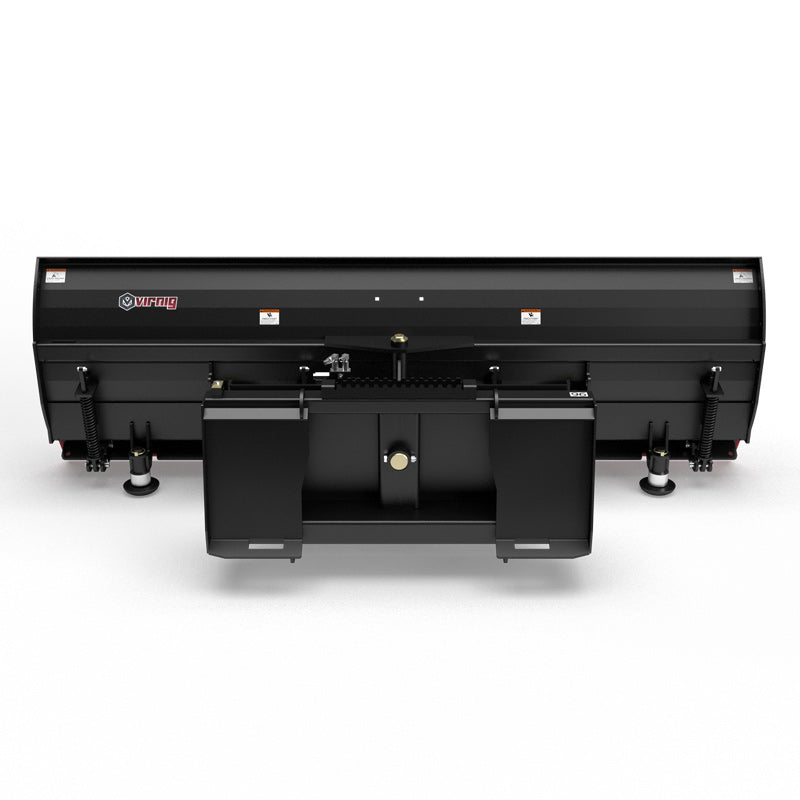

- Quick-attach skid steer mounting enables fast and secure hookup
- Reinforced moldboard construction reduces flex and increases cutting performance

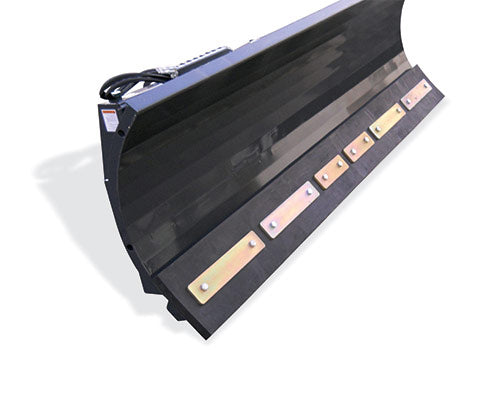

- Compatible with steel, poly, or rubber cutting edges for customizable operation
- Designed for skid steers with 15–25 GPM hydraulic flow
- Recommended for skid steers with 1,500+ lb loader capacity, ensuring stable and productive operation
Detailed Specifications
| Specification | SBS72 | SBS84 |
|---|---|---|
| Overall Width (Straight) | 74.0" | 86.0" |
| Width at Full Angle | 64.0" | 74.0" |
| Overall Height | 31.0" | 31.0" |
| Overall Depth (Straight) | 37.5" | 37.5" |
| Blade Angle Range | ±30° | ±30° |
| Blade Oscillation | ±4° | ±4° |
| Moldboard Thickness | 0.19" | 0.19" |
| Cutting Edge | 5/8" x 8" Bolt-On | 5/8" x 8" Bolt-On |
| Cylinder Bore / Stroke | 2.0" / 8.375" | 2.0" / 8.375" |
| Cylinder Pin Diameter | 1.25" | 1.25" |
| Hinge Pin Diameter | 1.563" | 1.563" |
| Approx. Weight (lbs) | 1020* | 1075* |
| Recommended Loader Capacity | >1500 lbs | >1500 lbs |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Specification | SBS96 | SBS108 |
|---|---|---|
| Overall Width (Straight) | 98.0" | 110.0" |
| Width at Full Angle | 84.0" | 95.0" |
| Overall Height | 31.0" | 31.0" |
| Overall Depth (Straight) | 37.5" | 37.5" |
| Blade Angle Range | ±30° | ±30° |
| Blade Oscillation | ±4° | ±4° |
| Moldboard Thickness | 0.19" | 0.19" |
| Cutting Edge | 5/8" x 8" Bolt-On | 5/8" x 8" Bolt-On |
| Cylinder Bore / Stroke | 2.0" / 8.375" | 2.0" / 8.375" |
| Cylinder Pin Diameter | 1.25" | 1.25" |
| Hinge Pin Diameter | 1.563" | 1.563" |
| Approx. Weight (lbs) | 1130* | 1185* |
| Recommended Loader Capacity | >1500 lbs | >1500 lbs |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Specification | SBS120 |
|---|---|
| Overall Width (Straight) | 120.0" |
| Width at Full Angle | 104.0" |
| Overall Height | 31.0" |
| Overall Depth (Straight) | 37.5" |
| Blade Angle Range | ±30° |
| Blade Oscillation | ±4° |
| Moldboard Thickness | 0.19" |
| Cutting Edge | 5/8" x 8" Bolt-On |
| Cylinder Bore / Stroke | 2.0" / 8.375" |
| Cylinder Pin Diameter | 1.25" |
| Hinge Pin Diameter | 1.563" |
| Approx. Weight (lbs) | 1225* |
| Recommended Loader Capacity | >1500 lbs |
| Hydraulic Flow Range | 15–25 GPM |
