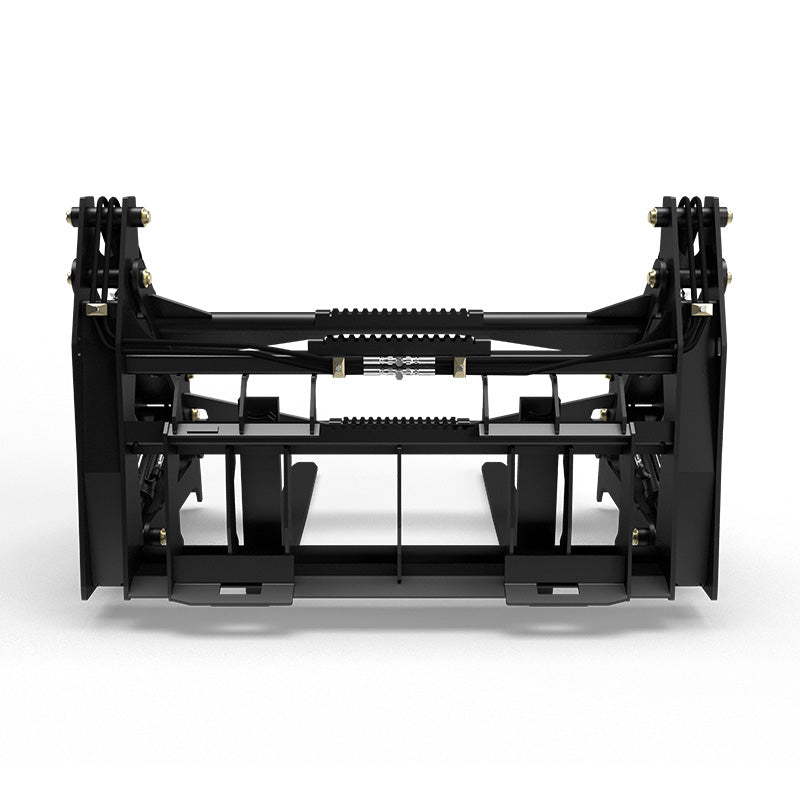

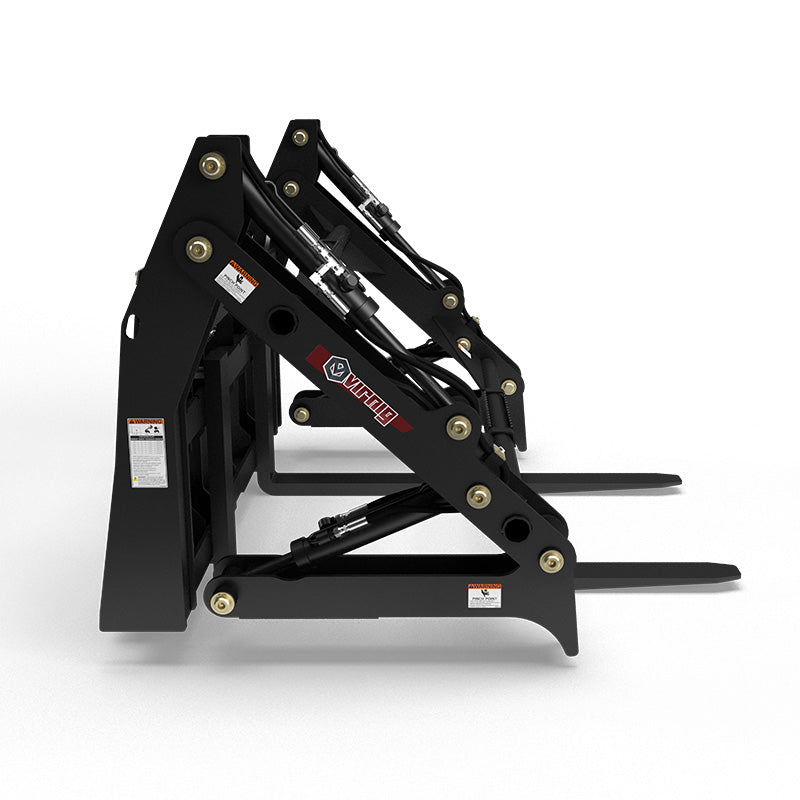

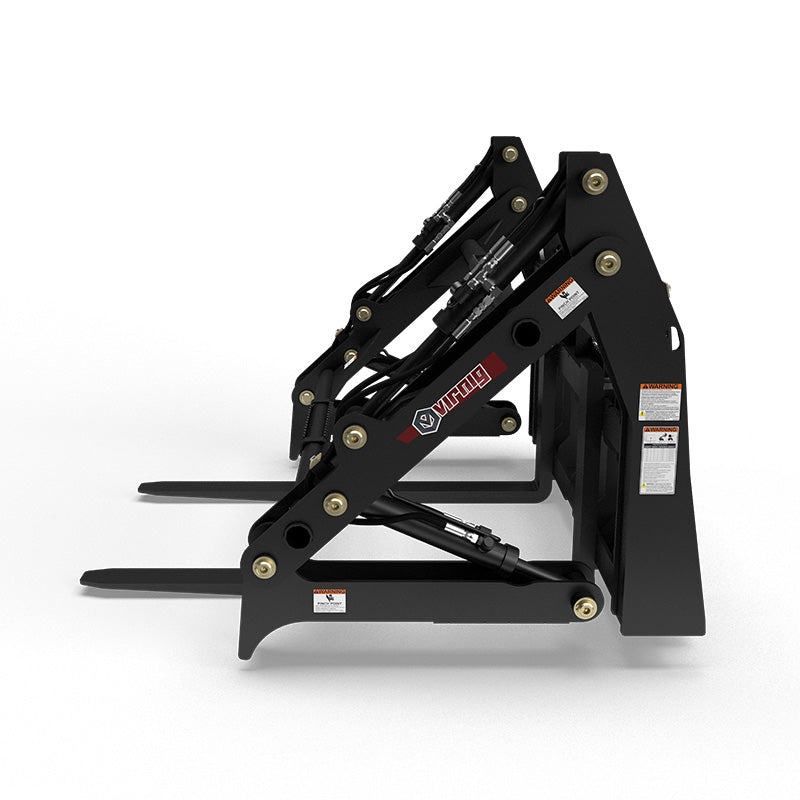

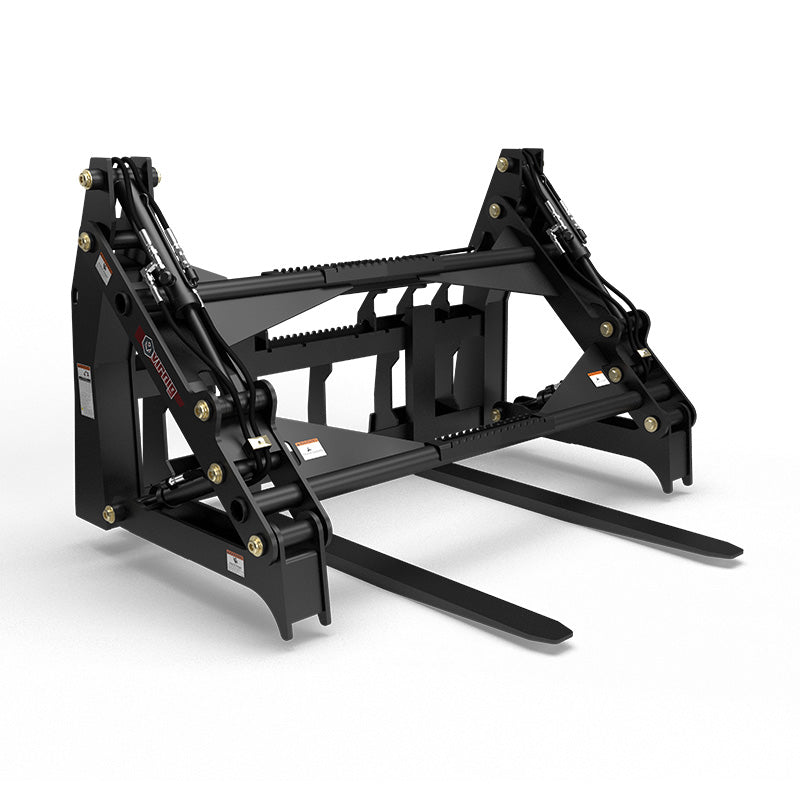

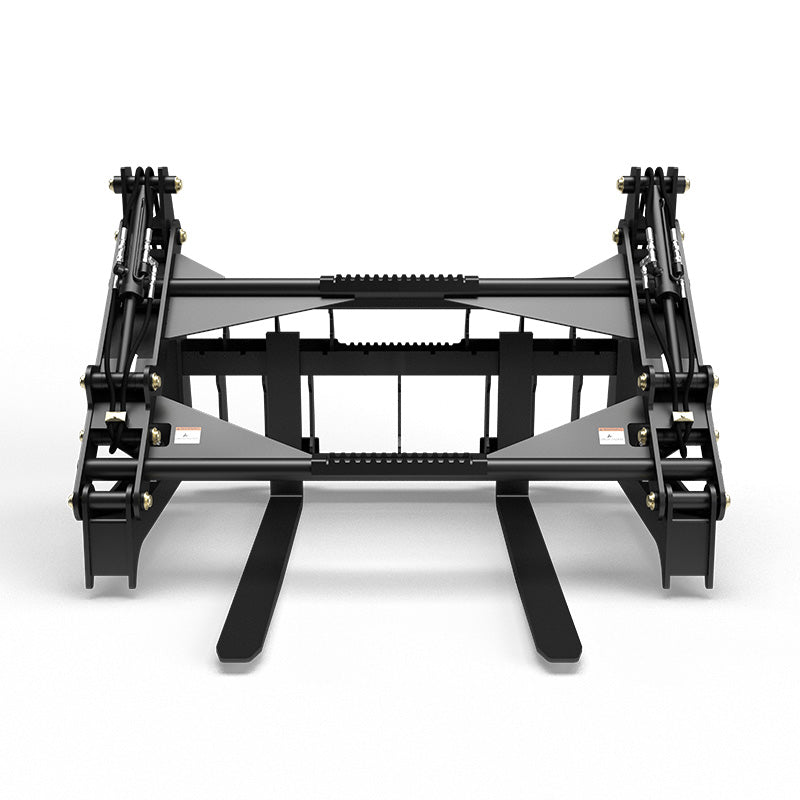

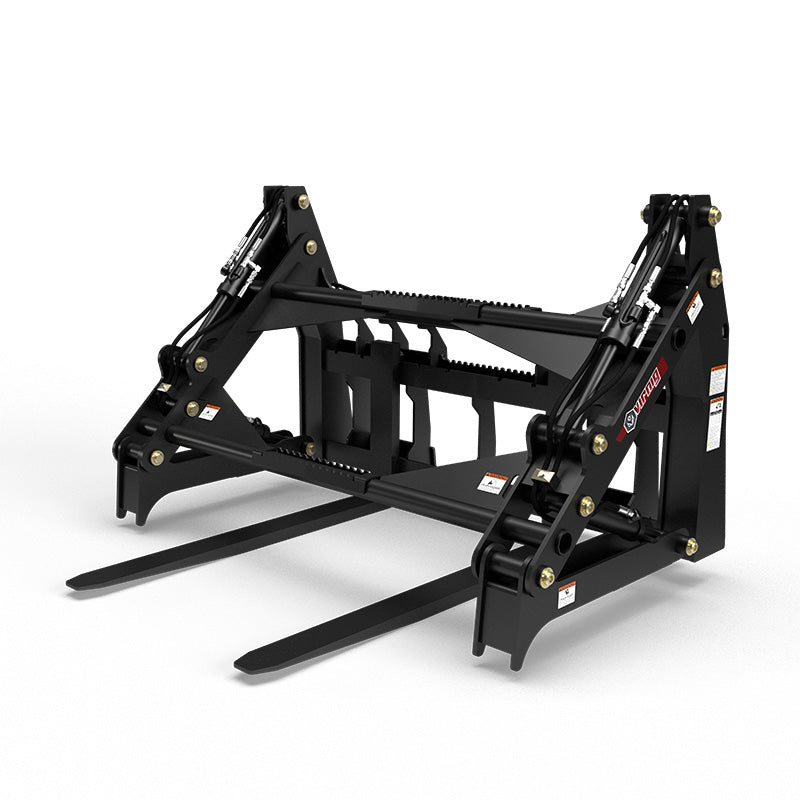

Virnig V60 Four-Cylinder Pipe Pallet Fork Grapple | Models PPFG448 & PPFG460 | Width 69" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

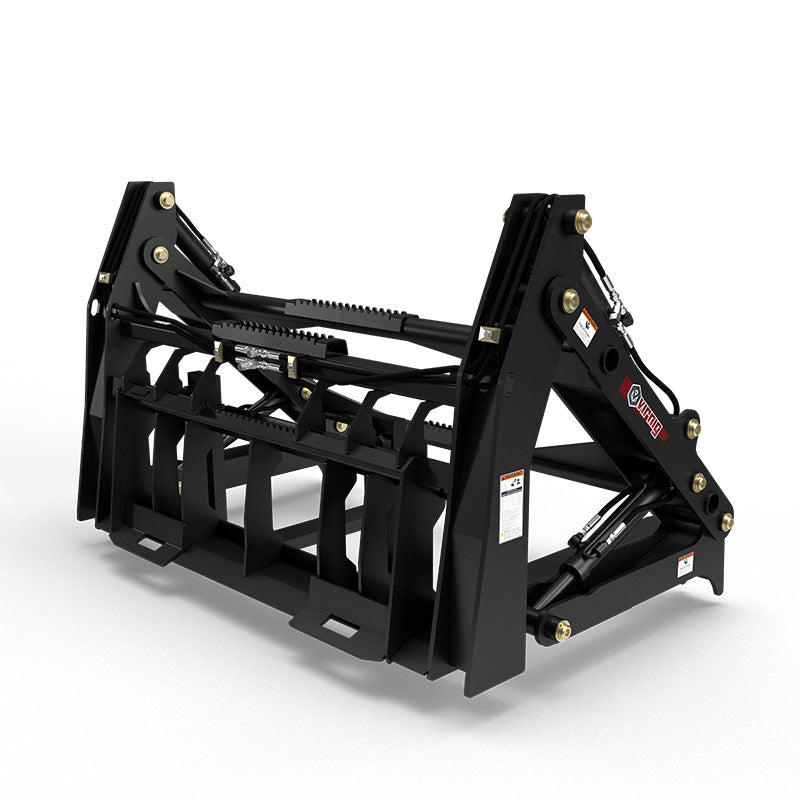

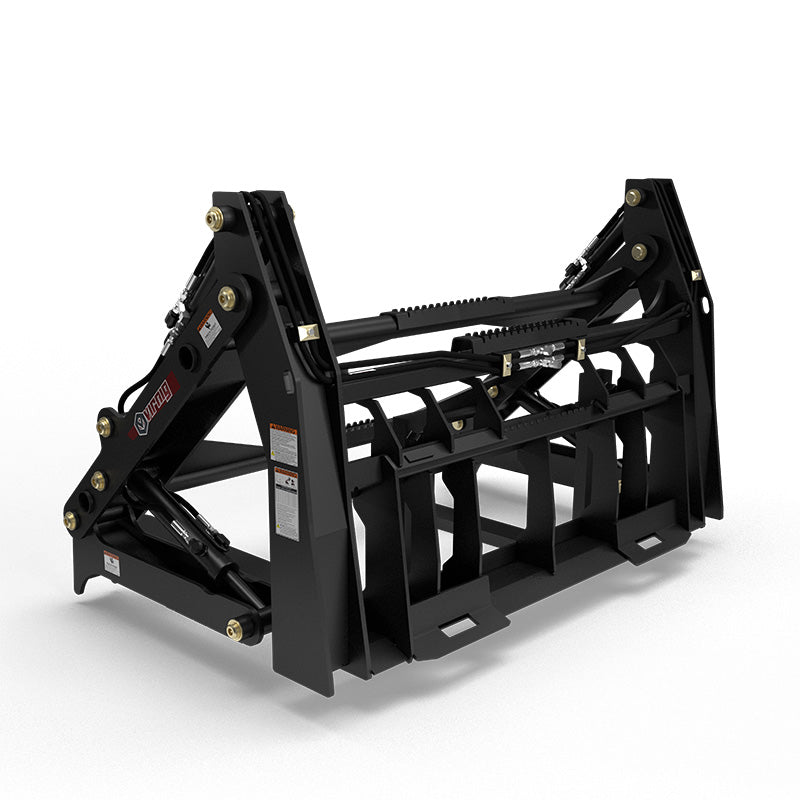

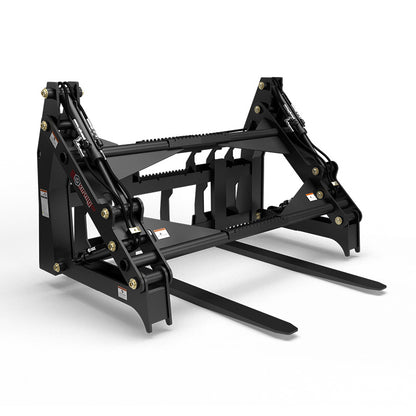

The Virnig V60 Four-Cylinder Pipe Pallet Fork Grapple is engineered for operators who demand unmatched control, clamping power, and security when handling long pipe, irregular materials, and bulky loads across rugged job sites. Designed specifically for skid steer loaders, this heavy-duty grapple combines a four-cylinder clamping system with forged ITA Class II tines to deliver consistent pressure even when working over uneven ground.

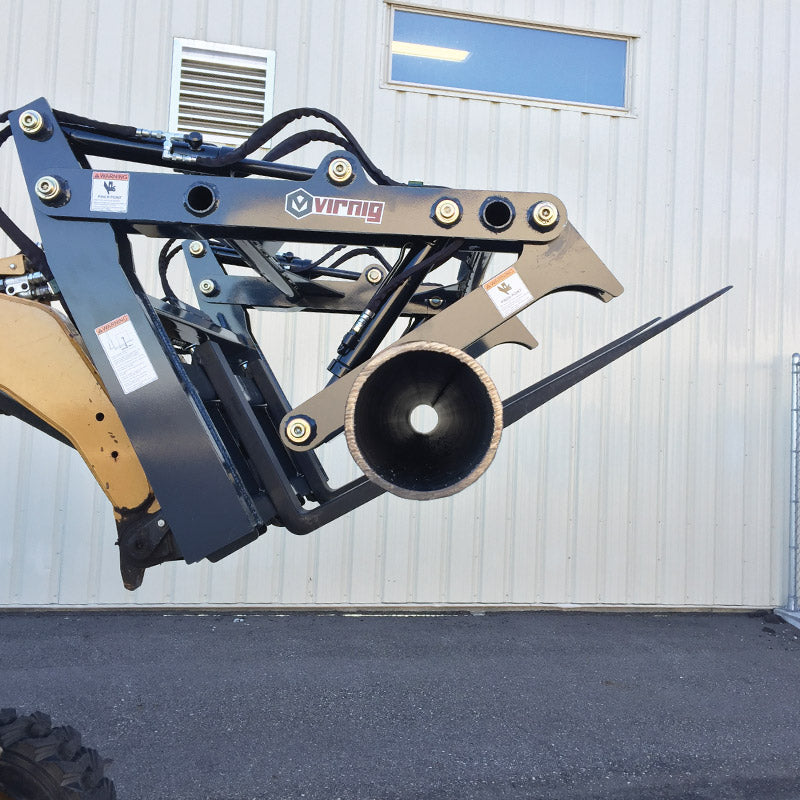

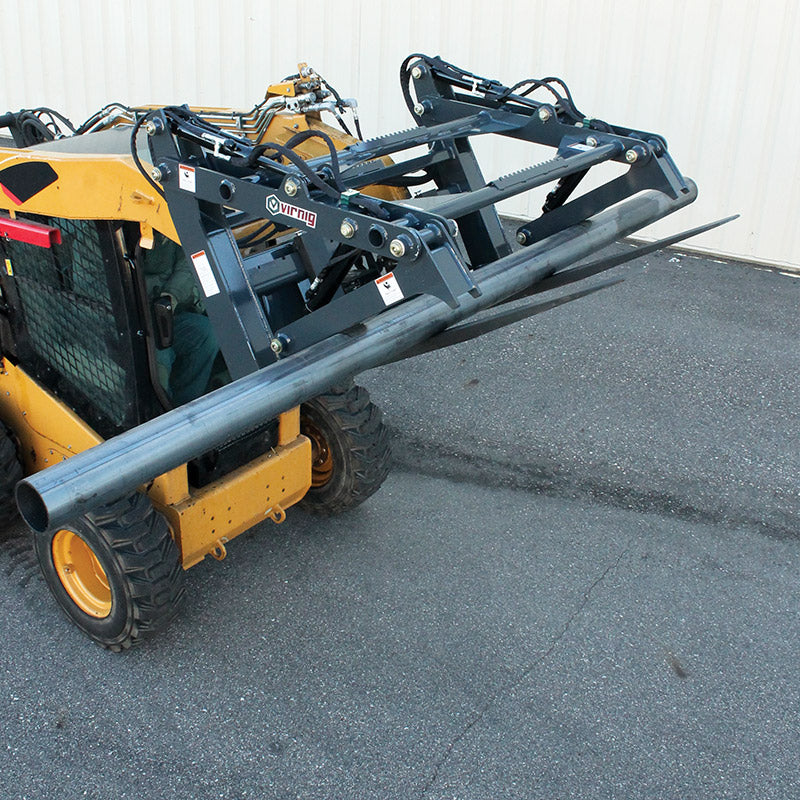

Built for pipeline contractors, utility crews, construction professionals, and industrial material handlers, the V60 Pipe Pallet Fork Grapple offers the strength and accuracy needed to move awkward, shifting loads with confidence. The low-profile, high-visibility design allows operators to align pipe bundles and materials with precision, while the rugged frame ensures durability in the harshest environments.
This attachment requires 15–25 GPM hydraulic flow, making it compatible with most mid- to high-flow skid steers. Whether you're loading pipe, securing long materials, or transporting equipment, the Virnig V60 delivers the performance, stability, and operator control that modern worksites demand.
Key Features
- Four-Cylinder Grapple System provides equalized clamping pressure for secure handling of long or uneven pipe loads.
- Heavy-Duty Steel Construction ensures maximum durability for industrial and construction applications.
- Forged ITA Class II Tines available in 48" or 60" lengths for versatile material handling.
- NitroSteel® Cylinder Rods resist corrosion and wear for long service life.
- Teflon®-Coated Bushings on all pivots reduce friction and maintenance needs.
- Consistent Grip Over Uneven Terrain thanks to independent cylinder operation.
- High-Visibility Backrest enhances operator sight lines for precise material alignment.
- Wide Tine Spacing Range (8.9"–49") accommodates large pipes, pallets, and irregular loads.
- Strong Grapple Arm Design with 11.4" width and 30.4" depth for secure containment.
- Exceptional Lift Capacities up to 6,200 lbs on the PPFG448 model.
- Universal Skid Steer Quick-Attach Compatibility fits most major brands.
- Optimized for Mid- to High-Flow Skid Steers running 15–25 GPM.
- Reinforced Cylinder and Hinge Pins (1.25") for extreme-duty performance.
- Balanced Weight Distribution improves skid steer stability with long materials.
- Ideal for Construction, Pipeline, Utility, and Industrial Handling where secure, precise gripping is critical.
Detailed Specifications
| Specification | PPFG448 |
|---|---|
| Product Width | 69" |
| Overall Height (Open / Closed) | 62.0" / 42.5" |
| Overall Depth | 58.0" |
| Grapple Arm Width | 11.4" |
| Grapple Arm Depth | 30.4" |
| Tine Spacing (Min / Max) | 8.9" / 49.0" |
| Tine Size (L × W × T) | 48.0" × 4.0" × 1.75" |
| Cylinder Bore / Stroke | 2.0" / 8.375" |
| Cylinder Pin Diameter | 1.25" |
| Hinge Pin Diameter | 1.25" |
| Lift Capacity | 6,200 lbs |
| Approx. Weight | 1,060 lbs |
| Recommended Loader Capacity | >1,500 lbs |
| Required Hydraulic Flow | 15–25 GPM |
| Specification | PPFG460 |
|---|---|
| Product Width | 69" |
| Overall Height (Open / Closed) | 62.0" / 42.5" |
| Overall Depth | 70.0" |
| Grapple Arm Width | 11.4" |
| Grapple Arm Depth | 30.4" |
| Tine Spacing (Min / Max) | 8.9" / 49.0" |
| Tine Size (L × W × T) | 60.0" × 4.0" × 1.5" |
| Cylinder Bore / Stroke | 2.0" / 8.375" |
| Cylinder Pin Diameter | 1.25" |
| Hinge Pin Diameter | 1.25" |
| Lift Capacity | 5,500 lbs |
| Approx. Weight | 1,065 lbs |
| Recommended Loader Capacity | >1,500 lbs |
| Required Hydraulic Flow | 15–25 GPM |
