Product Description
Virnig V60 High Capacity Dirt Bucket | Models HCDB72, HCDB78, HCDB84 & HCDB90 | Widths 72" To 90" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

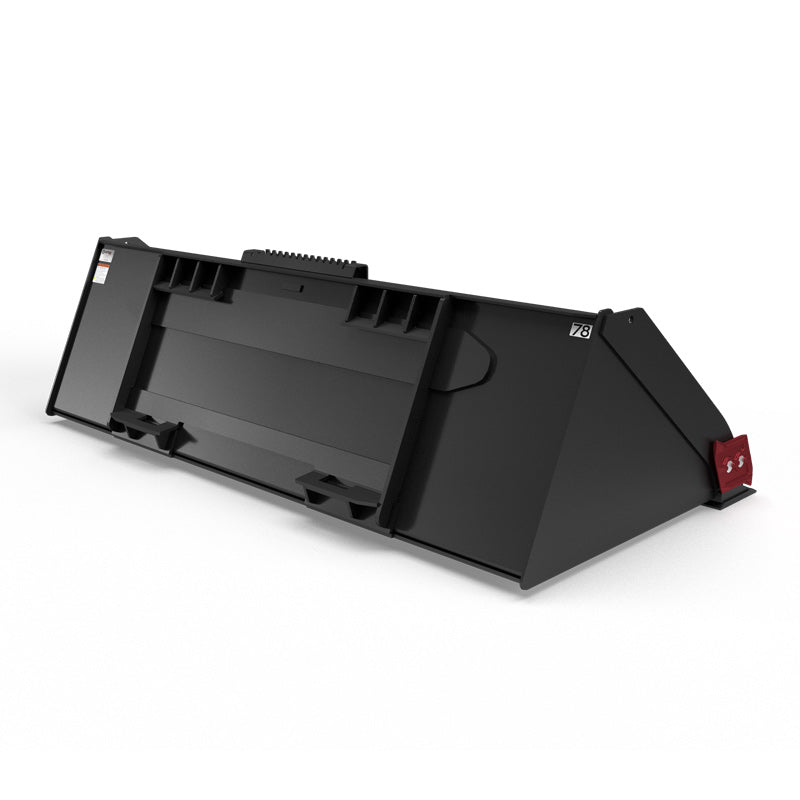

Built for operators who demand unmatched strength and efficiency, the Virnig V60 High Capacity Dirt Bucket is engineered to move more material faster. Designed for high-performance skid steer loaders, this heavy-duty bucket combines premium build quality with maximum heaped capacity, making it the ideal choice for earthmoving, site prep, landscaping, and construction jobs.
Every inch of the V60 High Capacity Dirt Bucket is crafted for power, durability, and precision. Its curved interior promotes smooth material flow and quick cleanout, while the grading bend ensures optimal control during backdragging and fine grading. Reinforced with 1/2" wear bars, a full-length heel wear bar, and 1/4" thick shell and side plates, this bucket is built to outlast and outperform the competition in the toughest ground conditions.

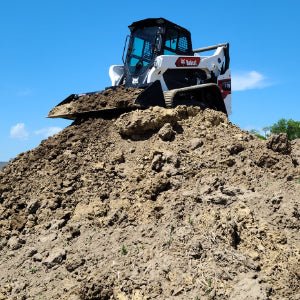

Whether you're filling trucks, leveling pads, or handling dense soil and aggregates, the V60 High Capacity Dirt Bucket turns your skid steer into a true production machine.
Key Features
- Engineered for Strength: Heavy-duty, high-capacity bucket built for skid steers with rated operating capacities over 2,400 lb.
- High Material Volume: Increased struck and heaped capacity lets you move more material in fewer passes.
- Precision Grading Performance: Integrated grading bend offers superior backdrag control and smoother reverse grading.
- Enhanced Visibility: Cutting edge visible from inside the cab improves accuracy during loading and leveling.
- Curved Interior Design: Promotes cleaner material release and faster dump cycles.
- Thick, Reinforced Construction: 1/4" shell and side plates resist warping and wear in demanding applications.
- Full Heel Wear Bar: Continuous wear protection across the bucket heel extends working life.

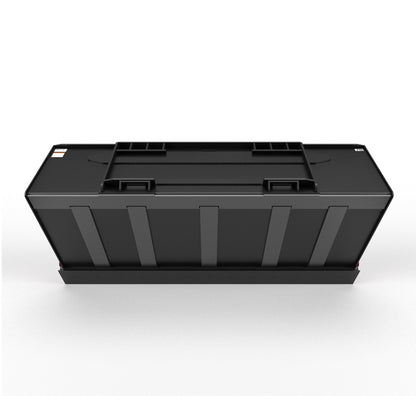

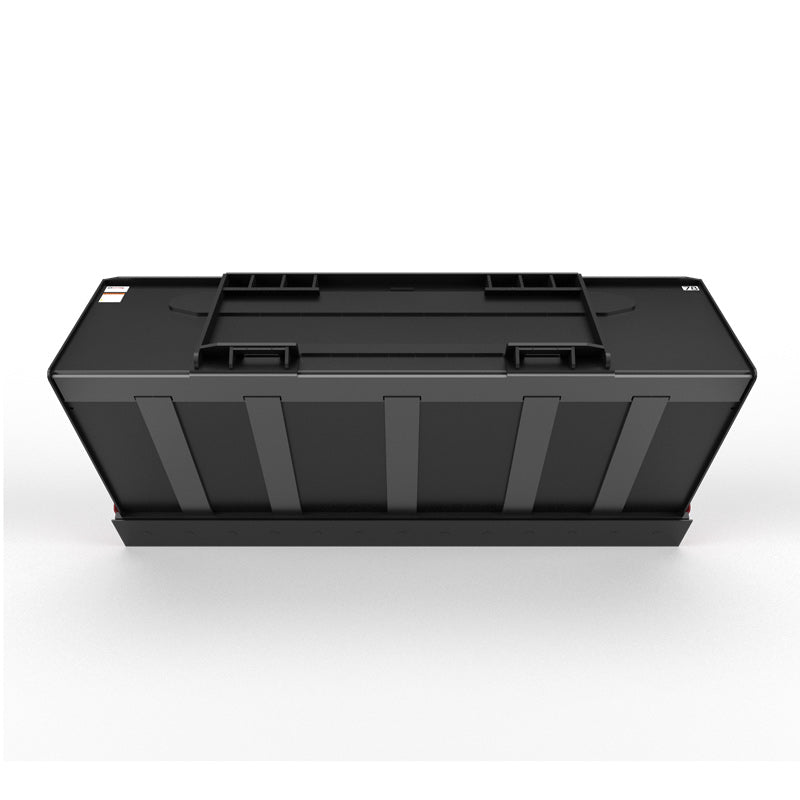

- Multiple Structural Wear Bars: Five 1/2" x 4" wear bars protect the bottom from abrasion and impact.

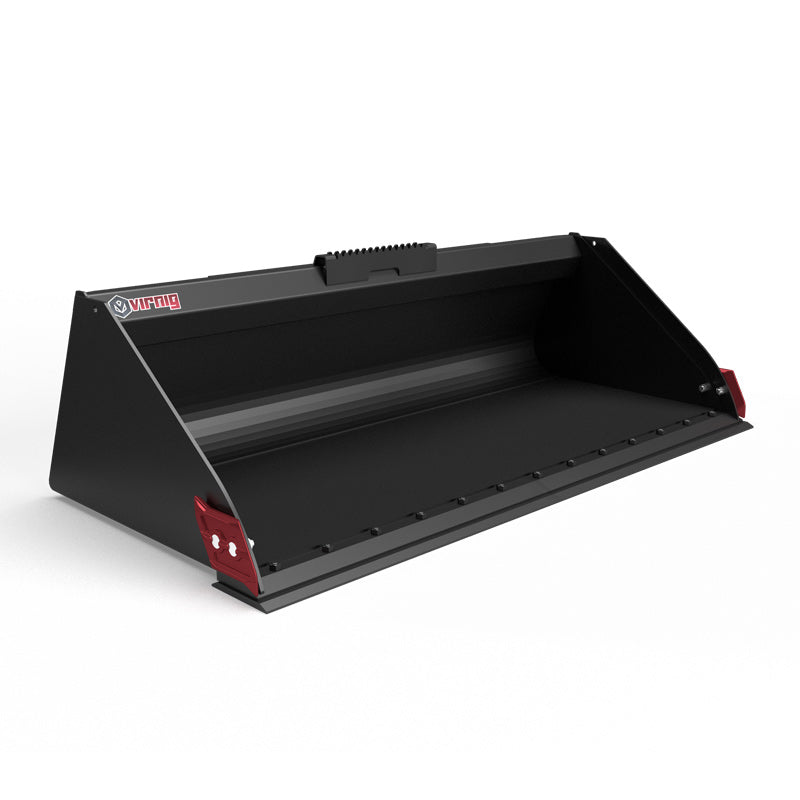

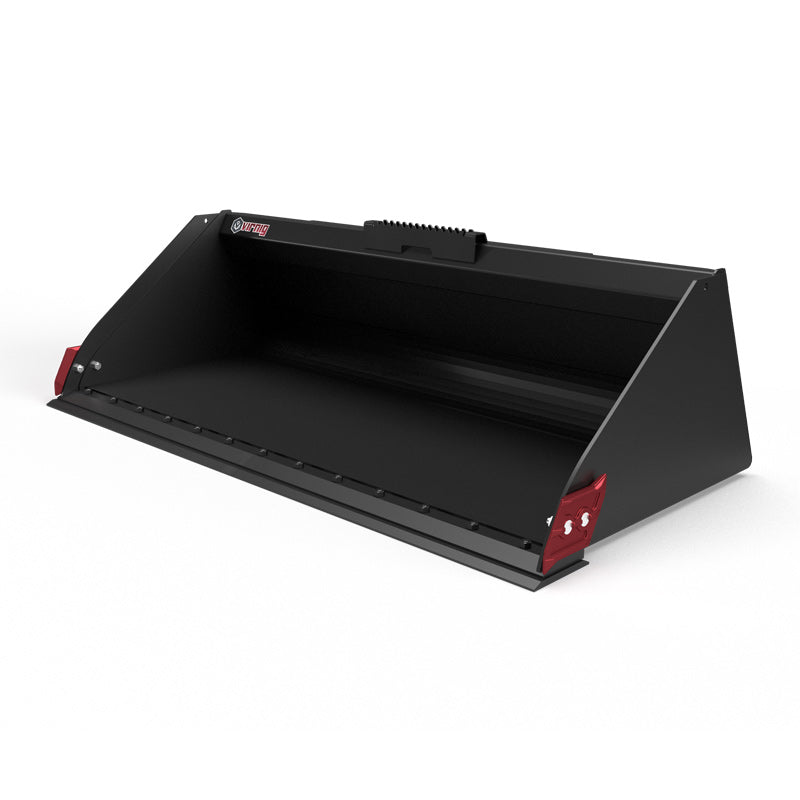

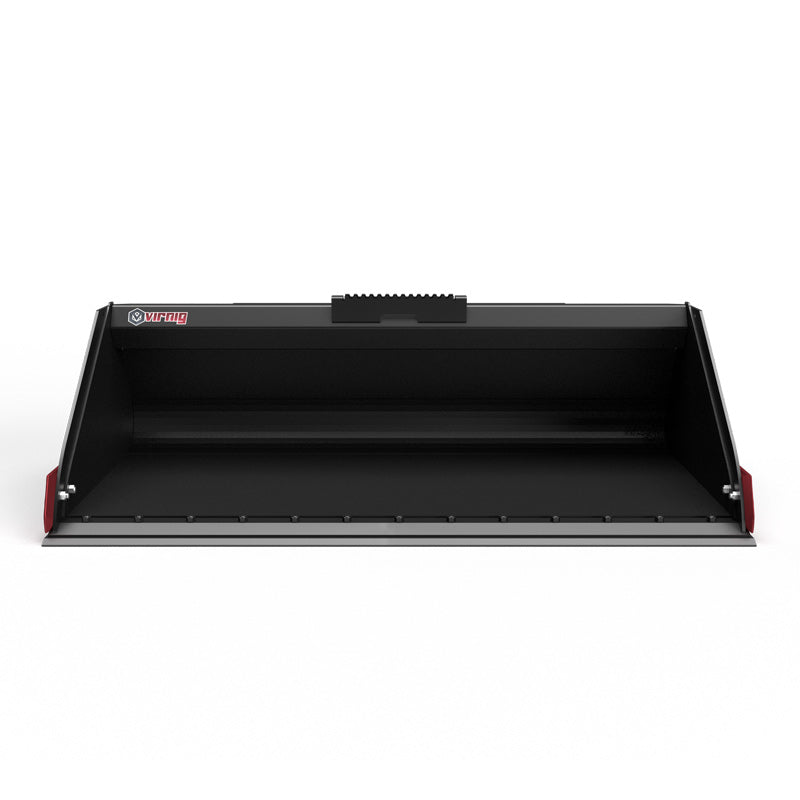

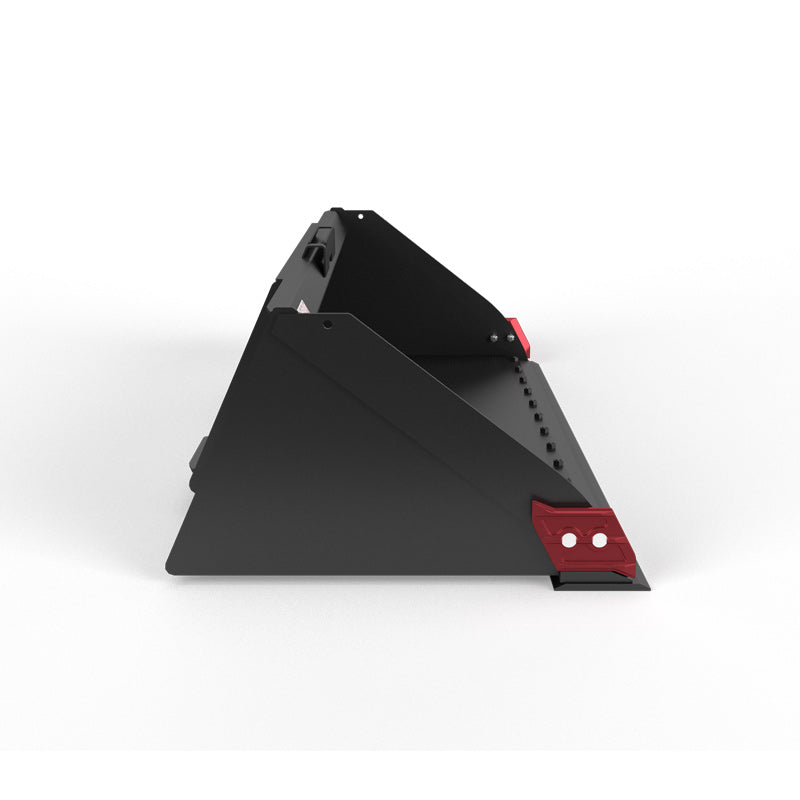

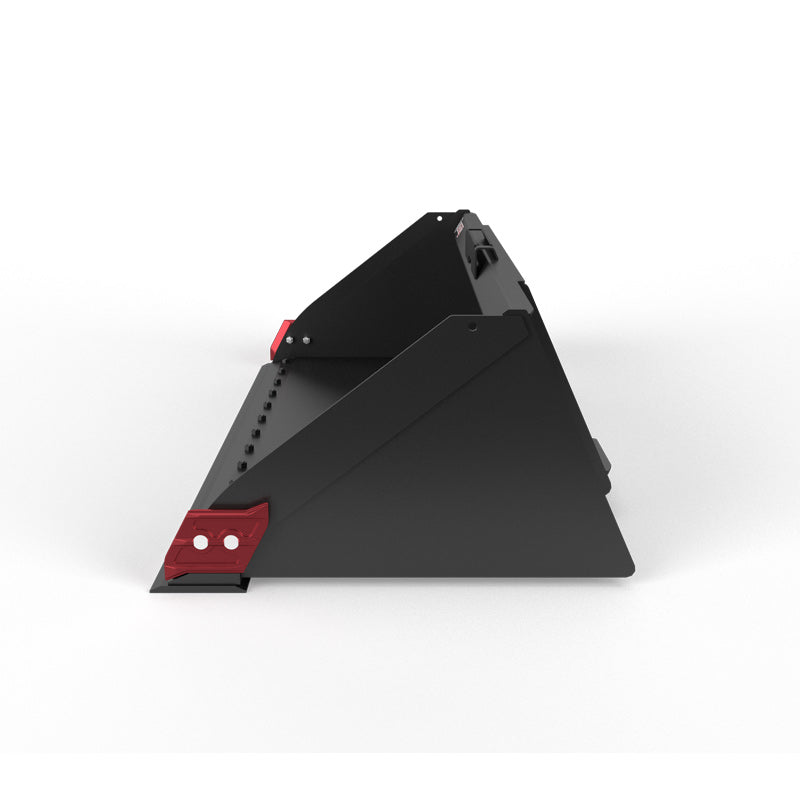

- Optional Bolt-On or Serrated Edge: Extend edge life or improve digging in compacted soils with reversible wear options.
- Optional Side Cutters: Cast steel, reversible side cutters add penetration and protect bucket sides.

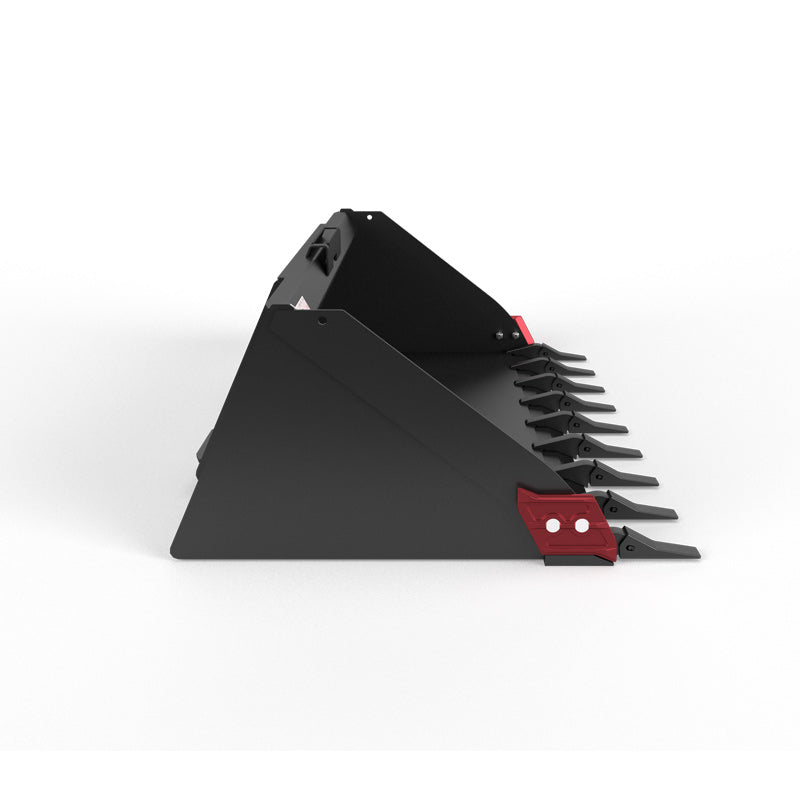

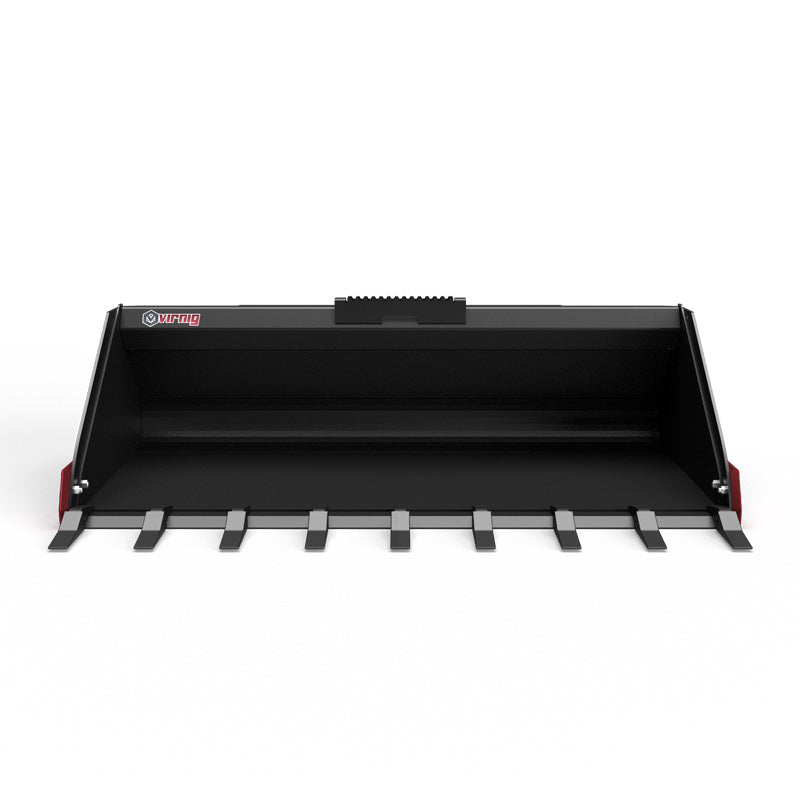

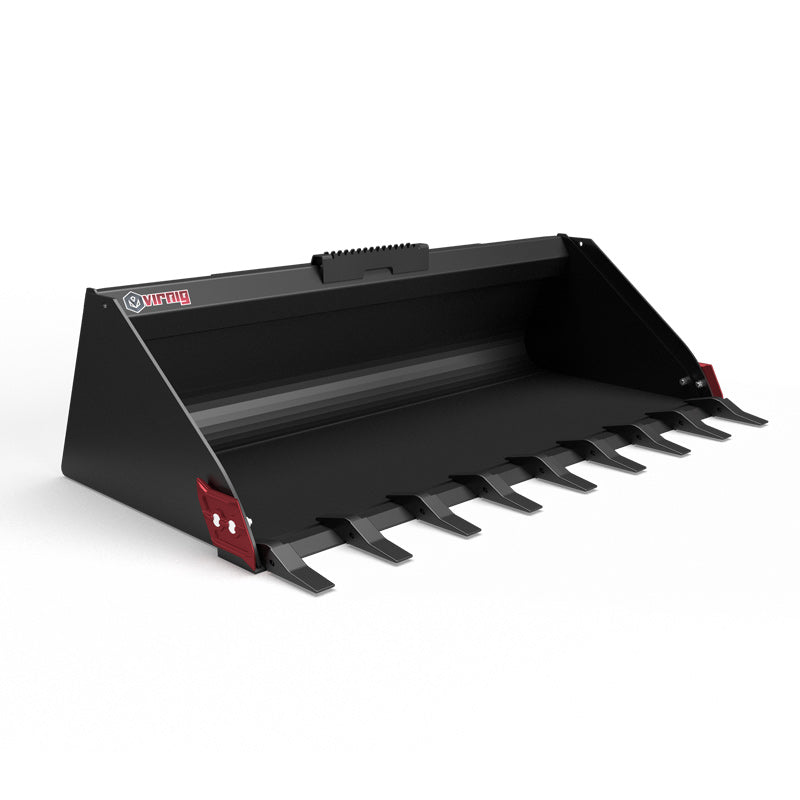

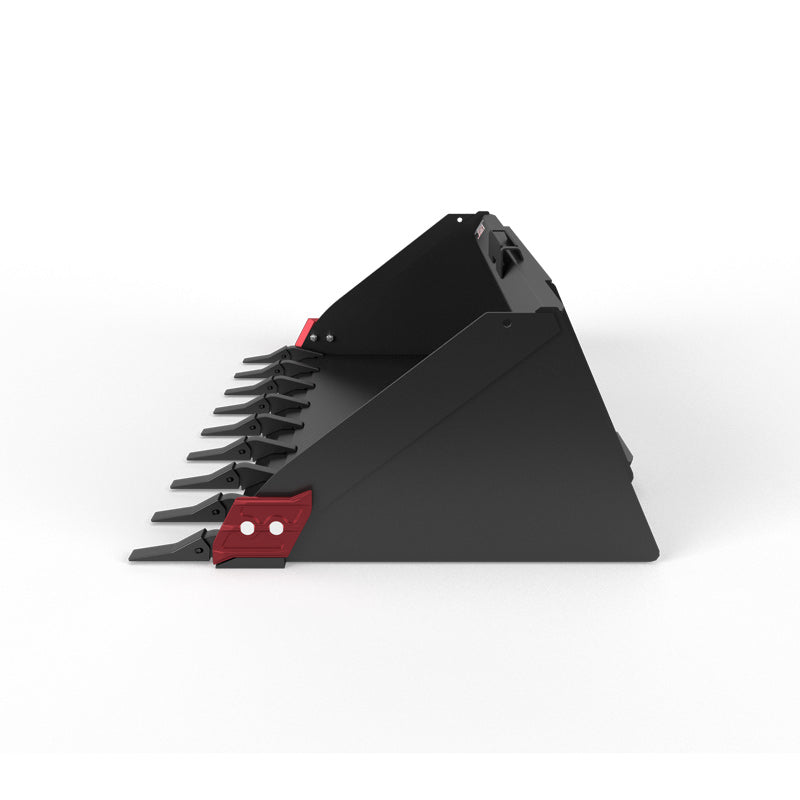

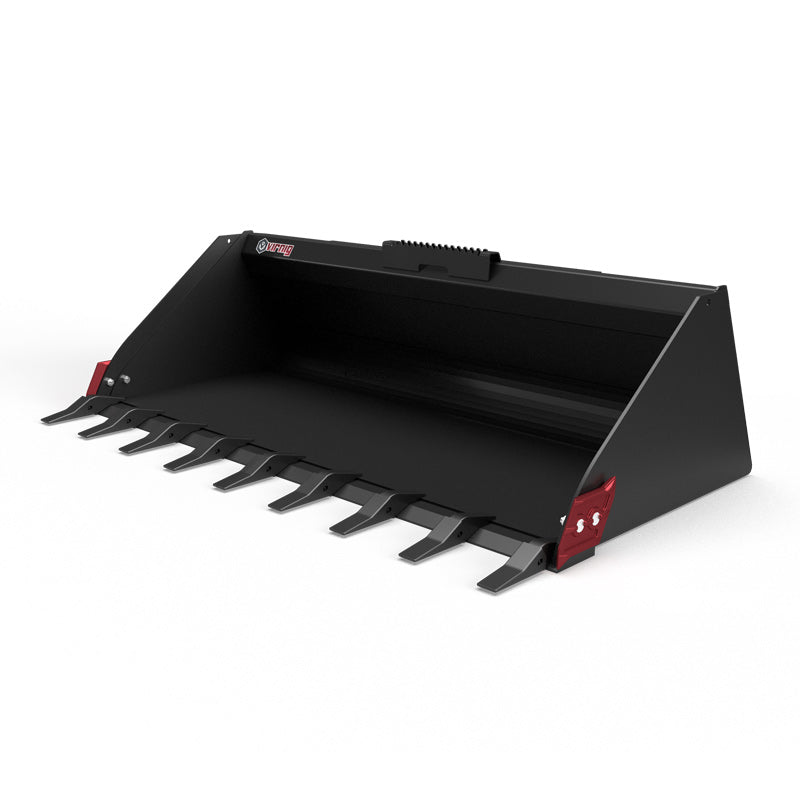

- Replaceable Teeth Option: Series 23 weld-on teeth for breaking through hard ground.
- Optimal Weight Balance: Designed for stability, preventing material spillage and improving lift efficiency.
- Visibility-Focused Design: Operator can easily see the bucket edge for accurate control.
- Built for High Flow Machines: Performs optimally with hydraulic flow between 15–25 GPM.
- Made in the USA: Designed and manufactured by Virnig Manufacturing, a leader in skid steer attachments.
Detailed Specifications
| Specification | HCDB72 | HCDB78 |
|---|---|---|
| Overall Width | 73.5 in | 79.5 in |
| Inside Width | 71.3 in | 77.3 in |
| Overall Height | 24.1 in | 24.1 in |
| Overall Depth | 40.0 in | 40.0 in |
| Inside Depth | 35.4 in | 35.4 in |
| Struck Capacity | 19.5 cu ft | 21.1 cu ft |
| Heaped Capacity | 23.4 cu ft | 25.3 cu ft |
| Shell Thickness | 0.25 in | 0.25 in |
| Side Plate Thickness | 0.25 in | 0.25 in |
| Number of Wear Bars (½” x 4”) | 5 | 5 |
| Bucket Back Angle | 66° | 66° |
| Approximate Weight | 805 lb | 850 lb |
| Recommended Loader Capacity | > 2,400 lb ROC | > 2,400 lb ROC |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Compatible Machine Type | Skid Steer Loader | Skid Steer Loader |
| Recommended Horsepower | 60–100 HP | 60–100 HP |
| Intended Use | Earthmoving, grading, and material loading | Heavy soil, sand, and aggregate handling |
| Specification | HCDB84 | HCDB90 |
|---|---|---|
| Overall Width | 85.5 in | 91.5 in |
| Inside Width | 83.3 in | 89.3 in |
| Overall Height | 24.1 in | 24.1 in |
| Overall Depth | 40.0 in | 40.0 in |
| Inside Depth | 35.4 in | 35.4 in |
| Struck Capacity | 22.7 cu ft | 24.3 cu ft |
| Heaped Capacity | 27.2 cu ft | 29.2 cu ft |
| Shell Thickness | 0.25 in | 0.25 in |
| Side Plate Thickness | 0.25 in | 0.25 in |
| Number of Wear Bars (½” x 4”) | 5 | 5 |
| Bucket Back Angle | 66° | 66° |
| Approximate Weight | 890 lb | 935 lb |
| Recommended Loader Capacity | > 2,400 lb ROC | > 2,400 lb ROC |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Compatible Machine Type | Skid Steer Loader | Skid Steer Loader |
| Recommended Horsepower | 60–100 HP | 60–100 HP |
| Intended Use | High-capacity material transport and site prep | Heavy-duty earthmoving and bulk material loading |
Manuals & Documents
Specification Sheet
