Product Description
Virnig V60 Large Capacity Skeleton Grapple | Models LCG72 & LCG84 | Widths 73" & 85" | Hydraulic Flow 15 To 25 GPM | For Skid Steers
DESCRIPTION

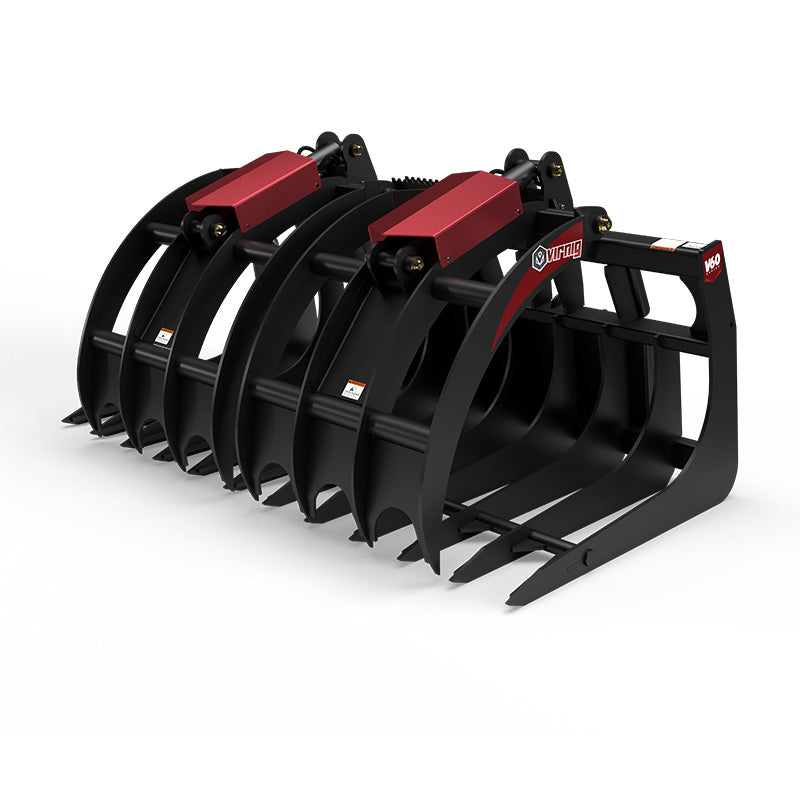

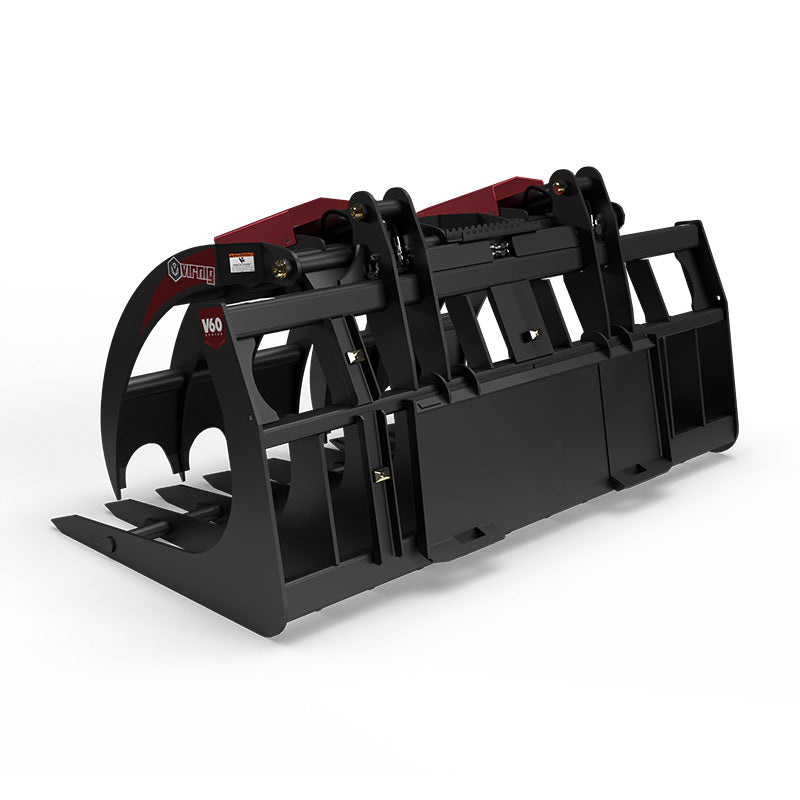

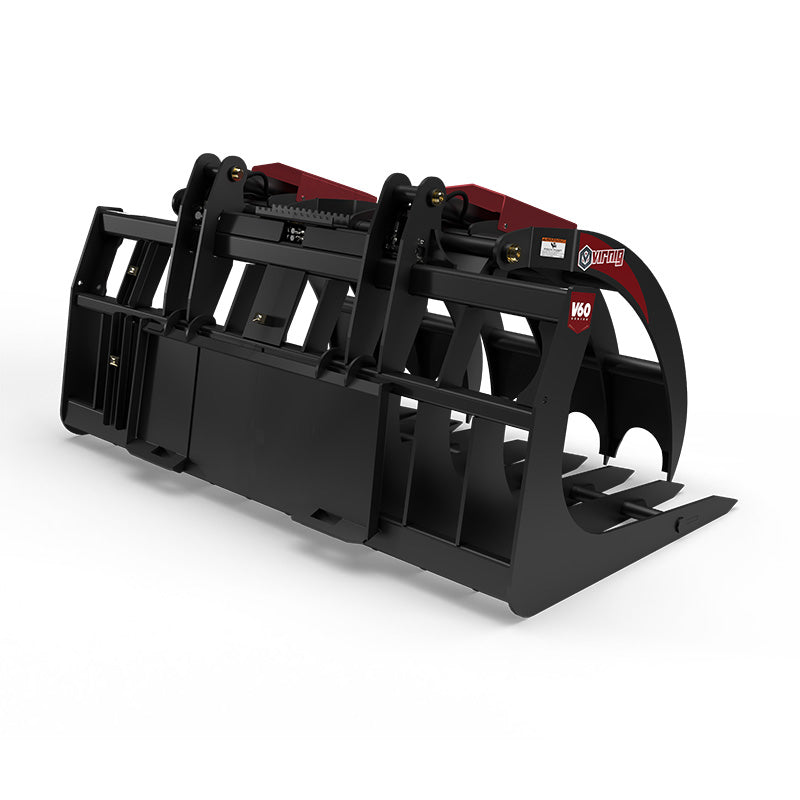

The Virnig V60 Large Capacity Skeleton Grapple is the ultimate heavy-duty skid steer attachment for land-clearing professionals, tree service operators, mulch yards, storm cleanup crews, and anyone who needs to move massive, uneven, or tangled loads with absolute control. Built for brute strength and long-term durability, this grapple is engineered to handle logs, brush, debris, and oversized materials that standard grapples simply cannot secure.
Designed with Virnig’s signature Grade 80 skeleton tines, NITROSTEEL® cylinder rods, and Teflon®-coated pivot bushings, the V60 Skeleton Grapple delivers exceptional clamping force, smooth operation, and extended service life in the harshest working environments. Its wide jaw opening of 62.8 inches allows operators to bite into large piles with ease, while fully gusseted tine tips maintain structural strength under heavy loads.
Compatible with all modern skid steers delivering 15–25 GPM hydraulic flow and boasting more than 2,400 lb rated operating capacity, this attachment is built to match today’s high-performance machines. If your work demands extreme strength, massive capacity, and reliable grip this grapple is your new go-to.
Estimated Skid Steer Horsepower Requirement:
Most skid steers with >2,400 lb ROC typically fall within the 65–95 HP range. If your machine meets the hydraulic flow and lift capacity requirements, it has adequate horsepower to run this grapple effectively.
Key Features
- Heavy-Duty V60 Construction engineered for professional land clearing and forestry work

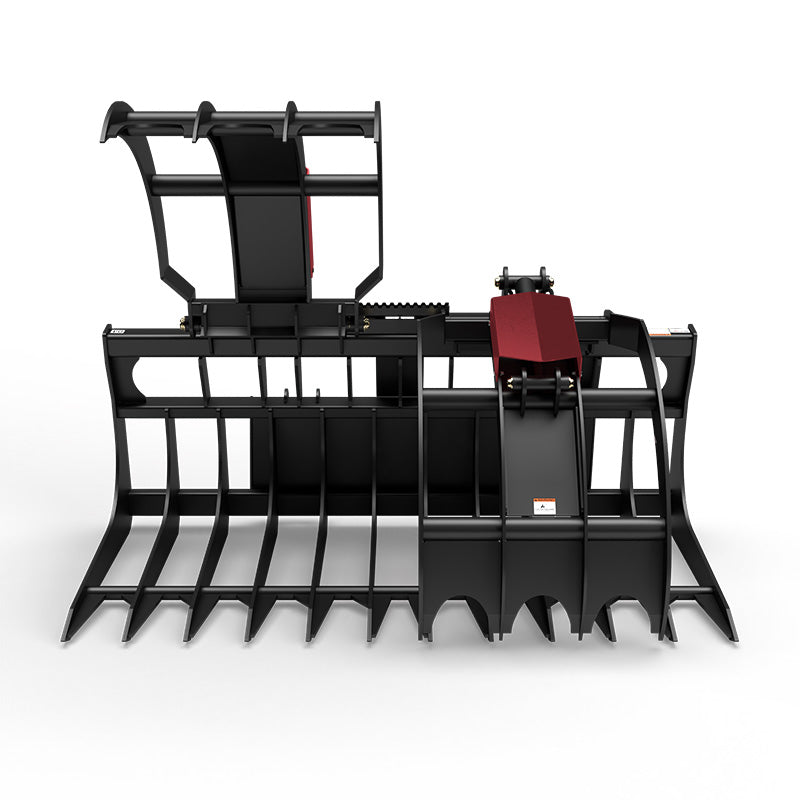

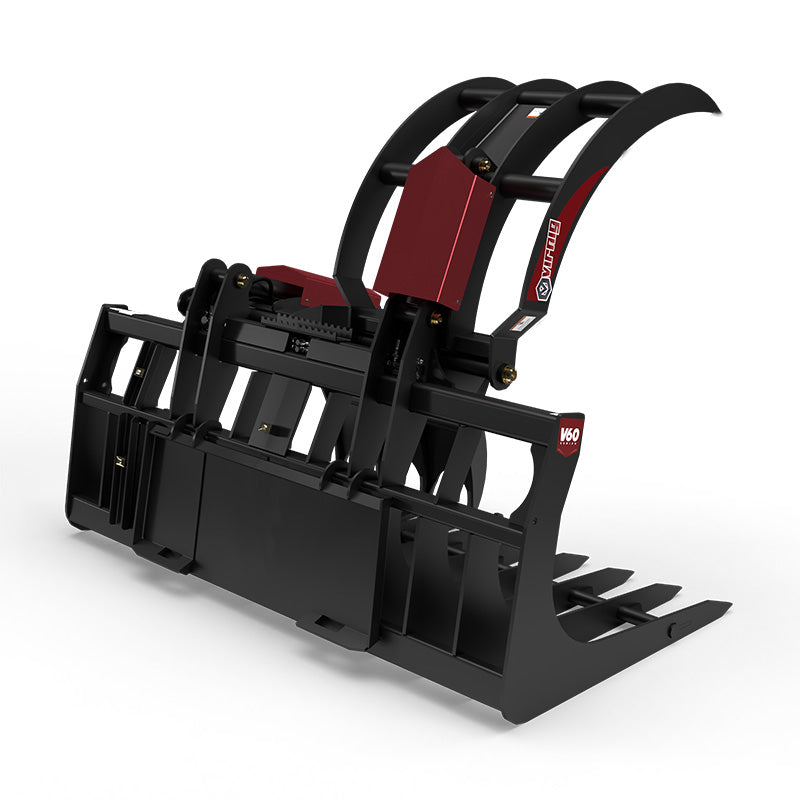

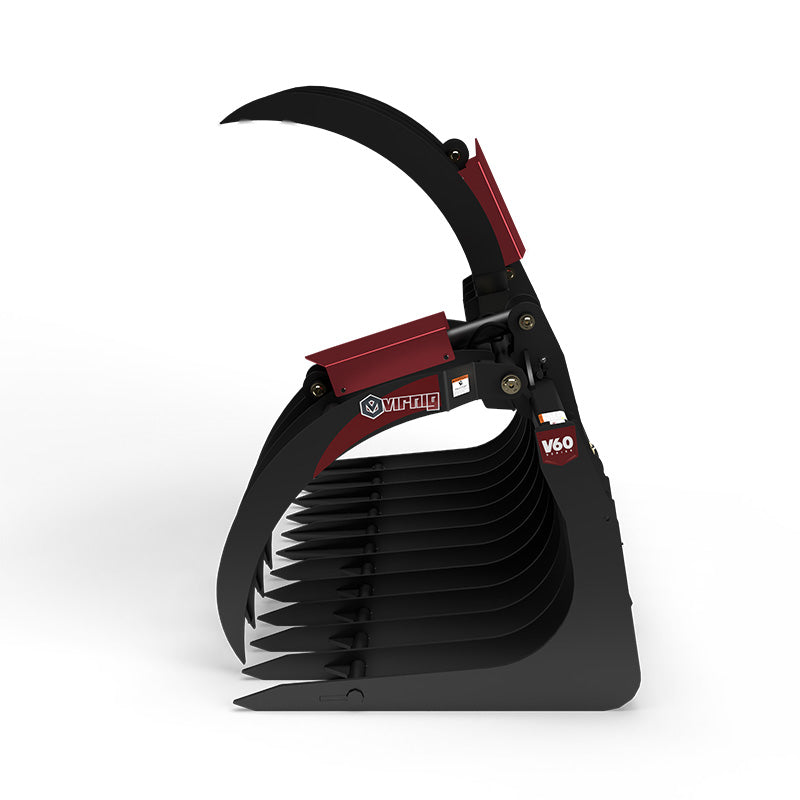

- Massive 62.8" grapple jaw opening for securing oversized logs, brush piles, debris, and uneven loads
- NITROSTEEL® cylinder rods resist corrosion and wear for industry-leading longevity
- Teflon®-coated pivot bushings deliver smooth, low-friction movement and extended service life
- Fully gusseted tine tips designed to withstand high-impact, high-torque applications
- Grade 80 high-strength steel tines provide rigidity and durability in severe environments

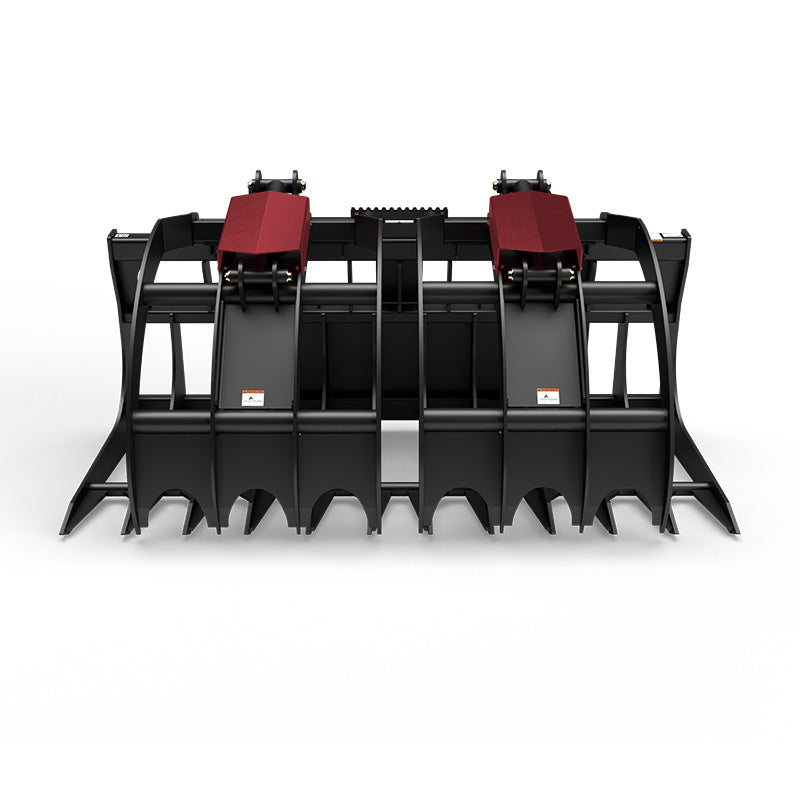

- Dual independent grapples allow uneven materials to be clamped securely
- Cylinder guards included as standard for optimal hydraulic protection
- Optimized skeleton tine spacing for superior debris filtering without sacrificing strength
- Wide 73" to 85" working widths suitable for midsize and large skid steers
- Ideal for tree service, logging, construction, and storm cleanup operations

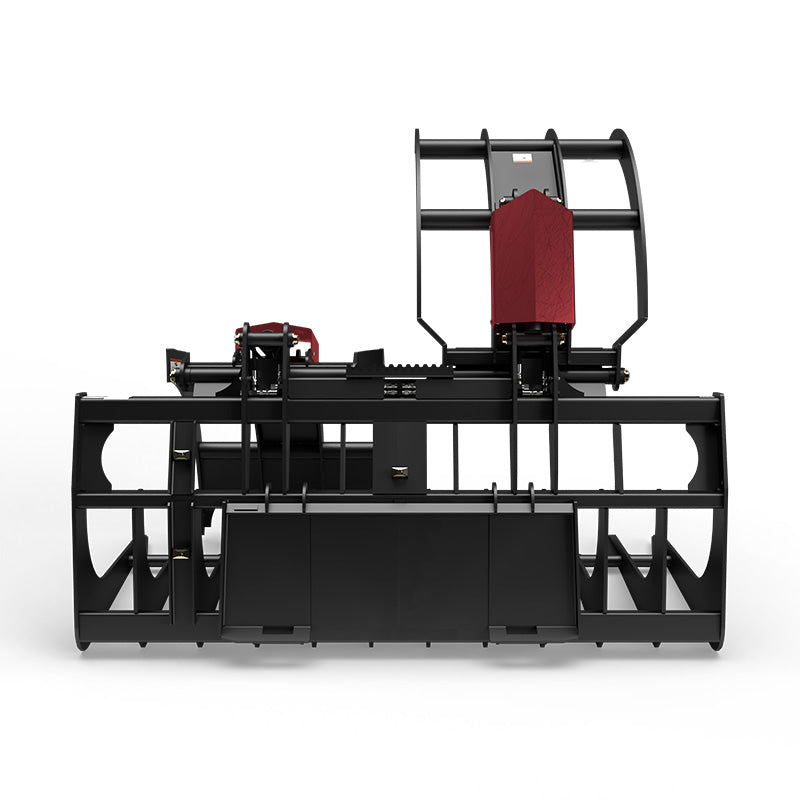

- Excellent visibility through open-frame design for precise material handling
- High-volume carrying capacity reduces cycle times and improves jobsite productivity
- Professional-grade skid steer compatibility with universal quick attach
- Built for machines delivering 15–25 GPM hydraulic flow, making it ideal for most commercial skid steers
Detailed Specifications
| Model | LCG72 |
|---|---|
| Overall Width | 73.0" |
| Overall Height / Bucket Height | 42.5" / 33" |
| Overall Depth | 46.0" |
| Number of Tines (with Sides) | 10 |
| Tine Spacing | 7.5" |
| Tine Material / Thickness | Grade 80 Plate / 0.5" |
| Cylinder Bore / Stroke | 2.5" / 8.375" |
| Cylinder Rod Diameter | 1.5" |
| Pin Diameters (Cylinder / Hinge) | 1.25" / 1.563" |
| Grapple Jaw Opening | 62.8" |
| Approximate Weight | 1,585 lb |
| Recommended Loader Capacity | > 2,400 lb ROC |
| Required Hydraulic Flow | 15–25 GPM |
| Estimated Compatible Skid Steer HP | 65–95 HP |
| Model | LCG84 |
|---|---|
| Overall Width | 85.0" |
| Overall Height / Bucket Height | 42.5" / 33" |
| Overall Depth | 46.0" |
| Number of Tines (with Sides) | 12 |
| Tine Spacing | 7.1" |
| Tine Material / Thickness | Grade 80 Plate / 0.5" |
| Cylinder Bore / Stroke | 2.5" / 8.375" |
| Cylinder Rod Diameter | 1.5" |
| Pin Diameters (Cylinder / Hinge) | 1.25" / 1.563" |
| Grapple Jaw Opening | 62.8" |
| Approximate Weight | 1,690 lb |
| Recommended Loader Capacity | > 2,400 lb ROC |
| Required Hydraulic Flow | 15–25 GPM |
| Estimated Compatible Skid Steer HP | 65–95 HP |
