Product Description
Virnig V60 Low Profile Dirt Bucket | Models HDHV72, HDHV78, HDHV84 & HDHV90 | Widths 72" To 90" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

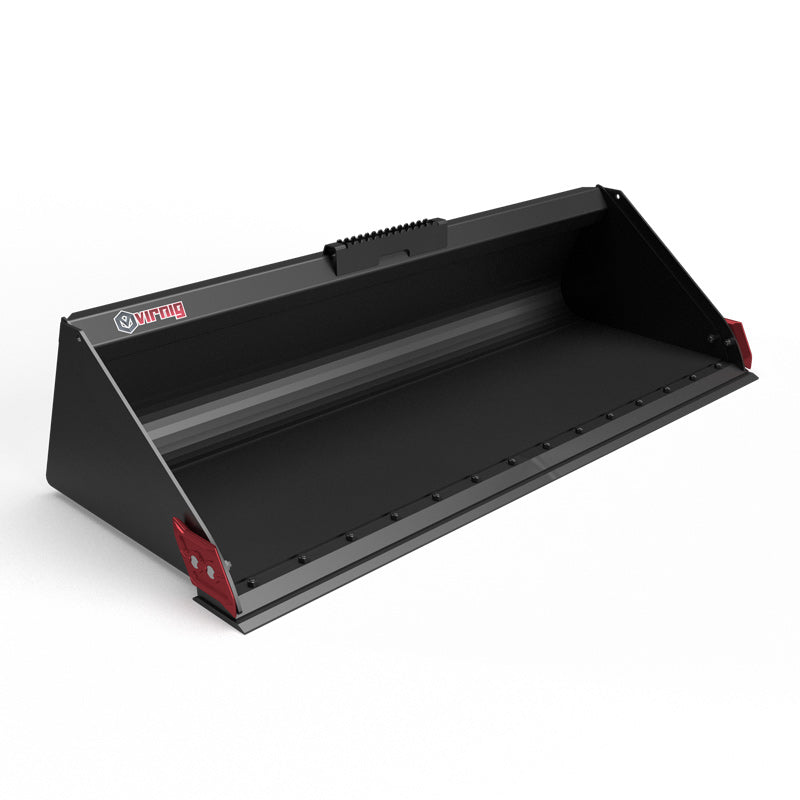

The Virnig V60 Low Profile Dirt Bucket is the ultimate heavy-duty earthmoving attachment for professional skid steer operators who demand power, precision, and durability. Built stronger and heavier than the V50 model, the V60 is engineered for high-performance grading, digging, and material handling across construction, landscaping, and agricultural applications.
Every detail of this bucket is designed for efficiency. The cutting edge is visible from inside the cab, giving operators a clear line of sight for accurate grading. The curved interior shell ensures smoother material release and faster cleanout, while the grading bend provides superior control for reverse grading. Reinforced with 1/2" x 4" wear bars and 1/4" thick shell and side plates, the V60 stands up to the toughest conditions without compromise.

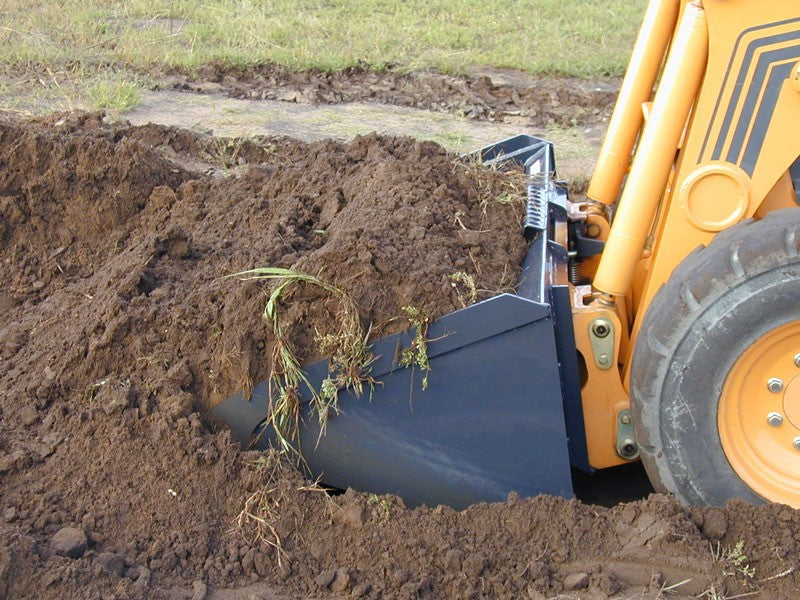

Whether you’re leveling gravel driveways, loading soil, or cleaning job sites, this bucket delivers consistent performance day after day. If your loader has a rated operating capacity above 2,400 lbs and hydraulic flow between 15–25 GPM, the V60 is built for you.
Key Features
- Heavy-Duty Construction: Tougher and heavier than the V50 series for demanding professional use.
- Visible Cutting Edge: Optimized for superior visibility and grading precision directly from the cab.
- Curved Interior Design: Promotes smooth material flow and easy cleanout between loads.
- Grading Bend: Engineered bend for optimal reverse grading control.
- 1" x 6" Weld-On Edge: Strengthens the cutting edge and enhances durability.
- 1/4" Thick Shell & Side Plates: Reinforced for exceptional bucket longevity.
- Additional Gusseting: Extra structural support along the bucket back for maximum rigidity.

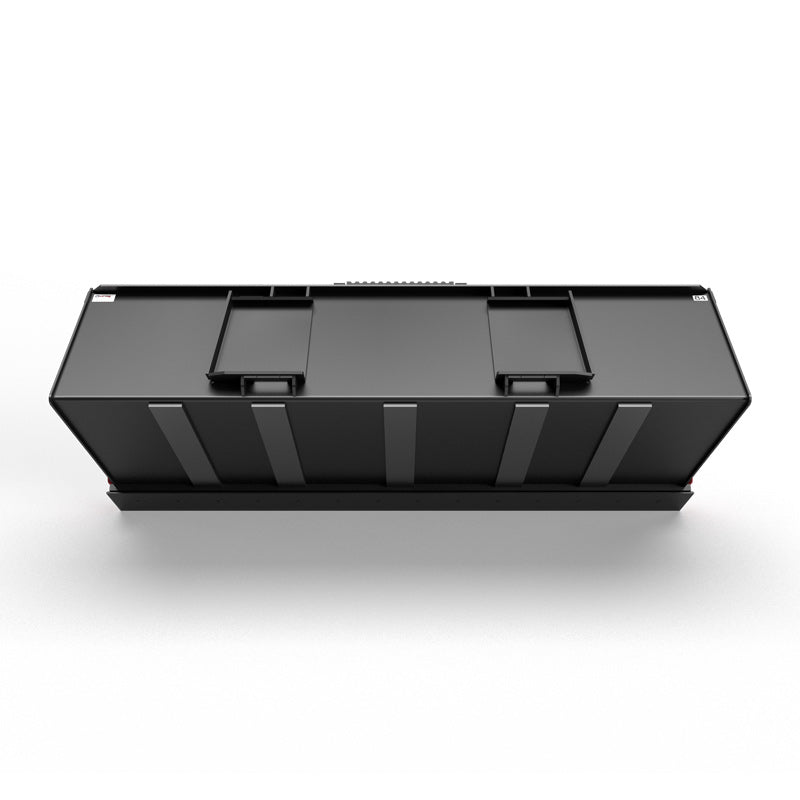

- 1/2" x 4" Structural Wear Bars: Shield the bucket bottom from abrasive wear.
- Optimized 66° Back Angle: Ensures efficient material loading and dumping.
- Low Profile Design: Improves visibility and balance for precision grading tasks.
- Bolt-On Edge Options: Extend lifespan with reversible 5/8" x 8" bolt-on wear edge.
- Serrated Edge Option: Ideal for chiseling and breaking compacted soils.
- Weld-On Tooth Option: Replaceable Series 23 cast teeth for aggressive digging.
- Compatible with All Major Skid Steers: Universal mount for quick attachment.
- Professional-Grade Finish: Built in the USA with premium steel for long-lasting performance.
Detailed Specifications
| Specification | Model HDHV72 | Model HDHV78 |
|---|---|---|
| Product Type | V60 Low Profile Dirt Bucket | V60 Low Profile Dirt Bucket |
| Brand | Virnig Manufacturing | Virnig Manufacturing |
| Compatible Equipment | Skid Steer Loaders (Standard or High Flow) | Skid Steer Loaders (Standard or High Flow) |
| Recommended Loader Capacity | Greater than 2,400 lbs Rated Operating Capacity | Greater than 2,400 lbs Rated Operating Capacity |
| Hydraulic Flow Requirement | 15–25 GPM | 15–25 GPM |
| Recommended Engine Power | 60–75 HP | 60–75 HP |
| Overall Width | 73.5 in | 79.5 in |
| Inside Width | 71.3 in | 77.3 in |
| Overall Height | 20.5 in | 20.5 in |
| Overall Depth | 37.1 in | 37.1 in |
| Inside Depth | 32.5 in | 32.5 in |
| Bucket Capacity (Struck / Heaped) | 14.2 cu ft / 17.0 cu ft | 15.4 cu ft / 18.5 cu ft |
| Shell Thickness | 0.25 in | 0.25 in |
| Side Plate Thickness | 0.25 in | 0.25 in |
| Number of Structural Wear Bars (1/2" x 4") | 4 | 5 |
| Back Angle | 66° | 66° |
| Approximate Weight | 720 lbs | 760 lbs |
| Cutting Edge Visibility | Visible from inside cab | Visible from inside cab |
| Bucket Shell Design | Curved interior for smooth cleanout | Curved interior for smooth cleanout |
| Reinforcement | Additional gusseting on back of bucket | Additional gusseting on back of bucket |
| Construction Material | High-strength steel | High-strength steel |
| Edge Options | Weld-on, Bolt-on, Serrated, or Teeth | Weld-on, Bolt-on, Serrated, or Teeth |
| Country of Manufacture | USA | USA |
| Specification | Model HDHV84 | Model HDHV90 |
|---|---|---|
| Product Type | V60 Low Profile Dirt Bucket | V60 Low Profile Dirt Bucket |
| Brand | Virnig Manufacturing | Virnig Manufacturing |
| Compatible Equipment | Skid Steer Loaders (Standard or High Flow) | Skid Steer Loaders (Standard or High Flow) |
| Recommended Loader Capacity | Greater than 2,400 lbs Rated Operating Capacity | Greater than 2,400 lbs Rated Operating Capacity |
| Hydraulic Flow Requirement | 15–25 GPM | 15–25 GPM |
| Recommended Engine Power | 60–75 HP | 60–75 HP |
| Overall Width | 85.5 in | 91.5 in |
| Inside Width | 83.3 in | 89.3 in |
| Overall Height | 20.5 in | 20.5 in |
| Overall Depth | 37.1 in | 37.1 in |
| Inside Depth | 32.5 in | 32.5 in |
| Bucket Capacity (Struck / Heaped) | 16.6 cu ft / 20.0 cu ft | 17.8 cu ft / 21.4 cu ft |
| Shell Thickness | 0.25 in | 0.25 in |
| Side Plate Thickness | 0.25 in | 0.25 in |
| Number of Structural Wear Bars (1/2" x 4") | 5 | 5 |
| Back Angle | 66° | 66° |
| Approximate Weight | 800 lbs | 840 lbs |
| Cutting Edge Visibility | Visible from inside cab | Visible from inside cab |
| Bucket Shell Design | Curved interior for smooth cleanout | Curved interior for smooth cleanout |
| Reinforcement | Additional gusseting on back of bucket | Additional gusseting on back of bucket |
| Construction Material | High-strength steel | High-strength steel |
| Edge Options | Weld-on, Bolt-on, Serrated, or Teeth | Weld-on, Bolt-on, Serrated, or Teeth |
| Country of Manufacture | USA | USA |
