Product Description

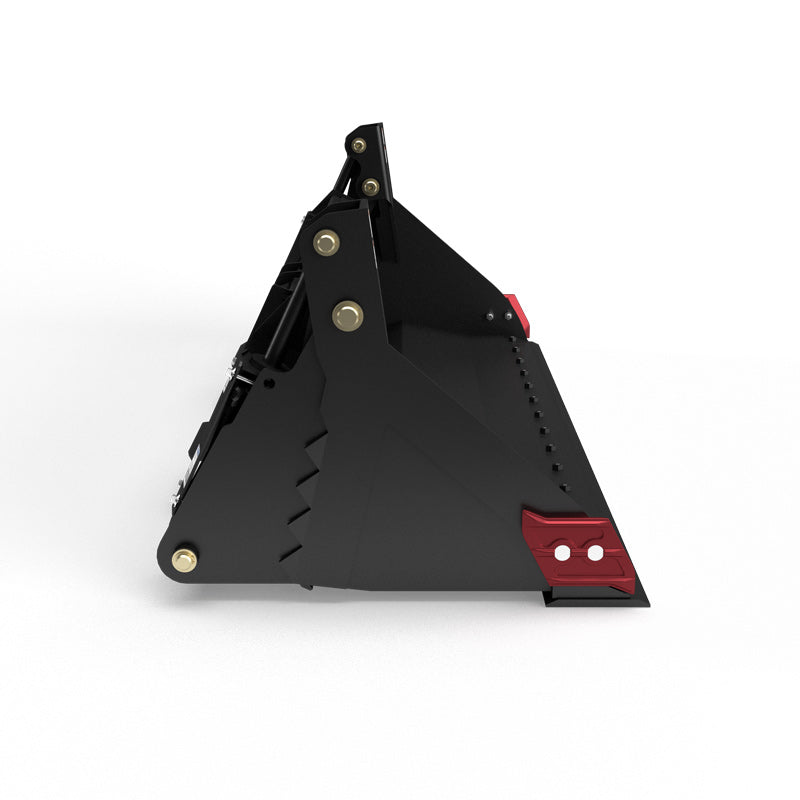

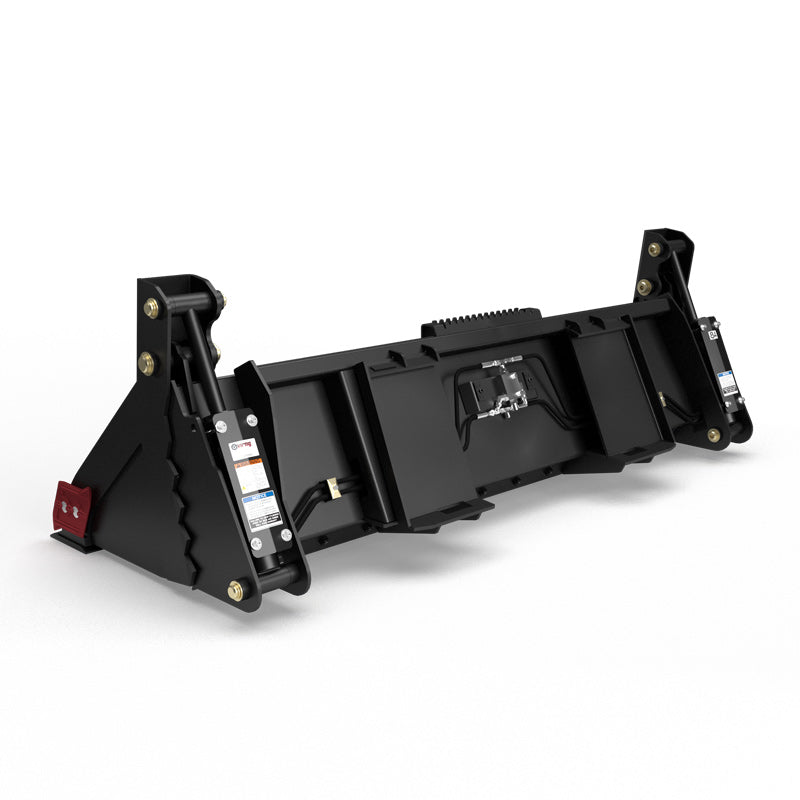

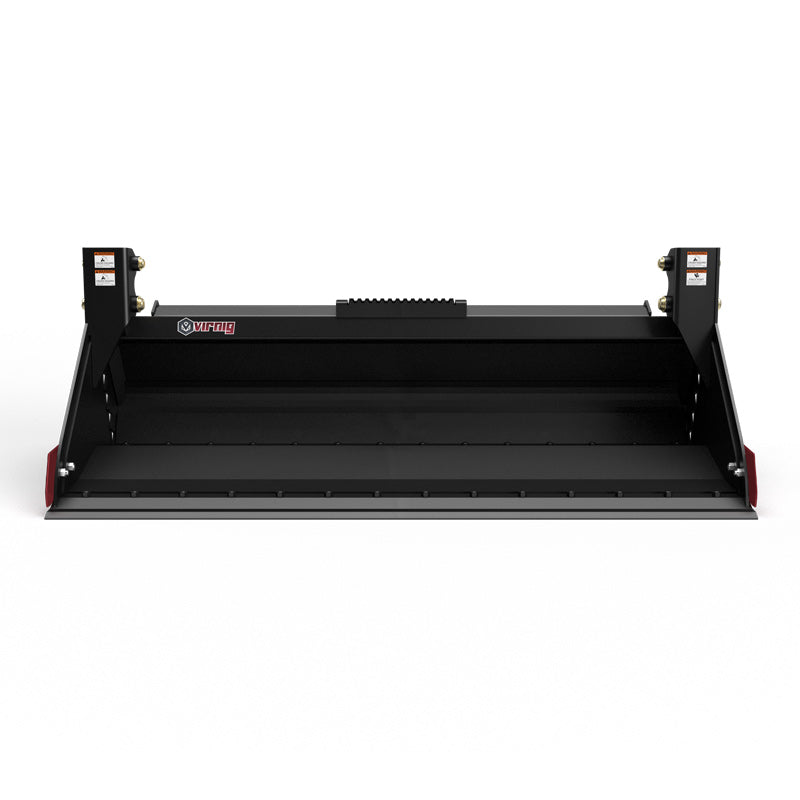

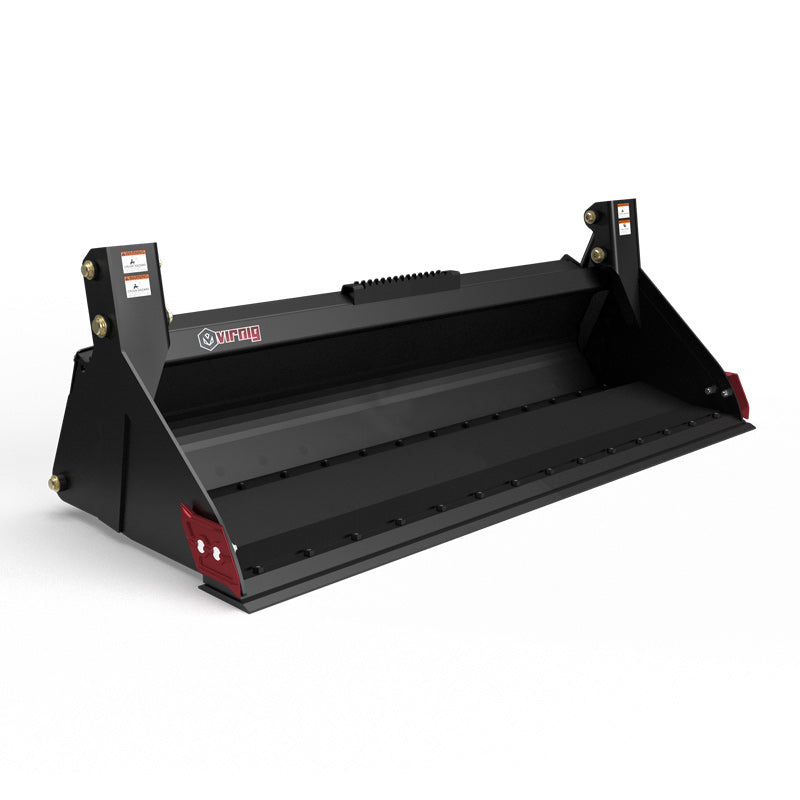

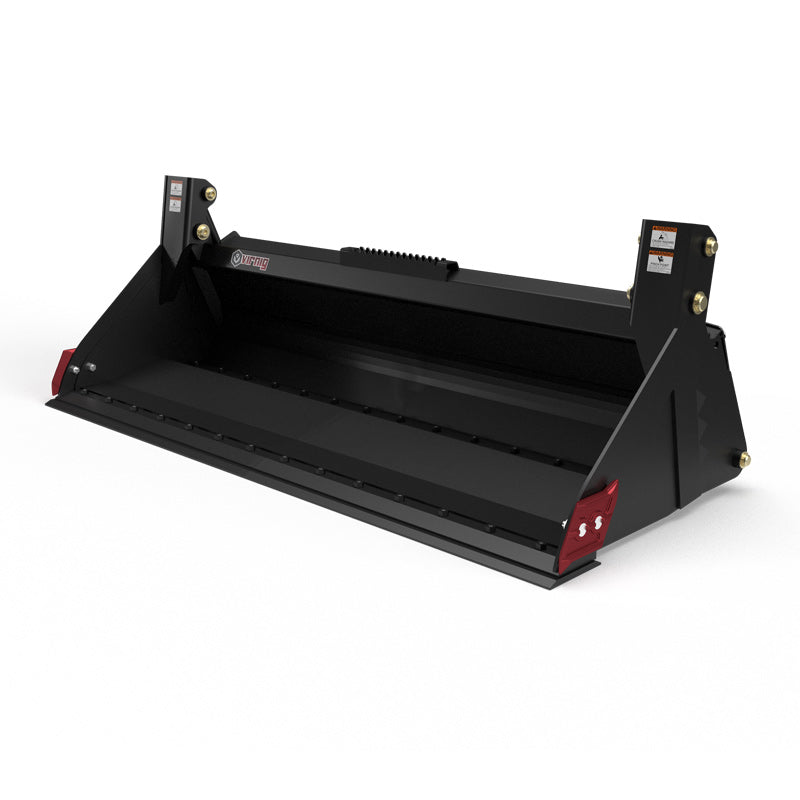

Virnig V60 Multi-Purpose Bucket (4-in-1) | Models HMPV66, HMPV72, HMPV78 & HMPV84 | Widths 66" To 84" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

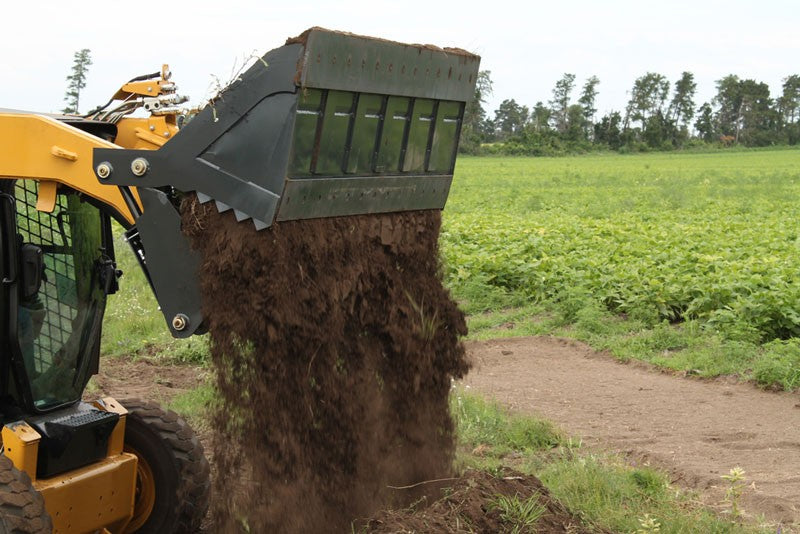

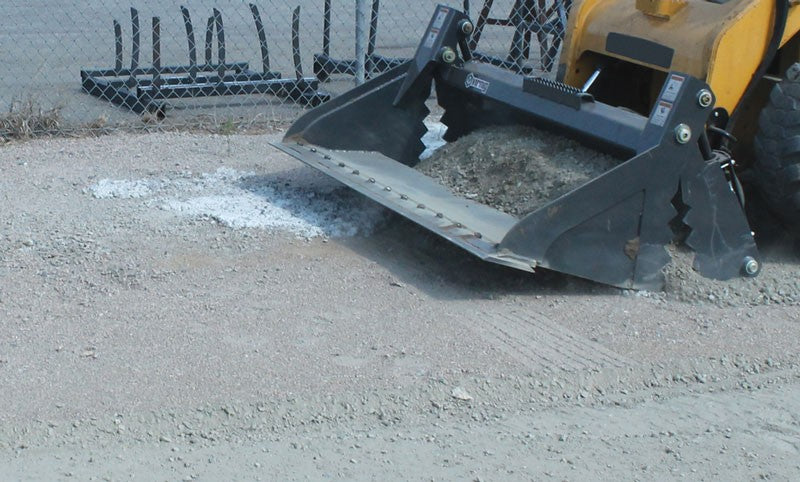

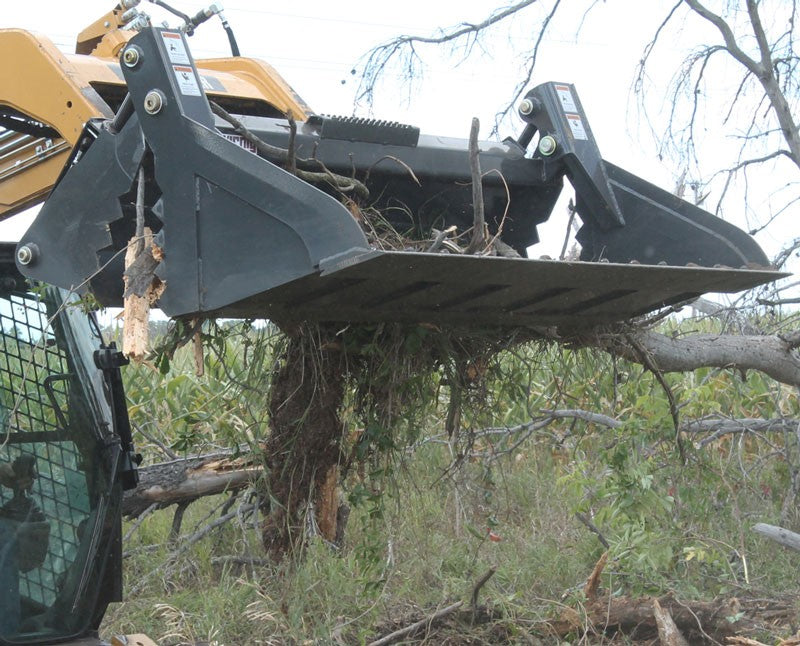

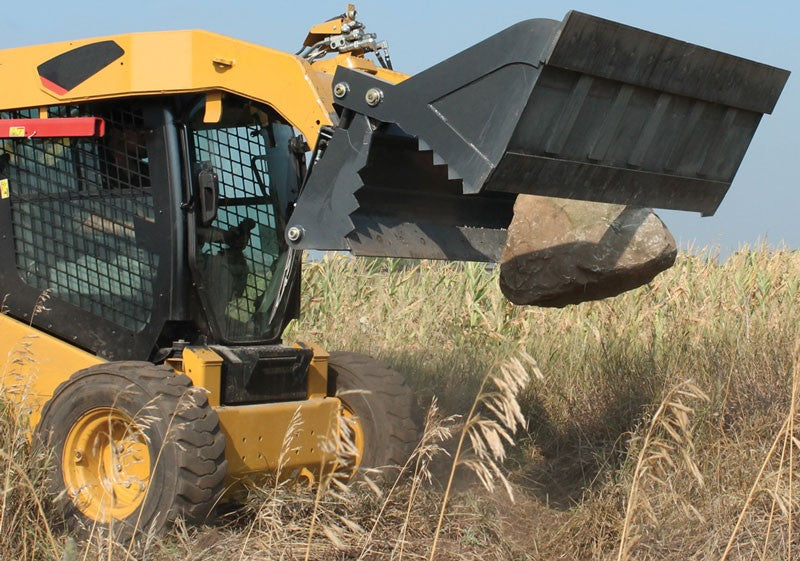

The Virnig V60 Multi-Purpose Bucket is the ultimate 4-in-1 skid steer attachment engineered for serious operators who demand power, precision, and versatility on every job. Designed for dozing, clamming, leveling, and bottom dumping, this heavy-duty bucket transforms your skid steer into a multi-function earthmoving machine that performs flawlessly across a wide range of applications from grading and site prep to material handling and backfilling.
Built with industrial-grade materials and reinforced structural design, the V60 stands out for its superior strength, hydraulic control, and long-term durability. Whether you’re a contractor, landscaper, or site manager, this bucket delivers unmatched productivity and performance.
Every detail from the NITROSTEEL® cylinder rods and TEFLON® coated bushings to the 5/8" reversible bolt-on cutting edge is built for maximum efficiency and longevity. Pair it with a skid steer loader rated over 2,400 lb operating capacity and a hydraulic flow between 15–25 GPM, and experience true 4-in-1 versatility.
Key Features
- True 4-in-1 Design Combines dozing, grappling, leveling, and bottom dumping in one high-performance attachment.
- Heavy-Duty Construction ¼" shell with ½" hinge structure for superior strength and resistance to wear.
- NITROSTEEL® Cylinder Rods Prevent pitting and corrosion for smoother hydraulic performance.
- TEFLON® Coated Bushings Extend pivot life and ensure consistent, low-friction movement.
- Cylinder Guards Standard Protect critical components from debris and impact damage.
- Reversible 5/8" x 6" Bolt-On Edges Double the cutting edge life while saving maintenance costs.
- Weld-On 1" x 6" Edge Adds extra durability and cutting precision.

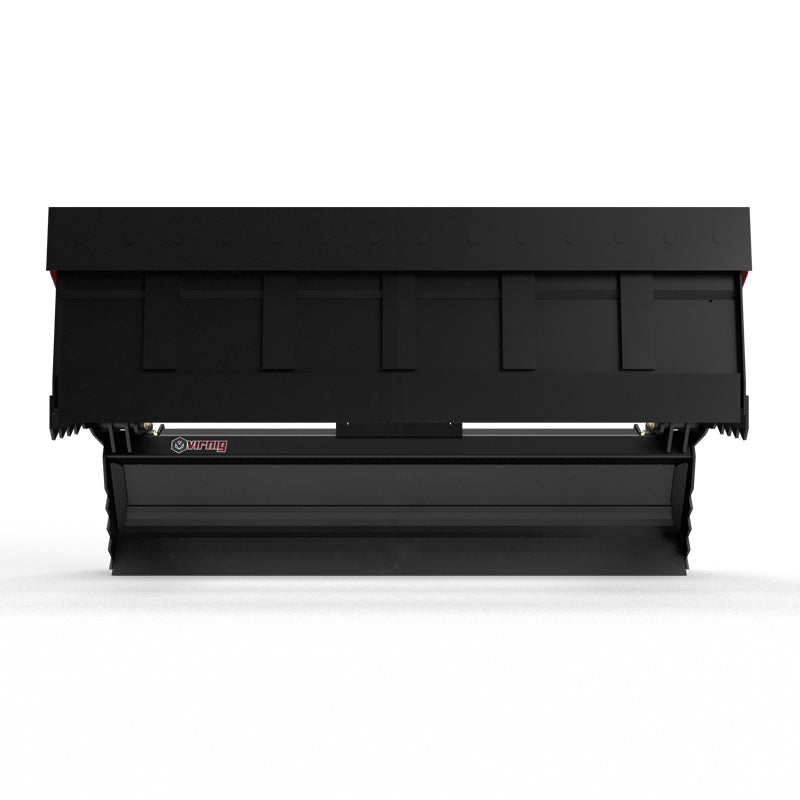

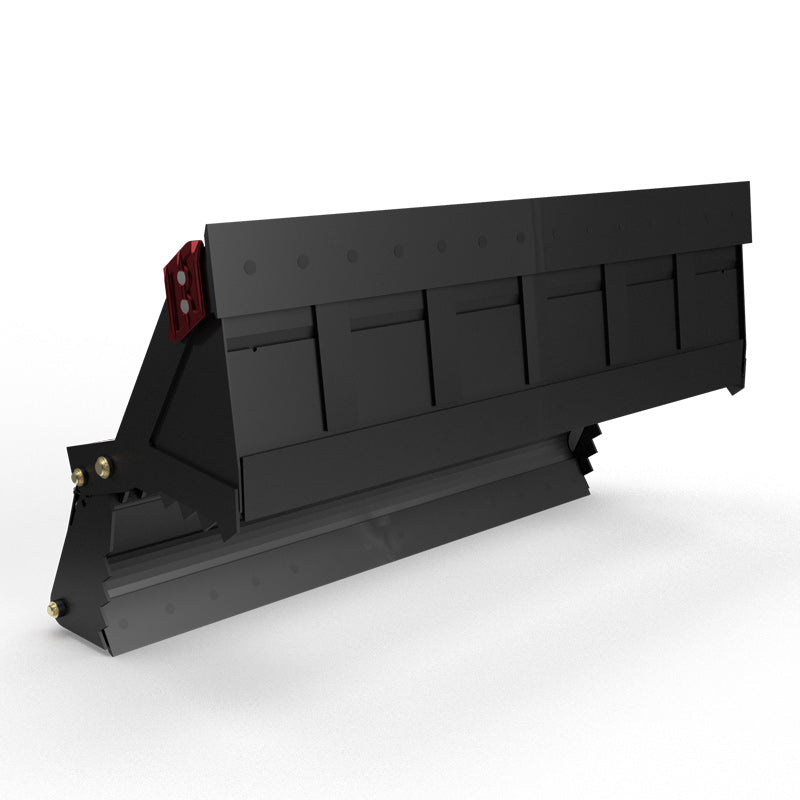

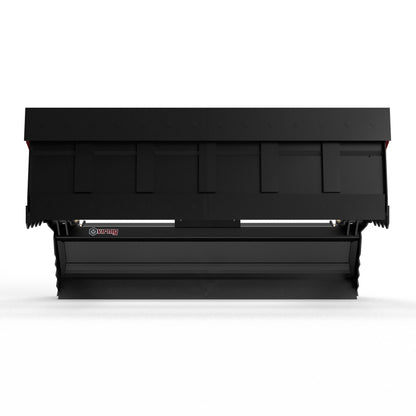

- Wide Clam Opening (33") Provides excellent load control for clamming and dumping applications.
- Optimized Bucket Geometry Delivers excellent breakout force and smooth material release.
- Reinforced Wear Bars ½" x 4" structural wear bars protect the bucket bottom from abrasion.
- Optional Serrated Bolt-On Edge Perfect for breaking up compacted soil without a toothbar.
- Replaceable Teeth Option Upgrade for aggressive digging and tough ground conditions.

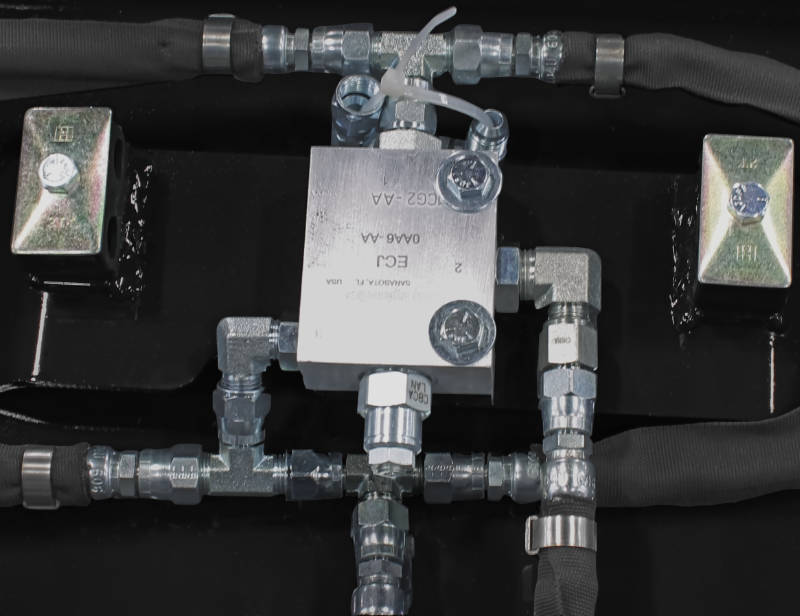

- Holding Valve Option Increases cylinder holding force for improved load retention.
- Smooth, Precision Hydraulics Operates seamlessly with standard skid steer flow systems (15–25 GPM).
- Made in the USA Designed and built by Virnig Manufacturing for long-term reliability and performance.
Detailed Specifications
| Specification | HMPV66 | HMPV72 |
|---|---|---|
| Overall Width (in) | 67.5 | 73.5 |
| Inside Width (in) | 65.5 | 71.5 |
| Height (Overall / Bucket / Open) (in) | 29.8 / 21.3 / 46.0 | 29.8 / 21.3 / 46.0 |
| Depth (Overall / Inside) (in) | 37.0 / 28.5 | 37.0 / 28.5 |
| Dozer Width (in) | 65.9 | 71.9 |
| Clam Opening (in) | 33.0 | 33.0 |
| Shell / Hinge Thickness (in) | 0.25 / 0.5 | 0.25 / 0.5 |
| Wear Bars (½” x 4”) | 4 | 4 |
| Cylinder (Bore / Stroke in) | 2.5 / 8.375 | 2.5 / 8.375 |
| Pin Diameter (in) | 1.25 / 1.563 | 1.25 / 1.563 |
| Weight (lbs) | 1,045 | 1,100 |
| Recommended Loader Capacity (lbs) | > 2,400 | > 2,400 |
| Hydraulic Flow (GPM) | 15–25 | 15–25 |
| Specification | HMPV78 | HMPV84 |
|---|---|---|
| Overall Width (in) | 79.5 | 85.5 |
| Inside Width (in) | 77.5 | 83.5 |
| Height (Overall / Bucket / Open) (in) | 29.8 / 21.3 / 46.0 | 29.8 / 21.3 / 46.0 |
| Depth (Overall / Inside) (in) | 37.0 / 28.5 | 37.0 / 28.5 |
| Dozer Width (in) | 77.9 | 83.9 |
| Clam Opening (in) | 33.0 | 33.0 |
| Shell / Hinge Thickness (in) | 0.25 / 0.5 | 0.25 / 0.5 |
| Wear Bars (½” x 4”) | 5 | 5 |
| Cylinder (Bore / Stroke in) | 2.5 / 8.375 | 2.5 / 8.375 |
| Pin Diameter (in) | 1.25 / 1.563 | 1.25 / 1.563 |
| Weight (lbs) | 1,165 | 1,220 |
| Recommended Loader Capacity (lbs) | > 2,400 | > 2,400 |
| Hydraulic Flow (GPM) | 15–25 | 15–25 |
Manuals & Documents
Specification Sheet
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

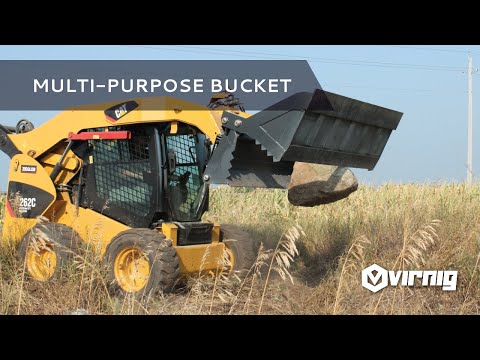

Videos
