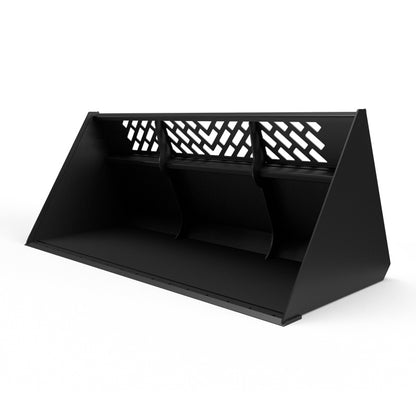

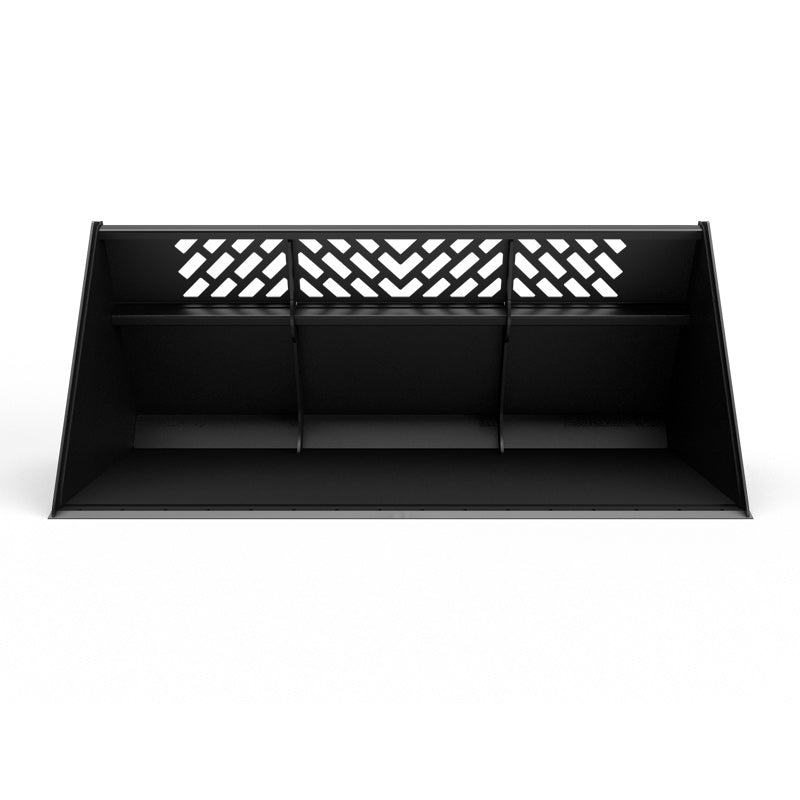

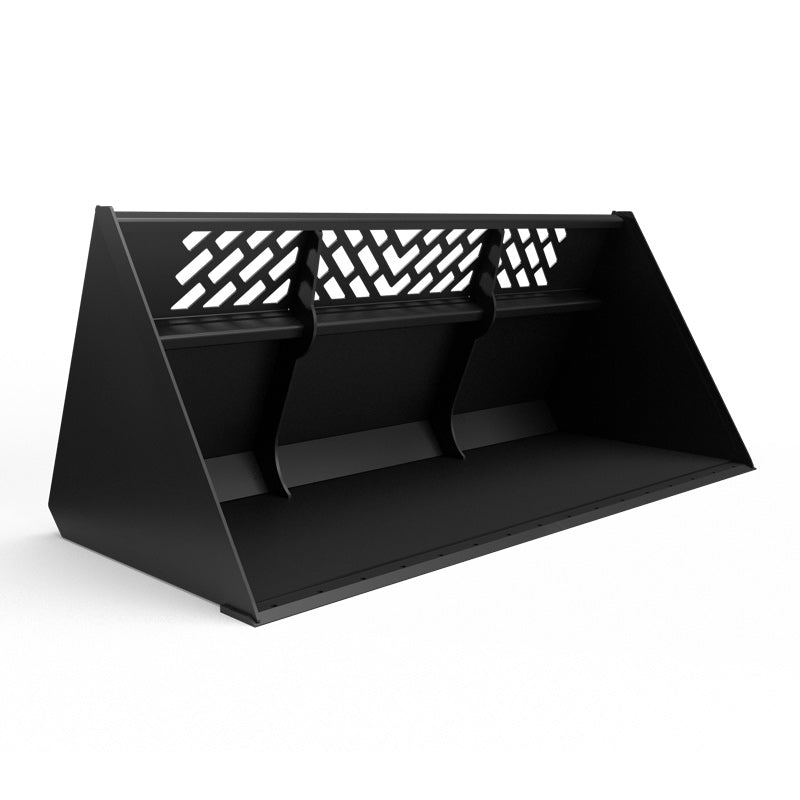

Virnig V60 Snow / Light Material Bucket | Models SBHV78, SBHV84, SBHV96 & SBHV101 | Widths 78" To 101" | Hydraulic Flow Range 15 To 25 GPM | For Skid Steer
DESCRIPTION
When winter weather hits hard or when light materials need to move fast, the Virnig V60 Snow / Light Material Bucket delivers unmatched performance, strength, and capacity. Designed for high-horsepower skid steers (50+ HP), this bucket dominates in snow removal, mulch hauling, and grain loading applications.
Every inch of the V60 is built to endure heavy use. Its ¼-inch thick shell and side plates, ½-inch internal vertical braces, and 3/8-inch side edges with gussets make it the toughest light material bucket Virnig has ever built. The reinforced structure means more uptime, less flex, and superior bucket life even under the harshest conditions.

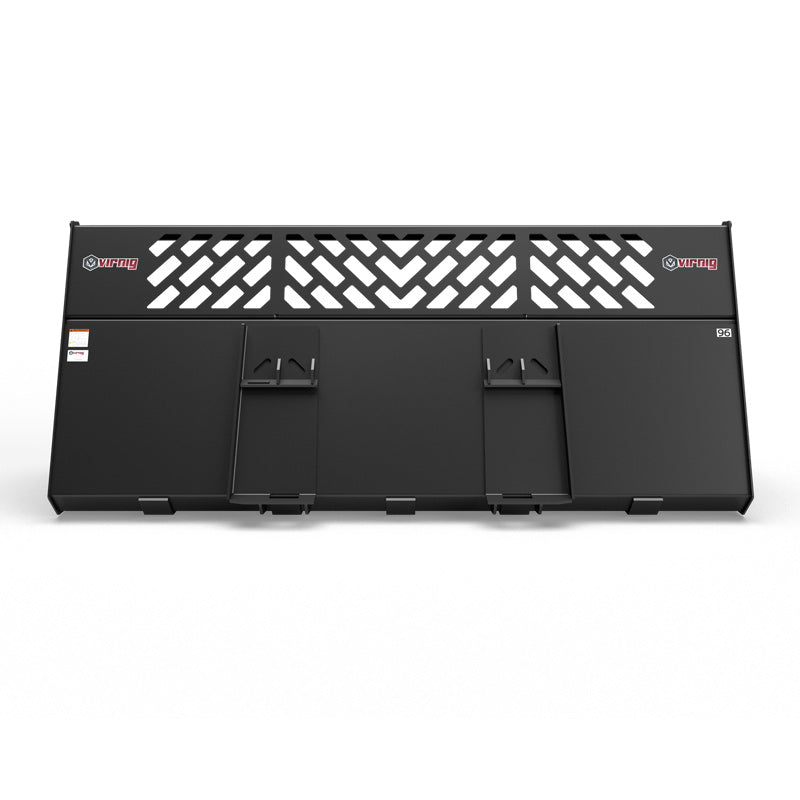

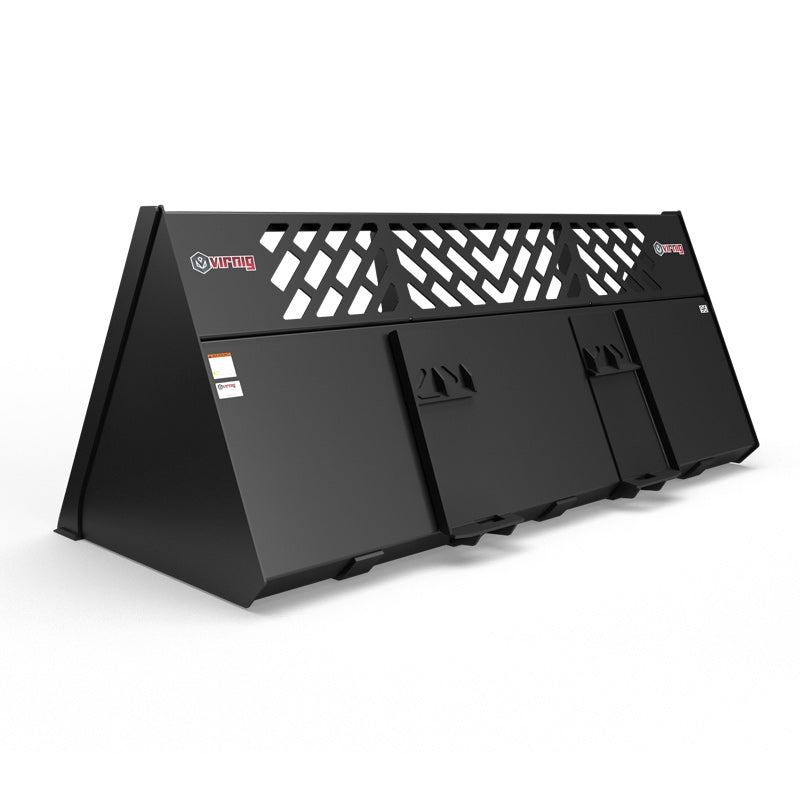

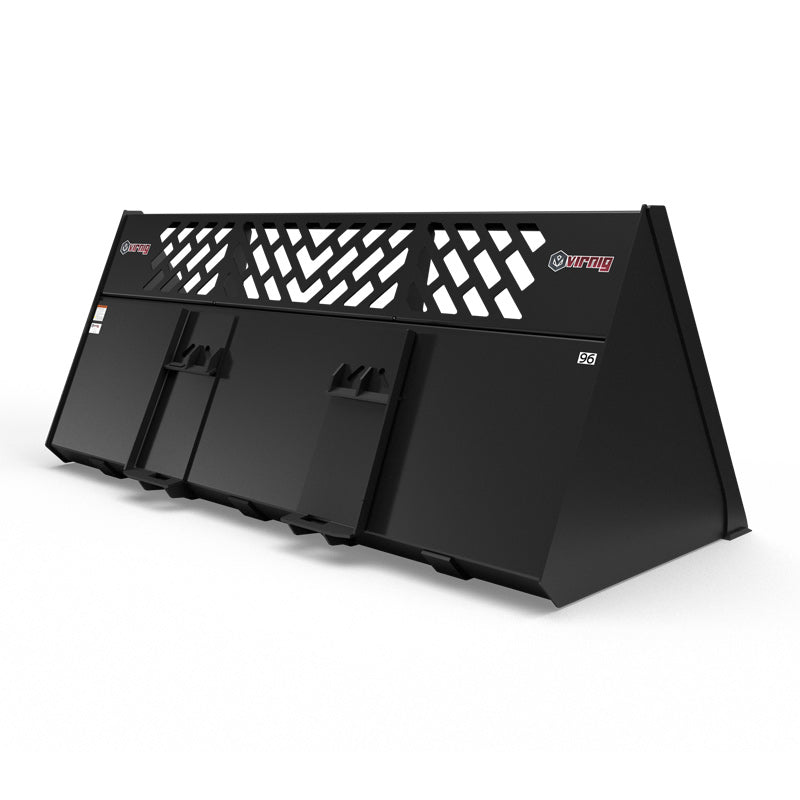

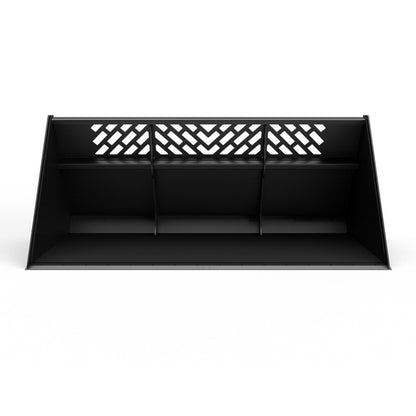

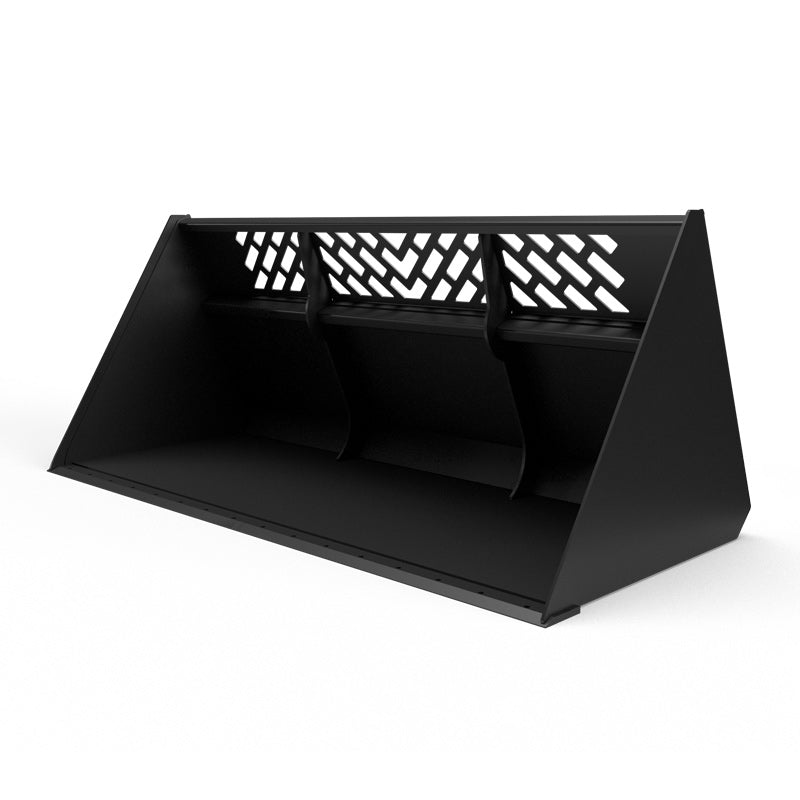

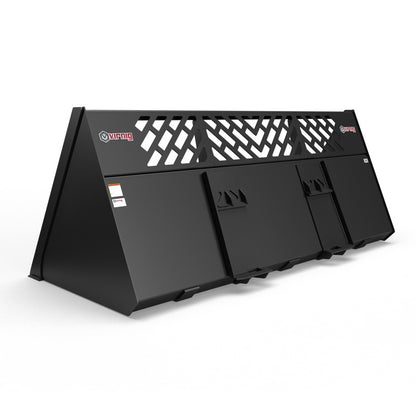

The bucket’s large, heaped capacity and open “window” back design maximize visibility, allowing operators to see the cutting edge for precise loading. Available in widths from 78” to 101”, the V60 offers powerful performance for snow contractors, landscapers, municipalities, and agricultural operators who need to move more material in less time.
Key Features
- Built for Power: Compatible with skid steers over 50 horsepower, ideal for high-performance machines.
- Heavy-Duty Construction: ¼” shell and side plates resist flexing and ensure long-term durability.
- Hydraulic Flow Range Compatible with machines delivering 15–25 GPM.
- Reinforced Strength: ½” vertical internal braces add structural integrity under heavy loads.
- Thick Cutting Edge: Equipped with a ¾” x 6” weld-on edge for extended wear life.
- Maximum Capacity: Heaped capacities up to 62.6 cubic feet, perfect for snow, mulch, and light materials.
- Excellent Visibility: Integrated operator windows enhance visibility and precision during operation.
- Optional Solid Back: Choose a solid-back version for additional containment and protection.
- Wear Protection: Five structural wear bars (½” x 4”) extend under the bucket to prevent bottom wear.
- Bolt-On Edge Options: Add a 5/8” reversible bolt-on edge or serrated edge for custom performance.

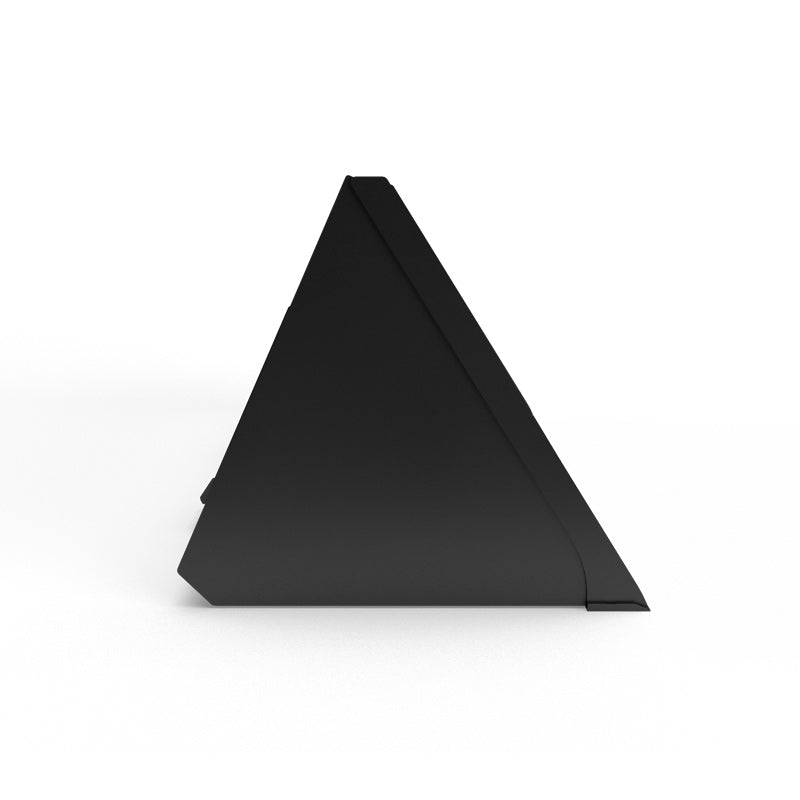

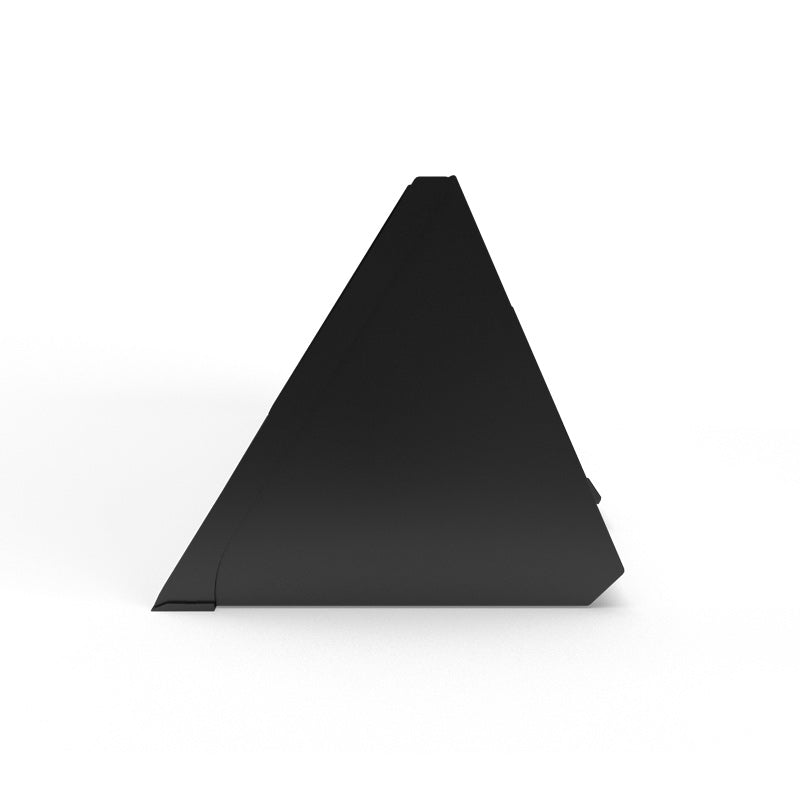

- Optimized Back Angle: 66° bucket back angle improves rollback and load retention.
- Heavy-Duty Gussets: 3/8” gusset plates add rigidity for heavy snow or material movement.
- Operator Comfort: Smooth rollback and high visibility reduce fatigue during long clearing sessions.
- Precision Fit: Designed to fit all standard skid steer quick-attach mounts.
- High-Efficiency Design: Deep, tall profile improves loading speed and overall volume handling.
- Virnig Quality: Proudly built in the USA with premium materials and expert craftsmanship..
Detailed Specifications
| Specification | SBHV78 Model | SBHV84 Model |
|---|---|---|
| Overall Width (inches) | 79.5 | 85.5 |
| Inside Width (inches) | 77.3 | 83.3 |
| Overall Height (inches) | 40.5 | 40.5 |
| Overall Depth (inches) | 47.6 | 47.6 |
| Inside Depth (inches) | 43.0 | 43.0 |
| Window Height (inches) | 12.0 | 12.0 |
| Bucket Back Angle (degrees) | 66° | 66° |
| Struck Capacity (cubic feet) | 40.1 | 43.2 |
| Heaped Capacity (cubic feet) | 48.1 | 51.8 |
| Shell Thickness (inches) | 0.25 | 0.25 |
| Side Plate Thickness (inches) | 0.25 | 0.25 |
| Vertical Brace Thickness (inches) | 0.50 | 0.50 |
| Number of Structural Wear Bars (½” x 4”) | 5 | 5 |
| Side Edge & Gusset Thickness (inches) | 0.38 | 0.38 |
| Cutting Edge Type | ¾” x 6” Weld-On Edge | ¾” x 6” Weld-On Edge |
| Visibility Feature | Windowed Back for Enhanced Operator Visibility | Windowed Back for Enhanced Operator Visibility |
| Optional Configuration | Available with Solid Back | Available with Solid Back |
| Approximate Weight (lbs) | 1,045 | 1,095 |
| Recommended Loader Capacity (lbs) | Greater than 2,400 | Greater than 2,400 |
| Recommended Skid Steer Horsepower | 50+ HP | 50+ HP |
| Hydraulic Flow Range | 15 To 25 GPM | 15 To 25 GPM |
| Mount Type | Universal Skid Steer Quick-Attach | Universal Skid Steer Quick-Attach |
| Application | Snow Removal, Light Material Handling | Snow Removal, Light Material Handling |
| Country of Manufacture | USA | USA |
| Specification | SBHV96 Model | SBHV101 Model |
|---|---|---|
| Overall Width (inches) | 97.5 | 101.5 |
| Inside Width (inches) | 95.3 | 99.3 |
| Overall Height (inches) | 40.5 | 40.5 |
| Overall Depth (inches) | 47.6 | 47.6 |
| Inside Depth (inches) | 43.0 | 43.0 |
| Window Height (inches) | 12.0 | 12.0 |
| Bucket Back Angle (degrees) | 66° | 66° |
| Struck Capacity (cubic feet) | 49.4 | 52.2 |
| Heaped Capacity (cubic feet) | 59.3 | 62.6 |
| Shell Thickness (inches) | 0.25 | 0.25 |
| Side Plate Thickness (inches) | 0.25 | 0.25 |
| Vertical Brace Thickness (inches) | 0.50 | 0.50 |
| Number of Structural Wear Bars (½” x 4”) | 5 | 5 |
| Side Edge & Gusset Thickness (inches) | 0.38 | 0.38 |
| Cutting Edge Type | ¾” x 6” Weld-On Edge | ¾” x 6” Weld-On Edge |
| Visibility Feature | Windowed Back for Enhanced Operator Visibility | Windowed Back for Enhanced Operator Visibility |
| Optional Configuration | Available with Solid Back | Available with Solid Back |
| Approximate Weight (lbs) | 1,195 | 1,225 |
| Recommended Loader Capacity (lbs) | Greater than 2,400 | Greater than 2,400 |
| Recommended Skid Steer Horsepower | 50+ HP | 50+ HP |
| Hydraulic Flow Range | 15 To 25 GPM | 15 To 25 GPM |
| Mount Type | Universal Skid Steer Quick-Attach | Universal Skid Steer Quick-Attach |
| Application | High-Volume Snow Removal, Grain & Mulch Loading | Heavy-Duty Snow & Light Material Handling |
| Country of Manufacture | USA | USA |
