Product Description
Virnig V60 Tine Fork Grapple | Models ITG72, ITG78, ITG84 & ITG90 | Widths 73" To 91" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

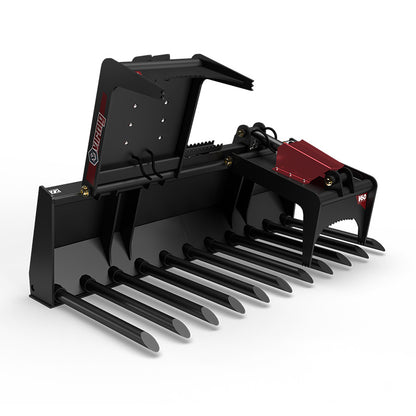

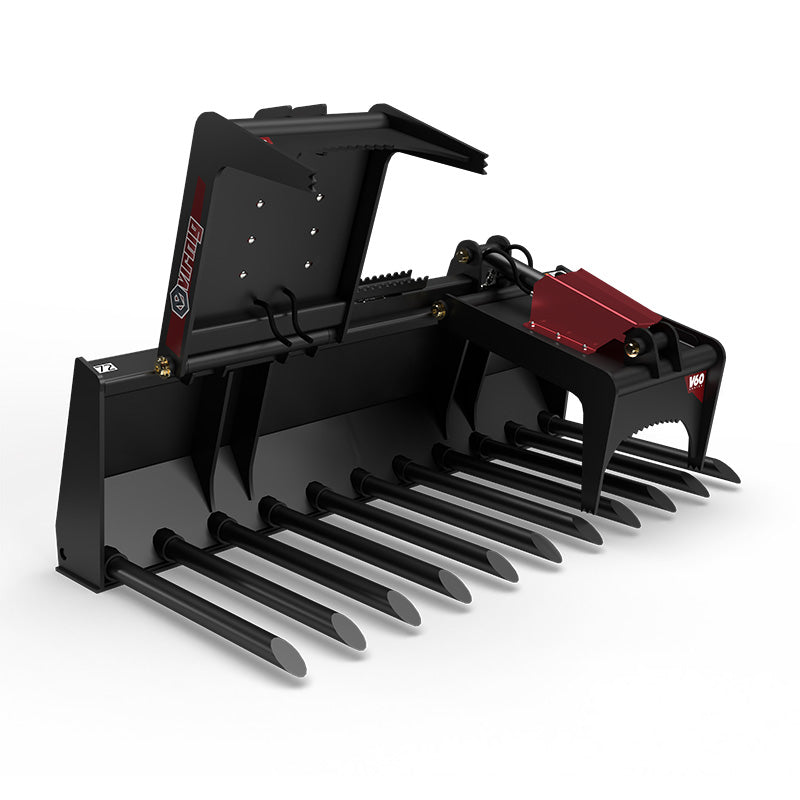

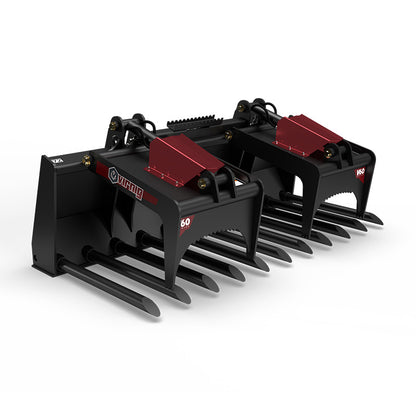

The Virnig V60 Tine Fork Grapple is the ultimate heavy-duty skid steer attachment built to dominate the toughest cleanup, land clearing, and material-handling jobs. Engineered for power, precision, and durability, this grapple thrives in demanding environments whether you're moving manure, brush, roots, or demolition debris.
Designed without a cross member for better penetration and material flow, the V60’s open-frame design lets you dig in deeper and carry more with every pass. Each tine is crafted from 1045 CFSR round stock steel, delivering 100,000 PSI minimum yield strength making them virtually unbendable under pressure.
Built with NitroSteel® cylinder rods and Teflon®-coated bushings, this grapple offers smoother operation, extended wear life, and unmatched resistance to rust and corrosion. Dual independent jaws clamp down securely, while the included cylinder guards protect your investment from jobsite abuse.
Perfect for contractors, farmers, landscapers, and property managers who demand professional-grade performance, the Virnig V60 Tine Fork Grapple turns your skid steer into a powerhouse of productivity.
Key Features
- No Cross Member Design Enhances penetration and reduces material clogging for faster, cleaner loading.
- Heavy-Duty Replaceable Tines Forged from 1045 CFSR round stock steel rated at 100,000 PSI yield strength.

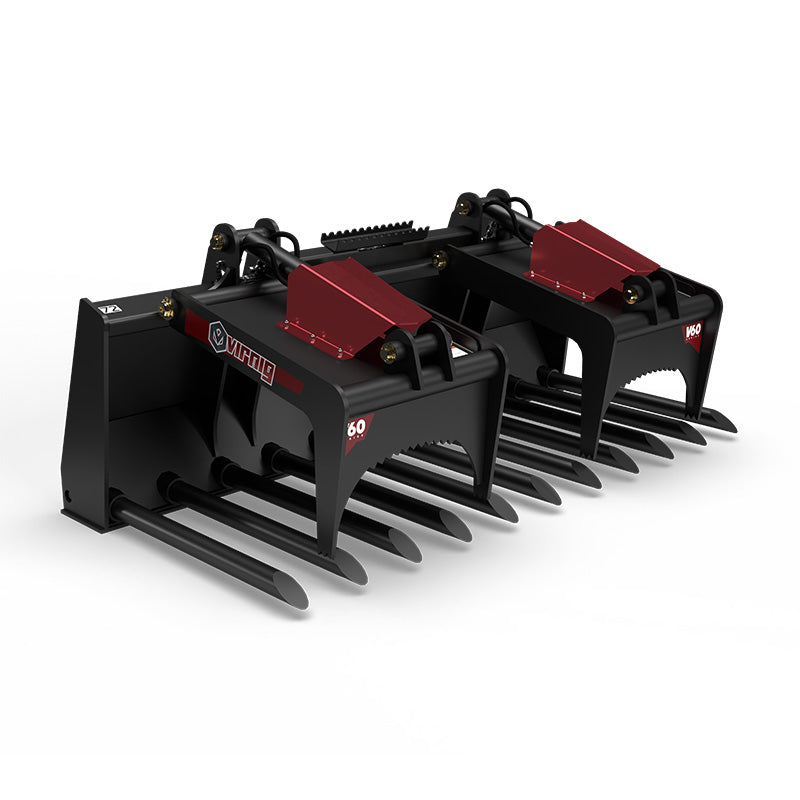

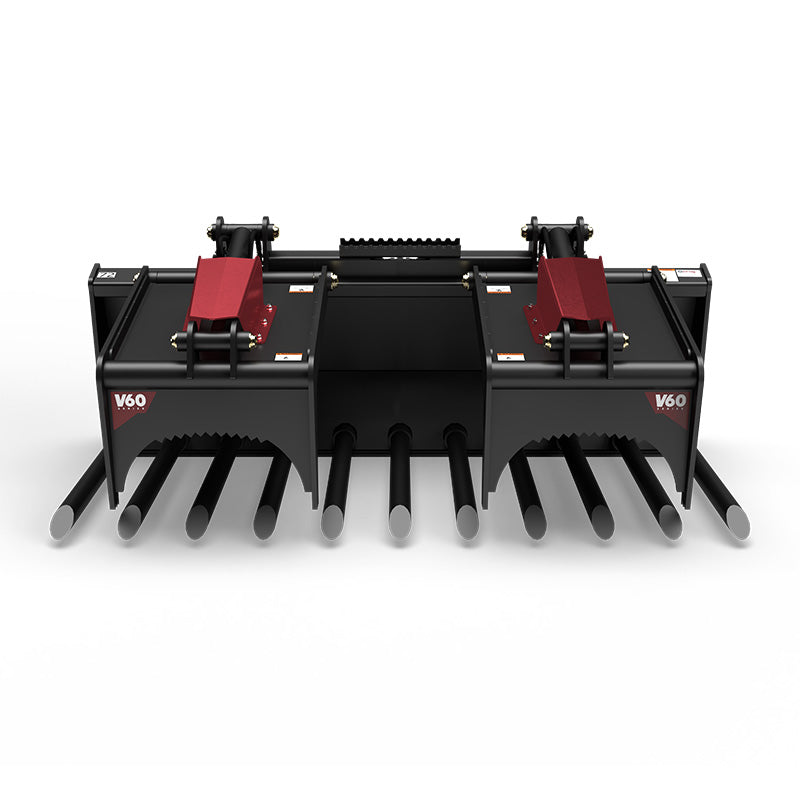

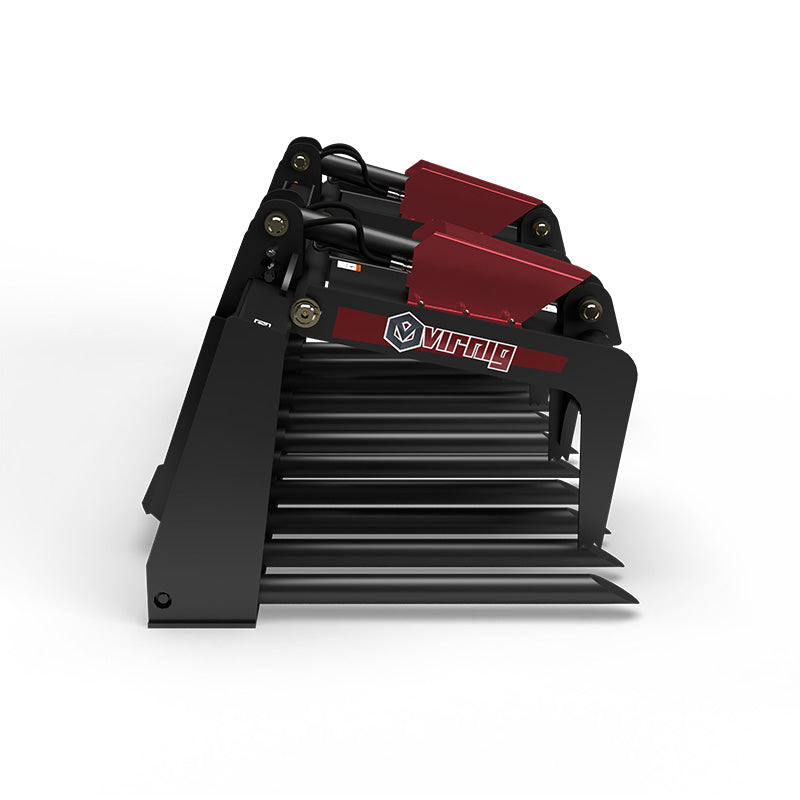

- Dual Independent Grapple Jaws Securely clamp uneven loads like brush, logs, and debris.
- NitroSteel® Cylinder Rods Deliver maximum corrosion resistance and long-lasting hydraulic performance.
- Teflon®-Coated Pivot Bushings Reduce friction, maintenance, and downtime.

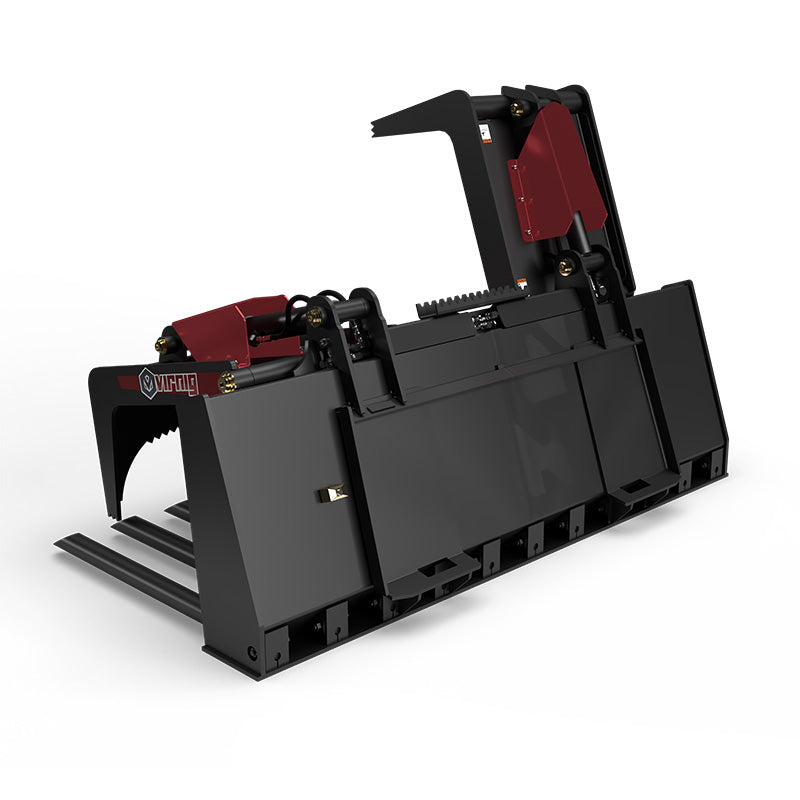

- Cylinder Guards Included Protect vital components from impacts and debris damage.

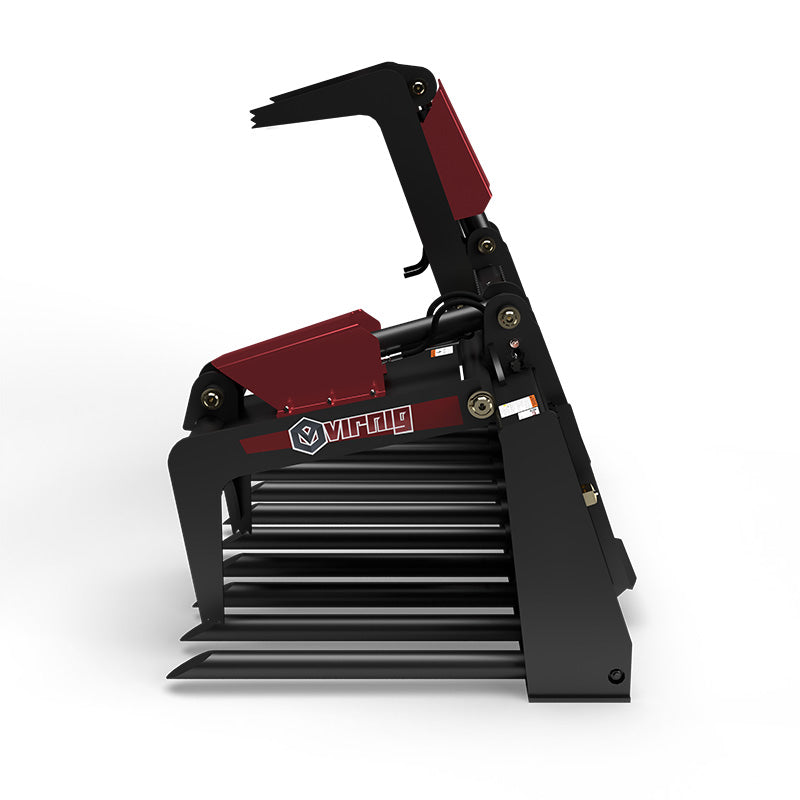

- Massive 40.2” Jaw Opening Handles bulky materials and irregular loads with ease.
- Optimal Tine Spacing Between 4.4” and 4.9” for ideal debris separation and load retention.
- Compact 37” Overall Depth Allows maneuvering in tight jobsite or farmyard spaces.
- Replaceable Wear Parts Extend the life of the grapple and lower long-term ownership cost.

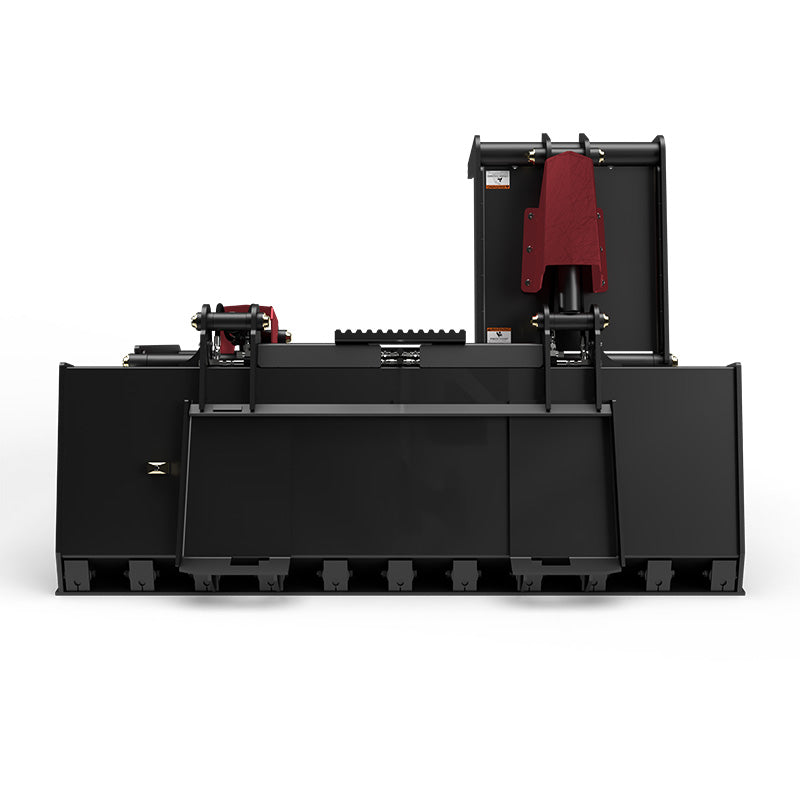

- Compatible with Standard Skid Steer Mounts Fits most skid steer loaders with over 2,400 lb lift capacity.
- Built for High-Flow Hydraulics Operates efficiently within 15–25 GPM hydraulic flow range.
- Precision Engineering by Virnig American-built for maximum strength, fit, and finish.
- Smooth Hydraulic Control Delivers consistent clamping force for secure load handling.
- Ideal for Agriculture, Landscaping & Construction Move manure, logs, brush, scrap, and debris effortlessly.
Detailed Specifications
| Specification | ITG72 | ITG78 |
|---|---|---|
| Width (in) | 73.3 | 79.3 |
| Height (Overall/Bucket) | 28.5 / 23.5 | 28.5 / 23.5 |
| Depth (in) | 37.0 | 37.0 |
| Number of Tines | 11 | 12 |
| Tine Spacing (in) | 4.6 | 4.5 |
| Tine Diameter (in) | 2.25 | 2.25 |
| Jaw Opening (in) | 40.2 | 40.2 |
| Weight (lbs) | 1,325 | 1,400 |
| Loader Capacity (lbs) | >2,400 | >2,400 |
| Hydraulic Flow (GPM) | 15–25 | 15–25 |
| Recommended HP | 50–80 HP | 50–80 HP |
| Specification | ITG84 | ITG90 |
|---|---|---|
| Width (in) | 85.3 | 91.3 |
| Height (Overall/Bucket) | 28.5 / 23.5 | 28.5 / 23.5 |
| Depth (in) | 37.0 | 37.0 |
| Number of Tines | 13 | 13 |
| Tine Spacing (in) | 4.4 | 4.9 |
| Tine Diameter (in) | 2.25 | 2.25 |
| Jaw Opening (in) | 40.2 | 40.2 |
| Weight (lbs) | 1,470 | 1,495 |
| Loader Capacity (lbs) | >2,400 | >2,400 |
| Hydraulic Flow (GPM) | 15–25 | 15–25 |
| Recommended HP | 50–80 HP | 50–80 HP |
