Product Description

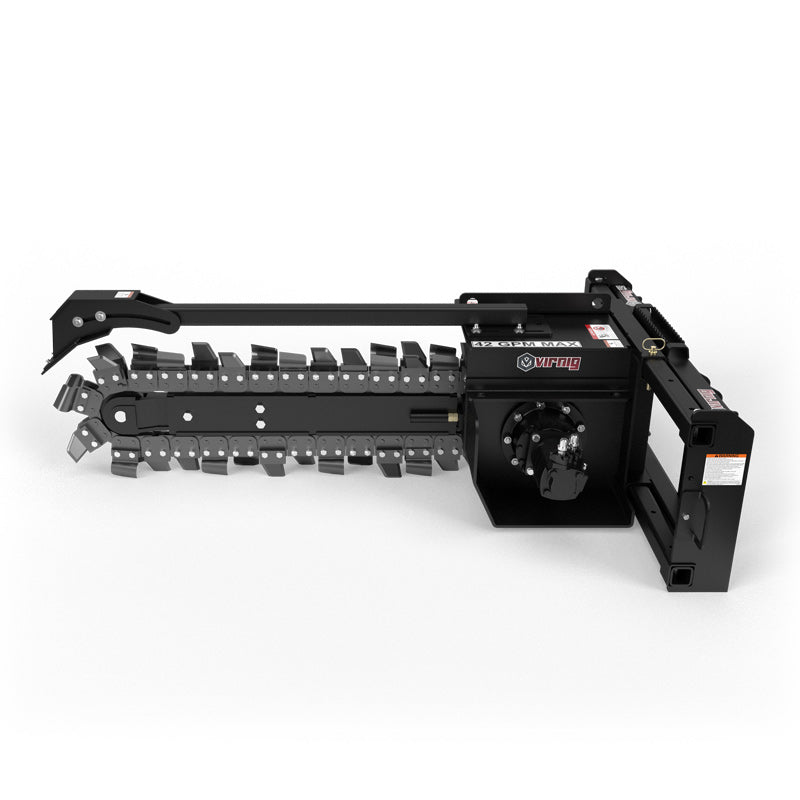

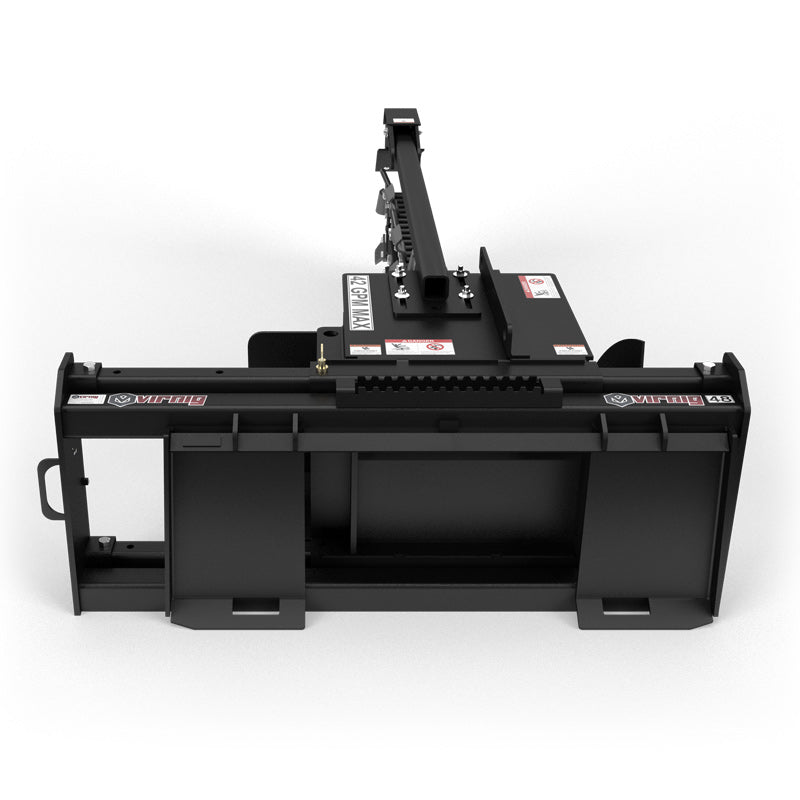

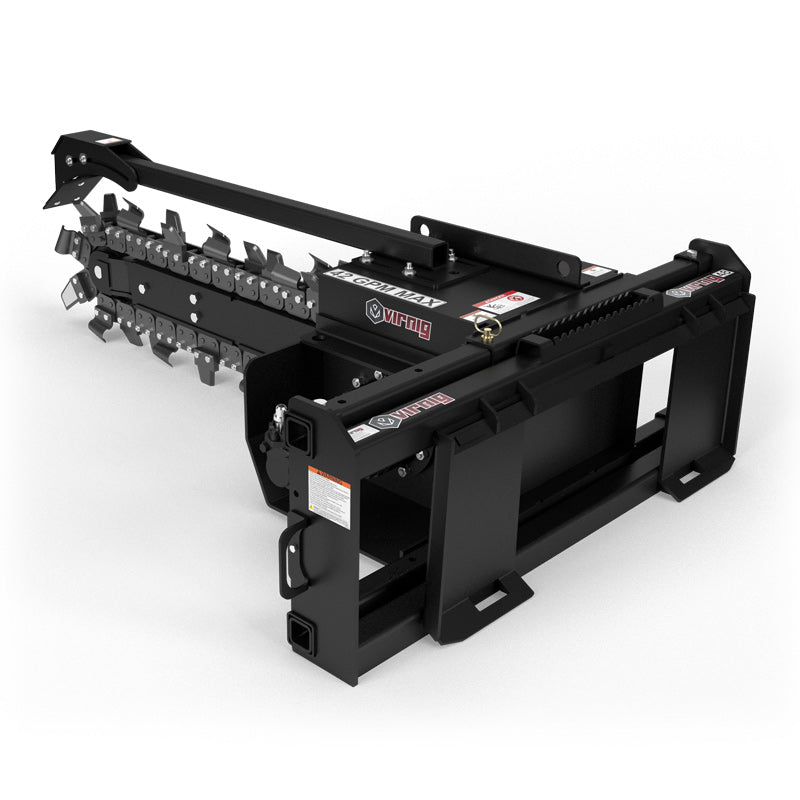

Virnig V60 Trencher | Models TRN36, TRN48, TRN60 | Dig Depth 36" To 60" | Hydraulic Flow 15 To 45 GPM | For Skid Steer
DESCRIPTION
Unleash unmatched digging power with the Virnig V60 Trencher, the strongest skid steer trencher on the market. Designed for professional landscapers, utility contractors, and construction crews, this trencher combines versatility, durability, and precision to handle every job, from soft soil to rocky terrain.
With digging depths ranging from 36" to 60" and chain widths from 6" to 12", the V60 adapts seamlessly to any project. Its three motor options support both standard and high-flow skid steers, allowing flows between 15–45 GPM, while the HD 50,000 lb anti-back flex chain ensures maximum strength and longevity. The trencher also features manual side-shift positions to dig near structures safely, a removable auger to efficiently clear excavated soil, and a standard crumbler to maintain a smooth trench bottom.
Whether you’re installing irrigation, laying utility lines, or tackling tough landscaping projects, the V60 Trencher offers precise control, superior reliability, and versatile chain options including Terminator and Rock & Frost chains to conquer every soil condition. Upgrade your skid steer with a trencher that delivers efficiency, strength, and professional results.
Key Features
- Deep Trenches Made Easy Dig from 36" to 60" for irrigation, utilities, or landscaping with unmatched precision.
- Heavy-Duty Chain HD 50,000 lb anti-back flex chain made in the USA for maximum durability.
- Flexible Chain Options Choose Single Standard, Double Standard, Terminator, or Rock & Frost for soil versatility.
- Manual Side-Shift Three positions let you trench close to structures safely.
- Removable Spoil Auger Clears excavated soil quickly for uninterrupted workflow.
- Crumber Keeps Trenches Clean Ensures smooth, consistent trench bottoms.
- Bi-Directional Chain Rotation Expels rocks and debris efficiently.
- High-Flow Compatible Works with 15–45 GPM skid steer hydraulic systems.
- Compact Yet Powerful Fits skid steers with loader capacity over 1,500 lbs.
- Multiple Chain Widths 6", 8", 10", 12" widths for precise trench sizing.
- Optimal Trenching Angle 60° for efficient digging and soil removal.
- Heavy-Duty Build Engineered for long-term use in challenging environments.
- Adjustable Depths Easily switch between 36", 48", and 60" digging depths.
- Versatile Soil Performance Soft soil, clay, sand, or rocky terrain handled with ease.
- Made in the USA Quality Reliable components built to last for years of heavy use.
Detailed Specifications
| Specification | TRN36 |
|---|---|
| Dig Depth (in) | 36 |
| Overall Width (in) | 58.5 |
| Overall Height (in) | 25.8 |
| Overall Length (in) | 69.7 |
| Side Shift Travel (in) | 8.5 / 17.0 |
| Auger Diameter (in) | 17.3 |
| Spoil Auger Discharge Reach (in) | 20 |
| Optimal Trenching Angle (°) | 60 |
| Recommended Flow Rate (GPM) | 15–25 Standard / 25–45 High Flow |
| Max Operating Pressure (PSI) | 3,500 / 4,100 |
| Approx. Weight (lbs) | 1,135 |
| Recommended Loader Capacity (lbs) | >1,500 |
| Chain Widths (in) | 6 / 8 / 10 / 12 |
| Chain Options | Single, Double, Terminator, Rock & Frost |
| Power Requirement (GPM) | 15–45 |
| Specification | TRN48 |
|---|---|
| Dig Depth (in) | 48 |
| Overall Width (in) | 58.5 |
| Overall Height (in) | 25.8 |
| Overall Length (in) | 84.9 |
| Side Shift Travel (in) | 8.5 / 17.0 |
| Auger Diameter (in) | 17.3 |
| Spoil Auger Discharge Reach (in) | 20 |
| Optimal Trenching Angle (°) | 60 |
| Recommended Flow Rate (GPM) | 15–25 Standard / 25–45 High Flow |
| Max Operating Pressure (PSI) | 3,500 / 4,100 |
| Approx. Weight (lbs) | 1,220 |
| Recommended Loader Capacity (lbs) | >1,500 |
| Chain Widths (in) | 6 / 8 / 10 / 12 |
| Chain Options | Single, Double, Terminator, Rock & Frost |
| Power Requirement (GPM) | 15–45 |
| Specification | TRN60 |
|---|---|
| Dig Depth (in) | 60 |
| Overall Width (in) | 58.5 |
| Overall Height (in) | 25.8 |
| Overall Length (in) | 95.7 |
| Side Shift Travel (in) | 8.5 / 17.0 |
| Auger Diameter (in) | 17.3 |
| Spoil Auger Discharge Reach (in) | 20 |
| Optimal Trenching Angle (°) | 60 |
| Recommended Flow Rate (GPM) | 15–25 Standard / 25–45 High Flow |
| Max Operating Pressure (PSI) | 3,500 / 4,100 |
| Approx. Weight (lbs) | 1,285 |
| Recommended Loader Capacity (lbs) | >1,500 |
| Chain Widths (in) | 6 / 8 / 10 / 12 |
| Chain Options | Single, Double, Terminator, Rock & Frost |
| Power Requirement (GPM) | 15–45 |
Manuals & Documents
Specification Sheet
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
