Virnig V60 V-Snow Blade | Models SBV48 To SBV120 | Widths 51.5" To 120" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION

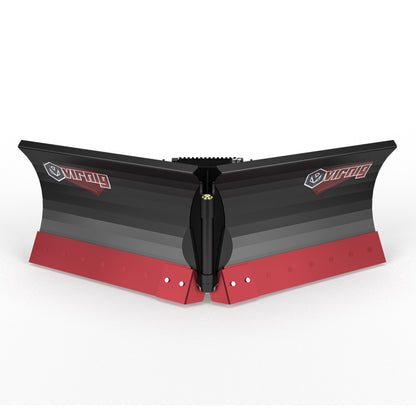

The Virnig V60 V-Snow Blade is engineered for professionals who demand maximum versatility, power, and snow-moving efficiency in harsh winter conditions. Designed for all skid steer loaders with recommended hydraulic flow of 15–25 GPM, this heavy-duty V-plow changes blade positions hydraulically allowing operators to switch from V, scoop, straight, or angle configurations without leaving the cab.
Whether you’re clearing commercial parking lots, long gravel driveways, farm paths, or rural roads, the V60’s free-floating design, hydraulic crossover relief valves, and independently controlled blade wings deliver smooth, controlled performance across uneven terrain. Built from reinforced high-strength steel with a 5/8" x 8" reversible bolt-on cutting edge, it’s a long-term workhorse designed to withstand deep drifts, heavy accumulation, and rugged jobsite abuse.
For property managers, snow removal contractors, municipalities, and rural landowners, the Virnig V60 V-Snow Blade provides the speed, adaptability, and durability needed to get more done in fewer passes even in the worst winter storms.
Key Features
- Hydraulic V-Blade Control Instantly switch between V, scoop, straight, and angle positions from inside the cab.

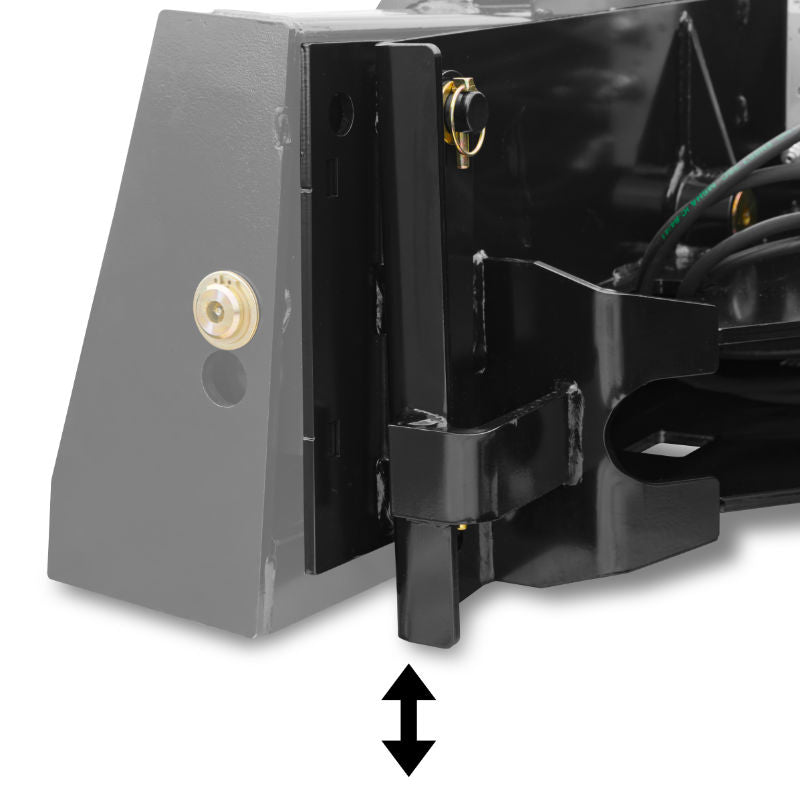

- Free-Floating Design Auto-adjusts to uneven or rough ground while still allowing full down-pressure for clean scraping.
- Hydraulic Crossover Relief Valve Protects the blade and skid steer by angling the wings on impact to reduce stress.

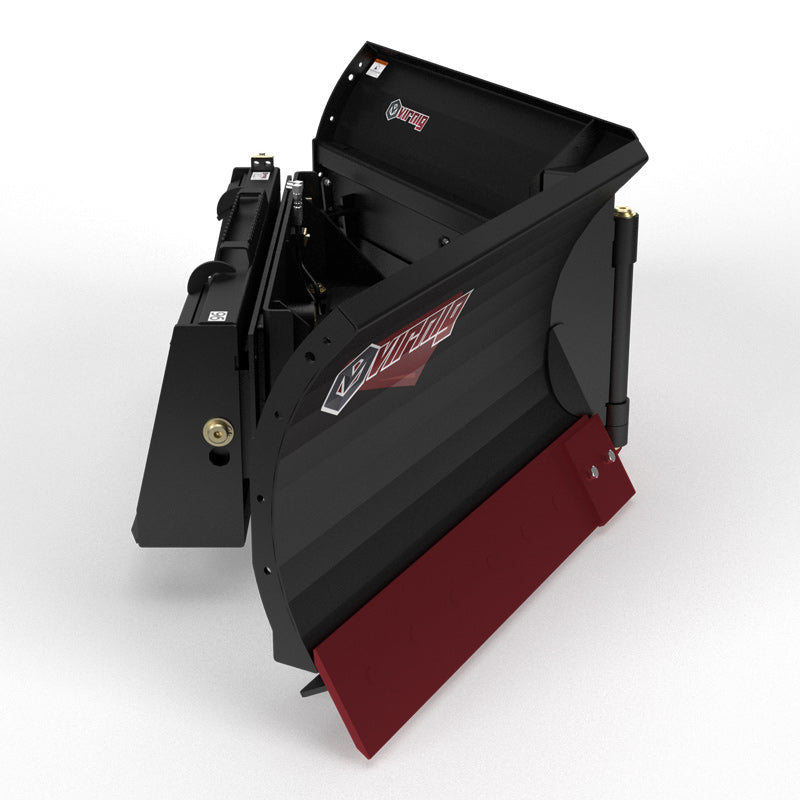

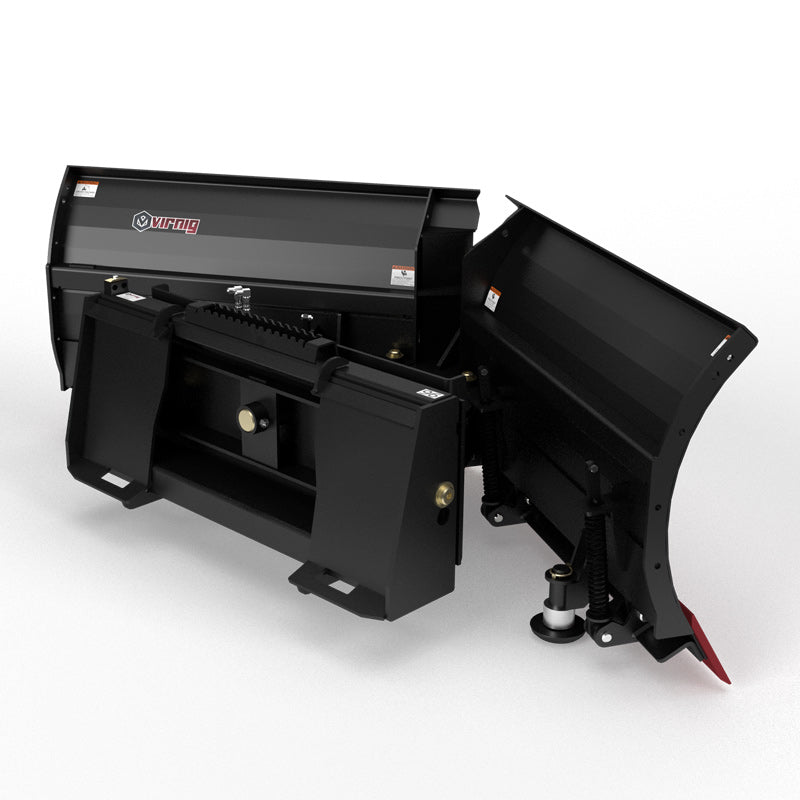

- Independently Angled Wings Each blade wing angles 30° forward or backward, offering unbeatable snow-moving flexibility.
- Trip-Edge Protection System Helps prevent damage to the operator and machine by absorbing shock on obstacles.
- Heavy-Duty Steel Construction Reinforced moldboard ensures long-term durability in extreme winter conditions.
- Reversible 5/8" x 8" Bolt-On Cutting Edge Delivers up to 5 1/2" of wear, maximizing blade longevity.

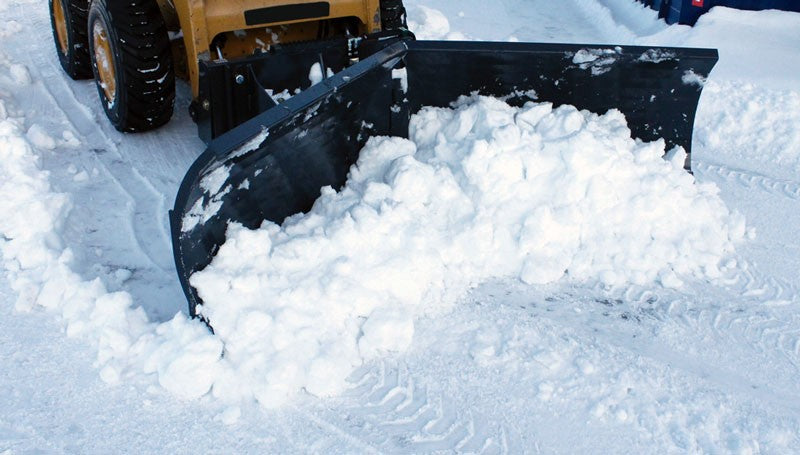

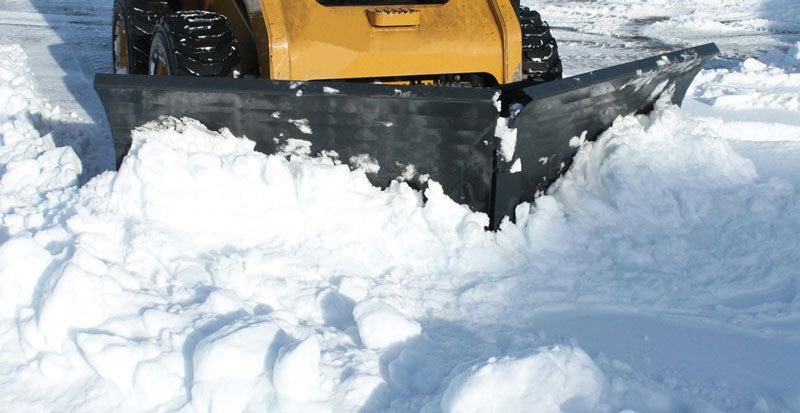

- Ideal for Deep Drifts The V-position slices through packed snow and ice, ideal for rural and commercial plowing.

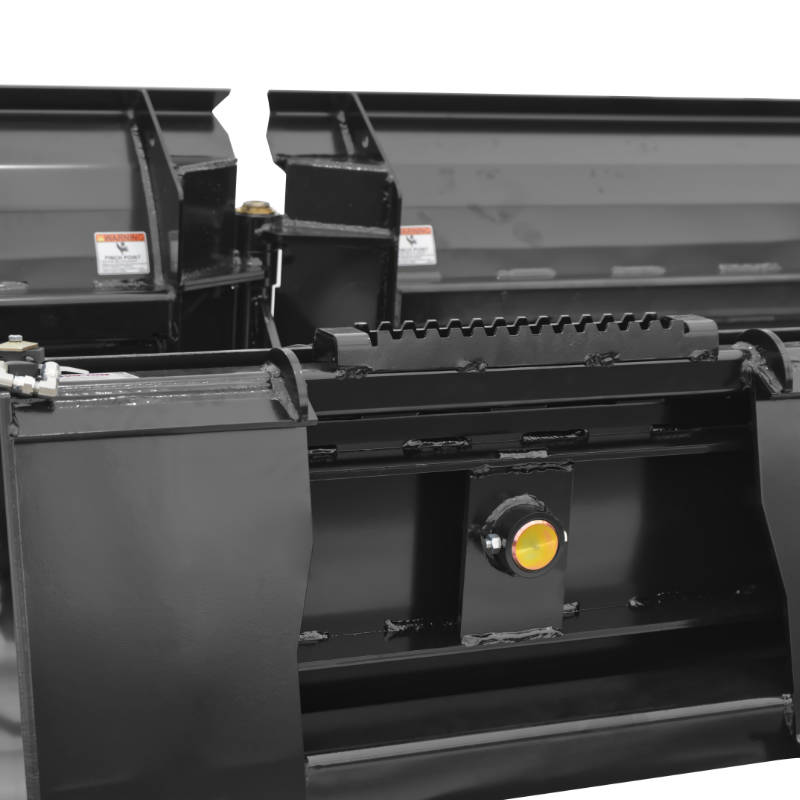

- Excellent Gravel Surface Performance Oscillation and float help maintain smooth scraping without digging.
- High-Visibility Structure Designed for safer operation in low-light winter conditions.

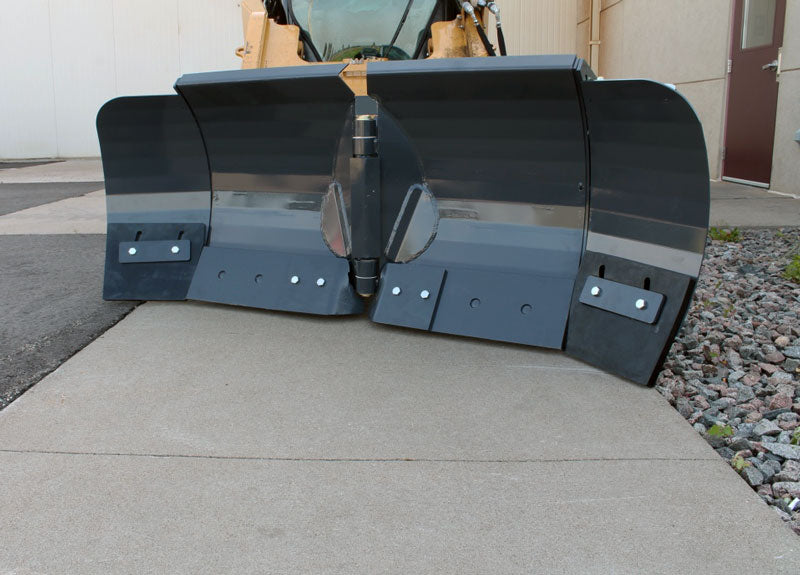

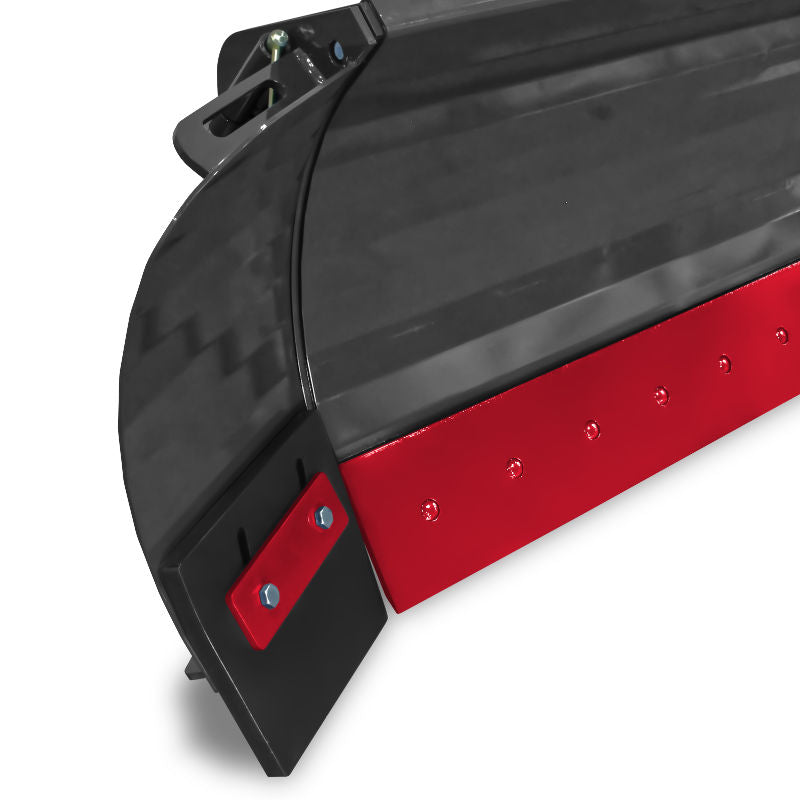

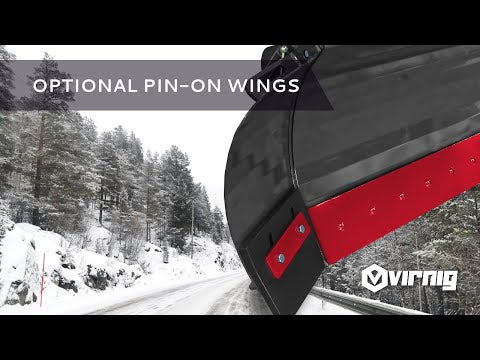

- Pin-On Wing Compatible Add optional 12" wings to increase overall clearing width and material containment.
- Two-Cylinder Hydraulic Angle System Equipped with sequence relief valves for smooth, controlled articulation.
- Wide Model Range Choose from 48" to 120" blade widths to match any skid steer size or application.
- Professional-Grade Winter Attachment Built for contractors, municipalities, and heavy-duty users.
- Optimized for Skid Steer Efficiency Requires 15–25 GPM hydraulic flow; recommended for loaders over 1,500 lb capacity.
Detailed Specifications
| Specification | SBV48 | SBV60 |
|---|---|---|
| Overall Width (Straight / Full Angle) | 51.5" / 44.0" | 62.0" / 53.0" |
| Width (Full Scoop / Full V) | 39.8" / 48.0" | 49.0" / 57.0" |
| Blade Height | 31.0" | 31.0" |
| Overall Depth (Straight / Full V) | 43.5" / 41.0" | 43.5" / 41.0" |
| Blade Angle | ±30° | ±30° |
| Moldboard Thickness | 0.19" | 0.19" |
| Cutting Edge | 5/8" x 8" reversible bolt-on | 5/8" x 8" reversible bolt-on |
| Blade Oscillation | ±4° | ±4° |
| Float Link Angle | ±5° | ±5° |
| Cylinder Bore / Stroke | 2.0" / 8.375" | 2.0" / 8.375" |
| Cylinder Pin Diameter | 1.25" | 1.25" |
| Hinge Pin Diameter | 1.563" | 1.563" |
| Approx. Weight | 1065 lbs | 1135 lbs |
| Recommended Loader Capacity | >1500 lbs | >1500 lbs |
| Hydraulic Flow Required | 15–25 GPM | 15–25 GPM |
| Specification | SBV72 | SBV84 |
|---|---|---|
| Overall Width (Straight / Full Angle) | 74.0" / 64.0" | 86.0" / 74.0" |
| Width (Full Scoop / Full V) | 60.0" / 66.0" | 70.0" / 76.0" |
| Blade Height | 31.0" | 31.0" |
| Overall Depth (Straight / Full V) | 43.5" / 41.0" | 43.5" / 41.0" |
| Blade Angle | ±30° | ±30° |
| Moldboard Thickness | 0.19" | 0.19" |
| Cutting Edge | 5/8" x 8" reversible bolt-on | 5/8" x 8" reversible bolt-on |
| Blade Oscillation | ±4° | ±4° |
| Float Link Angle | ±5° | ±5° |
| Cylinder Bore / Stroke | 2.0" / 8.375" | 2.0" / 8.375" |
| Cylinder Pin Diameter | 1.25" | 1.25" |
| Hinge Pin Diameter | 1.563" | 1.563" |
| Approx. Weight | 1185 lbs | 1240 lbs |
| Recommended Loader Capacity | >1500 lbs | >1500 lbs |
| Hydraulic Flow Required | 15–25 GPM | 15–25 GPM |
| Specification | SBV96 | SBV108 |
|---|---|---|
| Overall Width (Straight / Full Angle) | 98.0" / 84.0" | 110.0" / 95.0" |
| Width (Full Scoop / Full V) | 81.0" / 88.0" | 92.0" / 99.0" |
| Blade Height | 31.0" | 31.0" |
| Overall Depth (Straight / Full V) | 43.5" / 41.0" | 43.5" / 41.0" |
| Blade Angle | ±30° | ±30° |
| Moldboard Thickness | 0.19" | 0.19" |
| Cutting Edge | 5/8" x 8" reversible bolt-on | 5/8" x 8" reversible bolt-on |
| Blade Oscillation | ±4° | ±4° |
| Float Link Angle | ±5° | ±5° |
| Cylinder Bore / Stroke | 2.0" / 8.375" | 2.0" / 8.375" |
| Cylinder Pin Diameter | 1.25" | 1.25" |
| Hinge Pin Diameter | 1.563" | 1.563" |
| Approx. Weight | 1295 lbs | 1350 lbs |
| Recommended Loader Capacity | >1500 lbs | >1500 lbs |
| Hydraulic Flow Required | 15–25 GPM | 15–25 GPM |
| Specification | SBV120 |
|---|---|
| Overall Width (Straight / Full Angle) | 120.0" / 104.0" |
| Width (Full Scoop / Full V) | 101.0" / 108.0" |
| Blade Height | 31.0" |
| Overall Depth (Straight / Full V) | 43.5" / 41.0" |
| Blade Angle | ±30° |
| Moldboard Thickness | 0.19" |
| Cutting Edge | 5/8" x 8" reversible bolt-on |
| Blade Oscillation | ±4° |
| Float Link Angle | ±5° |
| Cylinder Bore / Stroke | 2.0" / 8.375" |
| Cylinder Pin Diameter | 1.25" |
| Hinge Pin Diameter | 1.563" |
| Approx. Weight | 1390 lbs |
| Recommended Loader Capacity | >1500 lbs |
| Hydraulic Flow Required | 15–25 GPM |
