Product Description
Virnig V70 CWL General Purpose Bucket | Models WGP72 To WGP96 | Widths 72" To 96" | Hydraulic Flow Range 15 To 25 GPM | For Compact Wheel Loaders
DESCRIPTION

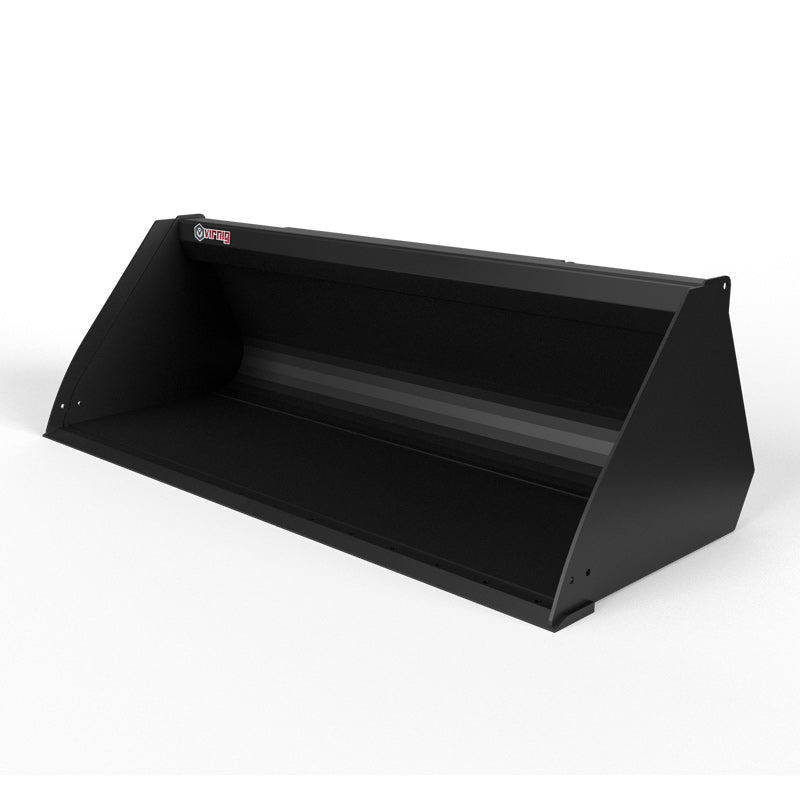

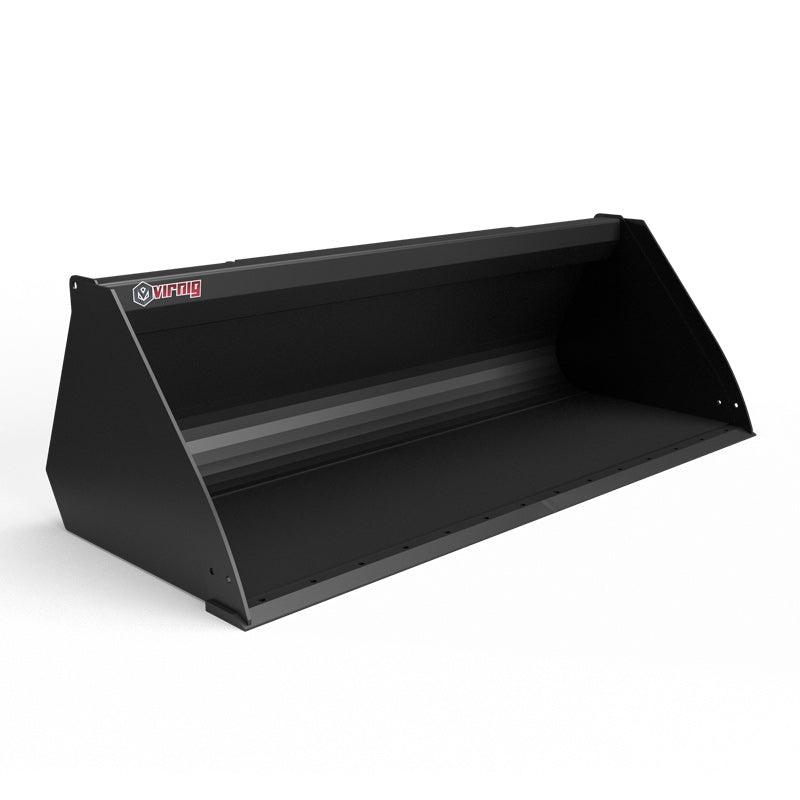

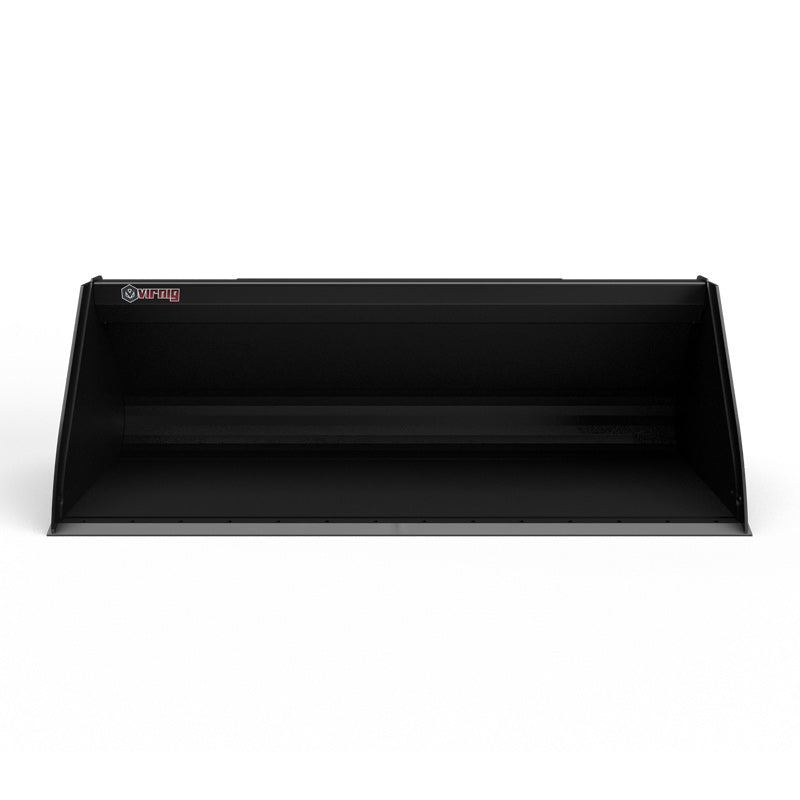

The Virnig V70 CWL General Purpose Bucket is engineered for compact wheel loader operators who need a tough, reliable, and high-capacity bucket for everyday work. Designed specifically for CWLs not skid steers or track loaders this bucket delivers the strength, visibility, and performance needed for digging, grading, leveling, and material handling in demanding environments.
Every inch of this heavy-duty bucket is built for real-world abuse. The flat-top design helps operators instantly gauge when the bucket is level, while the curved interior promotes smooth material flow and fast, clean dump cycles. With a ¼" thick shell and side plates, structural ½" × 4" wear bars, and a 1" × 6" weld-on cutting edge, the V70 General Purpose Bucket is made to withstand rugged, daily use without premature wear.
Whether you’re loading gravel, handling soil, leveling construction pads, or maintaining agricultural properties, this bucket provides the power and reliability you need to get more work done faster, cleaner, and with greater control.
Perfect for contractors, municipalities, property managers, landscapers, and operators who demand professional-grade durability from their compact wheel loader attachments.
Key Features
- Heavy-duty construction with ¼" shell and side plates for long-term structural performance.
- Flat-top design allows operators to easily see when the bucket is level, improving grading accuracy.
- Hydraulic Flow Range Compatible with machines delivering 15–25 GPM.
- Curved interior provides smooth material cleanout and efficient dumping.
- 1" × 6" weld-on cutting edge delivers excellent ground penetration and durability.

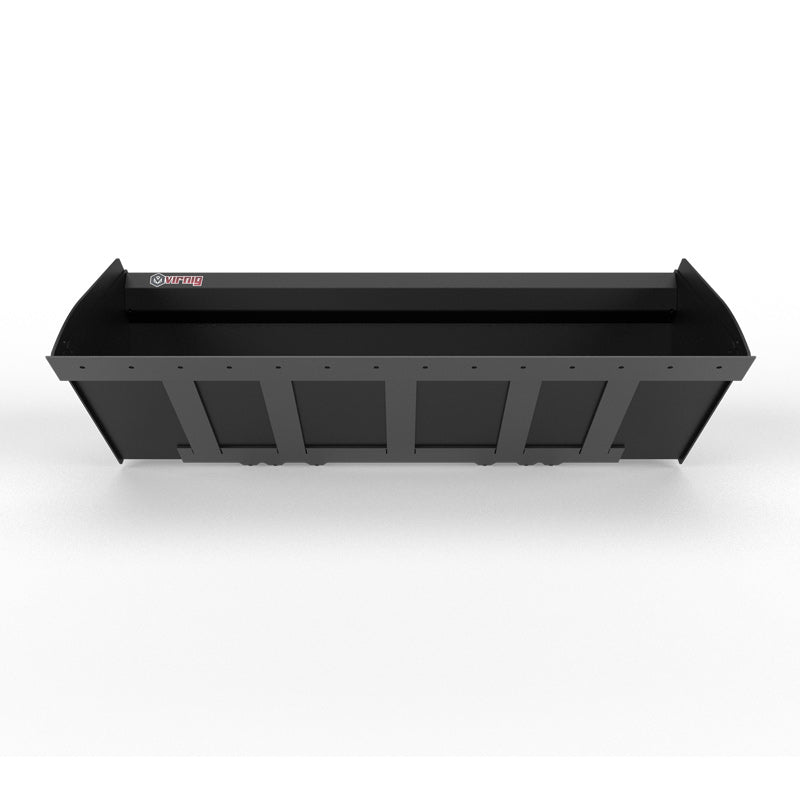

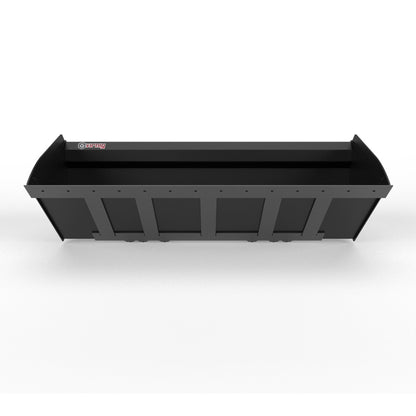

- Five ½" × 4" wear bars protect the bucket bottom from abrasion and extend service life.
- High-capacity struck and heaped ratings, ideal for dirt, gravel, landscape material, and aggregate.

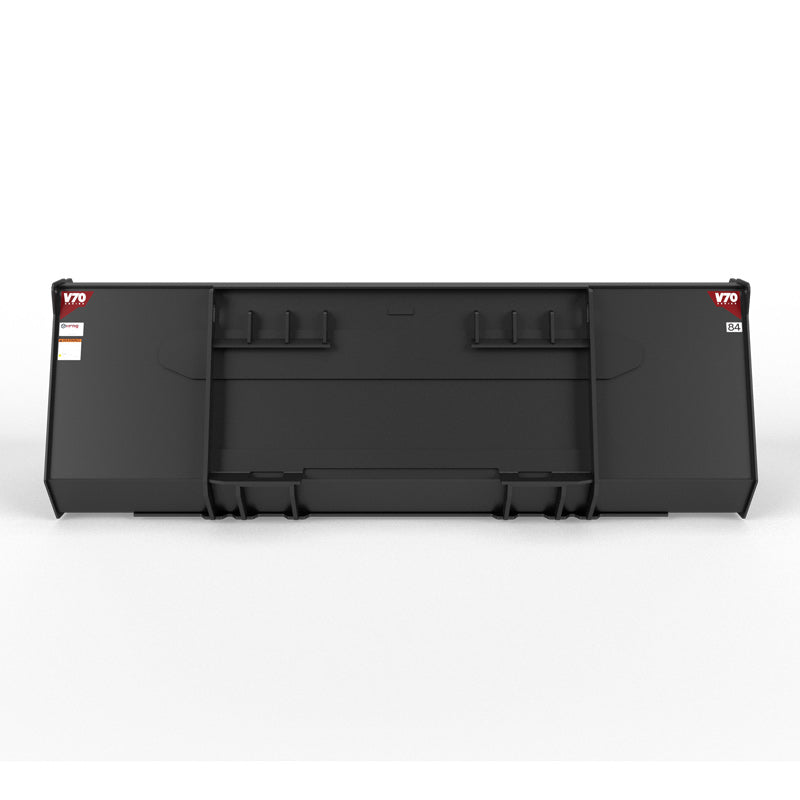

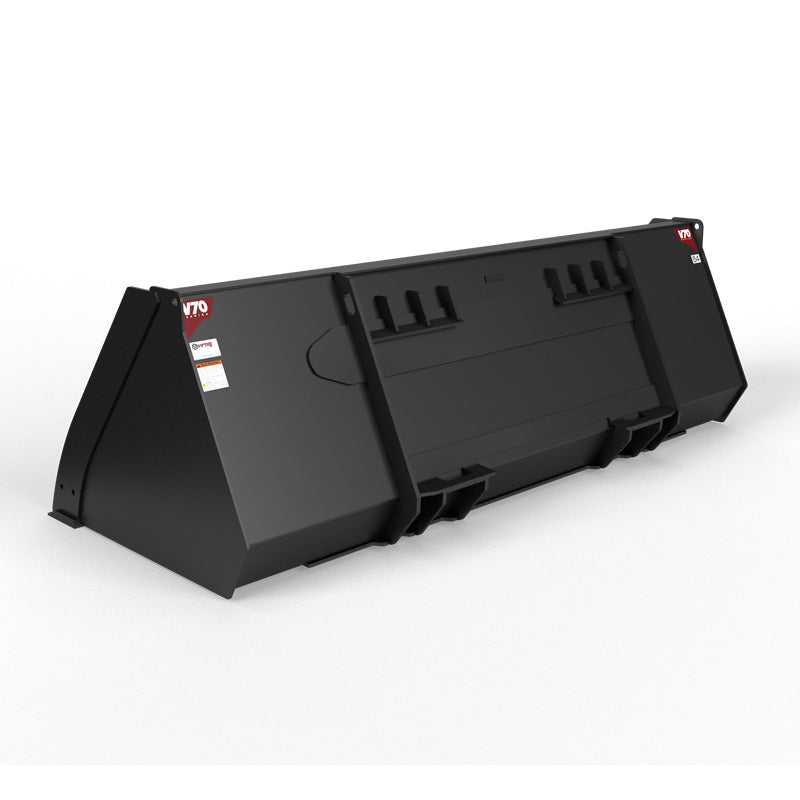

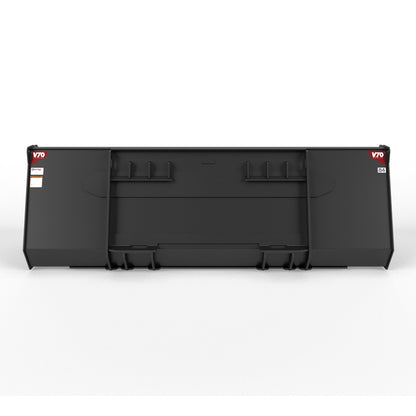

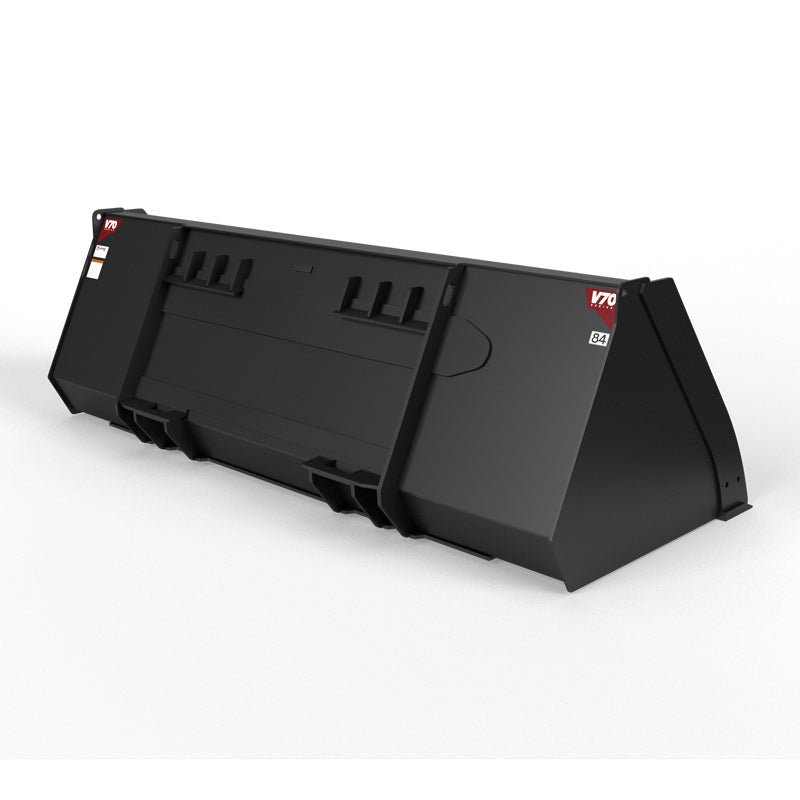

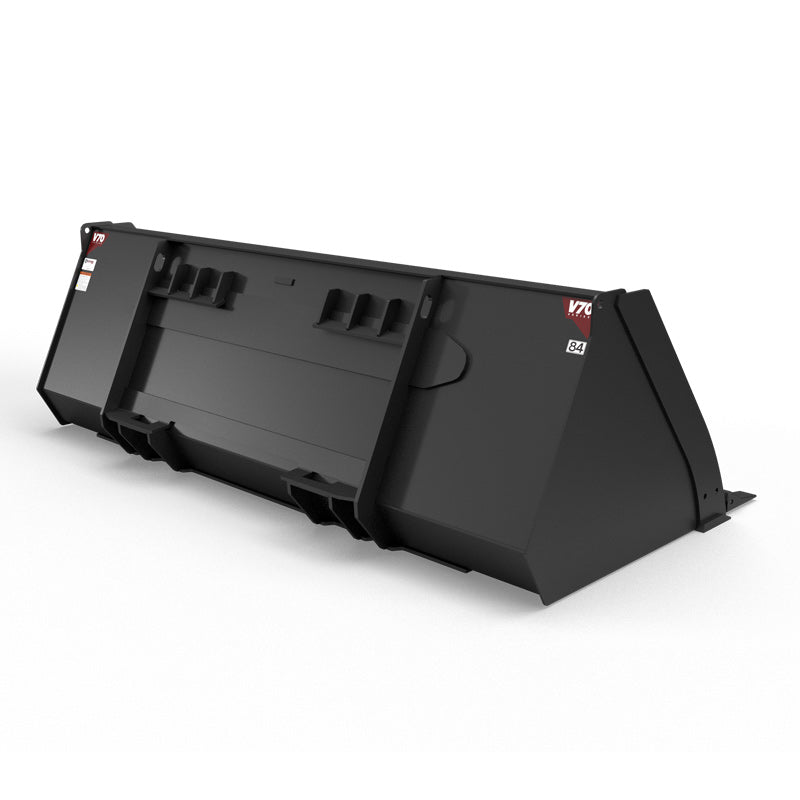

- Universal compact wheel loader quick-attach mount, purpose-built for CWLs.
- Not compatible with skid steers or track loaders, ensuring perfect CWL-specific geometry.

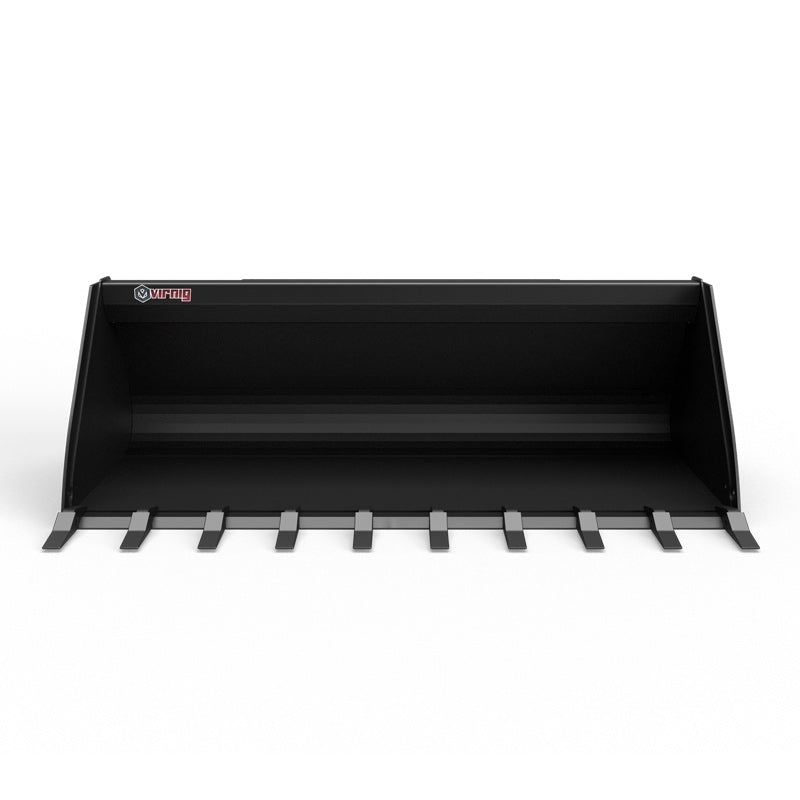

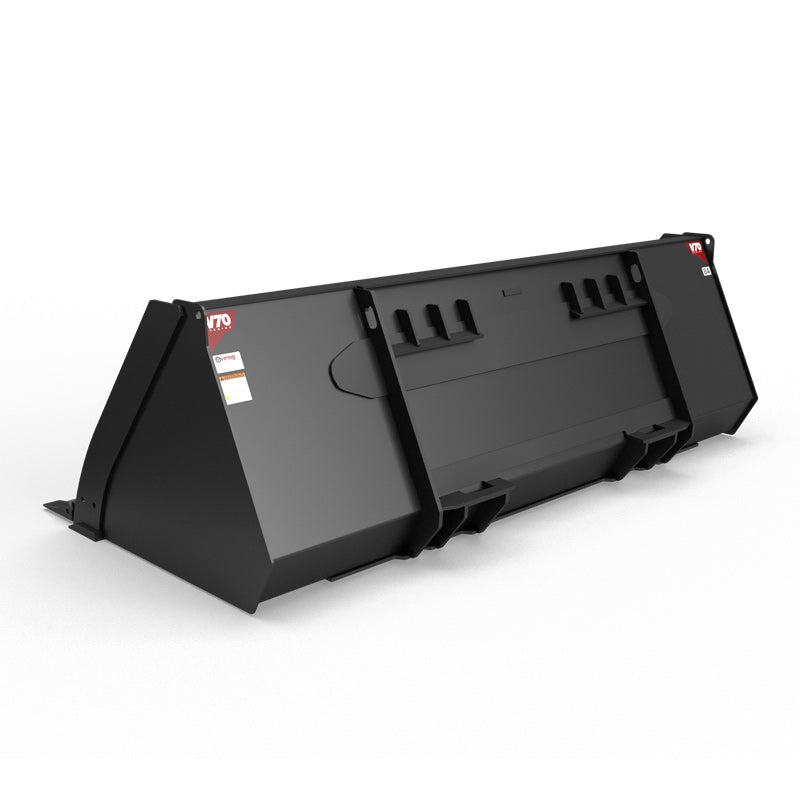

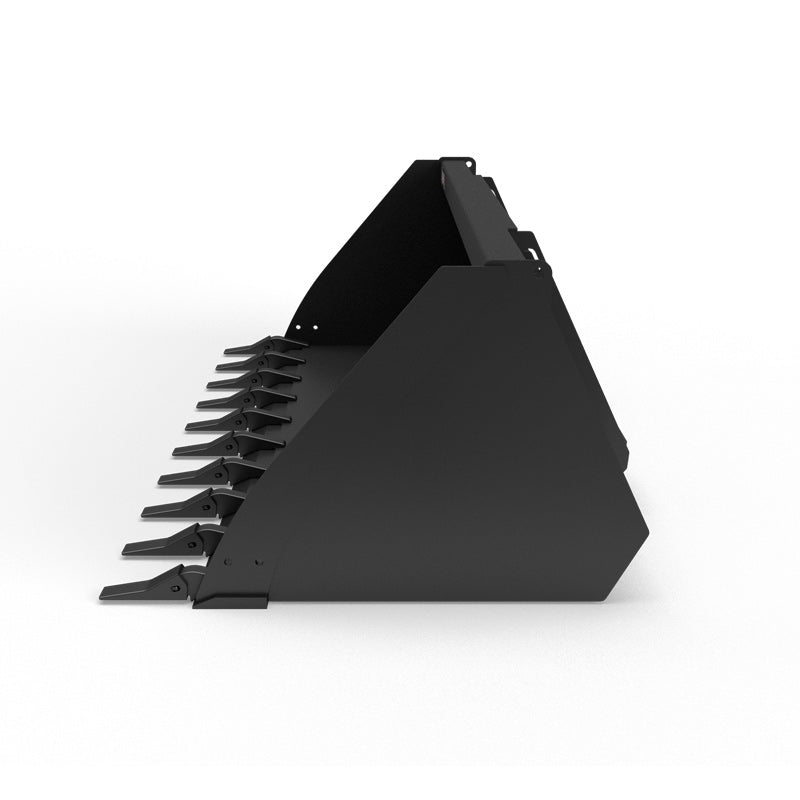

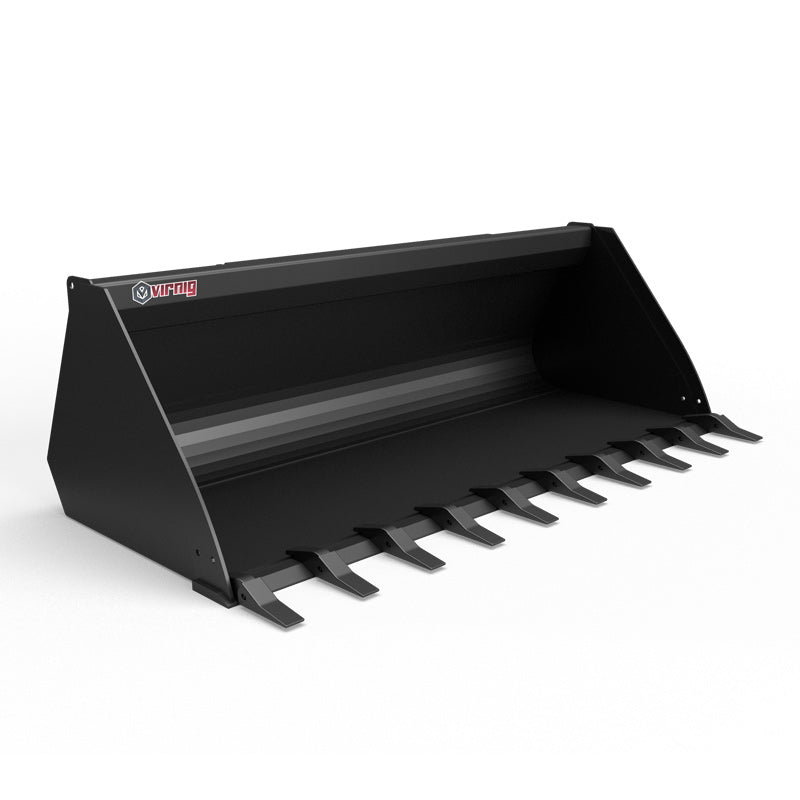

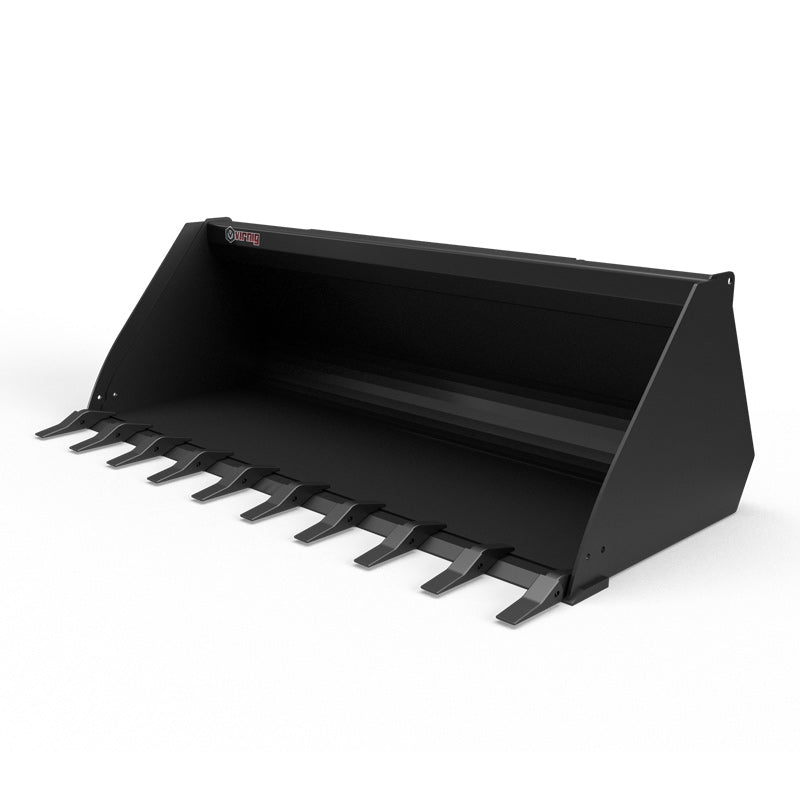

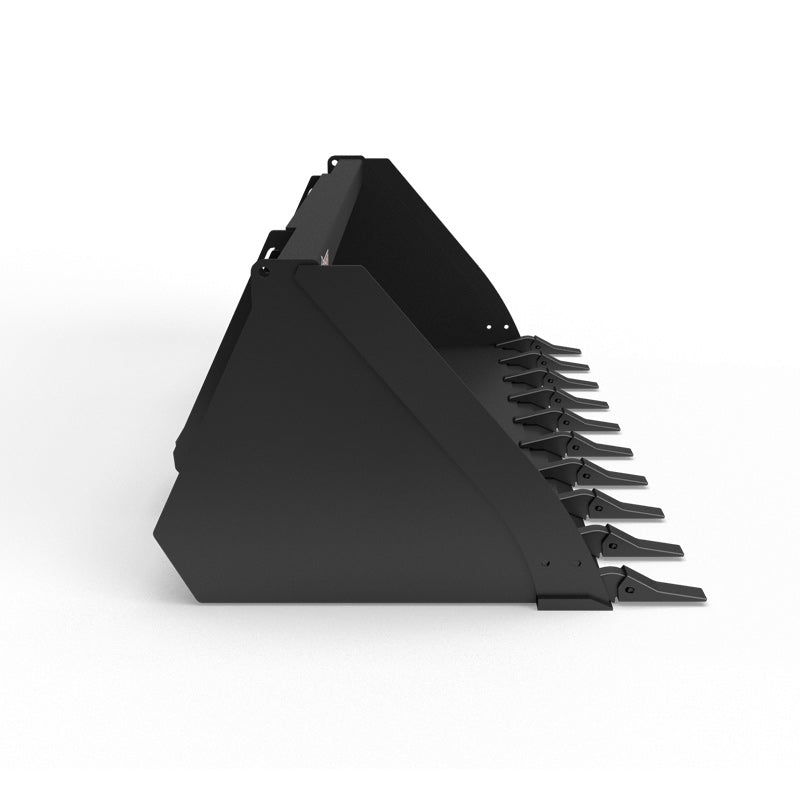

- Weld-on teeth optional, improving performance in compacted soil and excavation tasks.
- Available bolt-on cutting edge, extending blade life and reducing wear.
- Reinforced side plates improve structural integrity during prying and back-dragging.
- Optimized bucket depth provides strong breakout force and excellent fill efficiency.
- Multiple width options (72"–96") for the ideal match to machine size and productivity needs.
- Ideal for contractors and municipalities, handling diverse applications from construction to maintenance.
- Designed for CWLs with a recommended loader capacity greater than 2,800 lbs.
Detailed Specifications
| Model | WGP72 | WGP78 |
|---|---|---|
| Overall Width (in.) | 73.5 | 79.5 |
| Inside Width (in.) | 71.3 | 77.3 |
| Overall Height (in.) | 28.3 | 28.3 |
| Overall Depth (in.) | 38.8 | 38.8 |
| Inside Depth (in.) | 34.3 | 34.3 |
| Struck Capacity (cu ft / cu yd) | 23.6 / 0.87 | 25.5 / 0.95 |
| Heaped Capacity (cu ft / cu yd) | 28.3 / 1.04 | 30.6 / 1.14 |
| Shell Thickness (in.) | 0.25 | 0.25 |
| Side Plate Thickness (in.) | 0.25 | 0.25 |
| Wear Bars (½" × 4") | 5 | 5 |
| Approx. Weight (lbs) | 835 | 880 |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Recommended Loader Capacity | > 2800 lbs | > 2800 lbs |
| Model | WGP84 | WGP90 |
|---|---|---|
| Overall Width (in.) | 85.5 | 91.5 |
| Inside Width (in.) | 83.3 | 89.3 |
| Overall Height (in.) | 28.3 | 28.3 |
| Overall Depth (in.) | 38.8 | 38.8 |
| Inside Depth (in.) | 34.3 | 34.3 |
| Struck Capacity (cu ft / cu yd) | 27.5 / 1.02 | 29.5 / 1.09 |
| Heaped Capacity (cu ft / cu yd) | 33.0 / 1.22 | 35.4 / 1.31 |
| Shell Thickness (in.) | 0.25 | 0.25 |
| Side Plate Thickness (in.) | 0.25 | 0.25 |
| Wear Bars (½" × 4") | 5 | 5 |
| Approx. Weight (lbs) | 925 | 975 |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Recommended Loader Capacity | > 2800 lbs | > 2800 lbs |
| Model | WGP96 |
|---|---|
| Overall Width (in.) | 97.5 |
| Inside Width (in.) | 95.3 |
| Overall Height (in.) | 28.3 |
| Overall Depth (in.) | 38.8 |
| Inside Depth (in.) | 34.3 |
| Struck Capacity (cu ft / cu yd) | 31.5 / 1.17 |
| Heaped Capacity (cu ft / cu yd) | 37.8 / 1.40 |
| Shell Thickness (in.) | 0.25 |
| Side Plate Thickness (in.) | 0.25 |
| Wear Bars (½" × 4") | 5 |
| Approx. Weight (lbs) | 1020 |
| Hydraulic Flow Range | 15–25 GPM |
| Recommended Loader Capacity | > 2800 lbs |
