Virnig V70 CWL High Capacity General Purpose Bucket | Models WHC72 To WHC101 | Widths 73.5" To 101.5" | Hydraulic Flow Range 15 To 25 GPM | For Compact Wheel Loaders
Virnig V70 CWL High Capacity General Purpose Bucket | Models WHC72 To WHC101 | Widths 73.5" To 101.5" | Hydraulic Flow Range 15 To 25 GPM | For Compact Wheel Loaders
Regular price
$2,635.00
Regular price
Sale price
$2,635.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

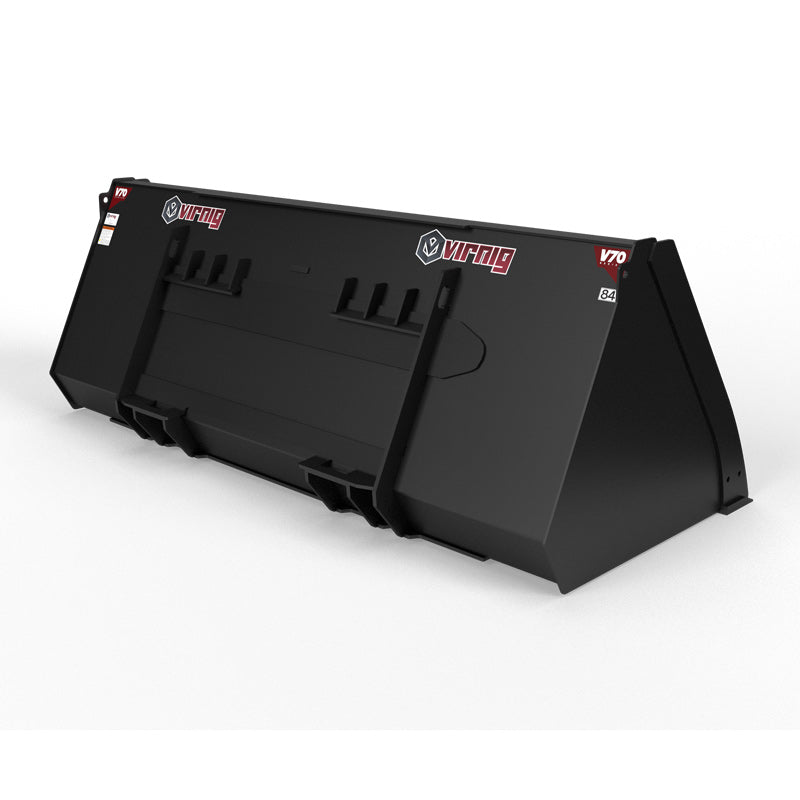

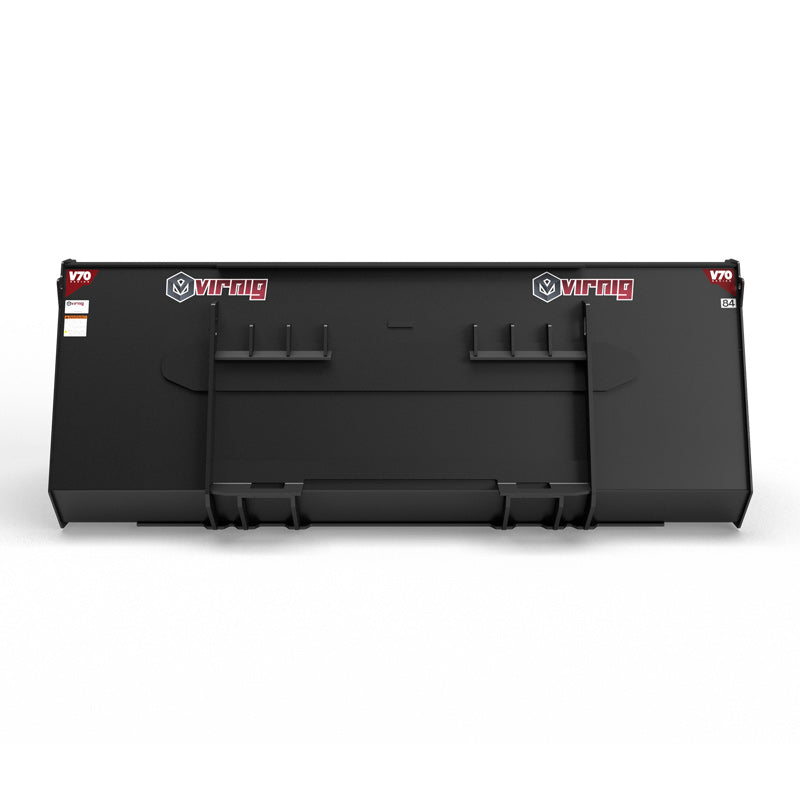

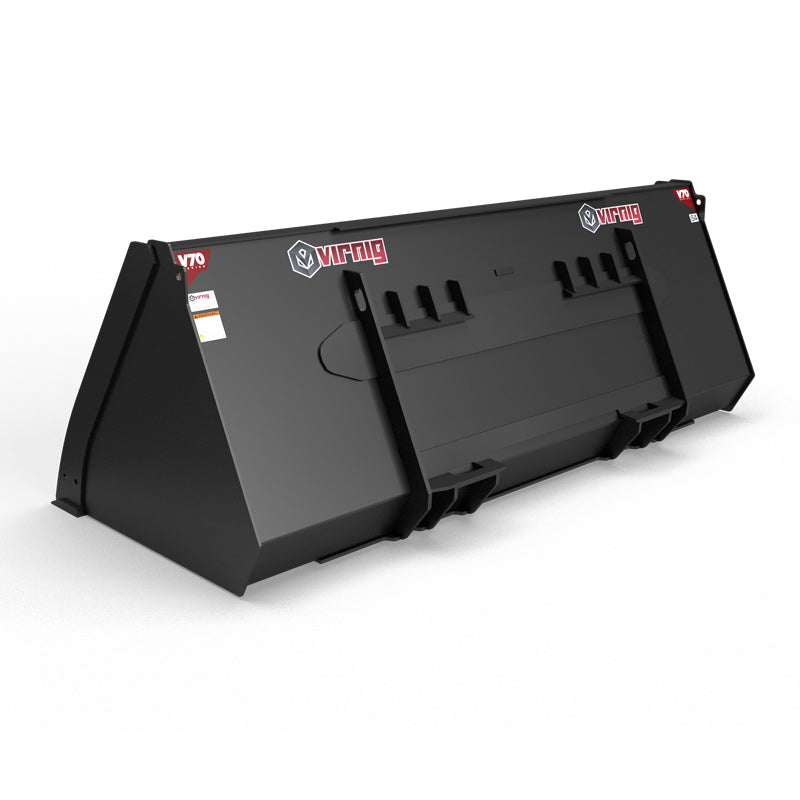

Virnig V70 CWL High Capacity General Purpose Bucket | Models WHC72 To WHC101 | Widths 73.5" To 101.5" | Hydraulic Flow Range 15 To 25 GPM | For Compact Wheel Loaders
DESCRIPTION

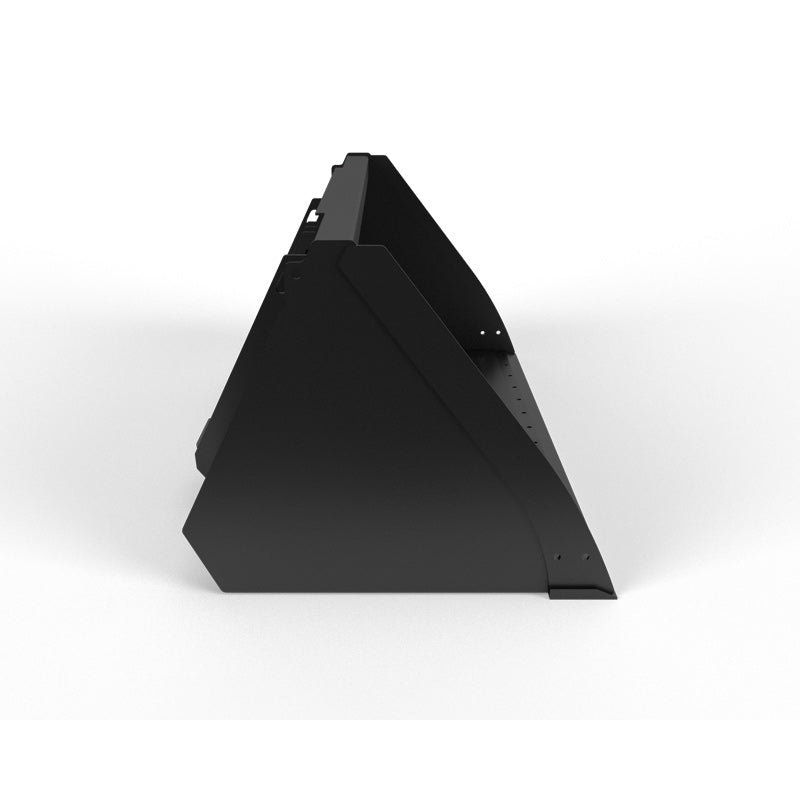

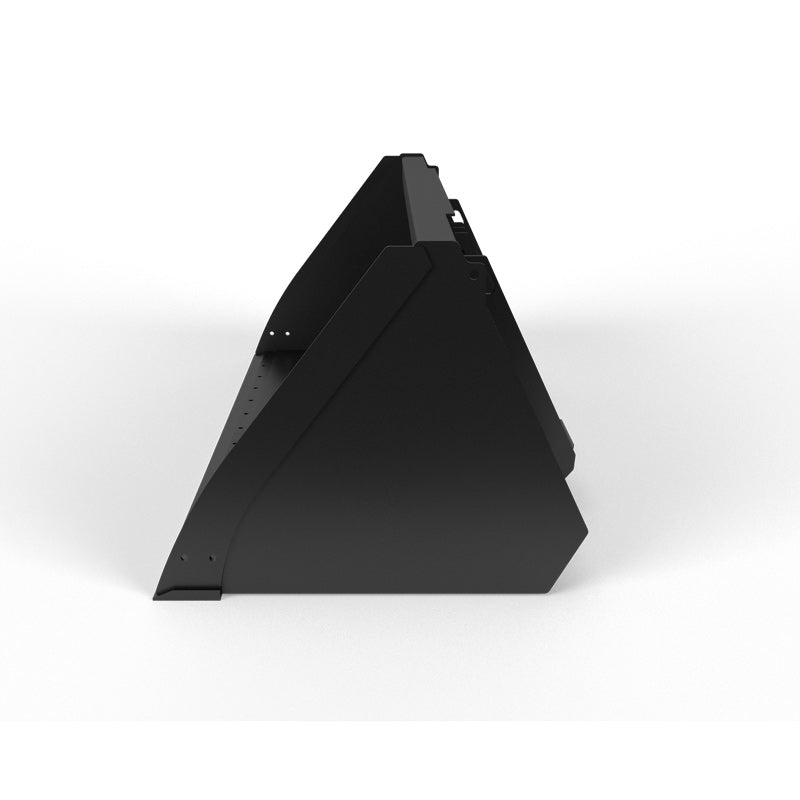

Upgrade your compact wheel loader with the Virnig V70 CWL High Capacity General Purpose Bucket, engineered for professionals who demand maximum efficiency and durability. Designed taller and deeper than standard V70 buckets, it delivers up to 15% more material capacity, helping you get more work done with fewer passes.
Whether you’re moving soil, gravel, or construction debris, this bucket’s curved interior ensures effortless material cleanout, while the flat top provides a visual gauge for leveling, giving operators precise control with every load. Built to last, its 1/4" thick shell and side plates, reinforced wear bars, and weld-on cutting edge make it resilient against the toughest jobsite conditions.
Compatible exclusively with compact wheel loaders using a universal quick attach mount, the V70 CWL High Capacity Bucket is ideal for contractors, landscapers, and municipal operators looking to maximize load efficiency and reduce downtime.
Key Features
- High Capacity Design Up to 15% more volume than standard buckets, reducing trips and increasing productivity.
- Durable Construction 1/4" thick shell and side plates with 1/2" x 4" wear bars for long-lasting performance.
- Hydraulic Flow Range Compatible with machines delivering 15–25 GPM.
- Flat Top Leveling Guide Helps operators quickly see when the bucket is level for precise loading.

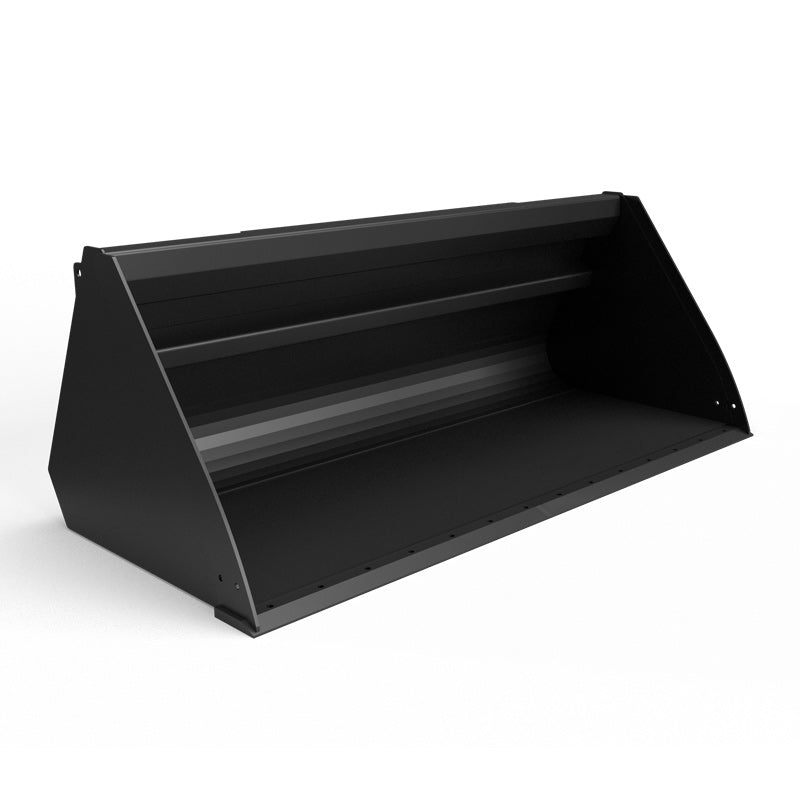

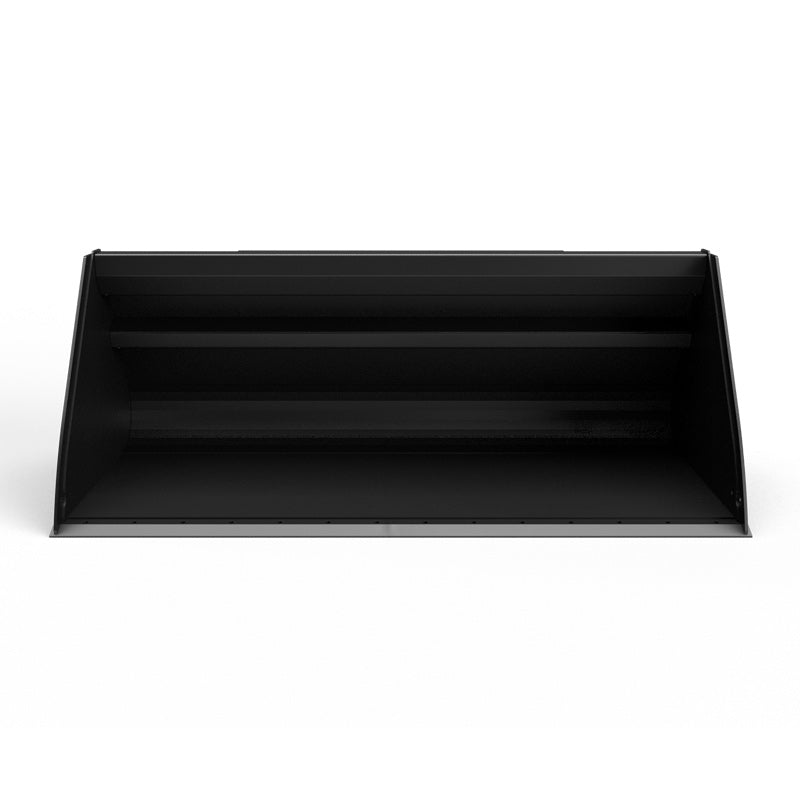

- Curved Interior for Cleanout Smooth material release reduces manual labor and prevents sticking.

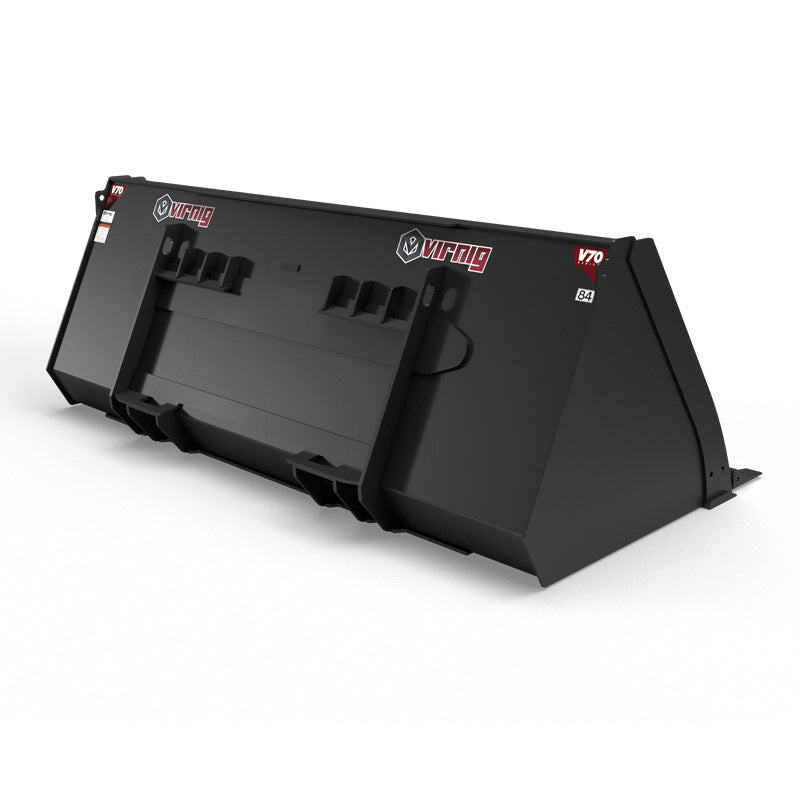

- Universal CWL Mount Quick attach compatibility for compact wheel loaders ensures easy installation.
- Multiple Width Options Available in 73.5", 79.5", 85.5", 91.5", 97.5", and 101.5" to match your loader and jobsite needs.
- Struck and Heaped Capacity Up to 37.6 cu ft (1.40 cu yd) struck and 45.1 cu ft (1.68 cu yd) heaped.
- Reinforced Cutting Edge 1" x 6" weld-on edge withstands heavy-duty digging and scraping.
- Side Cutters Optional Exclusive reversible design improves performance in compacted soil and prolongs bucket life.

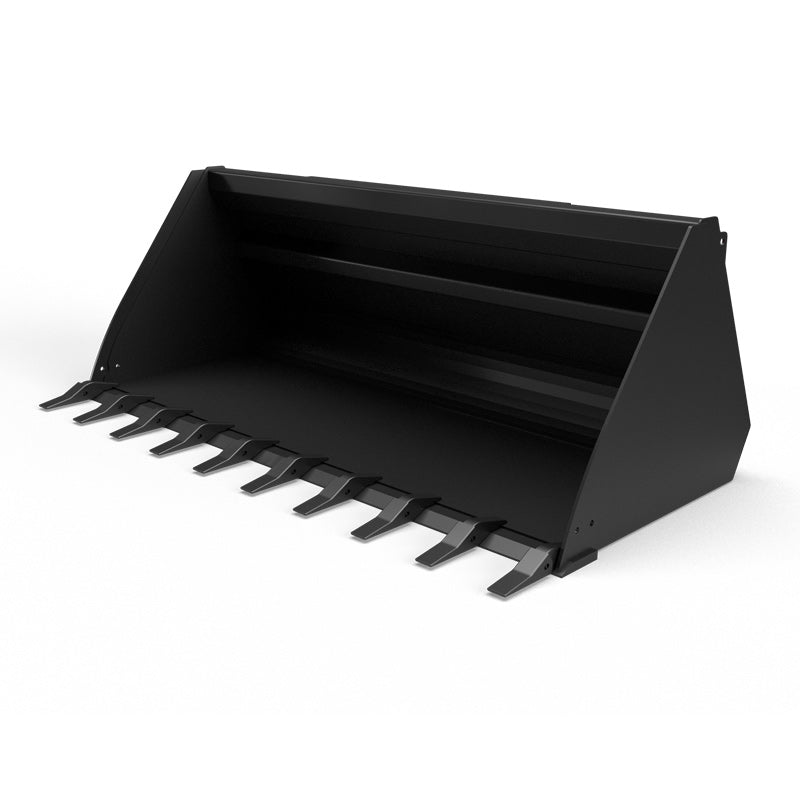

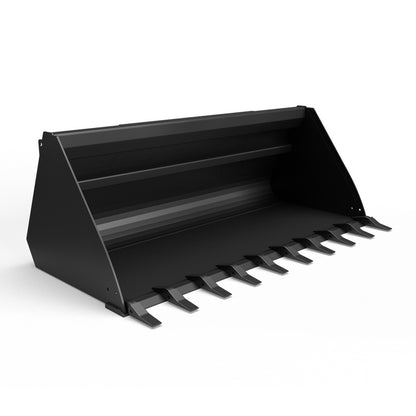

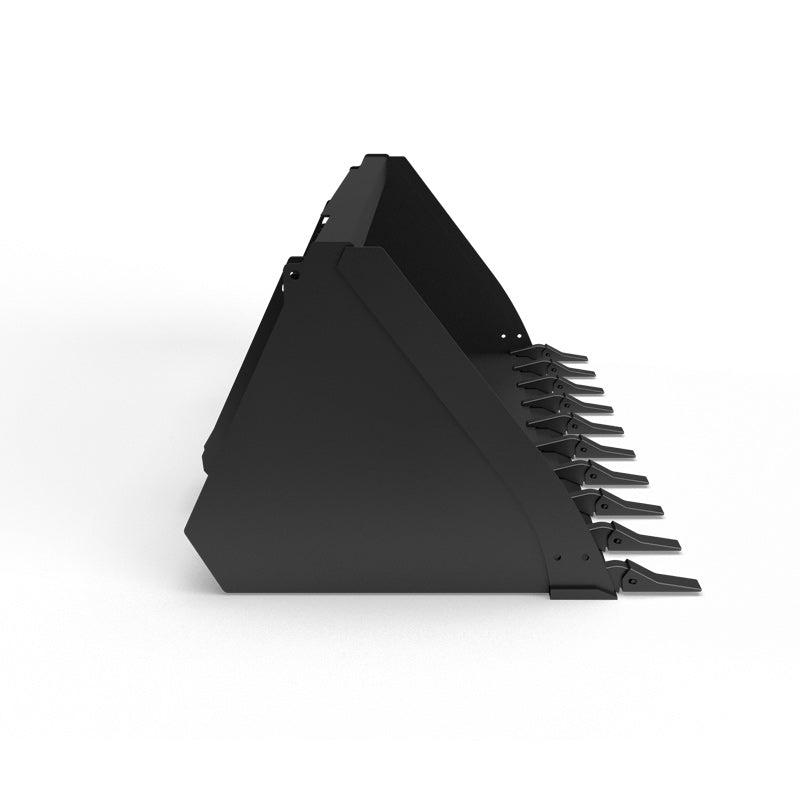

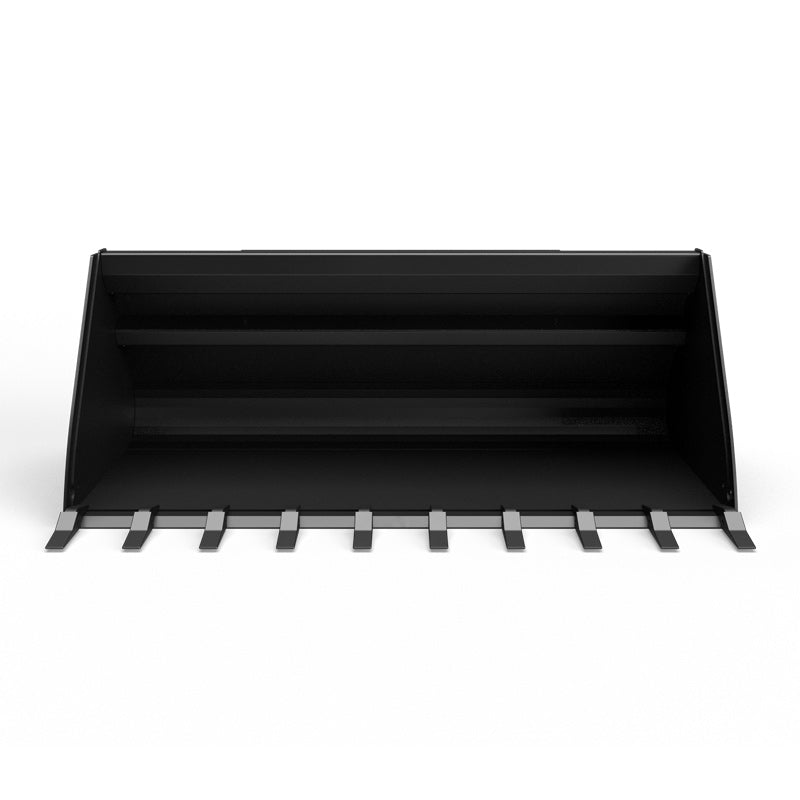

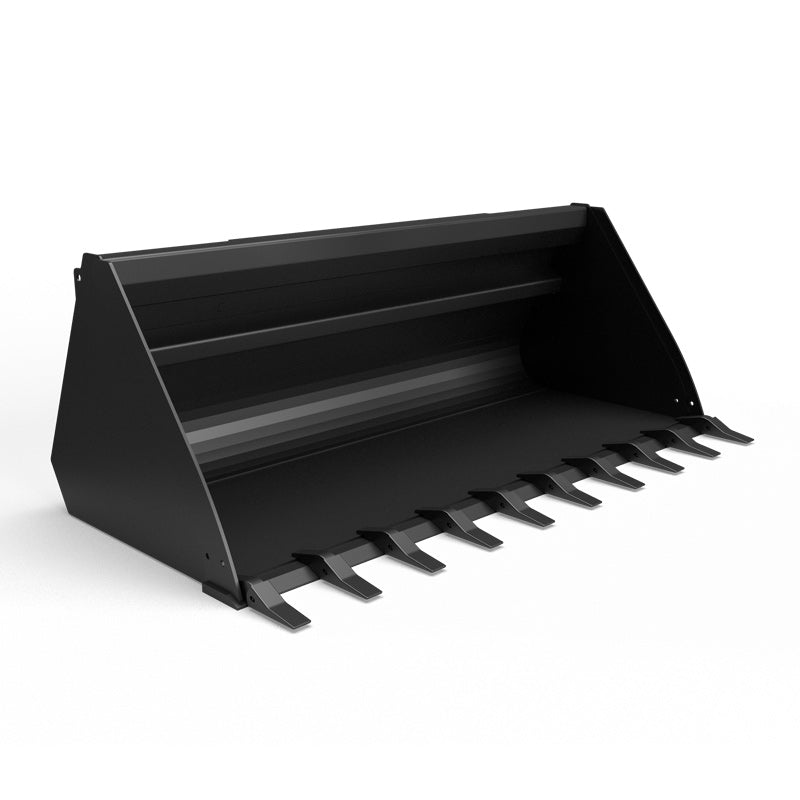

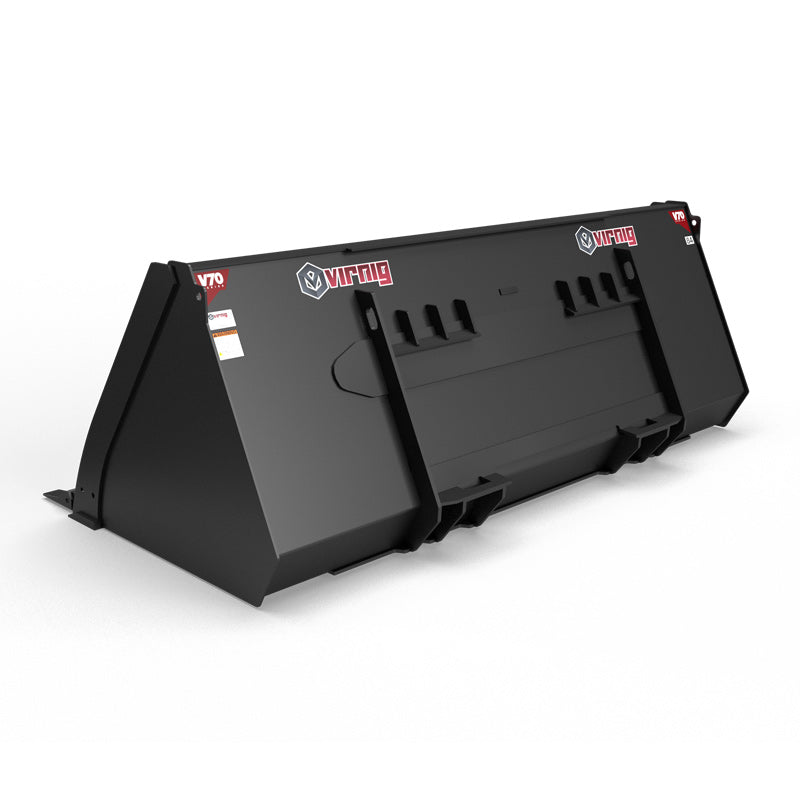

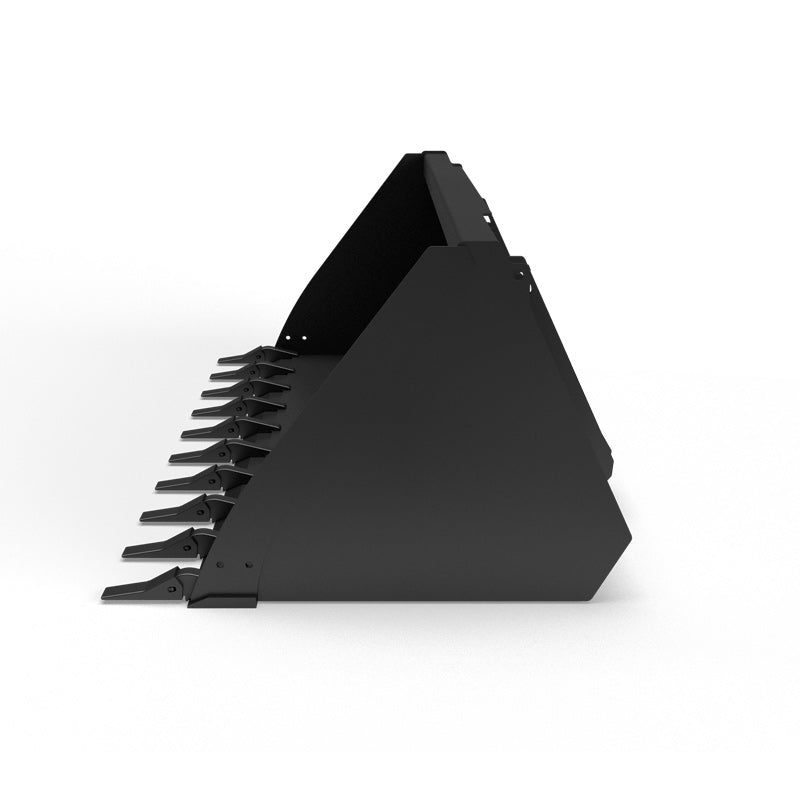

- Weld-On Teeth Available Break up hard-packed soil efficiently with factory-installed, replaceable teeth.
- Optimized Loader Balance Designed for loaders with capacity over 1,800 lbs to maintain stability.
- Versatile Material Handling Perfect for dirt, gravel, sand, and construction debris.
- Ergonomic Operation Flat top design and optimal bucket angles reduce strain and improve productivity.

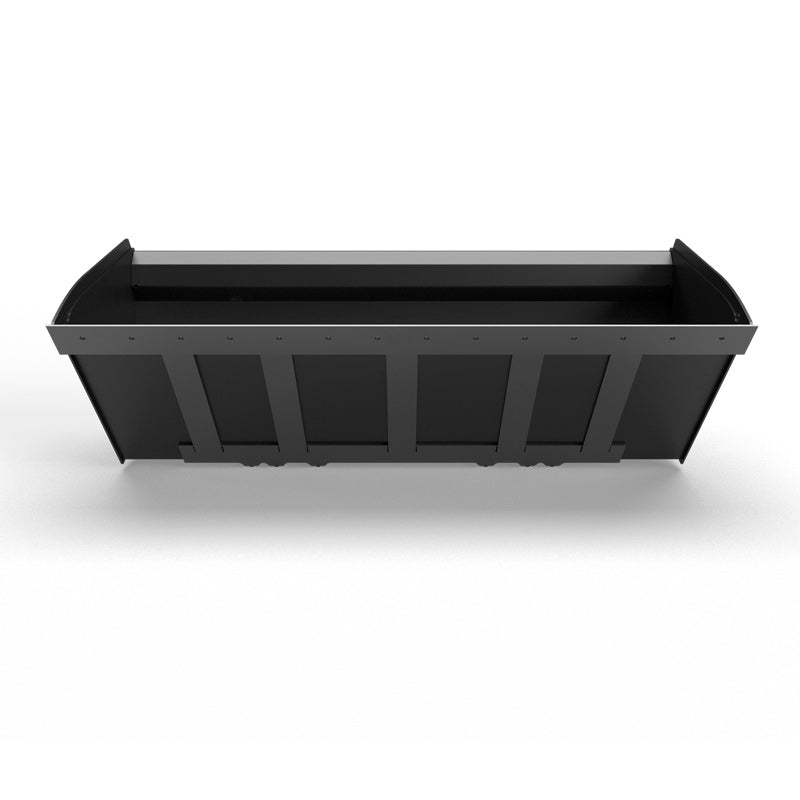

- Heavy-Duty Wear Bars Five 1/2" x 4" bars protect the bucket bottom under the heaviest workloads.
- Reliable Brand Reputation Built by Virnig, known for robust, high-performance loader attachments.
Detailed Specifications
| Feature | WHC72 | WHC78 |
|---|---|---|
| Overall Width (in) | 73.5 | 79.5 |
| Inside Width (in) | 71.3 | 77.3 |
| Overall Height (in) | 32.1 | 32.1 |
| Overall Depth (in) | 40.8 | 40.8 |
| Inside Depth (in) | 36.5 | 36.5 |
| Struck Capacity (cu ft / cu yd) | 27.0 / 1.0 | 29.3 / 1.08 |
| Heaped Capacity (cu ft / cu yd) | 32.4 / 1.20 | 35.2 / 1.30 |
| Shell / Side Plate Thickness (in) | 0.25 / 0.25 | 0.25 / 0.25 |
| Structural Wear Bars (1/2" x 4") | 5 | 5 |
| Approx. Weight (lbs) | 940 | 990 |
| Recommended Loader Capacity (lbs) | >1,800 | >1,800 |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Mount Type | Universal CWL Quick Attach | Universal CWL Quick Attach |
| Feature | WHC84 | WHC90 |
|---|---|---|
| Overall Width (in) | 85.5 | 91.5 |
| Inside Width (in) | 83.3 | 89.3 |
| Overall Height (in) | 32.1 | 32.1 |
| Overall Depth (in) | 40.8 | 40.8 |
| Inside Depth (in) | 36.5 | 36.5 |
| Struck Capacity (cu ft / cu yd) | 31.6 / 1.17 | 33.8 / 1.25 |
| Heaped Capacity (cu ft / cu yd) | 37.9 / 1.40 | 40.6 / 1.50 |
| Shell / Side Plate Thickness (in) | 0.25 / 0.25 | 0.25 / 0.25 |
| Structural Wear Bars (1/2" x 4") | 5 | 5 |
| Approx. Weight (lbs) | 1040 | 1100 |
| Recommended Loader Capacity (lbs) | >1,800 | >1,800 |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Mount Type | Universal CWL Quick Attach | Universal CWL Quick Attach |
| Feature | WHC96 | WHC101 |
|---|---|---|
| Overall Width (in) | 97.5 | 101.5 |
| Inside Width (in) | 95.3 | 99.3 |
| Overall Height (in) | 32.1 | 32.1 |
| Overall Depth (in) | 40.8 | 40.8 |
| Inside Depth (in) | 36.5 | 36.5 |
| Struck Capacity (cu ft / cu yd) | 36.1 / 1.34 | 37.6 / 1.40 |
| Heaped Capacity (cu ft / cu yd) | 43.3 / 1.60 | 45.1 / 1.68 |
| Shell / Side Plate Thickness (in) | 0.25 / 0.25 | 0.25 / 0.25 |
| Structural Wear Bars (1/2" x 4") | 5 | 5 |
| Approx. Weight (lbs) | 1150 | 1185 |
| Recommended Loader Capacity (lbs) | >1,800 | >1,800 |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Mount Type | Universal CWL Quick Attach | Universal CWL Quick Attach |
