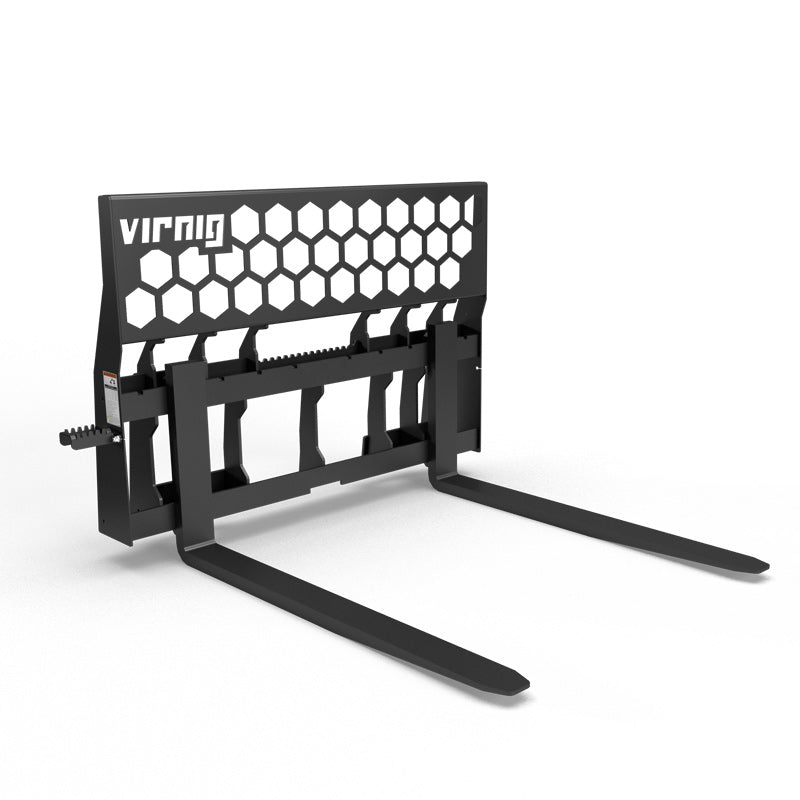

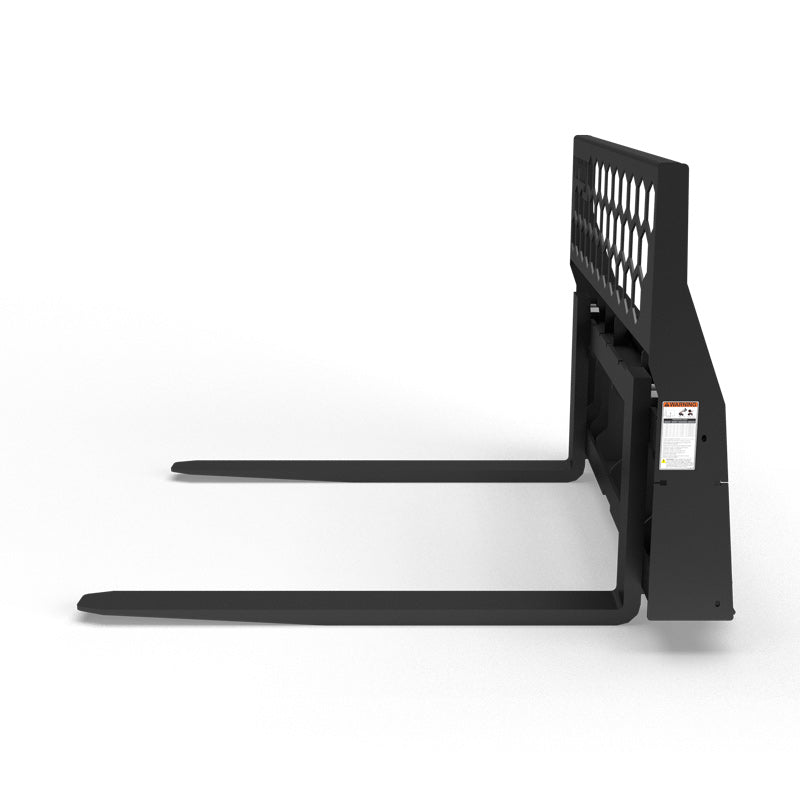

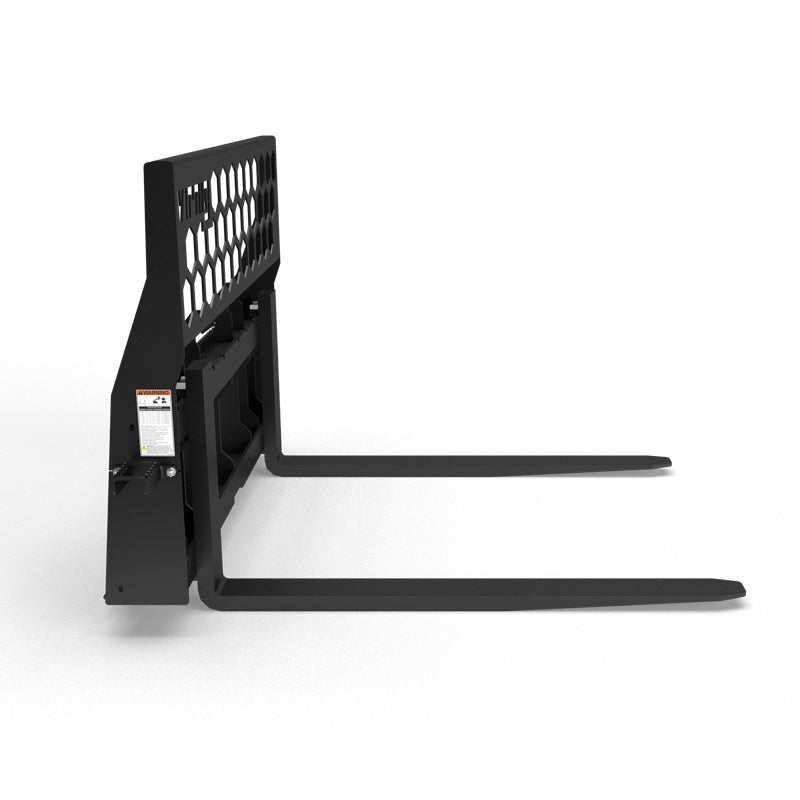

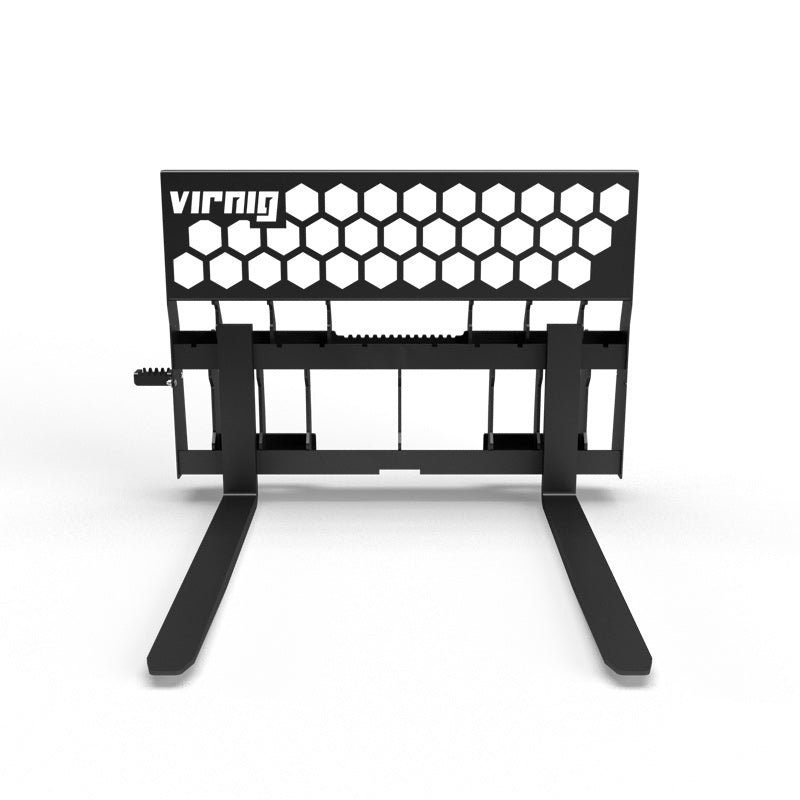

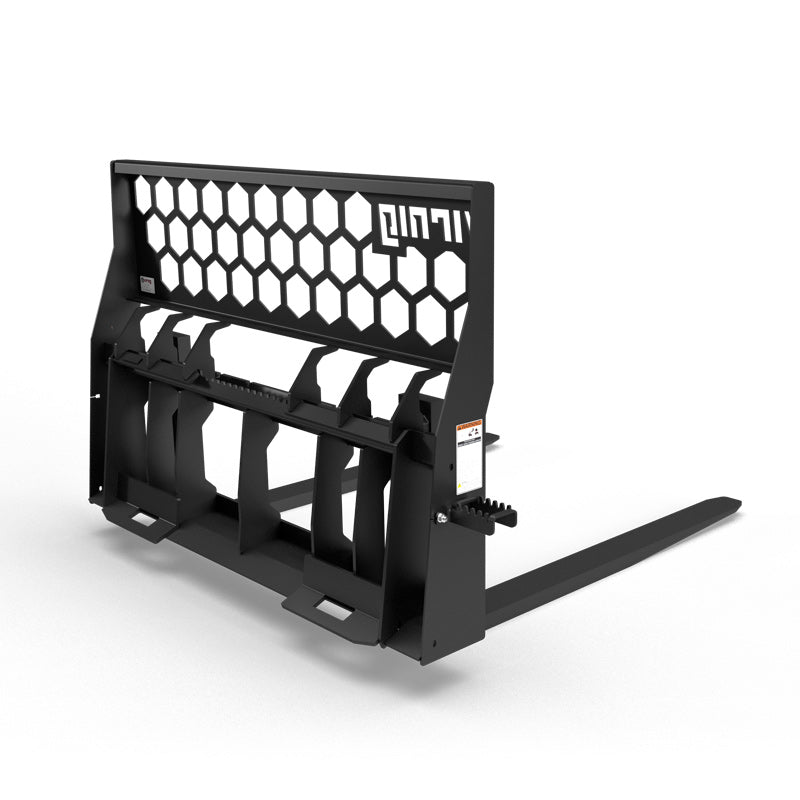

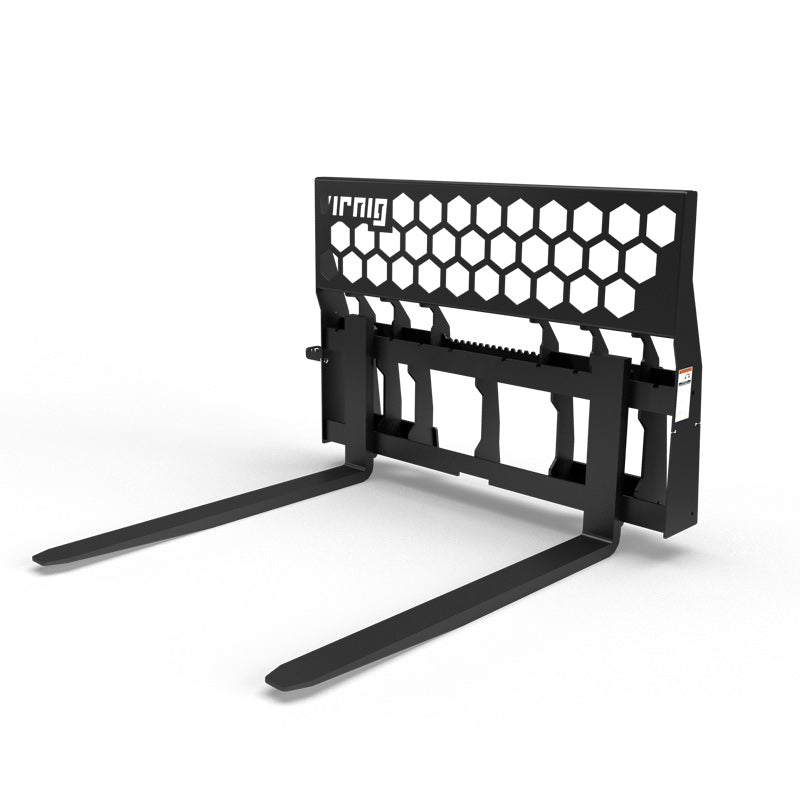

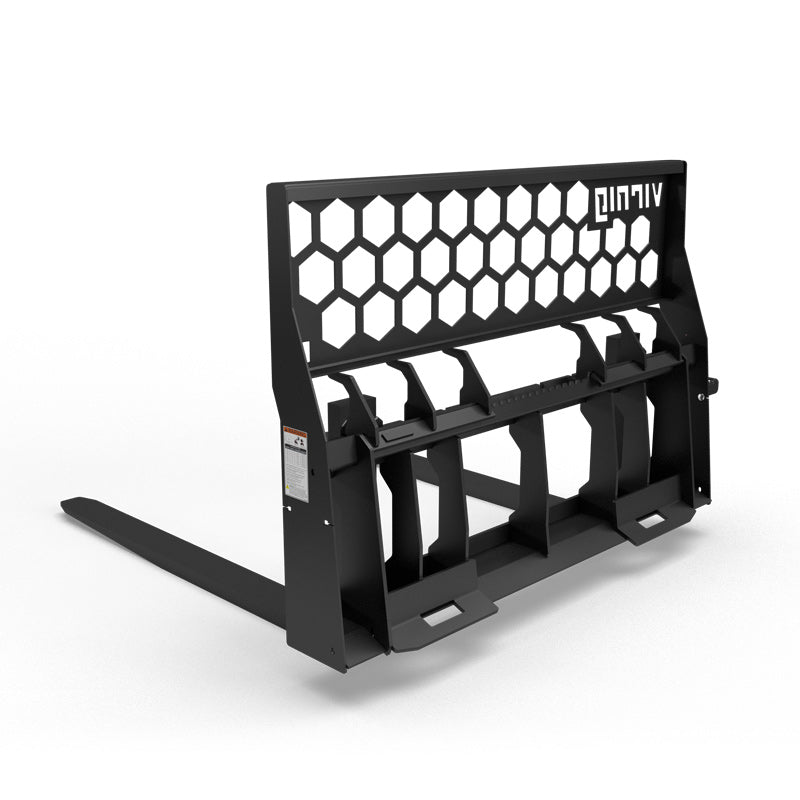

Virnig Wide Rail Pallet Fork: Hex-Guard | Models WPFHG4240 To WPFHG4862 | Tine Length 42" To 72" | Widths 54.5" To 59.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
Virnig Wide Rail Pallet Fork: Hex-Guard | Models WPFHG4240 To WPFHG4862 | Tine Length 42" To 72" | Widths 54.5" To 59.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
Regular price
$1,520.00
Regular price
Sale price
$1,520.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Virnig Wide Rail Pallet Fork: Hex-Guard | Models WPFHG4240 To WPFHG4862 | Tine Length 42" To 72" | Widths 54.5" To 59.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION
The Virnig Wide Rail Pallet Fork: Hex-Guard Series is engineered for operators who demand stability, durability, and precision when handling heavy pallets, lumber, pipe, construction materials, job-site supplies, and agricultural loads. Designed specifically for universal skid steer quick-tach systems, this attachment features a wider, reinforced rail that dramatically improves load control especially when moving tall, bulky, or uneven items.
Whether you're working in construction, farming, industrial yards, material handling, or landscaping, the Hex-Guard Wide Rail Pallet Fork delivers the strength and reliability you need day after day. With multiple tine sizes and lifting capacities up to 6,200 lb, it’s built to outperform typical pallet forks while giving operators superior visibility, confidence, and versatility.
This attachment requires no hydraulic power, making it compatible with virtually every skid steer new or old. And per manufacturer standards, we include the standardized spec note: Hydraulic Flow Range 15–25 GPM (not required for operation).
If you need a tougher fork, a more stable load position, and smoother material handling, this Virnig Hex-Guard model is the workhorse that keeps your operations moving.
Key Features
- Wide Rail Design for improved load stability when transporting tall, uneven, or heavy materials.
- Hex-Guard Upper Structure strengthens the frame and enhances operator visibility.
- Classic Virnig 3/16" Brickguard keeps loads secure and prevents shifting during travel.
- Beveled 3/4" Rail ensures easier tine adjustment and long-term durability.
- Brickguard Flush with Tines improves load control and helps maintain a stable center of gravity.
- Hydraulic Flow Range Compatible with machines delivering 15–25 GPM.
- ITA Class II Forged Tines provide industry-leading strength and reliability.
- Adjustable Tine Spacing (8.9"–49.1") to accommodate pallets, lumber, pipe, and oversized materials.
- Centered Bracing on Quick-Tach Plate for easy, fast attachment hookup.
- Bolt-On Step (both sides) allows safe and convenient skid steer entry.
- High-Capacity Models up to 6,200 lb for heavy commercial and industrial material handling.
- Optimized for Skid Steers with universal quick-tach compatibility.
- Balanced Frame Geometry for improved visibility and more precise load placement.
- Heavy-Duty Welded Construction ensures long-term performance in demanding job sites.
- Low-Maintenance Design with no hydraulic components required.
- Powder-Coated Finish for long-lasting corrosion resistance and professional appearance.
Detailed Specifications
| Specification | WPFHG4240 | WPFHG4840 |
|---|---|---|
| Overall Width (with Step/Frame) | 59.5 / 54.5 in | 59.5 / 54.5 in |
| Overall Height | 37.0 in | 37.0 in |
| Tine Length | 42.0 in | 48.0 in |
| Tine Width | 4.0 in | 4.0 in |
| Tine Thickness | 1.375 in | 1.375 in |
| Tine Space (Min / Max) | 8.9 / 49.1 in | 8.9 / 49.1 in |
| Approximate Weight | 385 lbs | 405 lbs |
| Load Capacity | 4,000 lbs | 4,000 lbs |
| Brickguard | 3/16" Classic Virnig | 3/16" Classic Virnig |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Beveled Rails | 3/4" | 3/4" |
| Adjustable ITA Class II Tines | Yes | Yes |
| Bolt-On Step | Yes | Yes |
| Quick-Tach Centered Bracing | Yes | Yes |
| Compatibility | Skid Steer | Skid Steer |
| Specification | WPFHG4255 | WPFHG4855 |
|---|---|---|
| Overall Width (with Step/Frame) | 59.5 / 54.5 in | 59.5 / 54.5 in |
| Overall Height | 37.0 in | 37.0 in |
| Tine Length | 42.0 in | 48.0 in |
| Tine Width | 4.0 in | 4.0 in |
| Tine Thickness | 1.5 in | 1.5 in |
| Tine Space (Min / Max) | 8.9 / 49.1 in | 8.9 / 49.1 in |
| Approximate Weight | 405 lbs | 420 lbs |
| Load Capacity | 5,500 lbs | 5,500 lbs |
| Brickguard | 3/16" Classic Virnig | 3/16" Classic Virnig |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Beveled Rails | 3/4" | 3/4" |
| Adjustable ITA Class II Tines | Yes | Yes |
| Bolt-On Step | Yes | Yes |
| Quick-Tach Centered Bracing | Yes | Yes |
| Compatibility | Skid Steer | Skid Steer |
| Specification | WPFHG6055 | WPFHG7255 |
|---|---|---|
| Overall Width (with Step/Frame) | 59.5 / 54.5 in | 72.0 / 67.0 in |
| Overall Height | 37.0 in | 37.0 in |
| Tine Length | 60.0 in | 72.0 in |
| Tine Width | 4.0 in | 4.0 in |
| Tine Thickness | 1.5 in | 1.5 in |
| Tine Space (Min / Max) | 8.9 / 49.1 in | 8.9 / 49.1 in |
| Approximate Weight | 455 lbs | 510 lbs |
| Load Capacity | 5,500 lbs | 6,200 lbs |
| Brickguard | 3/16" Classic Virnig | 3/16" Classic Virnig |
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Beveled Rails | 3/4" | 3/4" |
| Adjustable ITA Class II Tines | Yes | Yes |
| Bolt-On Step | Yes | Yes |
| Quick-Tach Centered Bracing | Yes | Yes |
| Compatibility | Skid Steer | Skid Steer |
| Specification | WPFHG4862 |
|---|---|
| Overall Width (with Step/Frame) | 59.5 / 54.5 in |
| Overall Height | 37.0 in |
| Tine Length | 48.0 in |
| Tine Width | 4.0 in |
| Tine Thickness | 1.75 in |
| Tine Space (Min / Max) | 8.9 / 49.1 in |
| Approximate Weight | 435 lbs |
| Load Capacity | 6,200 lbs |
| Brickguard | 3/16" Classic Virnig |
| Hydraulic Flow Range | 15–25 GPM |
| Beveled Rails | 3/4" |
| Adjustable ITA Class II Tines | Yes |
| Bolt-On Step | Yes |
| Quick-Tach Centered Bracing | Yes |
| Compatibility | Skid Steer |
