Product Description

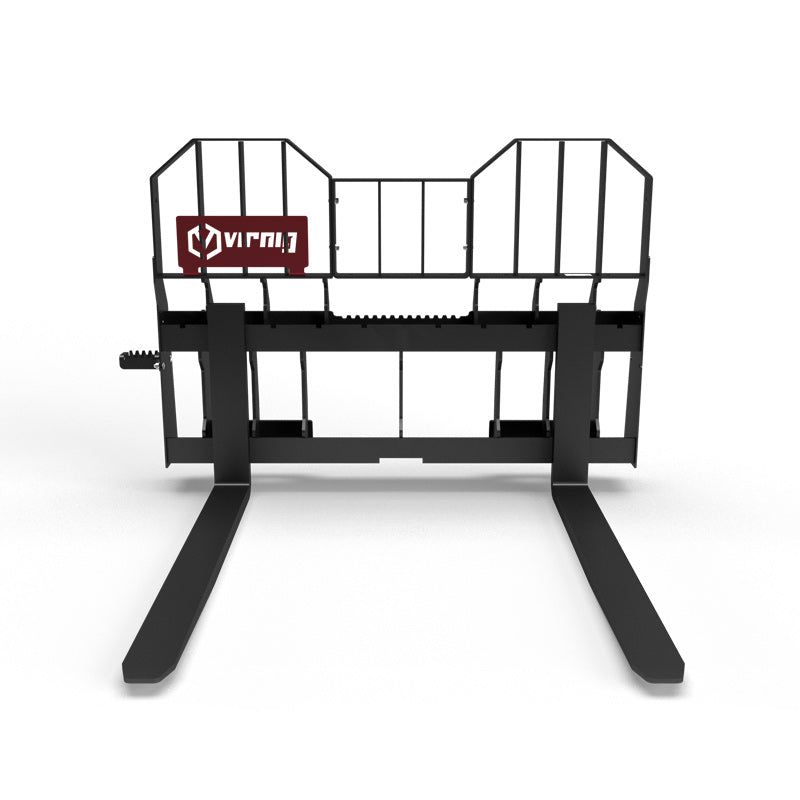

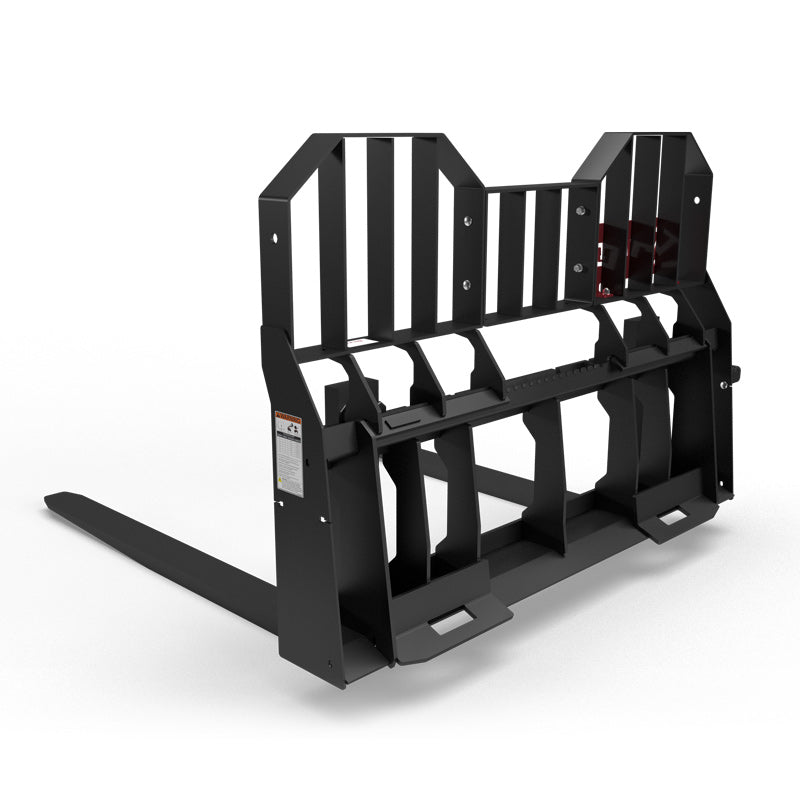

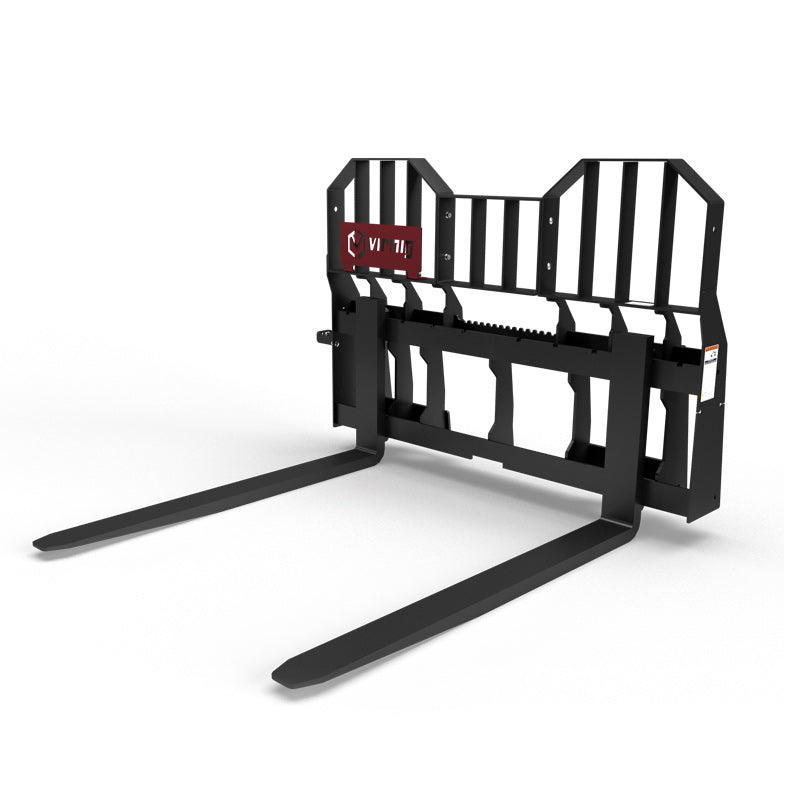

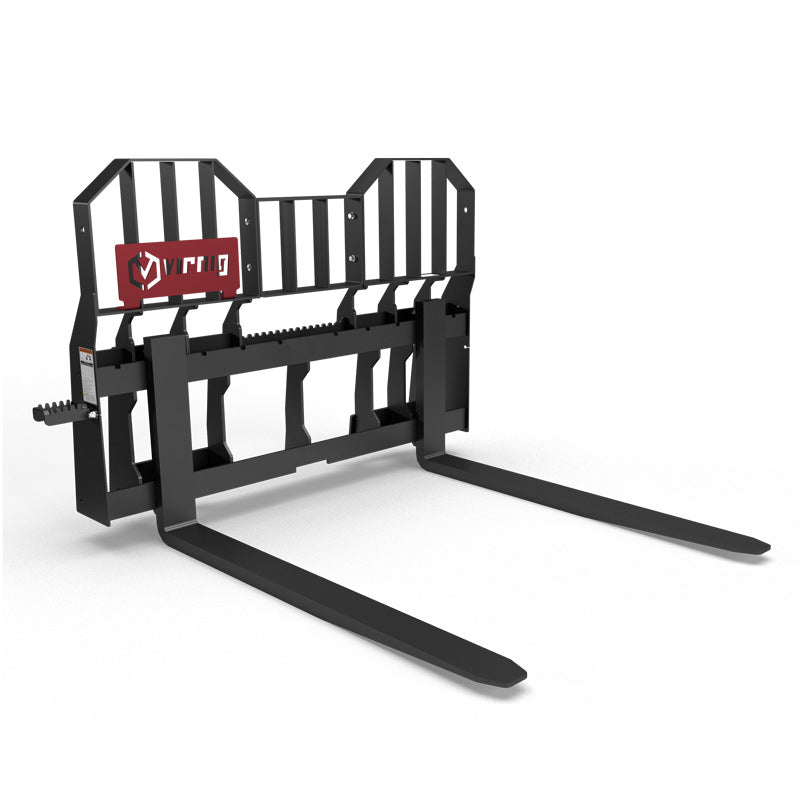

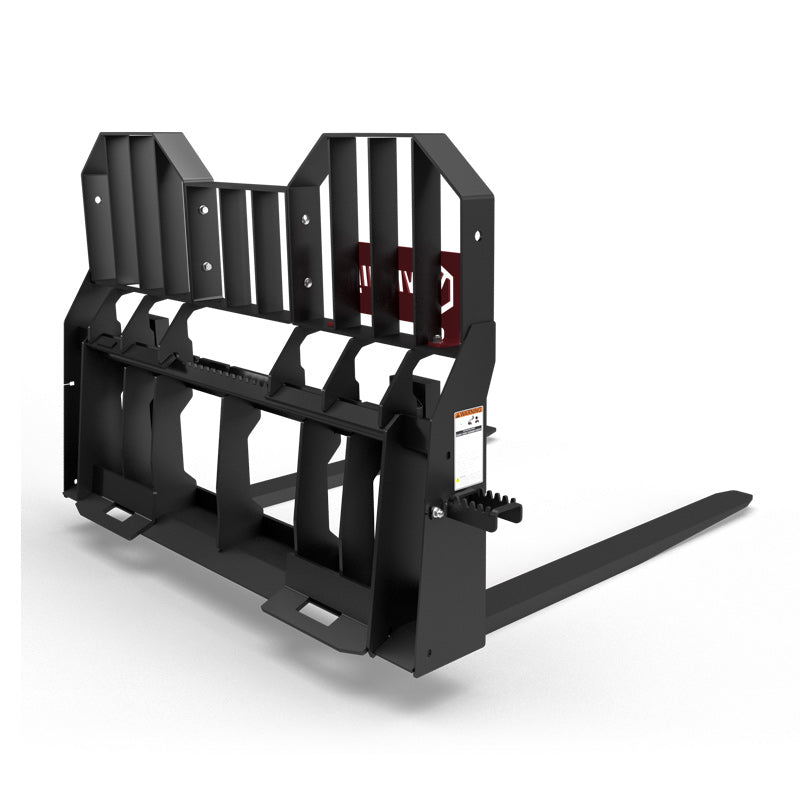

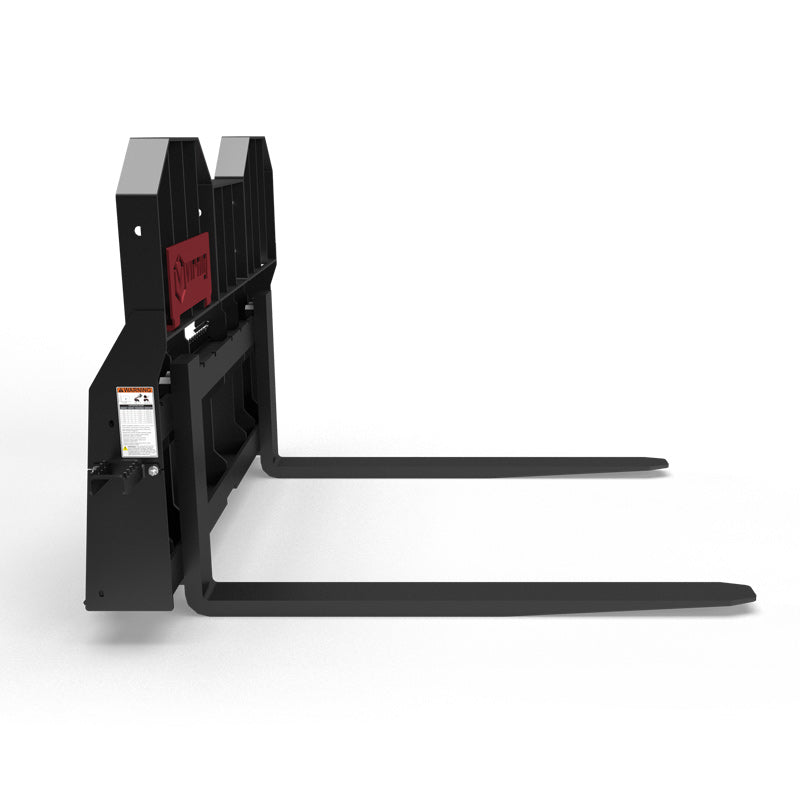

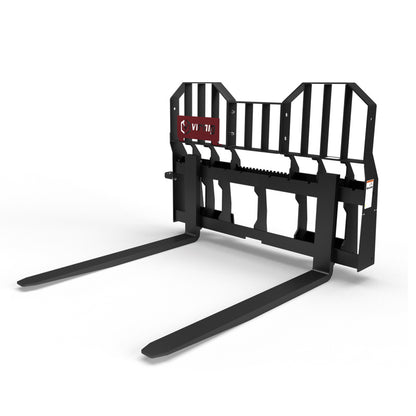

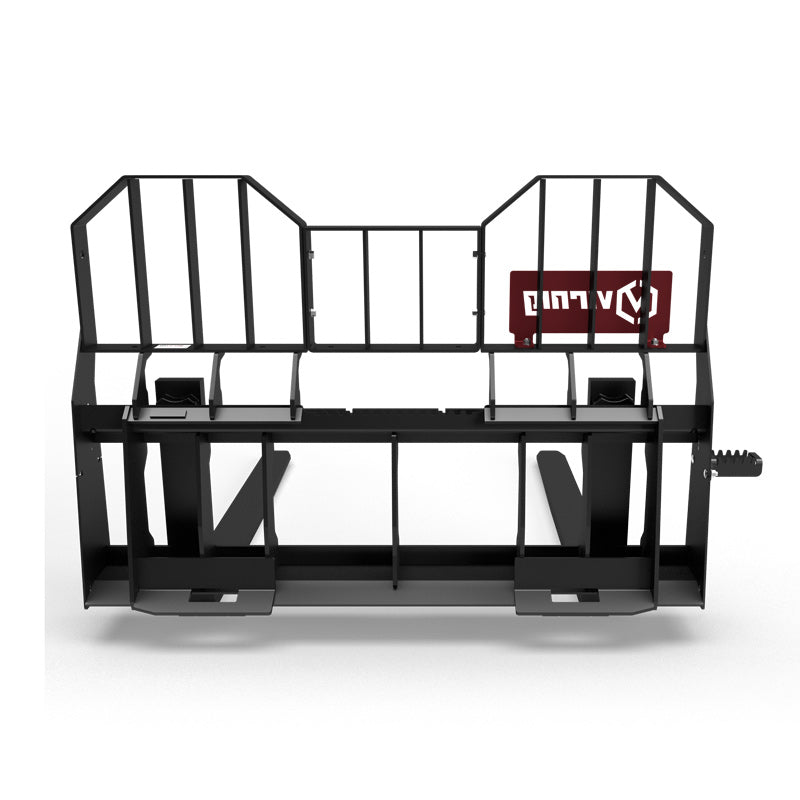

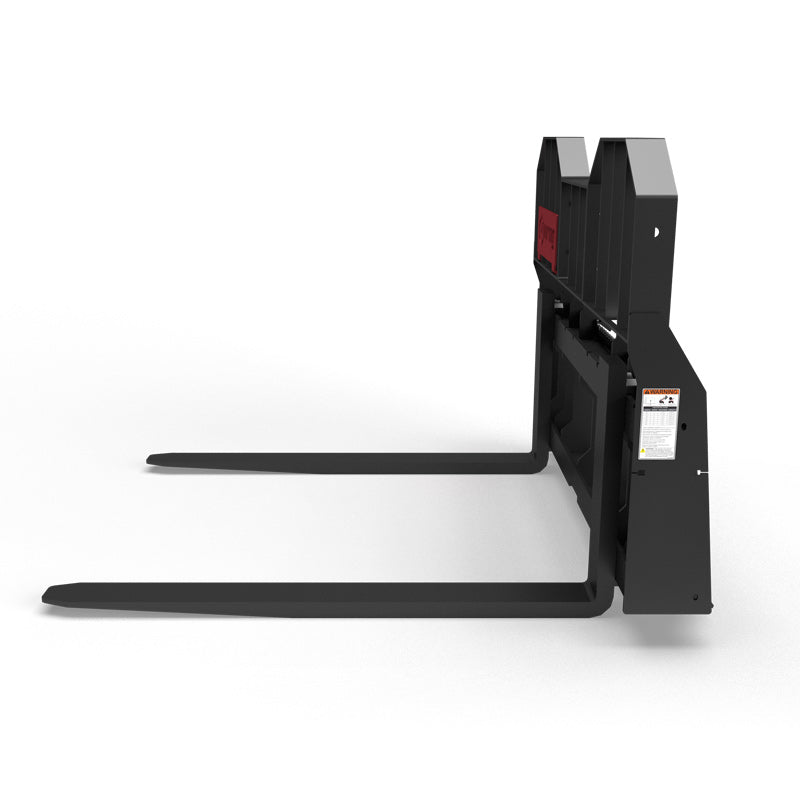

Virnig Wide Rail Pallet Fork: Hi-Vis | Models WPF4240 To WPF4862 | Tine Length 42" To 72" | Widths 54.5" To 59.5" | Hydraulic Flow 15 To 25 GPM | For Skid Steer
DESCRIPTION
Upgrade your skid steer’s lifting capabilities with the Virnig Wide Rail Pallet Fork, engineered for professional operators who demand strength, stability, and versatility. Designed with a wider rail for enhanced load control, these pallet forks make handling heavy pallets, construction materials, or landscaping supplies easier and safer than ever.
Featuring a high-visibility 1/4" brickguard flush with the tines, this attachment ensures your loads remain secure while offering a clear line of sight for precise placement. The 3/4" beveled rail adds rigidity, and the centered bracing on the quick-tach simplifies hookup and improves balance. Operators can also install the bolt-on step on either side, giving convenient access to the machine or attachment when needed.
Whether you’re moving bulky construction materials or stacking pallets in tight spaces, the Virnig Wide Rail Pallet Fork delivers unmatched durability, stability, and operational efficiency. Perfect for skid steer owners, construction professionals, and material handling specialists, it transforms your skid steer into a versatile workhorse.
Key Features
- Wider Rails for Maximum Stability Prevents tipping and improves control when lifting heavy loads.
- Adjustable ITA Class II Forged Tines Customize tine spacing for different pallet sizes or uneven loads.
- High-Visibility Brickguard Flush with tines for better visibility and safer load handling.
- Hydraulic Flow Range Compatible with machines delivering 15–25 GPM.
- Beveled Rail Design 3/4" rails provide superior strength and durability under heavy use.
- Quick-Tach Centered Bracing Easy hookup, balanced weight distribution, and secure attachment.
- Bolt-On Step Convenient access from either side for operator comfort and safety.
- Heavy-Duty Load Capacity Handles loads from 4,000 to 6,200 pounds depending on model.
- Optimized Tine Spacing Min 8.9" to Max 49.1" for flexible material handling.
- Precision Engineering Designed to maintain alignment under maximum loads.
- Durable Powder-Coated Finish Protects against rust and corrosion for long service life.
- Universal Skid Steer Compatibility Fits standard quick-tach systems for ease of use.
- Compact Overall Height 37" height allows for low-clearance applications.
- Lightweight Design Weighs 415–485 lbs for easier transport and installation.
- Step-Integrated Width Options Available widths: 42", 48", 60" to match your skid steer size.
- Versatile Application Ideal for construction, agriculture, landscaping, and warehouse use.
Detailed Specifications
| Specification | WPF4240 | WPF4840 |
|---|---|---|
| Width (Overall w/ Step/Frame) | 59.5" / 54.5" | 59.5" / 54.5" |
| Overall Height | 37.0" | 37.0" |
| Tine Length | 42.0" | 48.0" |
| Tine Width | 4.0" | 4.0" |
| Tine Thickness | 1.375" | 1.375" |
| Tine Space Min | 8.9" | 8.9" |
| Tine Space Max | 49.1" | 49.1" |
| Approximate Weight | 415 lbs | 435 lbs |
| Load Capacity | 4,000 lbs | 4,000 lbs |
| Horsepower Required | ≥50 HP | ≥50 HP |
| Hydraulic Flow | 15–25 GPM | 15–25 GPM |
| Specification | WPF4255 | WPF4855 |
|---|---|---|
| Width (Overall w/ Step/Frame) | 59.5" / 54.5" | 59.5" / 54.5" |
| Overall Height | 37.0" | 37.0" |
| Tine Length | 42.0" | 48.0" |
| Tine Width | 4.0" | 4.0" |
| Tine Thickness | 1.5" | 1.5" |
| Tine Space Min | 8.9" | 8.9" |
| Tine Space Max | 49.1" | 49.1" |
| Approximate Weight | 435 lbs | 450 lbs |
| Load Capacity | 5,500 lbs | 5,500 lbs |
| Horsepower Required | ≥50 HP | ≥50 HP |
| Hydraulic Flow | 15–25 GPM | 15–25 GPM |
| Specification | WPF6055 | WPF7255 |
|---|---|---|
| Width (Overall w/ Step/Frame) | 59.5" / 54.5" | 72.0" / 67.0" |
| Overall Height | 37.0" | 37.0" |
| Tine Length | 60.0" | 72.0" |
| Tine Width | 4.0" | 4.0" |
| Tine Thickness | 1.5" | 1.5" |
| Tine Space Min | 8.9" | 8.9" |
| Tine Space Max | 49.1" | 49.1" |
| Approximate Weight | 485 lbs | 500 lbs |
| Load Capacity | 5,500 lbs | 6,000 lbs |
| Horsepower Required | ≥50 HP | ≥50 HP |
| Hydraulic Flow | 15–25 GPM | 15–25 GPM |
| Specification | WPF4862 |
|---|---|
| Width (Overall w/ Step/Frame) | 59.5" / 54.5" |
| Overall Height | 37.0" |
| Tine Length | 48.0" |
| Tine Width | 4.0" |
| Tine Thickness | 1.75" |
| Tine Space Min | 8.9" |
| Tine Space Max | 49.1" |
| Approximate Weight | 465 lbs |
| Load Capacity | 6,200 lbs |
| Horsepower Required | ≥50 HP |
| Hydraulic Flow | 15–25 GPM |
