Product Description
Virnig X30 Mini Excavator Auger Drives | Models AUG30VGHXC To AUGHT36VGHXC | Widths 10.8" To 11.5" | Machine Size 3 to 5 Ton | For Mini Excavators
DESCRIPTION

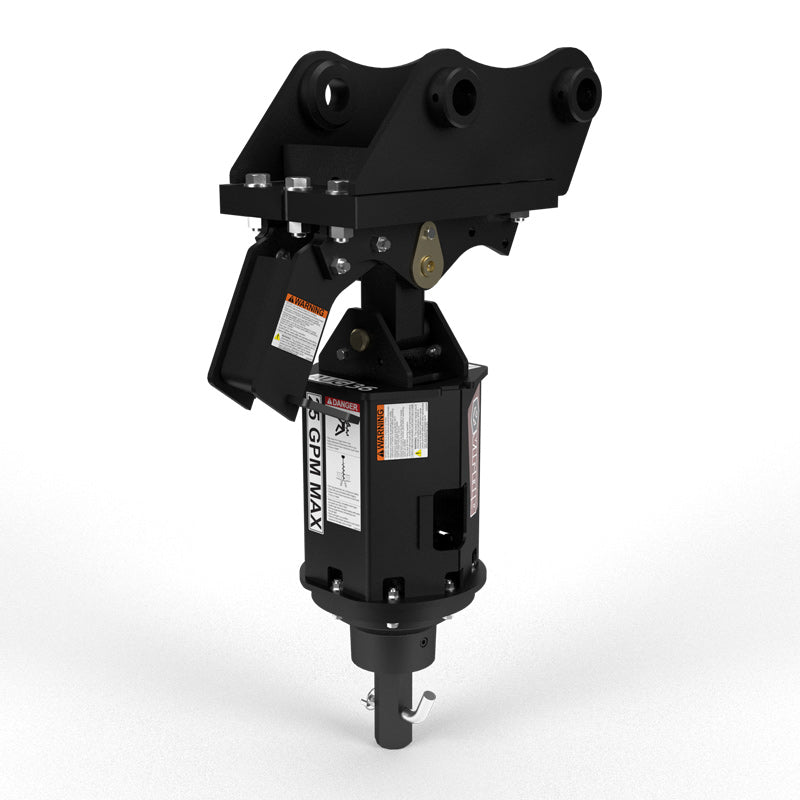

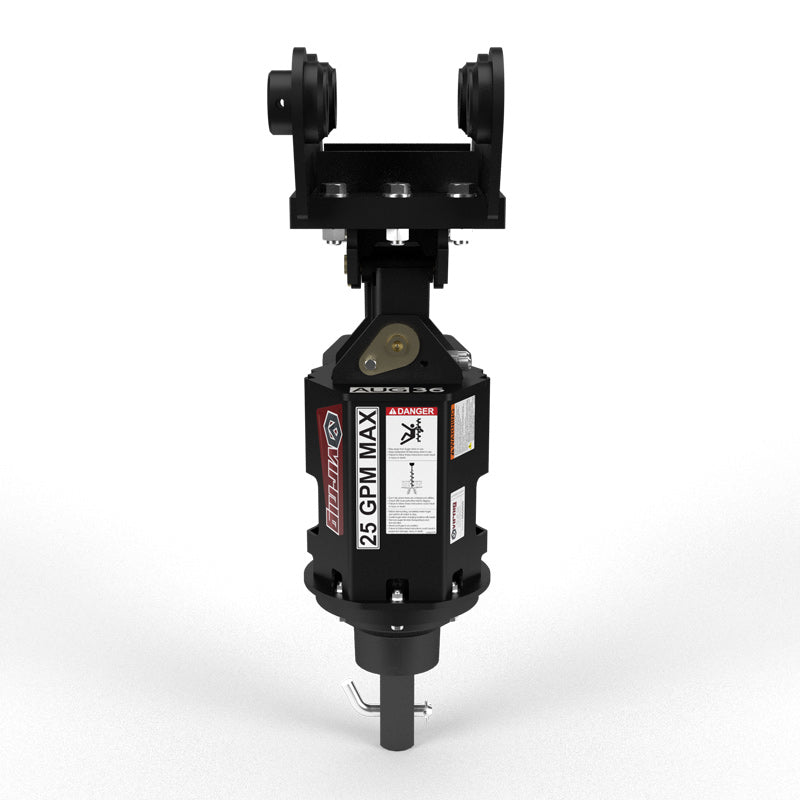

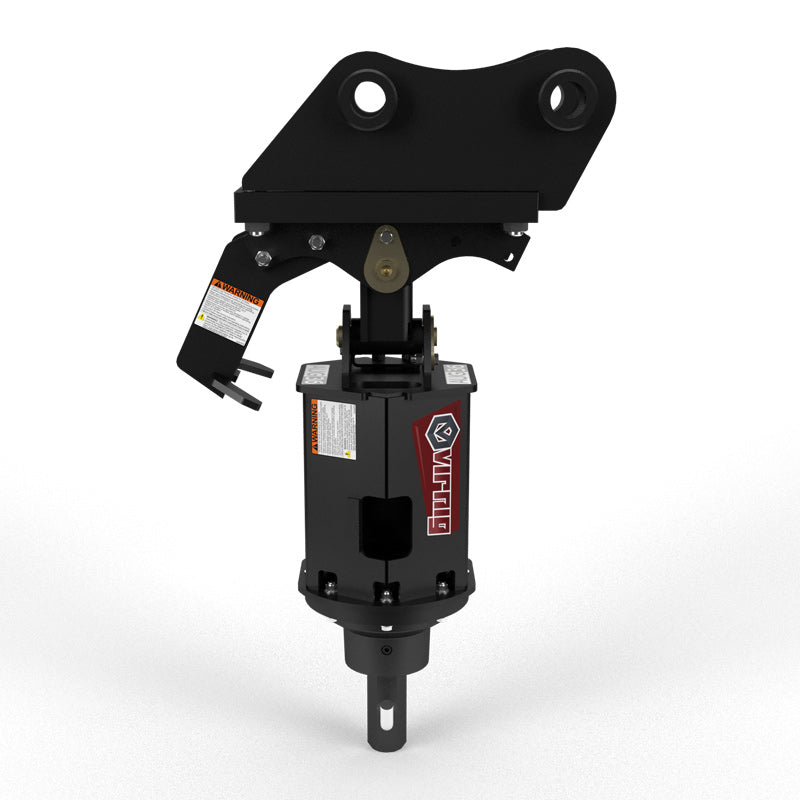

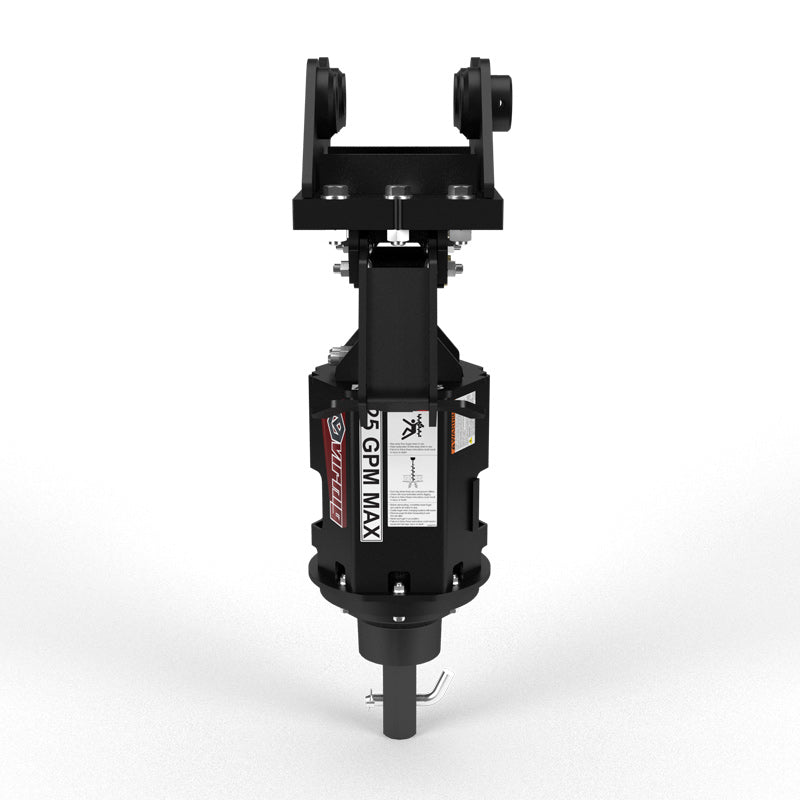

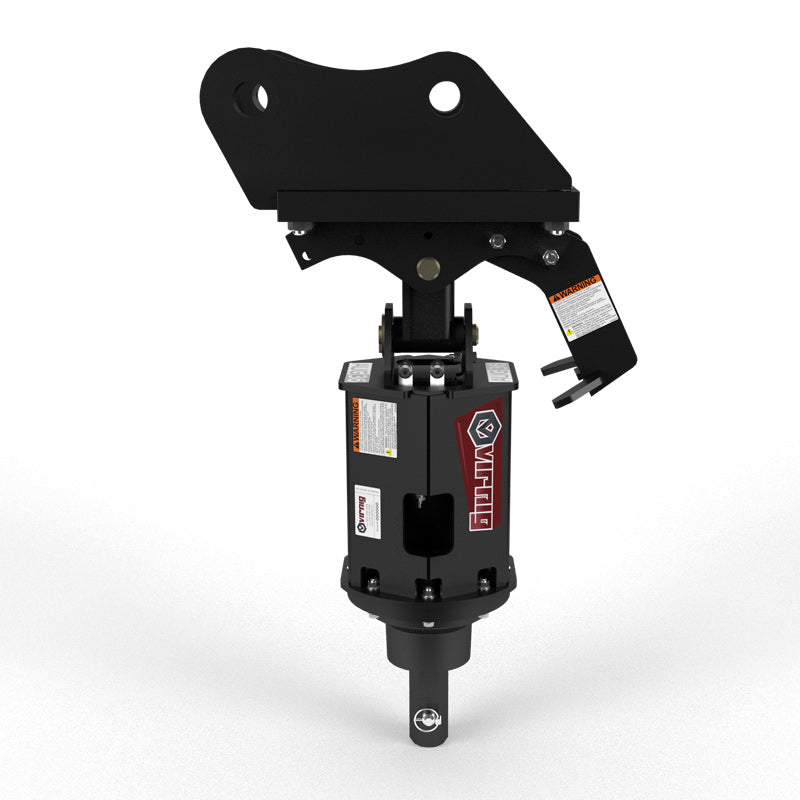

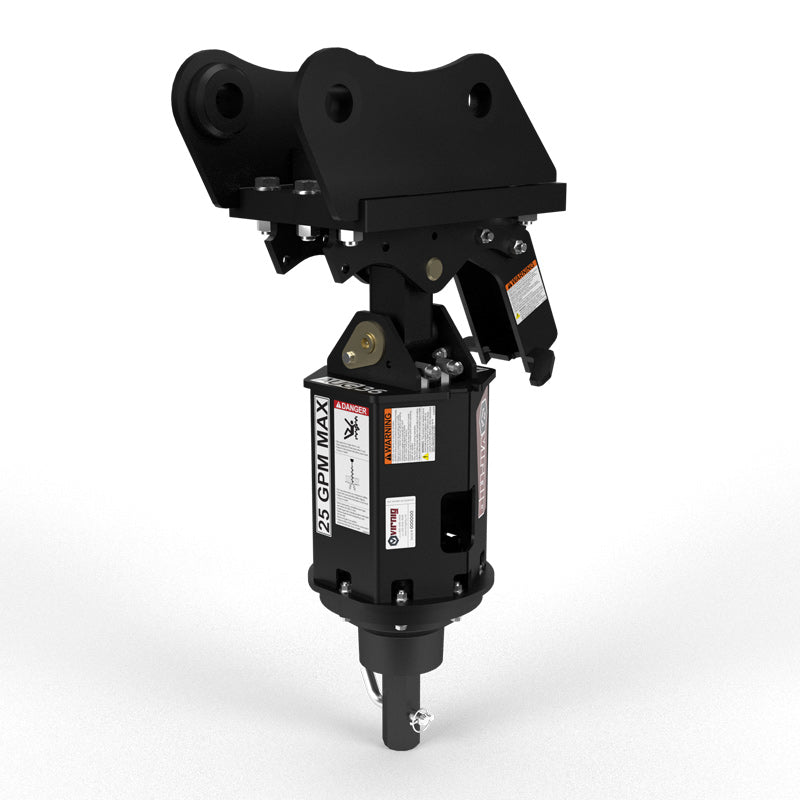

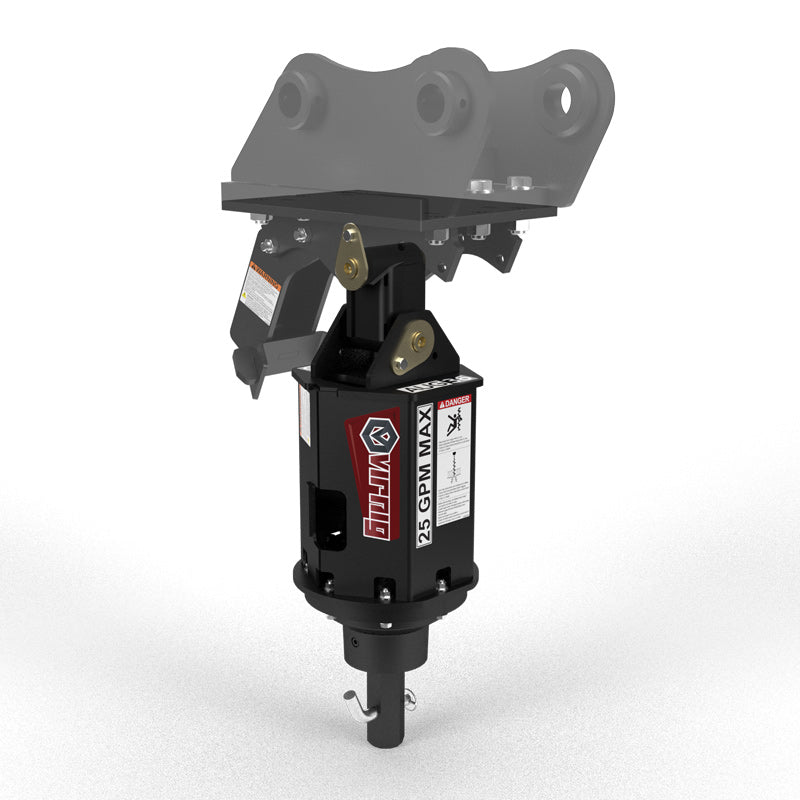

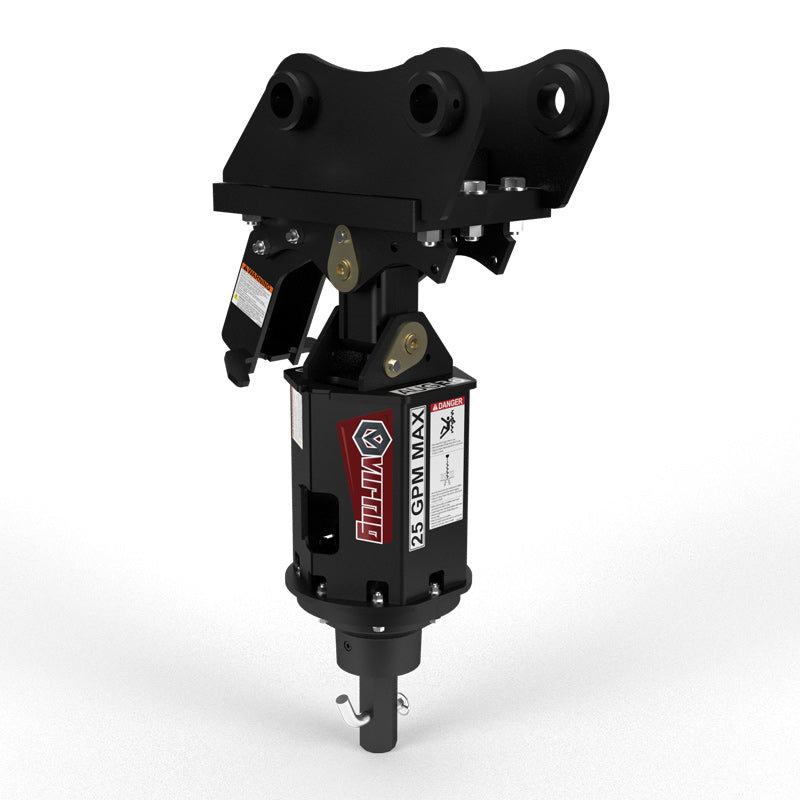

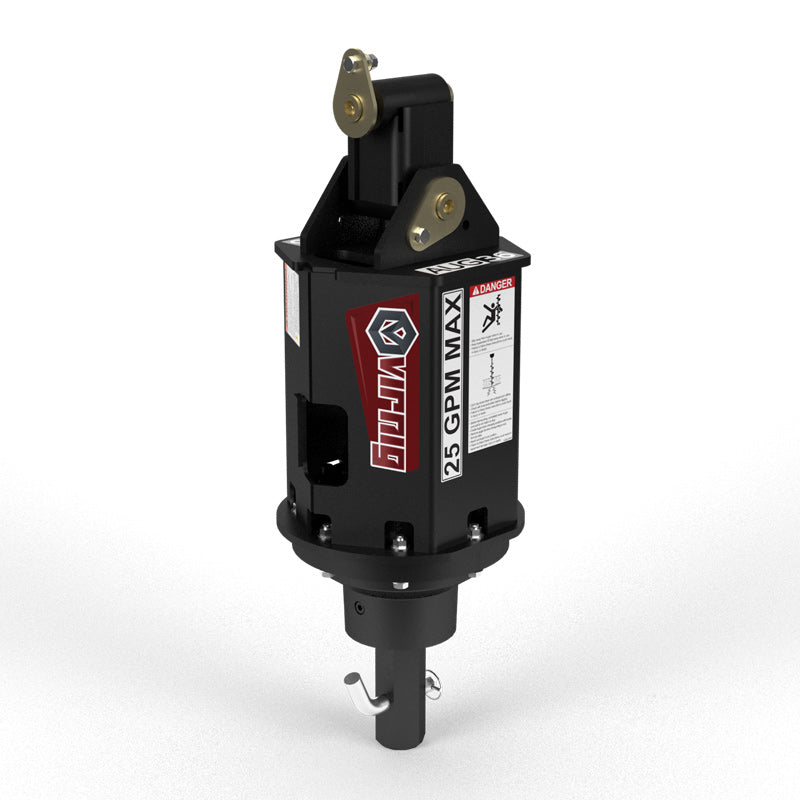

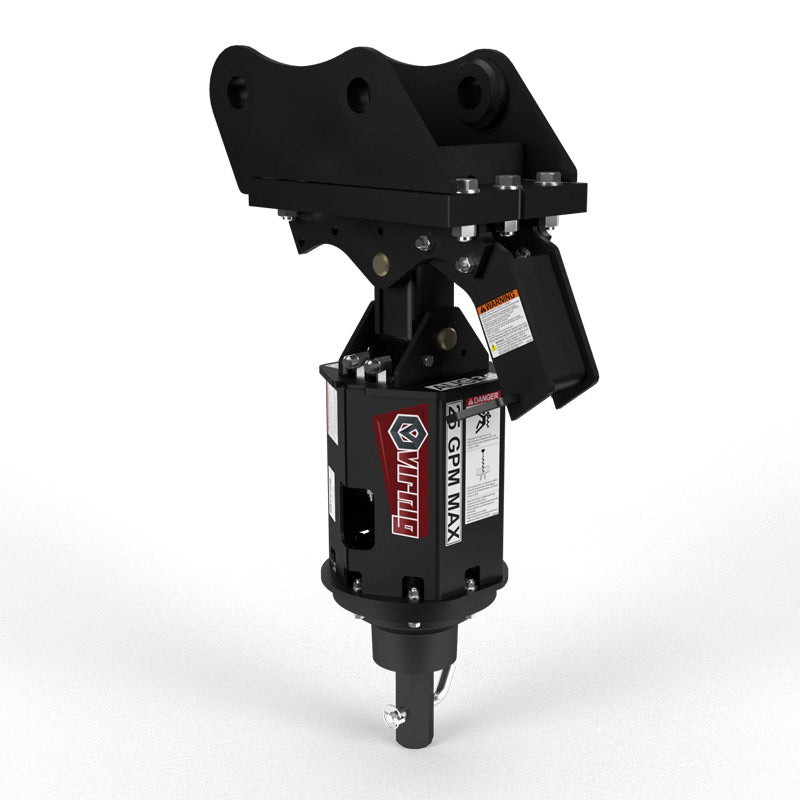

The Virnig X30 & X36 Mini Excavator Auger Drives are high-performance attachments designed to enhance your mini excavator's capabilities for precision drilling and tough digging tasks. Available in multiple configurations, including the AUG30VGHXC, AUG30VGRXC, AUG36VGHXC, AUG36VGRXC, and AUGHT36VGHXC, these auger drives provide excellent torque and speed for a range of applications, from post-hole digging to heavy-duty foundation work.
Engineered for mini excavators ranging from 3 to 5 tons, these augers feature advanced hydraulic systems that support an impressive hydraulic flow range of 10-27 GPM, ensuring maximum efficiency regardless of your machine's size. The planetary reduction system maximizes torque, while the top-hose routing allows for deep, consistent drilling, even with larger bits up to 36 inches in diameter.
With bi-directional rotation, enhanced torque for challenging conditions, and multiple mounting options, these auger drives offer unparalleled versatility for construction, landscaping, and utility work. Whether you're working in rocky soil, digging for fence posts, or preparing holes for large plants or foundations, the Virnig X30 & X36 Mini Excavator Auger Drives are built to tackle any job with ease.
Key Features
- High-Torque Performance: Planetary reduction system ensures maximum torque for heavy-duty drilling, especially in tough soil and rock conditions.
- Hydraulic Flow Efficiency: Compatible with hydraulic flows ranging from 10 to 27 GPM, maximizing efficiency based on machine size and job needs.
- Versatile Mounting Options: Designed for mini excavators from 3 to 5 tons, but also interchangeable with skid steers and mini skid steers, allowing for flexibility across different machines.
- Bi-Directional Auger Rotation: Allows the auger to rotate in both directions, providing better control and efficiency for deeper, cleaner holes.
- Deep Drilling Capabilities: Hose routing from the top of the housing enables deeper drilling with 12" diameter bits for a wider range of projects.
- Auger Bit Compatibility: Supports auger bits up to 36 inches in diameter, perfect for a variety of construction, landscaping, and utility tasks.
- Durable Design: Built to withstand the rigors of tough working conditions, offering reliability and extended life on the job site.
- Improved Torque Output: The AUGHT36 model provides up to 20% more torque for heavy-duty conditions, ensuring top performance even in hard soils and rocks.
- Optimized Speed and Power: Offers efficient RPM at various hydraulic flows to ensure a balance between speed and torque depending on your project's needs.
- Heavy-Duty Hydraulic Motor: Direct drive with hydraulic pressure relief protection ensures safe, continuous operation.
- Multiple Size Options: Choose between AUG30 and AUG36 for different drilling needs, with options providing up to 36" auger size.
- Compact Yet Powerful: Weighing between 150 lbs and 175 lbs, these augers are lightweight yet provide high-performance drilling capability.
- Reduced Maintenance: The robust planetary gearing ensures longer service life with less wear, reducing maintenance costs.

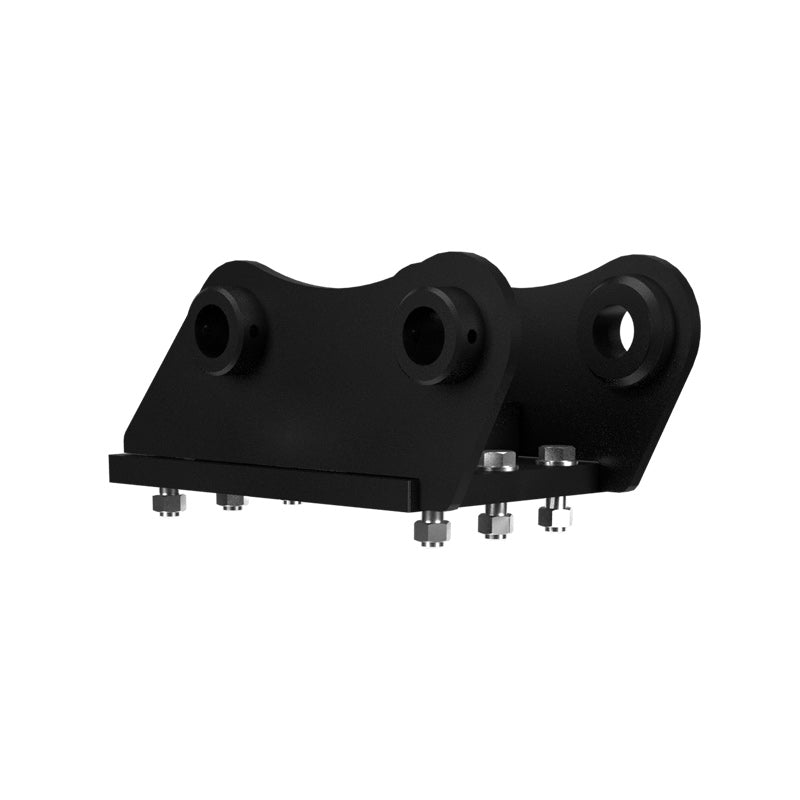

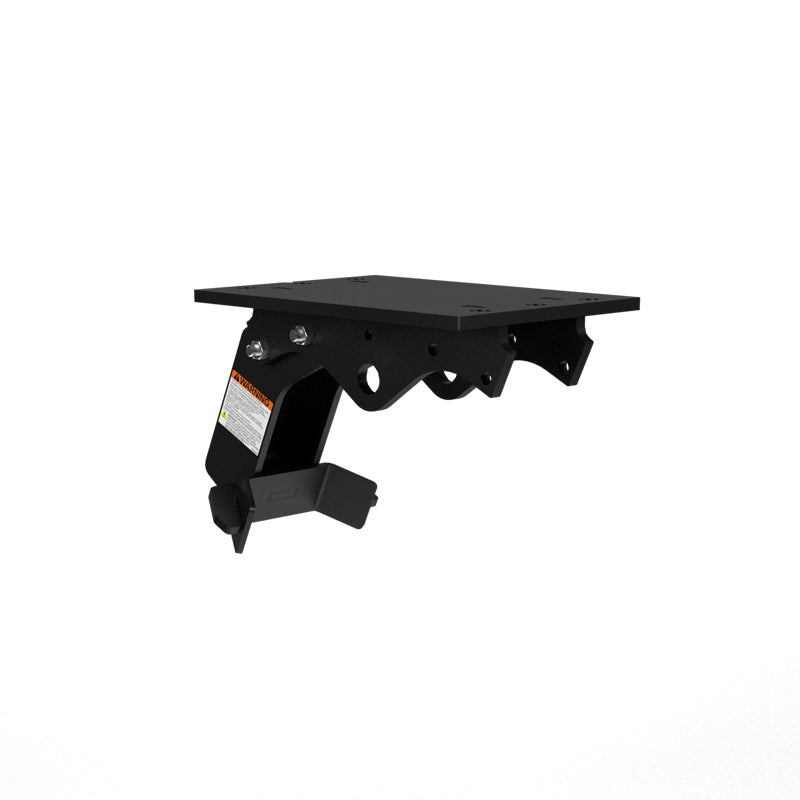

- Quick Installation: Mounts easily to your machine with various mounting bracket options available for seamless integration.

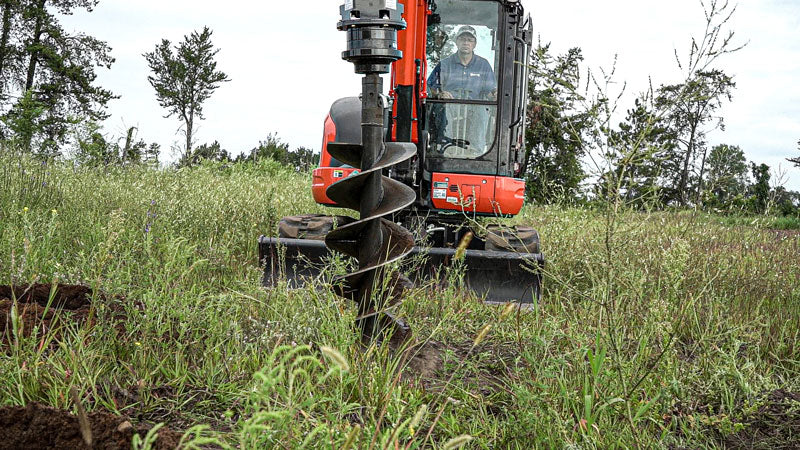

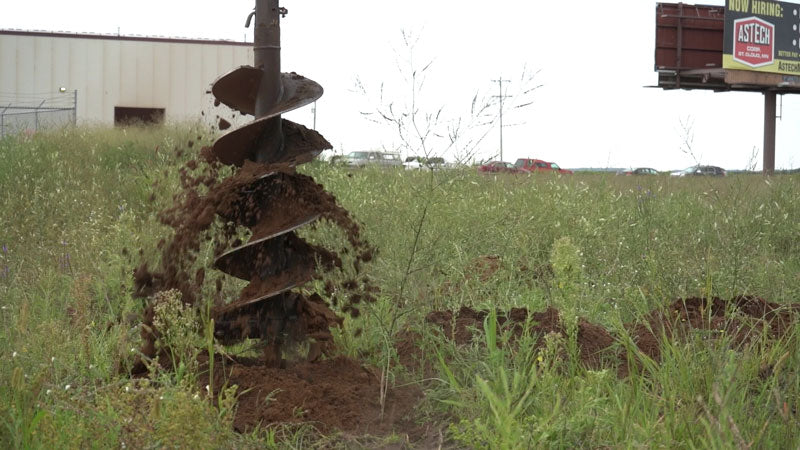

- Perfect for Multi-Application Use: Ideal for digging holes for posts, trees, foundations, and more, across landscaping, construction, and utility jobs.
Detailed Specifications
| Feature | AUG30VGHXC | AUG30VGRXC |
|---|---|---|
| Machine Compatibility | Mini Excavators (3-Ton) | Mini Excavators (3-Ton) |
| Overall Dimensions (Height/Width) | 26.3" / 10.8" | 25.1" / 10.8" |
| Maximum Auger Bit Size (Standard) | 30" | 30" |
| Maximum Auger Bit Size (Rock) | 12" | 12" |
| Recommended Hydraulic Flow | 10-18 GPM | 10-18 GPM |
| Output Shaft Options | 2" Hex & 2 9/16" Round | 2" Hex & 2 9/16" Round |
| Output Torque @ 2000 PSI (ft-lbs) | 1,470 | 1,470 |
| Output Torque @ 2500 PSI (ft-lbs) | 1,835 | 1,835 |
| Output Torque @ 3000 PSI (ft-lbs) | 2,205 | 2,205 |
| Output Torque @ 3500 PSI (ft-lbs) | 2,570 | 2,570 |
| Output Speed @ 16 GPM (RPM) | 67 RPM | 67 RPM |
| Output Speed @ 20 GPM (RPM) | 67 RPM | 67 RPM |
| Output Speed @ 24 GPM (RPM) | 81 RPM | 81 RPM |
| Approximate Weight | 150 lbs | 150 lbs |
| Mounting Options | Universal Mini-Ex, Skid Steer | Mini-Ex, Skid Steer |
| Hose Routing | Top of Housing | Top of Housing |
| Feature | AUG36VGHXC | AUG36VGRXC |
|---|---|---|
| Machine Compatibility | Mini Excavators (3-5 Tons) | Mini Excavators (3-5 Tons) |
| Overall Dimensions (Height/Width) | 27.0" / 11.5" | 25.1" / 10.8" |
| Maximum Auger Bit Size (Standard) | 36" | 36" |
| Maximum Auger Bit Size (Rock) | 18" | 18" |
| Recommended Hydraulic Flow | 15-25 GPM | 15-25 GPM |
| Output Shaft Options | 2" Hex | 2" Hex & 2 9/16" Round |
| Output Torque @ 2000 PSI (ft-lbs) | 1,820 | 1,820 |
| Output Torque @ 2500 PSI (ft-lbs) | 2,275 | 2,275 |
| Output Torque @ 3000 PSI (ft-lbs) | 2,730 | 2,730 |
| Output Torque @ 3500 PSI (ft-lbs) | 3,190 | 3,190 |
| Output Speed @ 16 GPM (RPM) | 54 RPM | 54 RPM |
| Output Speed @ 20 GPM (RPM) | 67 RPM | 67 RPM |
| Output Speed @ 24 GPM (RPM) | 81 RPM | 81 RPM |
| Approximate Weight | 150 lbs | 150 lbs |
| Mounting Options | Universal Mini-Ex, Skid Steer | Mini-Ex, Skid Steer |
| Hose Routing | Top of Housing | Top of Housing |
| Feature | AUGHT36VGHXC |
|---|---|
| Machine Compatibility | Mini Excavators (3-5 Tons) |
| Overall Dimensions (Height/Width) | 27.0" / 11.5" |
| Maximum Auger Bit Size (Standard) | 36" |
| Maximum Auger Bit Size (Rock) | 18" |
| Recommended Hydraulic Flow | 15-27 GPM |
| Output Shaft Options | 2" Hex |
| Output Torque @ 2000 PSI (ft-lbs) | 2,230 |
| Output Torque @ 2500 PSI (ft-lbs) | 2,790 |
| Output Torque @ 3000 PSI (ft-lbs) | 3,345 |
| Output Torque @ 3500 PSI (ft-lbs) | 3,905 |
| Output Speed @ 16 GPM (RPM) | 44 RPM |
| Output Speed @ 20 GPM (RPM) | 55 RPM |
| Output Speed @ 24 GPM (RPM) | 66 RPM |
| Approximate Weight | 175 lbs |
| Mounting Options | Mini-Ex, Skid Steer |
| Hose Routing | Top of Housing |
