QuietKat Voyager E-Bike 750W Motor | 11.6AH/48V Battery
QuietKat Voyager E-Bike 750W Motor | 11.6AH/48V Battery
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
QuietKat Voyager E-Bike 750W Motor | 11.6AH/48V Battery
DESCRIPTION

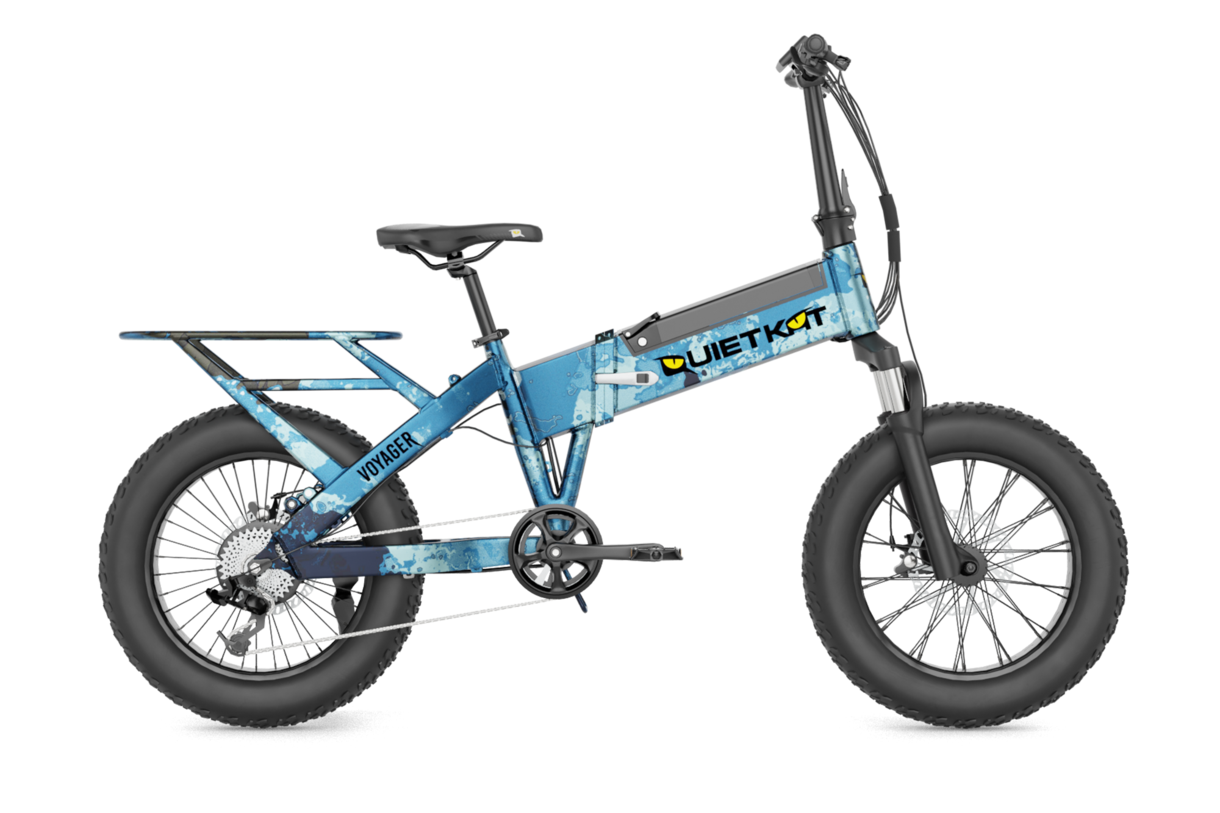

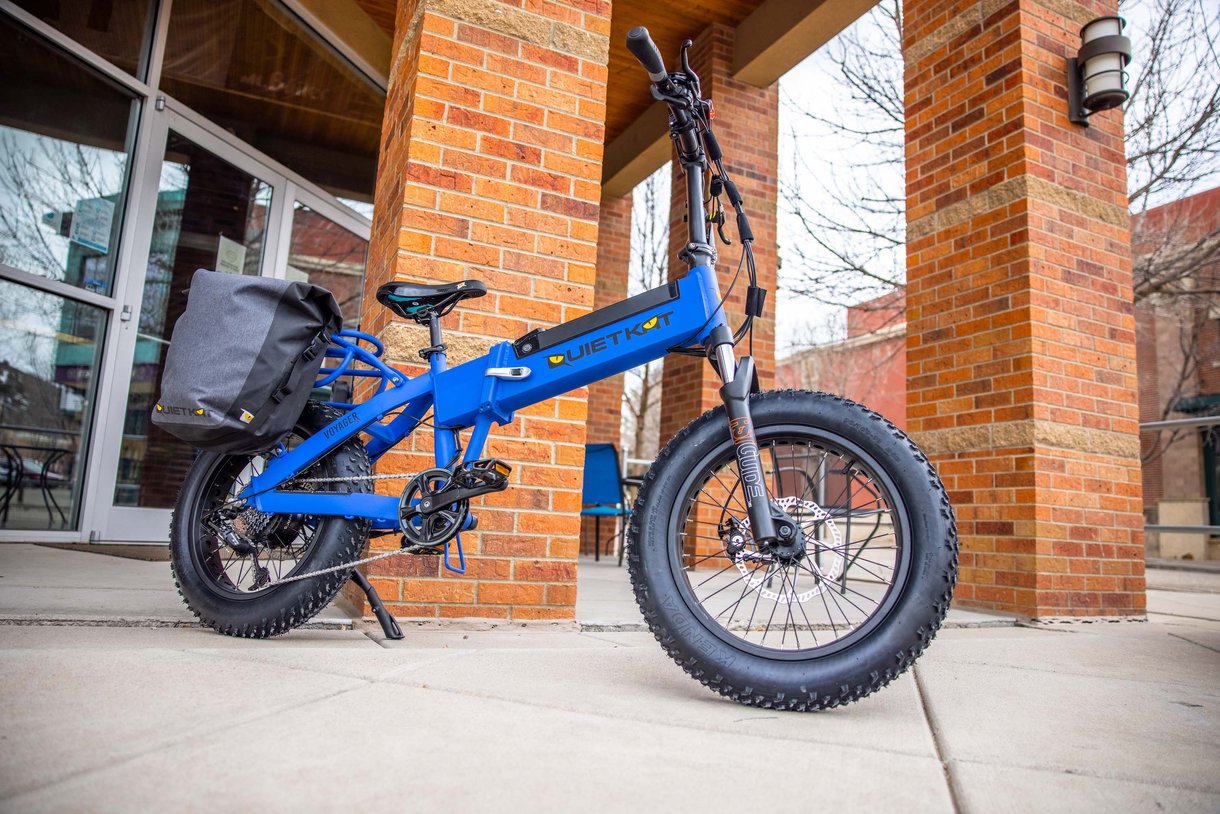

The QuietKat Voyager Folding Electric Bike is the ultimate portable eBike, perfect for travel, commuting, and outdoor adventures. With its compact, collapsible design, the Voyager fits easily into RVs, boats, cars, or storage spaces, making it an ideal companion for on-the-go lifestyles.
Powered by a robust 750W hub drive motor, the Voyager can reach speeds up to 25 mph and offers five pedal assist modes and throttle for effortless navigation across varied terrains. Equipped with durable 20"x4" Kenda Krusade fat tires and a 100mm coil suspension fork, the Voyager provides stability and comfort on rough paths, dirt trails, and rocky roads.
Built for heavy-duty use, the Voyager supports up to 325 lbs, making it perfect for hauling cargo or attaching accessories like trailers. With its SRAM 7-speed drivetrain, advanced braking system, and compact folding design, the Voyager is as versatile as it is reliable.
Key Features
- Folding Design: Collapsible frame and steering column for portability and easy storage.
- Powerful Motor: 750W hub drive motor for speeds up to 25 mph with throttle and pedal assist options.
- Fat Tires: 20"x4" Kenda Krusade tires for stability and traction on varied terrains.
- Heavy Load Capacity: Supports up to 325 lbs, ideal for gear, hunting, or heavy-duty applications.
- Reliable Brakes: Two-piston mechanical disc brakes with 203mm rotors for confident stopping power.
- Compact and Portable: The Voyager is the ultimate foldable electric bike. The folding frame and steering column allow it to fold up small and fit most cars and SUVs. It easily collapses for easy storage in an RV, boat, or even in the shed.
- High-performance package: The performance level component package includes a coil-sprung 100 mm suspension fork as well as two-piston mechanical disc brakes with 203 mm rotors.
- 7 Speeds: A seven-speed drivetrain can easily be converted to a single speed for simple, easy maintenance.
- Advanced braking: Two-piston mechanical disc brakes allow you to safely descend with confidence.
- Top-quality motor: The 750W hub drive motor with five modes of assisted pedal power and full throttle settings can get up and go anywhere.
- Fat Tires: 20" x 4" Kenda Krusade fat tires let you tackle rough terrain in comfort and confidently keep the bike in control.
- Built for heavy-duty use: An ideal bike for hunters, designed to pull the extra weight. Easily attach trailers and other accessories.
Detailed Specifications
| Feature | Specification |
|---|---|
| Motor | 750W Hub Drive (Class 2) |
| Max Speed | 25 mph (Unassisted) |
| Battery | 11.6AH/48V (557WH) |
| Range | Up to 48 Miles |
| Modes | 5 Levels of Pedal Assist, Throttle, Walk Assist |
| Frame Sizes | 15” S, 17” M, 19” L |
| Brakes | Mechanical Disc – 203mm Rotors |
| Suspension | Coil Suspension Fork (100mm Travel) |
| Tires | Kenda Krusade 20"x4" |
| Gearing | SRAM 7-Speed |
| Weight | 54 lbs |
| Load Capacity | 325 lbs |
| Folded Dimensions | 40" L x 34" H x 16" W |
In Package
- QuietKat Voyager Folding Electric Bike (Fully Assembled)
- Integrated 11.6AH/48V Lithium-Ion Battery
- Standard Wall Charger
- Kenda Krusade 20"x4" Fat Tires (Pre-installed)
- Digital Display and Handlebar Controls
- Owner’s Manual and Tool Kit
- 1-Year Limited Warranty
