Wallenstein | Log Splitter | Model WX20V | Split Width 24" | 20 Ton Split Force | Horsepower 35HP+ | For Tractors

Wallenstein | Log Splitter | Model WX20V | Split Width 24" | 20 Ton Split Force | Horsepower 35HP+ | For Tractors

$3,145.00
$3,145.00
Sale Sold out
Customizable
Fast
24/7 Support
  • High Splitting Force – 20-ton split capacity for tough logs
  • Split Width – 24" maximum log width for versatile use
  • Powerful Engine – 35 HP+ for efficient operation
  • Heavy-Duty Design: Built to handle rugged environments with ease.
  • 360° Grapple Rotation: Complete flexibility in log loading and handling.
  • Optimized Stabilizer Spread: Provides stability on uneven ground.
View full details

Product Description

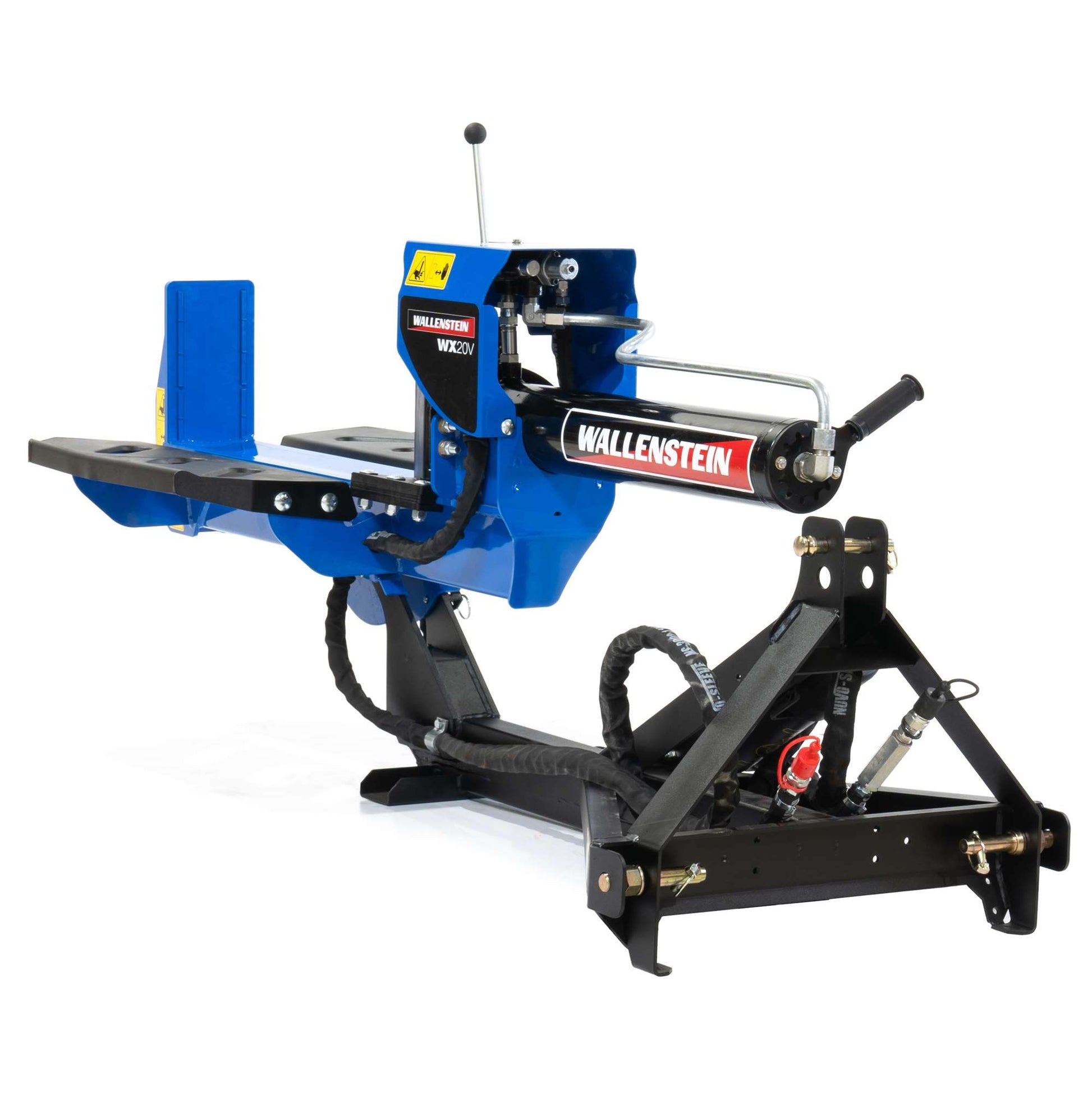

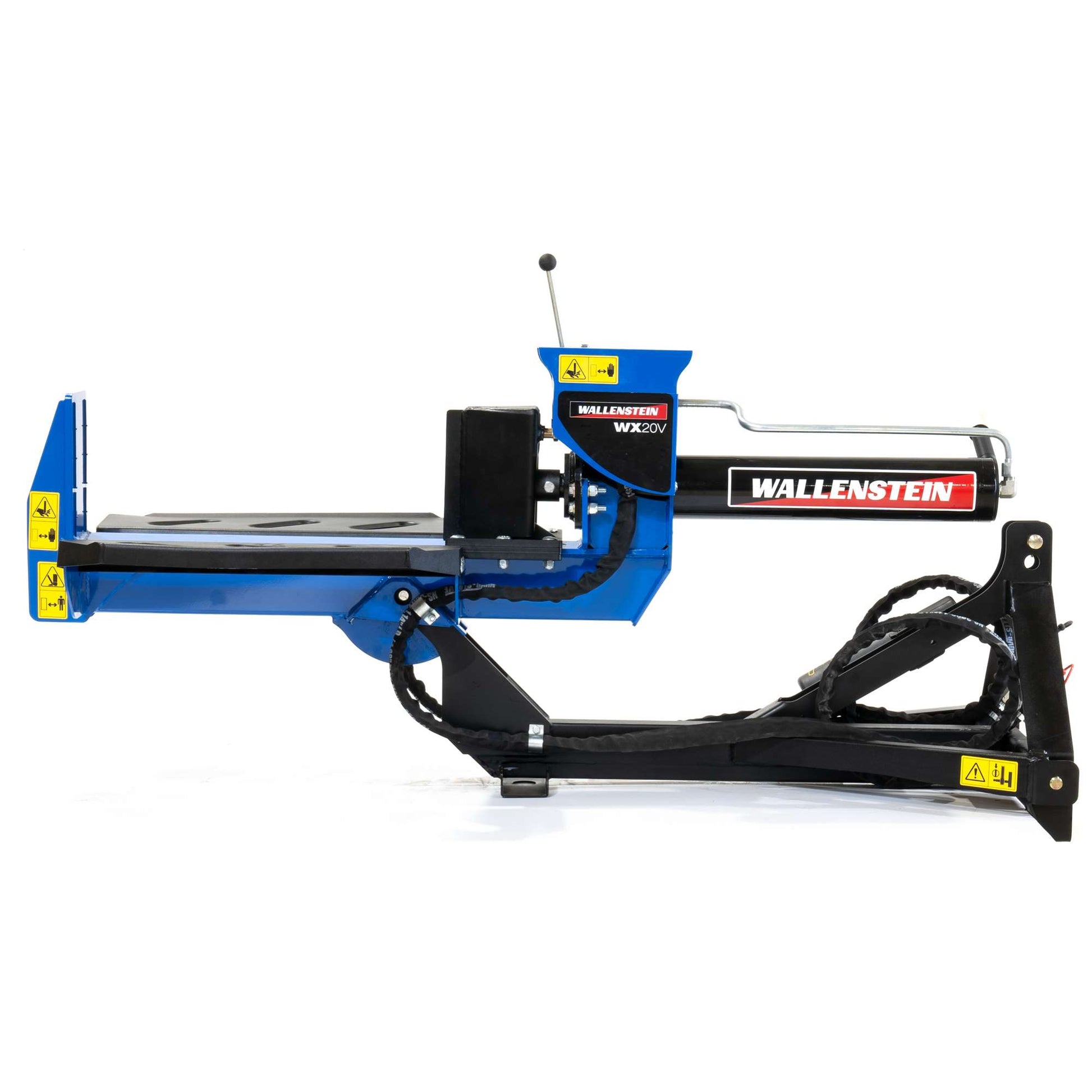

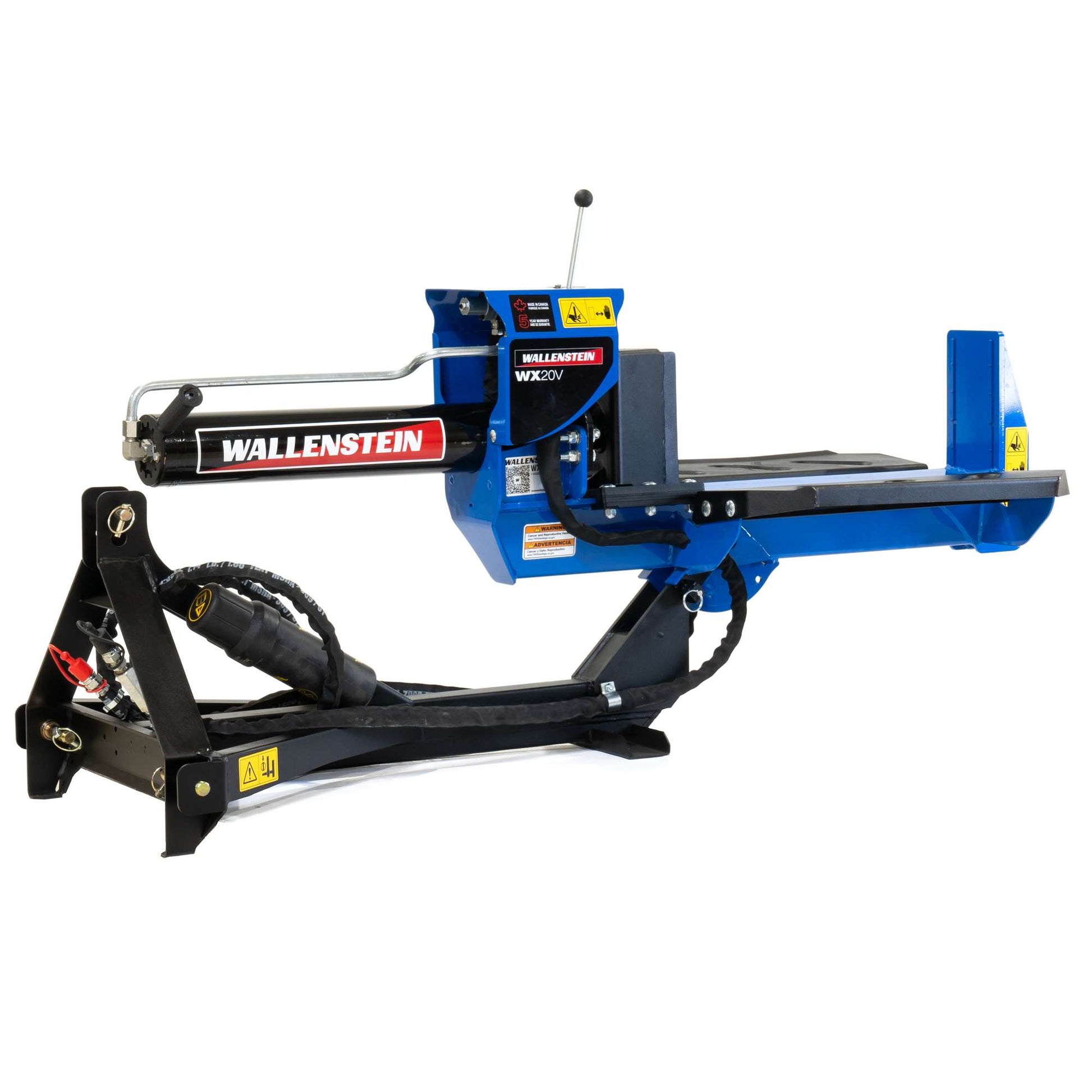

Wallenstein | Log Splitter | Model WX20V | Split Width 24" | 20 Ton Split Force | Horsepower 35HP+ | For Tractors


DESCRIPTION

Tackle your firewood splitting season with the confidence, speed, and reliability of the WALLENSTEIN WX20V Log Splitter a 20-ton powerhouse engineered for tractors with Category I 3-point hitch and a minimum of 35 horsepower. Whether you're splitting seasoned hardwoods or knotty logs, this robust splitter adapts to your workflow with horizontal and vertical operation, saving your back and maximizing efficiency.

Designed for farm, forestry, or rural home use, the WX20V runs off your tractor’s hydraulic system, requiring just 10 GPM of flow to deliver fast, consistent, hands-free splitting cycles. Its wide 10" wedge, Cat I iMatch™ compatibility, and quick hitch-ready mount ensure it’s as convenient as it is capable. With fewer moving parts than a standalone splitter and a compact yet heavy-duty build, it’s the smart, low-maintenance solution for high-volume wood prep.

Key Features

  • 20-Ton Hydraulic Split Force Crush logs with raw power ideal for hardwoods, frozen timber, and stubborn grain.
  • Horizontal & Vertical Splitting Orientation Easily switch modes to match log size and reduce strain on your body during long workdays.
  • Tractor-Powered Hydraulic Efficiency Connects to your tractor’s hydraulics; requires just 10 GPM for smooth performance and a cycle time as low as 6.62 seconds.
  • Hands-Free Return Stroke Auto-return mechanism boosts speed and safety, letting you prep the next log while the wedge resets.
  • Cat I, iMatch™ & Quick Hitch Compatible Hassle-free mounting and dismounting perfect for small tractors with quick-connect systems.
  • Wide, Durable 10” Wedge Precision-forged steel wedge handles large-diameter logs with ease, delivering clean splits every time.
  • Built to Last Made in North America with premium components, powder-coated steel frame, and low-maintenance design.

Detailed Specifications

Feature WX20V
Split Force 20 Tons
Cylinder Diameter 4″ (10 cm)
Split Opening (Max Log Length) 24″ (61 cm)
Orientation Horizontal / Vertical
Minimum Tractor HP Required 35 HP
Recommended Hydraulic Flow 10 GPM (38 LPM)
Mounting Type Cat I, iMatch™, Quick Hitch Compatible
Cycle Time (Avg / Full) 6.62 / 13.24 Seconds *depends on flow
Wedge Height 10″ (25 cm)
Total Weight 290 lbs (132 kg)
Dimensions (L × W × H) 86″ × 30″ × 30″ (219 × 77 × 77 cm)



Manuals & Documents

Z97822 W4211 Splitter Clamp on Shelf Installation Instructions

W4213 & W4214 SPLITTER STROKE LIMITER KITS Installation & Use Instructions

WX Series 3 Point Hitch Woodsplitter Operator's Manual
