Wallenstein | SSL Log Grapple | LXG Series | Grapple Opening 3" - 48" To 3" - 72" | Hydraulic Flow 5-10 GPM | For Skid Steer

Wallenstein | SSL Log Grapple | LXG Series | Grapple Opening 3" - 48" To 3" - 72" | Hydraulic Flow 5-10 GPM | For Skid Steer

$19,660.00
$19,660.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Easy Mount: Quick and easy to mount on skid steers.
  • Operator Control: Designed for full control from the cab.
  • Heavy-Duty Build: Made for demanding forestry operations.
  • Wide Compatibility: Fits high and standard flow skid steers.
  • Enhanced Safety: Provides secure log handling.
View full details

Product Description

Wallenstein SSL | Log Grapple | LXG Series | Grapple Opening 3" - 48" To 3" - 72" | Hydraulic Flow 5-10 GPM | For Skid Steer

DESCRIPTION

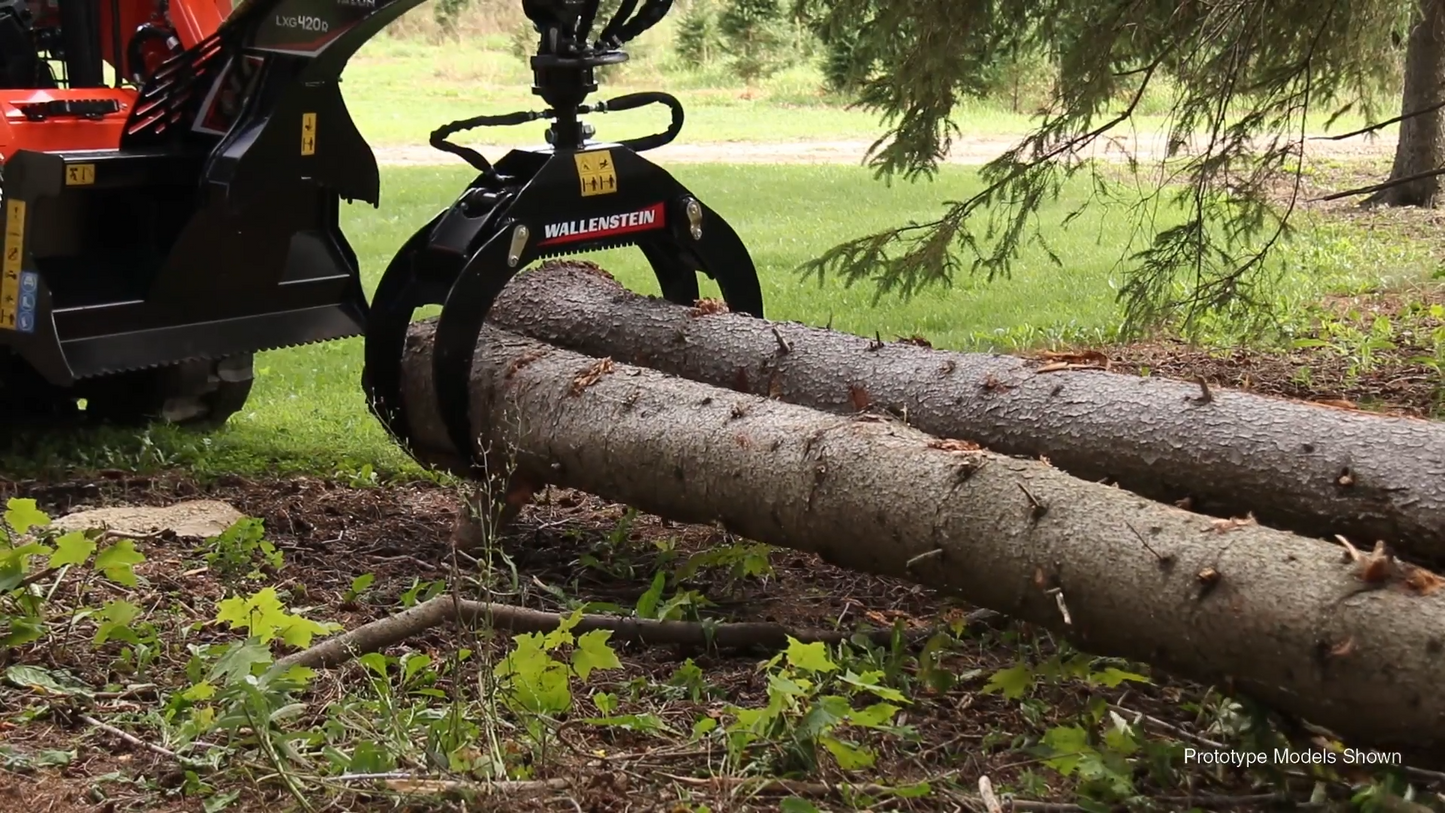

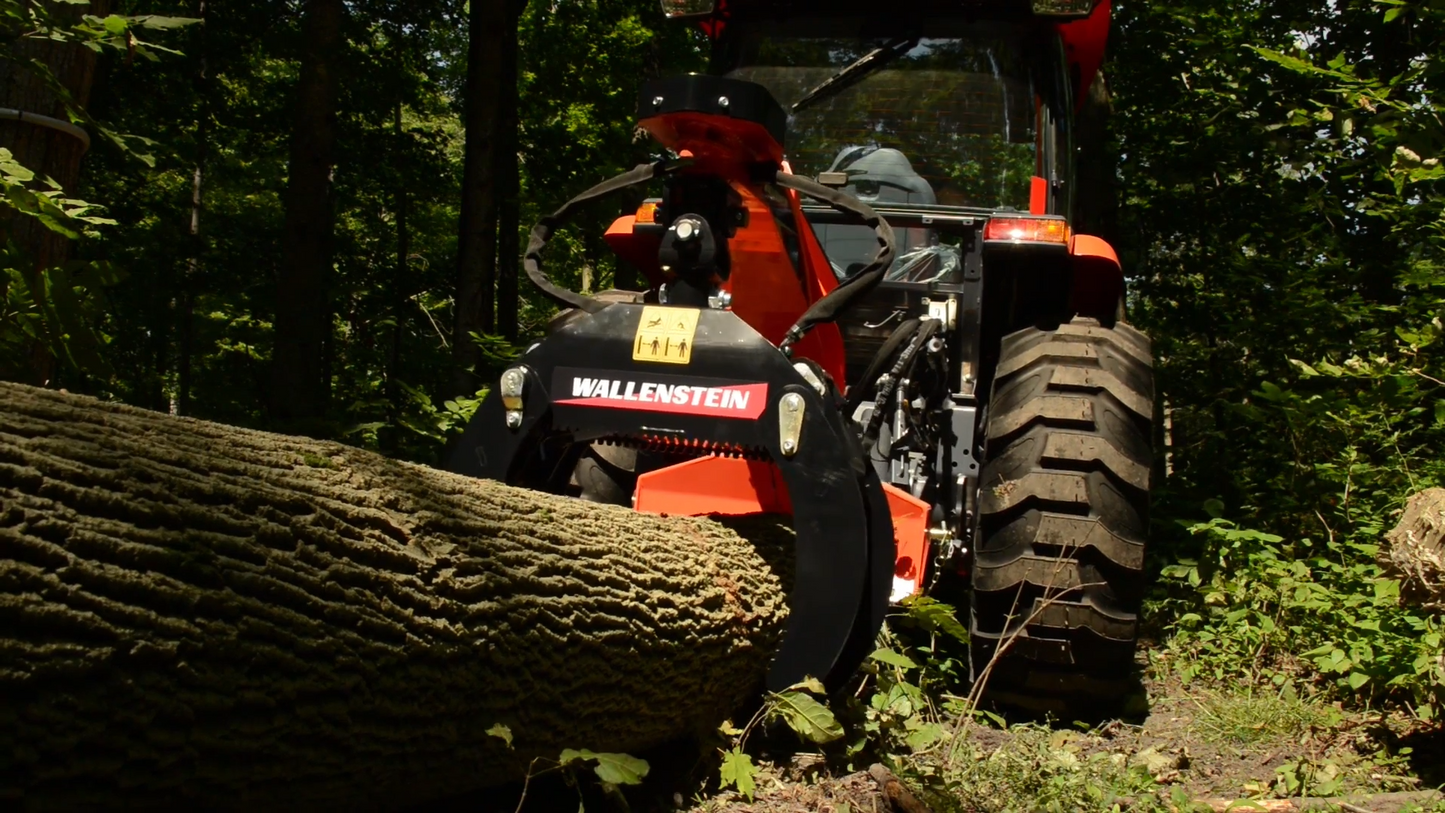

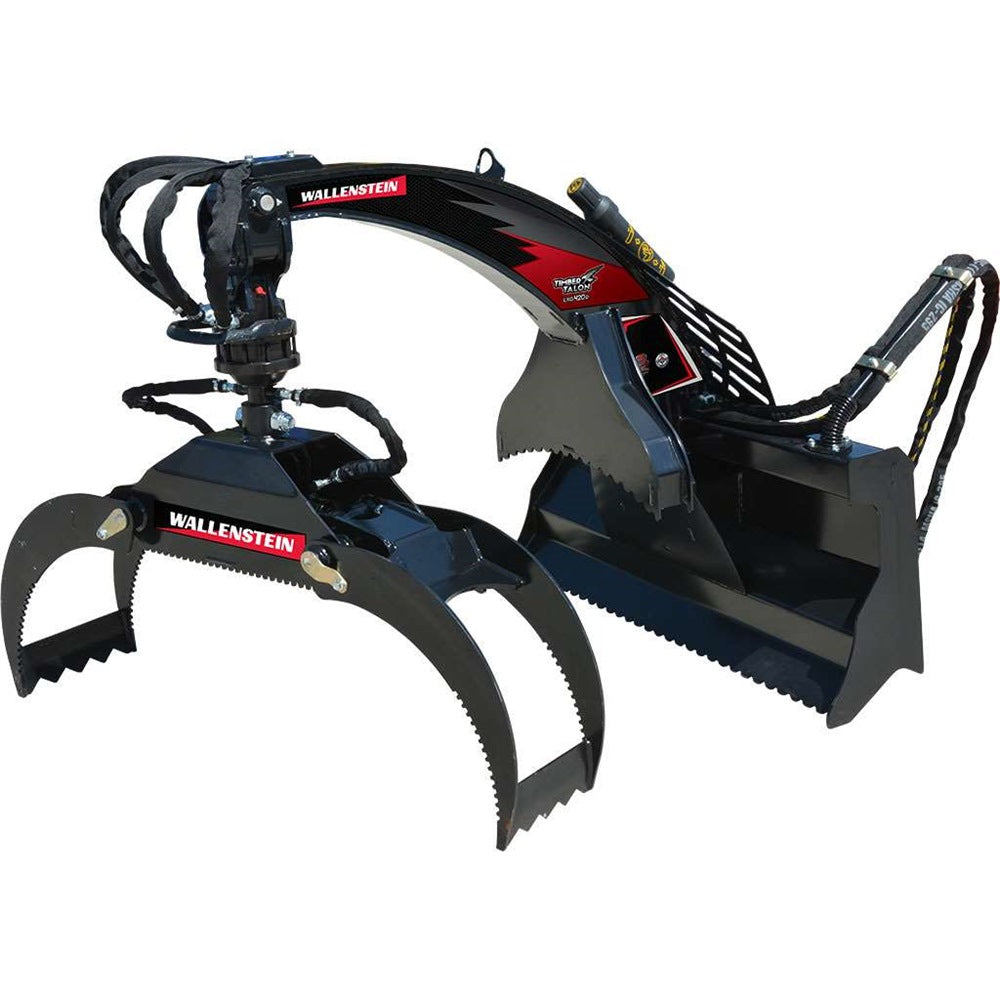

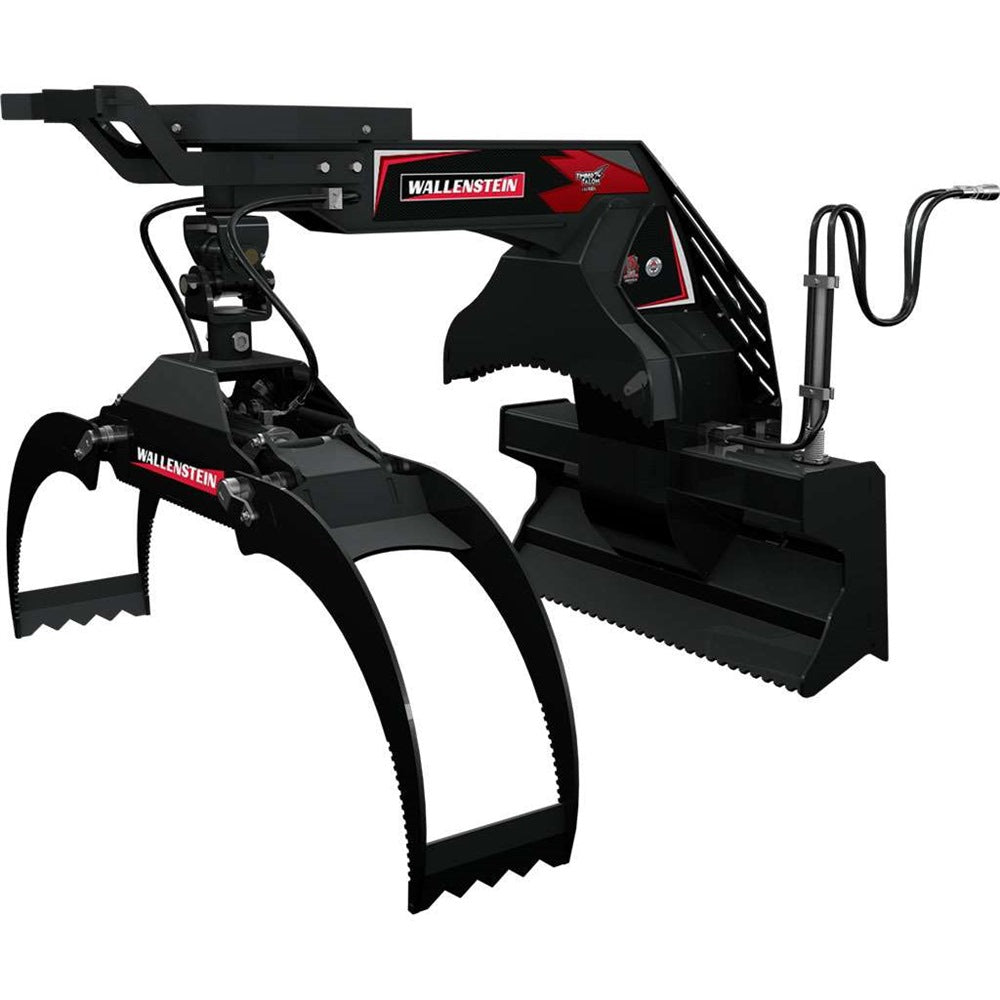

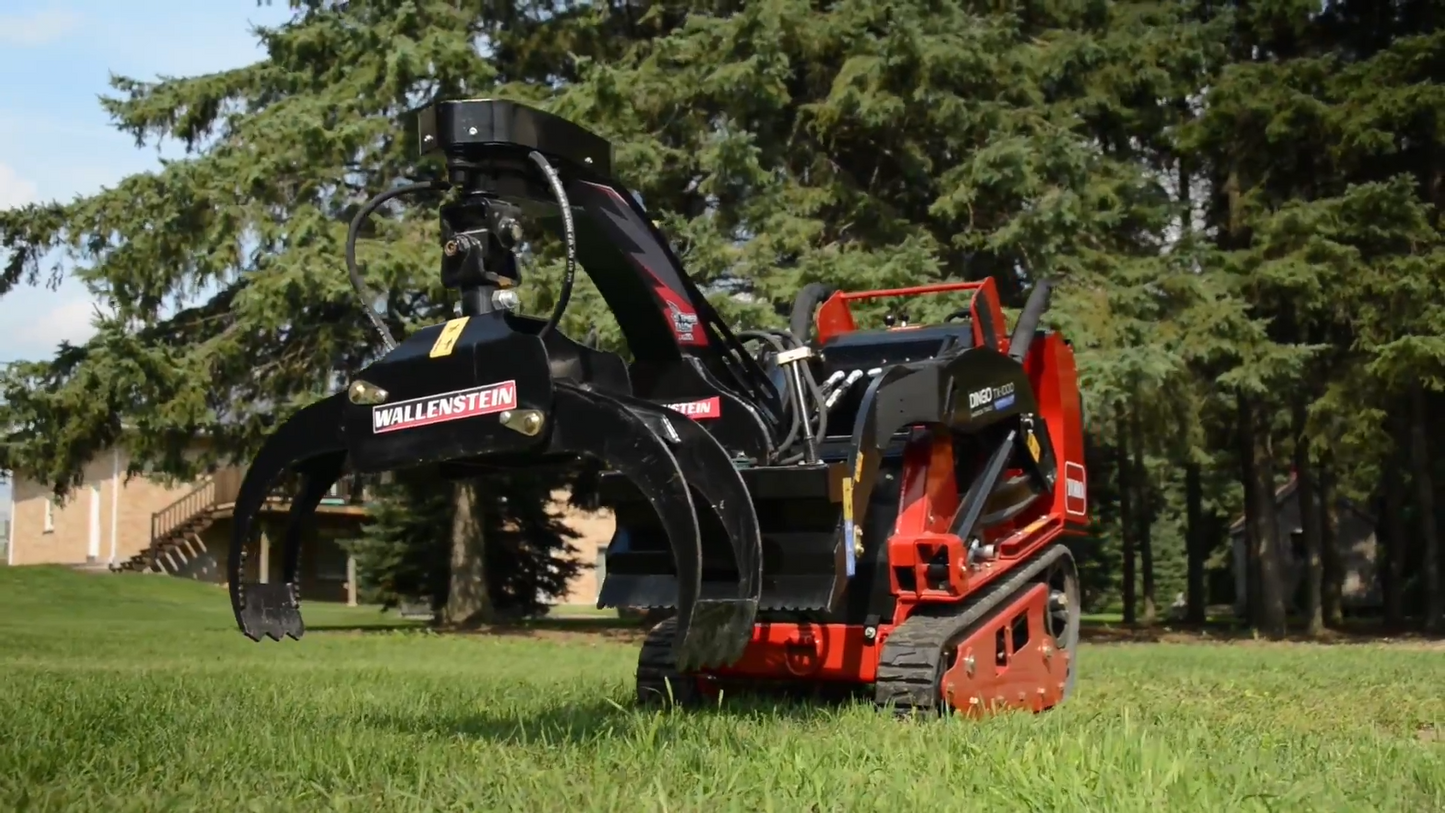

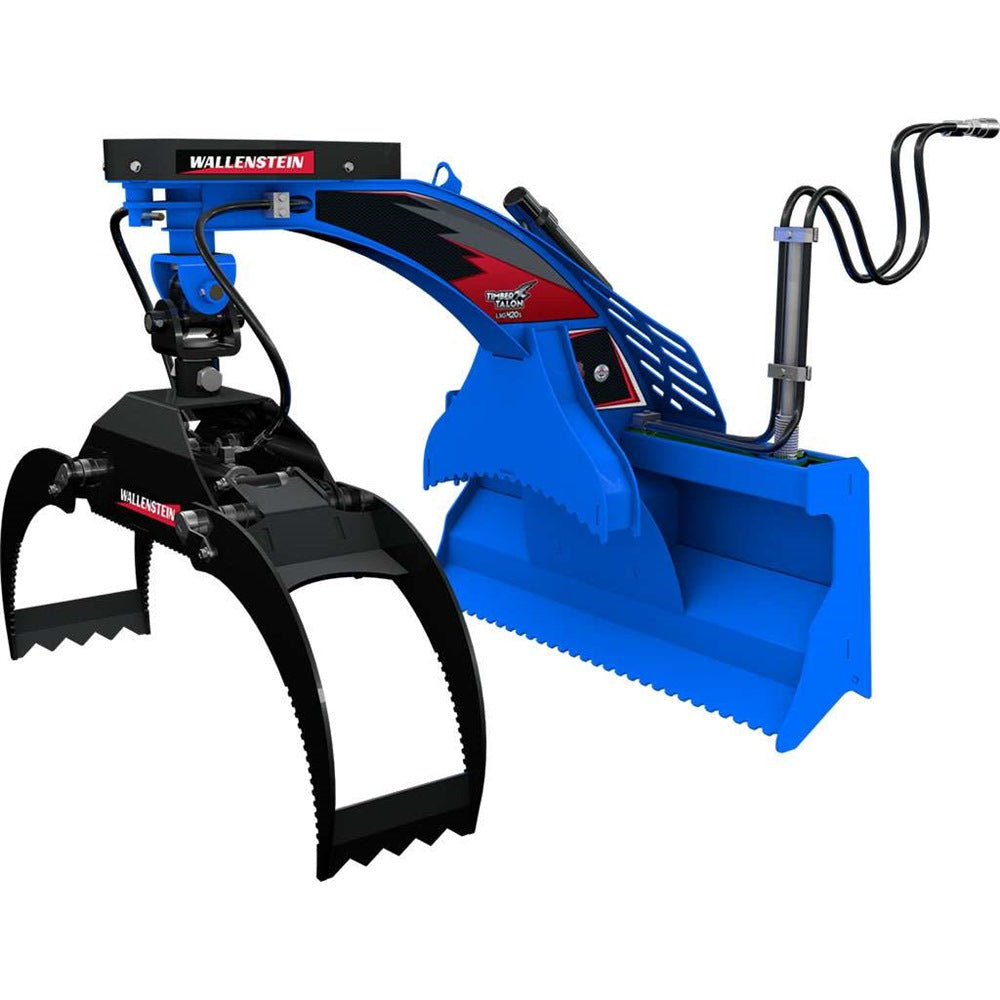

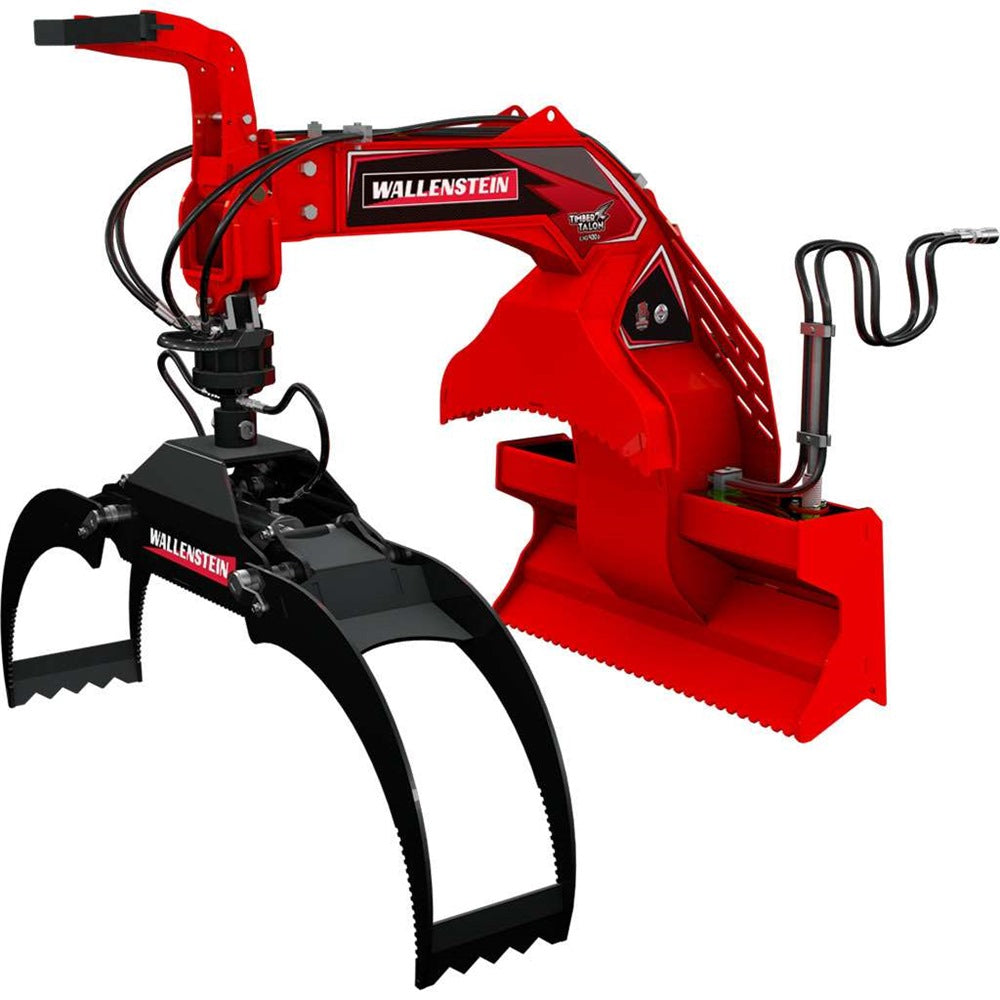

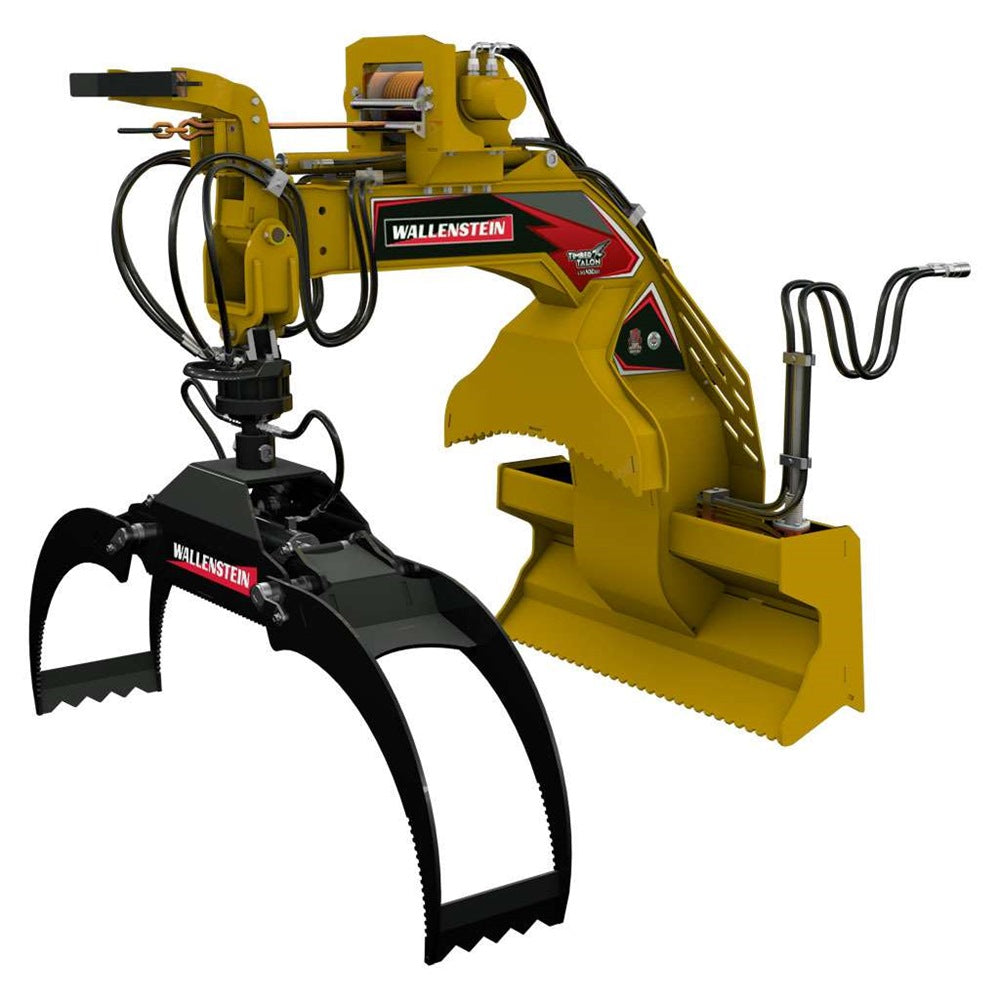

The Wallenstein LXG Series SSL Log Grapples are designed for high-efficiency log handling, providing seamless loading, transporting, and stacking of logs for sawmills and forestry operations. Mounted directly on skid steers, these powerful grapples are available with options including 360° hydraulic rotation, 180° spring return, and an integrated winch on select models. These attachments offer flexibility, precision, and power, making them ideal for high-demand logging environments.Built to maximize operator control and productivity, the LXG grapples handle heavy loads with lift capacities of 4500 lbs and 3000 lbs, depending on the model. The wide grapple opening and robust construction enable them to handle various log sizes with ease. Each grapple is compatible with a broad range of skid steers from leading brands, allowing forestry and agricultural professionals to choose a model tailored to their specific needs.

Key Features

  • High Lift Capacity: 4500 lbs or 3000 lbs lift capacity for heavy-duty applications.
  • Rotation Options: Available with 360° hydraulic rotation or 180° spring return.
  • Integrated Winch: Winch option on LXG430RP for added versatility.
  • Direct Mount: Easily mounts on skid steers for efficient, direct operation.
  • Wide Grapple Opening: Suitable for logs ranging from 3" to 72" in diameter.
  • Durable Build: Constructed to withstand rigorous forestry work.
  • Remote Control: Enhanced control from inside the skid steer cab.

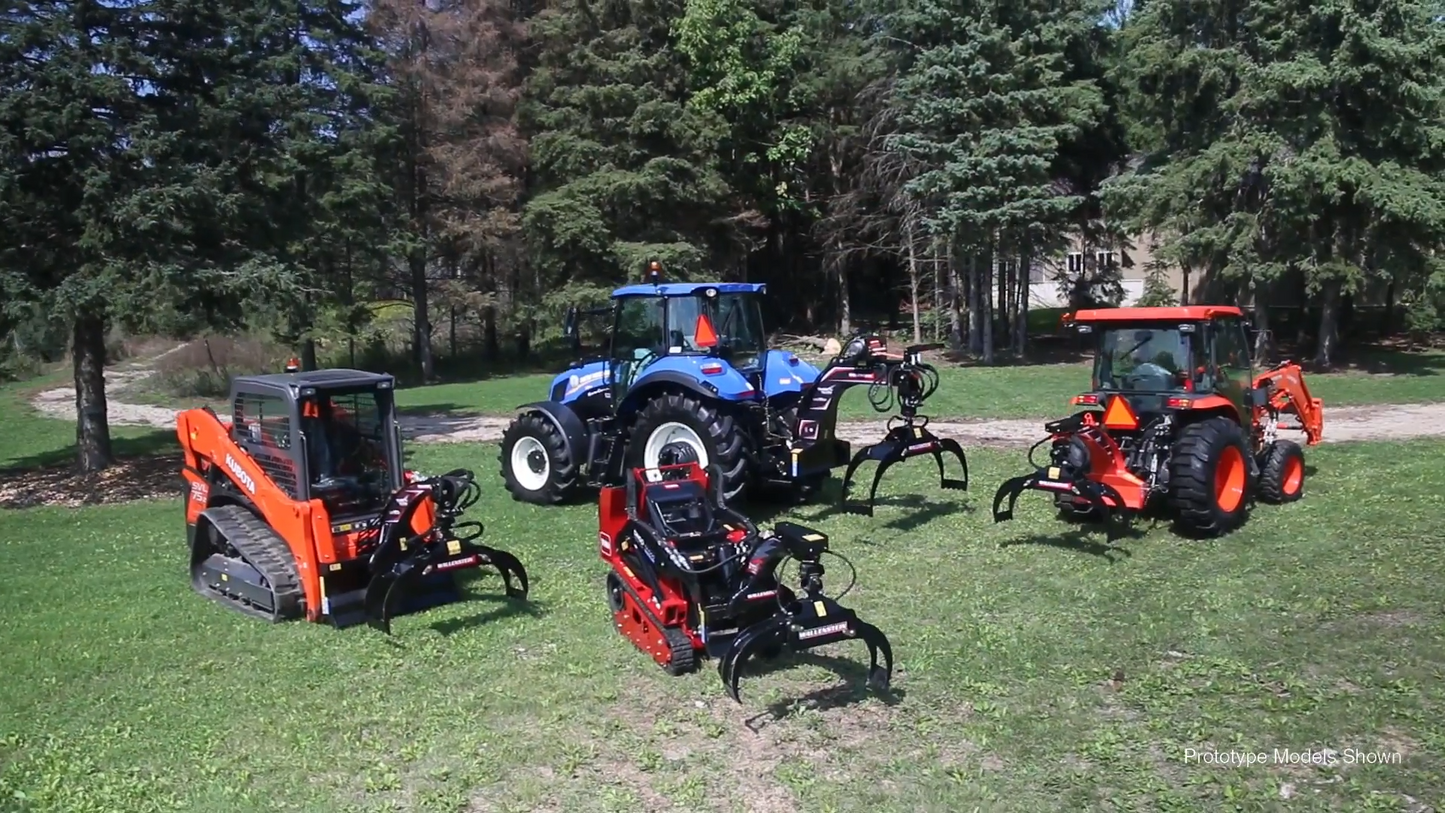

  • Hydraulic Compatibility: Supports both high and standard flow skid steer models.
  • Flexible Configurations: Available with or without hydraulic rotator.
  • Easy Maintenance: Designed for durability and minimal upkeep in harsh environments.

Detailed Specifications

LXG Series Log Grapple Specifications

Feature

LXG420R

LXG420S

LXG430S

LXG430R

LXG430RP
Lift Capacity 3000 lbs (1360 kg) 3000 lbs (1360 kg) 4500 lbs (2041 kg) 4500 lbs (2041 kg) 4500 lbs (2041 kg)
Engine HP Range 30 - 70 25 - 65 70 - 100 60 - 100 70 - 100
Grapple Opening 3" - 48" (8 cm - 122 cm) 3" - 48" (8 cm - 122 cm) 3" - 72" (8 cm - 182 cm) 3" - 72" (8 cm - 182 cm) 3" - 72" (8 cm - 182 cm)
Grapple Rotation 360° 180° 180° 360° 360°
Clamp Force 9400 lbs (4264 kg) 9400 lbs (4264 kg) 21000 lbs (9525 kg) 21000 lbs (9525 kg) 21000 lbs (9525 kg)
Total Weight 588 lbs (267 kg) 560 lbs (254 kg) 1050 lbs (476 kg) 1124 lbs (510 kg) 1444 lbs (655 kg)
