Wallenstein | Towable Hydraulic Feed Wood Chipper | Models BXTR Series | Rotor Diameter 25" & 30" | Horsepower 23-40 HP | For Tractors

Wallenstein | Towable Hydraulic Feed Wood Chipper | Models BXTR Series | Rotor Diameter 25" & 30" | Horsepower 23-40 HP | For Tractors

$18,600.00
$18,600.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Chipping Capacity: Processes branches from 5" to 7" diameter efficiently.
  • Engine: Vanguard® EFI (23-40 HP) for strong, fuel-efficient performance.
  • Dual Hydraulic Feed Rollers: Ensures smooth and consistent material intake.
  • On-Board Intelligence: P3 Pulse™ automatically optimizes feed speed.
View full details

Product Description

Wallenstein | Towable Hydraulic Feed Wood Chipper | Models BXTR Series | Rotor Diameter 25" & 30" | Horsepower 23-40 HP | For Tractors

Description

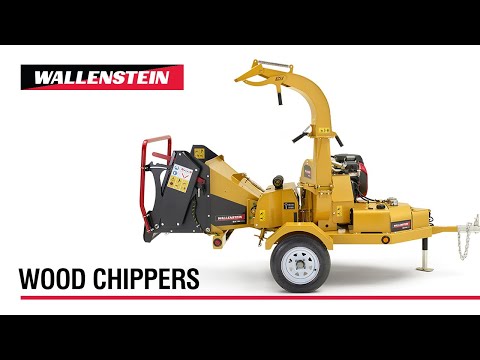

The Wallenstein BXTR Series Wood Chippers are designed for efficient, high-speed material processing, ensuring clean, precise chipping for rural, commercial, and forestry applications. Equipped with dual hydraulic feed rollers and P3 Pulse™ on-board intelligence, these highway-towable models provide consistent feeding, reducing downtime and optimizing workflow.

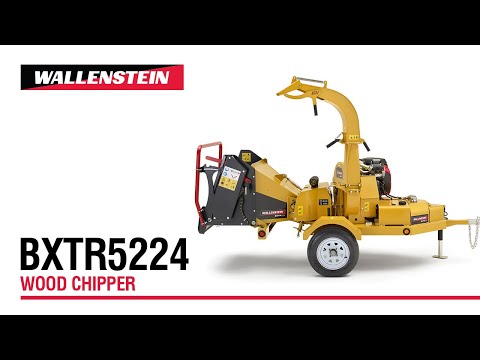

The BXTR6438 and BXTR6438B models feature increased chipping capacity (7") and higher power output (40 HP EFI engine), while the BXTR5224 offers a 5" capacity, maintaining a compact, powerful design.

Key Features

  • Chipping Capacity: Processes branches from 5" to 7" diameter efficiently.
  • Engine: Vanguard® EFI (23-40 HP) for strong, fuel-efficient performance.
  • Dual Hydraulic Feed Rollers: Ensures smooth and consistent material intake.
  • On-Board Intelligence: P3 Pulse™ automatically optimizes feed speed.
  • Oversized Heavy-Duty Rotor: Built for powerful cutting momentum and durability.
  • Adjustable Discharge Chute: 360° rotation for precise chip placement.
  • Fold-Up Feed Hopper: Tool-free folding for compact transport & storage.
  • Highway Towable: Fully towable design with suspension axle & road-ready tires.
  • Safety Control Bar: Provides stop, forward, and reverse feed functions.
  • Electric Start: Quick and convenient engine ignition.
  • Built-In Toolbox: Storage compartment for tools & accessories.

Detailed Specifications

Feature

BXTR5224

BXTR6438

BXTR6438B
Chipping Capacity 5" (13 cm) 7" (17 cm) 7" (17 cm)
Engine HP Vanguard® 23 HP EFI Vanguard® 40 HP EFI Vanguard® 40 HP EFI
Feed System Dual Hydraulic Roller Dual Hydraulic Roller Dual Hydraulic Roller
On-Board Intelligence P3 Pulse™ P3 Pulse™ P3 Pulse™
Drive System Centrifugal Clutch, Belt Drive Centrifugal Clutch, Belt Drive Centrifugal Clutch, Belt Drive
Electric Brakes No No Yes
Total Weight 1425 lbs (646 kg) 2225 lbs (1009 kg) 2225 lbs (1009 kg)
