Product Description
Woody Equipment 12' 3'' Road Trailer Model 12-78 HV-R with Gooseneck Log Loader Model 130 HD, 150 HD & 170 HD | Pull Type | For Small Trucks & Tractors
Description
The Woody Equipment 12’ 3’’ Road Trailer Model 12-78 HV-R is a versatile and robust solution designed for efficient log handling and transportation. This trailer comes equipped with a Gooseneck Log Loader available in three models: 130 HD, 150 HD, and 170 HD.
This road trailer and log loader combination is perfect for small-scale logging operations, providing the strength, flexibility, and reliability needed to get the job done efficiently. Whether you’re working with small trucks or tractors, the Woody Equipment 12-78 HV-R with Gooseneck Log Loader is a dependable choice for your log handling needs.
Key Features
- Pull Type Design: Ideal for use with small trucks and tractors, ensuring easy maneuverability and compatibility with various vehicles.
- Log Loader Options: Choose from the 130 HD, 150 HD, or 170 HD models, each offering different boom lengths and lifting capacities to suit your specific needs.
- Boom Lengths: Available in 13’, 15’, and 17’ options, providing flexibility for different loading and unloading scenarios.
- Lifting Capacity: Capable of handling heavy loads with maximum reach capacities ranging from 1300 lb. to 1500 lb., and mid-range capacities up to 3000 lb.
- Telescopic Boom: Standard on HDT models, featuring a 36” telescopic boom on a Teflon strip for smooth operation.
- Boom Rotation: 300° swing for comprehensive coverage and ease of use.
- Stabilizers: Telescopic stabilizers ensure stability during loading and unloading operations.
- Grapple: Equipped with a 36" or 52" grapple that can open wide and close tightly, with a continuous 360° rotation for optimal handling.
- Rotator Capacity: Maximum capacity of 3000 kg, ensuring reliable performance under heavy loads.
- Hydraulic Winch: Optional 6000 lb. hydraulic winch for additional lifting power.
- Power Unit: Optional Honda power units available in 9 hp or 13 hp variants.
- Work Station: Available work station for enhanced operator convenience.
- Bucket Options: Choose between 14" or 18" buckets to match your specific requirements.
This trailer and log loader combination is ideal for forestry operations, offering a balance of durability, capacity, and versatility.
Note: Each trailer model is interchangeable with each loader model.
Detailed Specifications
Forestry Trailer
| Category | Details |
|---|---|
| Compatible with Log Loaders | Log loader 170 HD, Log loader 150 HD, Log loader 130 HD |
| DIMENSIONS | |
| Load length | 147’’ (12'3’') |
| Overall length | 219’’ (18’ 3’') |
| Overall Width | 77’’ |
| Gross trailer weight | 3043 Lb |
| CAPACITY | |
| Axle capacity | 8000 Lb / each one |
| Trailer tonnage | 8 Tons / 16000 Lb |
| Volume | 208 cube feet |
| Surface | 17.1 squares feet |
| Surface wood corde ( 8' large X 4' High) | 0.54 wood corde |
| CHARACTERISTICS | |
| Protective Grid | Yes |
| Number of posts | 8 |
| Tires | ST235-80-R16 LRG 16 x 6 |
| Electric brake on each wheel | Yes |
| Brake light, front light, flashing | Yes |
| Immatriculation plate light | Yes |
| Security chain | Yes |
| Hitch ball | 2 5/16 adjustable |
| Anchors to strap your load | 6 |
| Reflective tape | Yes |
Log Loader
| LOADER MODEL | 130-HD | 150-HD | 170-HD |
|---|---|---|---|
| RECOMMENDED VEHICLE | TRACTORS 40 hp - 60 hp | TRACTORS 50 hp and more | TRACTORS 70 hp and more |
| Boom length | 13’ | 15’ | 17’ |
| Boom rotation swing | 300° | 300° | 300° |
| Loader column height | 70" | 75" | 75" |
| Lifting capacity at maximum reach | 1400 lb. / 1300 lb. | 1500 lb. / 1400 lb. | 1400 lb. / 1300 lb. |
| Lifting capacity at mid range | 2800 lb. / 2700 lb. | 3000 lb. / 2900 lb. | 2900 lb. / 2800 lb. |
| Recommended flow | 4 - 8 gpm | 4 - 8 gpm | 4 - 8 gpm |
| Stabilizers | Telescopic | Telescopic | Telescopic |
| Grapple open | 36" | 52" | 52" |
| Grapple close | 3" | 3" | 3" |
| Grapple rotation (continuous) | 360° | 360° | 360° |
| Rotator maximum capacity | 3000 kg. | 3000 kg. | 3000 kg. |
| Total weight (without trailer) | 1800 lb. / 1900 lb. | 2000 lb. / 2100 lb. | 2250 lb. / 2350 lb. |
| LOADER OPTION | |||
| Hydraulic winch | 6000 lb. | 6000 lb. | 6000 lb. |
| Power unit (Honda) | 9 hp or 13 hp | 9 hp or 13 hp | 9 hp or 13 hp |
| Work station | Available | Available | Available |
| Bucket | 14" or 18" | 14" or 18" | 14" or 18" |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

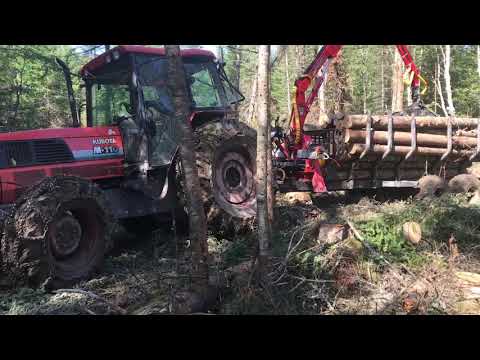

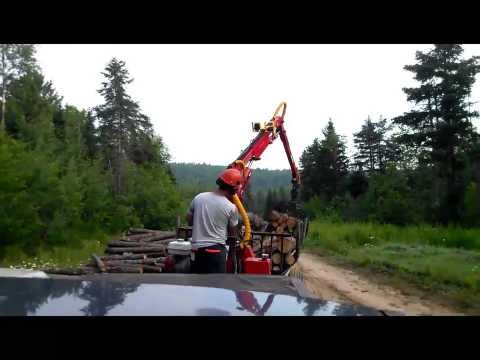

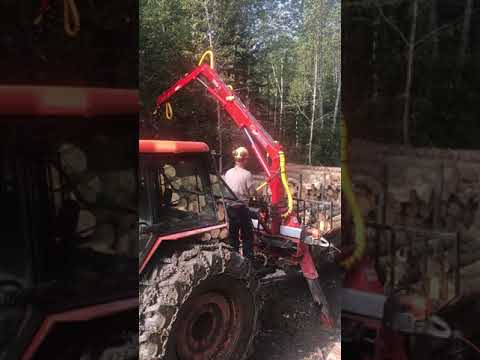

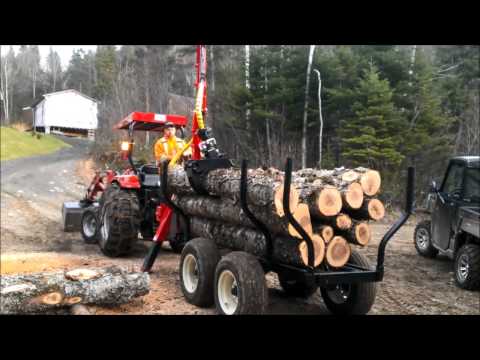

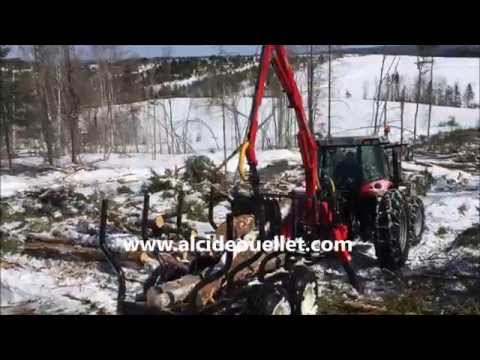

Videos
