XAG Agricultural Drone | Model XAG P-150 | Payload Capacity 70 Kg | Maximum Flow Rate 30 Liters/min | 5-10 Meter Effective Spray

Product Description

XAG Agricultural Drone | Model XAG P-150 | Payload Capacity 70 Kg | Maximum Flow Rate 30 Liters/min | 5-10 Meter Effective Spray

Description

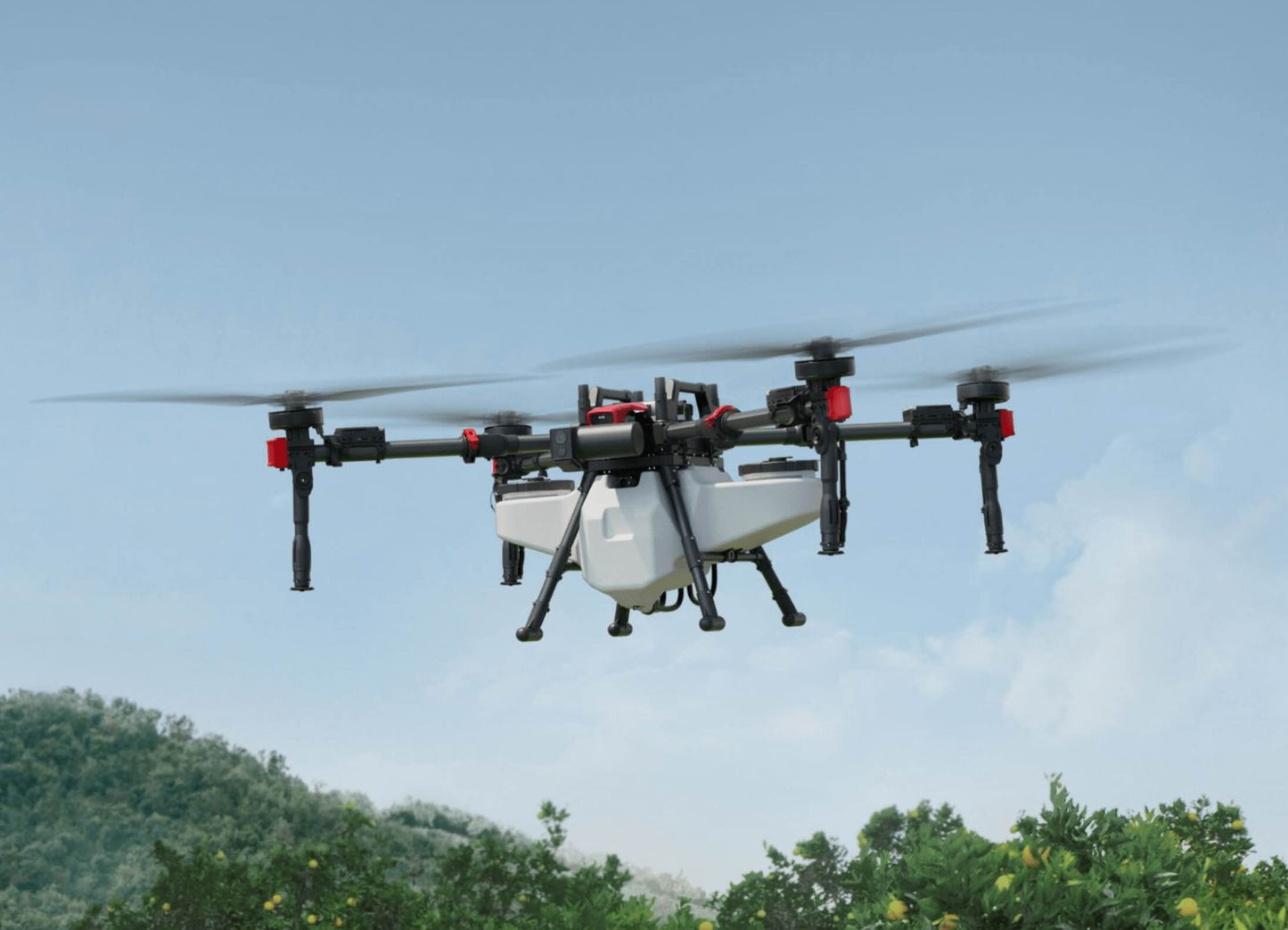

The XAG P150 is a highly advanced agricultural drone designed to enhance efficiency in various farming tasks. XAG’s P150 is a masterclass in agricultural drone technology, designed to elevate efficiency in various farming tasks. It incorporates the best of XAG’s advancements in drone technology, offering a blend of performance and user-friendly operation.

Key Features

• Payload Capacity: It boasts a 70 kg payload capacity, making it suitable for large-scale operations.
• Flight Speed: It can reach a maximum flight speed of 18 m/s (approximately 64 km/h or 40 mph).
• Spraying System: Equipped with the XAG SuperRice Spray System, it ensures precise, uniform, and efficient spraying. It has a maximum flow rate of 30 liters/min and can cover a spray width of 5-10 meters.
• Sowing System: The drone can spread fertilizer quickly and efficiently, with a maximum material discharge rate of 280 kg/min.
• Transportation System: It offers both sling and compartment transport methods for quick loading/unloading and efficient haulage.

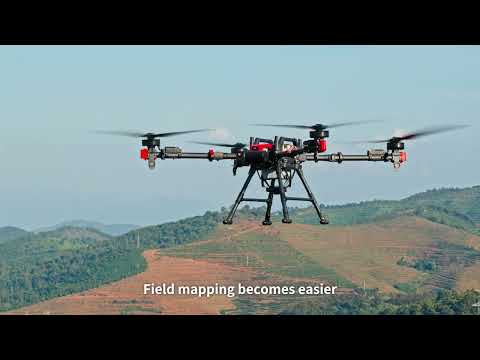

• Surveying System: The XAG SuperRice Mapping System enables fully autonomous flight and imaging, generating high precision maps covering up to 200 acres in one go


Detailed Specifications

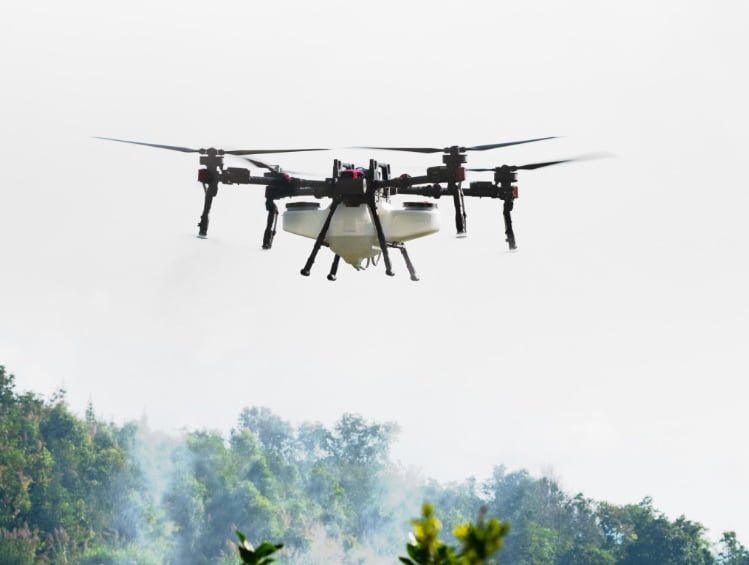

Spraying System

• Max Flow Rate: 30 liters/min, ensuring excellent coverage.
• Nozzles: Up to 4 centrifugal nozzles for uniform spraying.
• Tank: Standard 60-liter tank, upgradable to 70 liters.
• Effective Spray Width: 5-10 meters.
• Atomization: 60-400 micron particle size, ensuring even distribution.

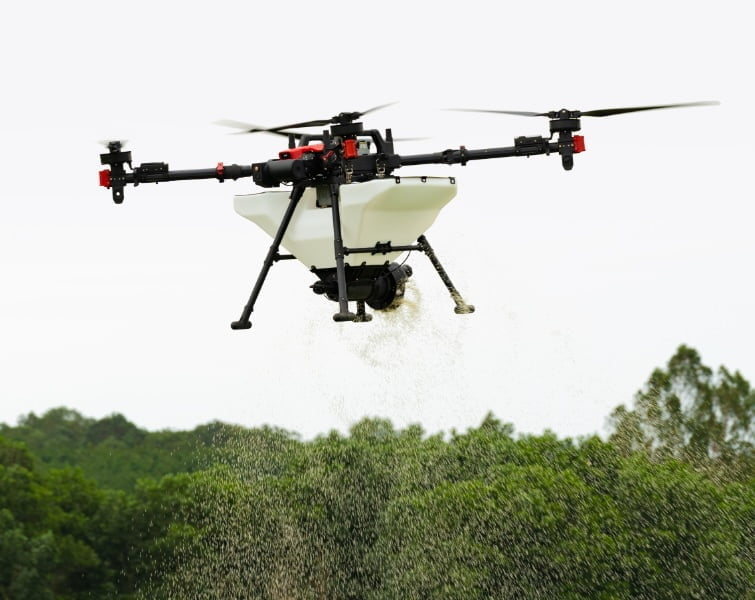

Sowing System

• Hopper: 115-liter capacity.
• Max Discharge Rate: 280 kg/min.
• Broadcast Width: 8 meters.
• Working Speed: 13.8 m/s.
• Spreader Plate: Oscillating vertical spreader for even distribution without gaps.

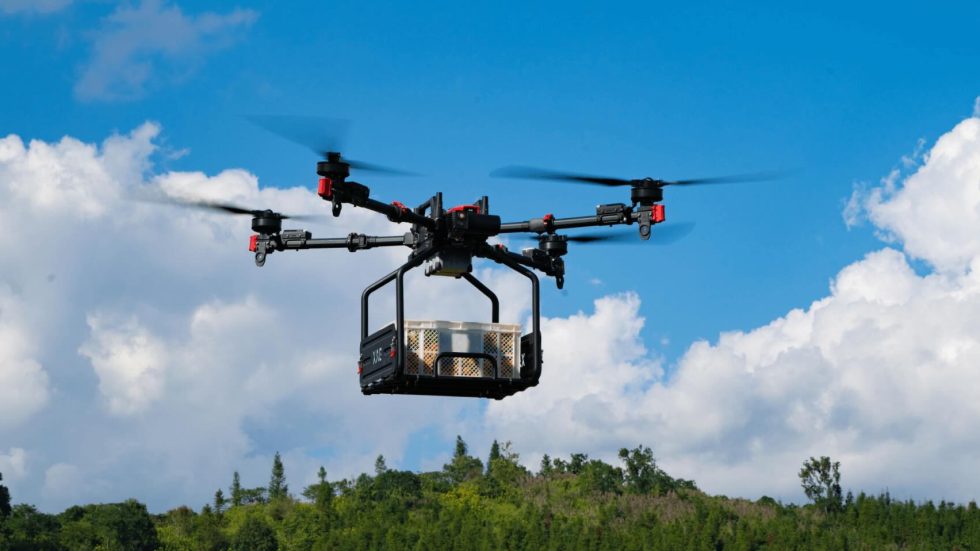

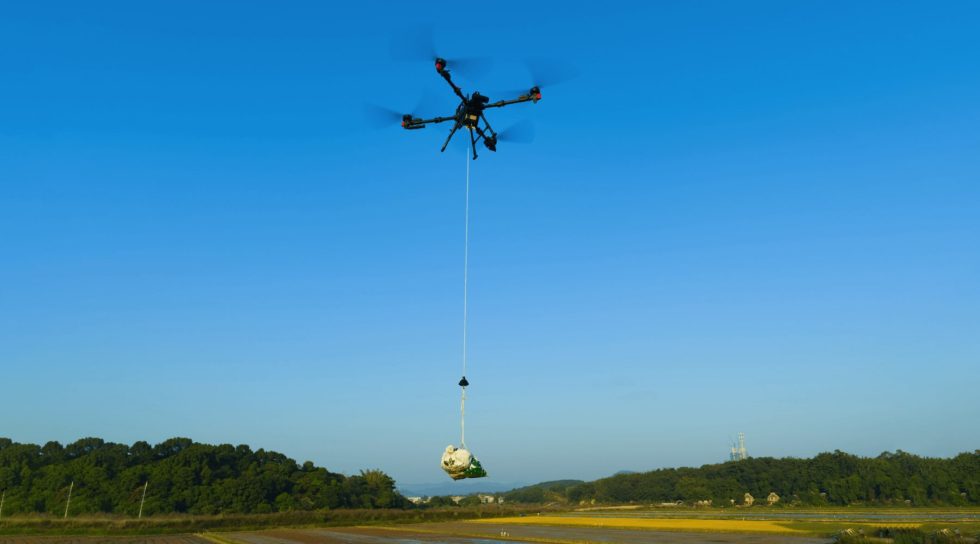

Transportation System

• Max Load: 65 kg.
• Flight Height: 30 meters.
• Flight Speed: 13.8 m/s.
• Safety Features: Automatic hook latching and one-click cargo release.

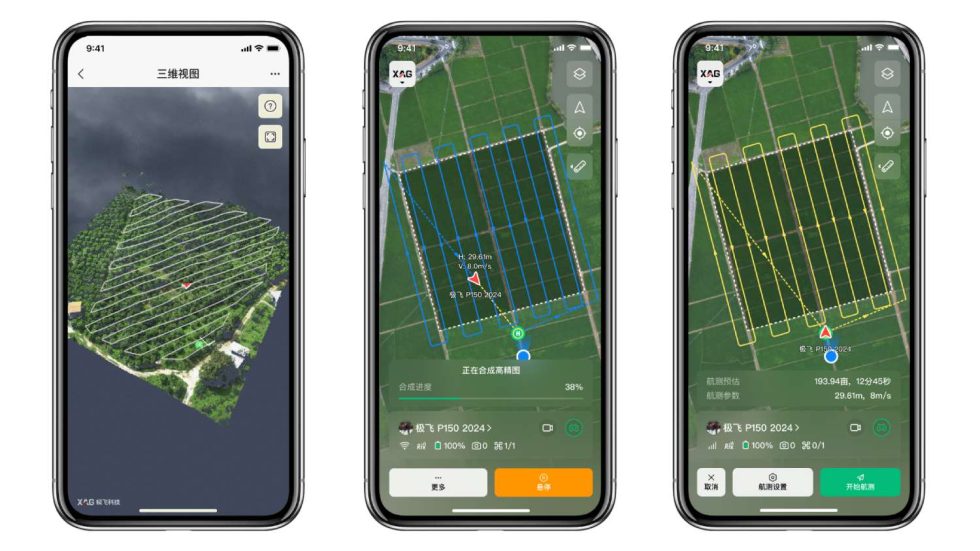

Surveying System

• Mapping: Generates high precision maps covering up to 200 acres.
• Flight Planning: One-click flight planning and 3D flight path auto-generation.
• Handheld Surveyor: XRTK6 for ground marker placement.

SuperX 5 Pro Smart Control System

• Precision Obstacle Avoidance: Detects obstacles 1.5-100 meters ahead.
• Safe Landing: Bottom-view sensors for safe landing.
• 3D Autonomous Flight: Terrain following and contour flight with AI adaptive learning.

Design Highlights

• Structure: Enhanced stability and reliability, foldable arms, IPX6K protection rating.

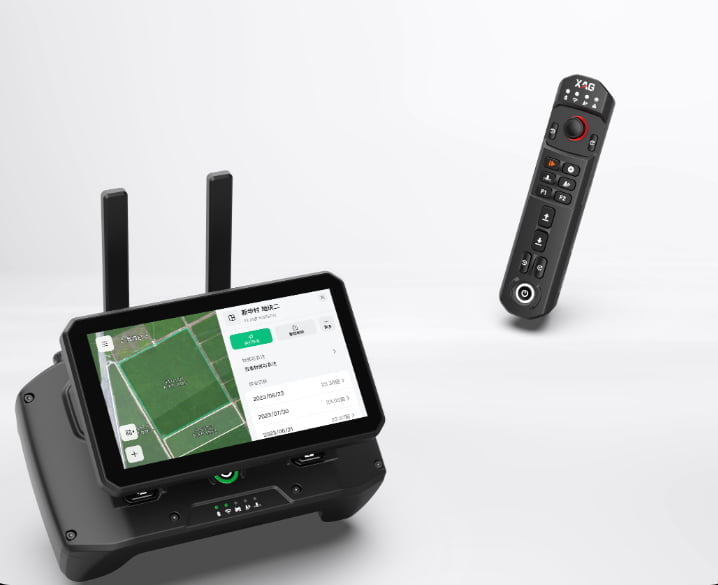

• Control Options: Autonomous operations, multi-drone control, XAG ACS4 Smart Controller, and XAG SRC4 Controller with app integration.

Charging & Power

• Smart Batteries: 975 Wh capacity, 1500 charge cycles.
• Rapid Charging: Various methods, including a specialized mist cooling technique for charges in just 8 minutes.
• Power Stations: Mobile Super Charging Station, New Energy Vehicle Charger, and Energy Storage Charger.
