XAG P100 10.6 gal (40L) Spraying Drone
XAG P100 10.6 gal (40L) Spraying Drone
Share
It's More Than a Large Scale
The XAG P100 Crop Sprayer Drone's 40 liter spraying tank raises the bar for aerial spraying effectiveness. An innovative architecture that allows its tasks system to disengage to from its flying platform, gives its user the ease of transit and maintenance.
HIGHLIGHTS
-
FAA Approval Pending
Capacity: 10.6 Gal | Spray Width: 5 to 10 meters Max Flow: 12L/min | Droplet Size 60 - 400 microns (depending on the actual operating environment, spray flow, and other factors)
The XAG P100 Spraying, Seeding & Mapping Drone
It's More Than a Large Scale
HIGH CAPACITY | LONG TERM SERVICE | SPRAYING EFFICIENCY
P100 10.6 gal (40L) Spraying Drone
The XAG P100 40 liter spraying tank raises the bar for aerial spraying effectiveness. An innovative morphing body makes spraying more efficient.

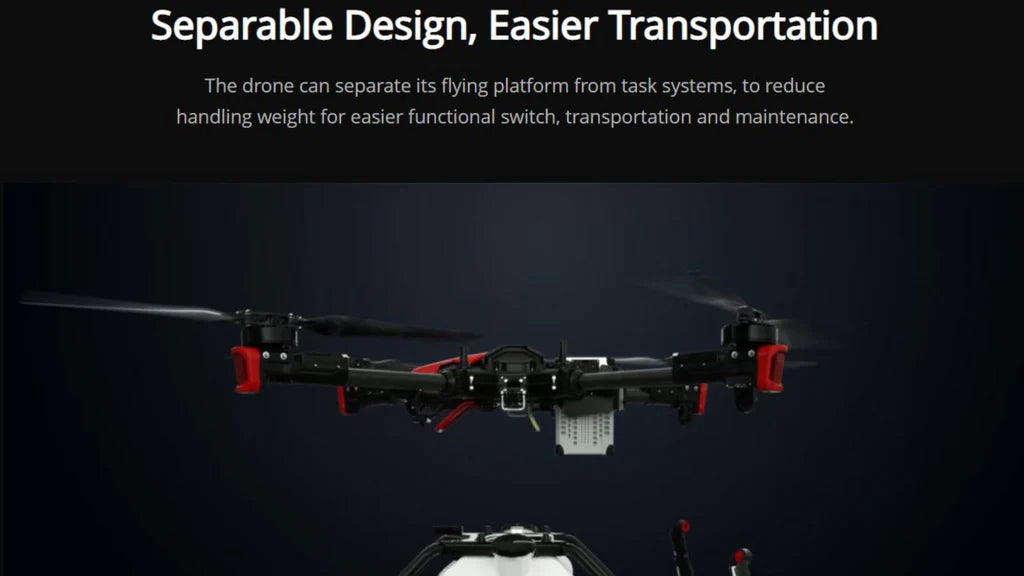

Separable Architecture, Simpler Transportation
The drone can disengage its task systems from its flying platform to reduce weight, making handling more simple and for easier transit and maintenance.

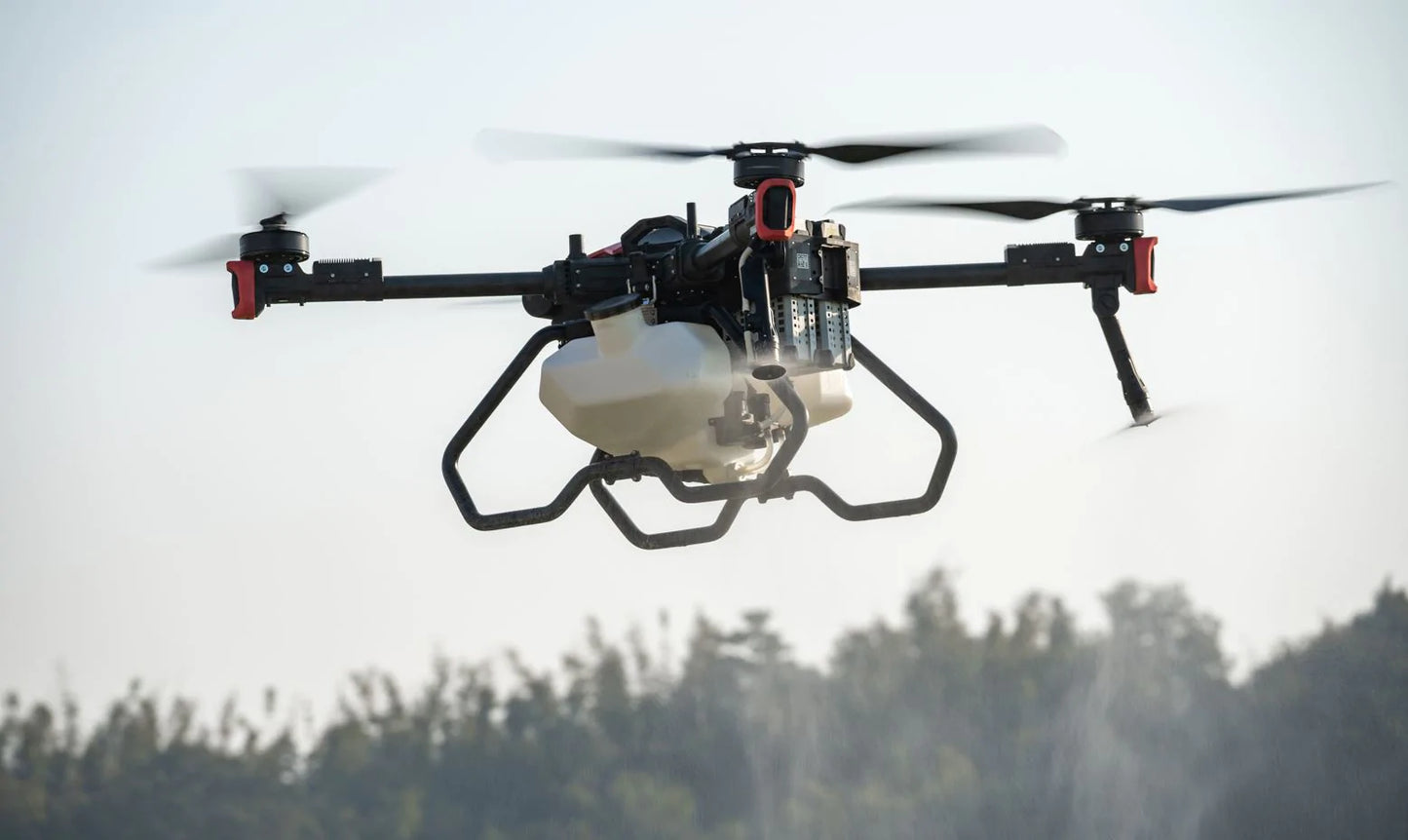

XAG RevoSpray 2 : Mega-Flow Spraying, Smooth and Precision to Every Droplet
Combined new peristaltic pumps and nozzle shutoff valve with solid centrifugal atomization technology, P100 brings an evolution of both flow rate and efficiency, making precision spraying go a step further.

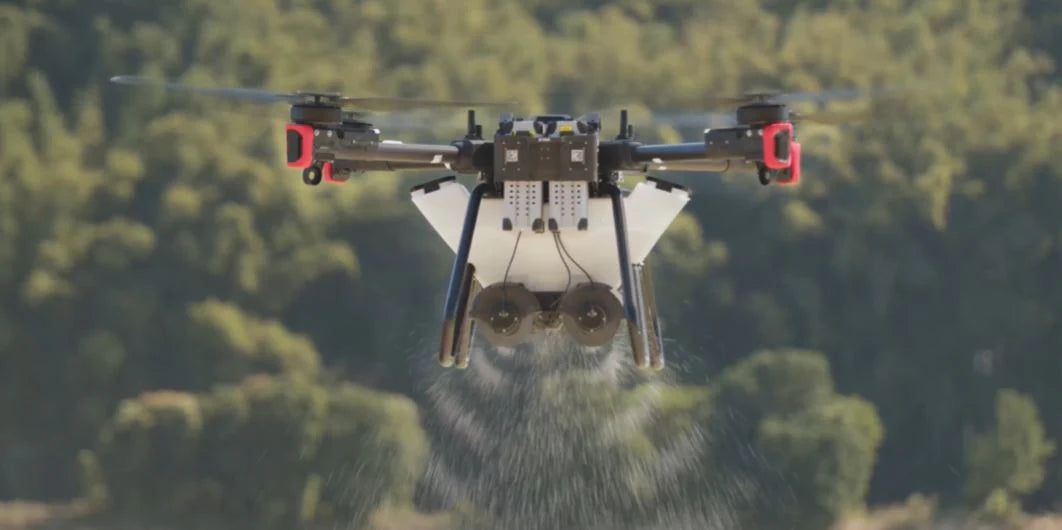

XAG RevoCast 2: Spread with High Efficiency and Precision
Adopt a completely new spreading disc and screw feeder design. Radically altering the way that agricultural drones are deployed. Increased precision and effectiveness.
SuperX4 Intelligent Control System: A Smart Core Powered by AI
The powerful AI algorithm and high-tech controls are combined in the SuperX 4 Pro Intelligent Control System. Powertrain with performance, this improved control module with it's flexible task systems integrated into it. Can quickly and easily execute broadcast and precise spraying operations. a wise companion for digital agriculture.
Adapting to Terrains and has Flexible Obstacle Avoidance
Using dynamic radar and a terrain-adaptive module, it can detect approaching impediments in the surrounding area while flying. Locate and measure obstructions, within 40 meters of the target and above to achieve prediction. Safer flight from all angles.
Pilot Sight Livestream: Field Condition Clearly Displayed, More Protection , Safer Flights
Users can instantly discover flight status and crop conditions by receiving real-time operating photographs. Drones can operate safely and precisely in complex environments.

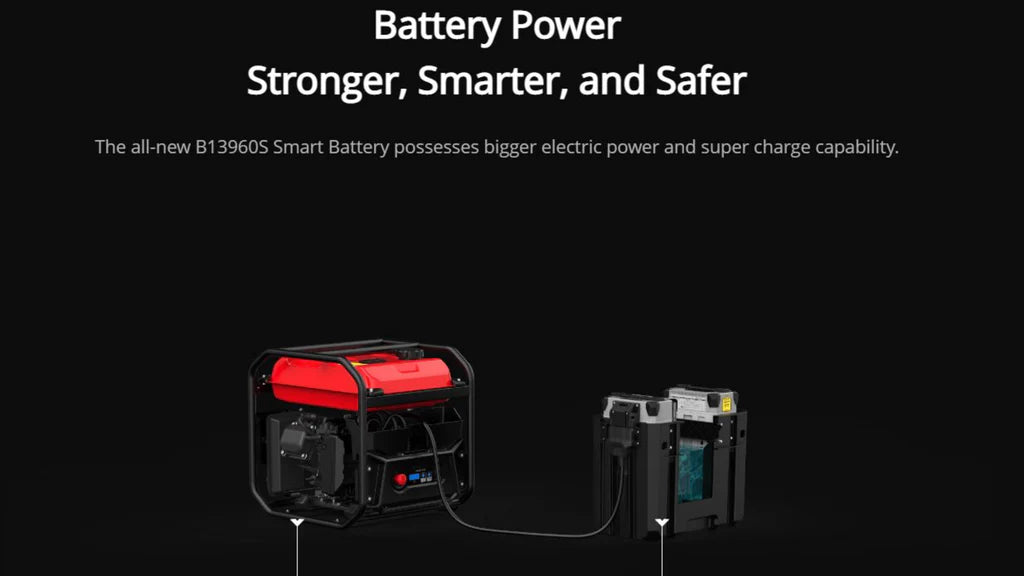

Stronger, Smarter, and Safer Battery Power
The brand-new B13960S Smart Battery has more electric power and a faster super charge rate.
XAG Local Network Terminal: A Fix for Unreliable Network Connections
When a 4G network is there but there is a weak signal or no 4G network, the XAG Local Network Terminal delivers reliable communication connectivity for completely autonomous drone operation. This is the answer you need to maintain stable, safe, and high-accuracy flight by bridging signal connection between handheld control terminals, portable RTK base station, and XAG agricultural drone. Removing the infrastructure restriction on the internet.
Specifications
Aerial Platform
Basic Parameters
Overall Dimensions
- 2487 × 2460 × 685 mm (blades unfolded; RevoSpray system included)
- 1451 × 1422 × 675 mm (blades folded; RevoSpray system included)
- 1451 × 1422 × 645 mm (blades excluded; RevoSpray system included)
Weight:
Carrier Weight:
- 39.6 kg (payload system excluded; batteries included)
Empty Weight:
- 48 kg (RevoSpray system & batteries included)
- 51.5 kg (RevoCast system & batteries included)
Rated Takeoff Weight:
- 88 kg (rated spray takeoff weight)
- 91.5 kg (rated spread takeoff weight)
Diagonal Motor Wheelbase
- 1780 mm
Arm Material
- Glass & carbon fibre composite
Protection Rating
- IPX7
Flight Parameters
High Precision Positioning Duration with RTK Data Latency
- ≤ 600 s
Maximum Flight Speed (Good GNSS Signal)
- 13.8 m/s
Maximum Flight Altitude
- 2000 m
Hovering Precision (Good GNSS Signal)
- RTK Enabled: ± 10 cm (Horizontal), ± 10 cm (Vertical)
- RTK Disabled: ± 0.6 m (Horizontal), ± 0.3 m (Vertical)
- (Radar function enabled: ± 0.1 m)
Hovering Duration
- 17 min (with no-load @20000 mAh x 2 & takeoff weight: 48 kg)
- 7 min (with full-load @20000 mAh x 2 & takeoff weight: 88 kg)
* Tested in an environment near sea level with a wind speed of less than 3 m/s. For reference only.

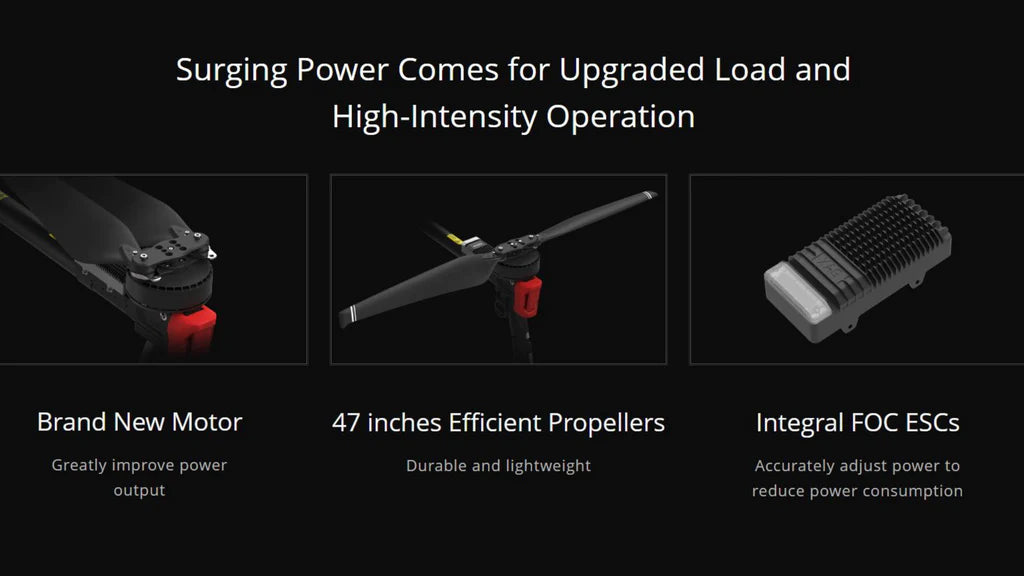

Propulsion System
- Motor
Model
- A45
Dimension (Stator)
- 136 × 27 mm
KV Value
- 78 RPM/V
Maximum Tension (Single Motor)
- 45 kg
Rated Power (Single Motor)
- 4000 W
Electronic Speed Controller
Model
- VC13200
Max. Operating Current (30 s)
- 200 A
Rated Operating Voltage
- 56.4 V
Foldable Propeller
Model
- P4718
Diameter x Pitch
- 47 × 18 inch
XAG RevoSpray 2
Smart Liquid Tank
Rated Volume
- 40 L
- Sensor
- Float Liquid Level Sensor
Centrifugal Atomizing Nozzle
Quantity
- 2
Spray Disc Rotational Speed
- 1000 ~ 16000 RPM
Atomized Droplet Size
- 60 ~ 400 μm (Depending on the actual operating environment, spray flow, and other factors)
Spray Width
- 5 ~ 10 m (Subject to flight height, dosage, environment, etc)
*With a flight height of 3 ± 0.5 m, a flight speed of 3 m/s and a flow rate (single pump) of 5 L/min, a spray width of 8 m is recorded for reference only.
High-Frequency Pulse Peristaltic Pump
Quantity
- 2
Voltage
- 50 V
Max. Operating Flow Rate
- 12 L/min
Max. Flow Rate (Single Pump)
- 6 L/min
XAG RevoCast 2
Granule Container Capacity
- 60 L
Rated Payload
- 40 kg
Smart Screw Feeder
Applicable Granule Size
- 1 - 6 mm (Dry and solid granule)
Operating Temperature
- 0 - 40℃
Storage Temperature
- 0 - 40℃
Centrifugal Spreading Disc
Spread Width
- 3 - 6 m (Subject to flight altitude, seed weight and shape, dosage, surroundings, etc.)
Spread Amount Precision
- ± 10% (Subject to the shapes and moisture of granules)
PSL Camera
Dimensions
- 70 × 40 × 25 mm
Operating Voltage
- 24 - 60 V
Resolution
- 1080P/720P
Encoding Format
- H.264
Frame Rate
- 30 fps
Focal Length
- 3.2 mm
Image Sensor
- 1/2.9-inch CMOS sensor
Power System
Smart SuperCharge Battery
Model
- B13960S
Type
- 13S Lithium Polymer Battery
Rated Capacity
- 20000 mAh (962 Wh)
Rated Output
- 48.1 V/120 A
Maximum Charging Current
- 100 A (5C)
Recommended Charging Temperature
- 10 - 45℃
Super Charger
Model
- CM12500P
Charging Adaptor Quantity
- 1
Power Output
- 2.5 kW
Input Voltage
- AC 90-165 V~50/60 Hz 23 A (Max)
- AC 180-260 V~50/60 Hz 23 A (Max)
Output Voltage & Current
- DC 50-60 V/25 A (Max)/1250 W (AC 90-165 V~50/60 Hz)
- DC 50-60 V/50 A (Max)/2500 W (AC 180-260 V~50/60 Hz)
Recommended Operating Temperature
- -20 ~ 40℃
Auto Super Charge Station
Model
- GC4000+
Dimensions
- 482 × 417 × 475 mm
Number Of Cylinders
- One
Net Weight
- 31.5 kg
Startup
- Electrical starting
Compression Ratio
- 8.5:1
Tank Capacity
- 15 L
Air Intake
- Natural Respiration
Ignition
- Spark Ignition
Fuel Consumption
- ≤ 0.6 L/KW.h (25℃, 0 altitude, 92# unleaded gasoline under national standards @charging power of 3.4 KW)
No-load Speed
2600 RPM
Noise
- ≤ 88 db(A)@1M
Rated Charging Power
- 3.4 KW
Max Output
- 5.1 KW
Service Life
> 1000 hours
otal Displacement
- 223CC
Pollutant Emission
GB Stage II
Communication & Control System / Smart ControlStick
Model
- ACS2G
Compatible Device
- XAG P100 Agricultural UAV
- XAG V40 Agricultural UAV
- XAG P40 Agricultural UAV
Operating Frequerncy
- SRRC 2.4000 GHz to 2.4835 GHz
Signal Range (No Interference / Obstruction)
- 800 m
Power Consumption
- < 9 W
Recommended Operating Temperature
- -20 ~ 55℃
Recommended Charging Temperature
- 0 ~ 45℃
IN The Box
Ready To Spray
- x1 XAG P100 Drone with RevoSpray2
- x1 XAG ACS2 Control Stick (with RTK Module)
- x5 XAG B13960S XAG Smart Battery
- x1 XAG Charging Water Tank
- x1 XAG Generator GC4000+ Super Charger
- x1 XAG Local Network Terminal
- x1 XAG GNSS RTK Rover/Portable Base Kit
Spray All Day
- 1x XAG P100 Drone with RevoSpray2
- 1x XAG RevoCast 2
- 1x XAG 2021 ACS2 Control Stick with RTK Module
- 9x XAG B13960S XAG Smart Battery
- 2x XAG 2021 Charging Water Tank
- 1x XAG 2022 CM27000 Super Charger
- x1 XAG Local Network Terminal
