Product Description
XL Specialized Lowboy Trailer | Model 80 HDGS | Overall Length 48' | Overall Width 102" | Capacity 40 Tons
Ripping It is Partnered with Western Truck to provide the best pricing and service for XL Specialized.
DESCRIPTION
The XL Specialized 80 HDGS Lowboy is a heavy-haul trailer engineered for maximum strength, stability, and versatility. With an overall length of 48 feet, 102-inch width, and a distributed load capacity of 80,000 lbs, it is purpose-built for transporting large construction equipment, industrial machinery, and oversized loads.

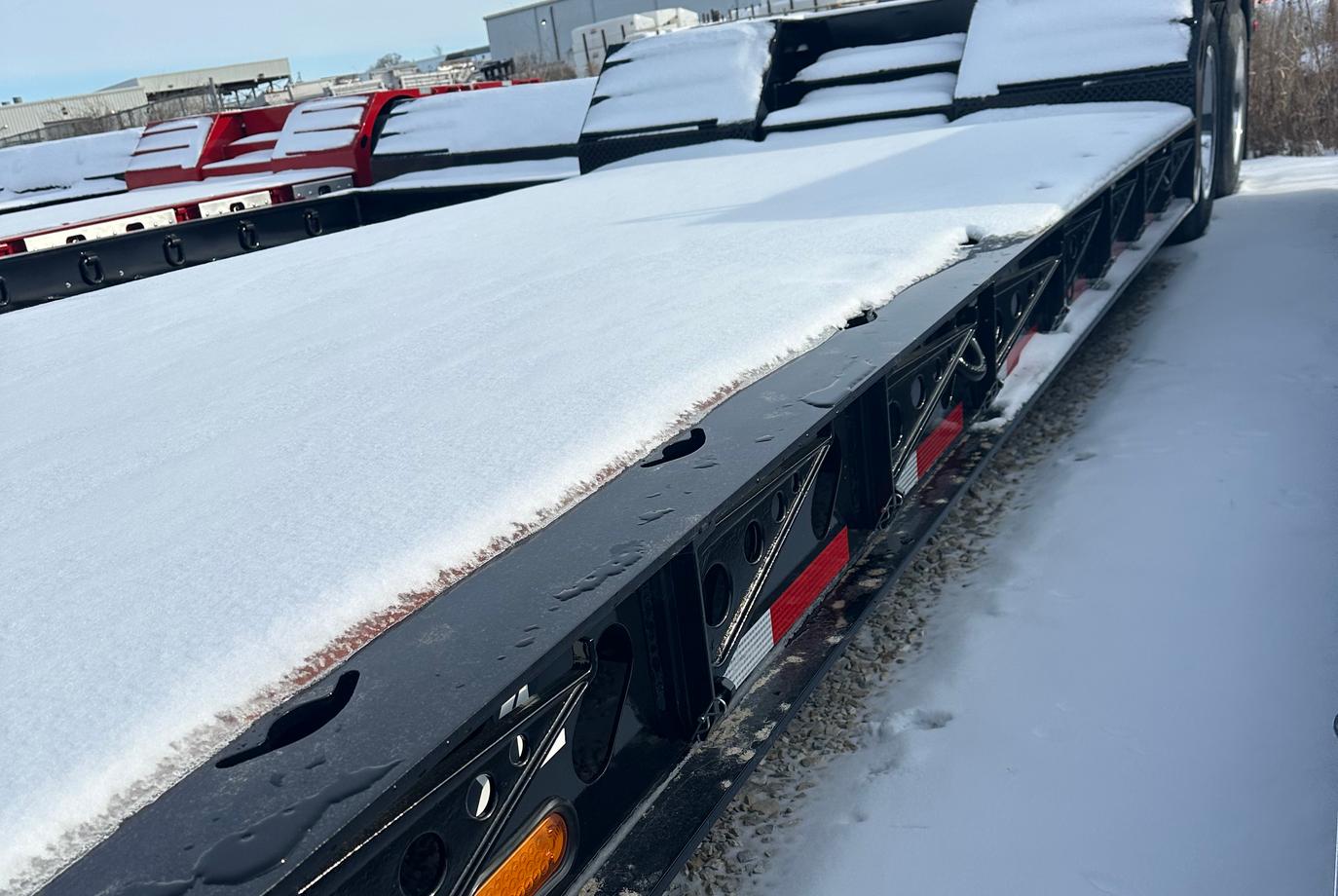

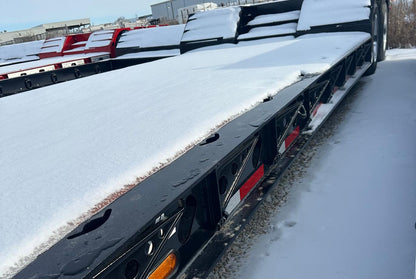

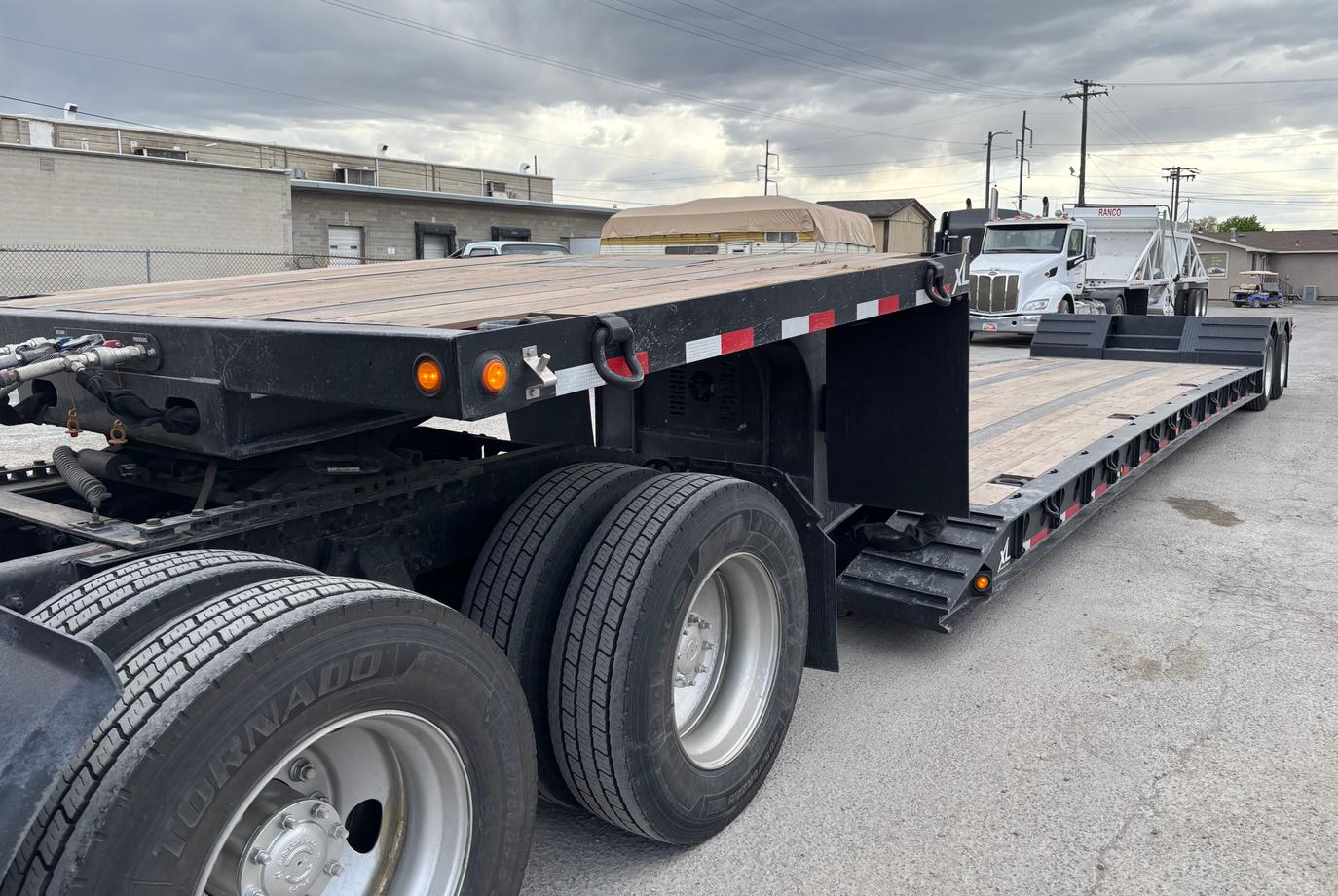

Featuring a low-profile scraper gooseneck, a 28-foot main deck with 18-inch loaded deck height, and a 9-foot rear deck, the 80 HDGS provides optimal ground clearance and load positioning. Outfitted with Apitong full-width decking, dual hydraulics powered by a 13 HP Honda unit, and Hendrickson air ride suspension, this trailer delivers durability and smooth operation. Safety is enhanced with ABS drum brakes, strobe lighting, flag holders, and a liquid-filled air gauge.
Key Features
- Heavy-Duty Capacity – 80,000 lbs distributed load rating with 48' overall length and 102" width.

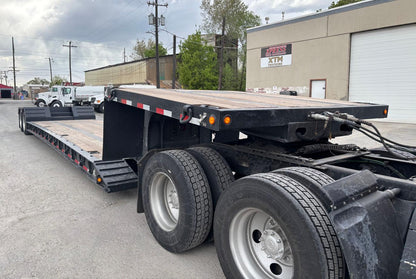

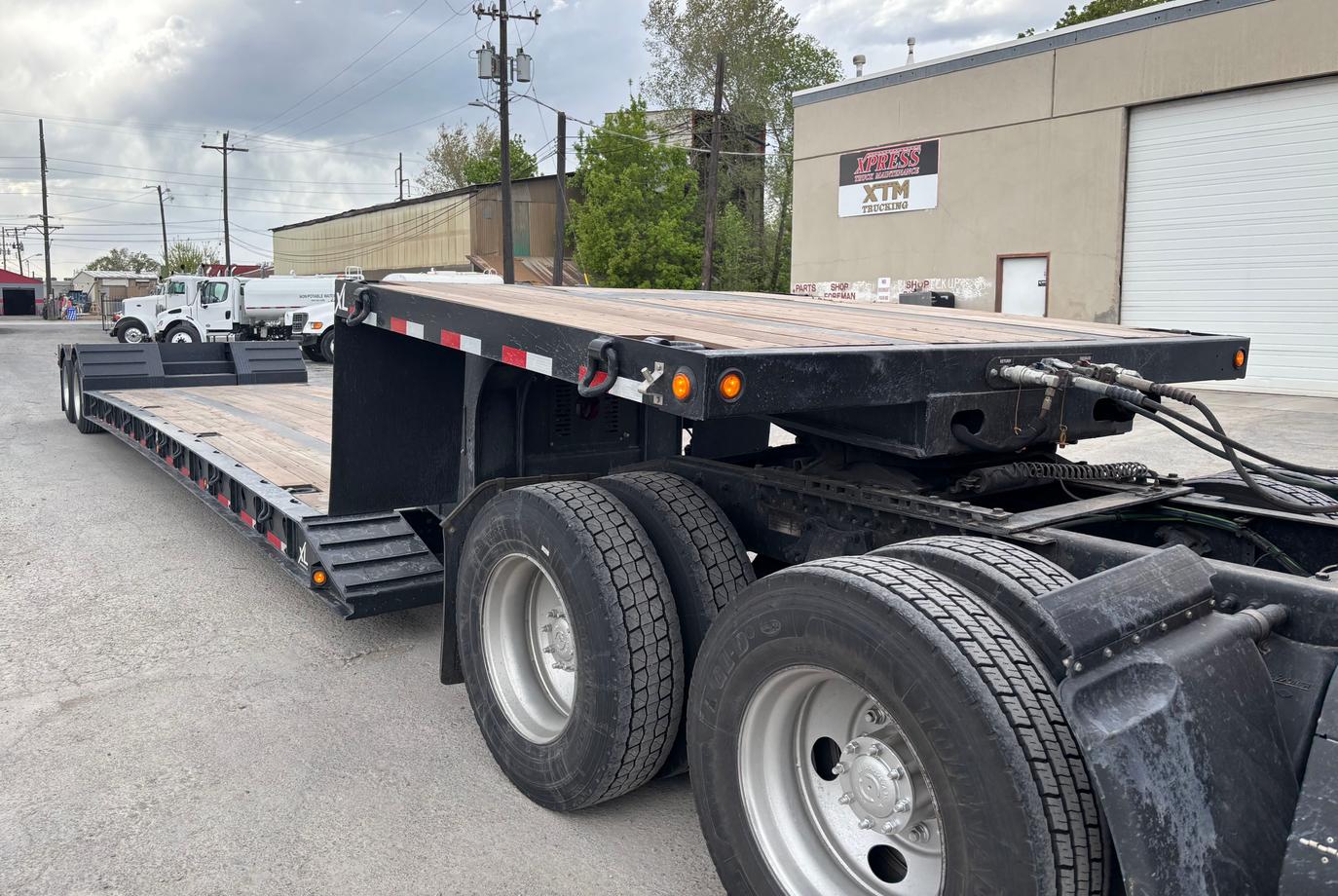

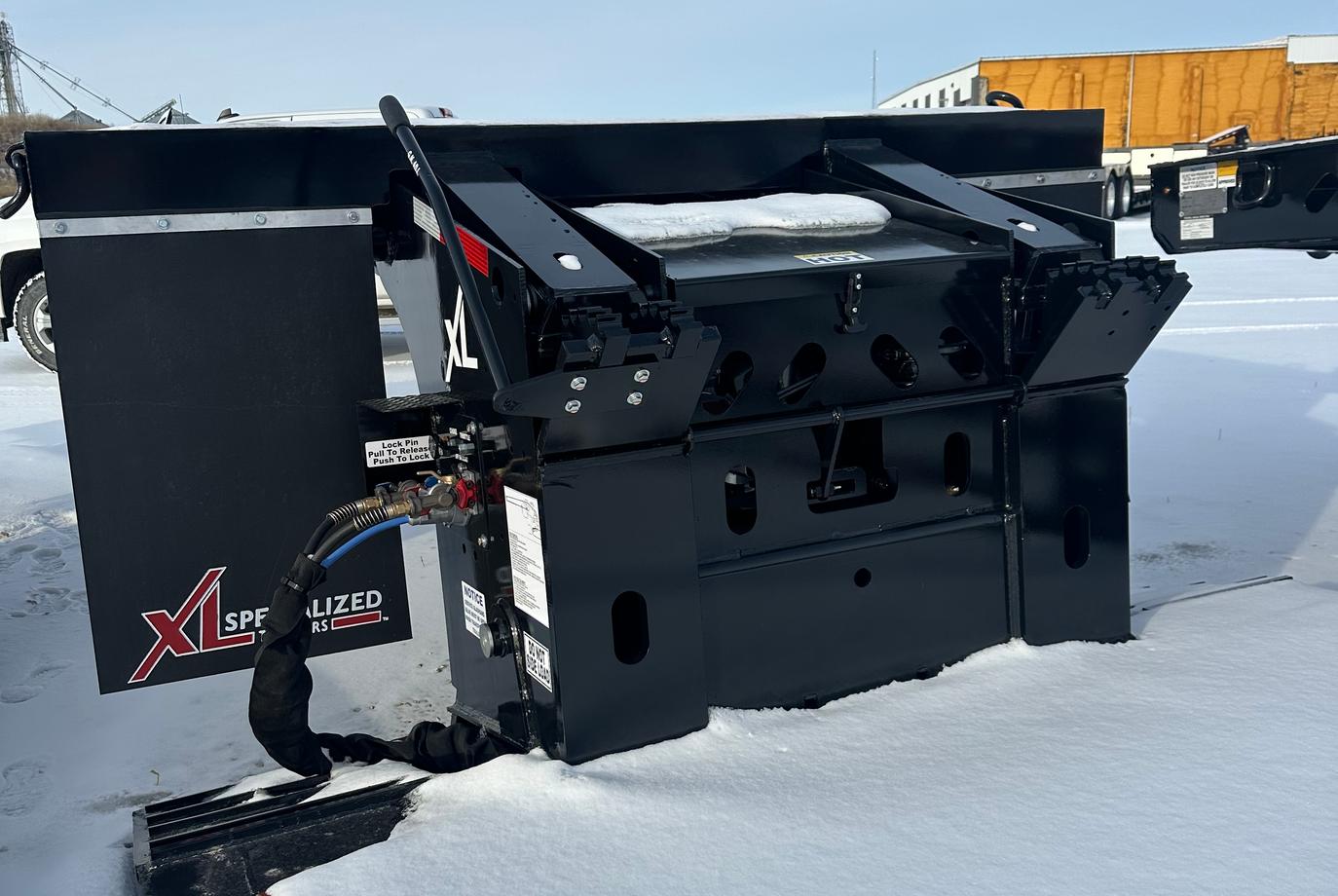

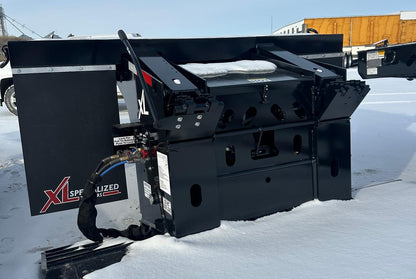

- Low-Profile Scraper Gooseneck – 11' neck with 16" kingpin setting, 86" swing clearance, and 5 ride height positions.

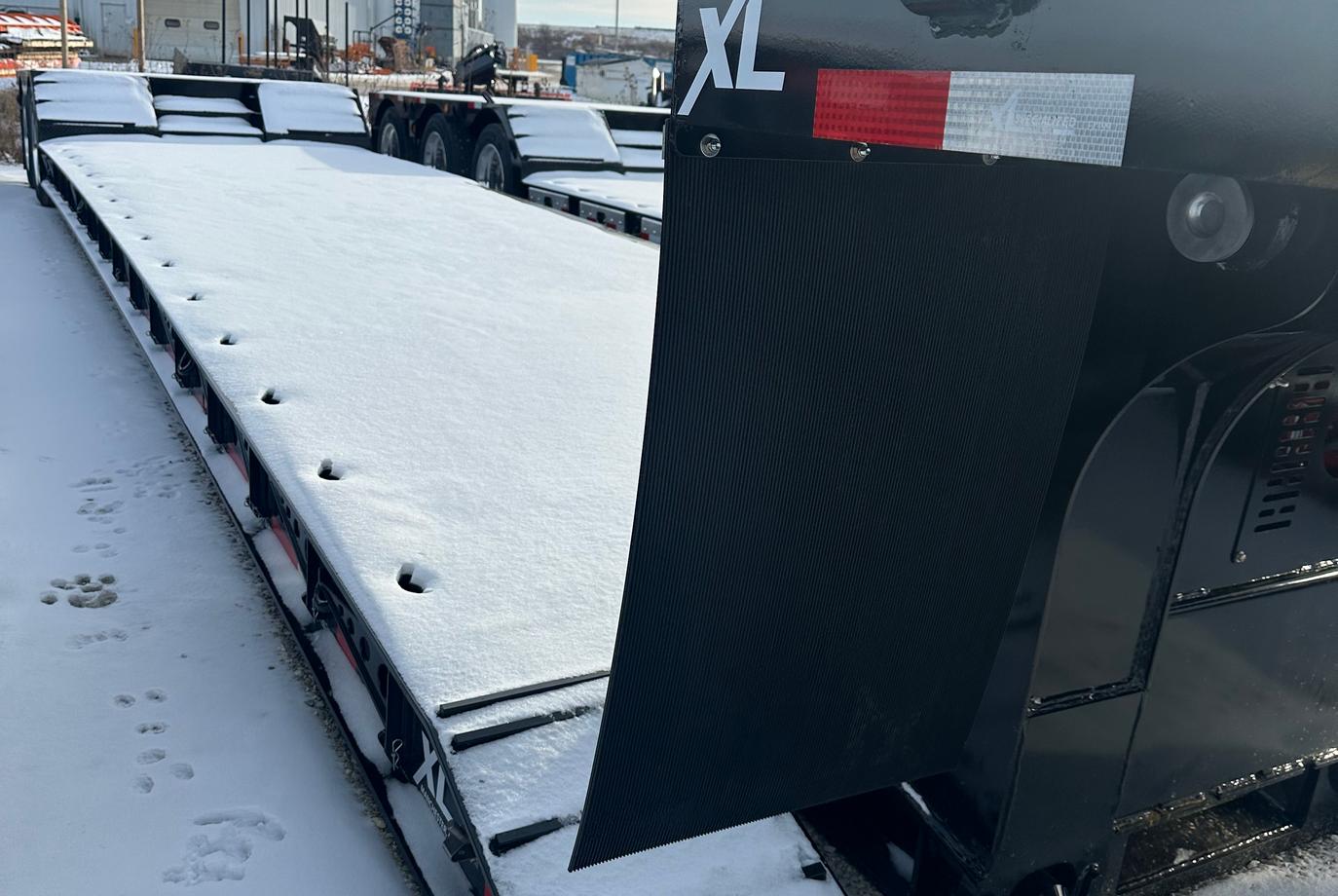

- Durable Decking & Frame – 1 1/8" Apitong full-width decking, 12" fabricated I-beams, and removable swing-out outriggers.

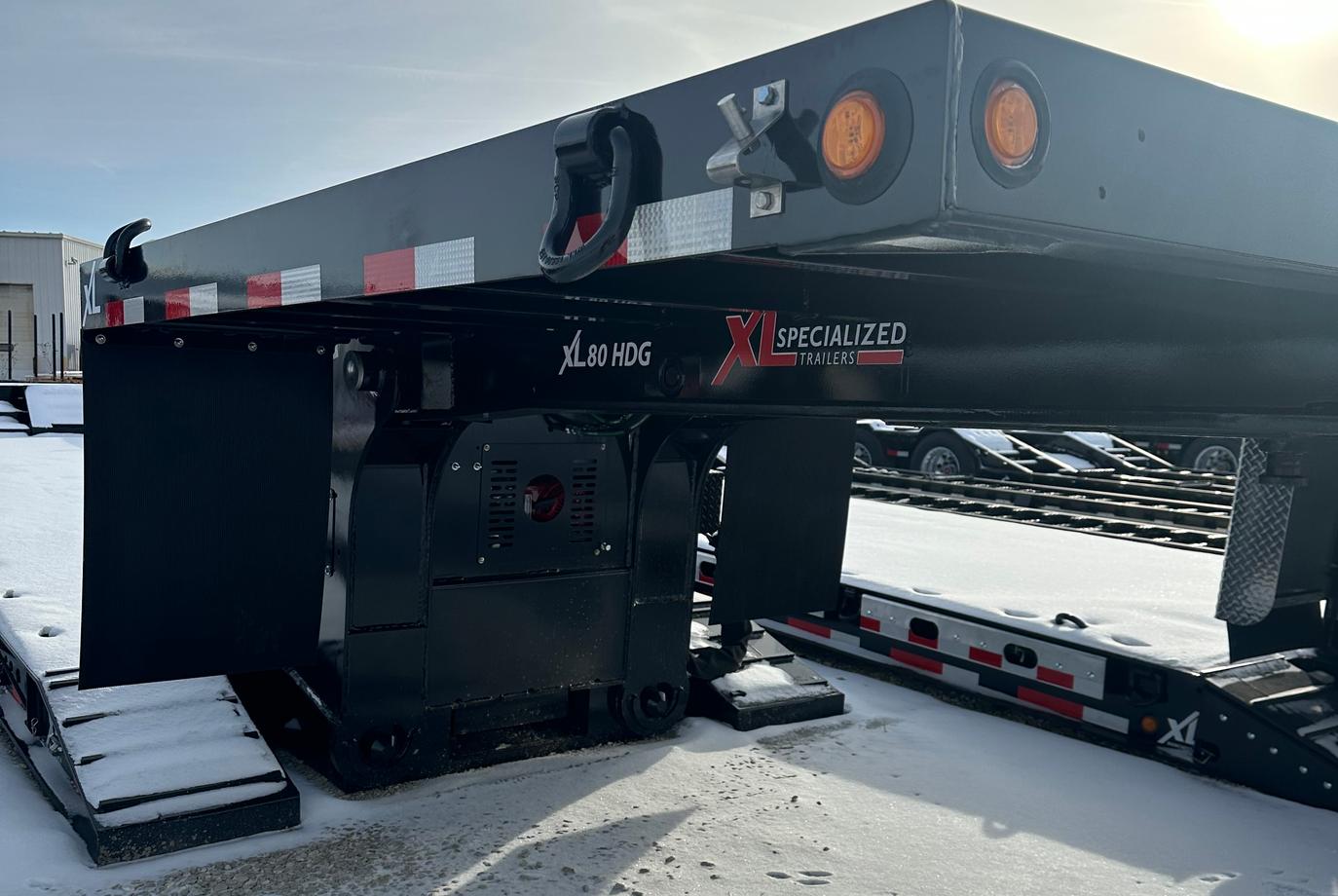

- Efficient Hydraulics – Dual hydraulic system powered by 13 HP Honda engine with steel cover protection.
- Advanced Suspension & Braking – Hendrickson air ride suspension, ABS 4S2M system, and 16.5" × 7" drum brakes.
- Safety & Monitoring – Grote sealed electrical system, amber strobe lights, flag holders, clearance lights, and liquid-filled air gauge.
- Flip Axle Ready – Prepped for flip axle installation for expanded hauling flexibility.
Detailed Specifications
| Category | Specification |
|---|---|
| Model | XL Specialized 80 HDGS Lowboy |
| Overall Length | 48' |
| Overall Width | 102" |
| Capacity (Distributed) | 80,000 lbs |
| Gooseneck Style | Low-profile scraper |
| Gooseneck Length | 11' |
| Kingpin Setting | 16" |
| Swing Clearance | 86" |
| Fifth Wheel Height | 51" with 5 variable ride height positions |
| Hydraulics | 13 HP Honda, dual hydraulics, steel cover (base of gooseneck) |
| Main Deck Length | 28' |
| Loaded Deck Height | 18" |
| Ground Clearance | 6" |
| Decking | 1 1/8" Apitong, full-width style |
| Beams | (4) 12" fabricated I-beams |
| Crossmembers | 6" & 4" JR I-beams on 12" alternating centers |
| D-Rings | (8) bent per side, (4) pan-style per side |
| Outriggers | Removable swing-out, brackets on 24" centers |
| Ramps | Tapers to 4" |
| Chain Drops | 24" centers, outside beams |

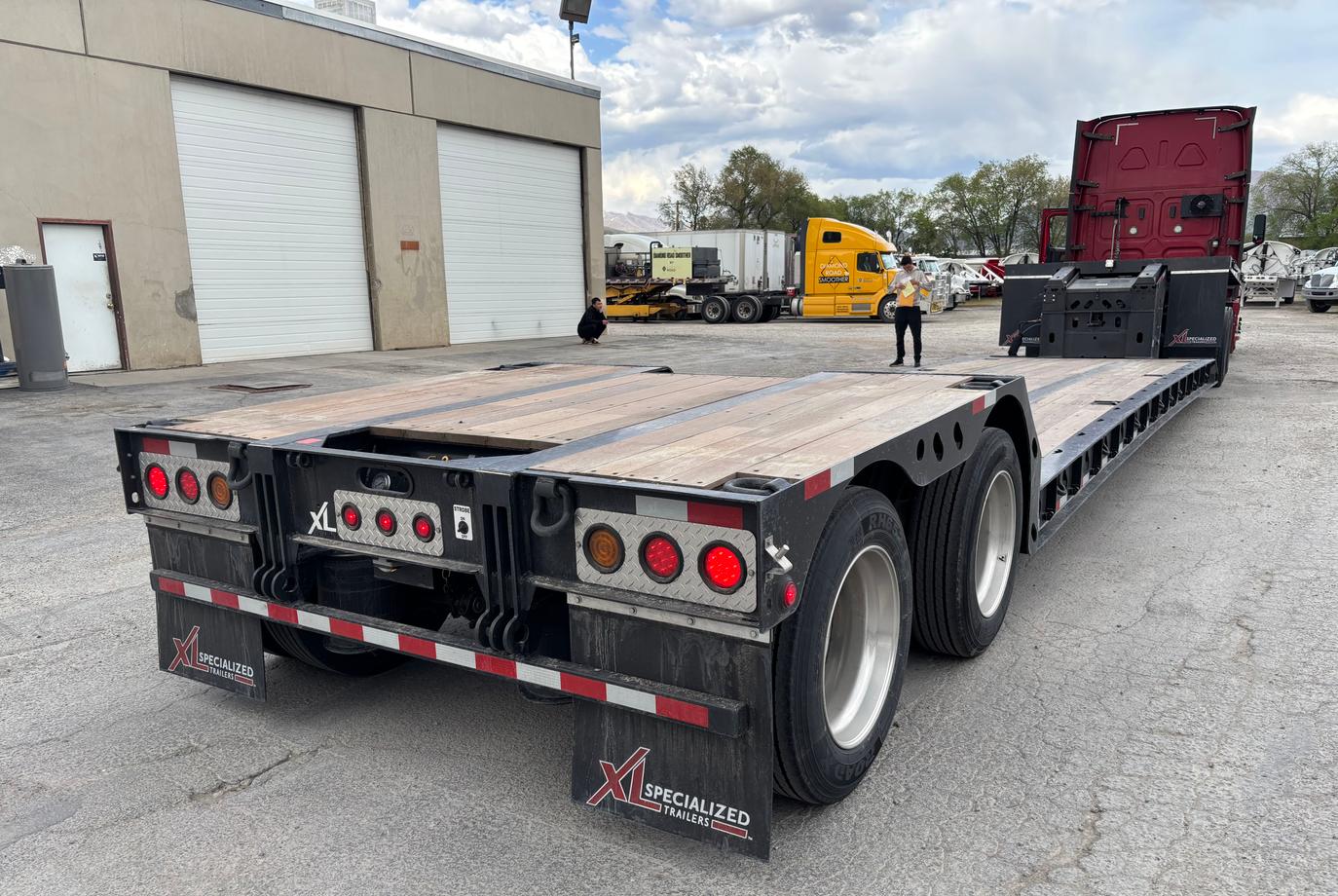

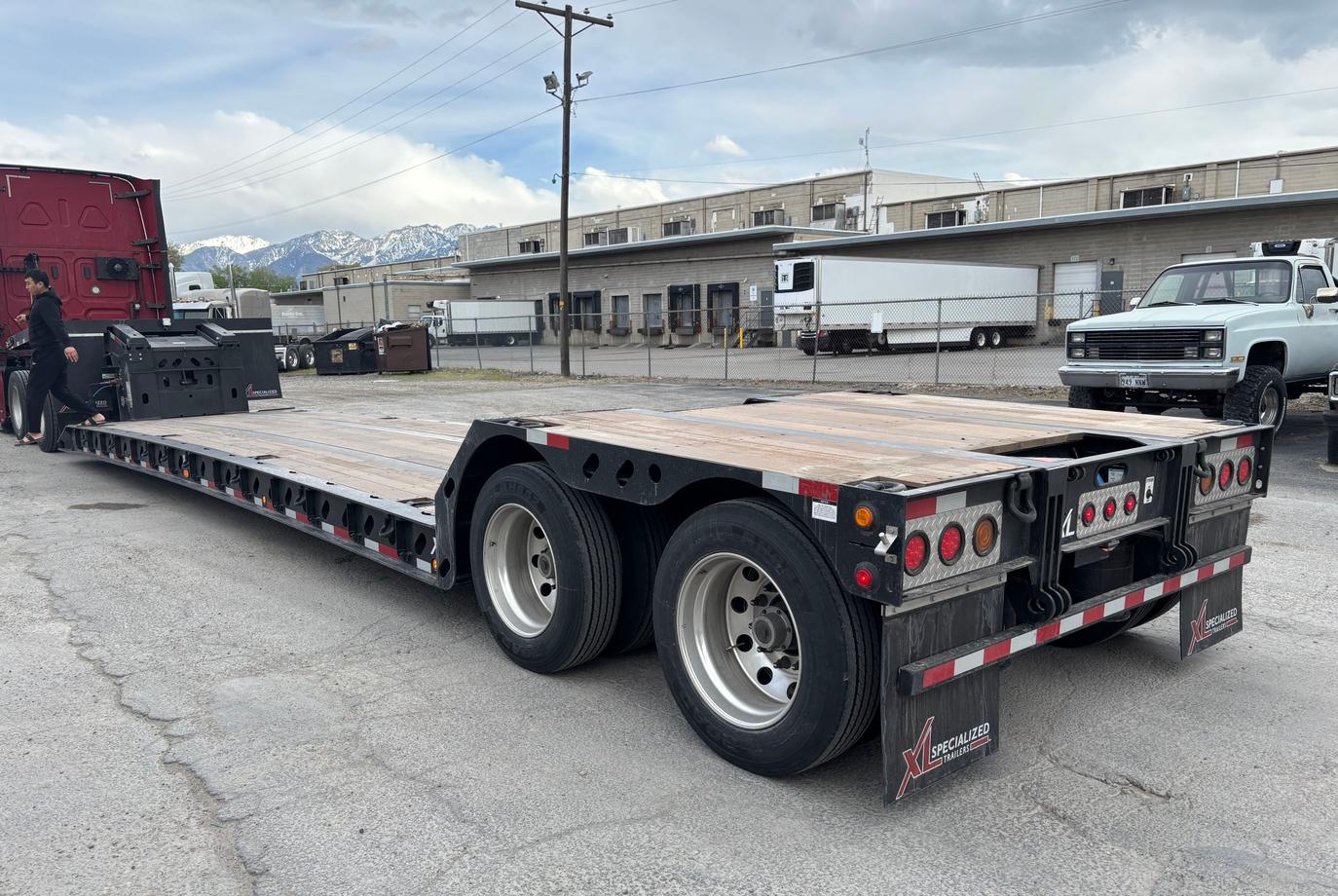

| Rear Deck Length | 9' |
| Rear Deck Height | 40" |
| Axles | (2) × 25,000 lbs nominal (5/8" wall) |
| Suspension | Hendrickson air ride, 25,000 lb capacity |
| Axle Spacing | 54" |
| Brakes | 16.5" × 7" drum brakes, ABS 4S2M, spring brakes on both axles |
| Tires | 255/70R 22.5 (H) |
| Wheels | 8.25 × 22.5, 10-hole pilot mount, steel disc inner/polished aluminum outer |
| Electrical System | 12V sealed Grote system with 3 tail lights |
| Strobe Lights | 4" amber strobe light with switch |
| Paint | Black |
| Ride Height Control | Manual raise/lower valve |
| Flip Axle Prep | Prepped for flip axle |
| Clearance Lights | 4 extra pairs on main deck |
| Flag Holders | 2 pairs EZ mount flag holders |
| Monitoring | Liquid-filled air gauge |
| Rear Transition Cutout | 2' × 2' |
