Product Description
XL Specialized | 80HDGS Lowboy Trailer | 48' Length | 80,000 lbs Capacity | 102" Width | For Heavy-Duty Equipment Transport
Ripping It is Partnered with Western Truck to provide the best pricing and service for XL Specialized.
DESCRIPTION
The XL 80HDGS Lowboy Trailer is an elite heavy-hauling solution, engineered for maximum strength, efficiency, and precision transport. Built with reinforced steel beams, a hydraulic detachable gooseneck, and optimized load distribution, this trailer ensures superior performance for industrial and construction applications.
Featuring a 48-foot overall length and a robust 80,000 lbs distributed load capacity, the XL 80HDGS is ideal for transporting oversized equipment, bulk materials, and specialized machinery. The low-profile scraper neck, adjustable ride height positions, and advanced suspension system guarantee secure handling and smooth transport in any terrain.
Designed with power requirements (kW/HP optimized) for seamless integration with hauling systems, this trailer includes a heavy-duty Apitong deck, dual hydraulics, and an array of load securement enhancements, providing efficient operations and maximum transport stability. Whether handling extreme-duty freight or high-capacity equipment, the XL 80HDGS Lowboy Trailer ensures industry-leading reliability and efficiency.
Key Features

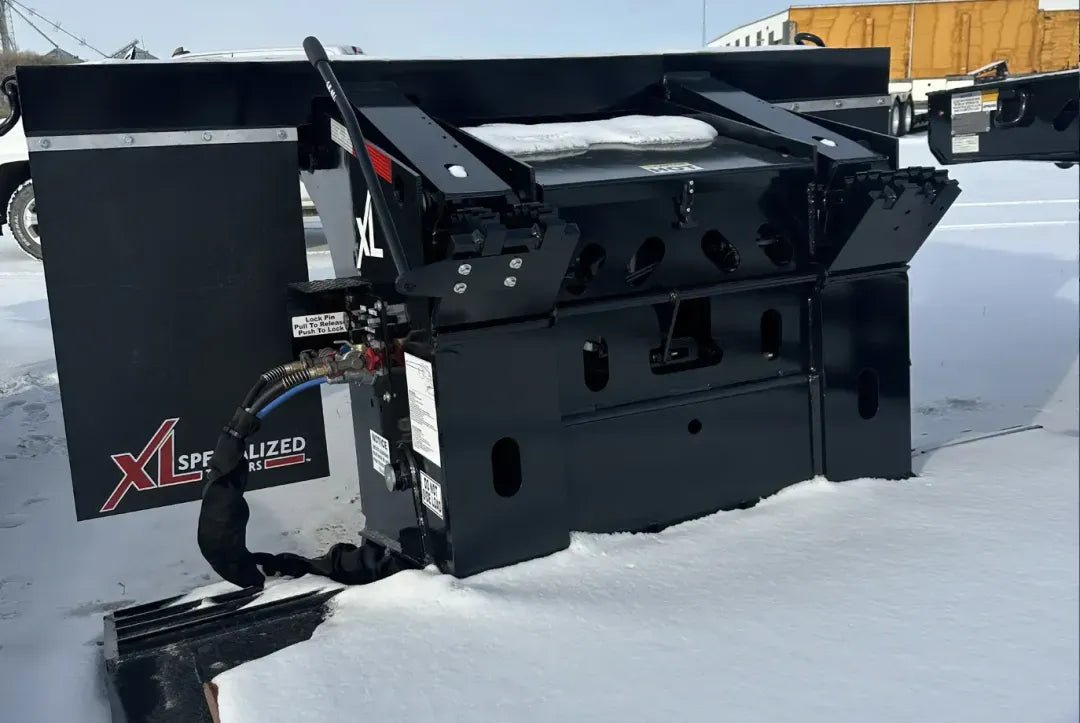

- Heavy-Duty Hydraulic Detachable Gooseneck for Efficient Transport: Low-profile scraper neck design, air-actuated locking pin, and adjustable ride height.
- Optimized Power Requirements: Designed for efficient towing and load distribution (kW/HP optimized).
- High-Capacity Suspension & Axle System for Load Stability: Hendrickson air ride suspension, dual 25,000 lb axles, and spring brakes on all axles.
- Premium Decking & Load Securement Features: Apitong wood flooring, multiple D-rings, swing-out outriggers, and chain drops at 24" intervals.
- DOT-Approved Safety & Lighting Package: Sealed Grote LED lighting system, extra clearance lights, and strobe lights for enhanced visibility.
- Integrated Ride Height Control & Monitoring Enhancements: Liquid-filled air gauge, manual ride height adjustment, and prepped flip axle compatibility.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | XL Specialized Trailers |
| Model Name | Lowboy Trailer |
| Model | XL 80HDGS |
| Condition | New |
| Overall Length | 48 feet |
| Overall Width | 102 inches |
| Deck Length (Main) | 28 feet |
| Rear Deck Length | 9 feet |
| Deck Height (Loaded) | 18" Main Deck / 40" Rear Deck |
| Ground Clearance | 6 inches |
| Capacity | 80,000 lbs Distributed / 70,000 lbs in 16 feet |
| Decking | 1 1/8" Apitong, Full-Width |
| Neck Style | Low-Profile Scraper Neck |
| Gooseneck Length | 11 feet |
| Kingpin Setting | 16 inches |
| Swing Clearance | 86 inches |
| Hydraulics | 13 HP Honda |
| Fifth Wheel Height | 51 inches with 5 Variable Ride Height Positions |
| Beams | Four 12" Fabricated I-Beams |
| Crossmembers | 6" & 4" JR I-Beams on 12" Alternating Centers |
| Outriggers | Removable Swing-Out, Brackets on 24" Centers |
| D-Rings | 8 Bent + 4 Pan-Style Per Side |
| Axles | (2) 25,000 lbs Nominal with 5/8" Wall |
| Suspension | Hendrickson Air Ride, 25,000 lbs |
| Axle Spacing | 54 inches |
| Brakes | 16.5" x 7" Drum, ABS 4S2M, Spring Brakes on Both Axles |
| Tires | 255/70R 22.5 (H) |
| Wheels | 8.25 x 22.5 |
| Lighting & Electrical | 12V Sealed Grote System with 3 Tail Lights |
| Strobe Lights | 4" Amber Strobe with Switch |
| Flip Axle Ready | Prepped for Flip Axle |
| Ride Height Control | Manual Control with Raise/Lower Valve |
| Paint | Black |
| Monitoring System | Liquid Filled Air Gauge |
| Clearance Lights | 4 Extra Pairs on Main Deck |
| Flag Holders | 2 Pairs EZ Mount Flag Holders |
| Rear Transition Cutout | 2' x 2' |
