Product Description

XL Specialized | 90HDE Extendable Lowboy | Hydraulic Detachable | 48' Length | 90,000 lbs Capacity | 102" Width | For Heavy Haul & Equipment Transport

Ripping It is Partnered with Western Truck to provide the best pricing and service for XL Specialized.

DESCRIPTION

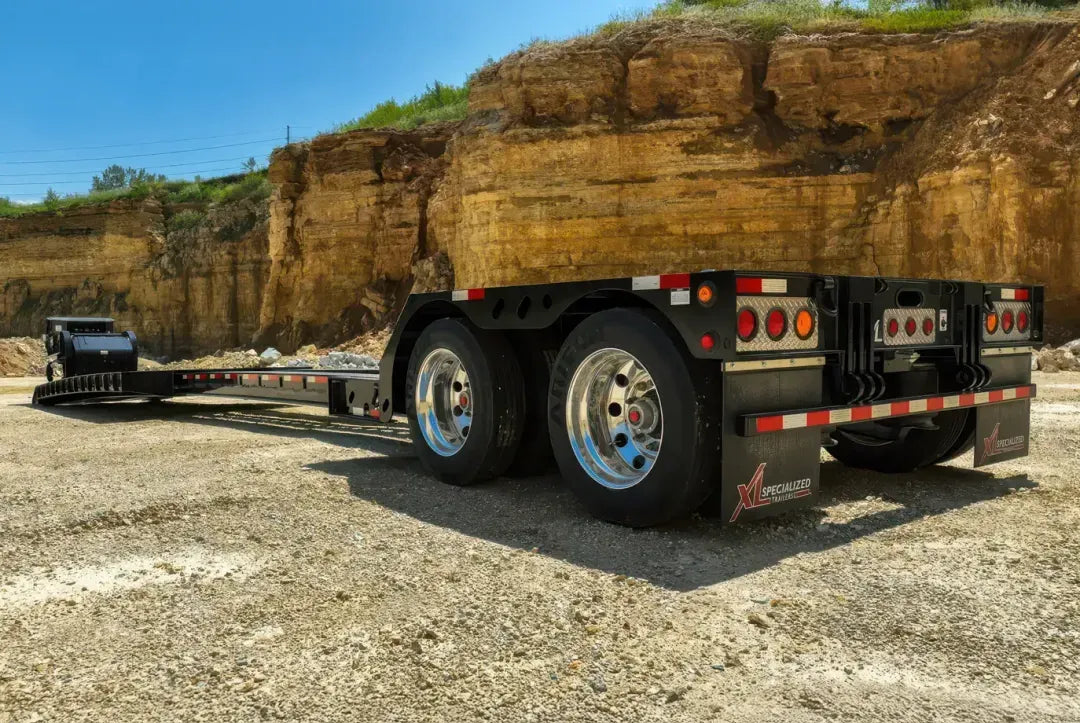

The XL Specialized 90HDE Extendable Lowboy Trailer is a cutting-edge, heavy-duty transport solution, meticulously designed to handle oversized machinery, construction equipment, and extreme loads. Built for versatility, strength, and reliability, this hydraulic detachable lowboy trailer adapts effortlessly to demanding transport operations, ensuring precision handling, increased payload capacity, and optimized hauling efficiency.

With a 90,000 lbs evenly distributed capacity when fully closed, and 70,000 lbs capacity when fully extended, this trailer provides exceptional load-carrying strength. The hydraulic detachable gooseneck, powered by a 13HP Honda dual hydraulic system, enables effortless detachment and reattachment, streamlining operations for efficiency. Power requirements (kW/HP optimized) allow seamless integration into semi-truck fleets, ensuring smooth hydraulic performance.

Equipped with a robust Apitong-decked main deck, a reinforced fabricated steel frame, and high-performance Hendrickson air ride suspension, the XL 90HDE is engineered to deliver professional-grade reliability and durability. Whether transporting industrial equipment or oversized freight, this trailer guarantees secure load management, superior axle performance, and maximum operational adaptability.

Key Features

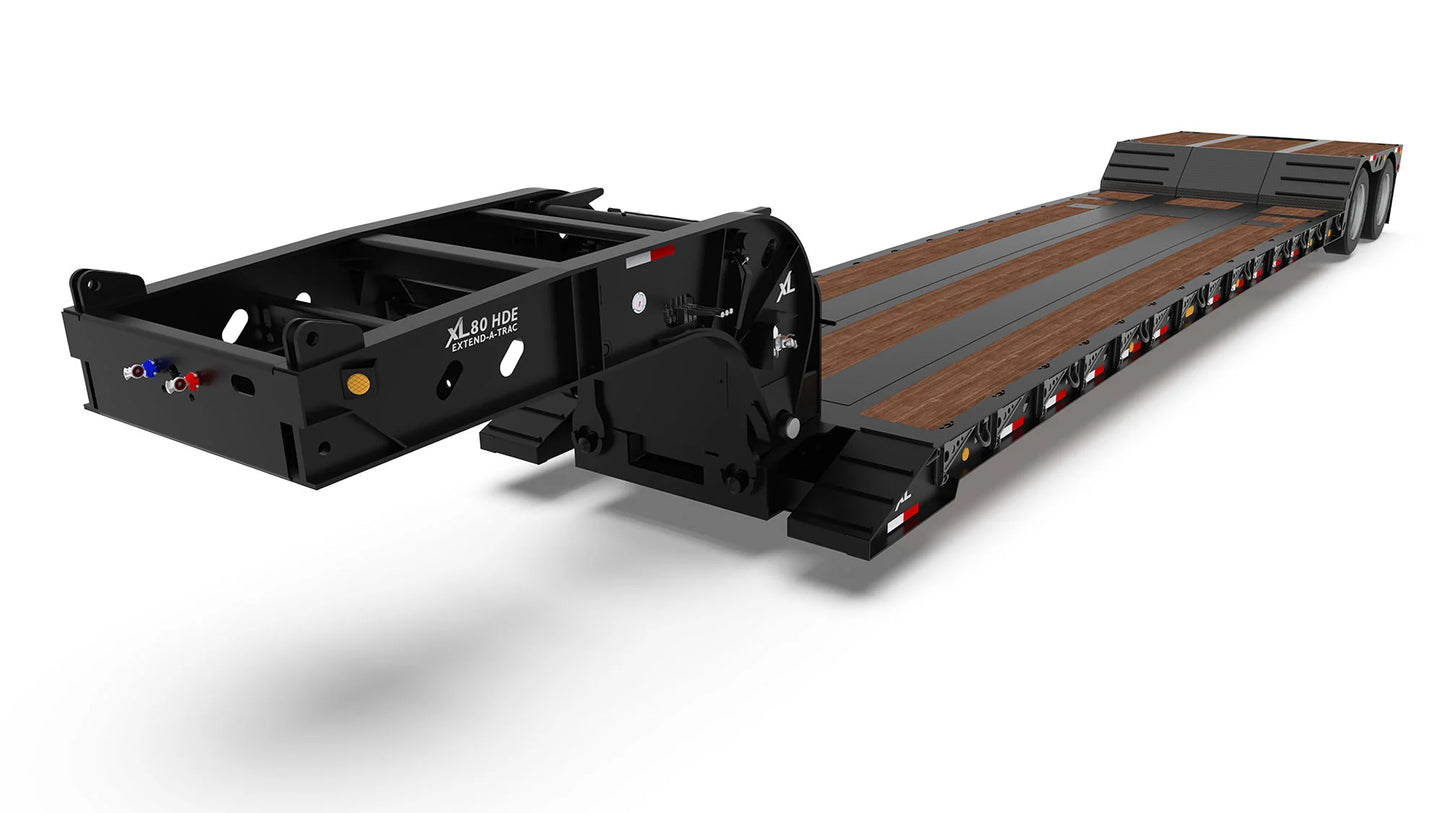

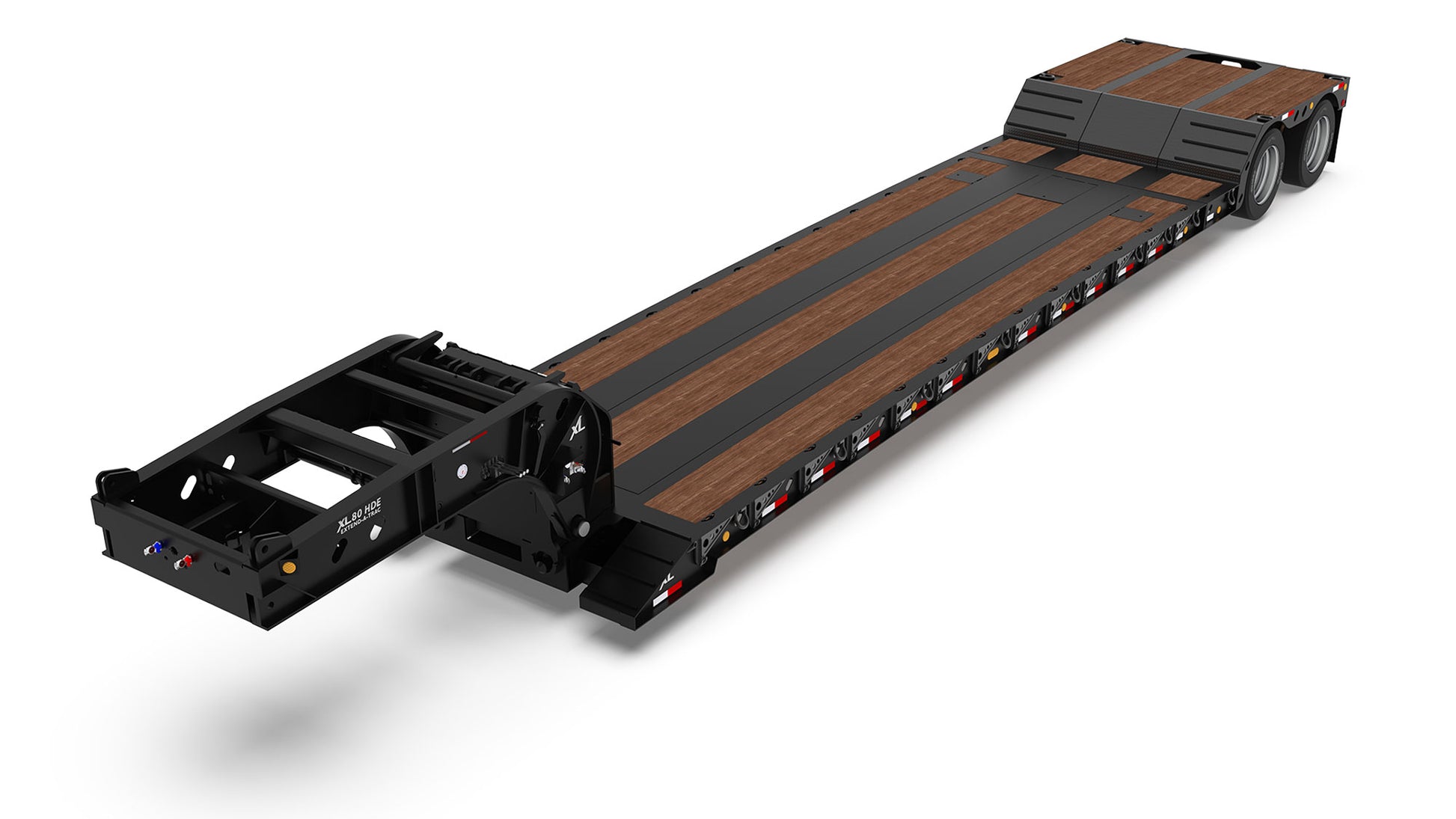

• Hydraulic Detachable Gooseneck for Easy Loading: Classic-style gooseneck, 10' 5" length. 13HP Honda dual hydraulic system with an aluminum cover for durability. Prepped for a 36" flip neck, flip neck included for enhanced adaptability.

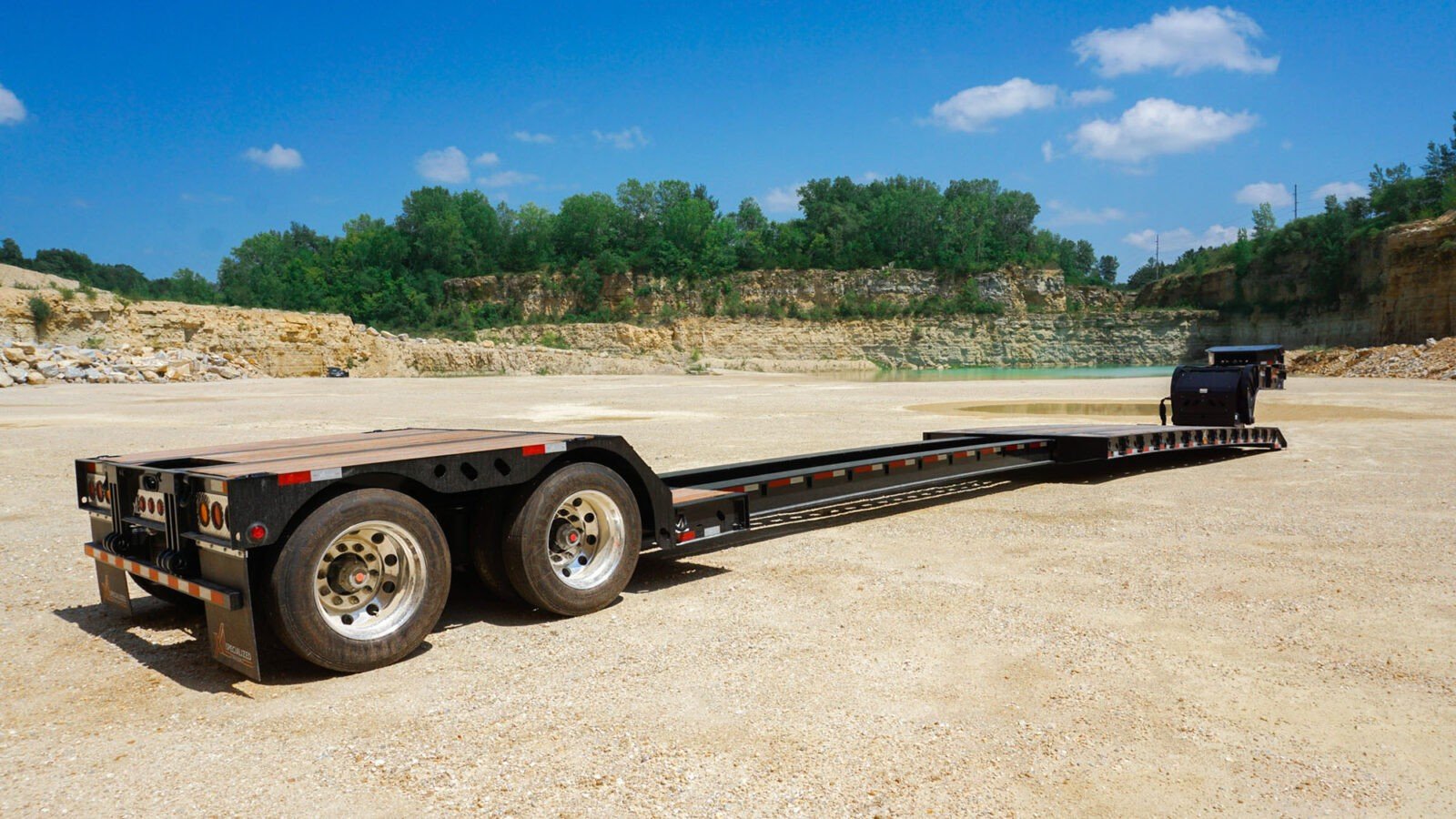

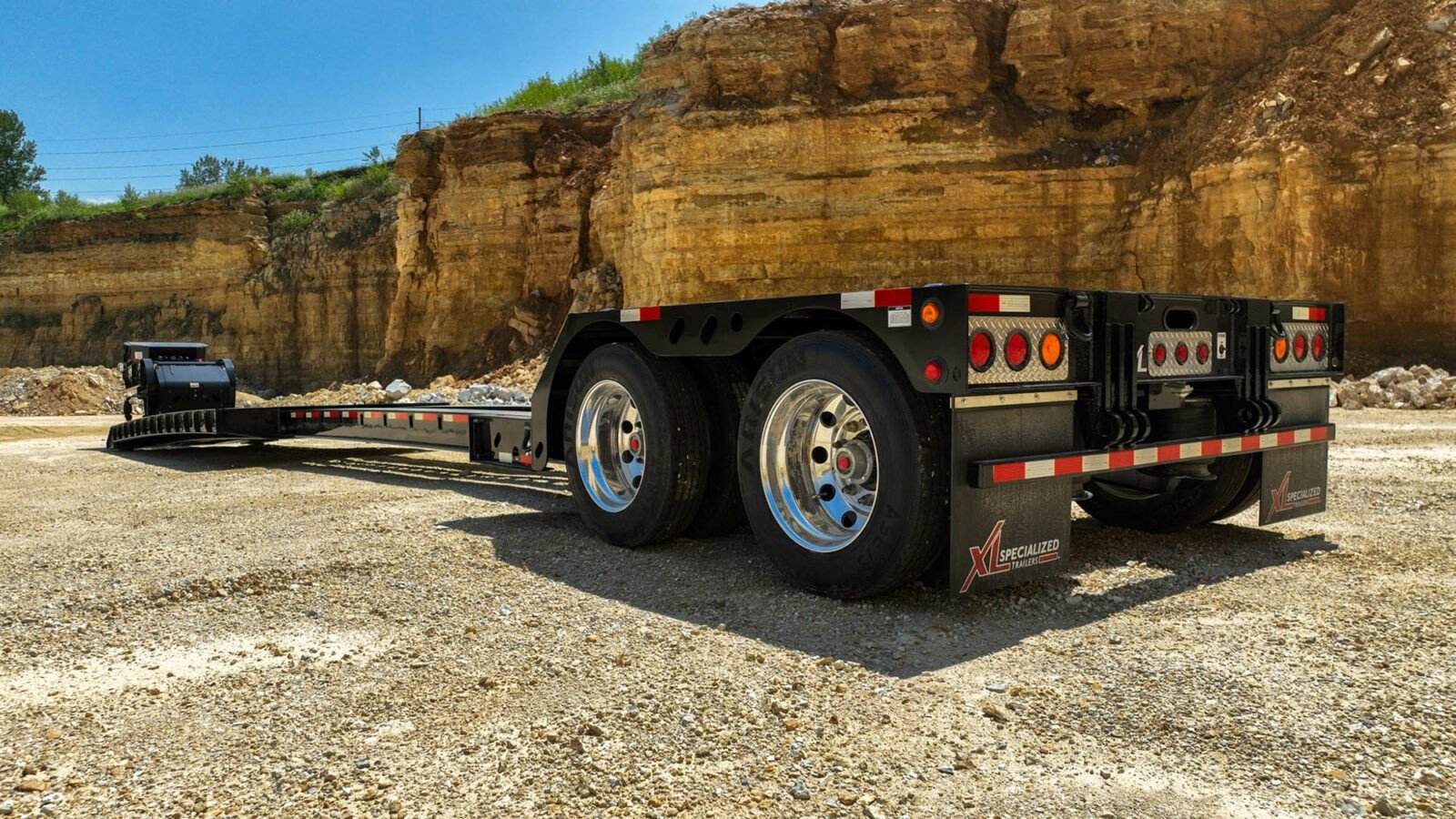

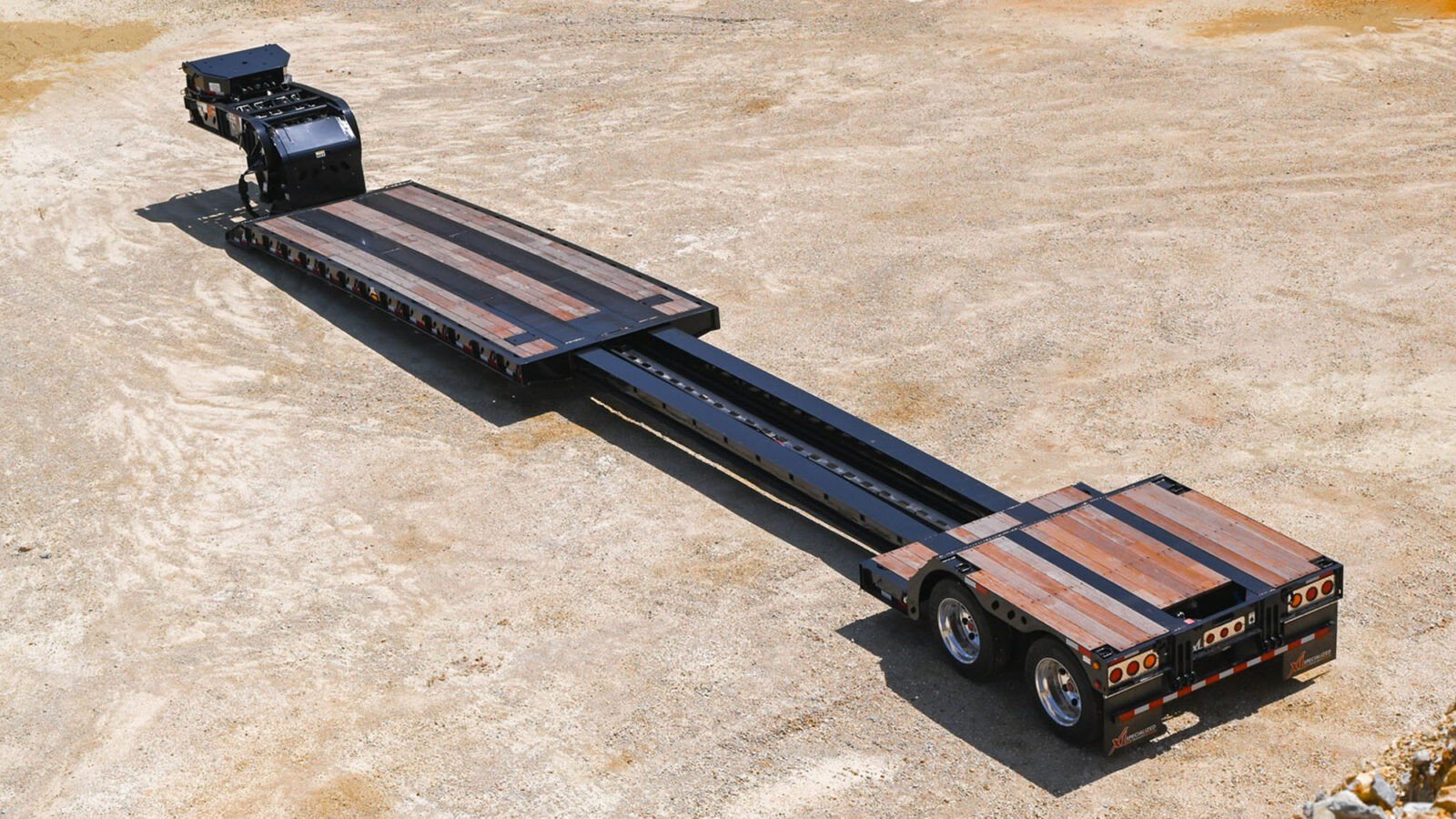

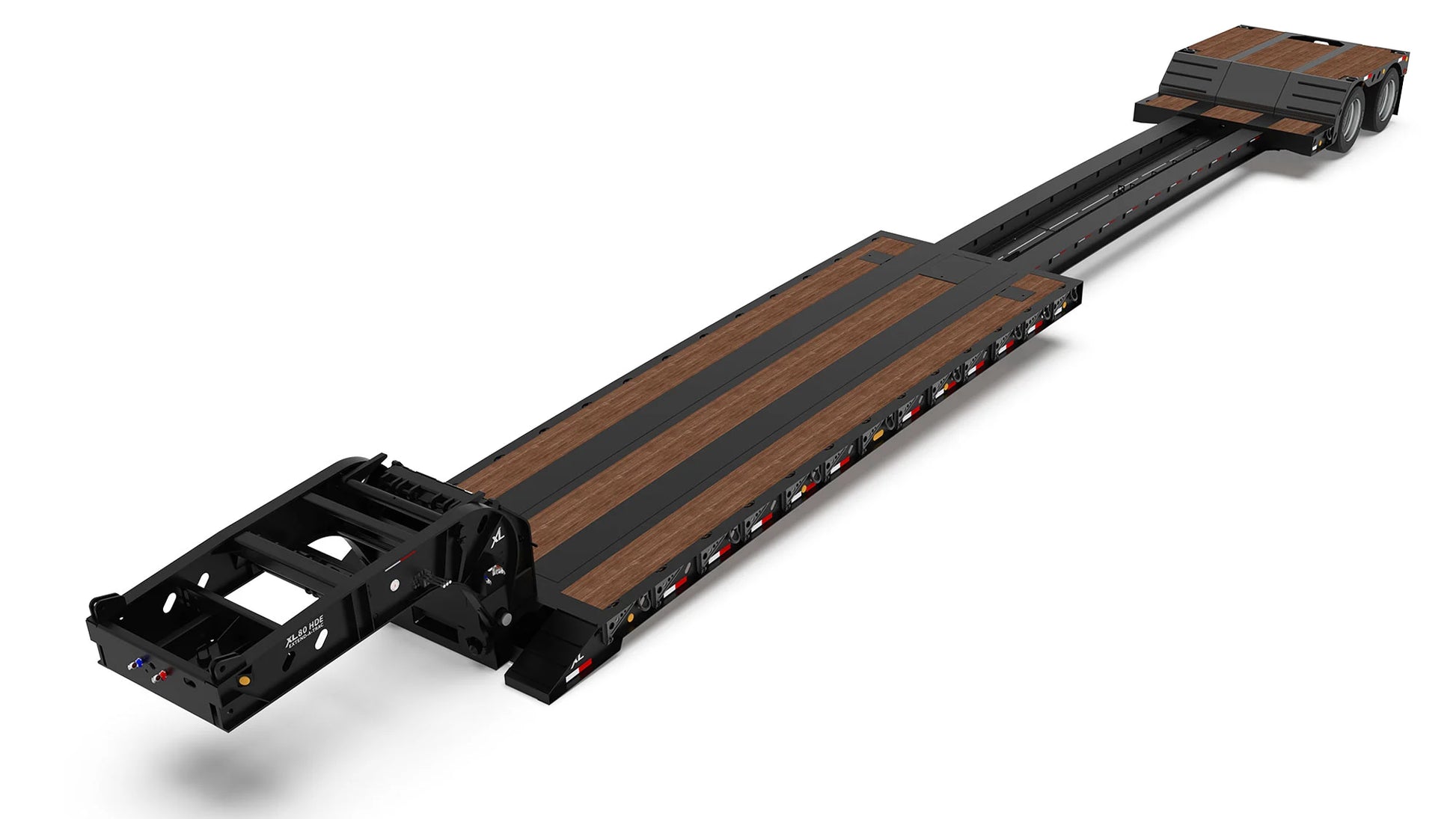

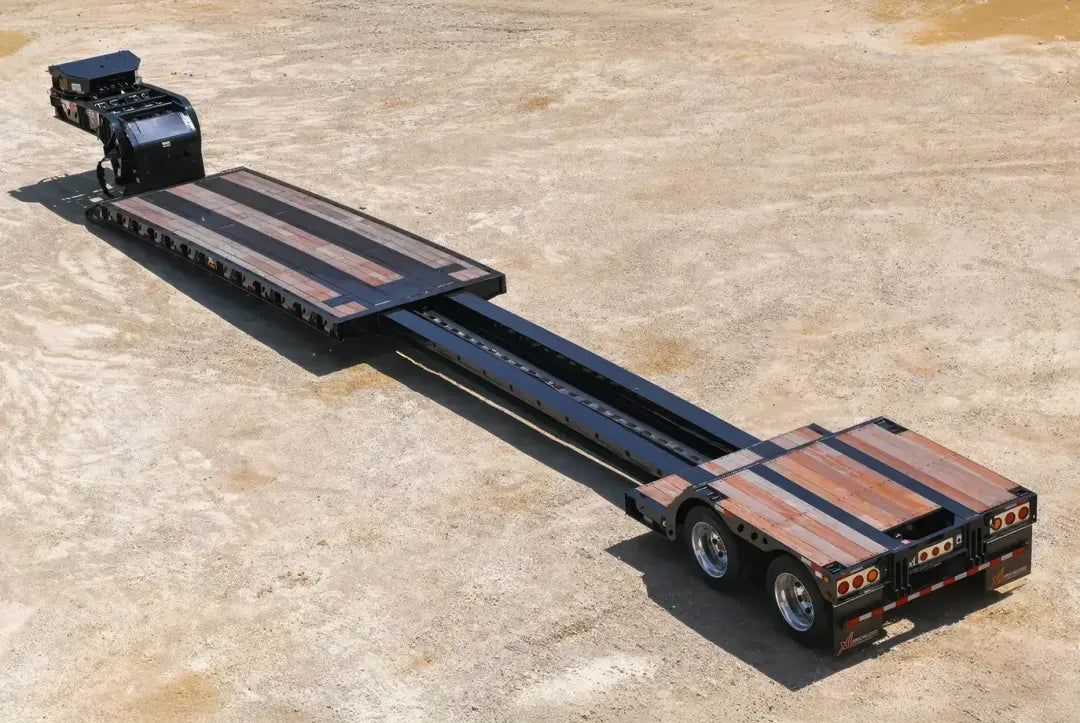

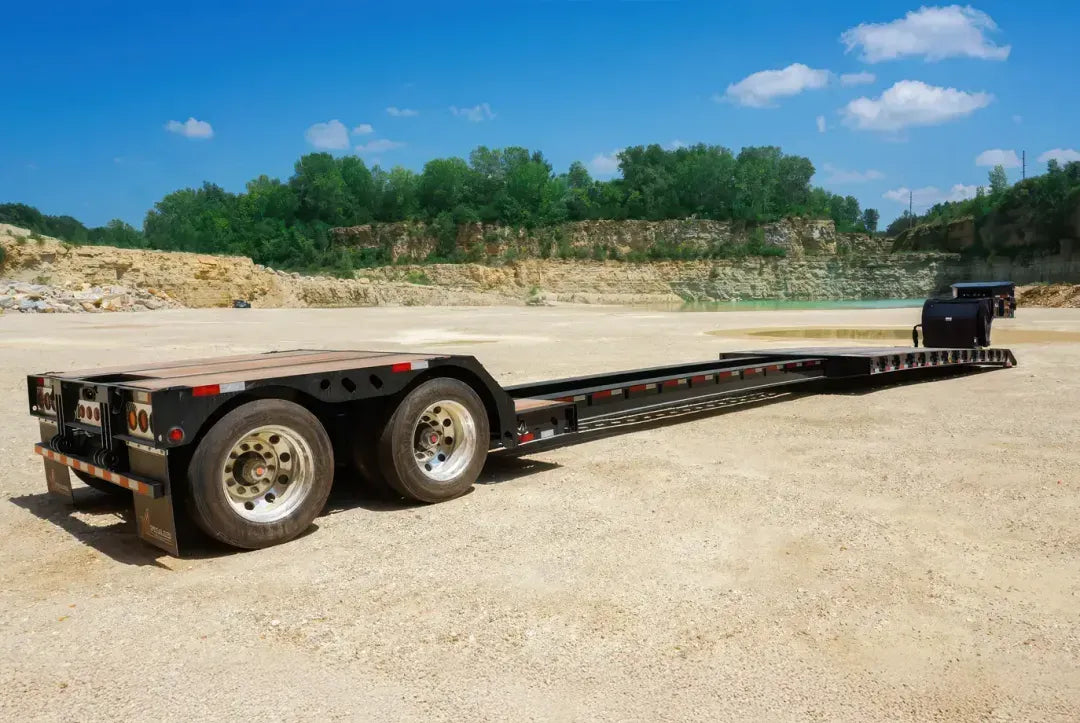

• Extendable Main Deck for Maximum Versatility: 28' 7" main deck length, extendable up to 49' 11" for extreme hauling flexibility. Loaded deck height: 20" with 6" ground clearance for stable and smooth transport.
• Optimized Hydraulic Power Requirements: Designed for seamless hydraulic integration (kW/HP optimized) to support smooth operations.
• High-Performance Suspension & Axles: Hendrickson air ride suspension, 25,000 lbs nominal axles (5/8" wall) for superior stability. Axle spacing: 54", with spring brakes and ABS 4S2M system for safety.
• Precision Load Securement & Stability: (8) bent D-Rings per side for secure tie-downs. Swing-out outriggers on 24” centers for enhanced cargo support. Heavy-duty chain drops positioned at 24” centers outside beams.
• Durable Decking & Reinforced Beams: 1 1/8" Apitong decking, flush and center covered for superior wear resistance. (4) fabricated I-beams for maximum structural strength.

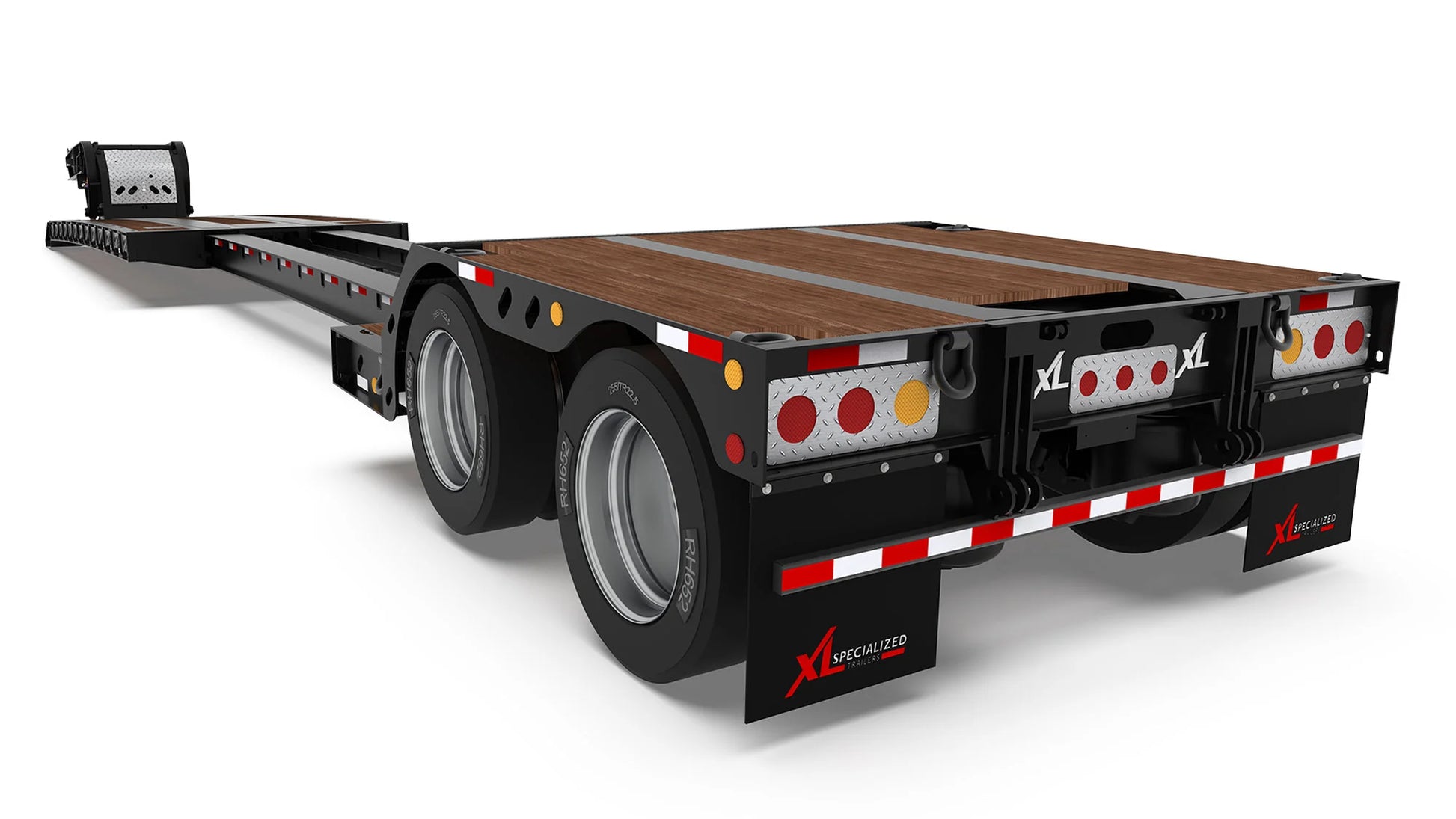

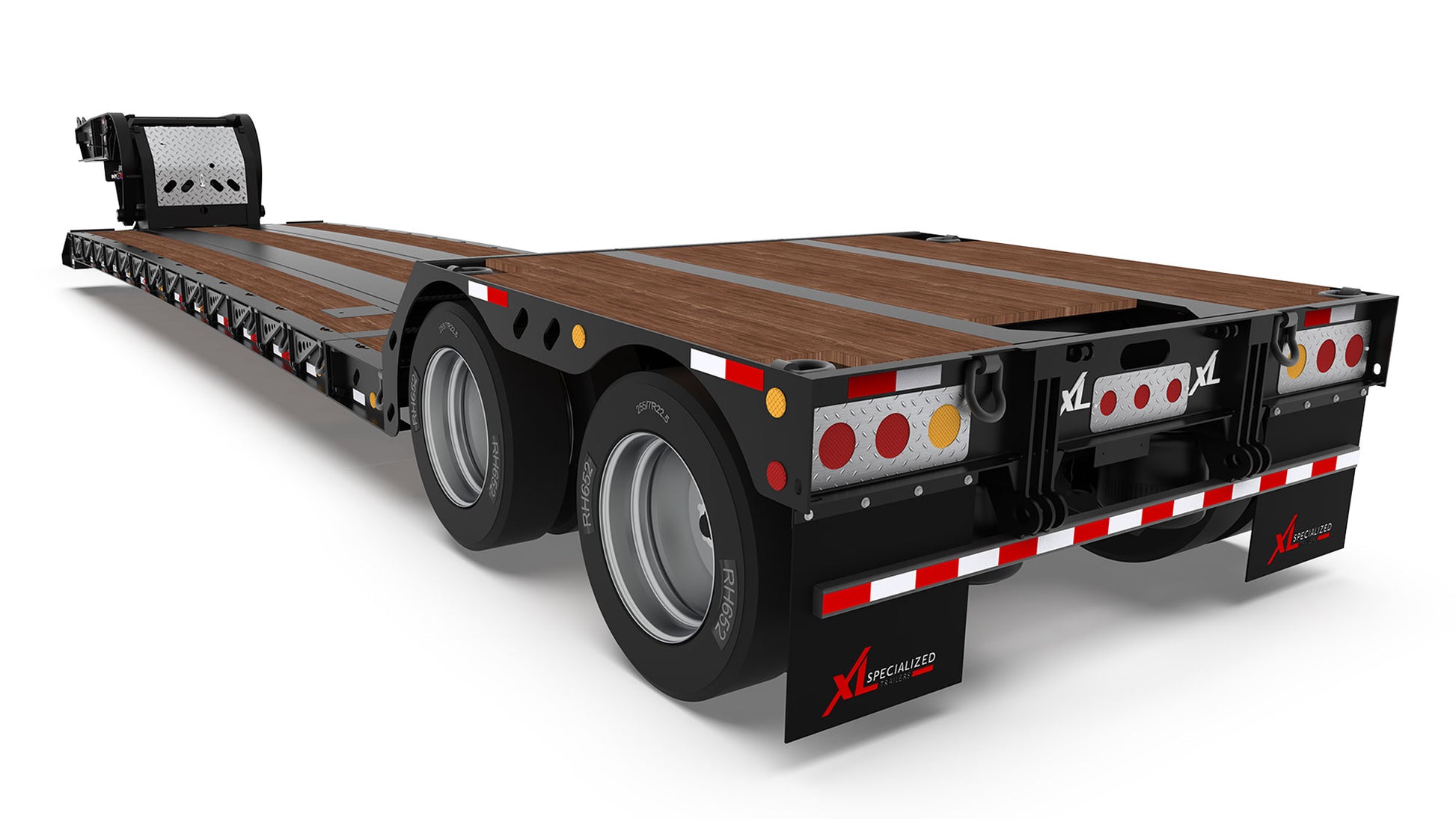

• Advanced Electrical & Lighting System: 12V sealed Grotes system, including battery backup with 4-way plug for self-sufficient operations. 3-tail light aluminum package, plus 4" amber strobe light for added safety visibility.
• Flip Neck & Booster Compatibility: Prepped for two-axle booster, ensuring adaptability for increased load capacity.
• Optimized Tires & Wheels for Load Efficiency: 255/70R22.5 tires, steel inside wheels, polished aluminum outside wheels for durability.
