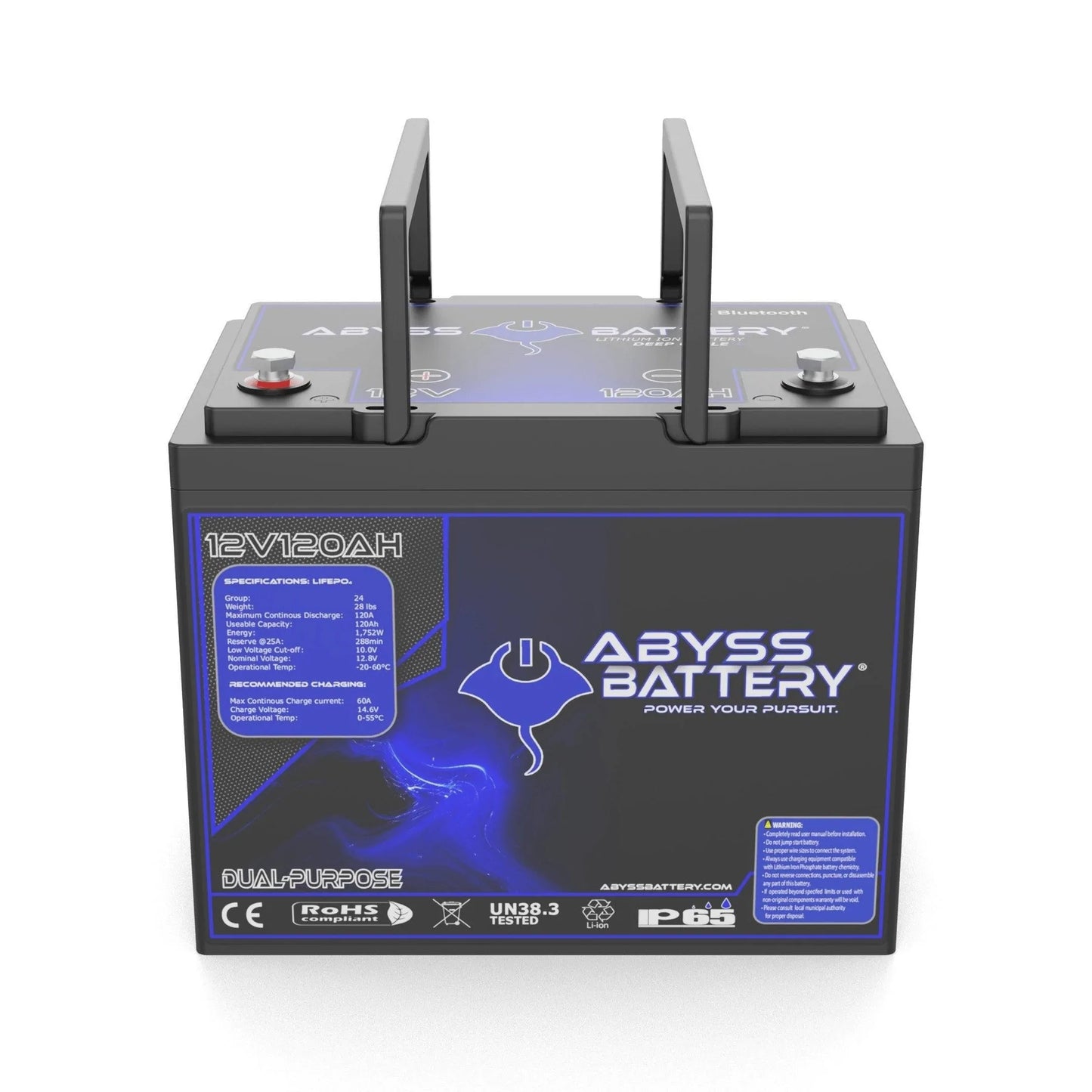

ABYSS® 12V 120Ah Dual Purpose Lithium Marine Battery
When you're out on the open water, the last thing you want to worry about is whether or not your battery will hold up. With the ABYSS® 12V 120Ah Dual-Purpose Lithium Marine Battery, you can rest easy knowing you have a powerful and reliable battery on board. This Lithium-ion battery is designed to be an upgrade replacement for standard BCI group 24 AGM batteries and is compatible with existing 12V AGM battery chargers. With a peak CCA of 1500A, it delivers plenty of power to start outboard motors, generators, and other high-load devices. Plus, it can be used in series or parallel sequence to ensure long and steady power draw for fish finders, GPS systems, audio systems, and electric downriggers. Compact and light-weight, the ABYSS® 12V 120Ah is a powerhouse you can depend on each and every outing.
Design Features:
- Higher qualified cylindrical cells 🔋
UL1642, IEC62619, IEC62133 listed with Cycle life more than 3000 times and excellent consistency.
- Bluetooth® Connectivity 📲
Monitor the battery status (charge, discharge, current, temperature, cycle life and so on) and change the data for different applications.
- Built-in Heating ♨️
- More stable and firm internal structure ⚙️
GENERAL
ELECTRICAL
CHARGE
Battery Safety
ISO 14001:2004 Environmental Management System
Abyss Battery®, Inc manufacturing process is compliant and licensed on an international level by TÜV Rheinland for Functional Safety as a result of exposure to harsh marine environments such as vibration, impact, ignition protection, water ingress, and salt spray corrosion common on pleasure craft and boats. TÜV Rheinland stands for safety and quality in virtually all areas of business and life. TÜV Rheinland’s highly qualified experts test technical systems and products around the world, support innovations in technology and business, train people in numerous professions and certify management systems according to international standards. In doing so, the independent experts generate trust in products as well as processes across global value-adding chains and the flow of commodities. Since 2006, TÜV Rheinland has been a member of the United Nations Global Compact to promote sustainability and combat corruption.
UN/DOT 38.3: Lithium Battery Transportation
All Abyss Battery®, Inc. Lithium Batteries are required to pass section 38.3 of the UN Manual of Tests and Criteria, to ensure the safety of using products for our end users and for shipping purposes. We are proud of our investment to ensure our products have been UN38.3 certified.
T1 – Altitude Simulation
This is low pressure testing that simulates unpressurized airplane space (cargo area) at 15,000 meter altitude. After storing batteries at 11.6kPa for >6 hours, these criteria shall be met: no mass loss, leaking, venting, disassembly, rupture, or fire, and voltage within 10% of pre-test voltage.
T2 – Thermal Test
This test covers changes in temperature extremes from -40°C to +75°C. Batteries are stored for 6 hours at -40°C (12 hours for large cells/batteries), then 6 hours at +75°C (12 hours for large cells/batteries), for a total of 10 cycles. Testing may be performed in a single chamber or thermal shock chamber, but less than 30-minute transitions shall be used.
T3 – Vibration
This test simulates vibration during transportation. Test is a Sine Sweep: 7Hz – 200Hz – 7Hz in 15 Minutes; 12 Sweeps (3 hours); 3 mutually perpendicular axes.
T4 – Shock
This test also simulates vibration during transportation. Test is a Half-Sine pulse: 150G/6ms for small cells/batteries; 50G/11ms for large cells/batteries; 3 pulses per direction; 6 directions (+/-z, +/-x, +/-y). Same pass criteria as T1.
T5 – External Short Circuit
This test simulates an external short to the terminals of the cell or battery. At temperature of +55°C, apply short circuit (<0.1ohm) across terminals. Maintain at least an hour after sample temperature returns to +55 +/-2°C. Pass criteria are: Case temperature does not exceed +170°C and no disassembly, rupture, or fire within 6 hours of test. Fuse, current limiting circuit, and venting mechanism activation are allowable.
T6 – Impact
This test is only applicable to primary and secondary cells. For cylindrical cells >20mm diameter, it simulates impact to case of cell. For cylindrical cells <20mm diameter and all other cell constructions, it simulates crushing of a cell. Pass criteria for any type is: Case temperature does not exceed +170°C & no disassembly or fire within 6 hours of test.
T7 – Overcharge
This test is for secondary or rechargeable batteries only. It simulates an overcharge condition on a rechargeable battery: 2x the manufacturer’s recommended charge current for 24 hours. Then battery shall be monitored for 7 days for fire or disassembly.
T8 – Forced Discharge
This testing simulates a forced discharge condition for primary and secondary cells only.
Product Manual
Click the links below to view and download the owner's manuals and instructions for your Abyss Battery® products.
Warranty
Manufacturer’s Limited Warranty
| Warranty Coverage | 5-Year Free Replacement | After 5 years, 35% Off a New Replacement up to 10-Years |
Extended Warranty
| Extended Coverage | 7-Year Free Replacement | After 7 years, 50% off a new Replacement For Life |
Enjoy 7 years of peace of mind when you buy ReCharge+ for your Battery. ReCharge+ for Abyss Battery® Extends your Free 5-Year Replacement Coverage by 2+ additional years from your purchase. In addition to a free battery replacement, you’ll get 24/7 priority access to our Battery experts by chat or phone.
One stop for support:
- 24/7 priority access to Battery experts by chat or phone
- Global repair coverage
- Onsite repair for Batteries: Request that a technician come to your work site
- Mail-in repair: Mail in your Battery using a prepaid shipping box provided by Abyss Battery
- Carry-in repair: Bring your Battery into our Authorized Service Providers
