Anderson Log Loader | Model M-160 | Grapple Opening 48" inches | Horsepower 75+ HP | For Tractors

Product Description

Anderson Log Loader | Model M-160 | Grapple Opening 48"  inches | Horsepower 75+ HP | For Tractors

DESCRIPTION

The Anderson M-160 Log Loader is designed for producers, professional forest contractors, and demanding users who require industrial-grade capabilities in their log loader. With its impressive 16-foot (4.8 m) maximum arm extension and 360-degree swing angle, the M-160 offers unmatched performance and efficiency. This loader is equipped with advanced standard features that make it ideal for heavy-duty logging and forestry operations, ensuring uncompromising power and versatility.

Key Features

• Maximum Arm Extension: Extends up to 16 feet (4.8 meters), delivering exceptional reach and efficiency for handling large logs.
• 360-Degree Swing Angle: Full rotation capability enhances flexibility and maneuverability, even in confined spaces.
• Continuous Grapple Rotation: Ensures precise and smooth handling of logs, increasing productivity during operations.
• Hydraulic Winch: Includes a standard #750 1-speed hydraulic winch with a load capacity of 6500 pounds and 150 feet (45.7 m) of 3/8-inch steel cable.
• Circuit Control with Joysticks: Intuitive joystick controls provide accurate and effortless operation, even for intricate tasks.
• Articulated Drawbar: Improves maneuverability in tight areas, enhancing usability in challenging terrains.

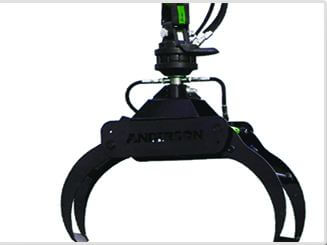

• 48-Inch Grapple Opening: Efficiently handles large logs, with a closed grapple diameter of 4 inches (10.2 cm).
• Boom Lifting Capacity: Capable of lifting 1150 pounds (521 kg) at full extension and 2600 pounds (1180 kg) at mid-span.
• Total Load Capacity: Supports heavy-duty operations with a total load capacity of up to 28,440 pounds (12,900 kg) on the RF-612HD trailer.
• Telescopic Stabilizer Legs: Optional stabilizer legs offer additional stability for demanding operations.
• Tire Specifications: Fitted with durable 16.5L16.1 (14 PLY) tires for reliable performance on various terrains.
• Optional Auger Attachments: Compatible with 6-inch (15.2 cm) and 9-inch (22.9 cm) augers for additional versatility.

Detailed Specifications
