ASV POSI-TRACK VT70HO MAX | COMPACT TRACK LOADER | 15" WIDE TRACK

How To Get A Quote:

Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Description

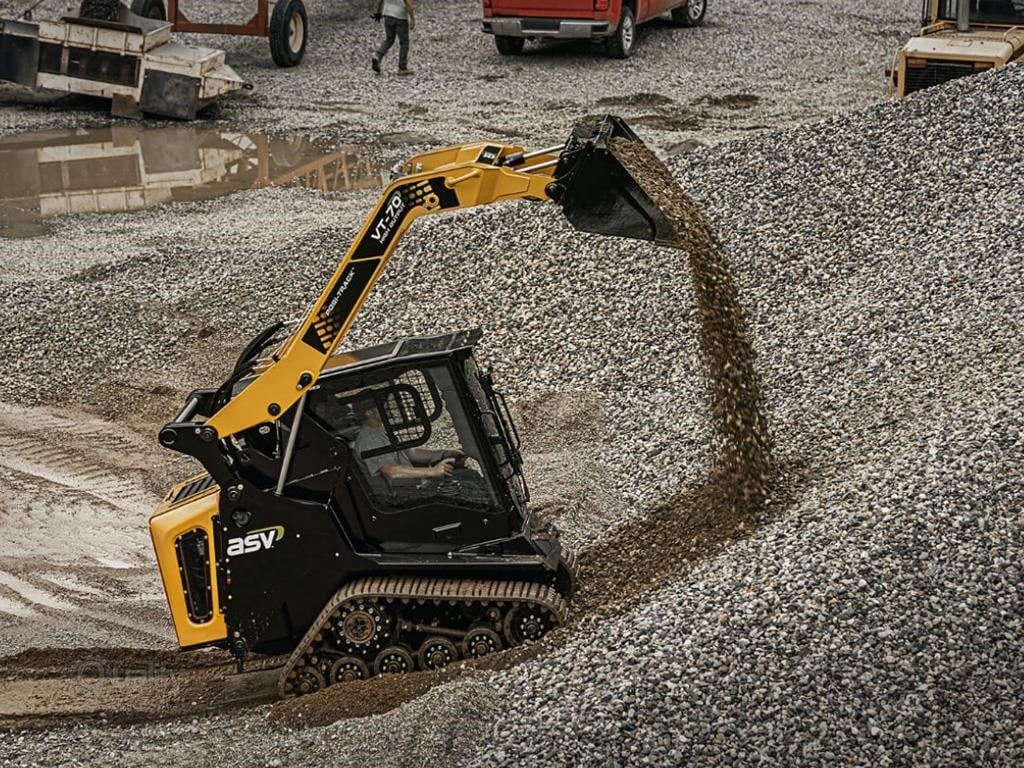

Experience the next generation of compact track loaders with the ASV VT70HO MAX-Series. Designed for construction, landscaping, and excavation, this high-output machine is built with ASV’s patented Posi-Track® technology, offering unmatched power and torque. The VT-70 High Output is perfect for lift-and-carry tasks, featuring a vertical lift for extended reach and a high-output hydraulic system for increased productivity. Comfort is prioritized with an adjustable, suspended seat, ensuring a smooth ride during long hours on the job. Tackle big jobs with ease and elevate your productivity with the ASV VT70HO MAX-Series.

Features

• 15" Wide Tracks: Provides stability and traction across all terrains.
• Torsion Axle Suspension: Ensures a smooth ride and increased machine durability.
• All-Terrain, All-Season Tracks: Equipped with a bar pattern for versatility in any condition.
• 2300 LB ROC Counterweight Package: Enhances lifting capacity and balance.
• Turbocharged Engine: 74.3-horsepower Deutz 2.2-liter diesel engine for high performance.
• Optimized Hydraulics: Direct-drive pumps and large line sizes for efficient attachment operation.
• Comfortable Cabin: Spacious, sealed, and pressurized with air conditioning, heat, Bluetooth radio, and an adjustable seat.
• Easy Serviceability: Three-panel hood arrangement with fold-down side doors for quick access to service points.
• Durable Posi-Track Undercarriage: Rubber tracks with high-tensile cords for long-lasting performance and better traction.

Specifications

• Operating Weight: 8035 lbs (3645 kg)
• Rated Operating Capacity @ 35%: 2328 lbs (1061 kg)
• Rated Operating Capacity @ 50%: 3340 lbs (1515 kg)
• Ground Pressure: 4.5 psi (31.0 kPa)
• Engine Power: 74.3 hp (55.4 kW)
• Tipping Load: 6680 lbs (3030 kg)
• Travel Speed, Max (1st Speed): 7.4 mph (11.9 kph)
• Travel Speed, Max (2nd Speed): 10.6 mph (17.1 kph)

Engine

• Model: Deutz TCD 2.2 T4
• Type: Diesel, 3-Cylinder, Aftercooled, Turbocharged
• Cooling System: Variable Speed Hydraulically-Driven Fan
• Intake Air Cleaner: Dual Stage
• Emissions Control: Meets All U.S EPA Tier 4 Final Standards
• Displacement: 134.3 in.³ (2.2 L)
• Torque Peak: 207 ft-lb (280 Nm)

Drive Train

• Track Type: General Purpose Rubber Track with Embedded Co-Polymer Cords
• Drive System: Hydrostatic Direct Drive Sprockets
• Track Width: 15 in. (381 mm)
• Length of Track on Ground: 59 in. (1499 mm)
• Ground Contact Area: 1770 in² (1.14 m²)

Auxiliary Hydraulic

• Auxiliary Pump Low Flow: 22.9 gpm (86.7 lpm)
• Auxiliary Pump High Flow: 27.9 gpm (105.6 lpm)
• System Pressure, Max: 3300 psi (22,753 kPa)

Electrical System

• Normal Charge: 12 V
• Battery: 800 CCA
• Charging System: 120 Amp Alternator
• Outlets: 1-12 V Port Inside Operator Station

Service Capacity

• Fuel Tank: 23.2 gal (87.8 L)
• Hydraulic Tank: 3.3 gal (12.5 L)
• Engine Coolant: 3.3 gal (12.5 L)
• Engine Oil (Including Filter): 8.5 quarts (8 L)

Dimensions

• Full Length: 141.5 in (3594 mm)
• Arm-Up Height: 126.5 in (3213 mm)
• Machine Height: 81.4 in (2068 mm)
• Width: 65.6 in (1666 mm)
• Ground Clearance: 13 in (330 mm)

Operator Station

• Seat: Adjustable Vinyl Mechanical Suspension Seat with Recline and Slide Adjustment
• Loader Control: Right-Hand Pilot Hydraulic Joystick
• Drive Control: Left-Hand Pilot Hydraulic Joystick
• Engine Speed: Hand-operated Dial
• Display: Deluxe Machine Display with Multiple System Monitoring Features
• Illumination: 2 Forward-Facing and 2 Rear-Facing Halogen Lights, 1 Interior Light
• Convenience: 12 V Power Port

What's Included

• ASV VT70HO MAX-Series Compact Track Loader
• 15" Wide Tracks
• Torsion Axle Suspension
• High Output Hydraulic System
• Adjustable Suspended Seat with Optional Air Ride
• Sealed and Pressurized Cabin with Air Conditioning, Heat, and Bluetooth Radio
• Rearview Camera and Monitor
• Three-Panel Hood Arrangement for Easy Service Access

Elevate your productivity and comfort with the ASV VT70HO MAX-Series Compact Track Loader. Designed for optimal performance in construction, landscaping, and excavation, this machine offers unmatched power, efficiency, and comfort. Order now and experience the difference with ASV's next-generation technology!
