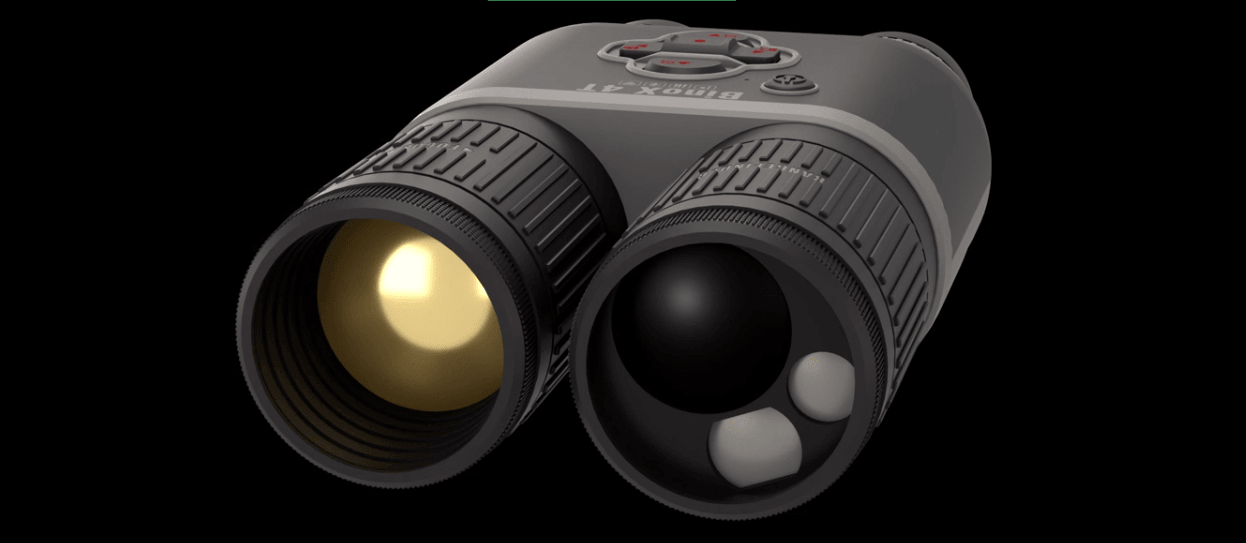

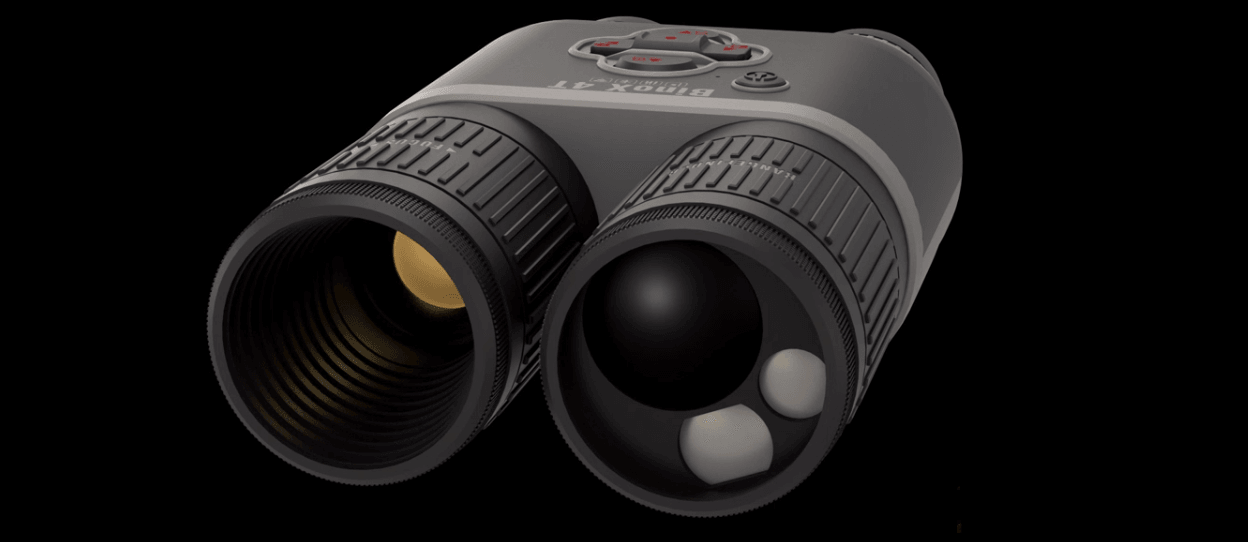

ATN BINOX 4T 384 1.25-5X

Smart HD Thermal Binoculars w/ Laser Rangefinder

ULTRA SENSITIVE NEXT-GEN SENSOR

BinoX 4T Manual

ATN BINOX 4T 384 2-8X



VIDEO RECORD

Record and Share your moments with a press of a button. Video files stored on an internal micro SD card.

ULTRA SENSITIVE NEXT GEN SENSOR

Black Hot/White Hot

Color Modes

LASER RANGEFINDER 1000 Y/M



DISTANCE TO TARGET DAY OR NIGHT:

• Built-In Laser Rangefinder
• IR illuminator



We integrated a Laser Rangefinder, so you now have the ultimate binocular package that has everything you want. Not only do you have the ability to see both day and night at your fingertips, but you now have the ability to range your target with absolute accuracy for dope holdover or know how far you need to trek to your next waypoint.

ATN RADAR THE SOCIAL WAY TO HUNT

The game can be tagged with an ATN-capable laser device and the target's location will automatically be displayed on a map overlay in your phone and your ATN-connected device. Individuals using ATN Smart devices will see a mini radar in their field of view providing the relative direction and range to the tagged target.

Turn Hunting into a real Team Sport. Quickly know where your group is at all times. Mark your prey and go for the trophy. (Beta Version)

LEARN MORE ABOUT ATN RADARS

BALLISTIC INFORMATION EXCHANGE

BIX (Ballistic Information Exchange) tech allows ATMs SMART HD devices to communicate and exchange information. BIX is a culmination of years of research and development. This technology lets our systems talk to each other, exchanging valuable information; in order to facilitate a shooting solution eliminating holdover. Simple to pair, our BIX Tech is independent of any app so you don’t need to rely on extra equipment. Or if you don’t have an ATN SMART HD scope BIX provides the same capabilities as traditional glass scopes with the aid of our Laser Ballistics app.





DUAL STREAM VIDEO

You asked and we listened. Obsidian IV Dual Core T not only Streams Video at HD resolution but can simultaneously Record to the SD card inside.

AT THE SAME TIME!

BUILT-IN IR ILLUMINATOR

For those times when you have friends or team members with Night Vision that need help looking at the right spot to see the target.



ULTRA LOW POWER CONSUMPTION

The new internal lithium Ion battery will keep you hunting late into the evening or those early morning hours, with an incredible 16+ hrs of run time. Saving you money on buying multiply reusable or one-time-use batteries.



INTERPUPILLARY ADJUSTMENT

Just like your standard binoculars, ATN’s binoculars are designed with comfortable eye relief and interpupillary adjustment so anyone can use these digital binoculars with comfort.

TECHNICAL SPECIFICATIONS

• SKU: TIBNBX4381L
• Magnification: 1.25-5x
• Field of view: 16°x12.5°
• Sensor: 384x288
• Core: ATN Obsidian IV Dual Core
• System Resolution: 1280x720x2
• Micro-Display: 1280x720x2

• Interpupillary adjustment range: 60-70 mm
• Eye relief: 10-30 mm
• Focus Range: 10 ft - ∞
• Video Record Resolution: 1080p @ 30/60/120**
• 3D Gyroscope: Yes

• 3D Accelerometer: Yes
• Ballistic Calculator: Yes
• WiFi (Streaming, Gallery, & Controls): iOS & Android
• Bluetooth: Yes
• E-Barometer: Yes

• Smart Range Finder: Yes

• Precision to: ± 1 y/m

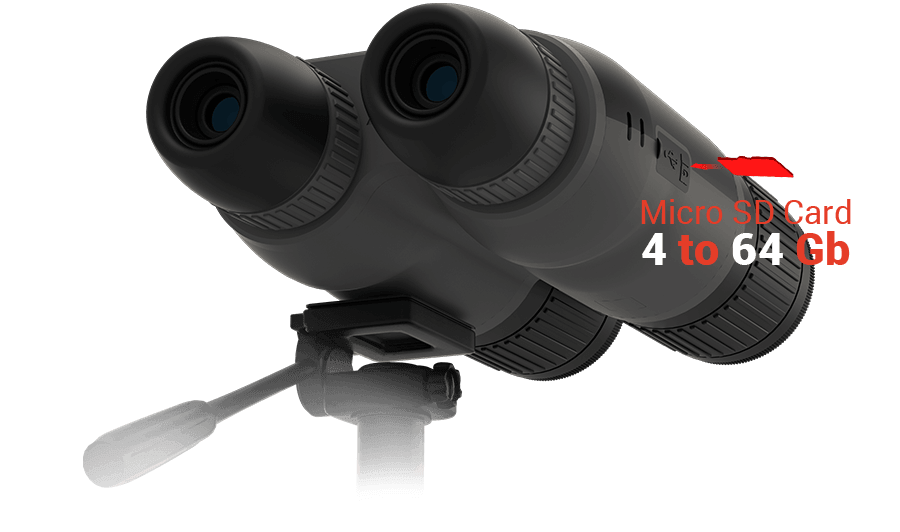

• Micro SD card: 4 to 64 Gb

• Micro USB, type C: Yes
• IR Illuminator: Included

• Smooth Zoom: Yes
• Battery life (Li-ion): 15+ hrs
• Human Detection Range: 750
• Human Recognition Range: 335
• Human Identification Range: 205
• IP rating: Weather resistant

• Operating Temperature: -20°F to +120°F / -28°C to 48°C
• Dimensions (body only): 9.4" x 5" x 2.6" / 240x128x67 mm

• Weight: 2.5 lb / 1.12 kg
• Warranty: 3 years

ATN BINOX 4T 384 2-8X

ATN BINOX 4T 384 4.5-18X

INCLUDED ACCESSORIES

SOFT CARRYING CASE:

NECK STRAP:

LENS COVER:

USB-C CABLE:

LENS TISSUE:
