Baumalight

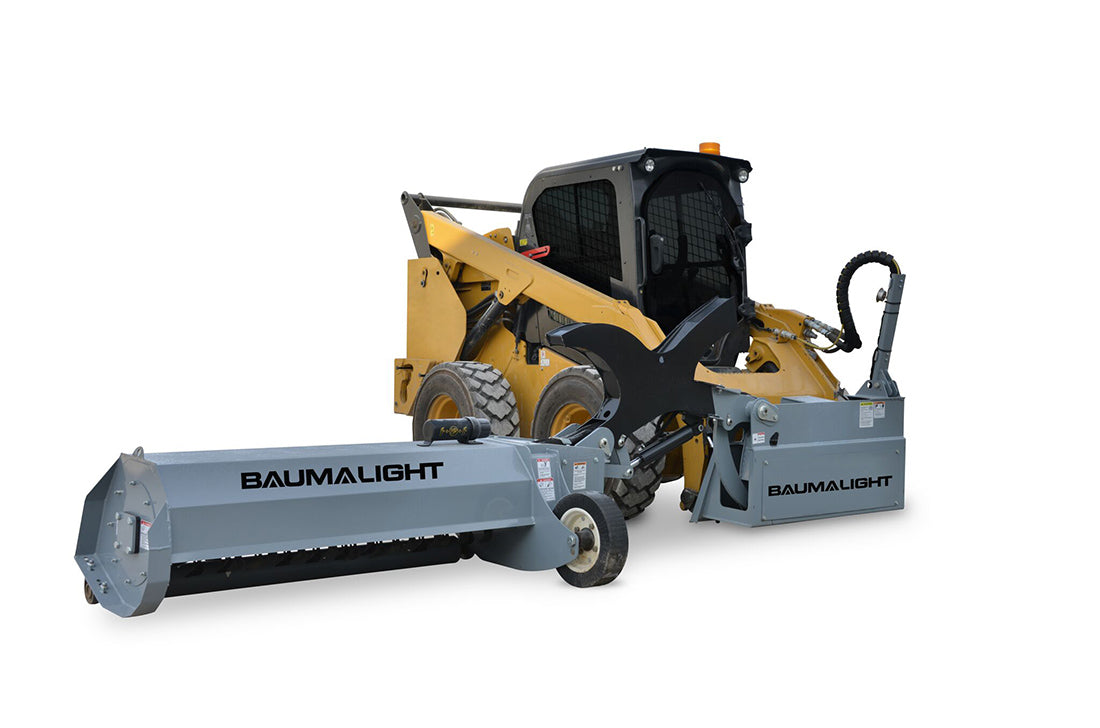

Baumalight Boom Mower | Model SWA/SWF Series | Reach 6' To 14' | Cutting Width 48" & 60" | Hydraulic Flow Range 15-35 GPM | For Skid Steers

Baumalight Boom Mower | Model SWA/SWF Series | Reach 6' To 14' | Cutting Width 48" & 60" | Hydraulic Flow Range 15-35 GPM | For Skid Steers

Regular price $27,040.00
Regular price Sale price $27,040.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Hose Protection: Armored and sleeved
  • Minimum Carrier Weight: 5000 lbs (for SWA550 model)
  • Mowing Head Width: 60 inches (for SWA550 model)
View full details

Product Description

Baumalight Boom Mower | Model SWA/SWF Series | Reach 6' To 14' | Cutting Width 48" & 60" | Hydraulic Flow Range 15-35 GPM | For Skid Steers

DESCRIPTION

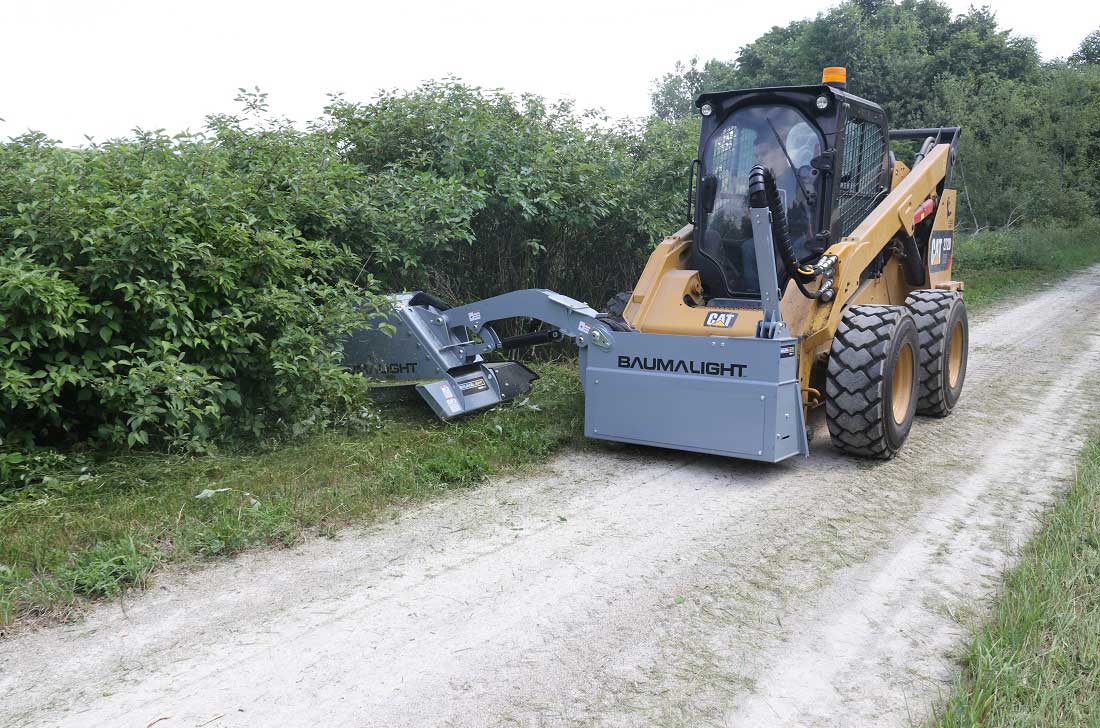

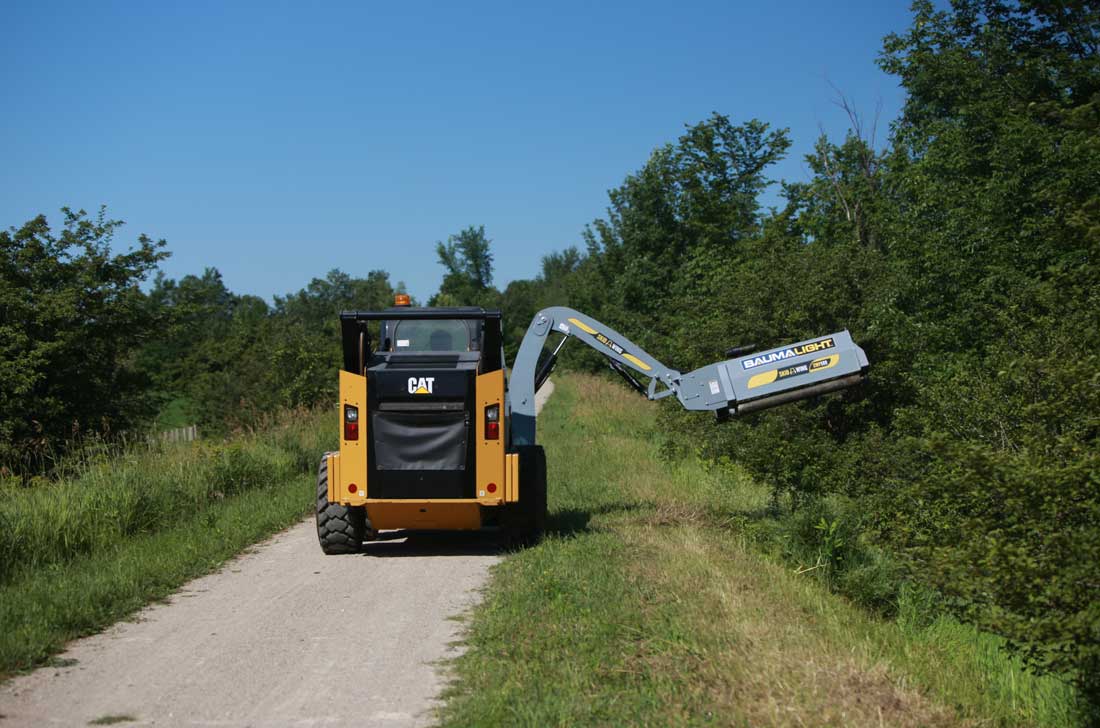

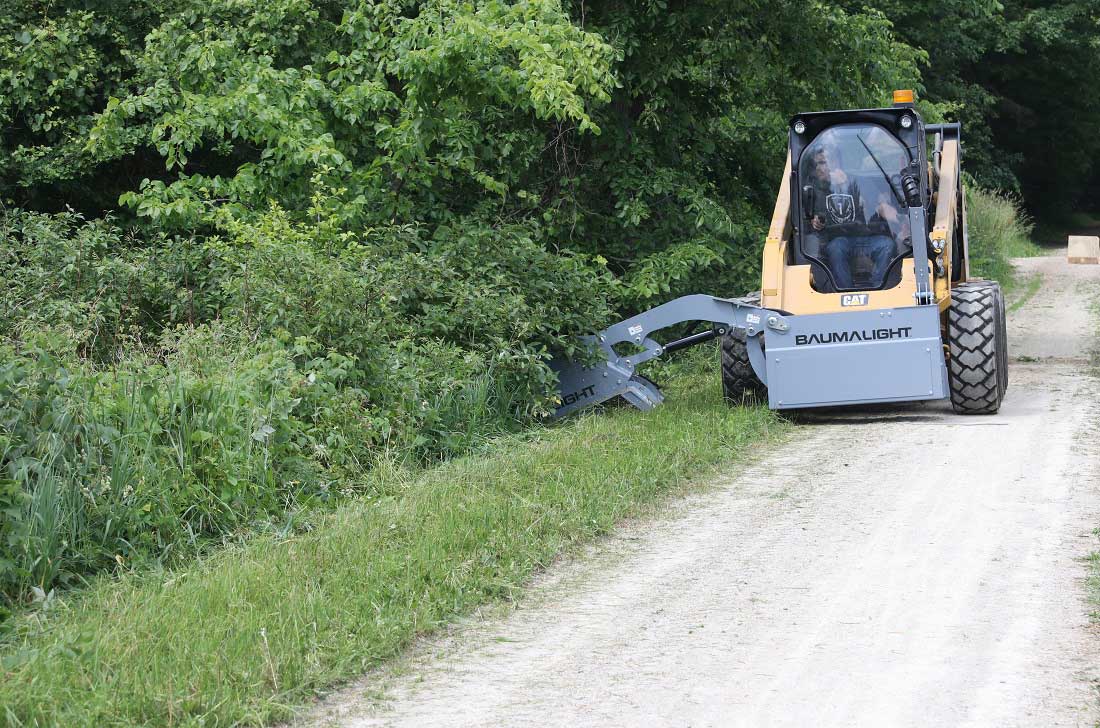

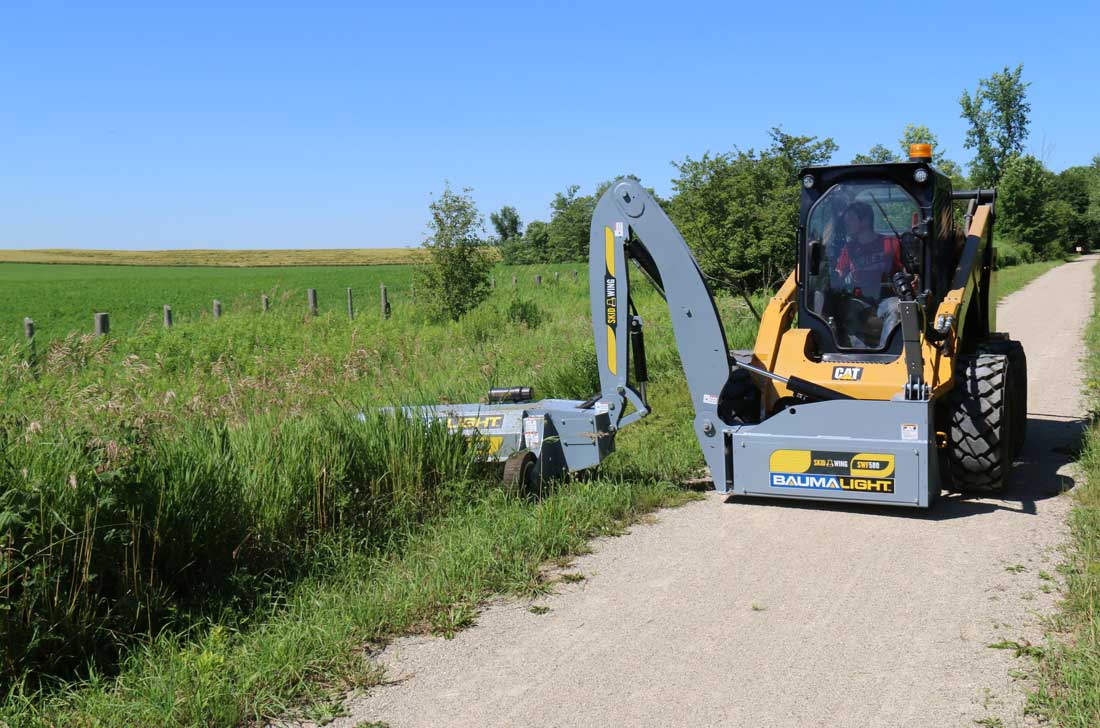

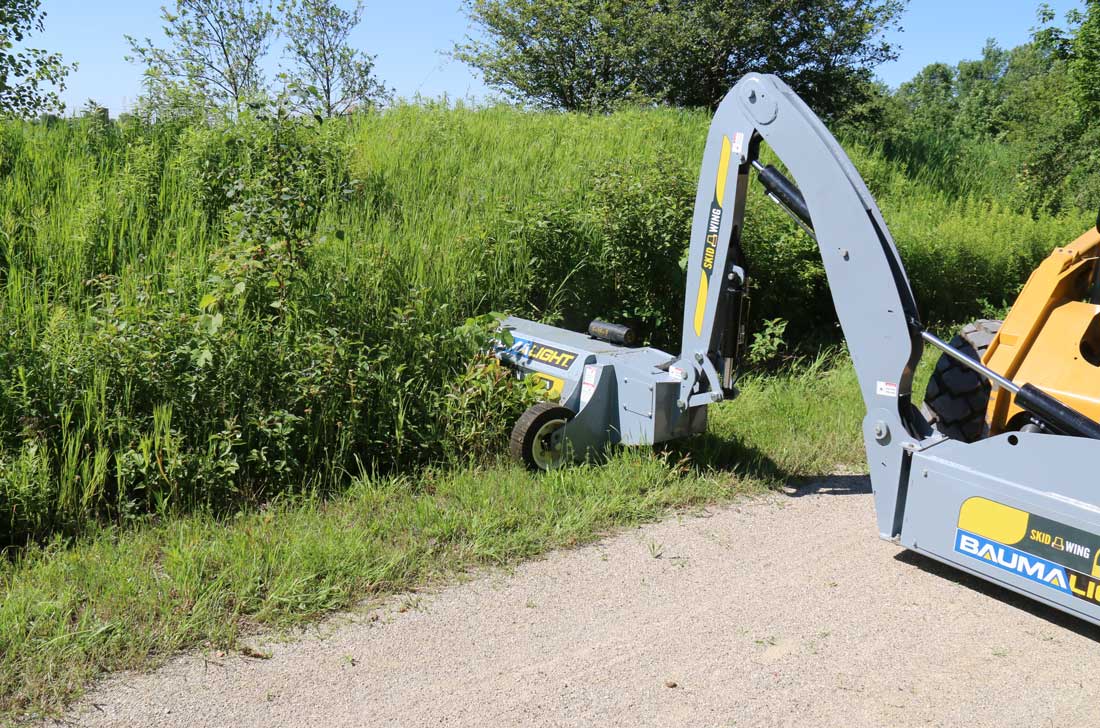

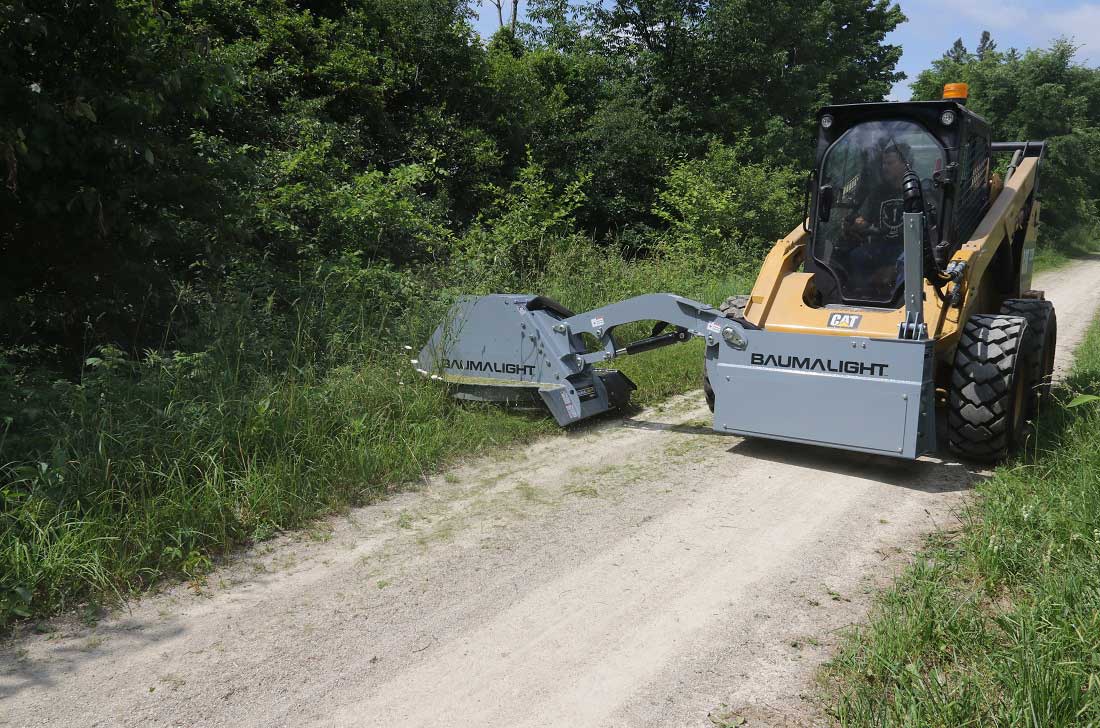

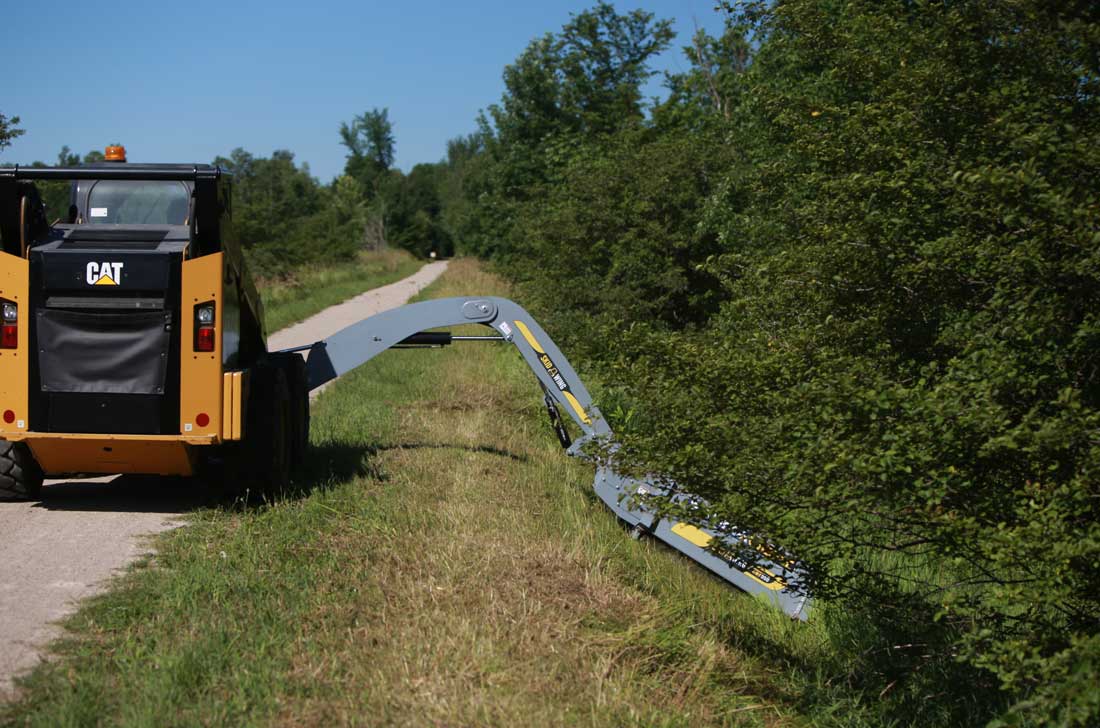

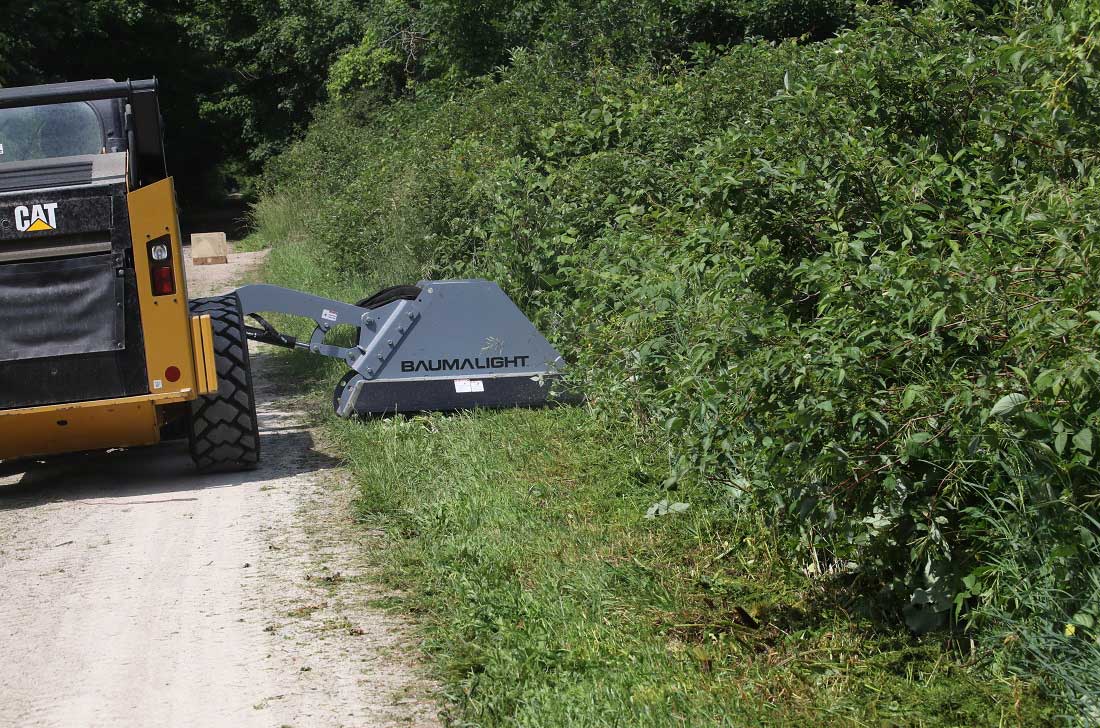

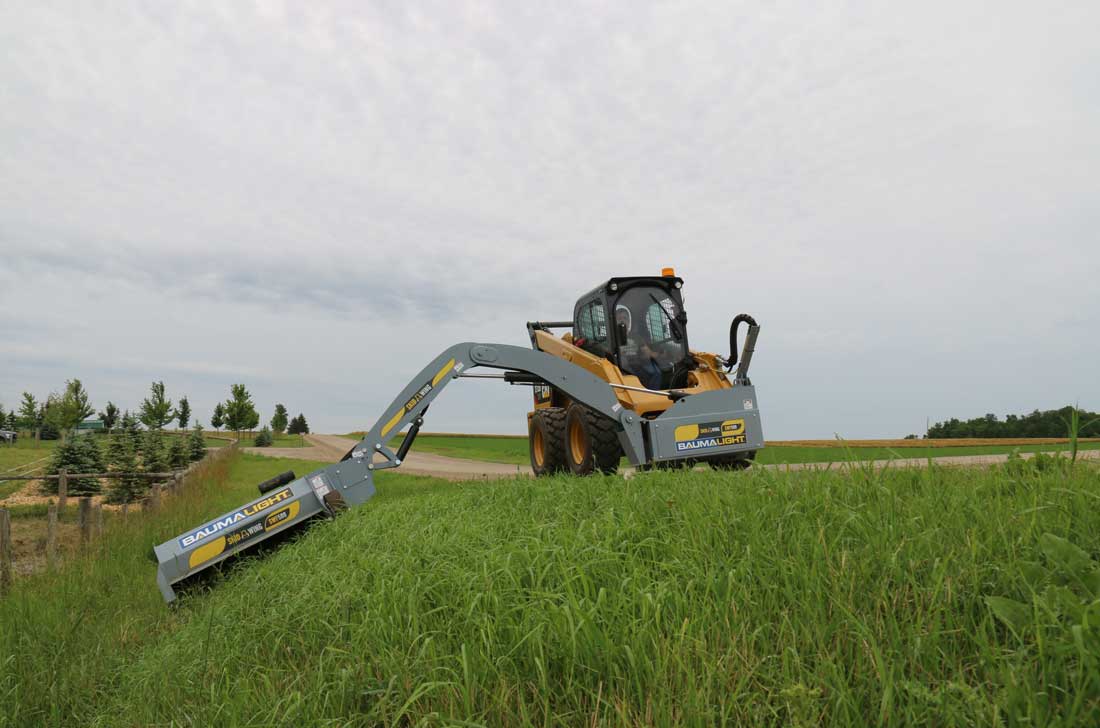

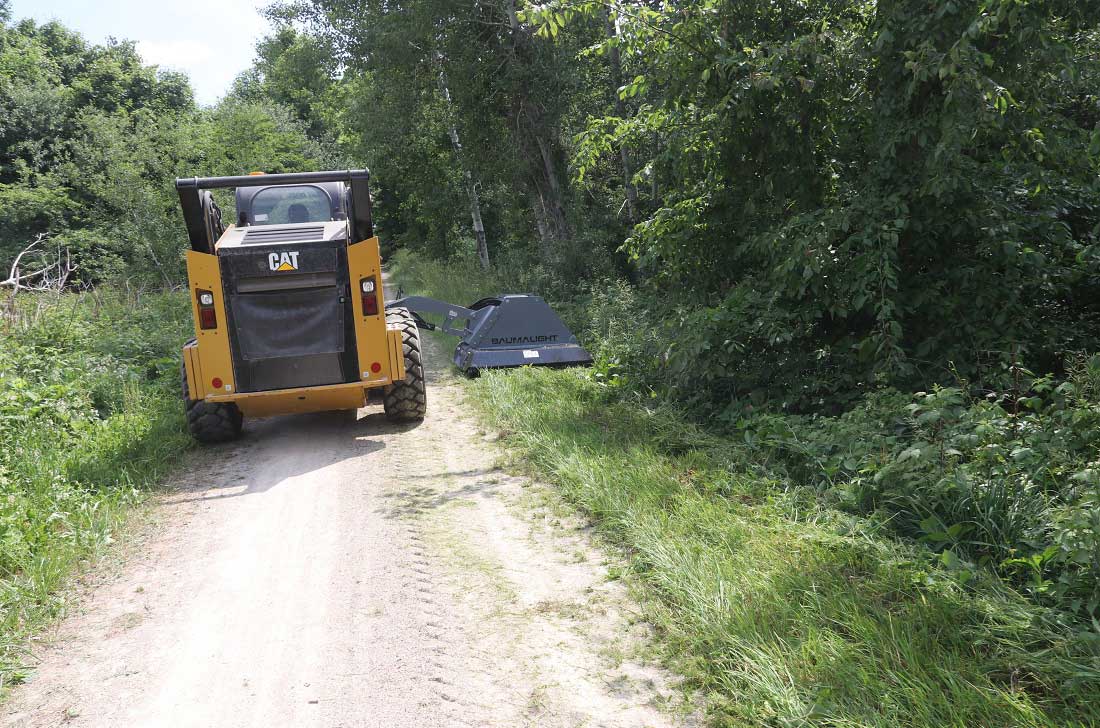

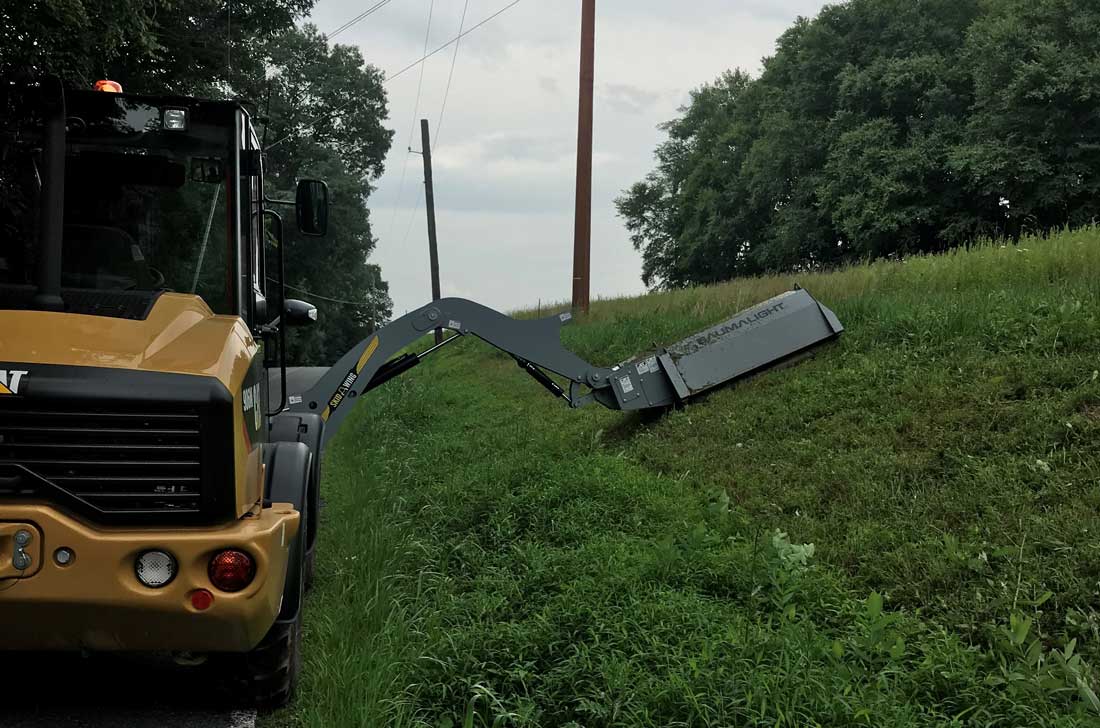

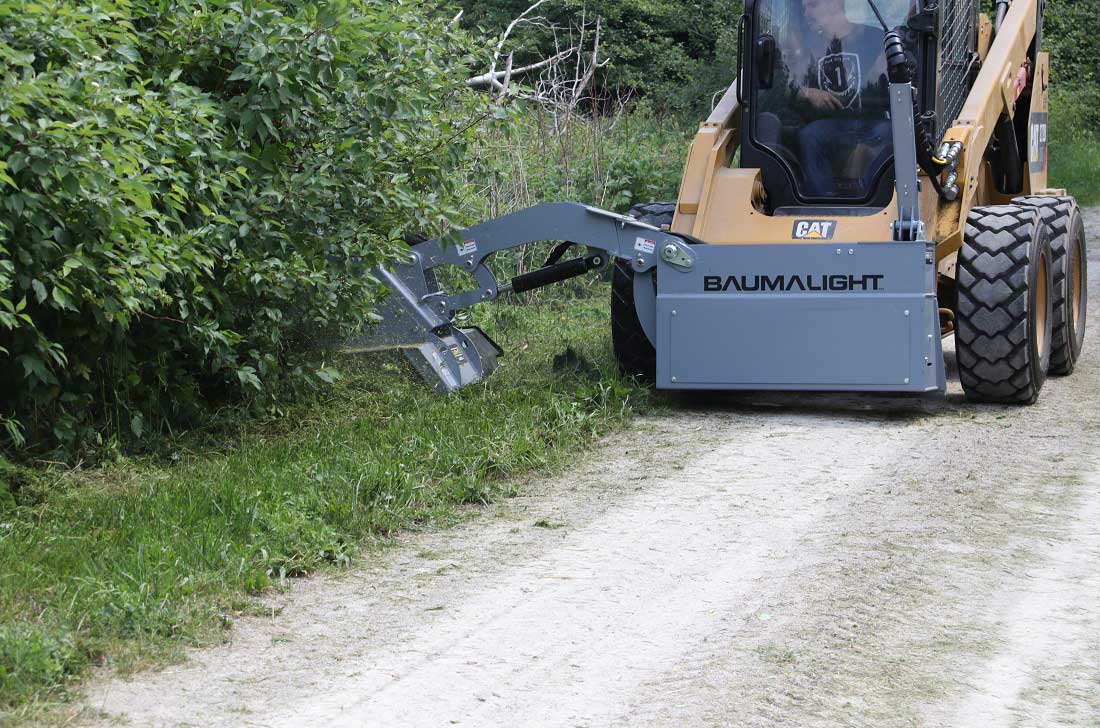

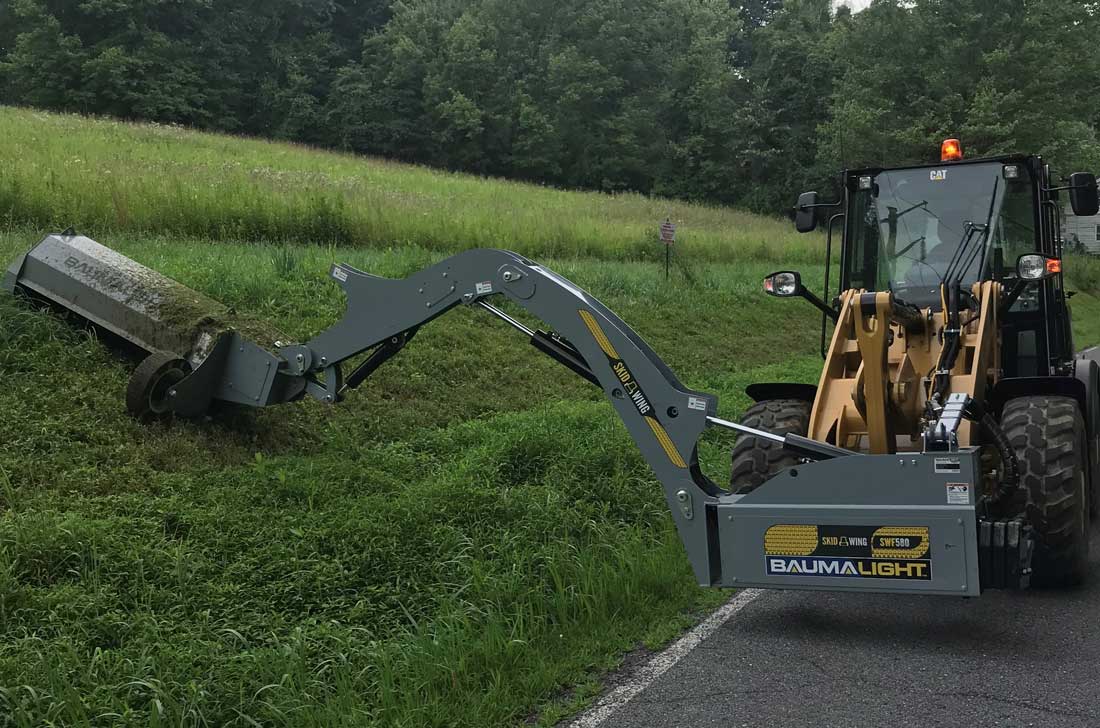

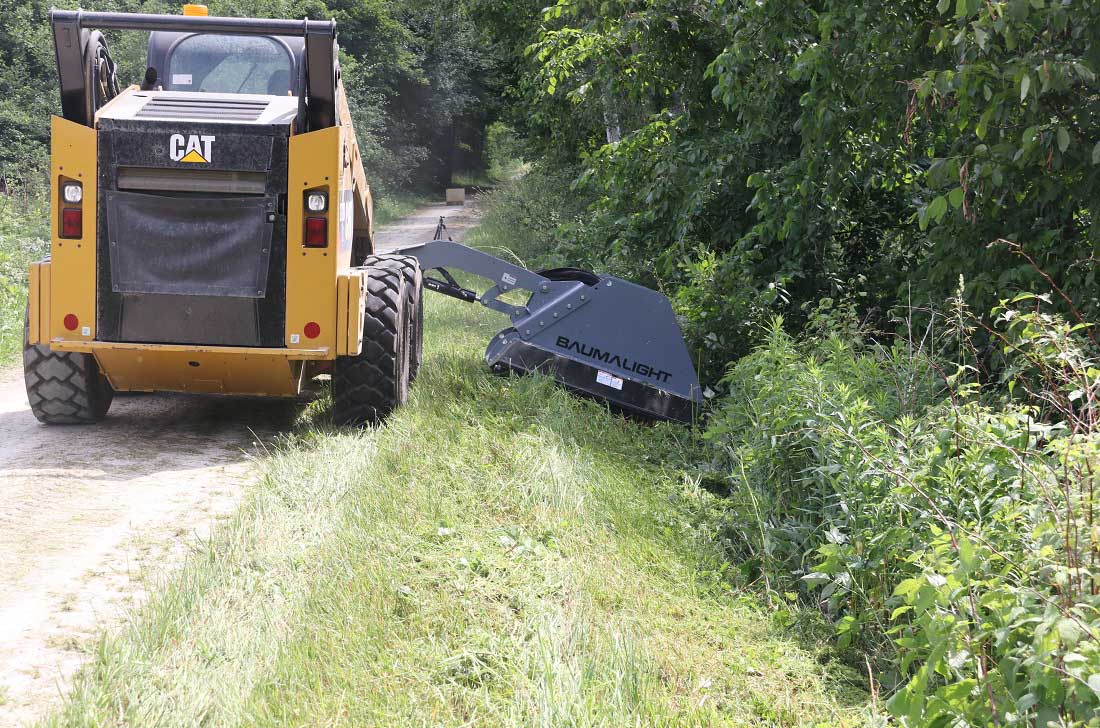

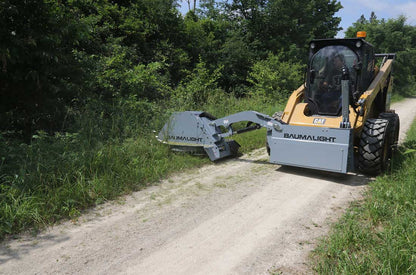

Baumalight Boom Mowers provide efficient ditch, roadside, and fence line maintenance, offering rotary and flail mower options to accommodate different vegetation types. These skid steer attachments feature adjustable boom arms, allowing operators to access hard-to-reach areas while maintaining precise control. Available in multiple configurations, each model integrates hydraulic-driven cutting heads, ensuring high-performance mowing for commercial and municipal applications.

Key Features

  • Curved Boom Design: Provides extra clearance, making it easier to navigate over obstacles and reach difficult areas.

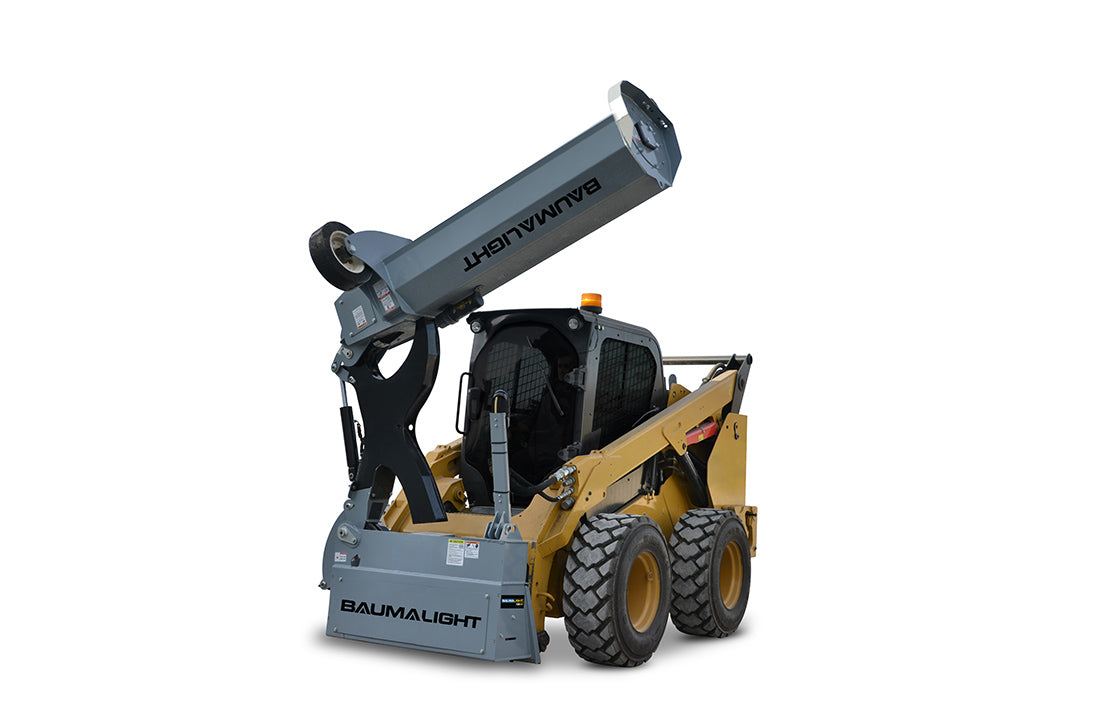

  • Foldable Boom: The boom conveniently folds up for safe and easy transport.
  • Heavy-Duty Construction: Built with AR400 steel plate for durability and long-lasting performance.
  • Pressure Gauge: Allows you to monitor the workload and ensure optimal performance.
  • Auxiliary In-Cab Controls: Available with auxiliary electrical connections for simple and quick control from within the cab.
  • Armored and Sleeved Hoses: Provides protection for hoses, enhancing safety and longevity.
  • Zinc-Plated Greaseable Pins: Prevents corrosion and ensures smooth operation over time.
  • Heavy-Duty Cylinders: Large cylinders control the arm for quick adjustments, reducing downtime and increasing efficiency.
  • Flail Teeth: Equipped with 200 series flail teeth, ideal for mowing heavy grass and mulching light brush.

Feature Chart

Feature Description
PROTECTIVE POWDER COAT FINISH Heavy duty construction and a durable powder coated finish.
CURVED BOOM Baumalight signature curved boom allows for extra clearance when you need to get over obstacles.
AUX ELECTRICAL CONNECTION FOR IN CAB CONTROL For simple in cab control, the DSA530 is available with Baumalight's Auxiliary Electrical Connection.
BENT AXIS PISTON MOTOR Our industry-leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure.

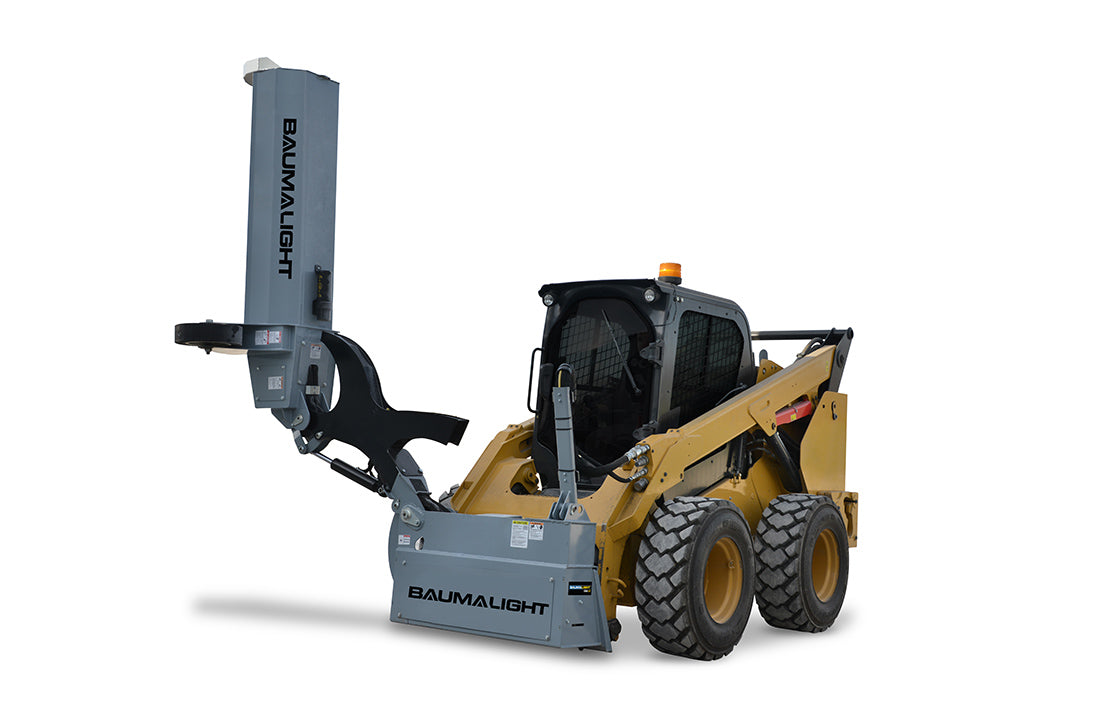

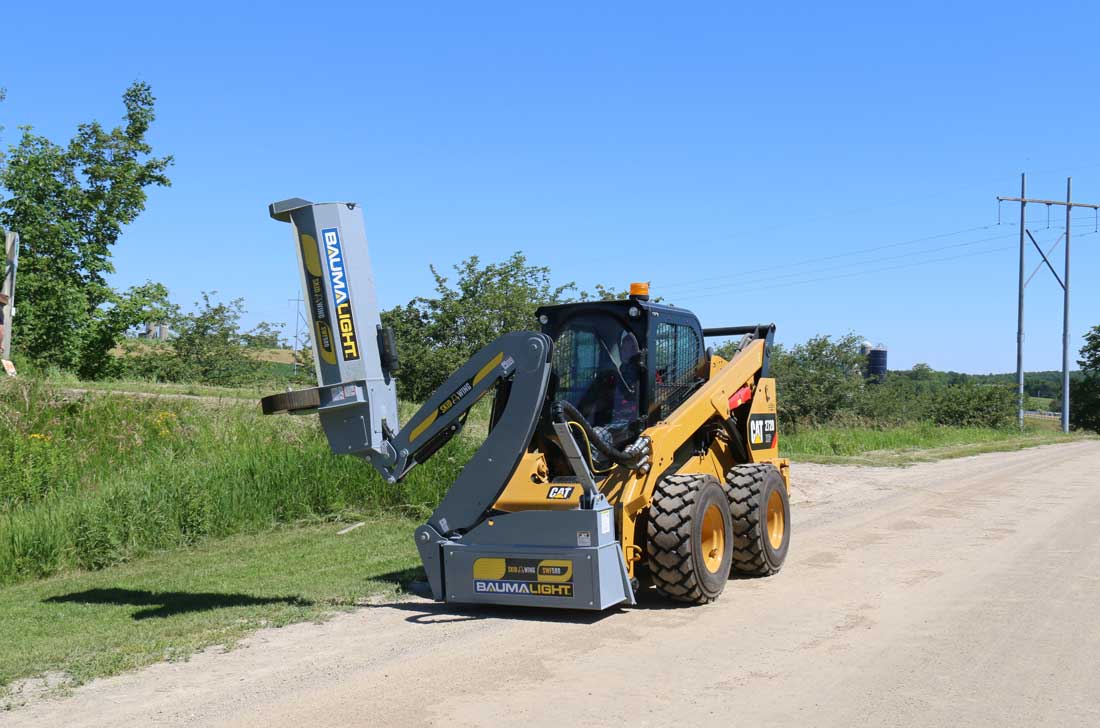

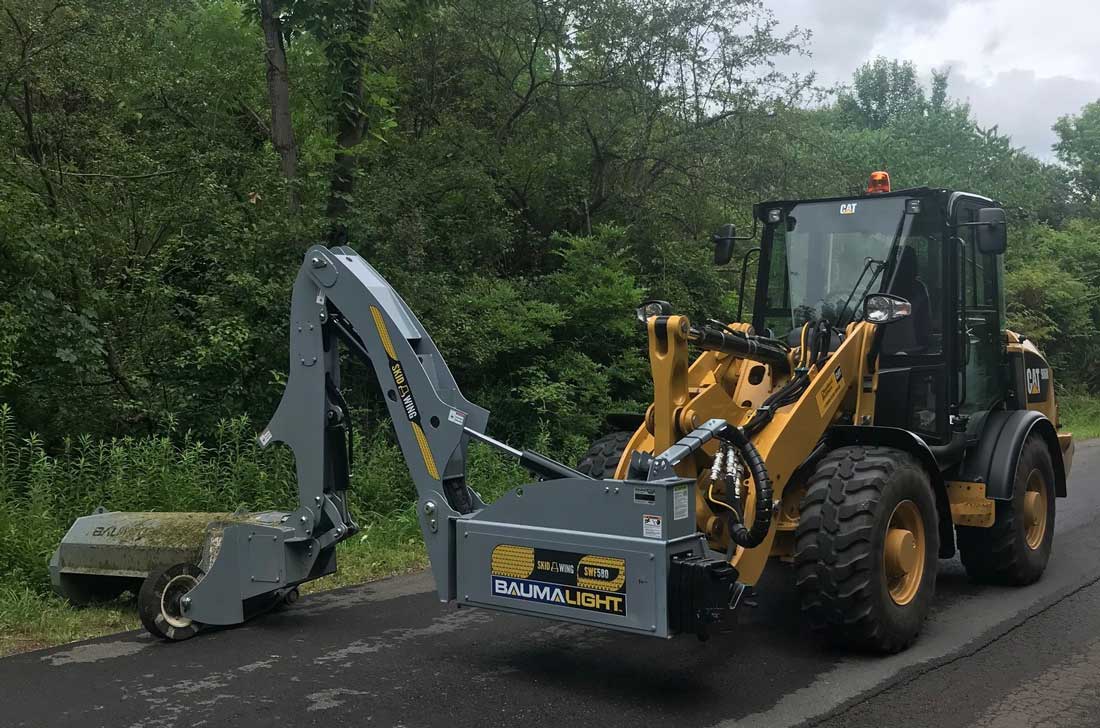

FOLDS FOR TRAVEL The boom is compact enough for travel on tighter paths and trailering.
ANTI-SLIP MAT FOR EASY ACCESS TO CAB An anti-slip strip gives sure footing for ease of entry and exit from the cab.
ARMOURED AND SLEEVED HOSES All hoses are sleeved for operator and hose protection.
ADJUSTABLE CUT LENGTH Front and rear adjustable mounting points allow you to control how close you cut.
FLOATING DECK ROLLER Keeping things level is a heavy duty steel roller.

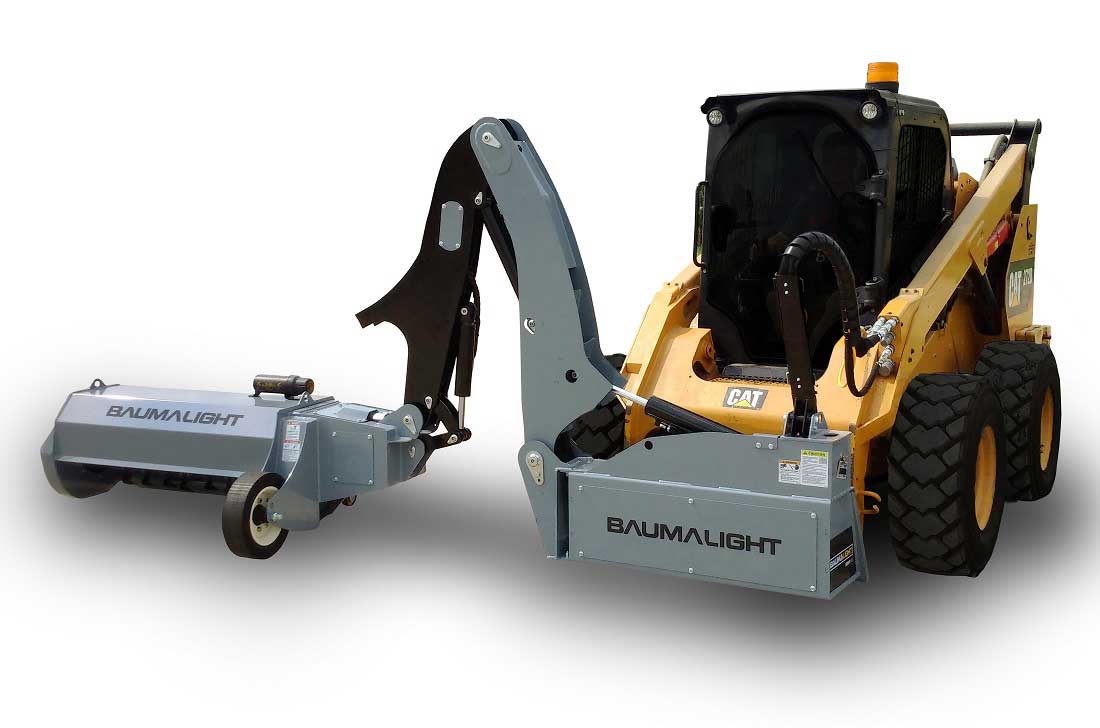

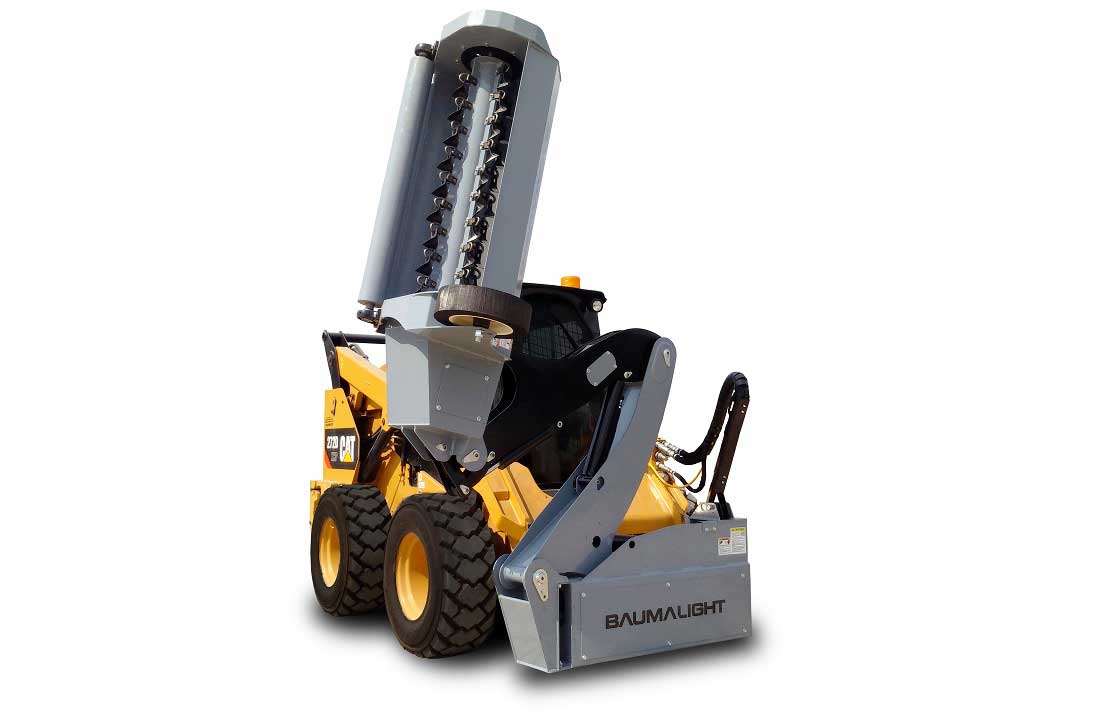

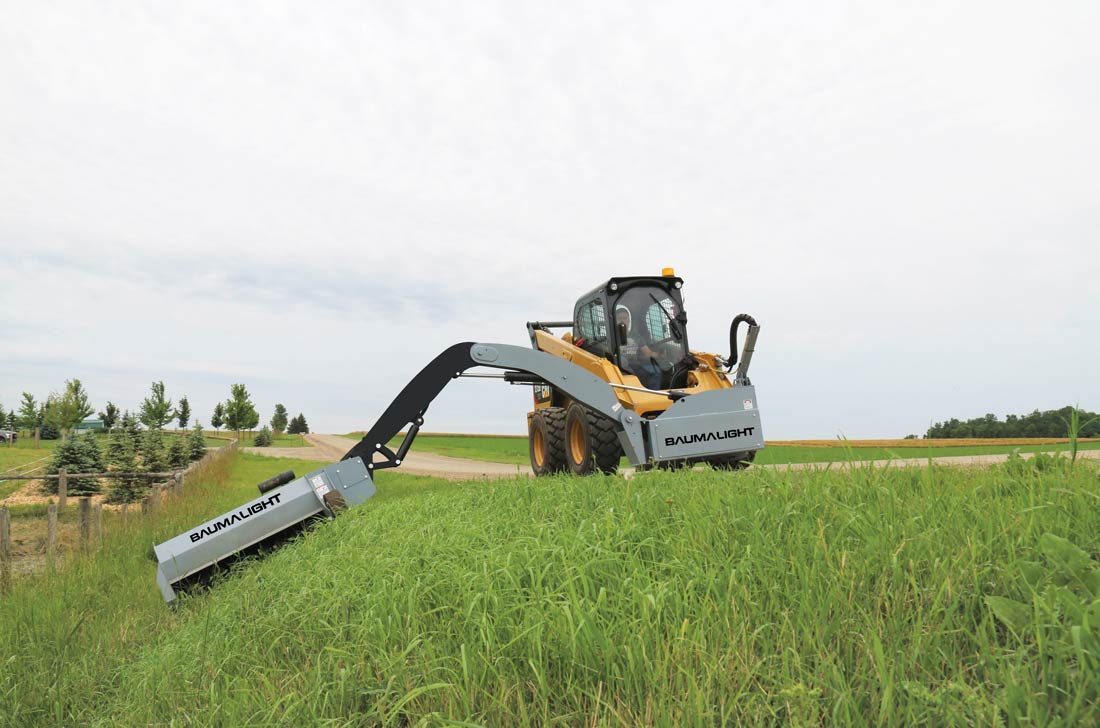

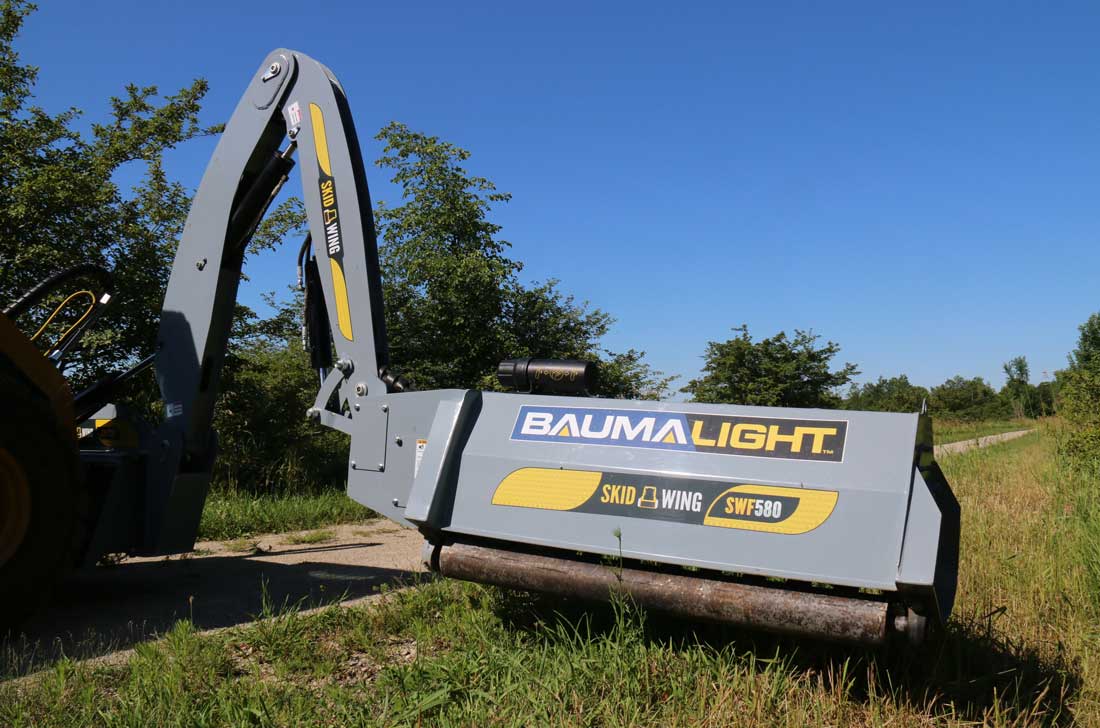

6 FREE TEETH All SWF580 Boom Mowers come with a free set of 6 replacement teeth, conveniently stored in a robust compartment.

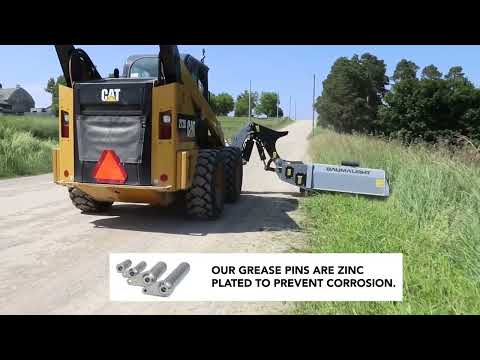

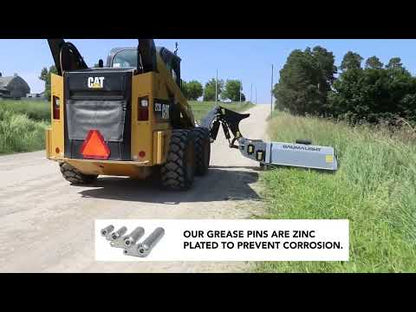

GREASEABLE PINS Zinc plated grease pins prevent corrosion for smoother operation of the unit's joints.
HARDENED STEEL BUSHING Spring bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
HEAVY DUTY CYLINDERS Large cylinders control the arm for quick flow, allowing for efficient operation.
SAFETY BREAK AWAY Shear pins on the boom are mounted in 4 places to protect against large scale damage.
200 SERIES FLAIL TEETH These flail type cutters are an economic way to manage heavy vegetation and light to moderate brush.
SOLID FLAT FREE TIRE The durable solid flat free tire achieves a floating deck effect for better performance.

Detailed Specifications

SWA & SWF Series Cutter Specifications

Feature

SWA540

SWA550

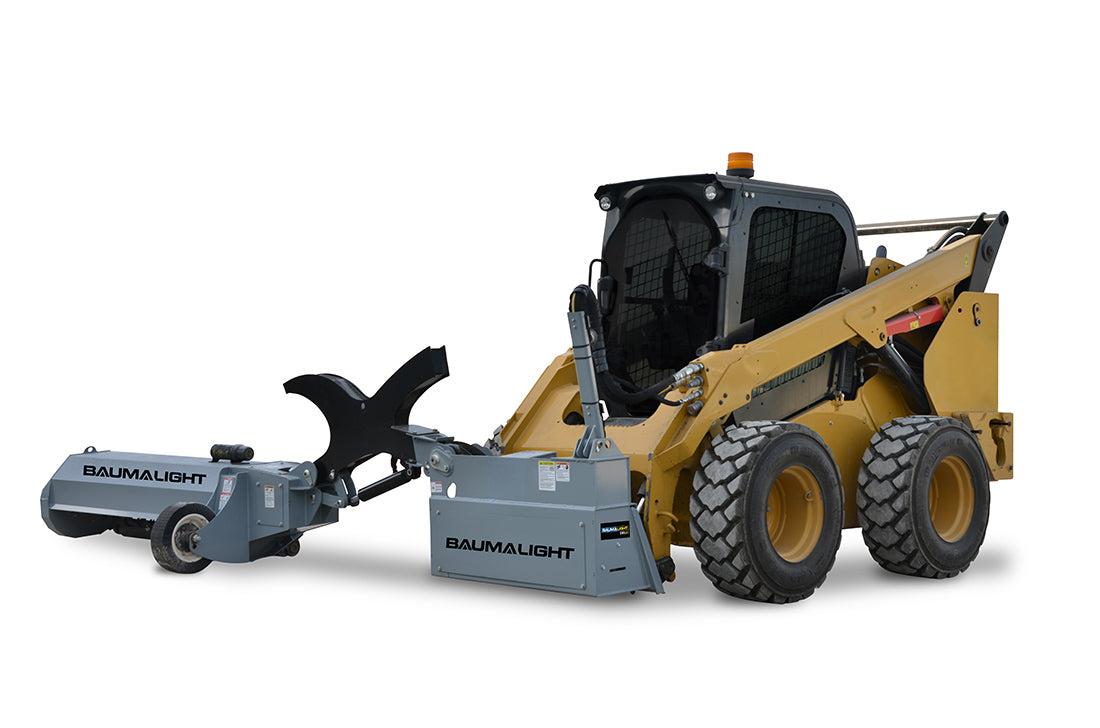

SWA560

SWF560

SWF580

SWA750

Total Reach (Flat) 6 ft 7 ft 10 ft 10 ft 14 ft 7 ft
Cutting Width 48" 60" 60" 48" 48" 42"
Boom Type Single Arm Single Arm Single Arm Boom & Stick Boom & Stick Single Arm

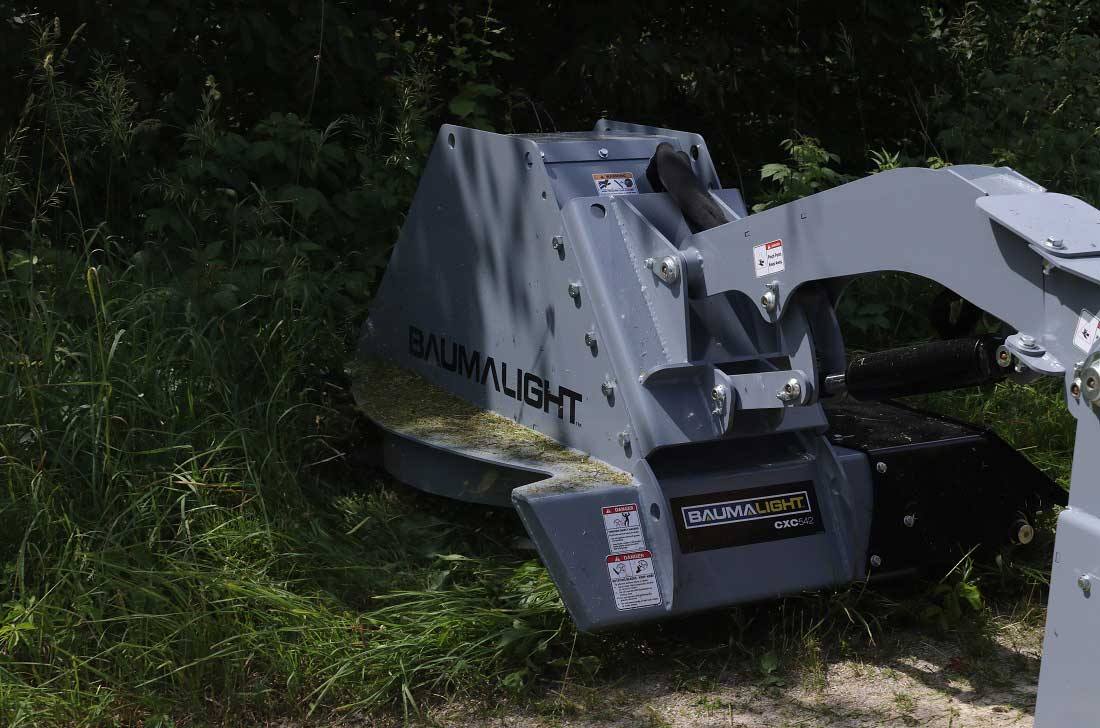

Blade Type Flail Flail Flail Flail Flail Rotary Cutter
Min Skidsteer Weight 4,500 lbs 5,000 lbs 5,500 lbs 6,000 lbs 8,000 lbs 8,000 lbs
Max PSI 4,500 4,500 4,500 4,500 4,500 4,500
Shipping Weight 1,775 lbs 1,900 lbs 1,750 lbs 1,650 lbs 1,800 lbs 2,050 lbs
