Product Description
Develon | DX27Z-7 | Mini Excavator | 24" Bucket | Thumb | 61" Overall Width | 3 Tons
DESCRIPTION

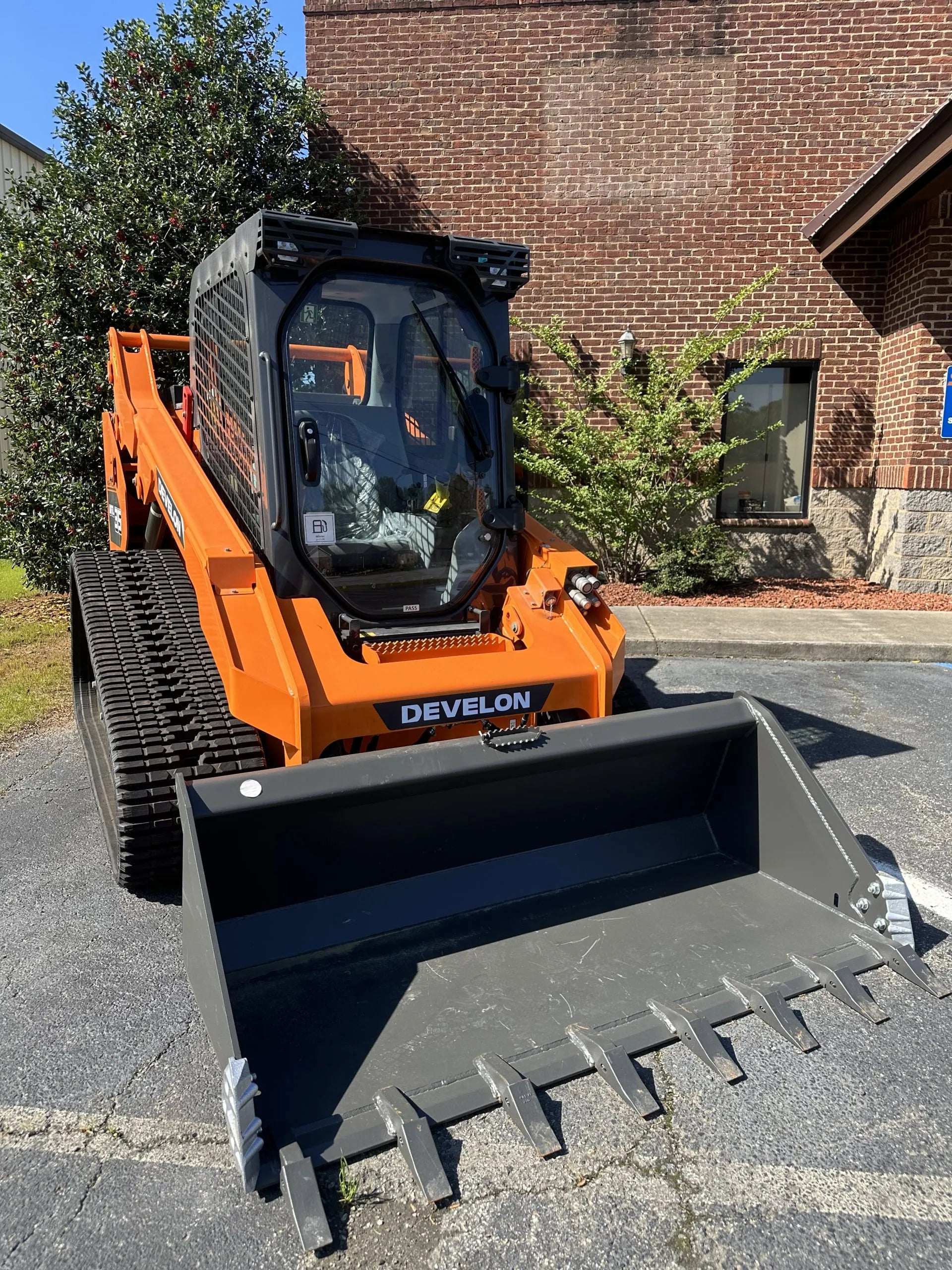

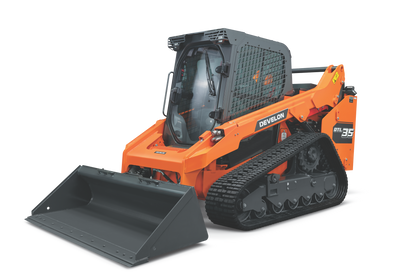

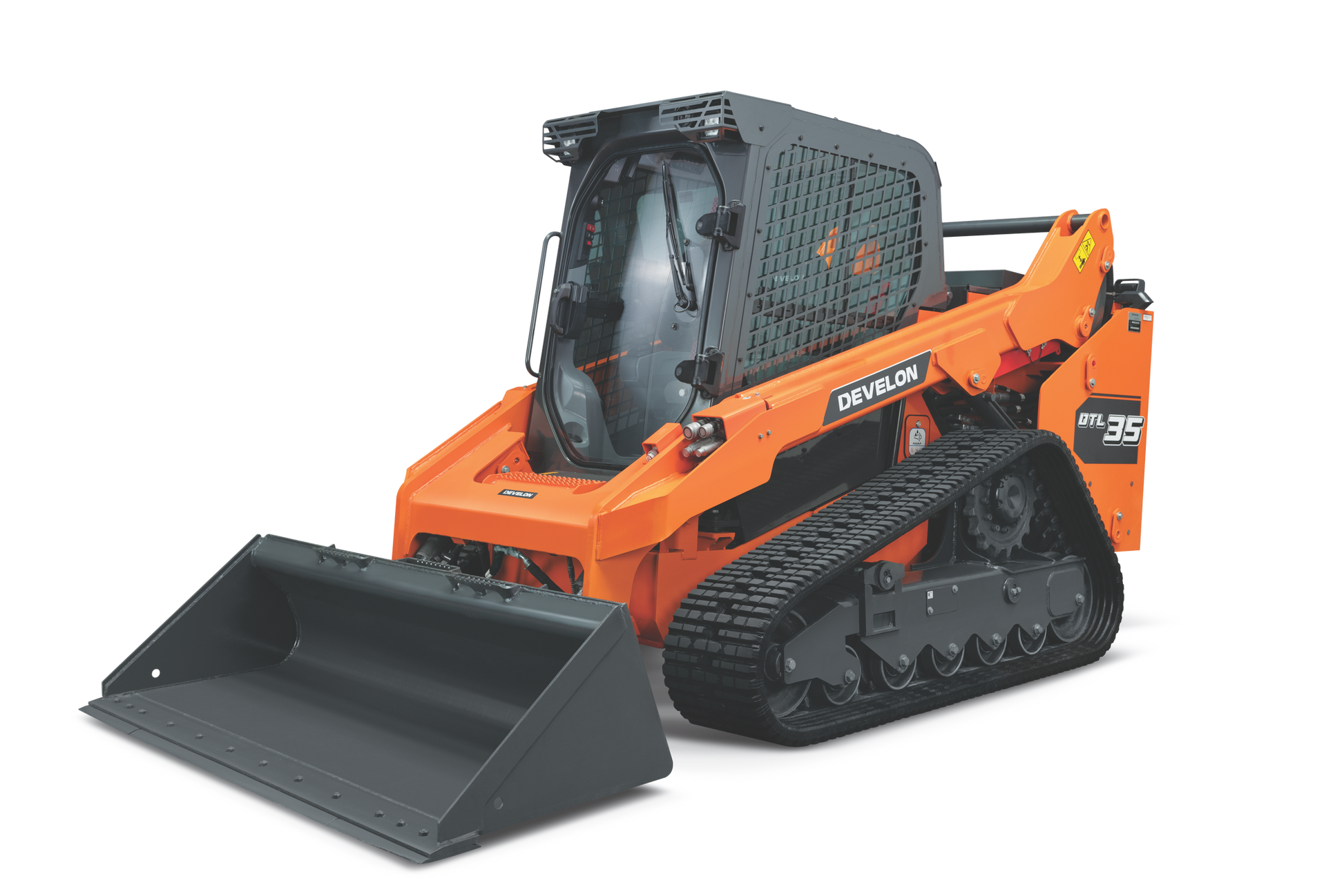

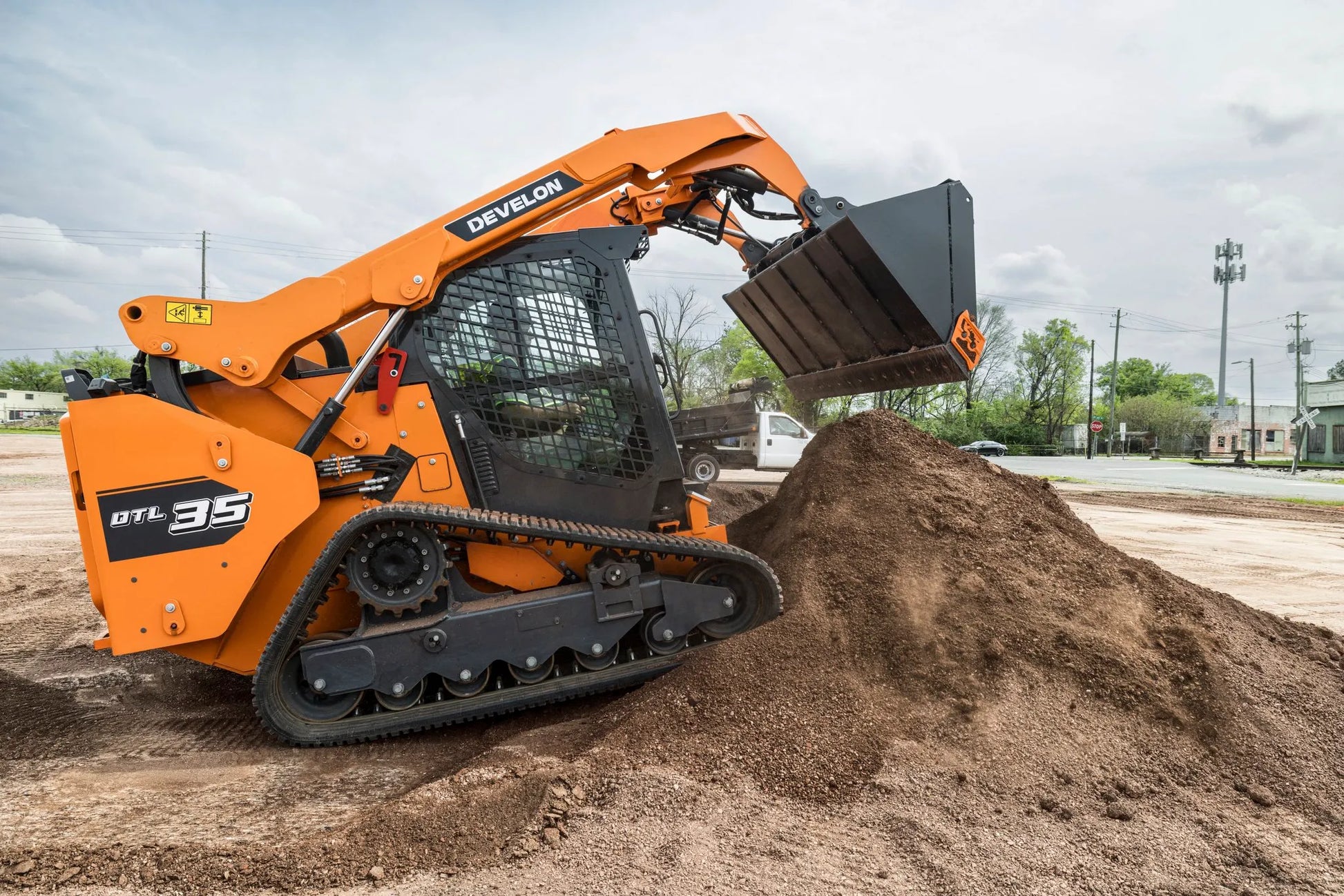

The Develon DTL35 Compact Track Loader is the ultimate workhorse for challenging construction, landscaping, and material-handling projects. Designed with robust 115.3 horsepower and a high lift capacity, this compact track loader is built to handle the toughest tasks while providing unmatched maneuverability and precision. Whether you're operating on rough terrain, dumping into high-sided trucks, or performing delicate tasks requiring fine control, the DTL35 delivers power, versatility, and efficiency to get the job done.
Equipped with advanced features such as ride control to minimize shocks, creep control for precise operation at high rpms, and a vertical lift configuration, the DTL35 enhances stability, comfort, and productivity on every jobsite. Its superior dump reach and optional additional counterweight make loading and hauling materials into elevated spaces a breeze.

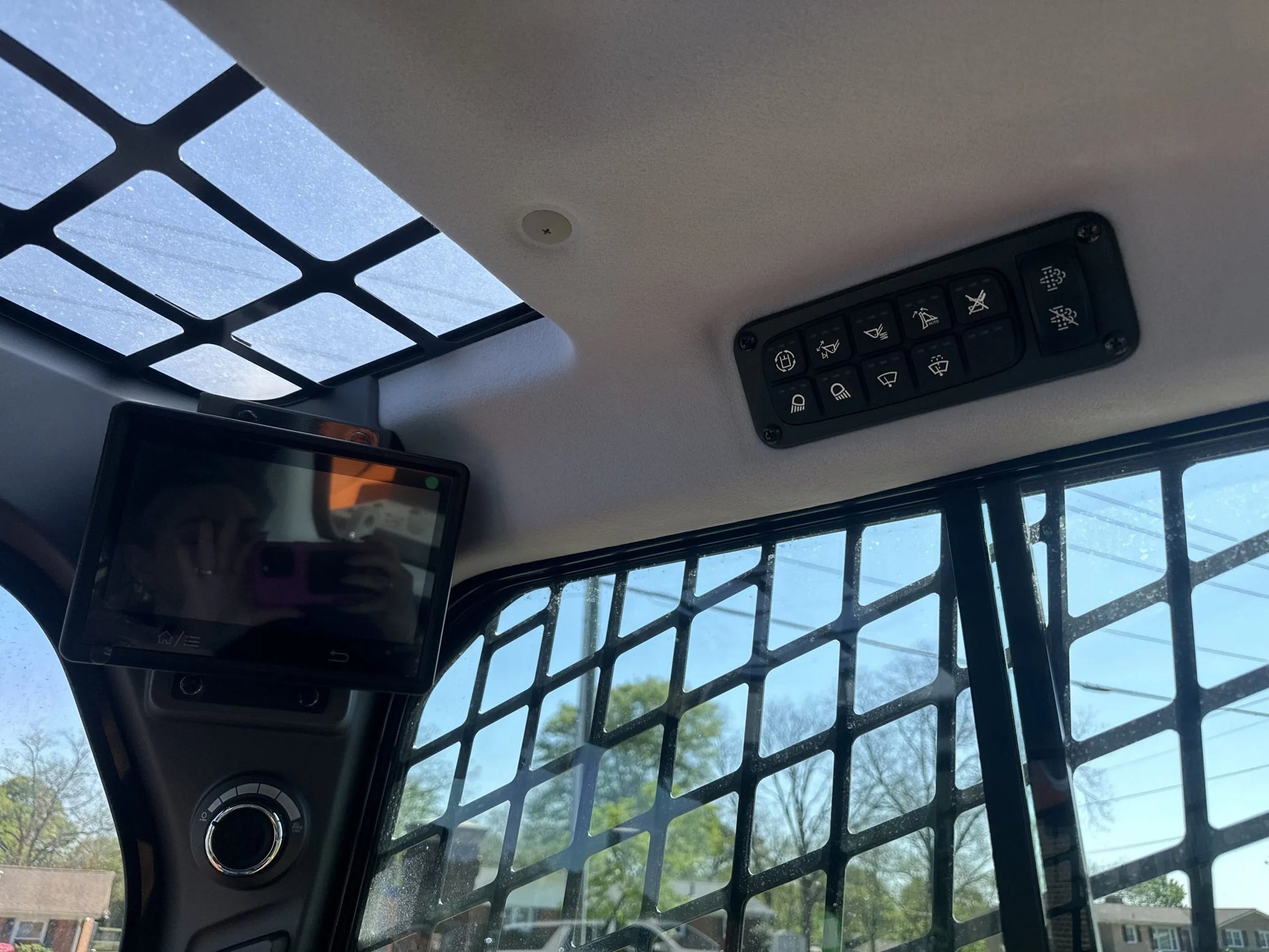

Durability is at the core of the DTL35's design. Its rugged polycarbonate door, torsion axle suspension, and optimized track patterns ensure long-term reliability in the most demanding conditions. This machine is also operator-focused, featuring a spacious interior, heated air-suspension seat, intuitive controls, and an 8-inch Smart Touch display with a rearview camera to ensure both comfort and safety during operation.
Key Features
- Powerful Engine: Boasts a 115.3 horsepower engine, delivering unmatched performance for tough tasks.
- Hydraulic Versatility: Features standard 22 GPM and high-flow 40 GPM auxiliary hydraulics for optimized attachment performance.

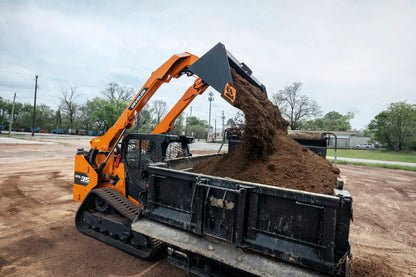

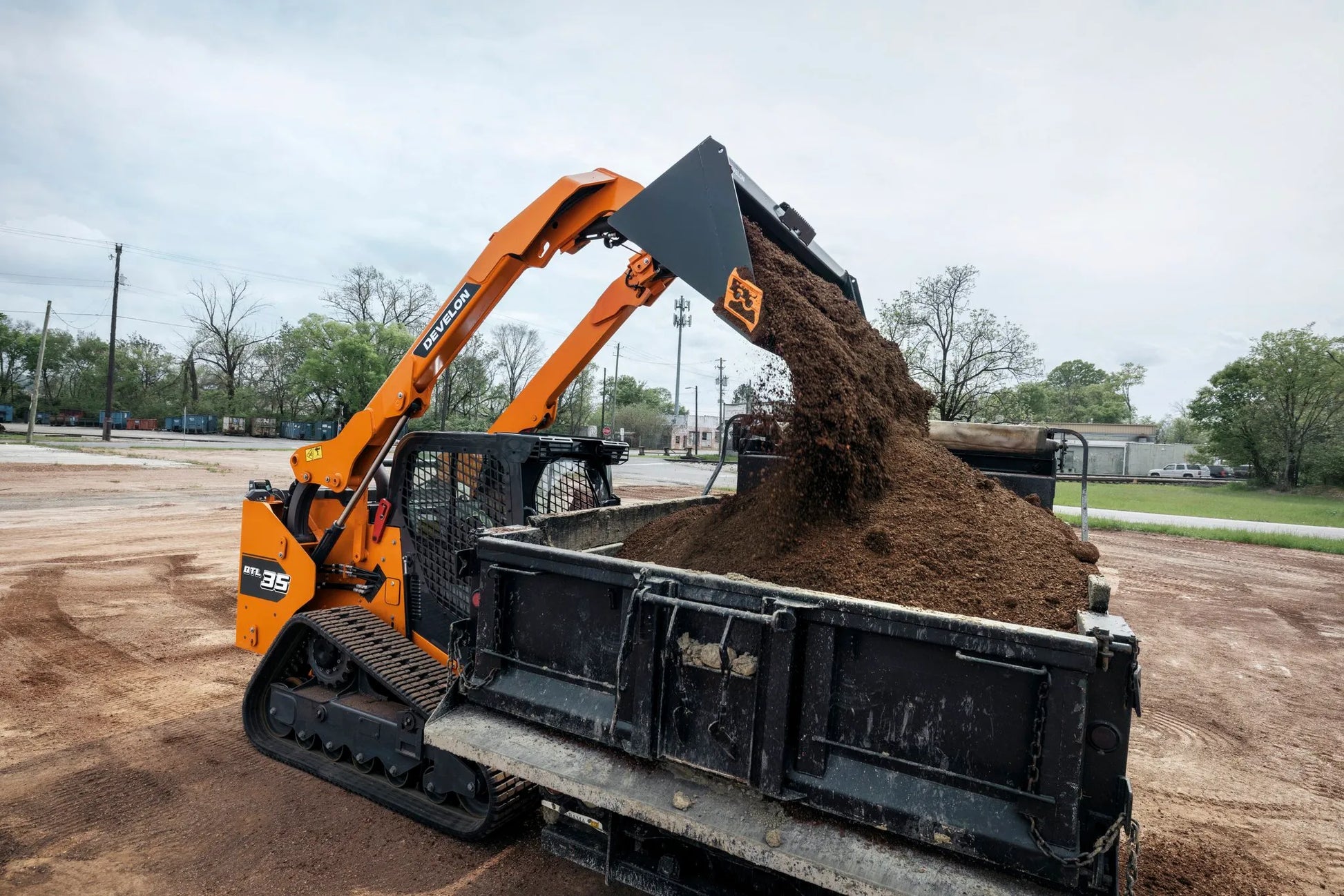

- Vertical Lift Configuration: Provides enhanced forward reach and superior dump height for high-sided truck loading.
- Ride Control: Reduces vibrations, ensuring stability and preventing spillage on rough terrain.
- Auto Return-to-Dig: Saves time by returning the arms to the lowered position for consistent digging depth.
- Durable Build: Features a ½-inch-thick polycarbonate door, torsion axle suspension, and reinforced cab design to withstand heavy-duty environments.

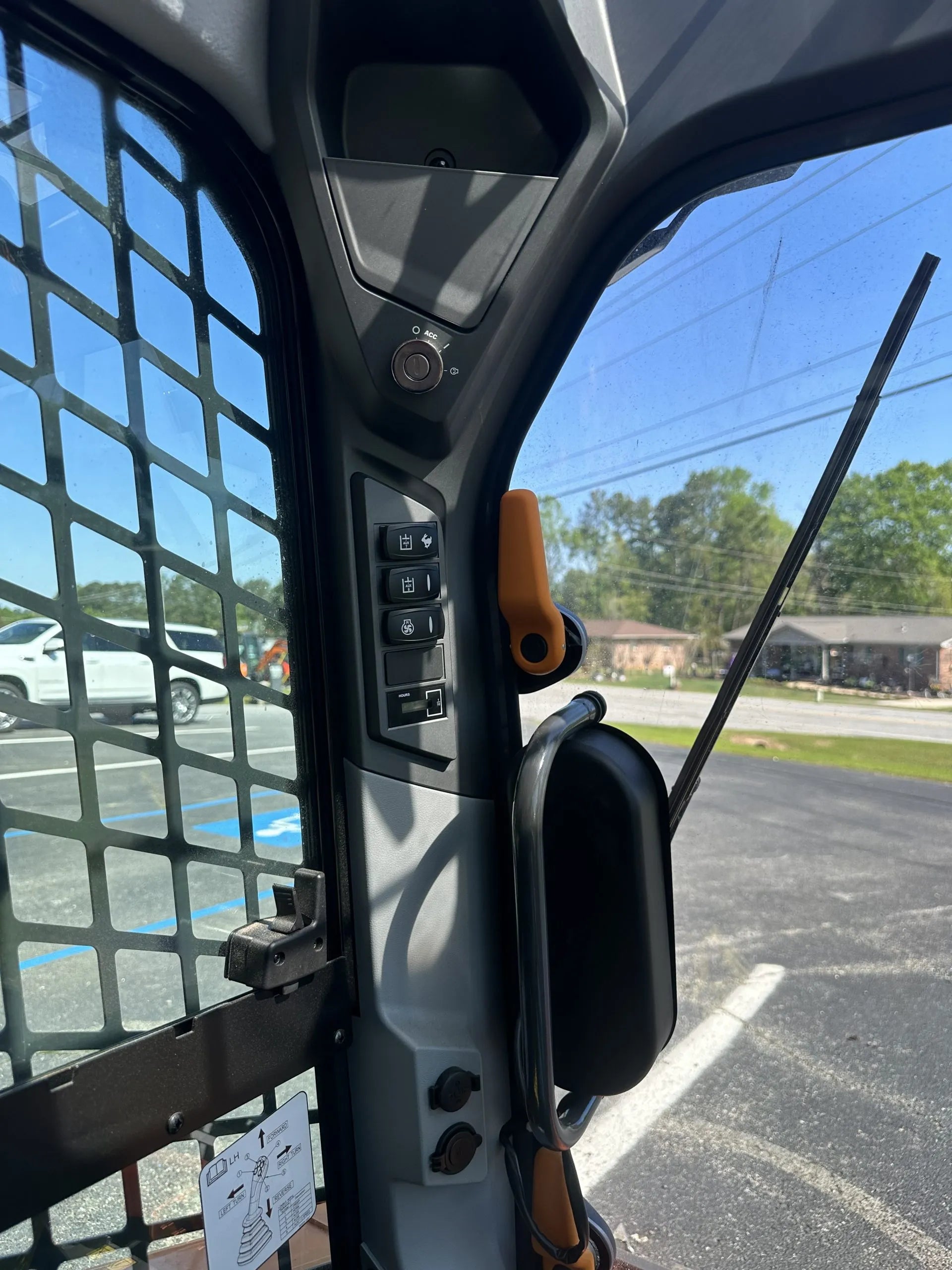

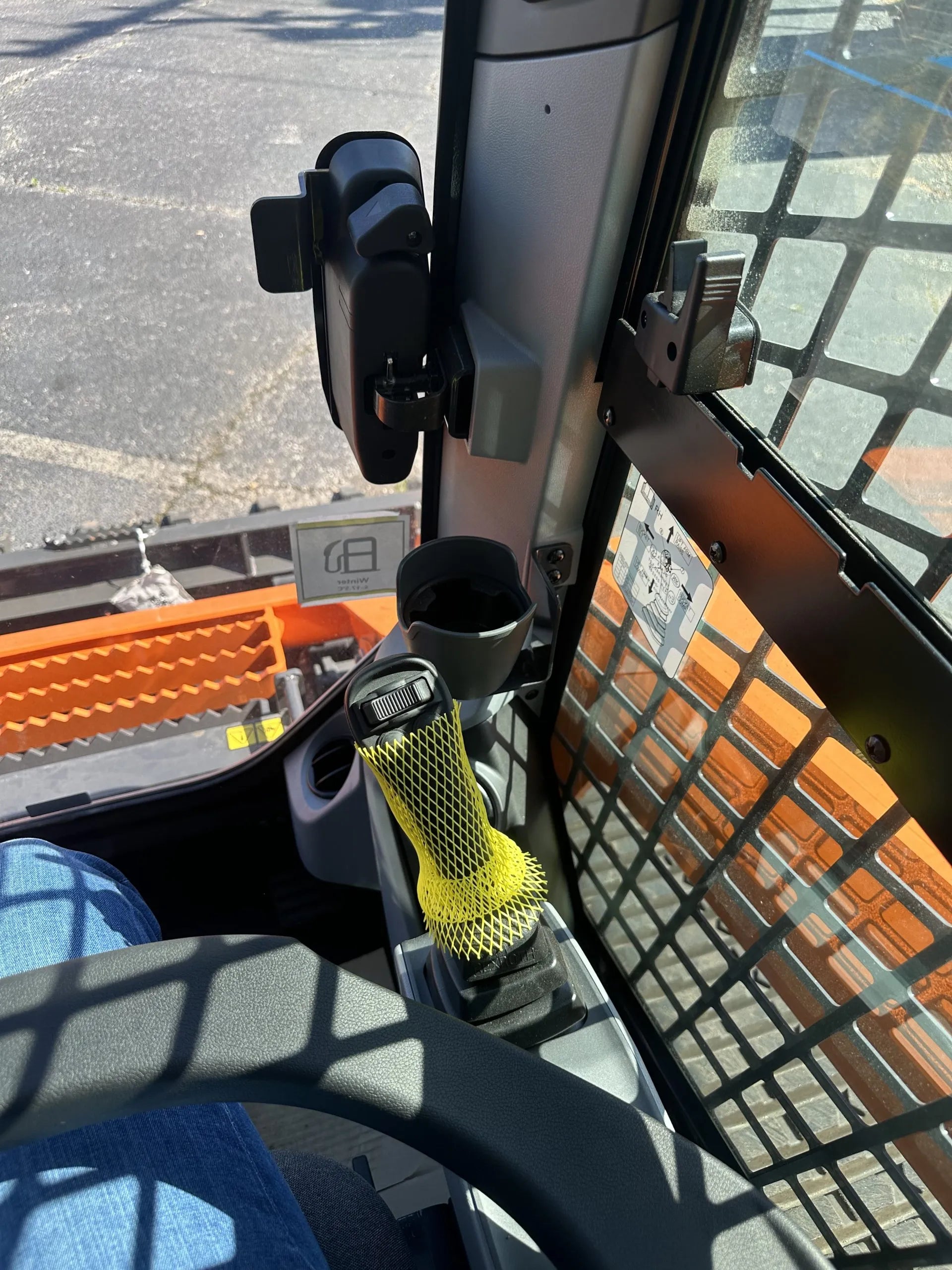

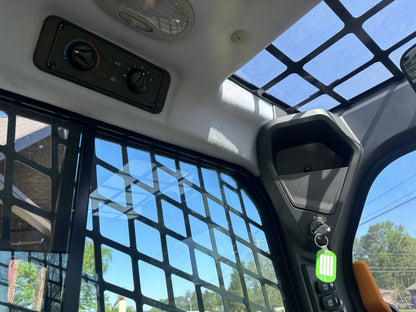

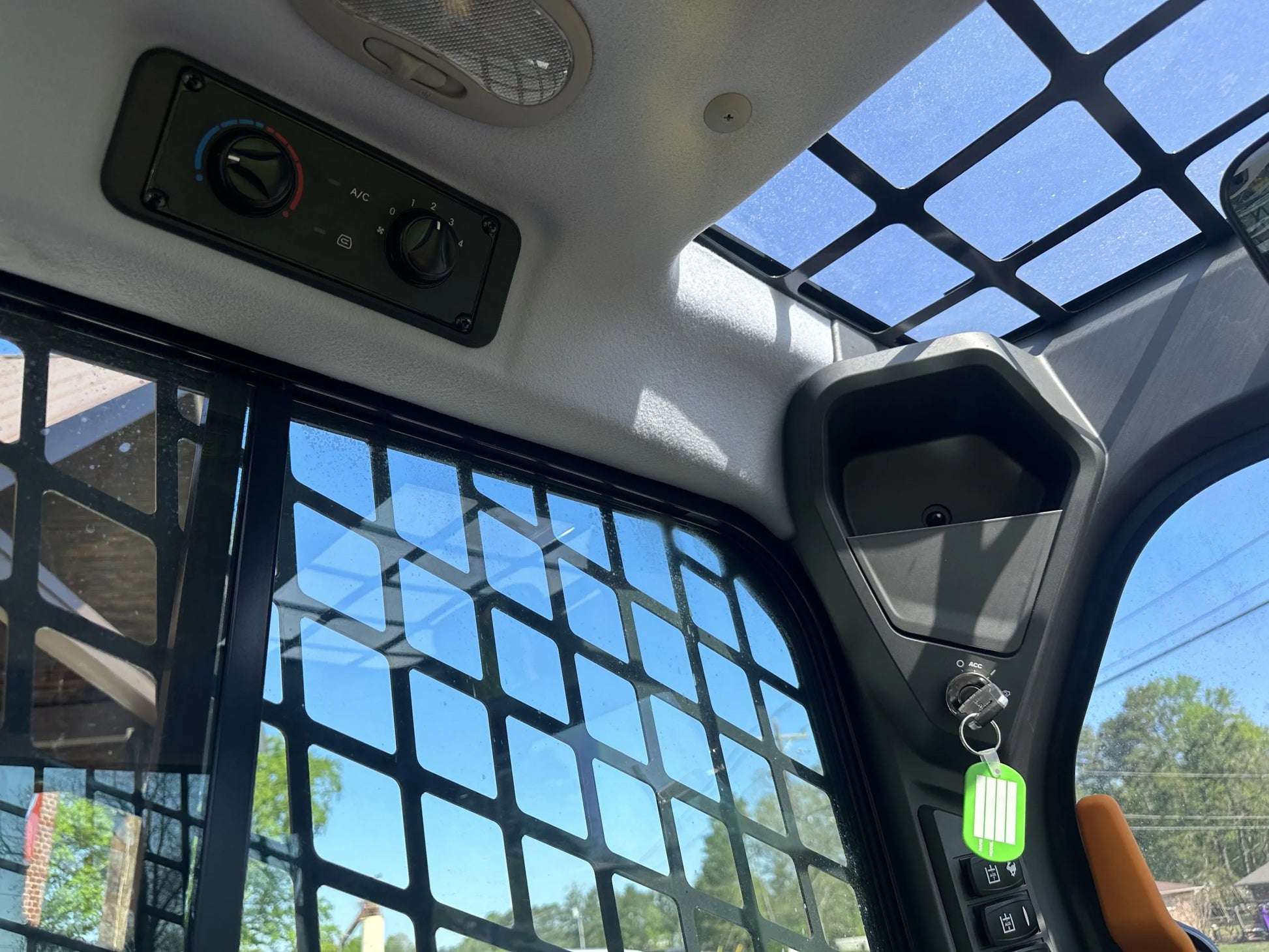

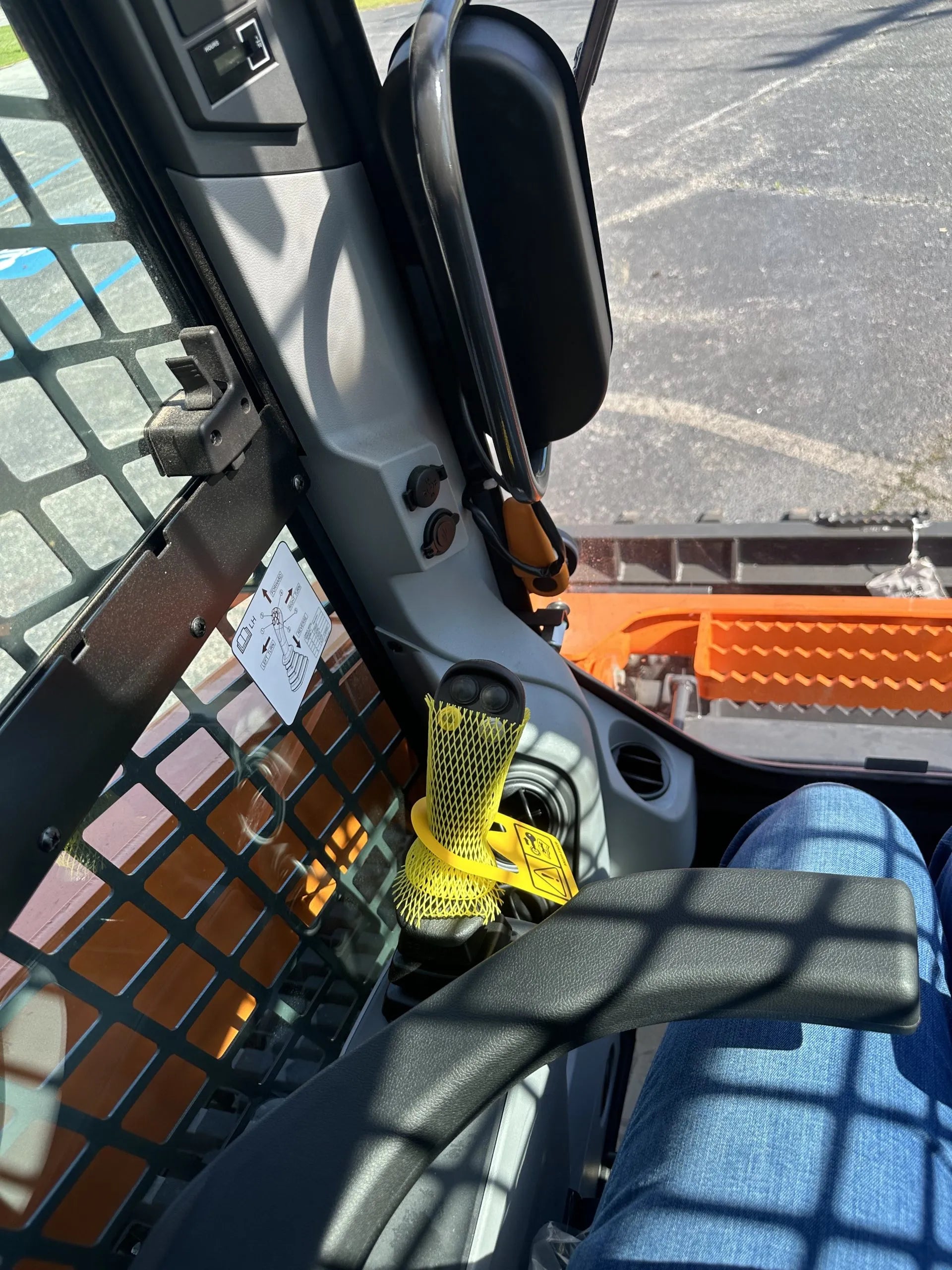

- Operator Comfort: Includes a large interior, heated air-suspension seat, adjustable armrests, and ergonomic controls for long hours of operation.
- High Visibility: Equipped with a rearview camera, optional around-view monitor (AVM), LED lighting, and narrower A-pillars for maximum jobsite awareness.
- Smart Telematics: Standard MY DEVELON system for fleet management, machine monitoring, and geofencing.
- Special Financing Options Available: Enjoy financing options of up to 84 months at 7% or extended terms of 120 months at 7%. Contact us for more details tailored to your needs.
-
Maintenance Made Simple: One-piece tilting cab and swing-open tailgate provide easy access to engine components, filters, and fluids.
Detailed Specifications
| Category | Details |
|---|---|
| Engine | 115.3 hp @ 2400 rpm (Gross) |
| Hydraulic System | Max Aux. Flow: 22 GPM (Standard) / 40 GPM (High Flow) |
| Operating Weight | 12,785 lb |
| Lift Capacity (35% Tipping Load) | 3,807 lb |
| Lift Capacity (50% Tipping Load) | 5,439 lb |
| Height to Top of Cab | 7′ 0″ |
| Length Without Bucket | 11′ 1″ |
| Vehicle Width (400mm Shoe) | 6′ 5″ |
| Vehicle Width (450mm Shoe) | 6′ 7″ |
| Max Travel Speed | 9.2 mph |
| Height to Hinge Pins at Max Lift | 10′ 9″ |
| Clearance at Max Lift and Dump | 8′ 1″ |
| Reach at Max Lift and Dump | 3′ 10″ |
| Track Idlers | Dual Flange Front / Single Flange Rear |
| Suspension System | Torsion Axle System |
