Product Description
Earth & Turf | MultiSpread | 410SP | Stand-On Top Dresser | 35.25" Width | 30" Spread Width | 13HP Honda Engine
DESCRIPTION

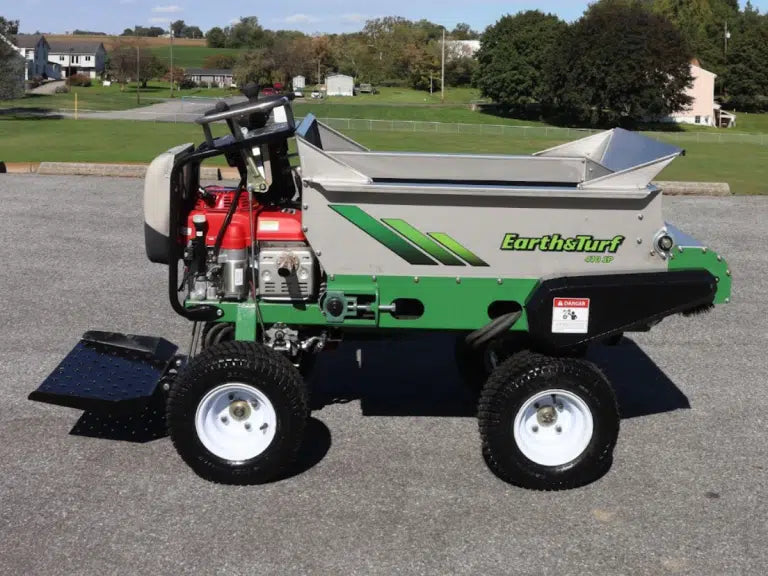

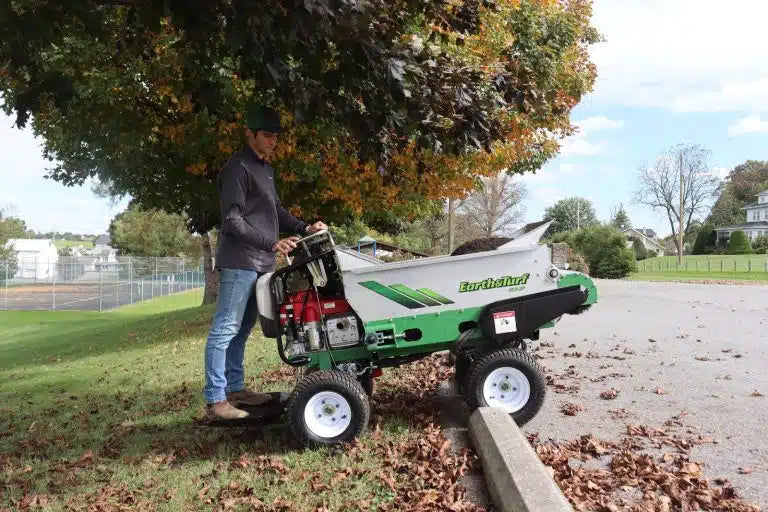

Experience unparalleled efficiency and precision with the Earth & Turf MultiSpread 410SP, a stand-on topdresser that revolutionizes the way you tackle topdressing tasks. Designed for professionals and large-scale landscaping projects, this compact yet powerful machine features an innovative 4-wheel drive and 4-wheel steer system, offering unmatched maneuverability and allowing you to get as close as possible to edges and corners.
The MultiSpread 410SP is engineered for performance, speed, and convenience, boasting a compact frame that fits through yard gates while delivering robust functionality. Its 30-inch wide brush expeller ensures even material distribution, whether you're spreading compost, sand, or soil, while the 800-pound capacity hopper minimizes refilling interruptions. With a powerful Honda GXV390 13 HP engine and hydrostatic drive, this topdresser reaches speeds of up to 5 MPH, allowing for efficient and swift operation that saves time and energy.
Built to Earth & Turf's exacting standards, this topdresser is tough enough to carry 100% capacity with sand, unlike competitors that can only manage 40%. The user-friendly controls, tight turn radius, and all-wheel drive make the MultiSpread 410SP not just a tool but a game-changer for topdressing.
Key Features

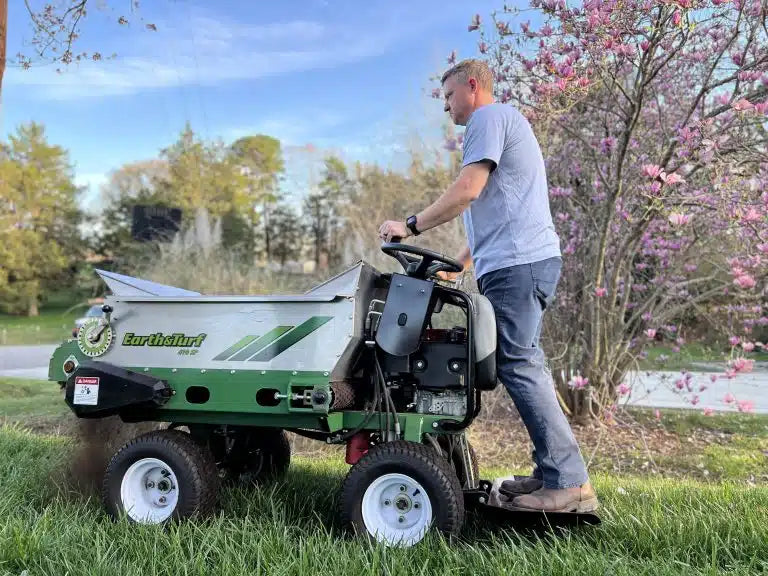

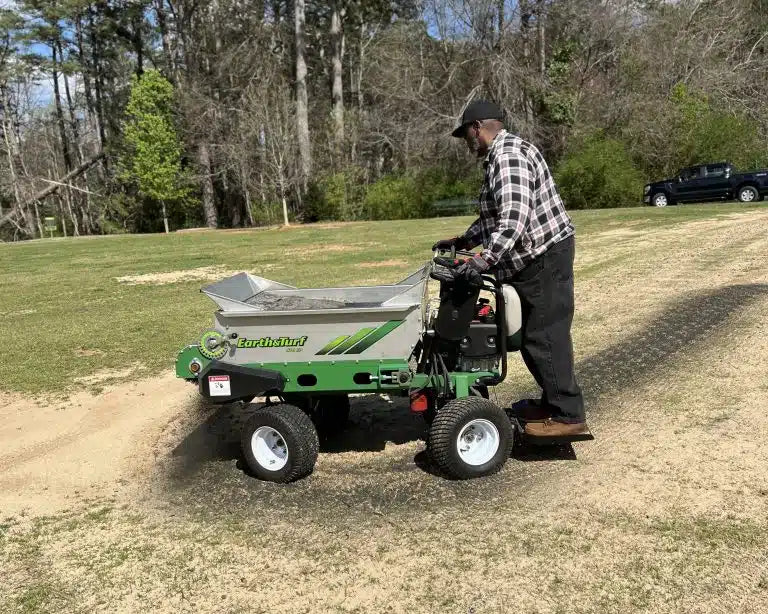

- Stand-On Design: Ergonomic and efficient, eliminating the need for walking, pushing, or pulling.
- 4-Wheel Drive & Steer: Ensures precision, maneuverability, and excellent traction across all terrains.

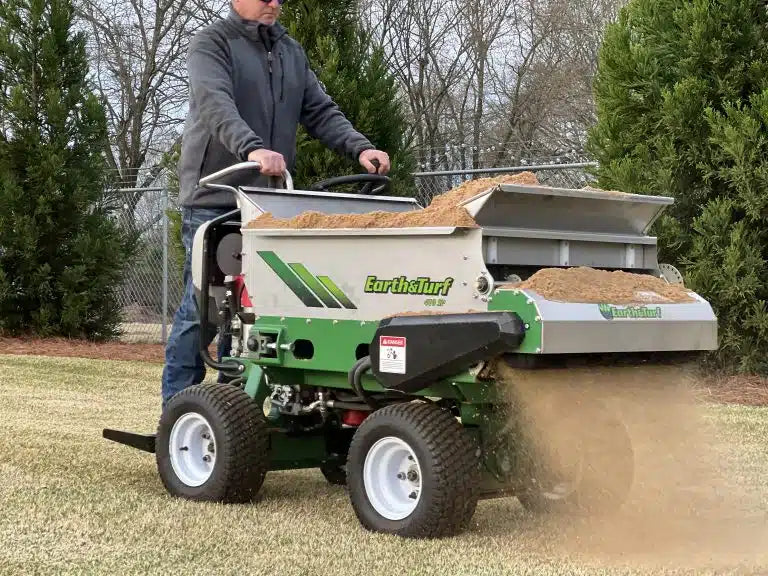

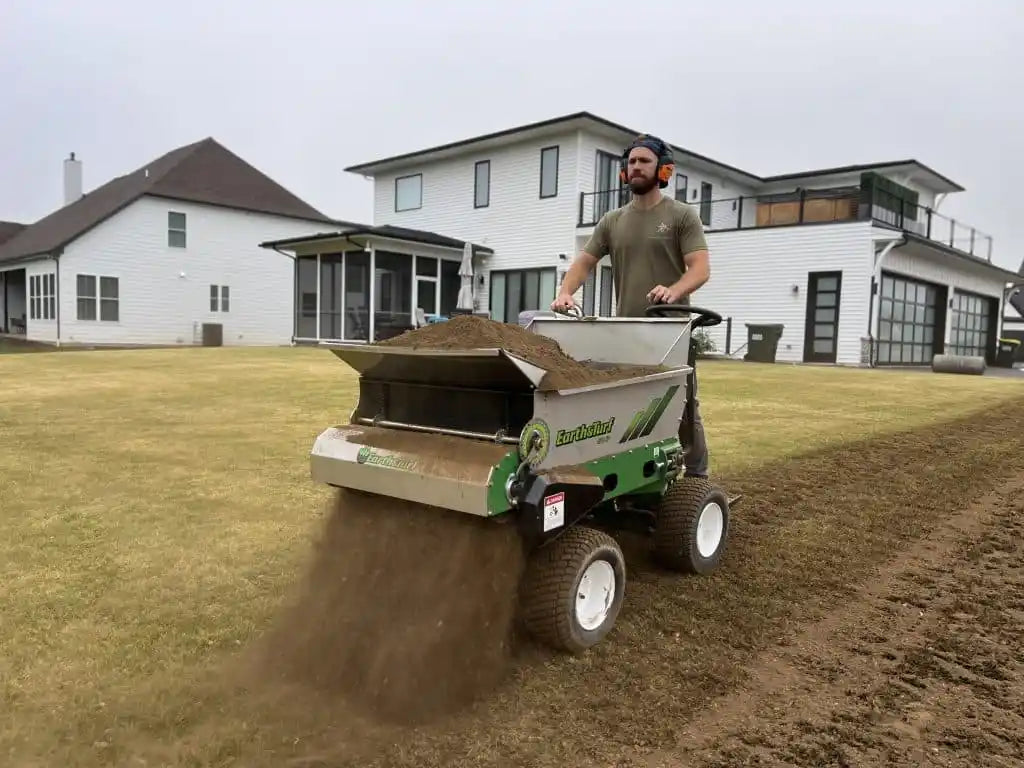

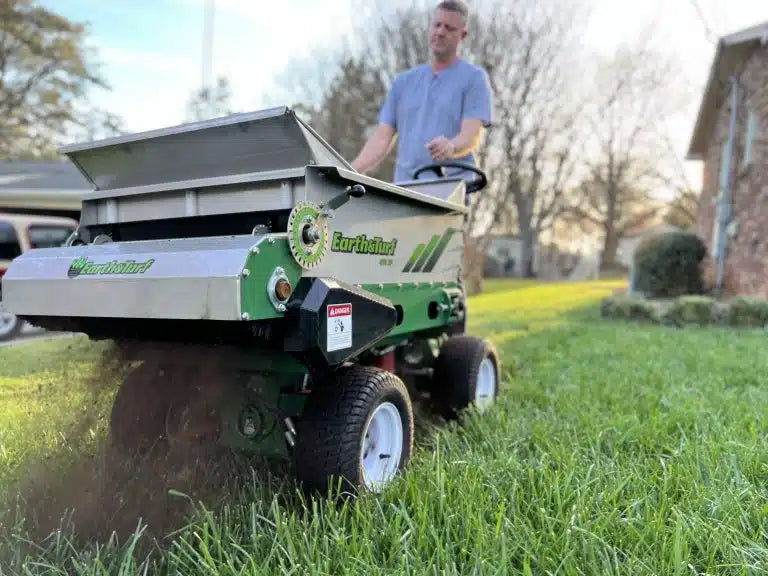

- 30-Inch Brush Expeller: Delivers even and professional-grade material distribution.
- Powerful Honda Engine: Equipped with a 13 HP GXV390 Honda engine for consistent performance.
- High Speed Capability: Operates at up to 5 MPH, significantly faster than traditional topdressers.
- Compact Width: At just 35.25 inches wide, it fits through standard yard gates effortlessly.

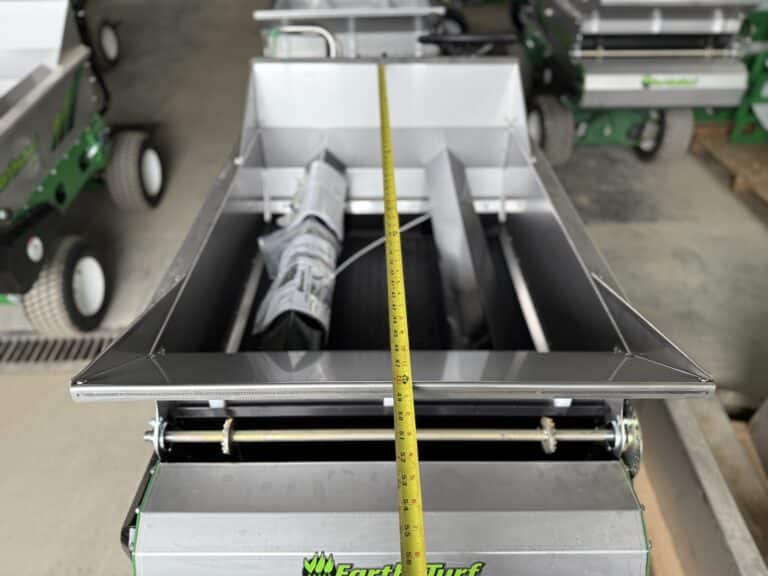

- Generous Capacity: Hopper holds 800 lbs. (10 cu. ft. compost), reducing downtime between refills.
- Hydrostatic Drive System: Includes 4 hydraulic motors for precise speed control and independent wheel movement.

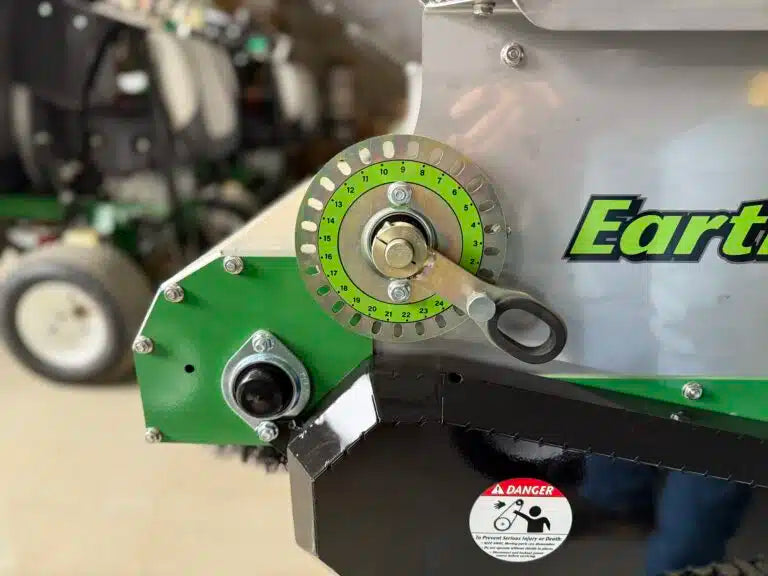

- Adjustable End Gate: Ensures customizable material flow for specific project requirements.
- Turf-Friendly Tires: Designed to avoid ruts and surface damage, even with full loads.

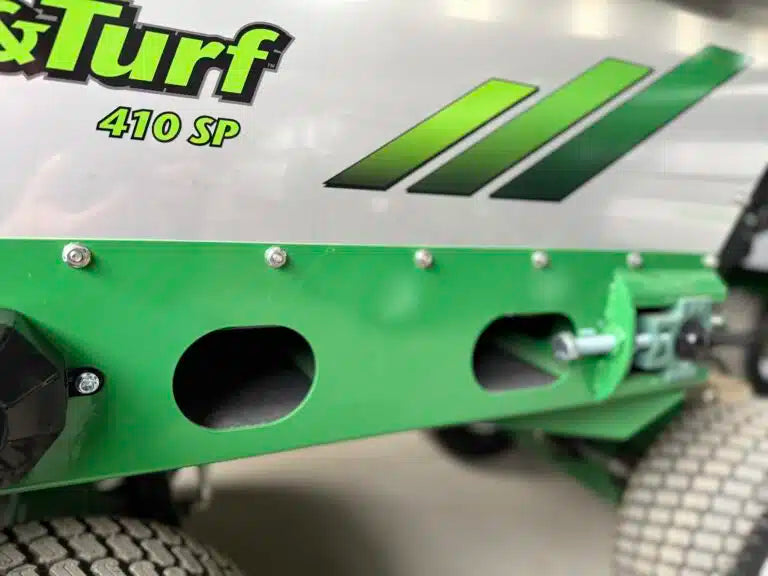

- Pressure Washer Clean-Out Ports: Simplifies maintenance with easy-access cleaning points.

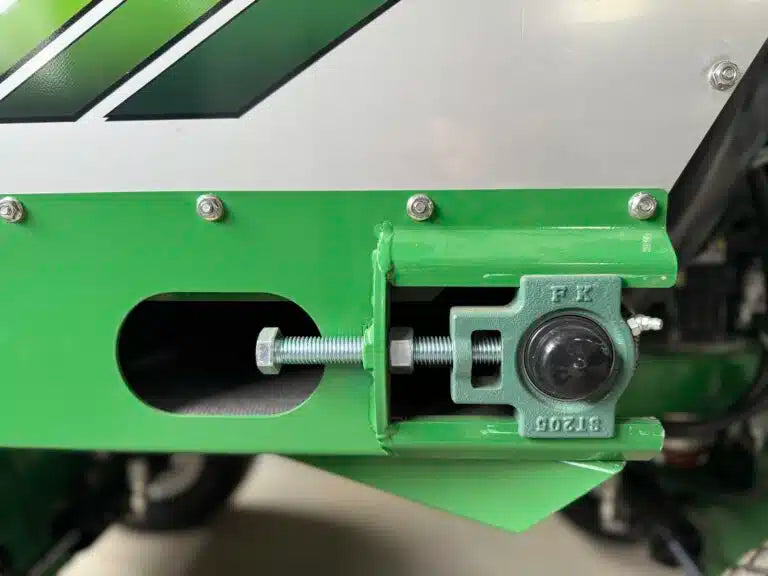

- Belt Tightening Adjustment: Provides smooth operation with hassle-free belt maintenance.

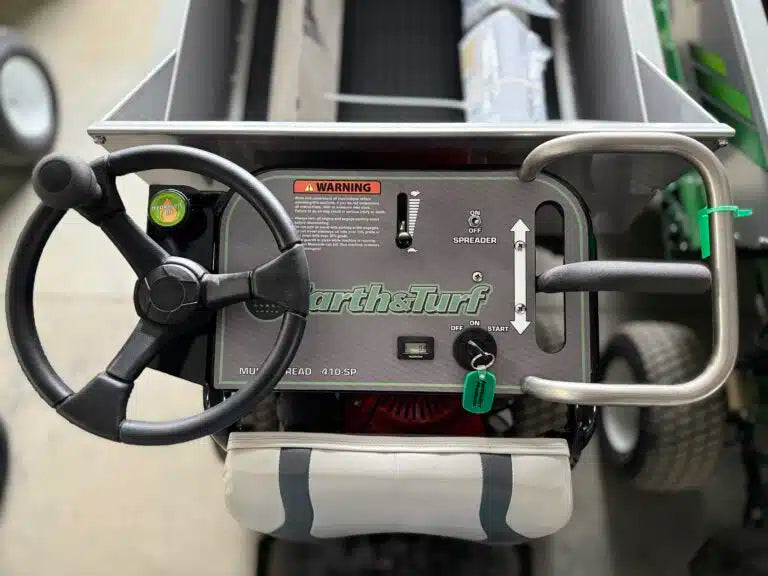

- User-Friendly Controls: Simple and intuitive dashboard makes operation quick to learn.

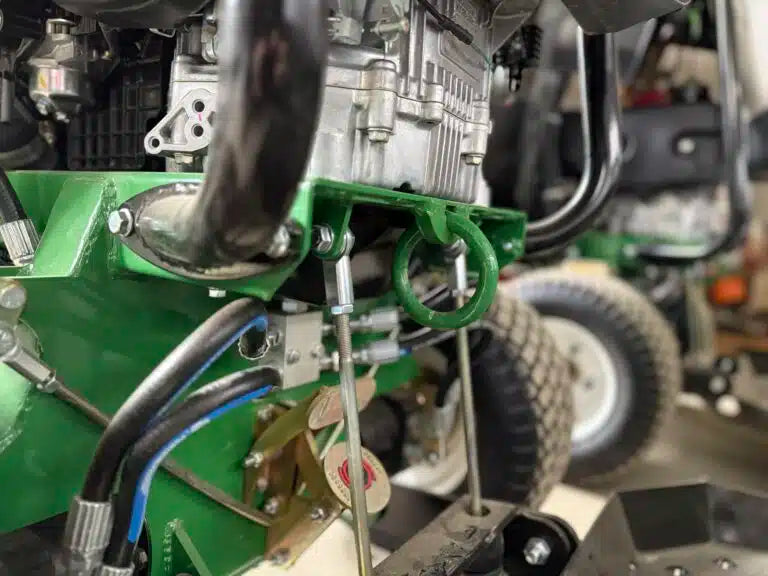

- Tie-Down Rings: Front and rear rings ensure secure transport for on-the-go jobs.

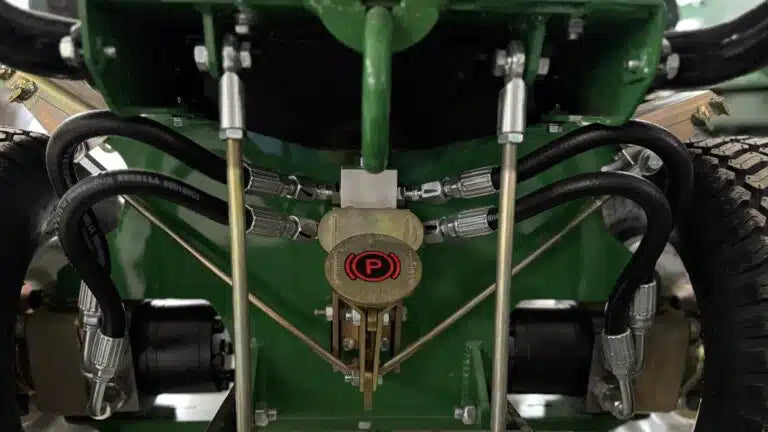

- Parking Brake: Clamping tooth-style brake secures the machine during transit and parking.
Detailed Specifications
| Specification | Detail |
|---|---|
| Struck Capacity | 8 cu. ft. |
| Heaped Capacity | 12 cu. ft. |
| Weight Capacity | 800 lbs |
| Box Width | 30.25 in. |
| Overall Width | 35.25 in. |
| Width at Tires | 34 in. |
| Spread Thickness | Up to 0.5 in. |
| Gross Weight Rating | 1,830 lbs |
| Unit Weight | 830 lbs |
| Max Speed | 5 MPH |
| Engine | Honda GXV390 (13 HP) |
| Main Pump | Hydro-Gear 12CC PK (10.8 GPM) |
| Drive System | Hydrostatic, 4-Wheel Drive/Steer |
| Wheel Motors | Custom 200CC Hydraulic Motors |
| Movement Type | Stand-On, Self-Propelled |
| Expeller Type | 30 in. Wide Brush Expeller |
| Gate Control | Manual Adjustable End-Gate |
| Clean-Out Ports | Dual-Sided Pressure Washer Ports |
| Tires | Turf Tread |
| Tie-Downs | Front & Rear Ring Tie-Downs |
| Brake | Clamping Tooth-Style Parking Brake |
