Earth & Turf | MultiSpread | 415SP | Stand-On Top Dresser | 55" Overall Width | 48" Spread Width | 22HP Honda Engine
DESCRIPTION

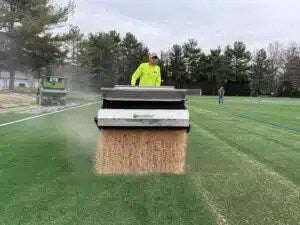

The Earth & Turf MultiSpread 415SP is a groundbreaking topdresser that redefines efficiency, precision, and operator convenience for professional turf care and landscaping. As the first and only stand-on topdresser equipped with 4-wheel drive and 4-wheel steer capabilities, this innovative machine empowers operators to spread clean edges and navigate tight spaces effortlessly. The MultiSpread 415SP is perfect for golf courses, sports fields, municipalities, or any large-scale turf maintenance project requiring advanced topdressing solutions.

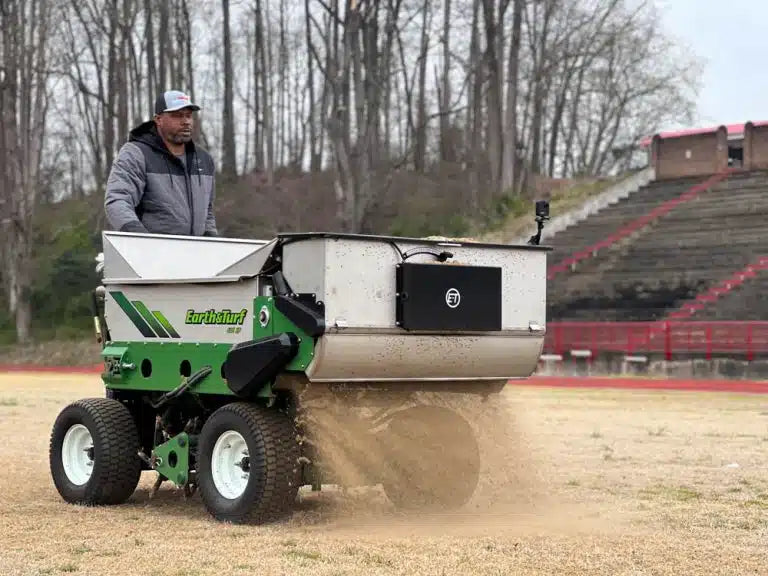

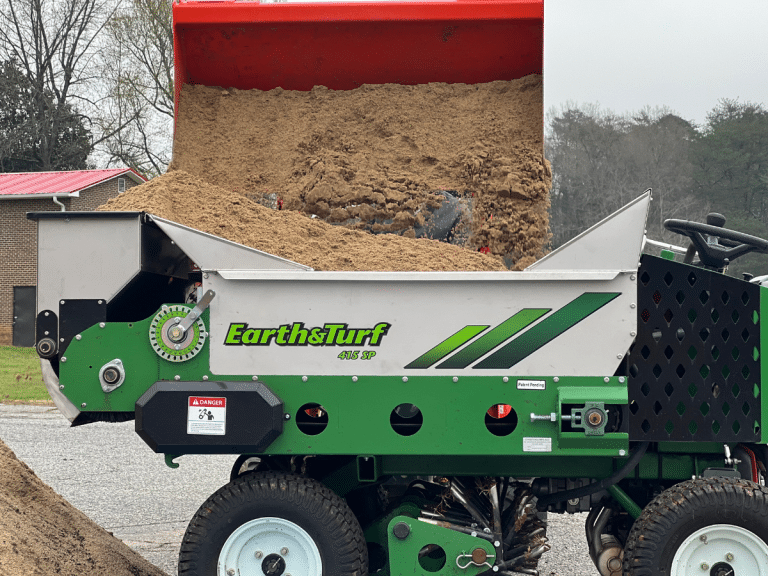

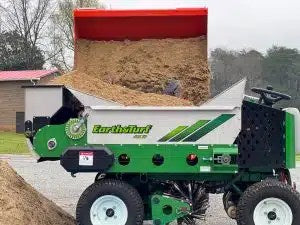

Designed to handle heavy loads, the MultiSpread 415SP can carry a full capacity of sand—a feat unmatched by competitors that manage only 40%. Its 48-inch wide brush expeller ensures even material distribution, whether you're spreading compost, soil, or sand, while the 22 HP Honda GX690 engine and Hydro-Gear hydrostatic drive guarantee power and precision. With a spreading speed of up to 7 MPH and a hopper capable of holding 1,500 lbs. or nearly 1 cu. yd. of material, this stand-on topdresser is up to three times faster than conventional walk-behind models, saving time and boosting productivity.
Packed with user-friendly features like easy-to-use controls, a tight turn radius, adjustable end gate, and loading chutes, the MultiSpread 415SP makes topdressing tasks seamless and efficient. Optional attachments like the overseeding box and adjustable-depth aerator further enhance its functionality, solidifying its status as the ultimate topdressing machine.
Key Features
- Stand-On Design: Eliminates the need for walking, pushing, or pulling, ensuring operator comfort and efficiency.
- 4-Wheel Drive & Steer: Delivers unmatched maneuverability and traction, enabling precise spreading even in tight spaces.

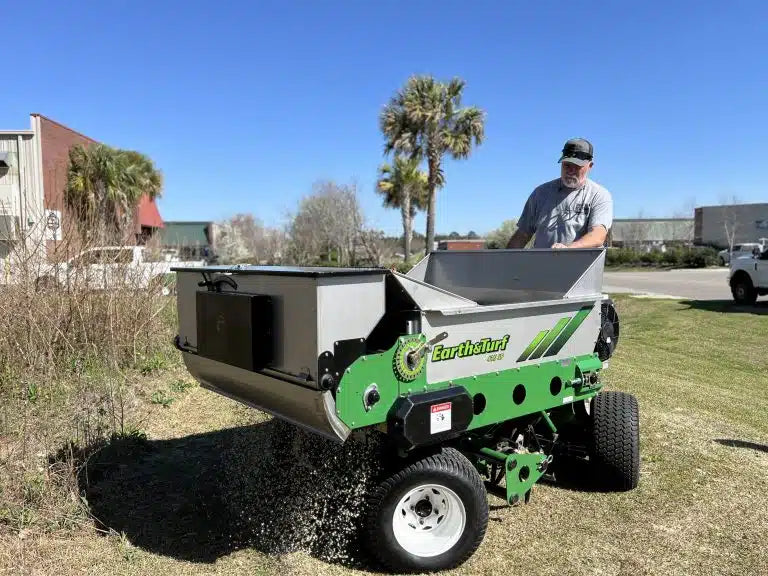

- 48-Inch Brush Expeller: Provides the widest and most consistent material spread in the topdressing industry.

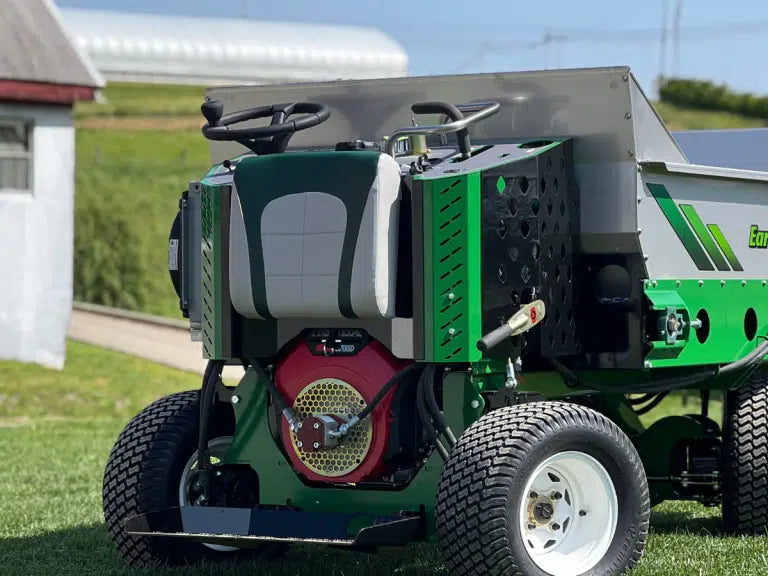

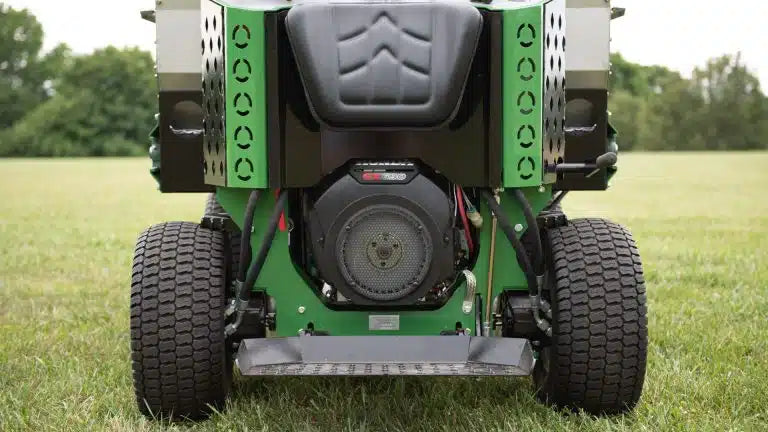

- Powerful Honda Engine: Equipped with a 22 HP GX690 engine for reliable and high-performance operation.
- High-Speed Operation: Spreads materials at speeds up to 7 MPH for rapid and efficient coverage.
- Generous Capacity: Hopper holds 15 cu. ft. (struck) or 1 cu. yd. (heaped) of material, minimizing refilling interruptions.

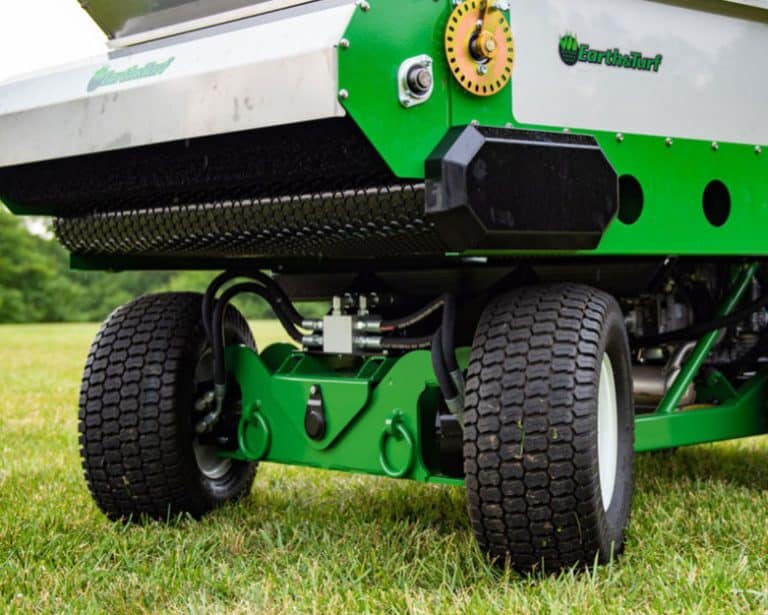

- Hydrostatic Drive System: Four hydraulic motors individually drive and steer each wheel for precision and control.

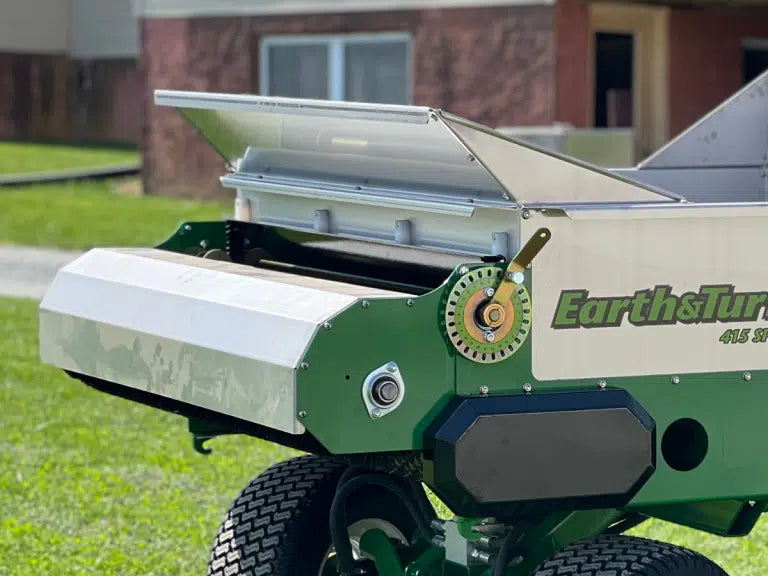

- Adjustable End Gate: Provides customized material flow for diverse spreading conditions.
- Tight Turn Radius: Individually driven wheels allow exceptional maneuverability for clean and precise application.
- Turf-Friendly Tires: Protect surfaces and prevent ruts, even with heavy loads.

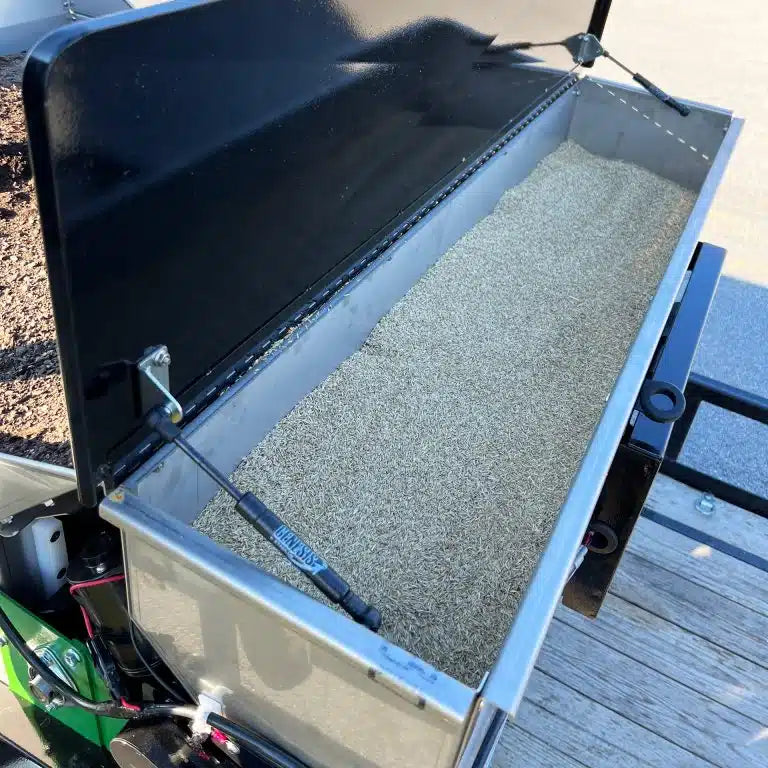

- Optional Attachments: Overseeding box and adjustable-depth aerator enhance versatility for specialized tasks.
Detailed Specifications
| Feature | Details |
|---|---|
| Capacity | 15 cu. ft. Struck / 1 cu. yd. Heaped |
| Max Load Weight | 1,500 lbs (680 kg) |
| Box Width | 48 inches (121.92 cm) |
| Box Length | 46 inches (116 cm) |
| Box Height | 12 inches (30.48 cm) |
| Total Width | 55 inches (139.7 cm) |
| Total Length | 76 inches (193.04 cm) |
| Total Height | 50 inches (127 cm) |
| Spread Width | 48 inches |
| Spread Thickness | 0.25 inches (6.35 mm) |
| Spread System | Stiff Bristled Rotating Expeller Brush |
| Unit Weight | 1,500 lbs |
| Gross Weight (Max) | 3,400 lbs |
| Drive | 4-Wheel Hydrostatic (300 CC Custom Motors) |
| Engine | 22 HP Honda GX690 |
| Main Pump | Hydro-Gear 21CC PY – 19.6 GPM |
| Auxiliary Pump | 6.2 CC Gear Pump |
| Max Spreading Speed | 7 MPH |
| Safe Slope – Sideways | 8° |
| Safe Slope – Up/Down | 22° |
