Kunz Engineering | Chisel Plow | Till-Ease | Model 760T | Tillage Tool | 60" Width | 30-40 HP | Tractor

Product Description

KUNZ | Chisel Plow | Till-Ease | Model 760T | Tillage Tool | 60" Width | 30-40 HP | Tractor

DESCRIPTION

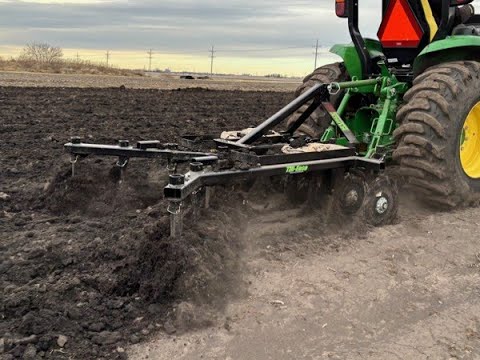

The Kunz Engineering Till-Ease Model 760T is a powerful 60-inch wide 3-point chisel plow and field cultivator designed for compact tractors in the 30 to 40 horsepower range. Engineered with rugged durability and high-performance functionality in mind, the 760T stands out as a top-of-the-line tillage tool capable of deep soil penetration and consistent field results.

With rigid 1-3/8" square shanks, 13.5" straight-style coulters, and an adjustable frame that accommodates different attachments, the Model 760T is designed to make light work of even the toughest tilling conditions. Whether you're breaking new ground or preparing seedbeds, the 760T offers exceptional control, easy customization, and unmatched efficiency.

This heavy-duty implement includes 7 front cutting coulters and 7 rear shanks, allowing deep tillage up to 8 inches. It comes standard with 9″ field cultivator sweeps for secondary tillage and 2″ reversible chisel points for harder soils. Optional attachments such as a drag harrow or turning shovel kit make the 760T even more versatile for various soil conditions and farming needs.

From first pass to final prep, the 760T delivers consistent results with every use.

Key Features

• 60″ Cutting Width Ideal for medium-sized plots and compact tractors.
• Category 1 Standard 3-Point Hitch Quick hitch compatible for fast attachment.
• 7 Cutting Coulters & 7 Rigid Shanks Ensures deep and aggressive ground engagement.
• Till Up to 8" Deep Efficiently breaks through hardpan layers and compaction zones.
• Included Sweeps Comes with both 9" field cultivator sweeps and 2" chisel points.
• Weight Rack Mounts Enhance coulter penetration with optional added weight.
• Optional Attachments Available Drag harrow and turning shovel kit expand functionality.
• Rear Attachment Receivers Easy install of harrow or accessories.
• Heavy-Duty Construction Built for years of reliable use with agricultural-grade materials.
• Compact Tractor Compatibility Designed for tractors in the 30–40 HP range.

Features	Photos
Rigid shanks make for effortless penetration in hard ground conditions. Rigid shanks also maintain a constant attack angle which helps to efficiently shatter the ground and lower the pulling load requirement.
The Model 760T uses several common style sweeps for different applications. The 9" field cultivator sweeps are used for softer ground conditions or secondary tillage. The chisel points work very well for extremely hard ground conditions. An optional set of turning shovel sweeps can be purchased for working in sod conditions.
Straight style cutting coulters are mounted across the front of the Model 760T. These coulters are used to cut light plant debris and prevent hair pinning on the rear shanks. They also help to reduce clod size on secondary passes.
The Model 760T is equipped with a Category 1 standard 3-point hitch system. It is also quick hitch compatible.
Weight can be added to the weight racks on both sides of the tool frame. This helps with coulter penetration in harder ground conditions.
The Model 760T has shank receivers on both the front and back. These allow for easy shank removal or individual up and down adjustment.
Two attachment receivers are located at the back of the tool frame. An optional drag harrow is able to be attached into this location.

Detailed Specifications

Comparison Chart

Manuals & Documents

• Product Manual

• Product Brochure

• Product Specification Sheet
