Kunz Engineering | Chisel Plow | Till-Ease | Tillage Tool | Model 543T | 43" Width | 20–40 HP | For Tractor

Product Description

Kunz Engineering | Chisel Plow | Till-Ease | Tillage Tool | Model 543T | 43" Width | 20–40 HP | For Tractor

DESCRIPTION

The KUNZ 3-Point Chisel Plow Till-Ease Model 543T, a compact yet powerful tillage tool designed to enhance your farming efficiency. With a 43-inch tillage width, this chisel plow is engineered for deep tillage work, making it an essential addition to your agricultural equipment. The Model 543T features rigid shanks and cutting coulters, ensuring superior ground penetration and effective soil management.

This versatile tillage tool is capable of tilling up to 8 inches deep, allowing you to break up compacted soil and prepare seedbeds with ease. Designed to be attached to compact tractors ranging from 20 to 40 horsepower, the Model 543T is perfect for farmers looking to improve soil health and optimize crop yields. Whether you're preparing fields for planting or managing soil conditions, the KUNZ 3-Point Chisel Plow Till-Ease Model 543T is built to deliver outstanding performance.

Key Features

• 43" Working Width Perfectly sized for compact tractors with limited space requirements.
• Category 1 3-Point Hitch Standard and quick hitch compatible for fast, secure attachment.
• 5 Cutting Coulters + 5 Rear Shanks Maximizes cutting and tilling efficiency with clean soil fracture.
• Rigid Shank Design Maintains optimal attack angle for powerful, consistent penetration.
• Till Up to 8" Deep Ideal for deep tillage in tough, compacted soils.
• Includes Dual Sweep Styles 9" field cultivator sweeps for soft soils; 2" chisel points for hardpan.
• Weight Rack Integration Allows additional downforce for harder conditions.
• Optional Attachments Available Drag Harrow and Turning Shovel Kit for enhanced versatility.
• Made in the USA Built with premium agricultural quality and craftsmanship.

Features	Photos

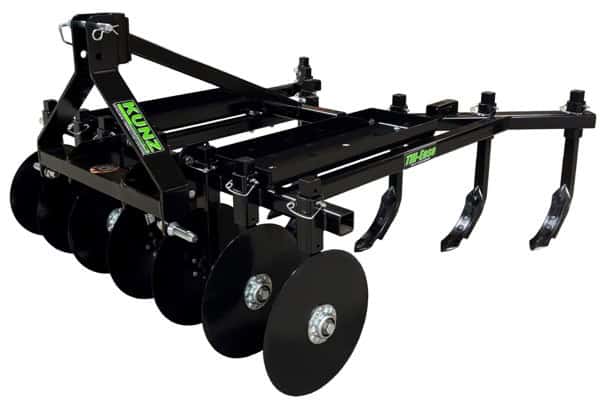

Rigid shanks make for effortless penetration in hard ground conditions. Rigid shanks also maintain a constant attack angle which helps to efficiently shatter the ground and lower the pulling load requirement.
The Model 760T uses several common style sweeps for different applications. The 9" field cultivator sweeps are used for softer ground conditions or secondary tillage. The chisel points work very well for extremely hard ground conditions. An optional set of turning shovel sweeps can be purchased for working in sod conditions.

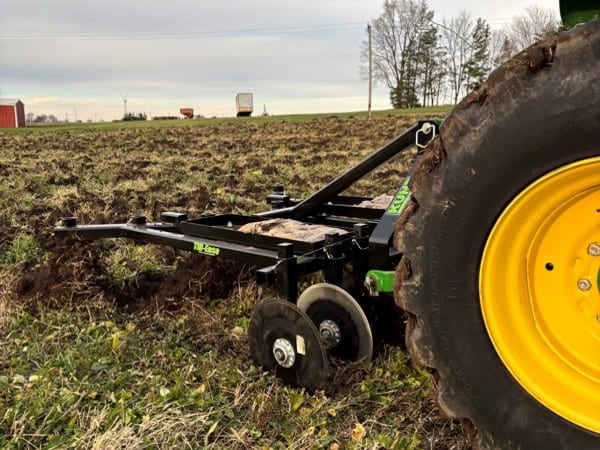

Straight style cutting coulters are mounted across the front of the Model 760T. These coulters are used to cut light plant debris and prevent hair pinning on the rear shanks. They also help to reduce clod size on secondary passes.

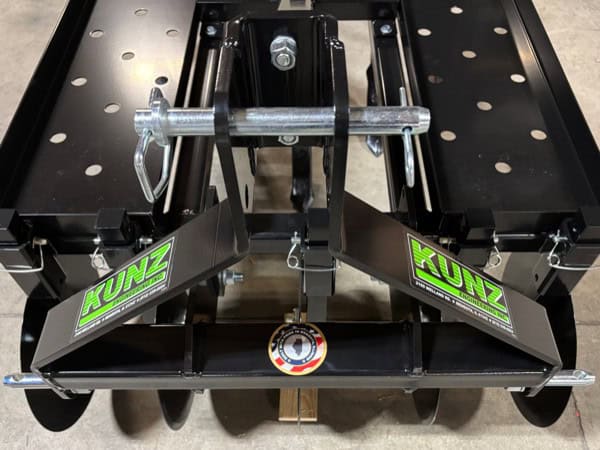

The Model 760T is equipped with a Category 1 standard 3-point hitch system. It is also quick hitch compatible.
Weight can be added to the weight racks on both sides of the tool frame. This helps with coulter penetration in harder ground conditions.
The Model 760T has shank receivers on both the front and back. These allow for easy shank removal or individual up and down adjustment.

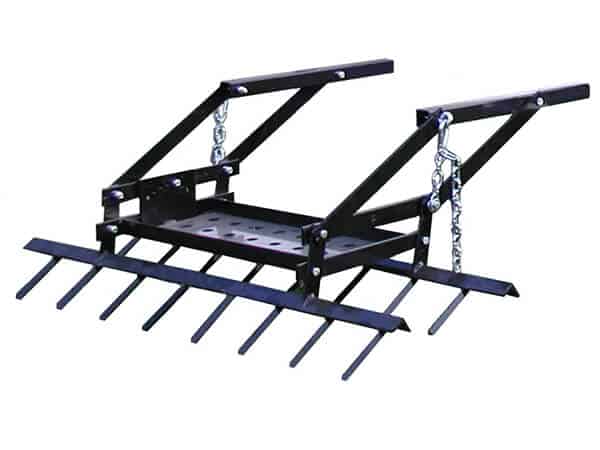

Two attachment receivers are located at the back of the tool frame. An optional drag harrow is able to be attached into this location.

Detailed Specifications

Comparison Chart

Manuals & Documents

• Product Manual

• Product Brochure

• Product Specification Sheet
